Transporto priemonė: 1617 AK; VIN numerio dalis: 385144

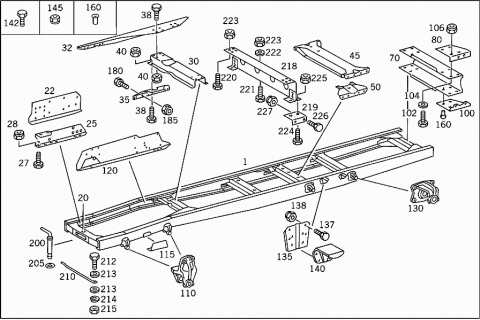

Grupė: 31 FRAME
| # | Kodas | Pavadinimas |
|---|---|---|
| 001 | A 3853100601 | FRAME |
| 001 | A 3853103702 | FRAME |
| 020 | A 3873100422 | CROSS MEMBER |
| FRONT | ||
| 022 | A 3853121187 | GUSSET PLATE |
| LEFT | ||
| 022 | A 3853121287 | GUSSET PLATE |
| RIGHT | ||
| 025 | A 3853121987 | GUSSET PLATE |
| Repalced by: A 3853122187 | ||
| 025 | A 3853122187 | GUSSET PLATE |
| LEFT | ||
| 025 | A 3853122087 | GUSSET PLATE |
| Repalced by: A 3853122287 | ||
| 025 | A 3853122287 | GUSSET PLATE |
| RIGHT | ||
| 027 | N 000961012106 | SCREW |
| CROSS MEMBER AND GUSSET PLATE TO FRAME SIDE MEMBERS | ||
| 028 | N 910113012002 | NUT |
| CROSS MEMBER AND GUSSET PLATE TO FRAME SIDE MEMBERS | ||
| A 3813100336 | CROSS MEMBER | |
| Repalced by: A 3813120015 | ||
| 030 | A 3813120015 | CROSS MEMBER |
| ENGINE REAR SUSPENSION | ||
| NO.2 | ||
| 032 | A 3813120652 | ANGLE |
| LEFT TOP | ||
| 032 | A 3813120752 | ANGLE |
| RIGHT TOP | ||
| 035 | A 3813120252 | ANGLE |
| LEFT BOTTOM | ||
| 035 | A 3813120352 | ANGLE |
| RIGHT BOTTOM | ||
| 038 | N 000933010128 | SCREW |
| ANGLE TO CROSS MEMBER | ||
| 038 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 038 | N 308676012012 | SCREW |
| ANGLE TO CROSS MEMBER | ||
| 040 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 040 | N 910113010000 | NUT |
| ANGLE TO CROSS MEMBER | ||
| 040 | N 910113012002 | NUT |
| ANGLE TO CROSS MEMBER | ||
| 045 | A 3813120017 | CROSS MEMBER |
| REAR SPRING FRONT BRACKET | ||
| NO.4 | ||
| 050 | A 3833120360 | REINFORCEMENT |
| AT CROSS MEMBER | ||
| 070 | A 3833100246 | CROSS MEMBER |
| REAR | ||
| 080 | A 3213120087 | GUSSET PLATE |
| TOP RIGHT | ||
| 080 | A 3213120187 | GUSSET PLATE |
| TOP LEFT | ||
| 100 | A 3833120587 | GUSSET PLATE |
| RIGHT BOTTOM | ||
| 100 | A 3833120487 | GUSSET PLATE |
| LEFT BOTTOM | ||
| 102 | N 000961014014 | SCREW |
| REAR CROSS MEMBER AND GUSSET PLATES TO SIDE MEMBERS | ||
| M 14X50 | ||
| 102 | N 000961014054 | SCREW |
| REAR CROSS MEMBER AND GUSSET PLATES TO SIDE MEMBERS | ||
| M 14X45 | ||
| 104 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 104 | N 000125015019 | WASHER |
| REAR CROSS MEMBER AND GUSSET PLATES TO SIDE MEMBERS | ||
| 106 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 106 | N 910113014001 | NUT |
| REAR CROSS MEMBER AND GUSSET PLATES TO SIDE MEMBERS | ||
| 110 | A 3523220301 | FRONT SPRING BRACKET |
| FRONT | ||
| 110 | A 3833220001 | FRONT SPRING BRACKET |
| REAR | ||
| 110 | A 3833220001 | FRONT SPRING BRACKET |
| FRONT AND REAR | ||
| 115 | A 3833220231 | PLATE |
| HELPER SPRING | ||
| 120 | A 3833110253 | ANGLE |
| LEFT | ||
| 120 | A 3833110353 | ANGLE |
| RIGHT | ||
| 130 | A 3523250101 | REAR SPRING BRACKET |
| FRONT AND REAR | ||
| A 3523250041 | STIFFENING | |
| Repalced by: A 3813250041 | ||
| 135 | A 3813250041 | STIFFENING |
| HELPER SPRING BRACKET TO SIDE MEMBER | ||
| 137 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 137 | N 308676012026 | SCREW |
| PLATE TO SIDE MEMBER | ||
| 138 | N 910113012002 | NUT |
| PLATE TO SIDE MEMBER | ||
| 140 | A 3523250417 | HELPER SPRING BRACKET |
| Repalced by: A 3893250117 | ||
| 140 | A 3893250117 | HELPER SPRING BRACKET |
| Repalced by: A 6843250017 | ||
| 140 | A 6843250017 | HELPER SPRING BRACKET |
| HELPER SPRING | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| MOUNTING USED FOR FRAME CONNECTION PARTS | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| DIMENSIONS ARE INDICATED IN THE FOLLOWING ORDER: | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| THREAD X SHANK DIA. X SHANK LENGTH X TOTAL LENGTH | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 142 | N 000609010004 | FITTED SCREW |
| M 10X11X14X28 | ||
| 142 | N 000610010003 | FITTED SCREW |
| M 10X11X25X38 | ||
| 142 | N 000609010014 | FITTED SCREW |
| M 10X11X24X40 | ||
| 142 | A 3859900514 | SCREW |
| M 10X11X26,5X46 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 142 | A 3859900714 | SCREW |
| M 12X12X10X25 | ||
| 142 | A 3859901414 | SCREW |
| M 12X12X11X26 | ||
| 142 | A 0039900901 | SCREW |
| Repalced by: A 0029908201 | ||
| 142 | A 0029908201 | SCREW |
| M 12X12X12X28 | ||
| 142 | A 3859901514 | SCREW |
| M 12X12X13X28 | ||
| 142 | A 0029908201 | SCREW |
| M 12X12X14X30 | ||
| 142 | A 3859902114 | SCREW |
| M 12X12X15X30 | ||
| 142 | A 0029908301 | SCREW |
| Repalced by: N 308676012013 | ||
| 142 | N 308676012013 | SCREW |
| M 12X12X16X32 | ||
| 142 | A 3859902214 | SCREW |
| M 12X12X17X32 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 142 | A 6209900114 | SCREW |
| M 12X13X12X29 | ||
| 142 | A 3969900314 | SCREW |
| M 12X13X13X30 | ||
| 142 | A 3589901914 | SCREW |
| M 12X13X15X32 | ||
| 142 | A 3559900014 | SCREW |
| M 12X13X18X35 | ||
| 142 | A 3589900614 | SCREW |
| M 12X13X21X38 | ||
| 142 | A 6179900114 | SCREW |
| M 12X13X23X40 | ||
| 142 | A 6249900014 | SCREW |
| M 12X13X25X42 | ||
| 142 | A 3859900214 | SCREW |
| M 12X13X35X52 | ||
| 142 | A 6689900114 | SCREW |
| M 12X13X58X80 | ||
| 142 | A 6689900014 | SCREW |
| M 12X13X63X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 142 | A 3859900814 | SCREW |
| Repalced by: A 3229903101 | ||
| 142 | A 3229903101 | SCREW |
| M 14X14X18X32 | ||
| 142 | A 3859902014 | SCREW |
| M 14X14X18X34 | ||
| 142 | A 3559900114 | SCREW |
| M 12X14X13X35 | ||
| 142 | A 3219901601 | SCREW |
| M 14X14X17X35 | ||
| 142 | A 3219901901 | SCREW |
| M 14X14X22X40 | ||
| 142 | A 3559900501 | SCREW |
| M 14X14X24X42 | ||
| 142 | A 3409900201 | SCREW |
| M 14X14X27X45 | ||
| 142 | A 3609902001 | SCREW |
| M 14X14X32X50 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 142 | A 3589900114 | SCREW |
| M 14X15X15X32 | ||
| 142 | A 3589900814 | SCREW |
| M 14X15X17X34 | ||
| 142 | A 6459900014 | SCREW |
| M 14X15X18X35 | ||
| 142 | A 3589901014 | SCREW |
| M 14X15X19X36 | ||
| 142 | A 3589900214 | SCREW |
| M 14X15X21X38 | ||
| 142 | A 3589900414 | SCREW |
| M 14X15X25X42 | ||
| 142 | A 3589900714 | SCREW |
| M 14X15X27X44 | ||
| 142 | A 3589900914 | SCREW |
| M 14X15X29X46 | ||
| 142 | A 3859900414 | SCREW |
| M 14X15X31X48 | ||
| 142 | A 3859900314 | SCREW |
| M 14X15X35X52 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 142 | A 3859900914 | SCREW |
| Repalced by: N 308676016020 | ||
| 142 | N 308676016020 | SCREW |
| M 16X16X18X36 | ||
| 142 | A 3859901714 | SCREW |
| M 16X16X20X38 | ||
| 142 | A 3859901014 | SCREW |
| M 16X16X22X40 | ||
| 142 | A 3859901114 | SCREW |
| M 16X16X24X42 | ||
| 142 | A 0029909901 | SCREW |
| Repalced by: A 3959900501 | ||
| 142 | A 3959900501 | SCREW |
| M 16X16X20X45 | ||
| 142 | A 3859901814 | SCREW |
| M 16X16X30X48 | ||
| 142 | A 3859901914 | SCREW |
| M 16X16X32X50 | ||
| 142 | A 6259900301 | SCREW |
| M 16X16X38X90 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 142 | A 3589900514 | SCREW |
| M 16X17X22X42 | ||
| 142 | A 6459900714 | SCREW |
| M 16X17X24X44 | ||
| 142 | A 3609900114 | SCREW |
| M 16X17X28X48 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 142 | A 3469900014 | SCREW |
| M 16X18X18X40 | ||
| 142 | A 3859902314 | SCREW |
| M 18X18X23X45 | ||
| 142 | A 6209900014 | SCREW |
| M 16X18X26X48 | ||
| 142 | A 3469900114 | SCREW |
| M 16X18X31X50 | ||
| 142 | A 3859902414 | SCREW |
| M 18X18X33X55 | ||
| 142 | A 6229900014 | SCREW |
| M 16X18X38X60 | ||
| 142 | A 3919900014 | SCREW |
| M 16X18X63X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 142 | N 000610018004 | FITTED SCREW |
| M 18X19X25X45 | ||
| 142 | N 000610018009 | FITTED SCREW |
| M 18X19X33X55 | ||
| 142 | N 000610018006 | FITTED SCREW |
| M 18X19X38X60 | ||
| 142 | N 000609018000 | FITTED SCREW |
| M 18X19X57X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 145 | N 913004010011 | NUT |
| 145 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 145 | N 910113012003 | NUT |
| 145 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 145 | N 910113014000 | NUT |
| 145 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 145 | N 910113016001 | NUT |
| 145 | N 913004018004 | NUT |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 160 | N 910005010012 | RIVET |
| 10X24 MM | ||
| 160 | N 910005010014 | RIVET |
| 10X26 MM | ||
| 160 | N 910005010016 | RIVET |
| 10X28 MM | ||
| 160 | N 910005012012 | RIVET |
| 12X26 MM | ||
| 160 | N 910005012073 | RIVET |
| 12X28 MM | ||
| 160 | N 910005012080 | RIVET |
| 12X42 MM | ||
| 160 | N 910005014056 | RIVET |
| 14X45 MM | ||
| 160 | N 910005014057 | RIVET |
| 14X48 MM | ||
| 160 | N 910005014059 | RIVET |
| 14X50 MM | ||
| 180 | N 000961014100 | SCREW |
| REINFORCEMENT TO SIDE MEMBER | ||
| 185 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 185 | N 910113014001 | NUT |
| REINFORCEMENT TO SIDE MEMBER | ||
| 200 | A 3873150006 | COUPLING PIN |
| FOR COUPLING MOUTH | ||
| 200 | A 3873150106 | COUPLING PIN |
| FOR COUPLING MOUTH | ||
| 205 | A 0009874346 | SEALING CORD |
| FOR COUPLING MOUTH | ||
| 210 | A 3353150031 | LOCKING SPRING |
| FOR COUPLING MOUTH | ||
| 212 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 212 | N 304017008034 | SCREW |
| AT CROSS MEMBER NO.1 | ||
| 213 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 213 | N 000125008443 | WASHER |
| AT CROSS MEMBER NO.1 | ||
| 214 | N 912004008102 | LOCK WASHER |
| AT CROSS MEMBER NO.1 | ||
| 215 | N 304032008006 | NUT |
| AT CROSS MEMBER NO.1 | ||
| 218 | A 3813100037 | CROSS MEMBER |
| TRANSFER CASE | ||
| NO.3 | ||
| 219 | A 3813120852 | ANGLE |
| TRANSFER CASE WITH CROSS MEMBER TO FRAME | ||
| 220 | N 000933010164 | SCREW |
| TRANSFER CASE WITH CROSS MEMBER TO FRAME | ||
| M 10X22 | ||
| 221 | N 000933010105 | SCREW |
| ANGLE TO CROSS MEMBER | ||
| M 10X25 | ||
| 222 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 222 | N 000125010532 | WASHER |
| ANGLE TO CROSS MEMBER | ||
| 223 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 223 | N 910113010000 | NUT |
| ANGLE TO CROSS MEMBER | ||
| 224 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 224 | N 308676012012 | SCREW |
| TRANSFER CASE WITH CROSS MEMBER TO FRAME | ||
| 225 | N 910113012002 | NUT |
| TRANSFER CASE WITH CROSS MEMBER TO FRAME | ||
| 226 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 226 | N 308676014020 | SCREW |
| TRANSFER CASE WITH CROSS MEMBER TO FRAME | ||
| 227 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 227 | N 910113014001 | NUT |
| TRANSFER CASE WITH CROSS MEMBER TO FRAME | ||

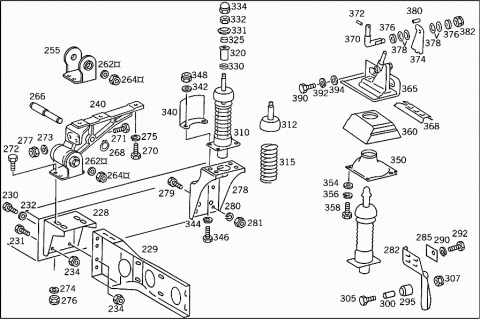

| 228 | A 3878910531 | CONSOLE |
| Repalced by: A 3878912631 | ||
| 228 | A 3878912631 | CONSOLE |
| CAB MOUNTING | ||
| 228 | A 3878912631 | CONSOLE |
| CAB MOUNTING | ||
| 229 | A 3873170423 | STRUT |
| BUMPER AT TORSION BAR | ||
| 230 | N 000961014101 | SCREW |
| Repalced by: N 308676014012 | ||
| 230 | N 308676014012 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| M 14X45 | ||
| 231 | N 000961014063 | SCREW |
| Repalced by: A 9429901304 | ||
| 231 | A 9429901304 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| M 14X40 | ||
| 232 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 232 | N 000125015019 | WASHER |
| CONSOLE AND STRUT TO FRAME | ||
| 234 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 234 | N 910113014000 | NUT |
| CONSOLE AND STRUT TO FRAME | ||
| 240 | A 3813106409 | BRACKET |
| CAB SUSPENSION,FRONT LEFT | ||
| 240 | A 3813106509 | BRACKET |
| CAB SUSPENSION,FRONT LEFT | ||
| 240 | A 3813106609 | BRACKET |
| CAB SUSPENSION,FRONT RIGHT | ||
| A 3813171512 | RUBBER BUFFER | |
| A 3813171412 | RUBBER BUFFER | |
| 255 | A 3878902903 | MOUNTING |
| A 3813172174 | PIN | |
| 262 | N 007349017002 | WASHER |
| 264 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 264 | N 910113016002 | NUT |
| 266 | A 3813172274 | PIN |
| 268 | N 000471018001 | LOCK RING |

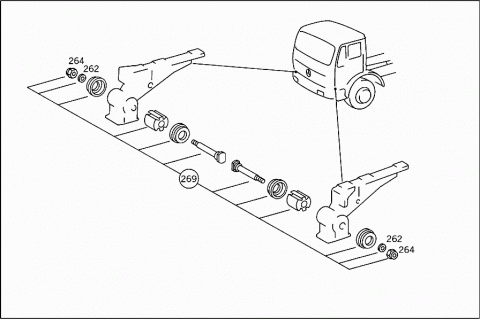

| 269 | A 3815860031 | REPAIR KIT |
| CAB SUSPENSION,FRONT | ||
| 270 | N 000961014028 | SCREW |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||
| M 14X40 | ||
| 271 | N 000961014064 | SCREW |
| BEARING BRACKET TO CAB | ||
| M 14X50 | ||
| 272 | N 000961014063 | SCREW |
| Repalced by: A 9429901304 | ||
| 272 | A 9429901304 | SCREW |
| CAB TO FRAME | ||
| M 14X40 | ||
| 272 | A 9429901304 | SCREW |
| CAB TO FRAME | ||
| M 14X40 | ||
| 272 | N 000961014101 | SCREW |
| Repalced by: N 308676014012 | ||
| 272 | N 308676014012 | SCREW |
| CAB TO FRAME | ||
| M 14X45 | ||
| 273 | A 3209901840 | WASHER |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||
| A 3878910698 | SHIM | |
| 274 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 274 | N 000125015019 | WASHER |
| CAB TO FRAME | ||
| 275 | N 912004014100 | LOCK WASHER |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||
| 276 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 276 | N 910113014000 | NUT |
| CAB TO FRAME | ||
| 277 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 277 | N 910113014001 | NUT |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||
| 278 | A 3813100263 | CONSOLE |
| Repalced by: A 3813170601 | ||
| 278 | A 3813170601 | CONSOLE |
| VIBRATION ABSORBER TO FRAME | ||
| 279 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 279 | N 308676014020 | SCREW |
| CONSOLE TO FRAME | ||
| M 14X35 | ||
| 279 | N 000961014028 | SCREW |
| CONSOLE TO FRAME | ||
| M 14X40 | ||
| 280 | N 912004014100 | LOCK WASHER |
| CAB TO FRAME | ||
| 281 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 281 | N 910113014001 | NUT |
| CAB TO FRAME | ||
| 282 | A 3813171526 | GUIDE |
| LEFT | ||
| 282 | A 3813171626 | GUIDE |
| RIGHT | ||
| 285 | A 3873170084 | SHIM |
| CAB REAR PANEL | ||
| 290 | N 912004012100 | LOCK WASHER |
| CAB REAR PANEL | ||
| 292 | N 000960012301 | SCREW |
| CAB REAR PANEL | ||
| 295 | A 3813170750 | BUSHING |
| CAB GUIDE | ||
| 300 | A 3813170553 | SPACER TUBE |
| LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS | ||
| 305 | N 000960012230 | SCREW |
| LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS | ||
| 307 | N 910113012002 | NUT |
| LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS | ||
| 310 | A 3878901019 | SHOCK ABSORBER |
| Repalced by: A 3878901619 | ||
| 310 | A 3878901619 | SHOCK ABSORBER |
| Repalced by: A 3878901319 | ||
| 310 | A 3878901319 | SHOCK ABSORBER |
| CAB SUSPENSION,REAR | ||
| 310 | A 3878901319 | SHOCK ABSORBER |
| CAB SUSPENSION,REAR | ||
| 312 | A 0008910201 | RUBBER MOUNTING |
| TO 387 890 16 19 | ||
| 312 | A 0008910301 | RUBBER MOUNTING |
| TO 387 890 13 19 | ||
| 315 | A 0008910751 | SPRING |
| Repalced by: A 0008910451 | ||
| 315 | A 0008910451 | SPRING |
| TO 387 890 13 19,387 890 16 19 | ||
| 320 | A 3813170753 | SPACER TUBE |
| SHOCK ABSORBER TO CAB | ||
| 325 | A 3275045082 | RUBBER RING |
| SHOCK ABSORBER TO CAB | ||
| 330 | N 000433015002 | WASHER |
| Repalced by: N 000433015005 | ||
| 330 | N 000433015005 | WASHER |
| SHOCK ABSORBER TO CAB | ||
| 331 | A 3878912010 | WASHER |
| SHOCK ABSORBER TO CAB | ||
| 332 | N 000934012022 | NUT |
| SHOCK ABSORBER TO CAB | ||
| 334 | N 001587012008 | CAP NUT |
| Repalced by: N 001587012010 | ||
| 334 | N 001587012010 | CAP NUT |
| SHOCK ABSORBER TO CAB | ||
| 340 | A 3813170131 | COVER PLATE |
| SHOCK ABSORBER | ||
| 342 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 342 | N 009021008213 | WASHER |
| SHOCK ABSORBER TO CONSOLE | ||
| 344 | N 912004008102 | LOCK WASHER |
| SHOCK ABSORBER TO CONSOLE | ||
| 346 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 346 | N 304017008021 | SCREW |
| SHOCK ABSORBER TO CONSOLE | ||
| 348 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 348 | N 913004008001 | NUT |
| SHOCK ABSORBER TO CONSOLE | ||
| 350 | A 3813176140 | BRACKET |
| Repalced by: A 3813177840 | ||
| 350 | A 3813177840 | BRACKET |
| VIBRATION ABSORBER TO CAB,LEFT | ||
| 350 | A 3813176240 | BRACKET |
| Repalced by: A 3813177940 | ||
| 350 | A 3813177940 | BRACKET |
| VIBRATION ABSORBER TO CAB,RIGHT | ||
| 354 | N 000433010505 | WASHER |
| Repalced by: N 000433010510 | ||
| 354 | N 000433010510 | WASHER |
| SHOCK ABSORBER TO CAB | ||
| 356 | N 912004010102 | LOCK WASHER |
| SHOCK ABSORBER TO CAB | ||
| 358 | N 000933010105 | SCREW |
| SHOCK ABSORBER TO CAB | ||
| 360 | A 3813170097 | BOOT |
| CAB LOCKING MECHANISM | ||
| 365 | A 3813101875 | LOCKING MECHANISM |
| CAB LOCKING MECHANISM,LEFT | ||
| 365 | A 3813101775 | LOCKING MECHANISM |
| CAB LOCKING MECHANISM,RIGHT | ||
| 368 | A 3813170119 | LATCH |
| 370 | A 3813172374 | PIN |
| 372 | N 001481006041 | CLAMPING SLEEVE |
| 374 | A 3813170924 | LEVER |
| 376 | A 3813170676 | WASHER |
| 378 | A 0009935426 | DISC SPRING |
| 380 | N 001481006041 | CLAMPING SLEEVE |
| 382 | N 910113012002 | NUT |
| 390 | N 000933010105 | SCREW |
| LOCKING MECHANISM TO CAB | ||
| 392 | N 912004010102 | LOCK WASHER |
| LOCKING MECHANISM TO CAB | ||
| 394 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 394 | N 000125010532 | WASHER |
| LOCKING MECHANISM TO CAB | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
