Transporto priemonė: 1617 AK; VIN numerio dalis: 385144
Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|

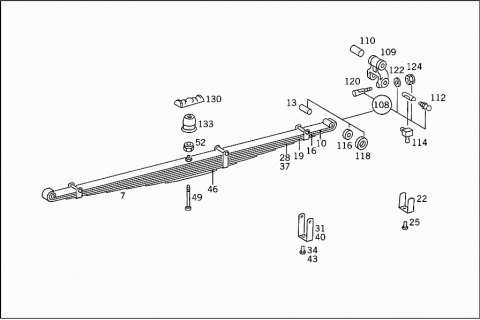

| 007 | A 3853200902 | FRONT SPRING |
| Repalced by: A 3853202202 | ||
| 007 | A 3853202202 | FRONT SPRING |
| 10-LEAF | ||
| 010 | A 3853200094 | SPRING LEAF |
| Repalced by: A 3833201294 | ||
| 010 | A 3833200094 | SPRING LEAF |
| Repalced by: A 3833201294 | ||
| 010 | A 3833201294 | SPRING LEAF |
| NO.1 | ||
| 013 | A 3523220050 | BUSHING |
| 013 | A 3853220050 | BUSHING |
| 016 | A 3853210912 | SPRING LEAF |
| Repalced by: A 3833212012 | ||
| 016 | A 3833210412 | SPRING LEAF |
| Repalced by: A 3833212012 | ||
| 016 | A 3833212012 | SPRING LEAF |
| NO.2 | ||
| 019 | A 3853200194 | SPRING LEAF |
| Repalced by: A 3603200494 | ||
| 019 | A 3603200494 | SPRING LEAF |
| NO.3 | ||
| 022 | A 3423240133 | SPRING CLAMP |
| Repalced by: A 3123213333 | ||
| 022 | A 3123213333 | SPRING CLAMP |
| Repalced by: A 3123240633 | ||
| 022 | A 3123240633 | SPRING CLAMP |
| AT SPRING LEAF NO.3 | ||
| 025 | N 910006008024 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 028 | A 3853210813 | SPRING LEAF |
| NO.3 | ||
| 028 | A 3853210914 | SPRING LEAF |
| Repalced by: A 3603210114 | ||
| 028 | A 3603210114 | SPRING LEAF |
| NO.4 | ||
| 028 | A 3853201494 | SPRING LEAF |
| NO.4 | ||
| 028 | A 3853203494 | SPRING LEAF |
| NO. 4 | ||
| 031 | A 3273215133 | SPRING CLAMP |
| Repalced by: A 3123213333 | ||
| 031 | A 3123213333 | SPRING CLAMP |
| Repalced by: A 3123240633 | ||
| 031 | A 3123240633 | SPRING CLAMP |
| AT SPRING LEAF NO.4 | ||
| 031 | A 3123240633 | SPRING CLAMP |
| AT SPRING LEAF NO.4 | ||
| 034 | N 910006008024 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 037 | A 3853210814 | SPRING LEAF |
| Repalced by: A 3853203494 | ||
| 037 | A 3853203494 | SPRING LEAF |
| NO.4 | ||
| A 3853200294 | SPRING LEAF | |
| A 3523210133 | SPRING CLAMP | |
| Repalced by: A 3123213333 | ||
| A 3123213333 | SPRING CLAMP | |
| Repalced by: A 3123240633 | ||
| 040 | A 3123240633 | SPRING CLAMP |
| AT SPRING LEAF NO.7 | ||
| 040 | A 3123240633 | SPRING CLAMP |
| AT SPRING LEAF NO.8 | ||
| 040 | A 3123240633 | SPRING CLAMP |
| AT SPRING LEAF NO.8 OR NO.9 | ||
| 040 | A 3123240633 | SPRING CLAMP |
| AT SPRING LEAF NO.5 | ||
| 043 | N 910006008024 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 046 | A 3853220984 | SHIM |
| 049 | N 004626012120 | SPRING BOLT |
| 052 | N 913004012007 | NUT |
| Repalced by: N 910113012005 | ||
| 052 | N 910113012005 | NUT |
| SPRING BOLT | ||
| 108 | A 3523220530 | SHACKLE PIN |
| Repalced by: A 3855860332 | ||
| 108 | A 3853220030 | SHACKLE PIN |
| Repalced by: A 3855860332 | ||
| 108 | A 3855860032 | REPAIR KIT |
| Repalced by: A 3855860332 | ||
| 108 | A 3855860332 | REPAIR KIT |
| Repalced by: A 3853200165 | ||
| 108 | A 3853200165 | SHACKLE PIN |
| PARTS KIT | ||
| 109 | A 6173200163 | SHACKLE |
| FRONT SPRING SUSPENSION | ||
| 110 | A 3523220050 | BUSHING |
| 110 | A 3853220050 | BUSHING |
| 112 | N 071412010100 | GREASE NIPPLE |
| SPRING SUSPENSION | ||
| 112 | N 071412010300 | GREASE NIPPLE |
| SPRING SUSPENSION | ||
| 114 | N 071412010100 | GREASE NIPPLE |
| SPRING SUSPENSION | ||
| 116 | A 3523230376 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 116 | A 3523230476 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 116 | A 3523230576 | WASHER |
| AS REQUIRED | ||
| 4.30 MM | ||
| 118 | A 0029973140 | SEAL RING |
| FRONT SPRING SUSPENSION | ||
| 120 | A 3529900337 | BOLT |
| FRONT SPRING SUSPENSION | ||
| 122 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 122 | N 000125010532 | WASHER |
| FRONT SPRING SUSPENSION | ||
| 124 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 124 | N 910113010000 | NUT |
| FRONT SPRING SUSPENSION | ||
| 130 | A 3523220131 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 133 | A 3833240008 | HELPER SPRING |
| RUBBER BUFFER TO FRAME | ||
| 136 | A 3853200077 | RUBBER SPRING |
| (HELPER SPRING) | ||
| 139 | N 912002012001 | LOCK |
| RUBBER SPRING TO BRACKET | ||
| 142 | N 000125013008 | WASHER |
| 145 | A 3853250040 | BRACKET |
| RUBBER BUFFER TO FRAME | ||
| 148 | N 000961014088 | SCREW |
| Repalced by: N 308676014008 | ||
| 148 | N 308676014008 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 151 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 151 | N 000125015019 | WASHER |
| BRACKET TO SIDE MEMBER | ||
| 154 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 154 | N 910113014001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 155 | A 3853250047 | CLAMP |
| HELPER SPRING | ||
| 156 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 156 | N 304017008021 | SCREW |
| BRACKET TO BRACKET | ||
| 157 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 157 | N 913004008001 | NUT |
| BRACKET TO BRACKET | ||
| 160 | A 3523311225 | U-BOLT |
| Repalced by: A 3533310625 | ||
| 160 | A 3533310625 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 290 MM | ||
| 160 | A 3523310625 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 230 MM | ||
| 163 | A 3279970026 | WASHER |
| FRONT SPRINGS TO FRONT AXLE | ||
| 166 | N 000934018006 | NUT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 172 | A 3523300175 | RUBBER MOUNTING |
| Repalced by: A 3853300075 | ||
| 172 | A 3853300075 | RUBBER MOUNTING |
| AXLE STOP | ||
| 175 | N 000933010105 | SCREW |
| RUBBER MOUNTING TO FRONT AXLE | ||
| M 10X25 | ||
| 175 | N 000933010128 | SCREW |
| RUBBER MOUNTING TO FRONT AXLE | ||
| M 10X20 | ||
| 178 | N 912004010102 | LOCK WASHER |
| RUBBER MOUNTING TO FRONT AXLE | ||
| 181 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 181 | N 910113010000 | NUT |
| RUBBER MOUNTING TO FRONT AXLE | ||

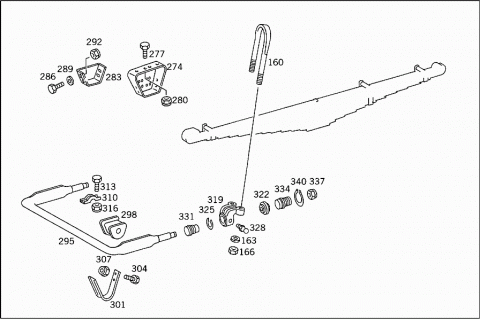

| 274 | A 3833231363 | BEARING BRACKET |
| TORSION BAR | ||
| 277 | N 000961012033 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| 280 | N 910113012002 | NUT |
| BEARING BRACKET TO SIDE MEMBER | ||
| 283 | A 3833230195 | REINFORCEMENT |
| TORSION BAR | ||
| 286 | N 000961012164 | SCREW |
| REINFORCEMENT TO BEARING BRACKET AND TO ENGINE CROSS MEMBER | ||
| 289 | N 000125013008 | WASHER |
| 292 | N 910113012002 | NUT |
| REINFORCEMENT TO BEARING BRACKET AND TO ENGINE CROSS MEMBER | ||
| 295 | A 3853230065 | TORSION BAR |
| Repalced by: A 3853230265 | ||
| 295 | A 3853230265 | TORSION BAR |
| FRONT AXLE | ||
| 298 | A 3833260081 | RUBBER MOUNTING |
| TORSION BAR,FRONT | ||
| 301 | A 3833230240 | BRACKET |
| TORSION BAR | ||
| 304 | N 000961012164 | SCREW |
| BRACKET TO BEARING BRACKET | ||
| 307 | N 910113012002 | NUT |
| BRACKET TO BEARING BRACKET | ||
| 310 | A 3833230340 | BRACKET |
| TORSION BAR | ||
| 313 | N 000961012151 | SCREW |
| BRACKET TO TORSION BAR | ||
| 316 | N 910113012002 | NUT |
| BRACKET TO TORSION BAR | ||
| 319 | A 3853230263 | BEARING BRACKET |
| TORSION BAR | ||
| 322 | A 0009816131 | JOINT BEARING |
| TORSION BAR | ||
| 322 | A 0009817431 | JOINT BEARING |
| TORSION BAR | ||
| 325 | N 000472055000 | LOCK RING |
| AT BEARING BRACKET | ||
| 328 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 328 | N 071412008102 | GREASE NIPPLE |
| AT BEARING BRACKET | ||
| 331 | A 3833230092 | BOOT |
| TORSION BAR TO BEARING BRACKET | ||
| 334 | A 3833230192 | BOOT |
| Repalced by: A 3833230292 | ||
| 334 | A 3833230292 | BOOT |
| TORSION BAR TO BEARING BRACKET | ||
| 334 | A 3833230392 | BOOT |
| TORSION BAR TO BEARING BRACKET | ||
| 337 | N 913004024004 | NUT |
| TORSION BAR TO BEARING BRACKET | ||
| 340 | N 900055022200 | LOCK RING |
| TORSION BAR TO BEARING BRACKET | ||
| 343 | A 0023237600 | SHOCK ABSORBER |
| Repalced by: A 0043237100 | ||
| 343 | A 0043237100 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 343 | A 0023238400 | SHOCK ABSORBER |
| Repalced by: A 0043233300 | ||
| 343 | A 0043233300 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 346 | A 0003232444 | RUBBER BUFFER |
| Repalced by: A 0003232885 | ||
| 346 | A 0003232885 | RUBBER MOUNTING |
| TO 002 323 76 00,004 323 71 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 002 323 84 00 | ||
| 346 | A 0003233044 | RUBBER BUFFER |
| Repalced by: A 0003233144 | ||
| 346 | A 0003233144 | RUBBER BUFFER |
| TO 004 323 33 00 | ||
| 349 | A 0003230453 | SPACER TUBE |
| Repalced by: A 0003233150 | ||
| 349 | A 0003232550 | BUSHING |
| Repalced by: A 0003233150 | ||
| 349 | A 0003233150 | BUSHING |
| TO 002 323 76 00,004 323 71 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 002 323 84 00 | ||
| 349 | A 0003235250 | BUSHING |
| TO 004 323 33 00 | ||
| 361 | A 3833200078 | CONSOLE |
| Repalced by: A 3833200478 | ||
| 361 | A 3833200478 | CONSOLE |
| LEFT | ||
| 361 | A 3833200178 | CONSOLE |
| Repalced by: A 3833200578 | ||
| 361 | A 3833200578 | CONSOLE |
| Repalced by: A 3853200678 | ||
| 361 | A 3853200678 | CONSOLE |
| RIGHT | ||
| 364 | N 000961012122 | SCREW |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| M 12X40 | ||
| 364 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 364 | N 308676012012 | SCREW |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| M 12X25 | ||
| 367 | N 007349013003 | WASHER |
| Repalced by: N 007349013005 | ||
| 367 | N 007349013005 | WASHER |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| 370 | N 910113012002 | NUT |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| 382 | A 3839900202 | SCREW |
| Repalced by: N 000960016244 | ||
| 382 | N 000960016244 | SCREW |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 385 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 385 | N 910113016002 | NUT |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 409 | A 3839900001 | SCREW |
| Repalced by: N 000960016105 | ||
| 409 | N 000960016105 | SCREW |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 412 | N 000093017001 | LOCK PLATE |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||

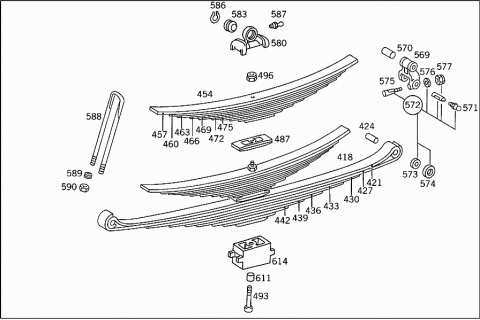

| 418 | A 3853200208 | REAR SPRING |
| 7-LEAF,WITH 7-LEAF HELPER SPRING | ||
| 421 | A 3853200193 | SPRING LEAF |
| Repalced by: A 3853201693 | ||
| 421 | A 3853201693 | SPRING LEAF |
| NO.1 | ||
| 424 | A 3273255050 | BUSHING |
| Repalced by: A 3523250150 | ||
| 424 | A 3523250150 | BUSHING |
| 424 | A 3853250050 | BUSHING |
| 427 | A 3853240212 | SPRING LEAF |
| Repalced by: A 3853242112 | ||
| 427 | A 3853242112 | SPRING LEAF |
| NO.2 | ||
| 430 | A 3853240213 | SPRING LEAF |
| NO.3 | ||
| 433 | A 3853240114 | SPRING LEAF |
| NO.4 | ||
| 436 | A 3853240115 | SPRING LEAF |
| NO.5 | ||
| 439 | A 3853240116 | SPRING LEAF |
| NO.6 | ||
| 442 | A 3853240017 | SPRING LEAF |
| NO.7 | ||
| 454 | A 3853200110 | HELPER SPRING |
| 7-LEAF | ||
| 457 | A 3853240240 | SPRING LEAF |
| NO.1 | ||
| 460 | A 3853240241 | SPRING LEAF |
| NO.2 | ||
| 463 | A 3853240142 | SPRING LEAF |
| NO.3 | ||
| 466 | A 3853240143 | SPRING LEAF |
| NO.4 | ||
| 469 | A 3853240144 | SPRING LEAF |
| NO.5 | ||
| 472 | A 3853240045 | SPRING LEAF |
| NO.6 | ||
| 475 | A 3853240046 | SPRING LEAF |
| NO.7 | ||
| 487 | A 3523240135 | SPACER |
| 493 | N 004626012115 | SPRING BOLT |
| M 12X260 | ||
| 493 | A 6173241971 | SPRING BOLT |
| M 12X265 | ||
| 496 | N 913004012007 | NUT |
| Repalced by: N 910113012005 | ||
| 496 | N 910113012005 | NUT |
| SPRING BOLT | ||
| 569 | A 3523200163 | SHACKLE |
| REAR SPRING SUSPENSION | ||
| 570 | A 3273255050 | BUSHING |
| Repalced by: A 3523250150 | ||
| 570 | A 3523250150 | BUSHING |
| 570 | A 3853250050 | BUSHING |
| 571 | N 071412010100 | GREASE NIPPLE |
| SHACKLE PIN | ||
| 572 | A 3523250530 | SHACKLE PIN |
| Repalced by: A 3855860232 | ||
| A 3853250030 | SHACKLE PIN | |
| Repalced by: A 3855860232 | ||
| 466 | A 3855860132 | REPAIR KIT |
| Repalced by: A 3855860232 | ||
| 466 | A 3855860232 | REPAIR KIT |
| Repalced by: A 3853200065 | ||
| 572 | A 3853200065 | SHACKLE PIN |
| PARTS KIT | ||
| 573 | A 3523230976 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 573 | A 3523231076 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 574 | A 0029973040 | SEAL RING |
| REAR SPRING TO SPRING BRACKET | ||
| 575 | A 3529900337 | BOLT |
| REAR SPRING TO SPRING BRACKET | ||
| 576 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 576 | N 000125010532 | WASHER |
| REAR SPRING TO SPRING BRACKET | ||
| 577 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 577 | N 910113010000 | NUT |
| REAR SPRING TO SPRING BRACKET | ||
| 580 | A 3523250431 | PLATE |
| Repalced by: A 3523200135 | ||
| 580 | A 3523200135 | PLATE |
| REAR AXLE TO TO REAR SPRINGS | ||
| 583 | A 0009810831 | JOINT BEARING |
| TORSION BAR | ||
| 583 | A 0009811231 | JOINT BEARING |
| TORSION BAR | ||
| 586 | N 000472055000 | LOCK RING |
| TORSION BAR | ||
| 587 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 587 | N 071412008102 | GREASE NIPPLE |
| BEARING BRACKET | ||
| 588 | A 3853510225 | U-BOLT |
| REAR AXLE TO TO REAR SPRINGS | ||
| 530 MM | ||
| 588 | A 3853512525 | U-BOLT |
| Repalced by: A 3853513425 | ||
| 588 | A 3853513425 | U-BOLT |
| REAR AXLE TO TO REAR SPRINGS | ||
| 530 MM | ||
| 589 | A 3279970026 | WASHER |
| REAR AXLE TO TO REAR SPRINGS | ||
| 589 | A 3859970126 | WASHER |
| REAR AXLE TO TO REAR SPRINGS | ||
| 590 | N 000934018006 | NUT |
| REAR AXLE TO TO REAR SPRINGS | ||
| 590 | N 000934020008 | NUT |
| Repalced by: N 308673020002 | ||
| 590 | N 308673020002 | NUT |
| Repalced by: N 308674020000 | ||
| 590 | N 308674020000 | NUT |
| REAR AXLE TO TO REAR SPRINGS | ||
| 611 | A 3859910164 | SHEAR BUSHING |
| REAR AXLE TO TO REAR SPRINGS | ||
| 611 | A 6179910064 | SHEAR BUSHING |
| REAR SPRING TO REAR AXLE | ||
| 612 | A 3553250531 | PLATE |
| REAR AXLE TO TO REAR SPRINGS | ||
| 612 | A 3853250031 | PLATE |
| REAR AXLE TO TO REAR SPRINGS | ||
| 614 | A 3833250084 | SHIM |
| REAR AXLE TO TO REAR SPRINGS | ||
| 614 | A 3833250484 | SHIM |
| REAR SPRING TO REAR AXLE | ||

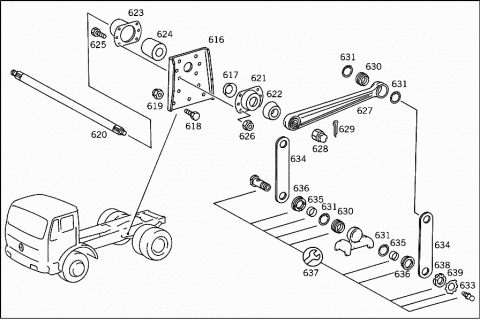

| 616 | A 3403260025 | PLATE |
| TORSION BAR,REAR | ||
| 617 | A 3403260051 | SPACER RING |
| TORSION BAR,REAR | ||
| 618 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 618 | N 308676012026 | SCREW |
| PLATE TO SIDE MEMBER | ||
| M 12X35 | ||
| 618 | N 000961012164 | SCREW |
| PLATE TO SIDE MEMBER | ||
| M 12X28 | ||
| 619 | N 910113012002 | NUT |
| PLATE TO SIDE MEMBER | ||
| 620 | A 3603260165 | TORSION BAR |
| REAR AXLE | ||
| 621 | A 3403260082 | HOUSING |
| REAR OUTSIDE | ||
| 622 | A 3403260181 | RUBBER MOUNTING |
| REAR OUTSIDE | ||
| 623 | A 3403260182 | HOUSING |
| REAR INSIDE | ||
| 624 | A 3403260081 | RUBBER MOUNTING |
| REAR INSIDE | ||
| 625 | N 000933010145 | SCREW |
| HOUSING TO PLATE | ||
| 626 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 626 | N 910113010000 | NUT |
| HOUSING TO PLATE | ||
| 627 | A 3523260469 | LEVER |
| TORSION BAR | ||
| 628 | N 000937030000 | NUT |
| LEVER TO TORSION BAR | ||
| 629 | N 000094005045 | COTTER PIN |
| LEVER TO TORSION BAR | ||
| 630 | A 0009810831 | JOINT BEARING |
| 630 | A 0009811231 | JOINT BEARING |
| 631 | N 000472055000 | LOCK RING |
| 633 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 633 | N 071412008102 | GREASE NIPPLE |
| 634 | A 3523260216 | LINK |
| Repalced by: A 3523260516 | ||
| 634 | A 3523260516 | LINK |
| TORSION BAR | ||
| 635 | A 3523260153 | SPACER TUBE |
| ROD TO LEVER,AND LEVER TO PLATE | ||
| 636 | A 3603230560 | SEAL RING |
| ROD TO LEVER,AND LEVER TO PLATE | ||
| 637 | A 3523260274 | PIN |
| Repalced by: A 3605860332 | ||
| 637 | A 3605860332 | REPAIR KIT |
| Repalced by: A 3603200341 | ||
| 637 | A 3603200341 | REPAIR KIT |
| TORSION BAR,REAR | ||
| 638 | N 070952035101 | LOCK PLATE |
| ROD TO LEVER,AND LEVER TO PLATE | ||
| 639 | N 070852035000 | NUT |
| ROD TO LEVER,AND LEVER TO PLATE | ||

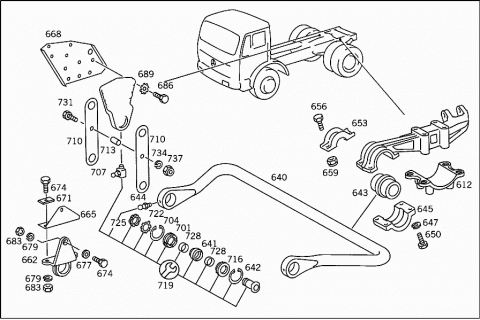

| 640 | A 3833260065 | TORSION BAR |
| REAR AXLE | ||
| 641 | A 0009810831 | JOINT BEARING |
| 641 | A 0009811231 | JOINT BEARING |
| 642 | N 000472055000 | LOCK RING |
| 643 | A 3833260181 | RUBBER MOUNTING |
| 644 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 644 | N 071412008102 | GREASE NIPPLE |
| 645 | A 3833260640 | BRACKET |
| TORSION BAR | ||
| 647 | N 912004014100 | LOCK WASHER |
| BRACKET TO TORSION BAR BRACKET | ||
| 650 | N 000961014028 | SCREW |
| BRACKET TO TORSION BAR BRACKET | ||
| 653 | A 3833260740 | BRACKET |
| TORSION BAR | ||
| 656 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 656 | N 308676014020 | SCREW |
| BRACKET TO TORSION BAR | ||
| M 14X35 | ||
| 656 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 656 | N 308676012012 | SCREW |
| BRACKET TO TORSION BAR | ||
| M 12X25 | ||
| 659 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 659 | N 910113014001 | NUT |
| BRACKET TO TORSION BAR | ||
| 659 | N 910113012002 | NUT |
| BRACKET TO TORSION BAR | ||
| 662 | A 3523260063 | BEARING BRACKET |
| TORSION BAR | ||
| 662 | A 3833260163 | BEARING BRACKET |
| TORSION BAR | ||
| 665 | A 3523260425 | PLATE |
| Repalced by: A 3803260025 | ||
| 665 | A 3803260025 | PLATE |
| BEARING BRACKET TO FRAME | ||
| 668 | A 3833250141 | STIFFENING |
| LEFT | ||
| 668 | A 3833250041 | STIFFENING |
| RIGHT | ||
| 671 | A 3604750484 | SHIM |
| BEARING BRACKET TO FRAME | ||
| 674 | N 000961014054 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M 14X45 | ||
| 674 | N 007991014001 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M 14X45 | ||
| 677 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 677 | N 000125015019 | WASHER |
| BEARING BRACKET TO FRAME | ||
| 679 | N 912004014100 | LOCK WASHER |
| BEARING BRACKET TO FRAME | ||
| 683 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 683 | N 910113014001 | NUT |
| BEARING BRACKET TO FRAME | ||
| 686 | N 000961016100 | SCREW |
| Repalced by: N 308676016020 | ||
| 686 | N 308676016020 | SCREW |
| BEARING BRACKET TO FRAME | ||
| 689 | N 006798016100 | SERRATED WASHER |
| BEARING BRACKET TO FRAME | ||
| 701 | A 0009810831 | JOINT BEARING |
| 701 | A 0009811231 | JOINT BEARING |
| 704 | N 000472055000 | LOCK RING |
| 707 | N 071412008302 | GREASE NIPPLE |
| 710 | A 3853260016 | LINK |
| TORSION BAR TO BEARING BRACKET | ||
| 713 | A 3523260153 | SPACER TUBE |
| TORSION BAR TO BEARING BRACKET | ||
| 716 | A 3603230560 | SEAL RING |
| TORSION BAR TO BEARING BRACKET | ||
| 719 | A 3523260274 | PIN |
| Repalced by: A 3605860332 | ||
| 719 | A 3605860332 | REPAIR KIT |
| Repalced by: A 3603200341 | ||
| 719 | A 3603200341 | REPAIR KIT |
| TORSION BAR,REAR | ||
| 722 | N 070952035101 | LOCK PLATE |
| TORSION BAR TO BEARING BRACKET | ||
| 725 | N 070852035000 | NUT |
| TORSION BAR TO BEARING BRACKET | ||
| 728 | A 3604270253 | SPACER TUBE |
| BETWEEN THE SHACKLES | ||
| 731 | N 000960012224 | SCREW |
| Repalced by: N 000961012208 | ||
| 731 | N 000961012208 | SCREW |
| BETWEEN THE SHACKLES | ||
| 734 | N 912004012100 | LOCK WASHER |
| BETWEEN THE SHACKLES | ||
| 737 | N 910113012002 | NUT |
| BETWEEN THE SHACKLES | ||

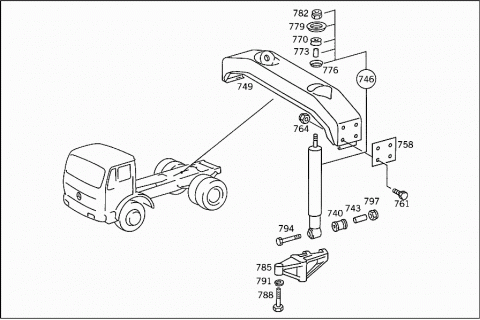

| A 0023264800 | SHOCK ABSORBER | |
| Repalced by: A 3853260200 | ||
| A 0023264900 | SHOCK ABSORBER | |
| Repalced by: A 3853260200 | ||
| 740 | A 0003230785 | RUBBER MOUNTING |
| 743 | A 0003230553 | SPACER TUBE |
| 746 | A 3853260200 | SHOCK ABSORBER |
| (PARTS KIT) | ||
| 749 | A 3853100140 | CROSS MEMBER |
| SHOCK ABSORBER | ||
| 758 | A 3853120084 | SHIM |
| CROSS MEMBER AND SHIM TO FRAME SIDE MEMBERS | ||
| 761 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 761 | N 308676012026 | SCREW |
| CROSS MEMBER AND SHIM TO FRAME SIDE MEMBERS | ||
| 764 | N 910113012002 | NUT |
| CROSS MEMBER AND SHIM TO FRAME SIDE MEMBERS | ||
| 770 | A 3853260068 | RUBBER BUFFER |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 773 | A 3853230253 | SPACER TUBE |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 776 | A 3543260067 | RETAINER |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 779 | A 3223230167 | RETAINER |
| Repalced by: A 3173260167 | ||
| 779 | A 3173260167 | RETAINER |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 782 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 782 | N 910113016002 | NUT |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 785 | A 3833260040 | BRACKET |
| LEFT SHOCK ABSORBER | ||
| 785 | A 3833260240 | BRACKET |
| LEFT SHOCK ABSORBER | ||
| 785 | A 3833260140 | BRACKET |
| RIGHT SHOCK ABSORBER | ||
| 785 | A 3833260340 | BRACKET |
| RIGHT SHOCK ABSORBER | ||
| 788 | N 000960014254 | SCREW |
| BRACKET TO SPRING SADDLE | ||
| M14X110 | ||
| 788 | N 000960014244 | SCREW |
| BRACKET TO SPRING SADDLE | ||
| M14X65 | ||
| 791 | N 912004014100 | LOCK WASHER |
| BRACKET TO SPRING SADDLE | ||
| 794 | A 3859900101 | SCREW |
| SHOCK ABSORBER TO BRACKET | ||
| 797 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 797 | N 913004020003 | NUT |
| SHOCK ABSORBER TO BRACKET | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
