Transporto priemonė: 1617 AK; VIN numerio dalis: 385144
Grupė: 46 STEERING
| # | Kodas | Pavadinimas |
|---|---|---|
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR MERCEDES-BENZ POWER STEERING, SEE PARTS LIST | ||
| 765.2 | ||

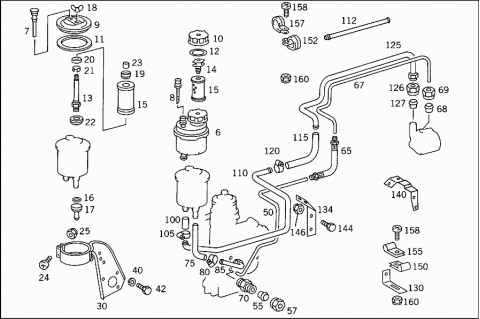

| 006 | A 0004663802 | TANK |
| Repalced by: A 0004664502 | ||
| 006 | A 0004664502 | TANK |
| 007 | A 0004660218 | PIPE |
| TO 000 466 38 02 | ||
| 008 | A 0004660267 | OIL DIPSTICK |
| Repalced by: A 0004660867 | ||
| 008 | A 0004660867 | OIL DIPSTICK |
| TO 000 466 45 02 | ||
| A 1233270059 | PROTECTIVE CAP | |
| 009 | A 0004662005 | COVER |
| TO 000 466 38 02 | ||
| 010 | A 0004660068 | FILLER CAP |
| TO 000 466 45 02 | ||
| 011 | A 0004660260 | SEAL RING |
| TO 000 466 38 02 | ||
| 012 | A 0004661760 | SEAL RING |
| TO 000 466 45 02 | ||
| 013 | A 0014664465 | FILTER CARRIER |
| TO 000 466 38 02 | ||
| 014 | A 0004660740 | BRACKET |
| TO 000 466 45 02 | ||
| 015 | A 0004660204 | FILTER |
| Repalced by: A 0004660604 | ||
| 015 | A 0004660604 | FILTER |
| TO 000 466 38 02,000 466 45 02 | ||
| 016 | A 0009879046 | SEALING CORD |
| Repalced by: A 0029973245 | ||
| 016 | A 0029973245 | SEAL RING |
| Repalced by: A 0059970848 | ||
| 016 | A 0059970848 | SEAL RING |
| TO 000 466 38 02 | ||
| 017 | A 0004660558 | CONNECTOR |
| TO 000 466 38 02 | ||
| 018 | N 000315008006 | NUT |
| TO 000 466 38 02 | ||
| 019 | A 0004660675 | CENTERING RING |
| TO 000 466 38 02 | ||
| 020 | A 0004660275 | WASHER |
| Repalced by: A 9402680552 | ||
| 020 | A 9402680552 | SPACER WASHER |
| TO 000 466 38 02 | ||
| 021 | A 0004660153 | SPACER TUBE |
| TO 000 466 38 02 | ||
| 022 | A 0004660238 | COVER PLATE |
| TO 000 466 38 02 | ||
| 023 | A 0009870643 | RUBBER SLEEVE |
| TO 000 466 38 02 | ||
| 024 | N 000084006162 | SCREW |
| Repalced by: A 0029903712 | ||
| 024 | A 0029903712 | SCREW |
| Repalced by: N 000000001149 | ||
| 024 | N 000000001149 | SCREW |
| OIL TANK TO BRACKET | ||
| M 6X25 | ||
| 024 | N 007985006139 | SCREW |
| OIL TANK TO BRACKET | ||
| M 6X30 | ||
| 025 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 025 | N 913004006001 | NUT |
| OIL TANK TO BRACKET | ||
| 025 | N 913002006001 | NUT |
| Repalced by: N 913002006009 | ||
| 025 | N 913002006009 | NUT |
| OIL TANK TO BRACKET | ||
| 030 | A 3834600035 | BRACKET |
| OIL TANK | ||
| 030 | A 3834600135 | BRACKET |
| OIL TANK | ||
| 040 | N 912004010102 | LOCK WASHER |
| BRACKET TO STEERING | ||
| 042 | N 304017010027 | SCREW |
| BRACKET TO STEERING | ||
| M 10X15 | ||
| 042 | N 000933010238 | SCREW |
| Repalced by: N 304017010028 | ||
| 042 | N 304017010028 | SCREW |
| BRACKET TO STEERING | ||
| M 10X18 | ||
| 050 | A 3814600624 | LINE |
| FROM HIGH PRESSURE HOSE TO STEERING | ||
| 050 | A 3814601224 | LINE |
| FROM HIGH PRESSURE HOSE TO STEERING | ||
| 050 | A 3814600524 | LINE |
| HIGH PRESSURE HOSE,CONNECTOR,STEERING | ||
| 055 | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 055 | A 0019901967 | SEAL CONE |
| OIL LINES | ||
| 057 | N 915017012100 | UNION NUT |
| OIL LINES | ||
| 065 | A 0119976882 | HOSE |
| Repalced by: A 0009978152 | ||
| 065 | A 0119976982 | HOSE |
| Repalced by: A 0009978152 | ||
| 065 | A 0119977082 | HOSE |
| Repalced by: A 0009978152 | ||
| 065 | A 0019976352 | HOSE |
| FROM POWER STEERING PUMP TO STEERING | ||
| 065 | A 0019976352 | HOSE |
| FROM POWER STEERING PUMP TO STEERING | ||
| 067 | A 3814600424 | LINE |
| Repalced by: A 0005516156 | ||
| 067 | A 0005516156 | TUBE |
| FROM PUMP TO HIGH PRESSURE HOSE | ||
| 067 | A 3814601024 | LINE |
| FROM PUMP TO HIGH PRESSURE HOSE | ||
| 068 | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 068 | A 0019901967 | SEAL CONE |
| OIL LINES | ||
| 069 | N 915017012100 | UNION NUT |
| OIL LINES | ||
| 070 | N 003901012011 | SCREW-IN FITTING |
| LINE TO STEERING | ||
| 075 | A 3834660281 | HOSE |
| FROM STEERING TO OIL TANK | ||
| 075 | A 3834660381 | HOSE |
| FROM STEERING TO OIL TANK | ||
| 080 | N 916017016000 | CLAMP |
| Repalced by: N 000000000666 | ||
| 080 | N 000000000666 | CLAMP |
| FROM HOSE TO OIL TANK | ||
| 085 | A 3839970072 | FITTING |
| FROM LINE TO OIL TANK | ||
| 085 | A 3834660181 | HOSE |
| FROM LINE TO OIL TANK | ||
| 100 | A 3609970982 | HOSE |
| Repalced by: A 3859971582 | ||
| 100 | A 3859971582 | HOSE |
| FROM LINE TO OIL TANK | ||
| 105 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 105 | N 000000000667 | CLAMP |
| FROM TANK TO HOSE | ||
| 110 | A 3834660465 | LINE |
| Repalced by: A 3834660765 | ||
| 110 | A 3834660765 | LINE |
| FROM TANK TO HOSE | ||
| 110 | A 3834660365 | LINE |
| FROM TANK TO HOSE | ||
| 112 | A 3834660565 | LINE |
| HOSE,CONNECTOR,STEERING | ||
| 115 | A 3609970982 | HOSE |
| Repalced by: A 3859971582 | ||
| 115 | A 3859971582 | HOSE |
| OIL LINE CONNECTION | ||
| 115 | A 3859971582 | HOSE |
| OIL LINE CONNECTION | ||
| 120 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 120 | N 000000000667 | CLAMP |
| HOSE TO OIL LINE | ||
| 120 | N 000000000667 | CLAMP |
| HOSE TO OIL LINE | ||
| 125 | A 3814600224 | LINE |
| FROM HOSE TO POWER STEERING PUMP | ||
| 125 | A 3604603424 | LINE |
| FROM HOSE TO POWER STEERING PUMP | ||
| 126 | N 003870022101 | UNION NUT |
| Repalced by: N 915017022100 | ||
| 126 | N 915017022100 | UNION NUT |
| FROM HOSE TO POWER STEERING PUMP | ||
| 127 | N 003861022004 | GLAND |
| Repalced by: A 0019901267 | ||
| 127 | A 0019901267 | SEAL CONE |
| FROM HOSE TO POWER STEERING PUMP | ||
| 130 | A 3464295840 | BRACKET |
| Repalced by: A 3812950440 | ||
| 130 | A 3144290240 | BRACKET |
| Repalced by: A 3812950440 | ||
| 130 | A 3812950440 | BRACKET |
| LINE TO STEERING | ||
| 134 | A 3814660840 | BRACKET |
| DELIVERY AND SUCTION LINES TO BRACKET AT FRAME | ||
| 134 | A 3814660940 | BRACKET |
| Repalced by: A 3874660940 | ||
| 134 | A 3874660940 | BRACKET |
| DELIVERY AND SUCTION LINES TO BRACKET AT FRAME | ||
| 140 | A 3814661040 | BRACKET |
| LINE TO STEERING | ||
| 144 | N 000961012025 | SCREW |
| BRACKET TO FRAME | ||
| M 12X28 | ||
| 146 | N 910113012002 | NUT |
| BRACKET TO FRAME | ||
| 150 | A 3609950401 | CLAMP |
| DELIVERY AND SUCTION LINES TO BRACKET | ||
| 152 | N 916016012200 | CLAMP |
| OIL LINE TO ENGINE | ||
| 155 | A 3609950701 | CLAMP |
| Repalced by: N 916016018202 | ||
| 155 | N 916016018202 | CLAMP |
| DELIVERY AND SUCTION LINES TO BRACKET | ||
| 157 | N 916016022202 | CLAMP |
| OIL LINE TO ENGINE | ||
| 158 | N 000000001147 | SCREW |
| LINES TO BRACKET | ||
| M 6X20 | ||
| 160 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 160 | N 913004006001 | NUT |
| LINES TO BRACKET | ||

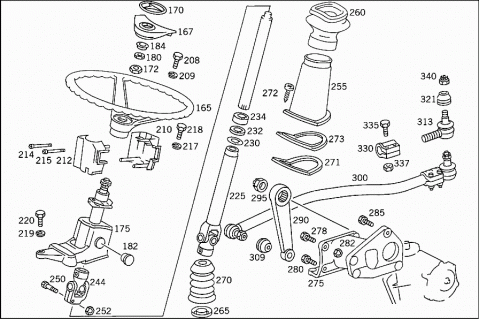

| A 3014640101 | STEERING WHEEL | |
| Repalced by: A 3834640201 | ||
| 165 | A 3834640201 | STEERING WHEEL |
| 167 | A 0004642031 | CAP |
| STEERING WHEEL | ||
| 170 | A 0004640432 | BADGE |
| STEERING WHEEL | ||
| 172 | N 308675022001 | NUT |
| STEERING WHEEL TO STEERING COLUMN | ||
| 175 | A 3814600531 | STEERING COLUMN BRACKET |
| 175 | A 3814601331 | STEERING COLUMN BRACKET |
| 180 | N 000936022002 | NUT |
| STEERING WHEEL TO STEERING COLUMN | ||
| 182 | A 3839970186 | PLUG |
| Repalced by: A 3839970286 | ||
| 182 | A 3839970286 | PLUG |
| BOTTOM LATERAL | ||
| A 3224620023 | COVER | |
| BOTTOM | ||
| A 0119815110 | NEEDLE BEARING | |
| BOTTOM | ||
| 184 | A 3819971186 | PLUG |
| TOP | ||
| 208 | N 007985004107 | SCREW |
| STEERING COLUMN MOUNTED SWITCH | ||
| 209 | N 912006004000 | LOCK WASHER |
| STEERING COLUMN MOUNTED SWITCH | ||
| 210 | A 3814620043 | SHELL |
| STEERING COLUMN PANELLING,REAR | ||
| 210 | A 3814620443 | SHELL |
| STEERING COLUMN PANELLING,REAR | ||
| 212 | A 3814620143 | SHELL |
| Repalced by: A 3814622443 | ||
| 212 | A 3814622443 | SHELL |
| STEERING COLUMN PANELLING,FRONT | ||
| 212 | A 3814620543 | SHELL |
| STEERING COLUMN PANELLING,FRONT | ||
| 214 | A 3819900221 | SCREW |
| STEERING COLUMN PANELLING | ||
| 215 | A 3819900321 | SCREW |
| STEERING COLUMN PANELLING | ||
| 217 | N 912006005002 | LOCK WASHER |
| STEERING COLUMN PANELLING | ||
| 218 | N 000084005130 | SCREW |
| STEERING COLUMN PANELLING | ||
| 219 | N 000137010201 | SPRING WASHER |
| STEERING COLUMN BRACKET TO CAB | ||
| 220 | N 000933010145 | SCREW |
| STEERING COLUMN BRACKET TO CAB | ||
| 225 | A 3814600309 | STEERING SHAFT |
| Repalced by: A 6504600109 | ||
| 225 | A 6504600109 | STEERING SHAFT |
| 225 | A 6504600509 | STEERING SHAFT |
| 225 | A 3814601509 | STEERING SHAFT |
| Repalced by: A 6504600309 | ||
| 225 | A 6504600309 | STEERING SHAFT |
| 225 | A 6504600709 | STEERING SHAFT |
| A 3814600509 | STEERING SHAFT | |
| Repalced by: A 3814607009 | ||
| A 3814607009 | STEERING SHAFT | |
| 225 | A 3814607209 | STEERING SHAFT |
| 230 | A 3814620175 | WASHER |
| 232 | A 3814620260 | SEAL RING |
| 234 | A 3814620061 | SEAL HOLDER |
| A 3814620103 | SLEEVE | |
| STEERING SHAFT | ||
| A 3814620503 | SLEEVE | |
| STEERING SHAFT | ||
| A 3814620251 | RING | |
| STEERING SHAFT | ||
| 244 | A 3814600057 | UNIVERSAL JOINT |
| Repalced by: A 3164600057 | ||
| 244 | A 3164600057 | UNIVERSAL JOINT |
| Repalced by: A 0004600057 | ||
| 244 | A 0004600057 | UNIVERSAL JOINT |
| 244 | A 3164600157 | UNIVERSAL JOINT |
| Repalced by: A 0004600157 | ||
| 244 | A 0004600157 | UNIVERSAL JOINT |
| 250 | A 3819900114 | SCREW |
| UNIVERSAL JOINT TO STEERING COLUMN TUBE | ||
| M 8X42 | ||
| 250 | A 3819900114 | SCREW |
| UNIVERSAL JOINT TO STEERING COLUMN TUBE | ||
| M 8X42 | ||
| 250 | A 3169900114 | SCREW |
| UNIVERSAL JOINT TO STEERING COLUMN TUBE | ||
| M 8X38 | ||
| 252 | N 910113008001 | NUT |
| UNIVERSAL JOINT TO STEERING COLUMN TUBE | ||
| 255 | A 3874610697 | PROTECTIVE SLEEVE |
| UNIVERSAL JOINT COVERING | ||
| 255 | A 3874610797 | PROTECTIVE SLEEVE |
| UNIVERSAL JOINT COVERING | ||
| 255 | A 3874611297 | PROTECTIVE SLEEVE |
| UNIVERSAL JOINT COVERING | ||
| 260 | A 3874620123 | COVER |
| PROTECTIVE SLEEVE TO CAB FLOOR | ||
| 260 | A 3874610396 | BOOT |
| PROTECTIVE SLEEVE TO CAB FLOOR | ||
| 265 | A 3814620375 | WASHER |
| Repalced by: A 3814620475 | ||
| 265 | A 3814620475 | WASHER |
| UNIVERSAL JOINT COVERING | ||
| 270 | A 3814620596 | BOOT |
| Repalced by: A 3814621196 | ||
| 270 | A 3814621196 | BOOT |
| UNIVERSAL JOINT COVERING | ||
| 271 | A 3874610180 | GASKET |
| PROTECTIVE TUBE TO CAB FLOOR | ||
| N 007982005303 | SHEET METAL SCREW | |
| PROTECTIVE SLEEVE TO CAB FLOOR | ||
| 272 | N 007981005309 | SHEET METAL SCREW |
| Repalced by: N 007981005321 | ||
| 272 | N 007981005321 | SHEET METAL SCREW |
| PROTECTIVE TUBE TO CAB FLOOR | ||
| 273 | A 3874620024 | REINFORCEMENT |
| PROTECTIVE TUBE TO CAB FLOOR | ||
| 275 | A 3834610440 | STEERING SUPPORT |
| Repalced by: A 6154610040 | ||
| 275 | A 6154610040 | STEERING SUPPORT |
| AT FRAME | ||
| 275 | A 3834610540 | STEERING SUPPORT |
| Repalced by: A 6154610140 | ||
| 275 | A 6154610140 | STEERING SUPPORT |
| AT FRAME | ||
| 278 | N 000960014229 | SCREW |
| STEERING SUPPORT TO FRAME | ||
| M 14X55 | ||
| 280 | N 000960014237 | SCREW |
| STEERING SUPPORT TO FRAME | ||
| M 14X50 | ||
| 282 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 282 | N 910113014000 | NUT |
| STEERING SUPPORT TO FRAME | ||
| 285 | N 000961016077 | SCREW |
| Repalced by: N 308676016006 | ||
| 285 | N 308676016006 | SCREW |
| STEERING TO STEERING BRACKET | ||
| M 16X1.5X45 | ||
| N 000177001003 | WIRE | |
| STEERING BOX ASSEMBLY TO STEERING SUPPORT | ||
| 600 MM | ||
| 290 | A 3854630001 | PITMAN ARM |
| 295 | A 0009901455 | NUT |
| Repalced by: A 0019908151 | ||
| 295 | A 0019908151 | NUT |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| N 000094008014 | COTTER PIN | |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| 300 | A 3854600805 | DRAG LINK |
| Repalced by: A 3854603405 | ||
| 300 | A 3854603405 | DRAG LINK |
| LEMFOERDER | ||
| 300 | A 3854602005 | DRAG LINK |
| EHRENREICH | ||
| 300 | A 3854600905 | DRAG LINK |
| Repalced by: A 3854603605 | ||
| 300 | A 3854603605 | DRAG LINK |
| LEMFOERDER | ||
| 300 | A 3854602105 | DRAG LINK |
| EHRENREICH | ||
| 309 | A 3354600096 | BOOT |
| Repalced by: A 0004621796 | ||
| 309 | A 0004621796 | BOOT |
| FIXED PART OF JOINT | ||
| 313 | A 0003303235 | JOINT |
| Repalced by: A 0004632229 | ||
| 313 | A 0004632229 | BALL JOINT |
| Repalced by: A 0004633429 | ||
| 313 | A 0004633429 | BALL JOINT |
| Repalced by: A 0013300135 | ||
| 313 | A 0013300135 | JOINT |
| R.H. THREAD | ||
| LEMFOERDER | ||
| 313 | A 0013300235 | JOINT |
| R.H. THREAD | ||
| EHRENREICH | ||
| 321 | A 0003301085 | BOOT |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 340 | ||
| 330 | A 0003382345 | CLAMP |
| Repalced by: A 0003382545 | ||
| 330 | A 0003382545 | CLAMP |
| CLAMP, ONE-HOLE | ||
| LEMFOERDER | ||
| 330 | A 0003383145 | CLAMP |
| CLAMP, ONE-HOLE | ||
| EHRENREICH | ||
| 335 | N 000960012349 | SCREW |
| CLAMP, TWO-HOLE | ||
| 335 | N 000960012453 | SCREW |
| Repalced by: N 308676012017 | ||
| 335 | N 308676012017 | SCREW |
| CLAMP, ONE-HOLE | ||
| 337 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 337 | N 910113012003 | NUT |
| CLAMP, TWO-HOLE | ||
| 337 | N 910113012003 | NUT |
| CLAMP, ONE-HOLE | ||
| 340 | N 000937020001 | NUT |
| DRAG LINK TO LEVER | ||
| N 000094004065 | COTTER PIN | |
| DRAG LINK TO LEVER | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
