Transporto priemonė: 1617 CAK; VIN numerio dalis: 617316

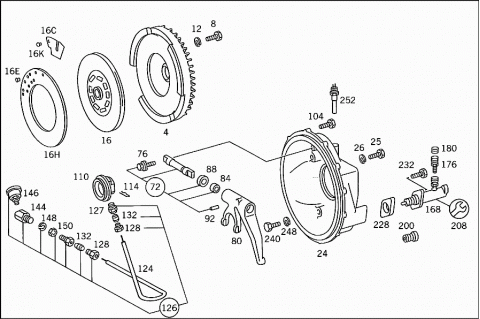

Grupė: 25 CLUTCH
| # | Kodas | Pavadinimas |
|---|---|---|
| A 0022507504 | CLUTCH PRESSURE PLATE | |
| Repalced by: A 0042502404 | ||
| 004 | A 0042502404 | CLUTCH PRESSURE PLATE |
| 008 | N 000931008248 | SCREW |
| Repalced by: N 304017008053 | ||
| 008 | N 304017008053 | SCREW |
| CLUTCH TO FLYWHEEL | ||
| 012 | N 912004008102 | LOCK WASHER |
| CLUTCH TO FLYWHEEL | ||
| 016 | A 0072507403 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| 016 | A 0052503903 | CLUTCH DISC |
| 016 | A 0052504003 | CLUTCH DISC |
| 016 | A 0082500803 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| 016 | A 0112508103 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| 016 | A 0062508303 | CLUTCH DISC |
| 016 | A 0062508403 | CLUTCH DISC |
| A 0002523419 | LEAF SPRING | |
| Repalced by: A 0002524419 | ||
| 016C | A 0002524419 | LEAF SPRING |
| 016E | A 0002522075 | RIVET |
| LEAF SPRING TO CLUTCH DISC | ||
| 5X6 MM | ||
| 016E | A 0002523975 | RIVET |
| LEAF SPRING TO CLUTCH DISC | ||
| 6X6 MM | ||
| 016H | A 0012524810 | CLUTCH LINING |
| ASBESTOS-FREE | ||
| A 0002528810 | CLUTCH LINING | |
| Repalced by: A 0012524310 | ||
| 016H | A 0012524310 | CLUTCH LINING |
| A 0002521275 | RIVET | |
| Repalced by: A 0002524375 | ||
| 016K | A 0002524375 | RIVET |
| LINING WITH INTERMEDIATE SPRING | ||
| A 0002521475 | RIVET | |
| Repalced by: A 0002523875 | ||
| 016K | A 0002523875 | RIVET |
| LINING WITH CLUTCH DISC | ||
| A 6152510001 | BELL HOUSING | |
| Repalced by: A 6152512301 | ||
| A 6152512301 | BELL HOUSING | |
| Repalced by: A 6152511301 | ||
| 024 | A 6152511301 | BELL HOUSING |
| 025 | N 000961018038 | SCREW |
| BELL HOUSING | ||
| 026 | N 007603018104 | SEAL RING |
| BELL HOUSING | ||
| 072 | A 6202500214 | SHAFT |
| (PARTS KIT),RELEASE SHAFT | ||
| A 6202540207 | SHAFT | |
| (CLUTCH RELEASE SHAFT) | ||
| 076 | N 914112010025 | SCREW |
| CLUTCH RELEASE SHAFT TO BELL HOUSING | ||
| A 6152500213 | RELEASE LEVER | |
| Repalced by: A 6152540208 | ||
| A 6152540208 | RELEASE LEVER | |
| Repalced by: A 6152540708 | ||
| 080 | A 6152540708 | RELEASE LEVER |
| A 0012540235 | BEARING | |
| RELEASE LEVER | ||
| 084 | A 0099810410 | NEEDLE BEARING |
| RELEASE LEVER | ||
| 088 | A 0079978847 | SEAL RING |
| RELEASE LEVER | ||
| 092 | N 001481005044 | CLAMPING SLEEVE |
| RELEASE LEVER TO SHAFT | ||
| 104 | N 000933010145 | SCREW |
| BELL HOUSING TO FLYWHEEL HOUSING | ||
| 110 | A 0002507015 | RELEASE BEARING |
| 114 | A 6169930025 | SPRING |
| Repalced by: A 6799930025 | ||
| 114 | A 6799930025 | SPRING |
| RELEASE LEVER TO RELEASE BEARING | ||
| 124 | A 3649970082 | HOSE |
| RELEASE BEARING LUBRICATION | ||
| 126 | A 6209970288 | GREASE NIPPLE |
| (PARTS KIT) RELEASE BEARING LUBRICATION | ||
| 127 | N 071428004102 | SCREW-IN FITTING |
| RELEASE BEARING LUBRICATION | ||
| 128 | N 003871004102 | UNION SCREW |
| RELEASE BEARING LUBRICATION | ||
| 132 | N 003862004001 | DOUBLE TAPER RING |
| RELEASE BEARING LUBRICATION | ||
| A 3872510108 | INTERMEDIATE PIECE | |
| Repalced by: A 6209970088 | ||
| 144 | A 6209970088 | GREASE NIPPLE |
| RELEASE BEARING LUBRICATION | ||
| N 003411002001 | GREASE CUP | |
| Repalced by: A 6209880135 | ||
| 146 | A 6209880135 | CAP |
| RELEASE BEARING LUBRICATION | ||
| 148 | N 912004014100 | LOCK WASHER |
| RELEASE BEARING LUBRICATION | ||
| 150 | N 000936014010 | NUT |
| Repalced by: N 308675014000 | ||
| 150 | N 308675014000 | NUT |
| Repalced by: N 308675014002 | ||
| 150 | N 308675014002 | NUT |
| RELEASE BEARING LUBRICATION | ||
| A 0012954507 | SLAVE CYLINDER | |
| Repalced by: A 0012955407 | ||
| A 0012955407 | SLAVE CYLINDER | |
| Repalced by: A 0012959607 | ||
| 168 | A 0012959607 | SLAVE CYLINDER |
| CLUTCH ACTUATION | ||
| A 0002950460 | SEAL RING | |
| Repalced by: A 0002902467 | ||
| A 0004202155 | BLEEDER VALVE | |
| Repalced by: A 0004310265 | ||
| A 0004310265 | VALVE | |
| Repalced by: A 3075530107 | ||
| 176 | A 3075530107 | VALVE |
| BREATHER | ||
| A 0004210887 | PROTECTIVE CAP | |
| Repalced by: A 0004217187 | ||
| 180 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 180 | A 0004210887 | PROTECTIVE CAP |
| A 0002954783 | BOOT | |
| Repalced by: A 0002955983 | ||
| A 0002955383 | BOOT | |
| Repalced by: A 0002955983 | ||
| 200 | A 0002955983 | BOOT |
| 208 | A 0002901167 | REPAIR KIT |
| CLUTCH SLAVE CYLINDER | ||
| TO 001 295 45 07;FAG,KN28022 A 1 F | ||
| A 0002902467 | REPAIR KIT | |
| Repalced by: A 0002904567 | ||
| 208 | A 0002904567 | REPAIR KIT |
| CLUTCH SLAVE CYLINDER | ||
| TO 001 295 54 07;FAG,KN28022 C 1 F, | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 001 295 96 07;FAG,KN28022 D 1 F | ||
| 228 | A 6152950045 | FLANGE |
| CLUTCH SLAVE CYLINDER TO BELL HOUSING | ||
| 232 | N 000931010264 | SCREW |
| CLUTCH SLAVE CYLINDER TO BELL HOUSING | ||
| M 10X45 | ||
| 232 | N 000931010439 | SCREW |
| CLUTCH SLAVE CYLINDER TO BELL HOUSING | ||
| M 10X170 | ||
| 240 | N 000960018111 | SCREW |
| BELL HOUSING TO TRANSMISSION | ||
| 248 | N 912004018101 | LOCK WASHER |
| BELL HOUSING TO TRANSMISSION | ||
| A 0065420717 | SENDER UNIT | |
| Repalced by: A 0065427117 | ||
| 252 | A 0065427117 | SENDER UNIT |
| OVERREVVING | ||
| A 6162510071 | SCREW | |
| BELL HOUSING | ||
