Transporto priemonė: 1617 CAK; VIN numerio dalis: 617316
Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|

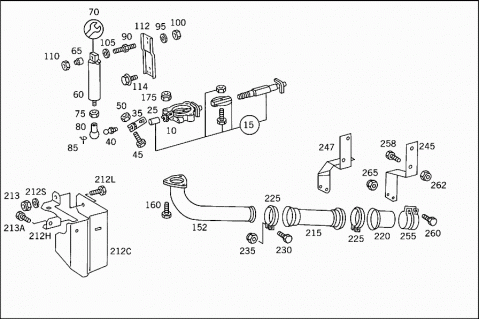

| 010 | A 3661402353 | THROTTLE HOUSING |
| Repalced by: A 3661405353 | ||
| 010 | A 3661405353 | THROTTLE HOUSING |
| PARTS KIT | ||
| 015 | A 3661401163 | VALVE |
| PARTS KIT | ||
| 025 | A 4031440550 | BUSHING |
| THROTTLE VALVE SHAFT | ||
| 035 | A 3661400032 | LEVER |
| Repalced by: A 3661400232 | ||
| 035 | A 3661400232 | LEVER |
| THROTTLE VALVE SHAFT | ||
| 040 | N 071803013208 | BALL PIVOT |
| 045 | N 000933006124 | SCREW |
| LEVER TO THROTTLE VALVE SHAFT | ||
| TO 366 140 00 32 | ||
| 045 | N 914026006025 | COMBINATION BOLT |
| LEVER TO THROTTLE VALVE SHAFT | ||
| TO 366 140 02 32 | ||
| 050 | N 000934006007 | NUT |
| LEVER TO THROTTLE VALVE SHAFT | ||
| TO 366 140 00 32 | ||
| 050 | N 913017006000 | NUT |
| Repalced by: N 910112006001 | ||
| 050 | N 910112006001 | NUT |
| Repalced by: N 913023006001 | ||
| 050 | N 913023006001 | NUT |
| LEVER TO THROTTLE VALVE SHAFT | ||
| TO 366 140 02 32 | ||
| A 0004303026 | CYLINDER | |
| Repalced by: A 0004304826 | ||
| 060 | A 0004304826 | CYLINDER |
| Repalced by: A 0004306026 | ||
| A 0004303226 | CYLINDER | |
| Repalced by: A 0004304926 | ||
| 060 | A 0004304926 | CYLINDER |
| Repalced by: A 0004306026 | ||
| 060 | A 0004306026 | CYLINDER |
| Repalced by: A 0004305926 | ||
| 060 | A 0004305926 | CYLINDER |
| (POWER CYLINDER),EXHAUST BRAKE | ||
| MOTORBREMSE TECHNOMATIK | ||
| 065 | A 0004340850 | BUSHING |
| TO 000 430 30 26/32 26 | ||
| 065 | A 4421440050 | BUSHING |
| TO 000 430 48 26/49 26 | ||
| 070 | A 0004308460 | REPAIR KIT |
| SHIFTING CYLINDER | ||
| TO KNORR,SZ 1130 I/74963,000 430 30 26 | ||
| 070 | A 0004305426 | REPAIR KIT |
| SHIFTING CYLINDER | ||
| TO KNORR,000 430 48 26 | ||
| 075 | N 000439008211 | NUT |
| Repalced by: N 304035008001 | ||
| 075 | N 304035008001 | NUT |
| SHIFTING CYLINDER TO SHIFT LEVER | ||
| 080 | A 4039910222 | BALL SOCKET |
| SHIFTING CYLINDER TO SHIFT LEVER | ||
| 080 | A 3769917022 | BALL SOCKET |
| SHIFTING CYLINDER TO SHIFT LEVER | ||
| 085 | N 071805013402 | SECURING CLIP |
| SHIFTING CYLINDER TO SHIFT LEVER | ||
| A 4221440174 | PIN | |
| Repalced by: A 4421440574 | ||
| 090 | A 4421440574 | PIN |
| SHIFTING CYLINDER TO BRACKET | ||
| 090 | A 4421440274 | PIN |
| SHIFTING CYLINDER TO BRACKET | ||
| 095 | N 007349008003 | WASHER |
| SHIFTING CYLINDER TO BRACKET | ||
| 095 | A 0039902940 | WASHER |
| SHIFTING CYLINDER | ||
| 100 | N 304032008006 | NUT |
| SHIFTING CYLINDER TO BRACKET | ||
| 105 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 105 | N 000125008443 | WASHER |
| SHIFTING CYLINDER TO PIN | ||
| 110 | N 999900008005 | NUT |
| SHIFTING CYLINDER TO PIN | ||
| 110 | N 304032008006 | NUT |
| SHIFTING CYLINDER TO PIN | ||
| 112 | A 3661440040 | BRACKET |
| Repalced by: A 3661440440 | ||
| 112 | A 3661440440 | BRACKET |
| SHIFTING CYLINDER | ||
| 114 | N 914126008007 | SCREW |
| BRACKET TO THROTTLE HOUSING | ||
| 152 | A 6164900919 | EXHAUST PIPE |
| FRONT,FRONT PART | ||
| 152 | A 6164902319 | EXHAUST PIPE |
| FRONT,FRONT PART | ||
| 160 | N 000960012221 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 12X80 | ||
| 160 | N 000960012224 | SCREW |
| Repalced by: N 000961012208 | ||
| 160 | N 000961012208 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 12X75 | ||
| 175 | N 910113012002 | NUT |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| A 6174900730 | PROTECTIVE PLATE | |
| Repalced by: A 6524920230 | ||
| 212C | A 6524920230 | PROTECTIVE PLATE |
| 212H | A 6764921641 | BRACKET |
| Repalced by: A 6764901040 | ||
| 212H | A 6764901040 | BRACKET |
| PROTECTIVE PLATE | ||
| N 000933008291 | SCREW | |
| Repalced by: A 4609900601 | ||
| 212L | A 4609900601 | SCREW |
| PROTECTIVE PLATE TO BRACKET | ||
| M 8X20 | ||
| 212S | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 212S | N 000125008443 | WASHER |
| PROTECTIVE PLATE TO BRACKET | ||
| 213 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 213 | N 913004008001 | NUT |
| PROTECTIVE PLATE TO BRACKET | ||
| 213A | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 213A | N 308676012012 | SCREW |
| PROTECTIVE PLATE TO SIDE MEMBER | ||
| M 12X1,5X25 | ||
| 215 | A 6204900465 | FLEXIBLE METAL TUBE |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 220 | A 6204920208 | COLLAR |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 225 | A 6209970590 | CLAMP |
| EXHAUST LINE FLEXIBLE METAL TUBE | ||
| 230 | N 000933008161 | SCREW |
| Repalced by: N 304017008028 | ||
| 230 | N 304017008028 | SCREW |
| CLAMP TO EXHAUST PIPE AND TO FLEXIBLE METAL TUBE | ||
| 235 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 235 | N 913004008001 | NUT |
| CLAMP TO EXHAUST PIPE AND TO FLEXIBLE METAL TUBE | ||
| 240 | A 6164901620 | EXHAUST PIPE |
| FRONT,REAR PART | ||
| 240 | A 6164902120 | EXHAUST PIPE |
| FRONT,REAR PART | ||
| 245 | A 6164900340 | BRACKET |
| FRONT EXHAUST PIPE | ||
| 247 | A 6164900540 | BRACKET |
| Repalced by: A 6504920241 | ||
| 247 | A 6504920241 | BRACKET |
| FRONT EXHAUST PIPE | ||
| 255 | A 6204920940 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 258 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 258 | N 308676014020 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 260 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 260 | N 304017010002 | SCREW |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 262 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 262 | N 910113014001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 265 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 265 | N 910113010000 | NUT |
| FRONT EXHAUST PIPE TO BRACKET | ||

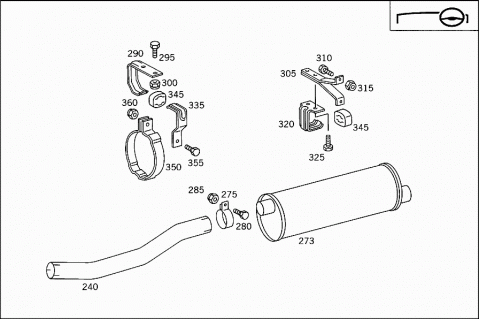

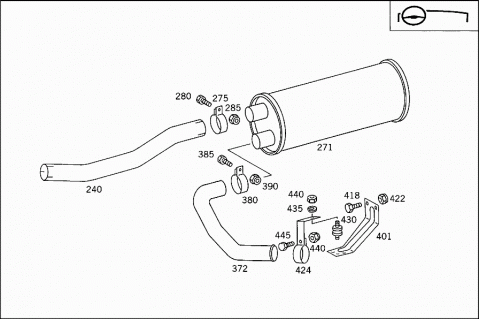

| 271 | A 6164900401 | EXHAUST MUFFLER |
| 273 | A 6164900501 | EXHAUST MUFFLER |
| 275 | N 071555094501 | CLAMP |
| Repalced by: N 071555094502 | ||
| 275 | N 071555094502 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 280 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 280 | N 304017010002 | SCREW |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 285 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 285 | N 910113010000 | NUT |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 290 | A 6174911216 | SUPPORT |
| FRONT EXHAUST MUFFLER | ||
| 295 | N 000933012151 | SCREW |
| Repalced by: N 304017012022 | ||
| 295 | N 304017012022 | SCREW |
| SUPPORT TO CROSS MEMBER | ||
| 300 | N 910113012002 | NUT |
| SUPPORT TO CROSS MEMBER | ||
| 305 | A 6174900034 | SUPPORT |
| REAR EXHAUST MUFFLER | ||
| 310 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 310 | N 304017010002 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 315 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 315 | N 910113010000 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 320 | A 6174911316 | SUPPORT |
| REAR EXHAUST MUFFLER | ||
| 325 | N 000933010157 | SCREW |
| SUPPORT TO CROSS MEMBER | ||
| 335 | A 6174920141 | BRACKET |
| FRONT EXHAUST MUFFLER | ||
| 345 | A 3814920082 | DAMPING PAD |
| FRONT AND REAR EXHAUST MUFFLERS | ||
| 350 | A 6164910040 | CLAMP |
| EXHAUST MUFFLER TO BRACKET,FRONT AND REAR | ||
| 355 | N 000933010094 | SCREW |
| EXHAUST MUFFLER TO BRACKET,FRONT AND REAR | ||
| 360 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 360 | N 910113010000 | NUT |
| EXHAUST MUFFLER TO BRACKET,FRONT AND REAR | ||

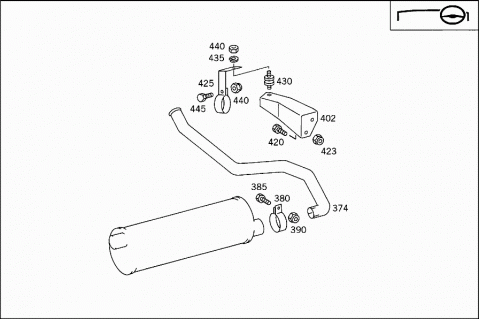

| 372 | A 6164922314 | END PIECE |
| REAR EXHAUST PIPE | ||
| 374 | A 6164921914 | END PIECE |
| REAR EXHAUST PIPE | ||
| 380 | N 071555094501 | CLAMP |
| Repalced by: N 071555094502 | ||
| 380 | N 071555094502 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 385 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 385 | N 304017010002 | SCREW |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 390 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 390 | N 910113010000 | NUT |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 401 | A 6164920316 | SUPPORT |
| REAR EXHAUST PIPE | ||
| 402 | A 3814910116 | SUPPORT |
| REAR EXHAUST PIPE | ||
| 418 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 418 | N 304017010002 | SCREW |
| FROM SUPPORT TO BATTERY/APPARATUS SUPPORT | ||
| 420 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 420 | N 304017008034 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 422 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 422 | N 910113010000 | NUT |
| FROM SUPPORT TO BATTERY/APPARATUS SUPPORT | ||
| 423 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 423 | N 913004008001 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 424 | A 6174922441 | BRACKET |
| Repalced by: A 6164920241 | ||
| 424 | A 6164920241 | BRACKET |
| REAR EXHAUST PIPE | ||
| 425 | A 6164920141 | BRACKET |
| Repalced by: A 6164920241 | ||
| 425 | A 6164920241 | BRACKET |
| REAR EXHAUST PIPE | ||
| 430 | A 0019875340 | RUBBER BUFFER |
| EXHAUST PIPE SUSPENSION | ||
| 435 | N 912004010102 | LOCK WASHER |
| RUBBER BUFFER TO BRACKET | ||
| 440 | N 000934010014 | NUT |
| RUBBER BUFFER TO BRACKET | ||
| 440 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 440 | N 910113010000 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
| 445 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 445 | N 304017010002 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
