Transporto priemonė: 1617 CAK; VIN numerio dalis: 617316

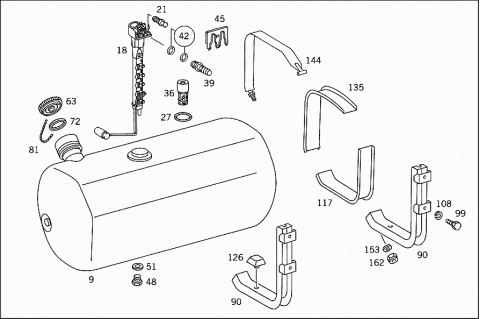

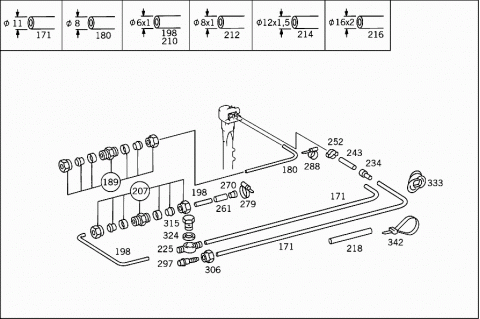

Grupė: 47 FUEL SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 009 | A 6164700001 | FUEL TANK |
| Repalced by: A 6524700101 | ||
| 009 | A 6524700101 | FUEL TANK |
| 125 L | ||
| 018 | A 0055423617 | SENDER UNIT |
| Repalced by: A 0085427917 | ||
| 018 | A 0085427917 | SENDER UNIT |
| Repalced by: A 0085428917 | ||
| 018 | A 0115426017 | SENDER UNIT |
| FUEL GAUGE | ||
| 021 | A 0029977086 | PLUG |
| TO SEAL AUXILIARY HEATER CONNECTION | ||
| 8 MM | ||
| 027 | A 0119970745 | SEAL RING |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 036 | A 0004710235 | FUEL STRAINER |
| SENDER UNIT | ||
| 036 | A 0004710935 | FUEL STRAINER |
| SENDER UNIT | ||
| 039 | A 0019905978 | CONNECTOR |
| FEED LINE AND RETURN LINE | ||
| 12,5X1,25 MM | ||
| 039 | A 0019907478 | CONNECTOR |
| FEED LINE AND RETURN LINE | ||
| 11X1,5 MM | ||
| 039 | A 0019907578 | CONNECTOR |
| FEED LINE AND RETURN LINE | ||
| 8X1 MM | ||
| 042 | A 0129970545 | GASKET KIT |
| CONNECTION ON FUEL GAUGE SENSOR | ||
| 045 | A 0005420873 | LOCK |
| CONNECTION ON FUEL GAUGE SENSOR | ||
| 048 | N 007604014110 | SCREW PLUG |
| AT TANK | ||
| 051 | N 915035000017 | SEAL RING |
| AT TANK | ||
| 063 | A 0004718030 | FILLER CAP |
| Repalced by: A 0004700305 | ||
| 063 | A 0004700105 | FILLER CAP |
| Repalced by: A 0004700305 | ||
| 063 | A 0004710530 | FILLER CAP |
| Repalced by: A 0004717930 | ||
| 063 | A 0004717930 | FILLER CAP |
| Repalced by: A 0004700305 | ||
| 063 | A 0004700305 | FILLER CAP |
| 072 | A 3049970340 | SEAL RING |
| 081 | A 3034700031 | CHAIN |
| FILLER CAP TO FILLER NECK | ||
| 090 | A 6174701442 | SUPPORT |
| FUEL TANK | ||
| 090 | A 6174703042 | SUPPORT |
| FUEL TANK | ||
| 099 | N 000961014028 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X40 | ||
| 099 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 099 | N 308676014020 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X35 | ||
| 108 | N 912004014100 | LOCK WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 117 | A 3634750220 | PAD |
| FUEL TANK TO CONSOLE | ||
| 126 | A 3834750087 | STOP |
| FUEL TANK TO CONSOLE | ||
| 135 | A 3634750320 | PAD |
| STRAP | ||
| 144 | A 6174700240 | STRAP |
| FUEL TANK | ||
| 153 | N 000125013008 | WASHER |
| 162 | N 910113012002 | NUT |
| STRAP TO SUPPORT | ||
| 171 | A 0089975482 | HOSE |
| FEED LINE AND RETURN LINE | ||
| 8X11 MM | ||
| 180 | A 0089979082 | HOSE |
| FUEL TANK BREATHING | ||
| 6X8 MM | ||
| 189 | A 0039978972 | FITTING |
| Repalced by: A 0029905971 | ||
| 189 | A 0029905971 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| TO 008 997 90 82 | ||
| 198 | A 0089976082 | HOSE |
| Repalced by: A 0009872627 | ||
| 198 | A 0009872627 | PLASTIC PIPE |
| LEAK LINE | ||
| 4X6 MM | ||
| 207 | A 0039979172 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 210 | A 0009872627 | PLASTIC PIPE |
| FUEL LINE | ||
| 6X1 MM | ||
| 212 | A 0009872727 | PLASTIC PIPE |
| FUEL LINE | ||
| 8X1 MM | ||
| 214 | A 0009872827 | PLASTIC PIPE |
| FUEL LINE | ||
| 12X1,5 MM | ||
| 216 | A 0009872927 | PLASTIC PIPE |
| FUEL LINE | ||
| 16X2 MM | ||
| 218 | N 040621011200 | INSULATING HOSE |
| FEED LINE | ||
| 225 | A 0009908188 | BANJO UNION |
| FUEL LINE TO ENGINE | ||
| 234 | A 3879900078 | CONNECTOR |
| Repalced by: N 915062008000 | ||
| 234 | N 915062008000 | SLEEVE |
| FEED & RETURN | ||
| 243 | A 3054760126 | HOSE |
| FEED LINE AND RETURN LINE | ||
| 252 | A 0029978790 | CLIP |
| FEED LINE AND RETURN LINE | ||
| 261 | N 073379006203 | HOSE |
| LEAK LINE | ||
| 270 | N 915062004000 | SLEEVE |
| LEAK LINE | ||
| 279 | N 900288010001 | CLAMP |
| LEAK LINE | ||
| 288 | N 916026010000 | CLAMP |
| Repalced by: N 000000000665 | ||
| 288 | N 000000000665 | CLAMP |
| FUEL LINE TO SENDER UNIT | ||
| 297 | A 0019975272 | FITTING |
| RETURN LINE TO FILTER | ||
| 306 | N 915017008200 | UNION NUT |
| RETURN LINE TO FILTER | ||
| 315 | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 315 | N 915036010108 | HOLLOW SCREW |
| FUEL LINE TO ENGINE | ||
| 324 | N 007603014405 | SEAL RING |
| FUEL LINE TO ENGINE | ||
| 333 | A 3879970481 | GROMMET |
| FUEL LINE THRU FRAME SIDE MEMBER | ||
| 38/30 MM | ||
| 342 | A 0019978390 | LOOM TIE |
| FUEL LINES | ||
| 280 MM | ||
| 342 | A 0019978490 | LOOM TIE |
| FUEL LINES | ||
| 376 MM | ||
