Transporto priemonė: 1617 CAK; VIN numerio dalis: 617316

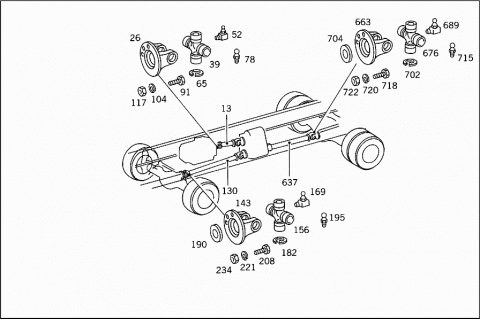

Grupė: 41 PROPELLER SHAFT

#	Kodas	Pavadinimas
013	A 3854106407	PROPELLER SHAFT
		FROM TRANSMISSION TO TRANSFER CASE
		590 MM
026	A 3854111711	DRIVE FLANGE
039	A 3814100231	UNIVERSAL JOINT CROSS
	Repalced by: A 9734100031
039	A 9734100031	UNIVERSAL JOINT CROSS
		WITH BUSHINGS
052	N 071412008302	GREASE NIPPLE
065	A 0069940841	LOCK
		AS REQUIRED
		1.70 MM
065	N 000472048000	LOCK RING
		AS REQUIRED
		1.75 MM
065	A 0069941241	LOCK
		AS REQUIRED
		1.80 MM
065	A 0069941441	LOCK
		AS REQUIRED
		1.85 MM
065	A 0039943641	LOCK
		AS REQUIRED
		1.90 MM
078	N 071412008101	GREASE NIPPLE
	Repalced by: N 071412008102
078	N 071412008102	GREASE NIPPLE
091	A 3609901901	SCREW
	Repalced by: A 3609903001
091	A 3609903001	SCREW
		PROPELLER SHAFT TO TRANSMISSION AND TO TRANSFER CASE
104	N 912004012100	LOCK WASHER
		PROPELLER SHAFT
117	N 000934012034	NUT
		PROPELLER SHAFT
130	A 6744102102	PROPELLER SHAFT
		FROM TRANSFER CASE TO FRONT AXLE
		1151 MM
143	A 3814110811	DRIVE FLANGE
156	A 6174100031	UNIVERSAL JOINT CROSS
		WITH BUSHINGS
169	N 071412008302	GREASE NIPPLE
182	N 000472042001	LOCK RING
		AS REQUIRED
		1.750 MM
182	A 0059949941	LOCK
		AS REQUIRED
		1.875 MM
182	A 0069940441	LOCK
		AS REQUIRED
		2.000 MM
190	A 3814110559	SEAL RING
		PROTECTIVE TUBE
		77X14,5 MM
190	A 0004110059	SEAL RING
		PROTECTIVE TUBE
		74,5X22 MM
195	N 071412008101	GREASE NIPPLE
	Repalced by: N 071412008102
195	N 071412008102	GREASE NIPPLE
208	A 3529900401	SCREW
	Repalced by: A 3529904701
208	A 3529904701	SCREW
	Repalced by: A 0079901001
208	A 0079901001	SCREW
		PROPELLER SHAFT TO TRANSFER CASE AND TO FRONT AXLE
221	N 912004010102	LOCK WASHER
		PROPELLER SHAFT
234	N 000934010010	NUT
		PROPELLER SHAFT
637	A 3854105307	PROPELLER SHAFT
		FROM TRANSFER CASE TO REAR AXLE
		1250 MM
663	A 3854111711	DRIVE FLANGE
676	A 3814100231	UNIVERSAL JOINT CROSS
	Repalced by: A 9734100031
676	A 9734100031	UNIVERSAL JOINT CROSS
		WITH BUSHINGS
689	N 071412008302	GREASE NIPPLE
702	A 0069940841	LOCK
		AS REQUIRED
		1.70 MM
702	N 000472048000	LOCK RING
		AS REQUIRED
		1.75 MM
702	A 0069941241	LOCK
		AS REQUIRED
		1.80 MM
702	A 0069941441	LOCK
		AS REQUIRED
		1.85 MM
702	A 0039943641	LOCK
		AS REQUIRED
		1.90 MM
704	A 3854110059	SEAL RING
		PROTECTIVE TUBE
715	N 071412008101	GREASE NIPPLE
	Repalced by: N 071412008102
715	N 071412008102	GREASE NIPPLE
718	A 3609901901	SCREW
	Repalced by: A 3609903001
718	A 3609903001	SCREW
		PROPELLER SHAFT TO TRANSFER CASE AND TO REAR AXLE
720	N 912004012100	LOCK WASHER
		PROPELLER SHAFT
722	N 000934012034	NUT
		PROPELLER SHAFT
