Transporto priemonė: 1617 CAK; VIN numerio dalis: 617316

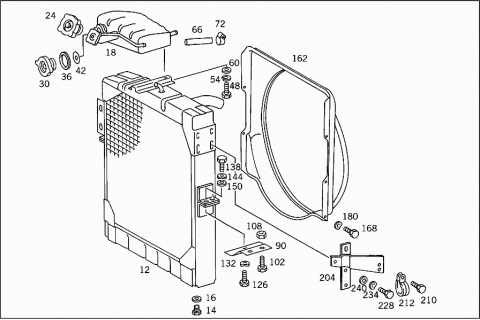

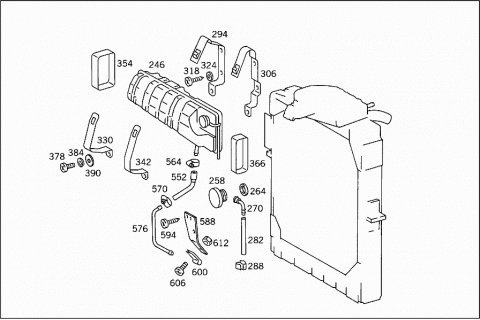

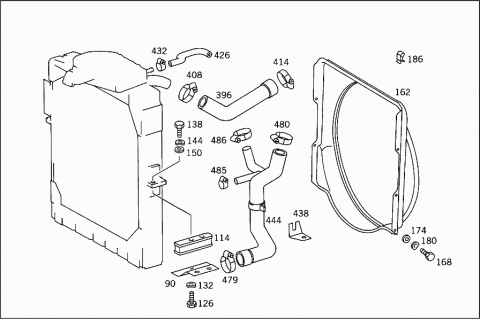

Grupė: 50 RADIATOR
| # | Kodas | Pavadinimas |
|---|---|---|
| 012 | A 0015010901 | RADIATOR |
| WATER | ||
| BEHR | ||
| 014 | N 007604014101 | SCREW PLUG |
| WATER DRAIN | ||
| 016 | N 007603014405 | SEAL RING |
| WATER DRAIN | ||
| 018 | A 0005001549 | TANK |
| COOLING WATER EXPANSION | ||
| BEHR | ||
| 024 | A 0005014615 | RADIATOR CAP |
| FILLER NECK | ||
| 024 | A 0005017215 | RADIATOR CAP |
| FILLER NECK | ||
| 030 | A 0005013715 | RADIATOR CAP |
| LATERAL | ||
| 030 | A 0005017115 | RADIATOR CAP |
| LATERAL | ||
| 036 | A 0005010480 | GASKET |
| O.D., | ||
| 52 MM | ||
| 042 | A 0005010880 | GASKET |
| O.D., | ||
| 37 MM | ||
| 048 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 048 | N 304017008016 | SCREW |
| FROM EXPANSION TANK TO RADIATOR | ||
| 054 | N 912004008102 | LOCK WASHER |
| FROM EXPANSION TANK TO RADIATOR | ||
| 060 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 060 | N 000125008443 | WASHER |
| FROM EXPANSION TANK TO RADIATOR | ||
| 066 | A 0149975782 | HOSE |
| OVERFLOW, EXPANSION TANK | ||
| 072 | N 916017011000 | CLAMP |
| Repalced by: N 916017011001 | ||
| 072 | N 000000000665 | CLAMP |
| OVERFLOW, EXPANSION TANK | ||
| 090 | A 3835040401 | SUPPORT |
| RADIATOR | ||
| 102 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 102 | N 308676012026 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 108 | N 910113012002 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 114 | A 3875040112 | RUBBER MOUNTING |
| RADIATOR | ||
| 126 | N 000933010128 | SCREW |
| RUBBER MOUNTING TO SUPPORT | ||
| 132 | N 000137010201 | SPRING WASHER |
| RUBBER MOUNTING TO SUPPORT | ||
| 138 | N 000933010145 | SCREW |
| RADIATOR TO LEFT RUBBER MOUNTING | ||
| M 10X35 | ||
| 138 | N 000933010094 | SCREW |
| RADIATOR TO RIGHT RUBBER MOUNTING | ||
| M 10X40 | ||
| 144 | N 000137010201 | SPRING WASHER |
| RADIATOR TO RUBBER MOUNTING | ||
| 150 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 150 | N 000125010532 | WASHER |
| RADIATOR TO RUBBER MOUNTING | ||
| 162 | A 3815051455 | FAN SHROUD |
| RADIATOR | ||
| 168 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 168 | N 304017006016 | SCREW |
| FAN SHROUD TO RADIATOR | ||
| 174 | A 3859901140 | WASHER |
| FAN SHROUD TO RADIATOR | ||
| 180 | N 000137006204 | SPRING WASHER |
| FAN SHROUD TO RADIATOR | ||
| 186 | A 1235040246 | CLAMP |
| FAN SHROUD TO RADIATOR | ||
| A 4010100240 | BRACKET | |
| OI DIPSTICK GUIDE TUBE | ||
| 204 | A 3660100140 | BRACKET |
| OI DIPSTICK GUIDE TUBE | ||
| 204 | A 3660100740 | BRACKET |
| OI DIPSTICK GUIDE TUBE | ||
| 210 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 210 | N 304017008016 | SCREW |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 212 | N 916016015200 | CLAMP |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 228 | N 000933006130 | SCREW |
| OIL DIPSTICK BRACKET TO RADIATOR | ||
| 234 | N 000137006204 | SPRING WASHER |
| OIL DIPSTICK BRACKET TO RADIATOR | ||
| 240 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 240 | N 009021006208 | WASHER |
| OIL DIPSTICK BRACKET TO RADIATOR | ||
| 246 | A 6205000149 | TANK |
| (EXPANSION TANK) | ||
| 252 | A 6205000349 | TANK |
| (EXPANSION TANK) | ||
| 258 | A 0005014515 | RADIATOR CAP |
| TOP | ||
| 264 | A 0005010880 | GASKET |
| O.D., | ||
| 37 MM | ||
| 270 | A 0005010110 | DRAIN PIPE |
| 282 | A 0139978682 | HOSE |
| TO 620 500 01 49 | ||
| 282 | A 0079972682 | HOSE |
| Repalced by: A 0219977682 | ||
| 282 | A 0219977682 | HOSE |
| TO 620 500 03 49 | ||
| 288 | A 0009881878 | CLIP |
| DE-AERATION LINE TO CAB | ||
| 288 | A 0009881878 | CLIP |
| DE-AERATION LINE TO CAB | ||
| 294 | A 6205000031 | BRACKET |
| EXPANSION TANK | ||
| 300 | A 6175000031 | BRACKET |
| EXPANSION TANK | ||
| 306 | A 6205000131 | BRACKET |
| EXPANSION TANK | ||
| 312 | A 6175000131 | BRACKET |
| EXPANSION TANK | ||
| 318 | N 007981005306 | SHEET METAL SCREW |
| BRACKET TO CAB | ||
| 324 | N 000125006421 | WASHER |
| BRACKET TO CAB | ||
| 330 | A 6205010320 | STRAP |
| EXPANSION TANK TO BRACKET | ||
| 336 | A 6175010220 | STRAP |
| EXPANSION TANK TO BRACKET | ||
| 342 | A 6205010420 | STRAP |
| EXPANSION TANK TO BRACKET | ||
| 348 | A 6175010320 | STRAP |
| EXPANSION TANK TO BRACKET | ||
| 354 | A 6205010195 | SHIM |
| STRAP | ||
| 360 | A 6175010095 | SHIM |
| STRAP | ||
| 366 | A 6205010295 | SHIM |
| STRAP | ||
| 372 | A 6175010195 | SHIM |
| STRAP | ||
| 378 | N 007985006193 | SCREW |
| STRAP TO BRACKET | ||
| 384 | N 912004006102 | LOCK WASHER |
| STRAP TO BRACKET | ||
| 390 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 390 | N 009021006208 | WASHER |
| STRAP TO BRACKET | ||
| 396 | A 6175013082 | HOSE |
| FROM RADIATOR TO THERMOSTAT | ||
| 408 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 408 | N 000000000671 | CLAMP |
| HOSE TO THERMOSTAT | ||
| 414 | N 916017050000 | CLAMP |
| Repalced by: N 000000000672 | ||
| 414 | N 000000000672 | CLAMP |
| HOSE TO THERMOSTAT | ||
| 426 | A 6155010182 | HOSE |
| FROM EXPANSION TANK TO THERMOSTAT | ||
| 432 | N 916017016000 | CLAMP |
| Repalced by: N 000000000666 | ||
| 432 | N 000000000666 | CLAMP |
| HOSE TO EXPANSION TANK AND TO THERMOSTAT | ||
| 438 | A 6155060140 | BRACKET |
| HOSE | ||
| 444 | A 6175013282 | HOSE |
| FROM RADIATOR OUTLET TO OIL COOLER | ||
| 444 | A 6175013482 | HOSE |
| FROM RADIATOR OUTLET TO WATER PUMP | ||
| 479 | N 916017050000 | CLAMP |
| Repalced by: N 000000000672 | ||
| 479 | N 000000000672 | CLAMP |
| HOSE TO RADIATOR | ||
| 480 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 480 | N 000000000671 | CLAMP |
| HOSE TO RADIATOR | ||
| 485 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 485 | N 000000000667 | CLAMP |
| HOSE TO HEATING PIPE | ||
| 486 | N 916017032000 | CLAMP |
| Repalced by: N 000000000670 | ||
| 486 | N 000000000670 | CLAMP |
| HOSE TO WATER PUMP | ||
| 504 | N 900271018038 | HOSE |
| FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR | ||
| 510 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 510 | N 000000000667 | CLAMP |
| HOSE TO ENGINE AND TO HEATING PIPE | ||
| 516 | A 6155000272 | LINE |
| HEATING AND BREATHING | ||
| 540 | A 3835060035 | HOSE |
| FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE | ||
| 546 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 546 | N 000000000667 | CLAMP |
| HOSE TO HEATING PIPE | ||
| 552 | A 6205012882 | HOSE |
| (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK | ||
| 564 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 564 | N 000000000667 | CLAMP |
| HOSE TO EXPANSION TANK | ||
| 570 | N 916017011000 | CLAMP |
| Repalced by: N 916017011001 | ||
| 570 | N 000000000665 | CLAMP |
| HOSE TO BREATHER PIPE | ||
| 576 | A 6175010225 | BREATHER PIPE |
| (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK | ||
| 582 | A 6205010725 | BREATHER PIPE |
| (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK | ||
| 588 | A 6175010420 | BRACKET |
| DE-AERATION LINE | ||
| 594 | N 007981005306 | SHEET METAL SCREW |
| BRACKET TO CAB | ||
| 600 | A 3609950201 | CLAMP |
| Repalced by: A 3604300143 | ||
| 600 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 600 | N 916016008200 | CLAMP |
| DE-AERATION LINE TO BRACKET | ||
| 606 | N 007985006193 | SCREW |
| DE-AERATION LINE TO BRACKET | ||
| 612 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 612 | N 913004006001 | NUT |
| DE-AERATION LINE TO BRACKET | ||
| 636 | N 900271008043 | HOSE |
| HEATING PIPE TO RADIATOR | ||
| 642 | N 916017011000 | CLAMP |
| Repalced by: N 916017011001 | ||
| 642 | N 000000000665 | CLAMP |
| HOSE TO BREATHER PIPE | ||
