Transporto priemonė: 1617 CAK; VIN numerio dalis: 617316
Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|

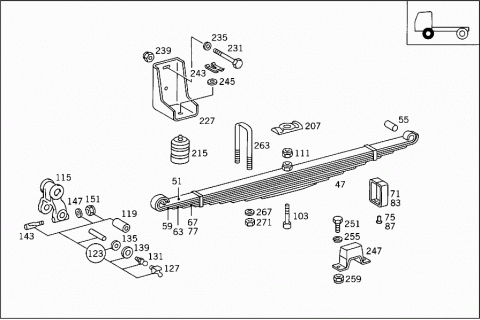

| 047 | A 3853202202 | FRONT SPRING |
| 10-LEAF | ||
| 051 | A 3833201294 | SPRING LEAF |
| NO. 1 | ||
| 055 | A 3523220050 | BUSHING |
| 055 | A 3853220050 | BUSHING |
| 059 | A 3833212012 | SPRING LEAF |
| NO. 2 | ||
| 063 | A 3853210813 | SPRING LEAF |
| NO. 3 | ||
| 067 | A 3853203494 | SPRING LEAF |
| NO. 4 | ||
| 071 | A 3123240633 | SPRING CLAMP |
| AT SPRING LEAF NO.4 | ||
| 075 | N 910006008024 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 077 | A 3853210814 | SPRING LEAF |
| Repalced by: A 3853203494 | ||
| 077 | A 3853203494 | SPRING LEAF |
| NO.4 | ||
| 083 | A 3123240633 | SPRING CLAMP |
| INSIDE;AT NO.9 SPRING LEAF | ||
| 083 | A 3123240633 | SPRING CLAMP |
| AT SPRING LEAF NO.5 | ||
| 087 | N 910006008013 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 103 | N 004626012120 | SPRING BOLT |
| 111 | N 913004012007 | NUT |
| Repalced by: N 910113012005 | ||
| 111 | N 910113012005 | NUT |
| 115 | A 6173200163 | SHACKLE |
| FRONT SPRING | ||
| 119 | A 3523220050 | BUSHING |
| 119 | A 3853220050 | BUSHING |
| 123 | A 3853200165 | SHACKLE PIN |
| PARTS KIT | ||
| 127 | N 071412010300 | GREASE NIPPLE |
| SHACKLE PIN | ||
| 131 | N 071412010100 | GREASE NIPPLE |
| SHACKLE PIN | ||
| 135 | A 3523230376 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 135 | A 3523230476 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 135 | A 3523230576 | WASHER |
| AS REQUIRED | ||
| 4.30 MM | ||
| 139 | A 0029973140 | SEAL RING |
| SPRING SUSPENSION | ||
| 143 | A 3529900337 | BOLT |
| SHACKLES TO FRONT SPRING FRONT AND REAR BRACKETS | ||
| 147 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 147 | N 000125010532 | WASHER |
| SHACKLES TO FRONT SPRING FRONT AND REAR BRACKETS | ||
| 151 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 151 | N 910113010000 | NUT |
| SHACKLES TO FRONT SPRING FRONT AND REAR BRACKETS | ||
| 155 | A 6163260263 | BEARING BRACKET |
| Repalced by: A 6163260163 | ||
| 155 | A 6163260163 | BEARING BRACKET |
| LINK | ||
| 159 | N 000939016033 | STUD BOLT |
| BEARING BRACKET | ||
| 163 | N 000960014237 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| M 14X50 | ||
| 163 | N 000960014229 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| M 14X55 | ||
| 163 | N 000960012261 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| M 12X55 | ||
| 163 | N 000960012261 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| M 12X55 | ||
| 163 | N 000960012162 | SCREW |
| Repalced by: N 000961012205 | ||
| 163 | N 000961012205 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| M 12X50 | ||
| 167 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 167 | N 910113014000 | NUT |
| BEARING BRACKET TO SIDE MEMBER | ||
| 167 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 167 | N 910113012003 | NUT |
| BEARING BRACKET TO SIDE MEMBER | ||
| 167 | N 910113012003 | NUT |
| BEARING BRACKET TO SIDE MEMBER | ||
| 171 | A 6173230016 | LINK |
| TORSION BAR MOUNTING | ||
| 175 | A 0003232150 | BUSHING |
| LINK TO BEARING BRACKET | ||
| 179 | A 3853260052 | SPACER WASHER |
| Repalced by: A 3933260152 | ||
| 179 | A 3933260152 | SPACER WASHER |
| LINK TO BEARING BRACKET | ||
| 179 | A 3873230052 | SPACER WASHER |
| LINK TO BEARING BRACKET | ||
| 183 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 183 | N 910113016002 | NUT |
| LINK TO BEARING BRACKET | ||
| 185 | N 000961016081 | SCREW |
| LINK TO BEARING BRACKET | ||
| 187 | A 3833230092 | BOOT |
| LINK TO TORSION BAR | ||
| 191 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 191 | N 308676012012 | SCREW |
| LINK TO TORSION BAR | ||
| 195 | A 3529900640 | WASHER |
| LINK TO TORSION BAR | ||
| 199 | A 6173230038 | DUST CAP |
| LINK TO TORSION BAR | ||
| 203 | A 3853230263 | BEARING BRACKET |
| TORSION BAR,FRONT | ||
| 207 | A 3523220131 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 215 | A 3853200077 | RUBBER SPRING |
| (HELPER SPRING) | ||
| 227 | A 3853250040 | BRACKET |
| RUBBER SPRING | ||
| 231 | N 000961014119 | SCREW |
| Repalced by: A 9429901304 | ||
| 231 | A 9429901304 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 14X38 | ||
| 231 | A 9429901304 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 14X38 | ||
| 231 | N 000961014101 | SCREW |
| Repalced by: N 308676014012 | ||
| 231 | N 308676014012 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 14X45 | ||
| 235 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 235 | N 000125015019 | WASHER |
| BRACKET TO SIDE MEMBER | ||
| 239 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 239 | N 910113014000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 243 | N 912002012001 | LOCK |
| RUBBER SPRING TO BRACKET | ||
| 245 | N 000125013008 | WASHER |
| 247 | A 3853300075 | RUBBER MOUNTING |
| AXLE STOP | ||
| 251 | N 000933010105 | SCREW |
| STOP BUFFER TO FRONT AXLE,LEFT | ||
| 251 | N 000933010128 | SCREW |
| STOP BUFFER TO FRONT AXLE,RIGHT | ||
| 255 | N 912004010102 | LOCK WASHER |
| STOP BUFFER TO FRONT AXLE,RIGHT | ||
| 259 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 259 | N 910113010000 | NUT |
| STOP BUFFER TO FRONT AXLE,LEFT | ||
| 263 | A 3523310625 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 230 MM | ||
| 263 | A 3523311125 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 260 MM | ||
| 267 | A 3279970026 | WASHER |
| FRONT SPRINGS TO FRONT AXLE | ||
| 271 | A 0029903551 | NUT |
| Repalced by: N 000934018001 | ||
| 271 | N 000934018006 | NUT |
| FRONT SPRINGS TO FRONT AXLE | ||

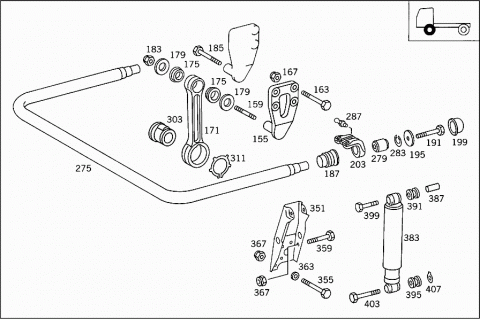

| 275 | A 6163230065 | TORSION BAR |
| TORSION BAR,FRONT | ||
| 279 | A 0009816131 | JOINT BEARING |
| TORSION BAR,FRONT | ||
| 279 | A 0009817431 | JOINT BEARING |
| TORSION BAR,FRONT | ||
| 283 | N 000472055000 | LOCK RING |
| TORSION BAR,FRONT | ||
| 287 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 287 | N 071412008102 | GREASE NIPPLE |
| TORSION BAR,FRONT | ||
| 303 | A 3873230385 | RUBBER MOUNTING |
| TORSION BAR | ||
| 311 | N 000983068000 | LOCK RING |
| TORSION BAR TO SHACKLE | ||
| 351 | A 3833200478 | CONSOLE |
| LEFT SHOCK ABSORBER | ||
| 351 | A 3833200578 | CONSOLE |
| Repalced by: A 3853200678 | ||
| 351 | A 3853200678 | CONSOLE |
| RIGHT SHOCK ABSORBER | ||
| 355 | N 000961012122 | SCREW |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| M 12X40 | ||
| 359 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 359 | N 308676012012 | SCREW |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| M 12X25 | ||
| 363 | N 007349013003 | WASHER |
| Repalced by: N 007349013005 | ||
| 363 | N 007349013005 | WASHER |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| 367 | N 910113012002 | NUT |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| 383 | A 0023237600 | SHOCK ABSORBER |
| Repalced by: A 0043237100 | ||
| 383 | A 0043237100 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 383 | A 0023238400 | SHOCK ABSORBER |
| Repalced by: A 0043233300 | ||
| 383 | A 0043233300 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 387 | A 0003232550 | BUSHING |
| Repalced by: A 0003233150 | ||
| 387 | A 0003233150 | BUSHING |
| TO 002 323 76 00,004 323 71 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 002 323 84 00 | ||
| 387 | A 0003235250 | BUSHING |
| TO 004 323 33 00 | ||
| 391 | A 0003232444 | RUBBER BUFFER |
| Repalced by: A 0003232885 | ||
| 391 | A 0003232885 | RUBBER MOUNTING |
| TO 002 323 76 00,004 323 71 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 002 323 84 00 | ||
| 395 | A 0003233044 | RUBBER BUFFER |
| Repalced by: A 0003233144 | ||
| 395 | A 0003233144 | RUBBER BUFFER |
| TO 004 323 33 00 | ||
| 399 | N 000960016244 | SCREW |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 403 | N 000960016105 | SCREW |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 407 | N 000093017002 | LOCK PLATE |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||

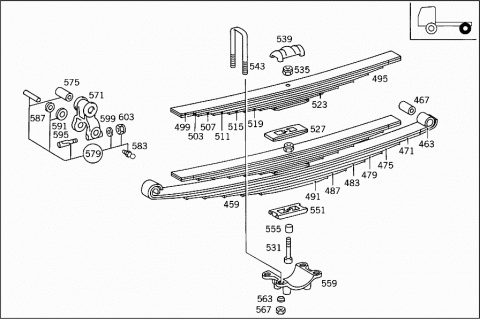

| 459 | A 3853200208 | REAR SPRING |
| 7-LEAF,WITH 7-LEAF HELPER SPRING | ||
| 463 | A 3853201693 | SPRING LEAF |
| REAR SPRING | ||
| NO. 1 | ||
| 467 | A 3523250150 | BUSHING |
| 467 | A 3853250050 | BUSHING |
| 471 | A 3853242112 | SPRING LEAF |
| NO. 2 | ||
| 475 | A 3853240213 | SPRING LEAF |
| NO. 3 | ||
| 479 | A 3853240114 | SPRING LEAF |
| NO. 4 | ||
| 483 | A 3853240115 | SPRING LEAF |
| NO. 5 | ||
| 487 | A 3853240116 | SPRING LEAF |
| NO. 6 | ||
| 491 | A 3853240017 | SPRING LEAF |
| NO. 7 | ||
| 495 | A 3853200110 | HELPER SPRING |
| 499 | A 3853240240 | SPRING LEAF |
| NO. 1 | ||
| 503 | A 3853240241 | SPRING LEAF |
| NO. 2 | ||
| 507 | A 3853240142 | SPRING LEAF |
| NO. 3 | ||
| 511 | A 3853240143 | SPRING LEAF |
| NO. 4 | ||
| 515 | A 3853240144 | SPRING LEAF |
| NO. 5 | ||
| 519 | A 3853240145 | SPRING LEAF |
| NO. 6 | ||
| 523 | A 3853240146 | SPRING LEAF |
| Repalced by: A 3853240619 | ||
| 523 | A 3853240619 | SPRING LEAF |
| NO. 7 | ||
| 527 | A 3523240135 | SPACER |
| 531 | A 6173241971 | SPRING BOLT |
| 535 | N 913004012007 | NUT |
| Repalced by: N 910113012005 | ||
| 535 | N 910113012005 | NUT |
| 539 | A 3833250231 | PLATE |
| REAR SPRING TO REAR AXLE | ||
| 539 | A 6173250331 | PLATE |
| REAR SPRING TO REAR AXLE | ||
| 543 | A 3853512325 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 490 MM | ||
| 543 | A 6173511625 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 500 MM | ||
| 551 | A 6173250984 | SHIM |
| Repalced by: A 6173251484 | ||
| 551 | A 6173251484 | SHIM |
| REAR SPRING TO REAR AXLE | ||
| 555 | A 6179910064 | SHEAR BUSHING |
| REAR SPRING TO REAR AXLE | ||
| 559 | A 3853250031 | PLATE |
| REAR SPRING TO REAR AXLE | ||
| 563 | A 3859970126 | WASHER |
| REAR SPRING TO REAR AXLE | ||
| 567 | N 000934020008 | NUT |
| Repalced by: N 308673020002 | ||
| 567 | N 308673020002 | NUT |
| Repalced by: N 308674020000 | ||
| 567 | N 308674020000 | NUT |
| REAR SPRING TO REAR AXLE | ||
| 571 | A 3523200163 | SHACKLE |
| REAR SPRING | ||
| 575 | A 3523250150 | BUSHING |
| 575 | A 3853250050 | BUSHING |
| 579 | A 3853200065 | SHACKLE PIN |
| PARTS KIT | ||
| 579 | A 3853200065 | SHACKLE PIN |
| REAR SPRING TO SPRING SHACKLE AND TO SPRING FRONT AND REAR BRACKETS | ||
| 583 | N 071412010100 | GREASE NIPPLE |
| SHACKLE PIN | ||
| 587 | A 3523230976 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 587 | A 3523231076 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 591 | A 0029973040 | SEAL RING |
| REAR SPRING TO SPRING SHACKLE AND TO SPRING FRONT AND REAR BRACKETS | ||
| 595 | A 3529900337 | BOLT |
| REAR SPRING TO SPRING SHACKLE AND TO SPRING FRONT AND REAR BRACKETS | ||
| 599 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 599 | N 000125010532 | WASHER |
| REAR SPRING TO SPRING SHACKLE AND TO SPRING FRONT AND REAR BRACKETS | ||
| 603 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 603 | N 910113010000 | NUT |
| REAR SPRING TO SPRING SHACKLE AND TO SPRING FRONT AND REAR BRACKETS | ||

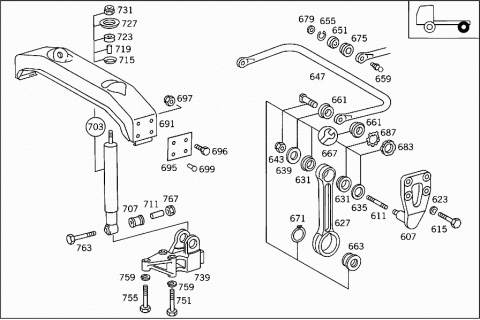

| 607 | A 3933200678 | CONSOLE |
| Repalced by: A 3933261163 | ||
| 607 | A 3933261163 | BEARING BRACKET |
| TORSION BAR,REAR | ||
| 611 | N 000939016033 | STUD BOLT |
| 615 | N 000961016100 | SCREW |
| Repalced by: N 308676016020 | ||
| 615 | N 308676016020 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| M 16X35 | ||
| 615 | N 000961016108 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| M 16X30 | ||
| 623 | N 000137016202 | SPRING WASHER |
| BEARING BRACKET TO SIDE MEMBER | ||
| 627 | A 3633260147 | SHACKLE |
| TORSION BAR,REAR | ||
| 631 | A 0003260650 | BUSHING |
| SHACKLE TO BEARING BRACKET | ||
| 635 | A 3873230252 | SPACER WASHER |
| SHACKLE TO BEARING BRACKET | ||
| 639 | A 3853260052 | SPACER WASHER |
| Repalced by: A 3933260152 | ||
| 639 | A 3933260152 | SPACER WASHER |
| SHACKLE TO BEARING BRACKET | ||
| 643 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 643 | N 910113016002 | NUT |
| SHACKLE TO BEARING BRACKET | ||
| N 000961016081 | SCREW | |
| SHACKLE TO BEARING BRACKET | ||
| 647 | A 3833260365 | TORSION BAR |
| TORSION BAR,REAR | ||
| 651 | A 0009810831 | JOINT BEARING |
| TORSION BAR | ||
| 651 | A 0009811231 | JOINT BEARING |
| TORSION BAR | ||
| 655 | N 000472055000 | LOCK RING |
| TORSION BAR | ||
| 659 | N 071412008200 | GREASE NIPPLE |
| TORSION BAR | ||
| 661 | A 6173260050 | BUSHING |
| TORSION BAR | ||
| 663 | A 3873260281 | RUBBER MOUNTING |
| TORSION BAR TO SHACKLE | ||
| 667 | A 6173200028 | REPAIR KIT |
| Repalced by: A 6173200228 | ||
| 667 | A 6173200228 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 671 | N 000983085001 | LOCK RING |
| TORSION BAR TO SHACKLE | ||
| 675 | A 3603230860 | SEAL RING |
| TORSION BAR TO BEARING BRACKET | ||
| 679 | A 3523260153 | SPACER TUBE |
| TORSION BAR TO BEARING BRACKET | ||
| 683 | N 070852035000 | NUT |
| TORSION BAR TO BEARING BRACKET | ||
| 687 | N 070952035101 | LOCK PLATE |
| TORSION BAR TO BEARING BRACKET | ||
| 691 | A 3853100140 | CROSS MEMBER |
| SHOCK ABSORBER MOUNTING,REAR | ||
| 695 | A 3853120084 | SHIM |
| SHOCK ABSORBER MOUNTING,REAR | ||
| 696 | A 3969900114 | SCREW |
| CROSS MEMBER AND SHIM TO FRAME SIDE MEMBERS | ||
| M 12X25 | ||
| 696 | A 0029908201 | SCREW |
| CROSS MEMBER AND SHIM TO FRAME SIDE MEMBERS | ||
| M 12X30 | ||
| 697 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 697 | N 910113012003 | NUT |
| CROSS MEMBER AND SHIM TO FRAME SIDE MEMBERS | ||
| 699 | N 910005012080 | RIVET |
| CROSS MEMBER AND SHIM TO FRAME SIDE MEMBERS | ||
| 703 | A 3853260200 | SHOCK ABSORBER |
| (PARTS KIT),REAR AXLE | ||
| 707 | A 0003230785 | RUBBER MOUNTING |
| SHOCK ABSORBER,BOTTOM | ||
| TO 003 326 95 00 | ||
| 707 | A 0003233044 | RUBBER BUFFER |
| Repalced by: A 0003233144 | ||
| 707 | A 0003233144 | RUBBER BUFFER |
| SHOCK ABSORBER,BOTTOM | ||
| TO 004 326 18 00 | ||
| 711 | A 0003230553 | SPACER TUBE |
| SHOCK ABSORBER,BOTTOM | ||
| 715 | A 3173260167 | RETAINER |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 719 | A 3853230253 | SPACER TUBE |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 723 | A 3853260068 | RUBBER BUFFER |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 727 | A 3543260067 | RETAINER |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 731 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 731 | N 910113016002 | NUT |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 739 | A 3833261240 | BRACKET |
| SHOCK ABSORBER AND STABILIZER,LEFT | ||
| 739 | A 3833261340 | BRACKET |
| SHOCK ABSORBER AND STABILIZER,RIGHT | ||
| 751 | N 000960014073 | SCREW |
| BRACKET TO REAR SPRING SADDLE COUNTER PLATE | ||
| M 14X110 | ||
| 755 | N 000960014244 | SCREW |
| BRACKET TO REAR SPRING SADDLE COUNTER PLATE | ||
| M 14X65 | ||
| 759 | N 912004014100 | LOCK WASHER |
| BRACKET TO REAR SPRING SADDLE COUNTER PLATE | ||
| 763 | A 3859900101 | SCREW |
| SHOCK ABSORBER TO BRACKET | ||
| 767 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 767 | N 913004020003 | NUT |
| SHOCK ABSORBER TO BRACKET | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
