Transporto priemonė: 1617 CAK; VIN numerio dalis: 617316

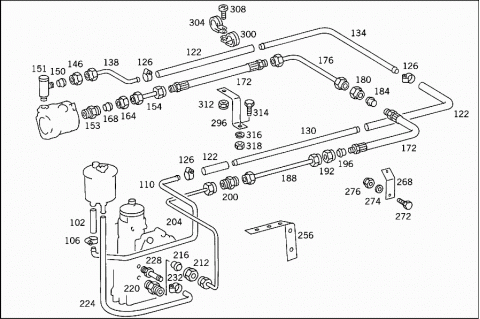

Grupė: 46 STEERING
| # | Kodas | Pavadinimas |
|---|---|---|
| 006 | A 0004663802 | TANK |
| Repalced by: A 0004664502 | ||
| 010 | A 0004664502 | TANK |
| OIL | ||
| 014 | A 0004660218 | PIPE |
| TO 000 466 38 02 | ||
| 018 | A 0004660267 | OIL DIPSTICK |
| Repalced by: A 0004660867 | ||
| 018 | A 0004660867 | OIL DIPSTICK |
| TO 000 466 45 02 | ||
| A 1233270059 | PROTECTIVE CAP | |
| 022 | A 0004662005 | COVER |
| TO 000 466 38 02 | ||
| 026 | A 0004660068 | FILLER CAP |
| TO 000 466 45 02 | ||
| 030 | A 0004660260 | SEAL RING |
| TO 000 466 38 02 | ||
| 034 | A 0004661760 | SEAL RING |
| TO 000 466 45 02 | ||
| 038 | A 0014664465 | FILTER CARRIER |
| TO 000 466 38 02 | ||
| 042 | A 0004660740 | BRACKET |
| TO 000 466 45 02 | ||
| 046 | A 0004660604 | FILTER |
| 050 | A 0059970848 | SEAL RING |
| TO 000 466 38 02 | ||
| 054 | A 0004660558 | CONNECTOR |
| TO 000 466 38 02 | ||
| 058 | N 000315008006 | NUT |
| TO 000 466 38 02 | ||
| 062 | A 0004660675 | CENTERING RING |
| TO 000 466 38 02 | ||
| 066 | A 0004660275 | WASHER |
| Repalced by: A 9402680552 | ||
| 066 | A 9402680552 | SPACER WASHER |
| TO 000 466 38 02 | ||
| 070 | A 0004660153 | SPACER TUBE |
| TO 000 466 38 02 | ||
| 074 | A 0004660238 | COVER PLATE |
| TO 000 466 38 02 | ||
| 078 | A 0009870643 | RUBBER SLEEVE |
| TO 000 466 38 02 | ||
| 082 | A 6174600235 | BRACKET |
| OIL TANK | ||
| 082 | A 6174600335 | BRACKET |
| OIL TANK | ||
| 086 | N 000933010238 | SCREW |
| Repalced by: N 304017010028 | ||
| 086 | N 304017010028 | SCREW |
| BRACKET TO STEERING | ||
| 090 | N 912004010102 | LOCK WASHER |
| BRACKET TO STEERING | ||
| 094 | N 007985006139 | SCREW |
| OIL TANK TO BRACKET | ||
| 098 | N 913002006001 | NUT |
| Repalced by: N 913002006009 | ||
| 098 | N 913002006009 | NUT |
| OIL TANK TO BRACKET | ||
| A 3439970382 | HOSE | |
| Repalced by: A 3609970982 | ||
| A 3609970982 | HOSE | |
| Repalced by: A 3859971582 | ||
| 102 | A 3859971582 | HOSE |
| FROM OIL TANK TO SUCTION LINE HOSE | ||
| 106 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 106 | N 000000000667 | CLAMP |
| HOSE TO OIL LINE | ||
| 110 | A 6204661665 | LINE |
| FROM HOSE TO OIL PUMP | ||
| 114 | A 3834660765 | LINE |
| FROM HOSE TO OIL PUMP | ||
| A 3834660865 | LINE | |
| Repalced by: A 6844660065 | ||
| 114 | A 6844660065 | LINE |
| FROM HOSE TO OIL PUMP | ||
| 114 | A 6174662565 | LINE |
| FROM HOSE TO OIL PUMP | ||
| 114 | A 6204661765 | LINE |
| FROM HOSE TO OIL PUMP | ||
| 122 | A 3859971582 | HOSE |
| OIL LINE CONNECTION | ||
| 126 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 126 | N 000000000667 | CLAMP |
| HOSE TO OIL LINE | ||
| 126 | N 916017025000 | CLAMP |
| Repalced by: N 000000000668 | ||
| 126 | N 000000000668 | CLAMP |
| HOSE TO OIL LINE | ||
| 130 | A 6164660065 | LINE |
| FROM HOSE TO OIL PUMP | ||
| 134 | A 6164660165 | LINE |
| FROM HOSE TO OIL PUMP | ||
| 138 | A 6174600024 | LINE |
| FROM HOSE TO OIL PUMP | ||
| 138 | A 6174601424 | LINE |
| FROM HOSE TO OIL PUMP | ||
| 138 | A 3814600224 | LINE |
| FROM HOSE TO OIL PUMP | ||
| 142 | A 6174600124 | LINE |
| FROM HOSE TO OIL PUMP | ||
| 146 | N 915017022100 | UNION NUT |
| LINE MOUNTING | ||
| 150 | N 003861022004 | GLAND |
| Repalced by: A 0019901267 | ||
| 150 | A 0019901267 | SEAL CONE |
| LINE MOUNTING | ||
| 151 | A 0009907168 | FITTING |
| SUCTION LINE TO OIL PUMP | ||
| 152 | N 003901022006 | SCREW-IN FITTING |
| SUCTION LINE TO OIL PUMP | ||
| 153 | A 0029971572 | FITTING |
| DELIVERY LINE TO PUMP | ||
| 154 | A 6174600224 | LINE |
| FROM PUMP TO HIGH PRESSURE HOSE | ||
| 154 | A 6174601524 | LINE |
| FROM PUMP TO HIGH PRESSURE HOSE | ||
| 154 | A 3814601024 | LINE |
| FROM PUMP TO HIGH PRESSURE HOSE | ||
| 160 | A 6174600324 | LINE |
| FROM PUMP TO HIGH PRESSURE HOSE | ||
| 164 | N 915017012100 | UNION NUT |
| LINE MOUNTING | ||
| 168 | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 168 | A 0019901967 | SEAL CONE |
| LINE MOUNTING | ||
| 172 | A 0009978152 | HOSE |
| FROM POWER STEERING PUMP TO STEERING | ||
| 172 | A 0019976352 | HOSE |
| FROM POWER STEERING PUMP TO STEERING | ||
| 172 | A 0129972482 | HOSE |
| FROM POWER STEERING PUMP TO STEERING | ||
| 176 | A 6174600424 | LINE |
| FROM HIGH PRESSURE HOSE TO STEERING | ||
| 180 | N 915017012100 | UNION NUT |
| LINE MOUNTING | ||
| 184 | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 184 | A 0019901967 | SEAL CONE |
| LINE MOUNTING | ||
| 188 | A 6174600524 | LINE |
| FROM HIGH PRESSURE HOSE TO STEERING | ||
| 192 | N 915017012100 | UNION NUT |
| LINE MOUNTING | ||
| 196 | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 196 | A 0019901967 | SEAL CONE |
| LINE MOUNTING | ||
| 200 | A 0029906171 | FITTING |
| LINE TO HIGH PRESSURE HOSE | ||
| 204 | A 3854600024 | LINE |
| FROM HIGH PRESSURE HOSE TO STEERING | ||
| 208 | A 3814600624 | LINE |
| FROM HIGH PRESSURE HOSE TO STEERING | ||
| A 3814601224 | LINE | |
| Repalced by: A 6844600024 | ||
| 208 | A 6844600024 | LINE |
| FROM HIGH PRESSURE HOSE TO STEERING | ||
| 208 | A 6174602424 | LINE |
| FROM HIGH PRESSURE HOSE TO STEERING | ||
| 212 | N 915017012100 | UNION NUT |
| LINE MOUNTING | ||
| 216 | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 216 | A 0019901967 | SEAL CONE |
| LINE MOUNTING | ||
| 220 | N 003901012011 | SCREW-IN FITTING |
| LINE TO STEERING | ||
| 224 | A 6174660081 | HOSE |
| FROM STEERING TO OIL TANK | ||
| 224 | A 6174660181 | HOSE |
| FROM STEERING TO OIL TANK | ||
| 228 | A 3839970072 | FITTING |
| PIPE LINE TO STEERING | ||
| 232 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 232 | N 000000000667 | CLAMP |
| HOSE TO OIL LINE | ||
| 252 | A 3812950440 | BRACKET |
| LINE TO STEERING | ||
| A 6732710140 | BRACKET | |
| Repalced by: A 3274925419 | ||
| A 3274925419 | BRACKET | |
| Repalced by: A 6205240340 | ||
| 252 | A 6205240340 | BRACKET |
| LINE TO STEERING | ||
| A 3874660240 | BRACKET | |
| Repalced by: A 6564660040 | ||
| 256 | A 6564660040 | BRACKET |
| DELIVERY AND SUCTION LINES | ||
| 256 | A 3874660940 | BRACKET |
| DELIVERY AND SUCTION LINES | ||
| 268 | A 6216190040 | BRACKET |
| DELIVERY AND SUCTION LINES | ||
| 272 | N 000000001147 | SCREW |
| CLAMP MOUNTING | ||
| M 6X20 | ||
| 272 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 272 | N 304017006016 | SCREW |
| CLAMP MOUNTING | ||
| 274 | N 000125006421 | WASHER |
| CLAMP MOUNTING | ||
| 276 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 276 | N 913004006001 | NUT |
| CLAMP MOUNTING | ||
| 280 | A 3609950701 | CLAMP |
| Repalced by: N 916016018202 | ||
| 280 | N 916016018202 | CLAMP |
| DELIVERY AND SUCTION LINES TO BRACKET | ||
| 20/20 MM | ||
| 280 | A 3609950401 | CLAMP |
| DELIVERY AND SUCTION LINES TO BRACKET | ||
| 12/20 MM | ||
| 280 | A 3609950201 | CLAMP |
| Repalced by: A 3604300143 | ||
| 280 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 280 | N 916016008200 | CLAMP |
| DELIVERY AND SUCTION LINES TO BRACKET | ||
| 8/15 MM | ||
| 288 | N 007985006176 | SCREW |
| DELIVERY AND SUCTION LINES TO BRACKET | ||
| 292 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 292 | N 913004006001 | NUT |
| DELIVERY AND SUCTION LINES TO BRACKET | ||
| 296 | A 6194660140 | BRACKET |
| DELIVERY AND SUCTION LINES TO ENGINE, RIGHT | ||
| 300 | N 916016012200 | CLAMP |
| DELIVERY AND SUCTION LINES | ||
| 12/15 MM | ||
| 304 | N 916016022202 | CLAMP |
| DELIVERY AND SUCTION LINES | ||
| 22/20 MM | ||
| 304 | N 916016022206 | CLAMP |
| DELIVERY AND SUCTION LINES | ||
| 22/15 MM | ||
| 308 | N 007985006154 | SCREW |
| Repalced by: A 0029903712 | ||
| 308 | A 0029903712 | SCREW |
| Repalced by: N 000000001149 | ||
| 308 | N 000000001149 | SCREW |
| DELIVERY AND SUCTION LINES | ||
| 312 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 312 | N 913004006001 | NUT |
| DELIVERY AND SUCTION LINES | ||
| 314 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 314 | N 304017008021 | SCREW |
| DELIVERY AND SUCTION LINES TO BRACKET AND TO ENGINE | ||
| 316 | N 912004008102 | LOCK WASHER |
| DELIVERY AND SUCTION LINES TO BRACKET AND TO ENGINE | ||
| 318 | N 912004008102 | LOCK WASHER |
| DELIVERY AND SUCTION LINES TO BRACKET AND TO ENGINE | ||
| 320 | A 3834640201 | STEERING WHEEL |
| 324 | N 308675022001 | NUT |
| STEERING WHEEL TO STEERING COLUMN | ||
| 328 | A 0004640432 | BADGE |
| STEERING WHEEL | ||
| 336 | A 3814601831 | STEERING COLUMN BRACKET |
| 336 | A 6154601031 | STEERING COLUMN BRACKET |
| 336 | A 3814602531 | STEERING COLUMN BRACKET |
| 336 | A 6154601331 | STEERING COLUMN BRACKET |
| 340 | A 3839970286 | PLUG |
| BOTTOM LATERAL | ||
| 342 | A 3819971186 | PLUG |
| TOP | ||
| 344 | A 3224620023 | COVER |
| BOTTOM | ||
| 346 | A 0119815110 | NEEDLE BEARING |
| BOTTOM | ||
| 348 | A 0014621130 | STEERING LOCK |
| LESS TUMBLER | ||
| 352 | A 0005451367 | CONTACTOR |
| SOLENOID SWITCH | ||
| 356 | A 0005455413 | SWITCH |
| IGNITION SWITCH | ||
| 360 | A 3814600104 | TUMBLER |
| HUF | ||
| 360 | A 3094600004 | TUMBLER |
| LESS KEY | ||
| YMOS | ||
| 364 | A 3814600004 | TUMBLER |
| WITH 2 KEYS | ||
| HUF | ||
| 364 | A 3094620079 | TUMBLER |
| WITH 2 KEYS | ||
| YMOS | ||
| 368 | A 0007600006 | KEY |
| HUF | ||
| 368 | A 0007600606 | KEY |
| YMOS | ||
| 372 | A 0007663706 | KEY |
| BLANK | ||
| HUF | ||
| 372 | A 0007665306 | KEY |
| BLANK | ||
| YMOS | ||
| 376 | A 0004622371 | SCREW |
| (BREAK-OFF BOLT),STEERING LOCK MOUNTING | ||
| 380 | A 3814622143 | SHELL |
| STEERING COLUMN PANELLING,REAR | ||
| 380 | A 3814622243 | SHELL |
| STEERING COLUMN PANELLING,REAR | ||
| 384 | A 3814622443 | SHELL |
| STEERING COLUMN PANELLING,FRONT | ||
| 384 | A 3814622343 | SHELL |
| STEERING COLUMN PANELLING,FRONT | ||
| 385 | A 6204620043 | SHELL |
| STEERING COLUMN PANELLING; BLACK,NO.9051 | ||
| 386 | A 6204620443 | SHELL |
| STEERING COLUMN PANELLING; BLACK,NO.9051 | ||
| 387 | A 3574620096 | BOOT |
| STEERING COLUMN PANELLING; BLACK,NO.9051 | ||
| 388 | A 3574620196 | BOOT |
| STEERING COLUMN PANELLING; BLACK,NO.9051 | ||
| 390 | A 3814620486 | GROMMET |
| STEERING COLUMN | ||
| 392 | A 3819900221 | SCREW |
| STEERING COLUMN PANELLING | ||
| M 5X75.5 | ||
| A 3019900021 | SCREW | |
| Repalced by: A 3819900321 | ||
| 396 | A 3819900321 | SCREW |
| STEERING COLUMN PANELLING | ||
| M 5X83 | ||
| 400 | N 000933010145 | SCREW |
| STEERING COLUMN TO CAB | ||
| 404 | N 000137010201 | SPRING WASHER |
| STEERING COLUMN TO CAB | ||
| A 3814601509 | STEERING SHAFT | |
| Repalced by: A 6504600309 | ||
| 408 | A 6504600309 | STEERING SHAFT |
| LEMFOERDER | ||
| 408 | A 6504600709 | STEERING SHAFT |
| ELBE | ||
| 408 | A 3814607209 | STEERING SHAFT |
| 412 | A 3814620175 | WASHER |
| TO 381 460 15 09 | ||
| 416 | A 3814620260 | SEAL RING |
| TO 381 460 15 09 | ||
| 418 | A 3814620061 | SEAL HOLDER |
| TO 381 460 15 09 | ||
| 420 | A 3814620503 | SLEEVE |
| STEERING SHAFT | ||
| 424 | A 3814620251 | RING |
| STEERING SHAFT | ||
| TO 381 460 15 09 | ||
| A 3814600057 | UNIVERSAL JOINT | |
| Repalced by: A 3164600057 | ||
| A 3164600057 | UNIVERSAL JOINT | |
| Repalced by: A 0004600057 | ||
| 428 | A 0004600057 | UNIVERSAL JOINT |
| STEERING SHAFT | ||
| A 3164600157 | UNIVERSAL JOINT | |
| Repalced by: A 0004600157 | ||
| 428 | A 0004600157 | UNIVERSAL JOINT |
| STEERING SHAFT | ||
| 432 | A 3819900114 | SCREW |
| STEERING SHAFT TO JOINT | ||
| M 8X42 | ||
| 432 | A 3819900114 | SCREW |
| STEERING SHAFT TO STEERING COLUMN | ||
| M 8X42 | ||
| 432 | A 3819900114 | SCREW |
| STEERING SHAFT TO JOINT | ||
| M 8X42 | ||
| 432 | A 3169900114 | SCREW |
| STEERING SHAFT TO JOINT | ||
| M 8X38 | ||
| 436 | N 910113008001 | NUT |
| STEERING SHAFT TO JOINT | ||
| 436 | N 910113008001 | NUT |
| STEERING SHAFT TO STEERING COLUMN | ||
| 440 | A 3874610396 | BOOT |
| STEERING COLUMN COVERING,TOP | ||
| 444 | A 3874611297 | PROTECTIVE SLEEVE |
| STEERING SHAFT | ||
| 448 | N 007981005309 | SHEET METAL SCREW |
| Repalced by: N 007981005321 | ||
| 448 | N 007981005321 | SHEET METAL SCREW |
| PROTECTIVE SLEEVE TO CAB FLOOR | ||
| 452 | A 3874610180 | GASKET |
| PROTECTIVE SLEEVE TO CAB FLOOR | ||
| 456 | A 3874620024 | REINFORCEMENT |
| PROTECTIVE SLEEVE TO CAB FLOOR | ||
| 460 | A 3814620475 | WASHER |
| UNIVERSAL JOINT COVERING | ||
| 464 | A 3814621196 | BOOT |
| UNIVERSAL JOINT COVERING | ||
| A 3834610440 | STEERING SUPPORT | |
| Repalced by: A 6154610040 | ||
| 468 | A 6154610040 | STEERING SUPPORT |
| AT FRAME | ||
| A 3834610540 | STEERING SUPPORT | |
| Repalced by: A 6154610140 | ||
| 468 | A 6154610140 | STEERING SUPPORT |
| AT FRAME | ||
| 472 | N 000960014237 | SCREW |
| STEERING SUPPORT TO FRAME | ||
| M 14X50 | ||
| 476 | N 000960014229 | SCREW |
| STEERING SUPPORT TO FRAME | ||
| M 14X55 | ||
| 480 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 480 | N 910113014000 | NUT |
| STEERING SUPPORT TO FRAME | ||
| 484 | N 000961016077 | SCREW |
| Repalced by: N 308676016006 | ||
| 484 | N 308676016006 | SCREW |
| STEERING BOX ASSEMBLY TO STEERING SUPPORT | ||
| 488 | A 3854630001 | PITMAN ARM |
| 488 | A 6154630001 | PITMAN ARM |
| 492 | A 0019908151 | NUT |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| A 3854601805 | DRAG LINK | |
| Repalced by: A 3854603505 | ||
| 496 | A 3854603505 | DRAG LINK |
| ADJUSTABLE | ||
| LEMFOERDER | ||
| 496 | A 3854602205 | DRAG LINK |
| ADJUSTABLE | ||
| EHRENREICH | ||
| A 6174602005 | DRAG LINK | |
| Repalced by: A 6174603405 | ||
| 496 | A 6174603405 | DRAG LINK |
| LEMFOERDER | ||
| 496 | A 6174602405 | DRAG LINK |
| EHRENREICH | ||
| A 3854601905 | DRAG LINK | |
| Repalced by: A 3854603705 | ||
| 496 | A 3854603705 | DRAG LINK |
| ADJUSTABLE | ||
| LEMFOERDER | ||
| 496 | A 3854602305 | DRAG LINK |
| ADJUSTABLE | ||
| EHRENREICH | ||
| A 6174602105 | DRAG LINK | |
| Repalced by: A 6174603705 | ||
| 496 | A 6174603705 | DRAG LINK |
| LEMFOERDER | ||
| 496 | A 6174602505 | DRAG LINK |
| EHRENREICH | ||
| 508 | A 0004621896 | BOOT |
| FIXED PART OF JOINT | ||
| 508 | A 0004621796 | BOOT |
| FIXED PART OF JOINT | ||
| A 0004632229 | BALL JOINT | |
| Repalced by: A 0004633429 | ||
| A 0004633429 | BALL JOINT | |
| Repalced by: A 0013300135 | ||
| 512 | A 0013300135 | JOINT |
| R.H. THREAD | ||
| LEMFOERDER | ||
| 512 | A 0013300235 | JOINT |
| R.H. THREAD | ||
| EHRENREICH | ||
| 520 | A 0004621796 | BOOT |
| 520 | A 0003301085 | BOOT |
| A 0003382345 | CLAMP | |
| Repalced by: A 0003382545 | ||
| 532 | A 0003382545 | CLAMP |
| CLAMP, ONE-HOLE | ||
| LEMFOERDER | ||
| 532 | A 0003383145 | CLAMP |
| CLAMP, ONE-HOLE | ||
| EHRENREICH | ||
| 536 | N 000960012349 | SCREW |
| CLAMP, TWO-HOLE | ||
| M 12X58 | ||
| 536 | N 000960012453 | SCREW |
| Repalced by: N 308676012017 | ||
| 536 | N 308676012017 | SCREW |
| CLAMP, ONE-HOLE | ||
| M 12X62 | ||
| 540 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 540 | N 910113012003 | NUT |
| CLAMP, TWO-HOLE | ||
| 540 | N 910113012003 | NUT |
| CLAMP, ONE-HOLE | ||
| 544 | N 000937020001 | NUT |
| DRAG LINK TO STEERING ARM | ||
| 548 | N 000094004065 | COTTER PIN |
| DRAG LINK TO STEERING ARM | ||
| 552 | N 000937024002 | NUT |
| DRAG LINK TO STEERING ARM | ||
| 556 | N 000094005035 | COTTER PIN |
| DRAG LINK TO STEERING ARM | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
