Transporto priemonė: 1617 CAK; VIN numerio dalis: 617316

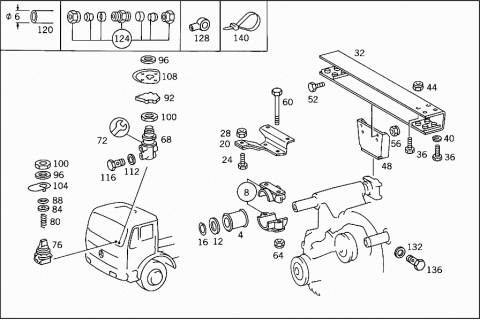

Grupė: 28 TRANSFER CASE

#	Kodas	Pavadinimas
	T YYYYYYYYYYYY	PART NAME MISSING
		FOR TRANSFER CASE,SEE UNIT STANDARD VERSION,MODEL:
		750.5
004	A 3222850082	RUBBER MOUNTING
		TRANSFER CASE TO CROSS MEMBER
008	A 3122801386	BEARING
		TRANSFER CASE TO CROSS MEMBER
012	A 3229901940	WASHER
	Repalced by: A 3129902840
012	A 3129902840	WASHER
		RUBBER MOUNTING TO TRANSFER CASE
016	A 0009947941	LOCK
		RUBBER MOUNTING TO TRANSFER CASE
020	A 3802800085	SUPPORT
		FRONT
024	N 000933010164	SCREW
		SUPPORT TO CROSS MEMBER
		M 10X22
024	N 000933010105	SCREW
		SUPPORT TO CROSS MEMBER
		M 10X25
028	N 913004010008	NUT
	Repalced by: N 910113010000
028	N 910113010000	NUT
		SUPPORT TO CROSS MEMBER
032	A 3833101037	CROSS MEMBER
		TRANSFER CASE
036	N 000933010164	SCREW
		CROSS MEMBER TO REINFORCEMENT
		M 10X22
036	N 000933010129	SCREW
	Repalced by: N 304017010002
036	N 304017010002	SCREW
		TRANSFER CASE WITH CROSS MEMBER TO FRAME
		M 10X30
040	N 912004010102	LOCK WASHER
		TRANSFER CASE WITH CROSS MEMBER TO FRAME
044	N 913004010008	NUT
	Repalced by: N 910113010000
044	N 910113010000	NUT
		TRANSFER CASE WITH CROSS MEMBER TO FRAME
048	A 3802850140	BRACKET
		REAR
052	N 000961012052	SCREW
	Repalced by: N 308676012012
052	N 308676012012	SCREW
		BRACKET TO CROSS MEMBER
056	N 910113012002	NUT
		BRACKET TO CROSS MEMBER
060	N 000960012221	SCREW
		TRANSFER CASE WITH BEARING TO SUPPORT
		M 12X80
060	N 000960012184	SCREW
		TRANSFER CASE WITH BEARING TO BRACKET
		M 12X85
064	N 910113012002	NUT
		TRANSFER CASE WITH BEARING TO SUPPORT AND TO BRACKET
068	A 0019977936	VALVE
		TRANSFER CASE SHIFT
		BOSCH
068	A 0019979136	VALVE
		TRANSFER CASE SHIFT
		WESTINGHOUSE
072	A 0025860943	REPAIR KIT
		4/3-WAY VALVE
		TO 001 997 91 36
076	A 0019975036	VALVE
		LONGITUDINAL DIFFERENTIAL LOCK CONTROL
		BOSCH
076	A 0019976136	VALVE
		LONGITUDINAL DIFFERENTIAL LOCK CONTROL
		WESTINGHOUSE
076	A 0039975936	VALVE
		LONGITUDINAL DIFFERENTIAL LOCK CONTROL
		KNORR
076	A 0039976036	VALVE
		LONGITUDINAL DIFFERENTIAL LOCK CONTROL
		VOSS
080	A 0049937501	SPRING
		TO 001 997 61 36
084	A 0069972648	SEAL RING
		TO 001 997 61 36
088	A 0039979640	SEAL RING
		TO 001 997 61 36
092	A 0009970577	HANDLE
		4/3-WAY VALVE
		TO 001 997 79 36,001 997 91 36
096	A 6239900040	WASHER
		VALVE
100	A 3839900051	NUT
		VALVE
104	A 3855844324	UNIT IDENTIFICATION PLATE
		LONGITUDINAL DIFFERENTIAL LOCK
108	A 3855844124	UNIT IDENTIFICATION PLATE
		TRANSFER CASE SHIFT
112	N 007603010103	SEAL RING
	Repalced by: N 007603010110
112	N 007603010110	SEAL RING
		VALVE
116	N 915047006202	HOLLOW SCREW
		3/2-WAY VALVE;CONNECTION:
		"10"
116	N 915036006202	HOLLOW SCREW
		VALVE
120	A 0089976082	HOSE
	Repalced by: A 0009872627
120	A 0009872627	PLASTIC PIPE
		FROM VALVE TO TRANSFER CASE SHIFTING CYLINDER
		4X6 MM
124	A 0039979172	FITTING
		(PARTS KIT),LINE RUPTURE
128	N 915052004016	BANJO UNION
		HOSE WIDTH, / I.D.,
		4/10 MM
128	N 915052004015	BANJO UNION
		HOSE WIDTH, / I.D.,
		4/12 MM
132	N 007603012405	SEAL RING
		SHIFTING CYLINDER
136	N 915036008202	HOLLOW SCREW
		SHIFTING CYLINDER
140	A 0019978390	LOOM TIE
		LINE MOUNTING
