Transporto priemonė: 1617 CS; VIN numerio dalis: 617111

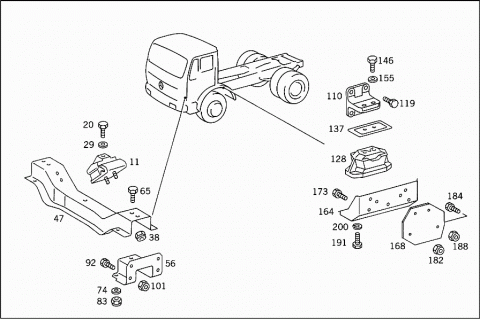

Grupė: 24 ENGINE SUSPENSION - 001 RUBBER MOUNTING TO ENGINE SUPPORT
| # | Kodas | Pavadinimas |
|---|---|---|
| 011 | A 6152400317 | RUBBER MOUNTING |
| FRONT | ||
| 020 | N 000961016088 | SCREW |
| Repalced by: N 000961016097 | ||
| 020 | N 000961016097 | SCREW |
| Repalced by: N 308676016005 | ||
| 020 | N 308676016005 | SCREW |
| RUBBER MOUNTING TO ENGINE SUPPORTING ARM | ||
| 029 | A 3529902440 | WASHER |
| RUBBER MOUNTING TO ENGINE SUPPORTING ARM | ||
| 038 | N 910113012002 | NUT |
| RUBBER MOUNTING TO ENGINE CROSS MEMBER | ||
| 047 | A 3813120105 | ENGINE CROSS MEMBER |
| ENGINE FRONT SUSPENSION | ||
| 056 | A 3812410609 | ENGINE STAY |
| ENGINE FRONT SUSPENSION | ||
| 065 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 065 | N 308676012026 | SCREW |
| ENGINE FRONT CROSS MEMBER TO ENGINE STAY | ||
| 074 | A 3859901040 | WASHER |
| ENGINE FRONT CROSS MEMBER TO ENGINE STAY | ||
| 083 | N 910113012002 | NUT |
| ENGINE FRONT CROSS MEMBER TO ENGINE STAY | ||
| 092 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 092 | N 308676012026 | SCREW |
| ENGINE STAY TO SIDE MEMBER | ||
| M 12X35 | ||
| 092 | N 308676012026 | SCREW |
| ENGINE STAY TO SIDE MEMBER | ||
| M 12X35 | ||
| 092 | N 308676012026 | SCREW |
| ENGINE STAY TO SIDE MEMBER | ||
| M 12X35 | ||
| 092 | N 000961012151 | SCREW |
| ENGINE STAY TO SIDE MEMBER | ||
| M 12X30 | ||
| 092 | N 000961012122 | SCREW |
| ENGINE STAY TO SIDE MEMBER | ||
| M 12X40 | ||
| 092 | N 000961012122 | SCREW |
| ENGINE STAY TO SIDE MEMBER | ||
| M 12X40 | ||
| 101 | N 910113012002 | NUT |
| ENGINE STAY TO SIDE MEMBER | ||
| 110 | A 3812420205 | SUPPORTING ARM |
| REAR LEFT | ||
| 110 | A 3812420305 | SUPPORTING ARM |
| REAR RIGHT | ||
| 110 | A 3812420305 | SUPPORTING ARM |
| REAR | ||
| 119 | N 000933016072 | SCREW |
| Repalced by: N 304017016004 | ||
| 119 | N 304017016004 | SCREW |
| SUPPORTING ARM TO BELL HOUSING | ||
| M 16X35 | ||
| 119 | N 304017016004 | SCREW |
| SUPPORTING ARM TO BELL HOUSING | ||
| M 16X35 | ||
| 119 | N 304017016004 | SCREW |
| SUPPORTING ARM TO BELL HOUSING | ||
| M 16X35 | ||
| 119 | N 000933016065 | SCREW |
| SUPPORTING ARM TO BELL HOUSING | ||
| M 16X40 | ||
| 128 | A 6152400218 | RUBBER MOUNTING |
| REAR | ||
| 128 | A 6152400318 | RUBBER MOUNTING |
| REAR | ||
| 128 | A 6152400418 | RUBBER MOUNTING |
| REAR | ||
| 128 | A 6152400018 | RUBBER MOUNTING |
| REAR | ||
| 128 | A 6152400118 | RUBBER MOUNTING |
| REAR | ||
| 137 | A 3812420034 | SCREENING PLATE |
| ENGINE REAR MOUNTING | ||
| 146 | N 000961014116 | SCREW |
| RUBBER MOUNTING TO ENGINE SUPPORTING ARM | ||
| M 14X50 | ||
| 146 | N 000961014116 | SCREW |
| RUBBER MOUNTING TO ENGINE SUPPORTING ARM | ||
| M 14X50 | ||
| 146 | N 000961014116 | SCREW |
| RUBBER MOUNTING TO ENGINE SUPPORTING ARM | ||
| M 14X50 | ||
| 146 | N 000961014101 | SCREW |
| Repalced by: N 308676014012 | ||
| 146 | N 308676014012 | SCREW |
| RUBBER MOUNTING TO ENGINE SUPPORTING ARM | ||
| M 14X45 | ||
| 146 | N 308676014012 | SCREW |
| RUBBER MOUNTING TO ENGINE SUPPORTING ARM | ||
| M 14X45 | ||
| 155 | A 3609901840 | WASHER |
| RUBBER MOUNTING TO ENGINE SUPPORTING ARM | ||
| A 6162420302 | SUPPORT | |
| Repalced by: A 3812400106 | ||
| 164 | A 3812400106 | CONSOLE |
| ENGINE LEFT REAR MOUNTING | ||
| A 6162420302 | SUPPORT | |
| Repalced by: A 3812400206 | ||
| 164 | A 3812400206 | CONSOLE |
| ENGINE RIGHT REAR MOUNTING | ||
| 168 | A 6172420132 | REINFORCEMENT |
| CONSOLE TO SIDE MEMBER | ||
| 173 | N 000961012106 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 12X35 | ||
| 173 | N 308676012010 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 12X40 | ||
| 182 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 182 | N 910113012003 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 184 | N 000933010202 | SCREW |
| Repalced by: N 304017010047 | ||
| 184 | N 304017010047 | SCREW |
| REINFORCEMENT TO SIDE MEMBER | ||
| 184 | N 000933012133 | SCREW |
| Repalced by: N 304017012013 | ||
| 184 | N 304017012013 | SCREW |
| REINFORCEMENT TO SIDE MEMBER | ||
| 188 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 188 | N 910113010000 | NUT |
| REINFORCEMENT TO SIDE MEMBER | ||
| 188 | N 913004012007 | NUT |
| Repalced by: N 910113012005 | ||
| 188 | N 910113012005 | NUT |
| REINFORCEMENT TO SIDE MEMBER | ||
| 191 | N 000961012164 | SCREW |
| REAR RUBBER MOUNTING TO CONSOLE | ||
| 200 | N 000125013008 | WASHER |
