Transporto priemonė: 1617 CS; VIN numerio dalis: 617111
Grupė: 26 TRANSMISSION
| # | Kodas | Pavadinimas |
|---|---|---|
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSMISSION,SEE UNIT STANDARD VERSION,MODEL: | ||
| 714.0 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSMISSION,SEE UNIT STANDARD VERSION,MODEL: | ||
| 714.4 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSMISSION,SEE UNIT STANDARD VERSION,MODEL: | ||
| 714.5 | ||

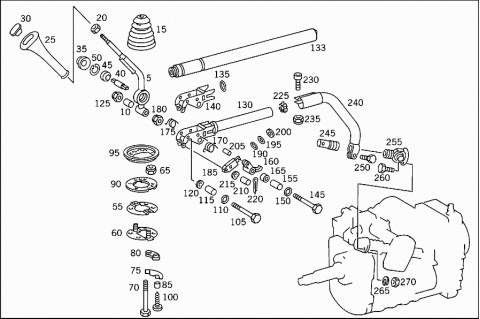

| 005 | A 3852606839 | SHIFT LEVER |
| Repalced by: A 6162600139 | ||
| 005 | A 6162600139 | SHIFT LEVER |
| Repalced by: A 6162600939 | ||
| 005 | A 3852606839 | SHIFT LEVER |
| Repalced by: A 6162600939 | ||
| 005 | A 6162600939 | SHIFT LEVER |
| 005 | A 3852606939 | SHIFT LEVER |
| Repalced by: A 6162600339 | ||
| 005 | A 6162600339 | SHIFT LEVER |
| Repalced by: A 6162601039 | ||
| 005 | A 3852606939 | SHIFT LEVER |
| Repalced by: A 6162601039 | ||
| 005 | A 6162601039 | SHIFT LEVER |
| 010 | A 3359920203 | BUSHING |
| 015 | A 3892680097 | BOOT |
| 020 | N 000936010010 | NUT |
| GEARSHIFT LEVER KNOB TO GEARSHIFT LEVER | ||
| 025 | A 6202680042 | KNOB |
| (GEARSHIFT LEVER KNOB) | ||
| 030 | A 6202680557 | COVER |
| WITH GEAR INDICATOR | ||
| 030 | A 6202680357 | COVER |
| WITH GEAR INDICATOR | ||
| 030 | A 6202680257 | COVER |
| WITH GEAR INDICATOR | ||
| 035 | A 3852680696 | BOOT |
| Repalced by: A 6202680196 | ||
| 035 | A 6202680196 | BOOT |
| SHIFT LEVER BEARING | ||
| 040 | A 3852681474 | PIN |
| SHIFT LEVER BEARING | ||
| 045 | A 0009815531 | JOINT BEARING |
| Repalced by: A 0019813931 | ||
| 045 | A 0019813931 | JOINT BEARING |
| SHIFT LEVER BEARING | ||
| 045 | A 0009814531 | JOINT BEARING |
| SHIFT LEVER BEARING | ||
| 050 | N 000472042001 | LOCK RING |
| SHIFT LEVER BEARING | ||
| 055 | A 3892680440 | BRACKET |
| SHIFT LEVER UPPER PART | ||
| 060 | A 3892605262 | BRACKET |
| SHIFT LEVER LOWER PART | ||
| 065 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 065 | N 913004008001 | NUT |
| BRACKET TO BRACKET | ||
| 070 | N 000931008046 | SCREW |
| Repalced by: N 304017008018 | ||
| 070 | N 304017008018 | SCREW |
| SHIFT LEVER TO CAB FLOOR | ||
| 075 | A 3852681640 | BRACKET |
| SHIFT LEVER TO CAB FLOOR | ||
| 080 | A 3852680492 | RUBBER PAD |
| SHIFT LEVER TO CAB FLOOR | ||
| 085 | A 3892680525 | BUSHING |
| SHIFT LEVER TO CAB FLOOR | ||
| 090 | A 3852680392 | RUBBER PAD |
| SHIFT LEVER TO CAB FLOOR | ||
| 095 | A 3852601962 | BRACKET |
| BOOT | ||
| 100 | N 007981003203 | SHEET METAL SCREW |
| BRACKET TO CAB | ||
| 105 | N 000931010357 | SCREW |
| Repalced by: N 000933010192 | ||
| 105 | A 0019909404 | SCREW |
| SHIFTING ROD TO SHIFT LEVER | ||
| 110 | A 0009978648 | SEAL RING |
| SHIFTING ROD TO SHIFT LEVER | ||
| 115 | A 3852680153 | SPACER TUBE |
| SHIFTING ROD TO SHIFT LEVER | ||
| 120 | N 900055018001 | SPRING WASHER |
| SHIFTING ROD TO SHIFT LEVER | ||
| 125 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 125 | N 910113010000 | NUT |
| SHIFTING ROD TO SHIFT LEVER | ||
| 130 | A 3852609433 | SHIFTING ROD |
| Repalced by: A 3852609333 | ||
| 130 | A 3852609333 | SHIFTING ROD |
| (TELESCOPIC SHIFTING ROD) | ||
| 133 | A 3852603882 | SHIFTING TUBE |
| (TELESCOPIC TUBE) | ||
| 135 | A 0009978748 | SEAL RING |
| SHIFTING ROD | ||
| 30.20 MM | ||
| 140 | A 3852600534 | ROD END |
| HYDRAULIC RELEASE | ||
| 145 | N 000931010357 | SCREW |
| Repalced by: N 000933010192 | ||
| 145 | A 0019909404 | SCREW |
| PAWL TO ROD END | ||
| 150 | A 0009978648 | SEAL RING |
| PAWL TO ROD END | ||
| 17.20 MM | ||
| 155 | A 3852680153 | SPACER TUBE |
| PAWL TO ROD END | ||
| 160 | A 3852600387 | PAWL |
| Repalced by: A 6202600087 | ||
| 160 | A 6202600087 | PAWL |
| SHIFTING ROD | ||
| 165 | A 3359920203 | BUSHING |
| PAWL TO ROD END | ||
| 165 | A 6209920003 | BUSHING |
| PAWL TO ROD END | ||
| 165 | A 6202680150 | BUSHING |
| PAWL TO ROD END | ||
| 170 | A 3859930020 | SPRING |
| PAWL TO ROD END | ||
| 175 | A 3859930120 | SPRING |
| PAWL TO ROD END | ||
| 180 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 180 | N 910113010000 | NUT |
| PAWL TO ROD END | ||
| 185 | A 3852600563 | SHIFTING CYLINDER |
| HYDRAULIC RELEASE | ||
| TECHNOMATIK | ||
| 185 | A 3852600063 | SHIFTING CYLINDER |
| HYDRAULIC RELEASE | ||
| WABCO | ||
| 190 | A 0069976748 | SEAL RING |
| PISTON RINGS | ||
| TO 385 260 00 63 | ||
| 195 | A 0069976848 | SEAL RING |
| SCREW FITTING | ||
| TO 385 260 00 63 | ||
| 200 | A 0019970641 | SEAL RING |
| OUTSIDE | ||
| TO 385 260 00 63 | ||
| 205 | N 001444008235 | PIN |
| SHIFTING CYLINDER TO PAWL | ||
| 8X22 MM | ||
| 210 | N 001444008234 | PIN |
| SHIFTING CYLINDER TO YOKE | ||
| 8X45 MM | ||
| 215 | N 900055008002 | SPRING WASHER |
| SHIFTING CYLINDER TO YOKE | ||
| 220 | N 000094002059 | COTTER PIN |
| SHIFTING CYLINDER TO YOKE | ||
| 225 | A 3852680776 | WASHER |
| BETWEEN FRONT AND REAR SHIFTING TUBES | ||
| 230 | N 006912010000 | SCREW |
| FRONT SHIFTING ROD TO REAR SHIFTING ROD | ||
| 235 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 235 | N 910113010000 | NUT |
| FRONT SHIFTING ROD TO REAR SHIFTING ROD | ||
| 240 | A 6162602833 | SHIFTING ROD |
| REAR | ||
| 240 | A 6162601433 | SHIFTING ROD |
| REAR | ||
| 240 | A 6162602633 | SHIFTING ROD |
| REAR | ||
| 240 | A 6162602933 | SHIFTING ROD |
| REAR | ||
| A 6162601533 | SHIFTING ROD | |
| Repalced by: A 6162602733 | ||
| 240 | A 6162602733 | SHIFTING ROD |
| REAR | ||
| 245 | A 6202680028 | CONNECTOR |
| REAR SHIFTING ROD | ||
| 250 | N 000933014014 | SCREW |
| CONNECTOR TO REAR SHIFTING ROD | ||
| 255 | A 3832680289 | JOINT |
| REAR SHIFTING ROD | ||
| 255 | A 3832680589 | JOINT |
| REAR SHIFTING ROD | ||
| 255 | A 3832680489 | JOINT |
| REAR SHIFTING ROD | ||
| 255 | A 3872680089 | JOINT |
| REAR SHIFTING ROD | ||
| 255 | A 0002686489 | JOINT |
| REAR SHIFTING ROD | ||
| 260 | A 3219900601 | SCREW |
| JOINT TO TRANSMISSION | ||
| 265 | N 912004008102 | LOCK WASHER |
| JOINT TO TRANSMISSION | ||
| 270 | N 304032008006 | NUT |
| JOINT TO TRANSMISSION | ||

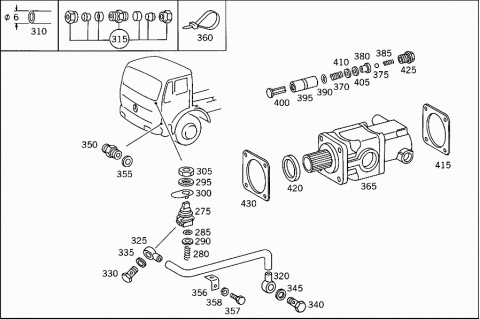

| 275 | A 0019976136 | VALVE |
| P.T.O. CONTROL | ||
| 275 | A 0019975036 | VALVE |
| P.T.O. CONTROL | ||
| 275 | A 0039975936 | VALVE |
| P.T.O. CONTROL | ||
| KNORR | ||
| 275 | A 0039976036 | VALVE |
| P.T.O. CONTROL | ||
| VOSS | ||
| 280 | A 0049937501 | SPRING |
| TO 001 997 61 36 | ||
| 285 | A 0069972648 | SEAL RING |
| TO 001 997 61 36 | ||
| 290 | A 0039979640 | SEAL RING |
| TO 001 997 61 36 | ||
| 295 | A 6239900040 | WASHER |
| UNIT IDENTIFICATION PLATE TO TRANSMISSION CASE | ||
| 300 | A 3855841524 | SYMBOL PLATE |
| P.T.O. CONTROL | ||
| 305 | A 3839900051 | NUT |
| UNIT IDENTIFICATION PLATE TO TRANSMISSION CASE | ||
| 310 | A 0089976082 | HOSE |
| Repalced by: A 0009872627 | ||
| 310 | A 0009872627 | PLASTIC PIPE |
| CONNECTIONS "1,2",3/2-WAY VALVE | ||
| 4X6 MM | ||
| 315 | A 0039979172 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 320 | N 915052004015 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/12 MM | ||
| 325 | N 915052004016 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/10 MM | ||
| 330 | N 915036008202 | HOLLOW SCREW |
| 3/2-WAY VALVE | ||
| 335 | N 007603010404 | SEAL RING |
| 3/2-WAY VALVE | ||
| 340 | N 915036008202 | HOLLOW SCREW |
| LINE CONNECTIONS | ||
| 345 | N 007603012405 | SEAL RING |
| LINE CONNECTIONS | ||
| 350 | N 915036008202 | HOLLOW SCREW |
| AT P.T.O.SHIFTING CYLINDER | ||
| 355 | N 007603012405 | SEAL RING |
| AT P.T.O.SHIFTING CYLINDER | ||
| 356 | A 3604280243 | ANGLE |
| LINE MOUNTING | ||
| 357 | N 000933010198 | SCREW |
| BRACKET TO TRANSMISSION | ||
| 358 | N 912004010102 | LOCK WASHER |
| BRACKET TO TRANSMISSION | ||
| 360 | A 0019978390 | LOOM TIE |
| LINE MOUNTING | ||
| 365 | A 0002366105 | HYDRAULIC PUMP |
| SERVICE WITH DUMPING PLATFORM | ||
| 370 | A 0049936301 | SPRING |
| DUMPER PUMP | ||
| 375 | A 0019814085 | BALL |
| Repalced by: A 0019815085 | ||
| 375 | A 0019815085 | BALL |
| DUMPER PUMP | ||
| 12.70 MM | ||
| 380 | A 0002360935 | VALVE |
| DUMPER PUMP | ||
| 385 | A 0049936501 | SPRING |
| DUMPER PUMP | ||
| 390 | A 0002361160 | SEAL RING |
| DUMPER PUMP | ||
| 395 | A 0002360817 | PISTON |
| Repalced by: A 0002361117 | ||
| 395 | A 0002361117 | PISTON |
| DUMPER PUMP | ||
| 400 | A 0002360735 | VALVE |
| DUMPER PUMP | ||
| 405 | A 0002360376 | WASHER |
| DUMPER PUMP | ||
| 410 | A 0059974247 | SEAL RING |
| DUMPER PUMP | ||
| 415 | A 0002360180 | GASKET |
| DUMPER PUMP | ||
| 420 | A 0079977146 | SEAL RING |
| DUMPER PUMP | ||
| 425 | A 0019970630 | SCREW PLUG |
| DUMPER PUMP | ||
| 430 | A 0002640479 | GASKET |
| DUMPER PUMP | ||
