Transporto priemonė: 1617 C; VIN numerio dalis: 617019
Grupė: 42 BRAKES
42648
42649
42650

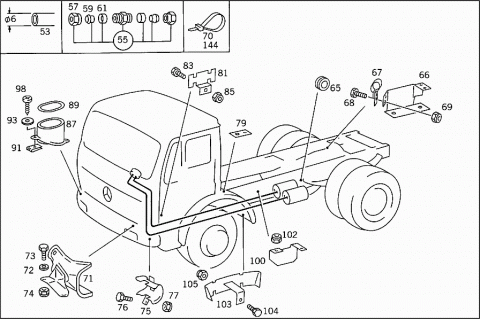

42651

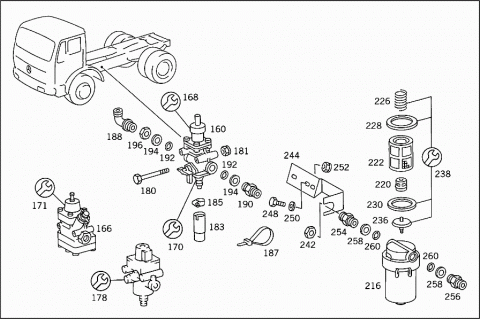

42611
42612

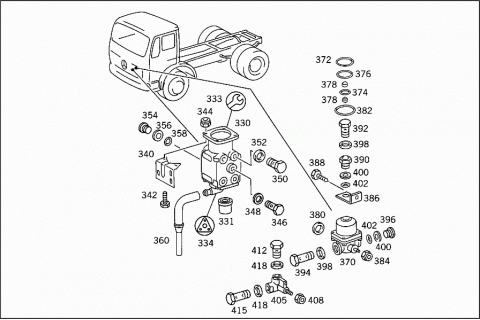

42613

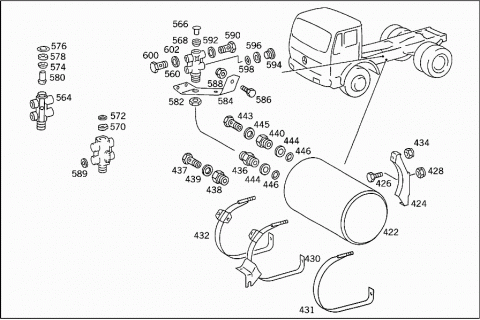

42652

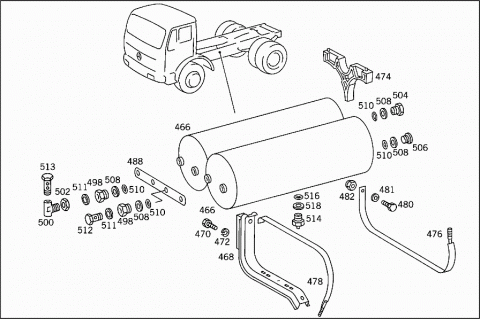

42653

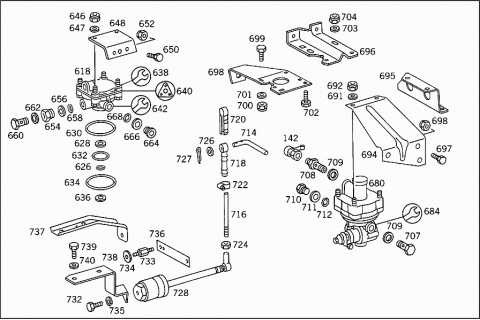

42654

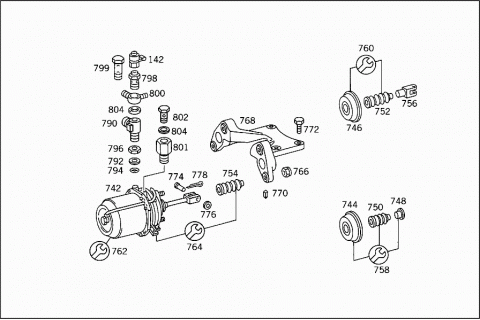

42655

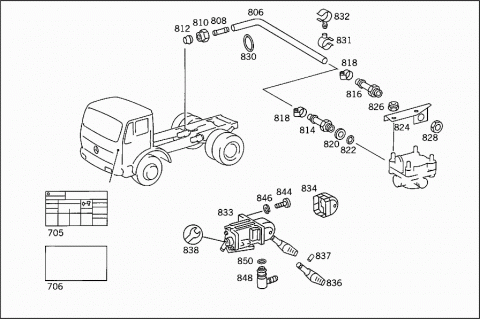

42656
# Kodas Pavadinimas
T YYYYYYYYYYYY PART NAME MISSING
FOR FRONT WHEEL BRAKE,SEE UNIT STANDARD VERSION, MODEL:
730.0
T YYYYYYYYYYYY PART NAME MISSING
FOR BRAKES,SEE UNIT STANDARD VERSION, MODEL:
744.5
T YYYYYYYYYYYY PART NAME MISSING
FOR BRAKES,SEE UNIT STANDARD VERSION, MODEL:
745.6
T YYYYYYYYYYYY PART NAME MISSING
FOR BRAKES,SEE UNIT STANDARD VERSION, MODEL:
740.1

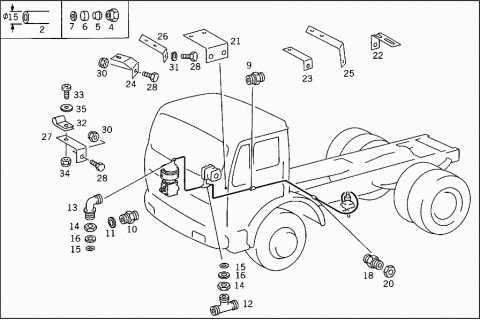

002 A 0004291401 LINE
BRASS
15 MM
T YYYYYYYYYYYY PART NAME MISSING
AIR COMPRESSOR,PRESSURE REGULATOR, FILTER,FOUR-CIRCUIT PROTECTIVE VALVE
T YYYYYYYYYYYY PART NAME MISSING
FROM AIR RESERVOIR TO CHECK VALVE
004 N 915018015000 UNION NUT
004 N 915017015100 UNION NUT
005 N 003861015004 GLAND
006 N 915065015101 THRUST RING
007 N 915045012100 SEAL RING
Repalced by: N 007603012121
007 N 007603012121 SEAL RING
009 N 003902015002 CONNECTION FITTING
BETWEEN AIR COMPRESSOR LINES
009 N 003902015002 CONNECTION FITTING
BETWEEN THE LINES
010 A 0019972172 FITTING
BELT-DRIVEN AIR COMPRESSOR,CONNECTION:
"2"
011 N 007603022102 SEAL RING
BELT-DRIVEN AIR COMPRESSOR,CONNECTION:
"2"
012 N 074302022405 T-FITTING
Repalced by: A 0029901970
012 A 0029901970 T-FITTING
CAMSHAFT-DRIVEN AIR COMPRESSOR, CONNECTION:
"20"
012 A 0029901970 T-FITTING
CAMSHAFT-DRIVEN AIR COMPRESSOR, CONNECTION:
"20"
013 A 0004294338 ELBOW FITTING
BELT-DRIVEN AIR COMPRESSOR,CONNECTION:
"20"
013 A 6209900071 ELBOW FITTING
Repalced by: A 0039901671
013 A 0039901671 ELBOW FITTING
BELT-DRIVEN AIR COMPRESSOR,CONNECTION:
"20"
014 N 074305022202 NUT
CAMSHAFT-DRIVEN AIR COMPRESSOR, CONNECTION:
"20"
014 N 074305022202 NUT
CAMSHAFT-DRIVEN AIR COMPRESSOR, CONNECTION:
"20"
014 N 074305026202 NUT
BELT-DRIVEN AIR COMPRESSOR,CONNECTION:
"20"
015 A 0139972248 SEAL RING
CAMSHAFT-DRIVEN AIR COMPRESSOR, CONNECTION:
"20"
015 A 0139972248 SEAL RING
CAMSHAFT-DRIVEN AIR COMPRESSOR, CONNECTION:
"20"
015 A 0039973848 SEAL RING
BELT-DRIVEN AIR COMPRESSOR,CONNECTION:
"20"
016 A 0004290227 THRUST RING
CAMSHAFT-DRIVEN AIR COMPRESSOR, CONNECTION:
"20"
016 A 0004290227 THRUST RING
CAMSHAFT-DRIVEN AIR COMPRESSOR, CONNECTION:
"20"
016 A 0004290527 THRUST RING
BELT-DRIVEN AIR COMPRESSOR,CONNECTION:
"20"
018 A 0019972372 FITTING
THROUGH SIDE MEMBER
018 N 003910015002 BULKHEAD FITTING
THROUGH SIDE MEMBER
020 N 074305022202 NUT
FITTING TO FRAME SIDE MEMBER
021 A 6164290040 BRACKET
LINE MOUNTING
022 A 3854290540 BRACKET
LINE MOUNTING
023 A 6154290240 BRACKET
LINE MOUNTING
024 A 6154290640 BRACKET
025 A 6154290740 BRACKET
Repalced by: A 3434290940
025 A 3434290940 BRACKET
026 A 6164290340 BRACKET
026 A 6164290340 BRACKET
027 A 6174291440 BRACKET
028 N 000961014028 SCREW
BRACKET TO LEFT SIDE MEMBER
028 N 000933008116 SCREW
Repalced by: N 000933008337
028 N 000933008337 SCREW
Repalced by: A 0099900101
028 A 0099900101 SCREW
BRACKET TO LEFT SIDE MEMBER
028 N 000933012064 SCREW
BRACKET TO CYLINDER BLOCK, REAR
M 12X25
N 000961012052 SCREW
Repalced by: N 308676012012
N 308676012012 SCREW
BRACKET TO CYLINDER BLOCK, REAR
M 12X1.5X25
028 N 000933010105 SCREW
BRACKET TO CYLINDER BLOCK, REAR
N 000939010026 STUD BOLT
BRACKET TO CYLINDER BLOCK, REAR
030 N 913004014002 NUT
Repalced by: N 910113014001
030 N 910113014001 NUT
BRACKET TO LEFT SIDE MEMBER
030 N 913004008004 NUT
Repalced by: N 913004008001
030 N 913004008001 NUT
BRACKET TO LEFT SIDE MEMBER
031 N 912004012100 LOCK WASHER
BRACKET TO CYLINDER BLOCK, REAR
031 N 912004010102 LOCK WASHER
BRACKET TO CYLINDER BLOCK, REAR
032 A 3609952001 CLAMP
Repalced by: A 6739950001
032 A 6739950001 CLAMP
MOUNTING USED FOR COMPRESSED AIR LINES
033 N 007985006145 SCREW
Repalced by: N 007985006581
033 N 007985006581 SCREW
CLAMP TO BRACKET
034 N 913004006002 NUT
Repalced by: N 913004006001
034 N 913004006001 NUT
CLAMP TO BRACKET
035 N 009021006205 WASHER
Repalced by: N 009021006208
035 N 009021006208 WASHER
CLAMP TO BRACKET

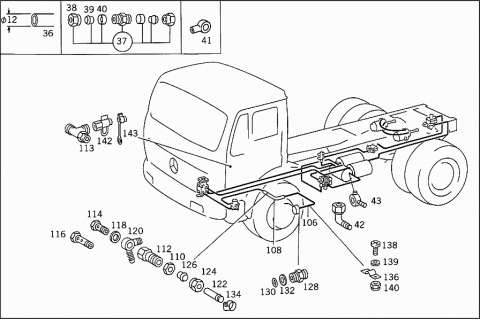

036 A 0109975982 HOSE
Repalced by: A 0009872827
036 A 0009872827 PLASTIC PIPE
AIR RESERVOIR,BRAKE VALVE,BRAKE PRESSURE REGULATOR,SPRING-LOAD ACCUMULATOR
9X12 MM
036 A 0009872827 PLASTIC PIPE
BRAKE VALVE,FOUR-CIRCUIT PROTECTIVE VALVE,RELAY VALVE
9X12 MM
036 A 0009872827 PLASTIC PIPE
PRESSURE RATIO VALVE
9X12 MM
036 A 0009872827 PLASTIC PIPE
HAND BRAKE VALVE BLEEDING
9X12 MM
037 A 0049971772 FITTING
Repalced by: A 0029906171
037 A 0029906171 FITTING
(PARTS KIT),LINE RUPTURE
TO 010 997 59 82,12 MM
A 0009907378 CONNECTOR
REPAIR SIZE
038 N 915017012100 UNION NUT
039 N 003861012007 GLAND
Repalced by: A 0019901967
039 A 0019901967 SEAL CONE
040 N 915062009000 SLEEVE
041 N 915052009009 BANJO UNION
HOSE WIDTH, / I.D.,
9/16 MM
042 A 0019909771 ELBOW FITTING
FROM AIR RESERVOIR TO CHECK VALVE
043 A 0019901088 BANJO UNION

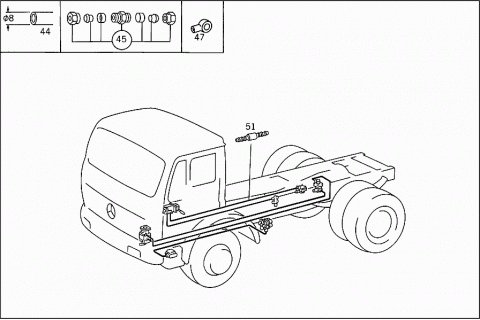

044 A 0089979082 HOSE
BRAKE VALVE,FOUR-CIRCUIT PROTECTIVE VALVE,RELAY VALVE
6X8 MM
044 A 0089979082 HOSE
PARKING BRAKE VALVE
6X8 MM
044 A 0089979082 HOSE
FROM BRAKE POWER REGULATOR TO BRAKE VALVE
6X8 MM
044 A 0089979082 HOSE
AXLE BREATHING
6X8 MM
045 A 0039978972 FITTING
Repalced by: A 0029905971
045 A 0029905971 FITTING
(PARTS KIT),LINE RUPTURE
TO 008 997 90 82;8 MM
047 N 915052006021 BANJO UNION
HOSE WIDTH, / I.D.,
6/14 MM
047 N 915052006014 BANJO UNION
HOSE WIDTH, / I.D.,
6/16 MM
047 N 915052006013 BANJO UNION
HOSE WIDTH, / I.D.,
6/12 MM
051 A 0009904678 CONNECTOR
053 A 0089976082 HOSE
Repalced by: A 0009872627
053 A 0009872627 PLASTIC PIPE
FROM AIR RESERVOIR TO DOUBLE PRESSURE GAUGE
4X6 MM
055 A 0039979172 FITTING
(PARTS KIT),LINE RUPTURE
TO 008 997 60 82;6 MM
057 N 915017006100 UNION NUT
059 N 003861006007 GLAND
Repalced by: A 0019901667
059 A 0019901667 SEAL CONE
061 N 915062004000 SLEEVE
065 A 6209970181 GROMMET
LINE THRU LEFT SIDE MEMBER
42/36 MM
065 A 3549970081 GROMMET
LINE THRU LEFT SIDE MEMBER
32/27 MM
066 A 6173530040 BRACKET
BREATHER LINE TO FRONT AXLE
067 A 6179950035 CLAMP
BREATHER LINE TO FRONT AXLE
068 N 000933006183 SCREW
Repalced by: N 304017006016
068 N 304017006016 SCREW
BREATHER LINE TO FRONT AXLE
069 N 913004006002 NUT
Repalced by: N 913004006001
069 N 913004006001 NUT
BREATHER LINE TO FRONT AXLE
070 A 0019978390 LOOM TIE
BREATHER LINE TO FRONT AXLE
071 A 6204201186 BRACKET
COMPRESSED AIR LINES
071 A 6204201286 BRACKET
COMPRESSED AIR LINES
072 A 3609902440 WASHER
Repalced by: A 3609902340
072 A 3609902340 WASHER
LINE MOUNTING
073 N 000933008147 SCREW
Repalced by: N 304017008021
073 N 304017008021 SCREW
BRACKET TO BUMPER STRUT
074 N 913004008004 NUT
Repalced by: N 913004008001
074 N 913004008001 NUT
BRACKET TO BUMPER STRUT
075 A 6154200086 BRACKET
LEFT COMPRESSED AIR LINES
075 A 6204201486 BRACKET
Repalced by: A 6154200186
075 A 6154200186 BRACKET
RIGHT COMPRESSED AIR LINES
076 N 000933008153 SCREW
Repalced by: N 304017008034
076 N 304017008034 SCREW
BRACKET TO CAB CONSOLE
077 N 913004008004 NUT
Repalced by: N 913004008001
077 N 913004008001 NUT
BRACKET TO CAB CONSOLE
079 A 6204294340 BRACKET
Repalced by: A 3604293140
079 A 3604293140 BRACKET
COMPRESSED AIR LINE
081 A 6204293940 BRACKET
COMPRESSED AIR LINE
081 A 6204293940 BRACKET
COMPRESSED AIR LINE
083 N 000933008152 SCREW
Repalced by: N 304017008027
083 N 304017008027 SCREW
BRACKET TO SIDE MEMBER
085 N 913004008004 NUT
Repalced by: N 913004008001
085 N 913004008001 NUT
BRACKET TO SIDE MEMBER
087 A 6204291940 BRACKET
BRAKE LINE THRU CAB FLOOR
087 A 6204292440 BRACKET
BRAKE LINE THRU CAB FLOOR
089 A 6204290084 SEAL RING
BETWEEN BRACKET AND CAB FLOOR
091 A 0009946445 LOCK
BRACKET TO CAB FLOOR
093 N 009021005202 WASHER
Repalced by: N 009021005205
093 N 009021005205 WASHER
BRACKET TO CAB FLOOR
098 N 007981004252 SHEET METAL SCREW
BRACKET TO CAB FLOOR
100 A 6204295240 BRACKET
BETWEEN THE LINES
102 N 913004006002 NUT
Repalced by: N 913004006001
102 N 913004006001 NUT
BRACKET TO CAB FLOOR
103 A 6174200244 PROTECTIVE PLATE
PROTECTION PLATE TO STRUT
104 N 000933008147 SCREW
Repalced by: N 304017008021
104 N 304017008021 SCREW
PROTECTION PLATE TO STRUT
105 N 913004008004 NUT
Repalced by: N 913004008001
105 N 913004008001 NUT
PROTECTION PLATE TO STRUT
106 A 6194290801 LINE
Repalced by: A 6254293501
106 A 6254293501 LINE
WITH BEAD
106 A 6254293501 LINE
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
108 N 916027011014 HOSE
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
110 N 080705018002 NUT
ADAPTER FITTING TO SIDE MEMBER
A 0004296634 ADAPTER FITTING
Repalced by: A 0004296934
112 A 0004296934 ADAPTER FITTING
LEFT AND RIGHT BRAKE HOSES
113 A 0019907070 T-FITTING
BRAKE HOSE TO SIDE MEMBER
113 A 0019907070 T-FITTING
BRAKE HOSE TO SIDE MEMBER
114 N 915036012203 HOLLOW SCREW
RIGHT FRONT BRAKE HOSE
114 N 915036012203 HOLLOW SCREW
RIGHT FRONT BRAKE HOSE
114 N 915036012203 HOLLOW SCREW
RIGHT FRONT BRAKE HOSE
116 N 915047012203 HOLLOW SCREW
LEFT FRONT BRAKE HOSE
116 N 915047012203 HOLLOW SCREW
LEFT FRONT BRAKE HOSE
118 N 007603016401 SEAL RING
LEFT AND RIGHT BRAKE HOSES
120 A 0019900788 BANJO UNION
LEFT FRONT BRAKE HOSE
120 A 0019900788 BANJO UNION
LEFT FRONT BRAKE HOSE
122 A 0004290541 FITTING
LEFT AND RIGHT BRAKE HOSES
124 N 915017012100 UNION NUT
126 N 003861012007 GLAND
Repalced by: A 0019901967
126 A 0019901967 SEAL CONE
128 N 003901012014 SCREW-IN FITTING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
130 A 0009971548 SEAL RING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
132 A 0004290927 THRUST RING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
134 N 916017016000 CLAMP
Repalced by: N 000000000666
134 N 000000000666 CLAMP
LINE MOUNTING
136 A 3159955010 CLAMP
LINE MOUNTING
138 N 007985006145 SCREW
Repalced by: N 007985006581
138 N 007985006581 SCREW
LINE MOUNTING
139 N 000125006421 WASHER
LINE MOUNTING
140 N 913004006002 NUT
Repalced by: N 913004006001
140 N 913004006001 NUT
LINE MOUNTING
142 A 0004312031 TEST CONNECTION
VOSS
142 A 0004314531 TEST CONNECTION
SCHAEFER
142 A 0004314831 TEST CONNECTION
WABCO
142 A 0004316131 TEST CONNECTION
WIRA
142 A 0004316131 TEST CONNECTION
FRONT AXLE BRAKE CIRCUIT
WIRA
142 A 0004316131 TEST CONNECTION
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"21,22"
142 A 0004316131 TEST CONNECTION
BRAKE POWER REGULATOR,CONNECTION:
"4"
142 A 0004316131 TEST CONNECTION
TRISTOP CYLINDER;CONNECTIONS:
"11,12"
143 A 0009979486 PLUG
144 A 0019978390 LOOM TIE
LINE MOUNTING
280 MM
144 A 0019978490 LOOM TIE
LINE MOUNTING
376 MM

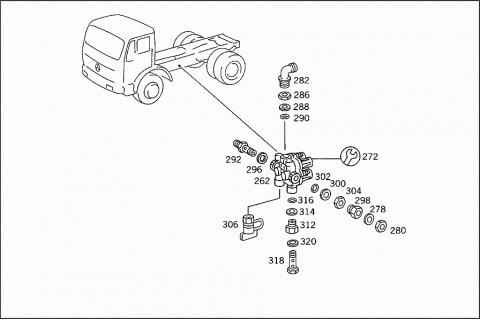

160 A 0014310006 PRESSURE REGULATOR
Repalced by: A 0024314906
160 A 0024314906 PRESSURE REGULATOR
Repalced by: A 0034313706
160 A 0034313706 PRESSURE REGULATOR
WABCO
A 0014313406 PRESSURE REGULATOR
Repalced by: A 0024314306
A 0014311206 PRESSURE REGULATOR
Repalced by: A 0024314906
166 A 0014310606 PRESSURE REGULATOR
Repalced by: A 0024313406
166 A 0024313406 PRESSURE REGULATOR
Repalced by: A 0024314306
166 A 0024314306 PRESSURE REGULATOR
Repalced by: A 0034313506
166 A 0034313506 PRESSURE REGULATOR
BOSCH
166 A 0024318306 VALVE
Repalced by: A 0034313506
168 A 0015864343 REPAIR KIT
Repalced by: A 0004301107
168 A 0004301107 REPAIR KIT
TO 001 431 00 06,WABCO 975 300 110 0
168 A 0014304960 REPAIR KIT
TO 002 431 49 06,WABCO 975 303 460 0
168 A 0014304960 REPAIR KIT
TO 003 431 37 06
168 A 0025866743 REPAIR KIT
TO 001 431 12 06,KNORR,3200
170 A 0024304681 REPAIR KIT
VALVE KIT
TO 001 431 00 06,WABCO 975 300 110 0
171 A 0015868543 REPAIR KIT
Repalced by: A 0004301407
171 A 0004301407 REPAIR KIT
TO 001 431 06 06,BOSCH 0 481 039 101
171 A 0025866043 REPAIR KIT
TO 001 431 34 06,GRAU,312 017 014
171 A 0004301768 REPAIR KIT
DIAPHRAGM
TO 002 431 34 06,BOSCH 0 481 039 221
171 A 0004301768 REPAIR KIT
DIAPHRAGM
TO 002 431 43 06,BOSCH 0 481 039 201
178 A 0004307960 REPAIR KIT
TIRE INFLATING CONNECTION
TO 002 431 34 06,BOSCH 0 481 039 221
178 A 0004307960 REPAIR KIT
TIRE INFLATING CONNECTION
TO 002 431 43 06,BOSCH 0 481 039 201
178 A 0004300407 REPAIR KIT
TO 002 431 83 06,KNORR 90309
178 A 0004300907 REPAIR KIT
TO 003 431 35 06,BOSCH
180 N 000931008251 SCREW
PRESSURE REGULATOR TO BRACKET
181 N 913004008004 NUT
Repalced by: N 913004008001
181 N 913004008001 NUT
PRESSURE REGULATOR TO BRACKET
183 A 0005461830 INSULATING HOSE
PRESSURE REGULATOR,CONNECTION:
"3"
185 N 916026020001 CLAMP
Repalced by: N 000000000667
185 N 000000000667 CLAMP
PRESSURE REGULATOR,CONNECTION:
"30"
187 A 0019978390 LOOM TIE
PRESSURE REGULATOR,CONNECTION:
"30"
188 A 0009905871 ELBOW FITTING
PRESSURE REGULATOR,CONNECTION:
"10"
188 N 003911015102 FITTING
PRESSURE REGULATOR,CONNECTION:
"10"
190 A 0019972172 FITTING
PRESSURE REGULATOR,CONNECTION:
"21"
N 007604012102 SCREW PLUG
PRESSURE REGULATOR,CONNECTIONS:
"4,23"
N 007603012405 SEAL RING
PRESSURE REGULATOR,CONNECTIONS:
"4,23"
192 A 0009870446 SEALING CORD
PRESSURE REGULATOR,CONNECTIONS:
"1,21"
194 A 0004290227 THRUST RING
PRESSURE REGULATOR,CONNECTIONS:
"1,21"
196 N 074305022202 NUT
PRESSURE REGULATOR,CONNECTION:
"1"
216 A 0004292595 AIR CLEANER
BOSCH
216 A 0004292695 AIR CLEANER
KNORR
216 A 0004292795 AIR CLEANER
WABCO
216 A 0004292895 AIR CLEANER
GRAU
220 A 0004290597 FILTER ELEMENT
TO 000 429 27 95,WABCO
222 A 0004290497 FILTER ELEMENT
TO 000 429 27 95,WABCO
222 A 0004290797 FILTER ELEMENT
TO 000 429 25 95,BOSCH
222 A 0004290397 FILTER ELEMENT
TO 000 429 28 95,GRAU
226 A 0059930901 SPRING
TO 000 429 27 95,WABCO
228 A 0019974048 SEAL RING
TO 000 429 25 95,BOSCH
228 A 0089978048 SEAL RING
TO 000 429 28 95,GRAU
A 0089978848 SEAL RING
Repalced by: A 0049972248
228 A 0049972248 SEAL RING
Repalced by: A 0289972348
228 A 0289972348 SEAL RING
TO 000 429 27 95, 100X3 MM, WABCO
230 A 0119974048 SEAL RING
TO 000 429 25 95,BOSCH
230 A 0059972748 SEAL RING
TO 000 429 28 95,GRAU
230 A 0009870746 SEALING CORD
TO 000 429 27 95,75X3 MM,WABCO
236 A 0004291045 DIAPHRAGM
TO 000 429 25 95,BOSCH
236 A 0004290845 DIAPHRAGM
TO 000 429 28 95,GRAU
238 A 0004204455 REPAIR KIT
TO 000 429 27 95,WABCO
238 A 0004300369 REPAIR KIT
TO 000 429 26 95,KNORR
242 N 074305022202 NUT
AIR CLEANER TO PRESSURE REGULATOR
244 A 6204310740 BRACKET
AIR CLEANER
248 N 000933008147 SCREW
Repalced by: N 304017008021
248 N 304017008021 SCREW
BRACKET TO APPARATUS SUPPORT
250 N 000125008418 WASHER
Repalced by: N 000125008443
250 N 000125008443 WASHER
BRACKET TO APPARATUS SUPPORT
252 N 913004008004 NUT
Repalced by: N 913004008001
252 N 913004008001 NUT
BRACKET TO APPARATUS SUPPORT
254 A 0019972372 FITTING
AIR CLEANER,CONNECTION:
"10"
256 A 0019972172 FITTING
AIR CLEANER,CONNECTION:
"20"
256 A 0029978972 FITTING
AIR CLEANER,CONNECTION:
"20"
258 A 0004290227 THRUST RING
AIR CLEANER;CONNECTIONS:
"10,20"
260 A 0009870446 SEALING CORD
AIR CLEANER;CONNECTIONS:
"10,20"
262 A 0014319306 VALVE
Repalced by: A 0034315006
A 0014318906 VALVE
Repalced by: A 0024314006
262 A 0024314006 VALVE
Repalced by: A 0034315006
262 A 0014318706 VALVE
Repalced by: A 0034315006
262 A 0024312706 VALVE
Repalced by: A 0024319106
262 A 0024319106 VALVE
Repalced by: A 0034315006
262 A 0034315006 VALVE
(FOUR-CIRCUIT PROTECTIVE VALVE)
WABCO
272 A 0035860943 REPAIR KIT
TO 001 431 89 06,002 431 40 06,WABCO
272 A 0035861043 REPAIR KIT
TO 001 431 87 06,KNORR
272 A 0004304706 GASKET KIT
TO 001 431 93 06,BOSCH 62401
272 A 0004300260 REPAIR KIT
TO 001 431 93 06,BOSCH 62201
272 A 0034300981 GASKET KIT
TO 002 431 91 06 GRAU 66001
272 A 0004305106 REPAIR KIT
FOUR-CIRCUIT PROTECTIVE VALVE
WABCO; TO 003 431 50 06
278 N 000125017010 WASHER
Repalced by: N 000125017016
278 N 000125017016 WASHER
VALVE TO BRACKET
280 N 080705016003 NUT
VALVE TO BRACKET
282 A 0009909671 ELBOW FITTING
Repalced by: A 0029901271
282 A 0029901271 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"10"
282 A 0029902271 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"10"
286 N 074305022202 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"10"
288 A 0004290227 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"10"
290 A 0009870446 SEALING CORD
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"10"
292 N 915039012205 HOLLOW SCREW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"21,22,23"
296 N 007603016401 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"21,22,23"
298 A 0004296434 ADAPTER FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
300 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
302 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
304 N 000439016206 NUT
Repalced by: N 308675016001
304 N 308675016001 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
306 A 0034291044 VALVE
EMERGENCY RELEASE VALVE,CONNECTION:
"23"
312 A 0019905268 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
314 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
316 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
318 N 915047008202 HOLLOW SCREW
318 N 915036008202 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
320 N 007603012405 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
330 A 0024310705 BRAKE VALVE
(TWO-CIRCUIT BRAKE VALVE)
WABCO
330 A 0024310705 BRAKE VALVE
(TWO-CIRCUIT BRAKE VALVE)
WABCO
330 A 0024311105 BRAKE VALVE
(TWO-CIRCUIT BRAKE VALVE)
BOSCH
330 A 0024311105 BRAKE VALVE
(TWO-CIRCUIT BRAKE VALVE)
BOSCH
330 A 0024311905 BRAKE VALVE
(TWO-CIRCUIT BRAKE VALVE)
KNORR
330 A 0024311905 BRAKE VALVE
(TWO-CIRCUIT BRAKE VALVE)
KNORR
330 A 0024310605 BRAKE VALVE
(TWO-CIRCUIT BRAKE VALVE)
WABCO
330 A 0024311005 BRAKE VALVE
(TWO-CIRCUIT BRAKE VALVE)
BOSCH
330 A 0024312005 BRAKE VALVE
(TWO-CIRCUIT BRAKE VALVE)
KNORR
330 A 0014318305 BRAKE VALVE
(TWO-CIRCUIT BRAKE VALVE)
WABCO
330 A 0014318905 BRAKE VALVE
(TWO-CIRCUIT BRAKE VALVE)
BOSCH
330 A 0014319105 BRAKE VALVE
(TWO-CIRCUIT BRAKE VALVE)
KNORR
330 A 0014319905 BRAKE VALVE
(TWO-CIRCUIT BRAKE VALVE)
GRAU
331 A 0004313623 VALVE
WABCO
333 A 0004306360 REPAIR KIT
TWO-CIRCUIT BRAKE VALVE
TO 002 431 06 05,002 437 07 05,WABCO
333 A 0014300460 REPAIR KIT
TWO-CIRCUIT BRAKE VALVE
TO 001 431 83 05,WABCO
333 A 0035861243 REPAIR KIT
TWO-CIRCUIT BRAKE VALVE
TO 001 431 91 05,KNORR
333 A 0004300160 REPAIR KIT
Repalced by: A 0004303306
333 A 0004303306 REPAIR KIT
TWO-CIRCUIT BRAKE VALVE
TO 002 431 11 05,BOSCH
333 A 0025868743 REPAIR KIT
Repalced by: A 0004303506
333 A 0004303506 REPAIR KIT
TWO-CIRCUIT BRAKE VALVE
TO 001 401 89 05,BOSCH
334 A 0004300060 REPAIR KIT
Repalced by: A 0014308460
334 A 0014308460 GASKET KIT
TWO-CIRCUIT BRAKE VALVE
TO 002 431 10 05,BOSCH
340 A 6202920140 BRACKET
BRAKE VALVE TO PEDAL BEARING BRACKET
342 N 000933008152 SCREW
Repalced by: N 304017008027
342 N 304017008027 SCREW
BRAKE VALVE TO PEDAL BEARING BRACKET
344 N 913004008004 NUT
Repalced by: N 913004008001
344 N 913004008001 NUT
BRAKE VALVE TO PEDAL BEARING BRACKET
346 N 915036008202 HOLLOW SCREW
BRAKE VALVE,CONNECTION:
"40"
348 N 007603012405 SEAL RING
BRAKE VALVE,CONNECTION:
"40"
350 N 915036012203 HOLLOW SCREW
BRAKE VALVE,LEFT CONNECTIONS:
"11,12,21,22"
352 N 007603016401 SEAL RING
BRAKE VALVE,LEFT CONNECTIONS:
"11,12,21,22"
354 N 000908016001 SCREW PLUG
BRAKE VALVE,RIGHT CONNECTIONS:
"11,12,21,22"
356 A 0004290927 THRUST RING
BRAKE VALVE,RIGHT CONNECTIONS:
"11,12,21,22"
358 A 0009971548 SEAL RING
BRAKE VALVE,RIGHT CONNECTIONS:
"11,12,21,22"
360 A 6174310073 BREATHER PIPE
AT BRAKE VALVE
360 A 6174310173 BREATHER PIPE
AT BRAKE VALVE
370 A 0014306481 VALVE
(PRESSURE RATIO VALVE) FRONT AXLE BRAKE PRESSURE
372 A 0019871746 SEALING CORD
38X3 MM
374 A 0089970445 SEAL RING
34.6X2.6 MM
376 A 0089978648 SEAL RING
28.4X2.6 MM
378 A 0004313223 VALVE
380 N 007603016401 SEAL RING
16X20 MM
382 A 0089978748 SEAL RING
56X1.7 MM
384 N 913004008004 NUT
Repalced by: N 913004008001
384 N 913004008001 NUT
VALVE TO FLOOR
386 A 6204312440 BRACKET
PRESSURE RATIO VALVE
386 A 6204312540 BRACKET
PRESSURE RATIO VALVE
388 N 007976005204 SHEET METAL SCREW
BRACKET TO CAB FLOOR
390 A 0004296134 ADAPTER FITTING
Repalced by: A 0069970072
390 A 0069970072 FITTING
PRESSURE RATIO VALVE,CONNECTION:
"1"
392 N 915036012203 HOLLOW SCREW
PRESSURE RATIO VALVE,CONNECTION:
"1"
394 N 915047012203 HOLLOW SCREW
PRESSURE RATIO VALVE,CONNECTION:
"2"
396 N 000908016001 SCREW PLUG
PRESSURE RATIO VALVE,CONNECTION:
"2"
398 N 007603016401 SEAL RING
PRESSURE RATIO VALVE,CONNECTIONS:
"1,2"
400 A 0004290927 THRUST RING
PRESSURE RATIO VALVE,CONNECTIONS:
"1,2"
402 A 0009971548 SEAL RING
PRESSURE RATIO VALVE,CONNECTIONS:
"1,2"
405 A 0029900271 ELBOW FITTING
405 A 0029900271 ELBOW FITTING
405 A 0029900871 ELBOW FITTING
405 A 0029900871 ELBOW FITTING
408 N 913004008004 NUT
Repalced by: N 913004008001
408 N 913004008001 NUT
FITTING TO CAB FLOOR
408 N 913004008001 NUT
FITTING TO CAB FLOOR
412 N 915036012203 HOLLOW SCREW
AT FITTING
412 N 915036012203 HOLLOW SCREW
AT FITTING
415 N 915047012203 HOLLOW SCREW
AT FITTING
415 N 915047012203 HOLLOW SCREW
AT FITTING
418 N 007603016401 SEAL RING
AT FITTING
418 N 007603016401 SEAL RING
AT FITTING
422 A 0004324801 RESERVOIR
Repalced by: A 0014327501
422 A 0024320001 RESERVOIR
Repalced by: A 0034321201
422 A 0034321201 RESERVOIR
PARKING BRAKE
20 L
424 A 3874320540 BRACKET
FRONT AIR RESERVOIR
426 N 000933008215 SCREW
Repalced by: A 0069909301
426 A 0069909301 SCREW
BRACKET TO APPARATUS SUPPORT
428 N 913004008004 NUT
Repalced by: N 913004008001
428 N 913004008001 NUT
BRACKET TO APPARATUS SUPPORT
430 A 6204300440 STRAP
FRONT AIR RESERVOIR
430 A 6204301240 STRAP
FRONT AIR RESERVOIR
430 A 6204301040 STRAP
FRONT AIR RESERVOIR
431 A 6204300240 STRAP
FRONT AIR RESERVOIR
432 A 6204300540 STRAP
FRONT AIR RESERVOIR
434 N 913004010008 NUT
Repalced by: N 910113010000
434 N 910113010000 NUT
STRAP TO BRACKET
436 A 0019972172 FITTING
AIR RESERVOIR,CONNECTION:
"13"
437 N 915036012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTION:
"13"
438 A 0009905168 FITTING
AIR RESERVOIR,CONNECTION:
"13"
439 N 007603016401 SEAL RING
AIR RESERVOIR,CONNECTION:
"13"
440 A 0009905168 FITTING
AIR RESERVOIR,CONNECTION:
"23"
N 000908022001 SCREW PLUG
Repalced by: N 000908022011
N 000908022011 SCREW PLUG
AIR RESERVOIR
N 007603022403 SEAL RING
AIR RESERVOIR
443 N 915036012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTION:
"23"
444 A 0004290227 THRUST RING
AIR RESERVOIR,CONNECTIONS:
"13,23"
445 N 007603016401 SEAL RING
AIR RESERVOIR,CONNECTION:
"23"
446 A 0009870446 SEALING CORD
AIR RESERVOIR,CONNECTIONS:
"13,23"
466 A 0004322601 RESERVOIR
Repalced by: A 0034321801
466 A 0034321801 RESERVOIR
AIR RESERVOIR,BRAKE CIRCUITS I & II
30 L
468 A 3874300339 SUPPORT
AIR RESERVOIR,BRAKE CIRCUITS I & II
470 N 000961012052 SCREW
Repalced by: N 308676012012
470 N 308676012012 SCREW
SUPPORT TO FRAME
472 N 912004012100 LOCK WASHER
SUPPORT TO FRAME
474 A 6204320018 BASE
STRAP TO SUPPORT
476 A 6204300040 STRAP
INSIDE AND OUTSIDE AIR RESERVOIRS
478 A 3874300540 STRAP
Repalced by: A 6204300040
478 A 6204300040 STRAP
INSIDE AND OUTSIDE AIR RESERVOIRS
480 N 000933010105 SCREW
STRAP TO SUPPORT
481 N 001440010002 WASHER
STRAP TO SUPPORT
482 N 913004010008 NUT
Repalced by: N 910113010000
482 N 910113010000 NUT
STRAP TO SUPPORT
488 A 3464320073 LOCK
PROTECTION AGAINST TORSION
498 A 0019907368 FITTING
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22"
498 A 0019907368 FITTING
AIR RESERVOIR,CONNECTIONS:
"12,21,22"
500 A 0019907170 T-FITTING
AIR RESERVOIR,CONNECTION:
"11"
502 N 074305022202 NUT
AIR RESERVOIR,CONNECTION:
"11"
504 A 0009905168 FITTING
AIR RESERVOIR,CONNECTION:
"31"
506 N 000908022001 SCREW PLUG
Repalced by: N 000908022011
506 N 000908022011 SCREW PLUG
AIR RESERVOIR,CONNECTION:
"32"
506 N 000908022011 SCREW PLUG
AIR RESERVOIR,CONNECTION:
"31"
508 A 0004290227 THRUST RING
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22,31,32"
510 A 0009870446 SEALING CORD
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22,31,32"
511 N 007603016401 SEAL RING
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22,31"
512 N 915036012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22,31"
513 N 915047012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTION:
"11"
514 A 0004322407 VALVE
DRAIN
514 A 0004321107 VALVE
DRAIN
514 A 0004322107 VALVE
DRAIN
516 A 0009870446 SEALING CORD
DRAIN VALVE TO AIR RESERVOIR
518 A 0004290227 THRUST RING
DRAIN VALVE TO AIR RESERVOIR
560 A 0024299644 VALVE
(CHECK VALVE)
VOSS
A 0034290444 VALVE
(CHECK VALVE)
WABCO
564 A 0034291244 VALVE
(CHECK VALVE)
SCHAEFER
566 A 0004290383 VALVE TAPPET
TO 002 429 96 44,VOSS
568 A 0004292584 SEAL RING
TO 002 429 96 44,VOSS
570 A 0002950320 VALVE
TO 003 429 04 44,WABCO
572 A 0089977348 SEAL RING
TO 003 429 04 44,WABCO
574 A 0109970048 SEAL RING
13.6X2 MM,TO 003 429 12 44,SCHAEFER
576 A 0109970148 SEAL RING
15.3X2.4 MM,TO 003 429 12 44,SCHAEFER
578 A 0004290662 THRUST WASHER
TO 003 429 12 44,SCHAEFER
580 A 0004290728 SEAL CONE
TO 003 429 12 44,SCHAEFER
582 N 074305022202 NUT
CHECK VALVE TO BRACKET
584 A 6204292540 BRACKET
Repalced by: A 6164290140
584 A 6164290140 BRACKET
CHECK VALVE
586 N 000933010129 SCREW
Repalced by: N 304017010002
586 N 304017010002 SCREW
BRACKET TO LEFT SIDE MEMBER
588 N 913004010008 NUT
Repalced by: N 910113010000
588 N 910113010000 NUT
BRACKET TO LEFT SIDE MEMBER
589 N 915045012100 SEAL RING
Repalced by: N 007603012121
589 N 007603012121 SEAL RING
CHECK VALVE,CONNECTION:
"10"
590 N 915036012203 HOLLOW SCREW
CHECK VALVE,CONNECTION:
"21"
592 N 007603016401 SEAL RING
CHECK VALVE,CONNECTION:
"21"
594 N 000908016001 SCREW PLUG
CHECK VALVE,CONNECTION:
"22"
596 A 0004290927 THRUST RING
CHECK VALVE,CONNECTION:
"22"
598 A 0009971548 SEAL RING
CHECK VALVE,CONNECTION:
"22"
600 N 915036010204 HOLLOW SCREW
Repalced by: N 915036010108
600 N 915036010108 HOLLOW SCREW
CHECK VALVE,CONNECTION:
"23"
602 N 007603014405 SEAL RING
CHECK VALVE,CONNECTION:
"23"
618 A 0014296844 VALVE
(RELAY VALVE)
WABCO
618 A 0034291644 VALVE
(RELAY VALVE)
BOSCH
618 A 0034295344 VALVE
(RELAY VALVE)
KNORR
618 A 0014299144 VALVE
(RELAY VALVE)
GRAU
626 A 0059972648 SEAL RING
22.3X2.4 MM,TO 001 429 91 44,GRAU
628 A 0004312788 VALVE SEAT
TO 001 429 91 44,GRAU
630 A 0059972748 SEAL RING
80X3 MM,TO 000 429 28 95,GRAU
632 A 0014311660 SEAL RING
28X2 MM,TO 001 429 91 44,GRAU
634 A 0014311760 SEAL RING
86X2 MM,TO 001 429 91 44,GRAU
636 A 0004311980 GASKET
34X2X6 MM,TO 001 429 91 44,GRAU
638 A 0005865742 REPAIR KIT
TO 001 429 68 44,WABCO
638 A 0005863542 REPAIR KIT
TO 003 429 53 44,KNORR
640 A 0025865642 REPAIR KIT
Repalced by: A 0004201071
640 A 0004201071 VALVE
GASKET KIT
TO 003 429 16 44,BOSCH; UP TO 03.82
640 A 0004201271 VALVE
GASKET KIT
TO 003 429 16 44,BOSCH; FROM 04.82
642 A 0025865742 REPAIR KIT
Repalced by: A 0004301109
642 A 0004301109 REPAIR KIT
BLEEDER VALVE
TO 003 429 16 44,BOSCH
646 N 913004008004 NUT
Repalced by: N 913004008001
646 N 913004008001 NUT
RELAY VALVE TO BRACKET
647 N 000125008418 WASHER
Repalced by: N 000125008443
647 N 000125008443 WASHER
RELAY VALVE TO BRACKET
648 A 6174310640 BRACKET
RELAY VALVE
650 N 000933010105 SCREW
BRACKET TO LEFT SIDE MEMBER
652 N 913004010008 NUT
Repalced by: N 910113010000
652 N 910113010000 NUT
BRACKET TO LEFT SIDE MEMBER
654 A 0009905168 FITTING
RELAY VALVE,CONNECTION:
"1"
656 A 0004290227 THRUST RING
RELAY VALVE,CONNECTION:
"1"
658 A 0009870446 SEALING CORD
RELAY VALVE,CONNECTION:
"1"
660 N 915036012203 HOLLOW SCREW
RELAY VALVE;CONNECTIONS:
"1,4"
662 N 007603016401 SEAL RING
RELAY VALVE;CONNECTIONS:
"1,4"
664 N 000908016001 SCREW PLUG
RELAY VALVE,CONNECTION:
"2"
666 A 0004290927 THRUST RING
RELAY VALVE,CONNECTION:
"2"
668 A 0009971548 SEAL RING
RELAY VALVE,CONNECTION:
"2"
680 A 0014313312 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
WABCO
680 A 0014313512 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
BOSCH
680 A 0024310512 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
KNORR
684 A 0035860243 REPAIR KIT
Repalced by: A 0004307560
684 A 0004307560 REPAIR KIT
TO 001 431 33 12,WABCO
A 0014311486 REPAIR KIT
684 A 0004301883 REPAIR KIT
VALVE
TO 001 431 35 12,BOSCH
684 A 0004300307 REPAIR KIT
Repalced by: A 0004300207
684 A 0004300207 REPAIR KIT
BRAKE POWER REGULATOR
TO 002 431 05 12,KNORR
691 N 000125008418 WASHER
Repalced by: N 000125008443
691 N 000125008443 WASHER
BRAKE POWER REGULATOR TO BRACKET
692 N 913004008004 NUT
Repalced by: N 913004008001
692 N 913004008001 NUT
BRAKE POWER REGULATOR TO BRACKET
694 A 6174310040 BRACKET
BRAKE POWER REGULATOR
695 A 6174310240 BRACKET
BRAKE POWER REGULATOR
696 A 6454310440 BRACKET
BRAKE POWER REGULATOR
697 N 000961016113 SCREW
BRACKET TO SIDE MEMBER
697 N 000933010128 SCREW
BRACKET TO SIDE MEMBER
M 10X20
698 A 6174310195 WEB
AT BRACKET
699 N 000933008147 SCREW
Repalced by: N 304017008021
699 N 304017008021 SCREW
REINFORCEMENT TO CONSOLE
700 N 913004008004 NUT
Repalced by: N 913004008001
700 N 913004008001 NUT
REINFORCEMENT TO CONSOLE
701 N 000125008418 WASHER
Repalced by: N 000125008443
701 N 000125008443 WASHER
REINFORCEMENT TO CONSOLE
701 N 000125008443 WASHER
CONSOLE TO SIDE MEMBER
702 N 000933010129 SCREW
Repalced by: N 304017010002
702 N 304017010002 SCREW
CONSOLE TO SIDE MEMBER
M 10X30
702 N 000933010164 SCREW
CONSOLE TO SIDE MEMBER
M 10X22
702 N 000933010105 SCREW
CONSOLE TO SIDE MEMBER
M 10X25
703 N 000125010518 WASHER
Repalced by: N 000125010532
703 N 000125010532 WASHER
CONSOLE TO SIDE MEMBER
703 N 007349010003 WASHER
Repalced by: N 007349010007
703 N 007349010007 WASHER
CONSOLE TO SIDE MEMBER
704 N 913004016004 NUT
Repalced by: N 910113016002
704 N 910113016002 NUT
BRACKET TO SIDE MEMBER
704 N 913004010008 NUT
Repalced by: N 910113010000
704 N 910113010000 NUT
BRACKET TO SIDE MEMBER
705 A 6175844521 GUIDE SIGN
LOAD-DEPENDING BRAKE
705 A 6175846021 GUIDE SIGN
LOAD-DEPENDING BRAKE
705 A 6175842421 GUIDE SIGN
LOAD-DEPENDING BRAKE
705 A 6175846421 GUIDE SIGN
LOAD-DEPENDING BRAKE
705 A 6175842121 GUIDE SIGN
LOAD-DEPENDING BRAKE
705 A 6175842321 GUIDE SIGN
LOAD-DEPENDING BRAKE
706 A 3875840055 ADHESIVE FOIL
707 N 915036012203 HOLLOW SCREW
BRAKE POWER REGULATOR,CONNECTIONS:
"1,2"
707 N 915036012203 HOLLOW SCREW
BRAKE POWER REGULATOR,CONNECTION:
"1"
708 N 915039012205 HOLLOW SCREW FITTING
BRAKE POWER REGULATOR,CONNECTION:
"4"
709 N 007603016401 SEAL RING
BRAKE POWER REGULATOR,CONNECTIONS:
"1,2,4"
709 N 007603016401 SEAL RING
BRAKE POWER REGULATOR,CONNECTIONS:
"1,2,4"
710 N 007604016102 SCREW PLUG
BRAKE POWER REGULATOR,CONNECTION "2", TOP
711 A 0004290927 THRUST RING
BRAKE POWER REGULATOR,CONNECTION "2"
712 A 0009971548 SEAL RING
BRAKE POWER REGULATOR,CONNECTION "2"
714 A 6204310839 LEVER
Repalced by: A 6744310039
714 A 6744310039 LEVER
BRAKE POWER REGULATOR CONTROL
716 N 900331008419 PULL ROD
BRAKE POWER REGULATOR CONTROL
716 N 900331008419 PULL ROD
BRAKE POWER REGULATOR CONTROL
716 N 900331008420 PULL ROD
BRAKE POWER REGULATOR CONTROL
716 N 900331008420 PULL ROD
BRAKE POWER REGULATOR CONTROL
718 A 0004310735 CONNECTOR
BRAKE POWER REGULATOR CONTROL
720 A 6249950065 CLAMP
CONNECTOR TO ROD
722 N 916026010000 CLAMP
Repalced by: N 000000000665
722 N 000000000665 CLAMP
CONNECTOR TO ROD
724 N 304032008006 NUT
PULL ROD TO METAL-SPRING-BELLOWS BALL JOINT
726 N 000125008418 WASHER
Repalced by: N 000125008443
726 N 000125008443 WASHER
CONNECTOR TO ROD
727 N 000094002077 COTTER PIN
CONNECTOR TO ROD
728 A 0004311018 METAL SPRING BELLOWS
BRAKE POWER REGULATOR CONTROL
728 A 0004311018 METAL SPRING BELLOWS
BRAKE POWER REGULATOR CONTROL
728 A 0004311718 METAL SPRING BELLOWS
BRAKE POWER REGULATOR CONTROL
728 A 0004311718 METAL SPRING BELLOWS
BRAKE POWER REGULATOR CONTROL
732 N 000933012039 SCREW
METAL SPRING BELLOWS TO BRACKET
M 12X18
732 N 000961012047 SCREW
METAL SPRING BELLOWS TO BRACKET
M 12X18
732 N 000961012173 SCREW
METAL SPRING BELLOWS TO BRACKET
M 12X16
733 A 6174310075 THREADED UNION
METAL SPRING BELLOWS TO REAR AXLE
733 A 6174310175 THREADED UNION
METAL SPRING BELLOWS TO REAR AXLE
734 N 009021013203 WASHER
METAL SPRING BELLOWS TO REAR AXLE
735 N 912004012100 LOCK WASHER
METAL SPRING BELLOWS TO BRACKET
735 N 912004012100 LOCK WASHER
METAL SPRING BELLOWS TO REAR AXLE
735 N 912004010102 LOCK WASHER
METAL SPRING BELLOWS TO REAR AXLE
736 A 6154311140 BRACKET
METAL SPRING BELLOWS
737 A 6174311040 BRACKET
METAL SPRING BELLOWS
737 A 6524310440 BRACKET
METAL SPRING BELLOWS
738 A 6204313740 BRACKET
METAL SPRING BELLOWS
739 N 000961012052 SCREW
Repalced by: N 308676012012
739 N 308676012012 SCREW
BRACKET TO REAR AXLE
739 N 000961016096 SCREW
Repalced by: N 308676016007
739 N 308676016007 SCREW
BRACKET TO REAR AXLE
739 N 914140010006 SCREW
BRACKET TO REAR AXLE
N 001470004001 GROOVED PIN
BRACKET TO REAR AXLE
740 A 3609900940 WASHER
BRACKET TO REAR AXLE
740 A 6209900640 WASHER
BRACKET TO REAR AXLE
742 A 0074206018 WHEEL BRAKE CYLINDER
(TRISTOP CYLINDER)
WABCO
742 A 0084208518 WHEEL BRAKE CYLINDER
(TRISTOP CYLINDER)
KNORR
742 A 0084209218 WHEEL BRAKE CYLINDER
(TRISTOP CYLINDER)
BOSCH
742 A 0094209618 WHEEL BRAKE CYLINDER
(TRISTOP CYLINDER)
GRAU
744 A 0004312928 DIAPHRAGM
TO 008 420 85 18,KNORR
746 A 0004313028 DIAPHRAGM
TO 008 420 92 18,BOSCH
748 A 0004231060 SEAL RING
TO 008 420 85 18,KNORR
750 A 0004234187 PROTECTIVE CAP
TO 008 420 85 18,KNORR
752 A 0004233886 CUP
TO 008 420 92 18,BOSCH
754 A 0004212286 CUP
Repalced by: A 0004215286
754 A 0004215286 CUP
TO 007 420 60 18,WABCO
756 A 0004211263 GUIDE
Repalced by: N 071752014000
756 N 071752014000 YOKE
TO 008 420 92 18,BOSCH
758 A 0004304060 REPAIR KIT
Repalced by: A 0024209524
758 A 0024209524 REPAIR KIT
DIAPHRAGM PART
TO 008 420 85 18,KNORR
760 A 0004303860 REPAIR KIT
TO 008 420 92 18,BOSCH
760 A 0014308660 REPAIR KIT
TRISTOP CYLINDER
TO 008 420 92 18,BOSCH
762 A 0025865242 REPAIR KIT
Repalced by: A 0024301560
762 A 0024301560 REPAIR KIT
DIAPHRAGM CYLINDER
TO 007 420 60 18,WABCO
764 A 0025865042 REPAIR KIT
SPRING LOAD ACCUMULATOR CYLINDER
TO 007 420 60 18,WABCO
766 N 913004016004 NUT
Repalced by: N 910113016002
766 N 910113016002 NUT
TRISTOP CYLINDER TO BEARING BRACKET
768 A 3854204078 BEARING BRACKET
TRISTOP CYLINDER
770 N 007346012003 CLAMPING SLEEVE
772 N 000961016036 SCREW
Repalced by: N 308676016013
772 N 308676016013 SCREW
BEARING BRACKET TO REAR AXLE
774 A 3619910005 PIN
TRISTOP CYLINDER TO SLACK ADJUSTER
776 N 000433015002 WASHER
Repalced by: N 000433015005
776 N 000433015005 WASHER
TRISTOP CYLINDER TO SLACK ADJUSTER
778 N 000094004051 COTTER PIN
TRISTOP CYLINDER TO SLACK ADJUSTER
790 A 0019905370 T-FITTING
TRISTOP CYLINDER;CONNECTIONS:
"11,12"
792 A 0004290927 THRUST RING
LEFT TRISTOP CYLINDER,CONNECTIONS:
"11,12"
792 A 0004290927 THRUST RING
LEFT TRISTOP CYLINDER,CONNECTION:
"11"
792 A 0004290927 THRUST RING
RIGHT TRISTOP CYLINDER,CONNECTIONS:
"11,12"
794 A 0009971548 SEAL RING
LEFT TRISTOP CYLINDER,CONNECTIONS:
"11,12"
794 A 0009971548 SEAL RING
LEFT TRISTOP CYLINDER,CONNECTION:
"11"
794 A 0009971548 SEAL RING
RIGHT TRISTOP CYLINDER,CONNECTIONS:
"11,12"
796 N 080705016003 NUT
TRISTOP CYLINDER;CONNECTIONS:
"11,12"
798 N 915039012205 HOLLOW SCREW FITTING
LEFT TRISTOP CYLINDER,CONNECTIONS:
"11,12"
798 N 915039012205 HOLLOW SCREW FITTING
LEFT TRISTOP CYLINDER,CONNECTION:
"12"
798 N 915039012205 HOLLOW SCREW FITTING
RIGHT TRISTOP CYLINDER,CONNECTION:
"11"
798 N 915039012205 HOLLOW SCREW FITTING
RIGHT TRISTOP CYLINDER,CONNECTION:
"12"
799 N 915047012203 HOLLOW SCREW
RIGHT TRISTOP CYLINDER,CONNECTION:
"11"
799 N 915047012203 HOLLOW SCREW
LEFT TRISTOP CYLINDER,CONNECTION:
"12"
799 N 915047012203 HOLLOW SCREW
RIGHT TRISTOP CYLINDER,CONNECTION:
"12"
800 A 0019900788 BANJO UNION
LEFT TRISTOP CYLINDER,CONNECTION:
"12"
800 A 0019900788 BANJO UNION
RIGHT TRISTOP CYLINDER,CONNECTION:
"11"
800 A 0019900788 BANJO UNION
RIGHT TRISTOP CYLINDER,CONNECTION:
"12"
801 A 0004296134 ADAPTER FITTING
Repalced by: A 0069970072
801 A 0069970072 FITTING
TRISTOP CYLINDER;CONNECTIONS:
"11,12"
802 N 915036012203 HOLLOW SCREW
RIGHT TRISTOP CYLINDER,CONNECTION:
"11"
802 N 915036012203 HOLLOW SCREW
LEFT TRISTOP CYLINDER,CONNECTION:
"11"
804 N 007603016401 SEAL RING
TRISTOP CYLINDER;CONNECTIONS:
"11,12"
806 N 916027011014 HOSE
FROM COMPRESSED AIR LINE TO TRISTOP CYLINDER
808 A 0004290541 FITTING
AT TRISTOP CYLINDER
810 N 915017012100 UNION NUT
AT TRISTOP CYLINDER
812 N 003861012007 GLAND
Repalced by: A 0019901967
812 A 0019901967 SEAL CONE
AT TRISTOP CYLINDER
814 N 074304016201 FITTING
AT RELAY VALVE
816 A 0004290641 FITTING
AT BRACKET
818 N 916017016000 CLAMP
Repalced by: N 000000000666
818 N 000000000666 CLAMP
HOSE TO FITTING
820 A 0004290927 THRUST RING
RELAY VALVE,CONNECTION:
"2"
822 A 0009971548 SEAL RING
RELAY VALVE,CONNECTION:
"2"
824 A 6204292040 BRACKET
FITTING
826 N 913004008004 NUT
Repalced by: N 913004008001
826 N 913004008001 NUT
BRACKET TO RELAY VALVE
828 N 080705018002 NUT
FITTING TO BRACKET
830 A 0039975745 SEAL RING
BRAKE HOSE TO PARKING BRAKE HOSE
830 A 3039971440 SEAL RING
BRAKE HOSE TO PARKING BRAKE HOSE
831 A 1159950465 CLAMP
BRAKE HOSE TO PARKING BRAKE HOSE
832 A 6209950065 CLAMP
BRAKE HOSE TO PARKING BRAKE HOSE
833 A 0014303481 VALVE
(PARKING BRAKE VALVE)
BOSCH
833 A 0014305681 VALVE
(PARKING BRAKE VALVE)
WABCO
833 A 0014306681 VALVE
Repalced by: A 0024309881
833 A 0024309881 VALVE
(PARKING BRAKE VALVE)
KNORR
833 A 0014304381 VALVE
(PARKING BRAKE VALVE)
BOSCH
833 A 0014305781 VALVE
(PARKING BRAKE VALVE)
WABCO
833 A 0014306781 VALVE
Repalced by: A 0024309981
833 A 0024309981 VALVE
(PARKING BRAKE VALVE)
KNORR
834 A 0014311287 PROTECTIVE CAP
KNORR
834 A 0014310887 PROTECTIVE CAP
TO 001 430 56 81,001 430 57 81,WABCO
834 A 0014311087 PROTECTIVE CAP
TO 001 430 34 81,001 430 43 81,BOSCH
836 A 0009975577 HANDLE
KNORR
836 A 0009972477 HANDLE
TO 001 430 56 81,001 430 57 81,WABCO
836 A 0009973477 HANDLE
TO 001 430 34 81,001 430 43 81,BOSCH
837 N 001481003025 CLAMPING SLEEVE
KNORR
838 A 0025867443 REPAIR KIT
Repalced by: A 0034303181
838 A 0034303181 REPAIR KIT
TO 001 430 56 81,001 430 57 81,WABCO
838 A 0025866343 REPAIR KIT
GASKET KIT
TO 001 430 34 81,001 430 43 81,BOSCH
838 A 0034302081 REPAIR KIT
TO 002 430 98 81,002 430 99 81,KNORR
838 A 0035860543 REPAIR KIT
TO 001 430 66 81,001 430 67 81,KNORR
844 N 007985008119 SCREW
VALVE TO CAB
846 N 912006008000 LOCK WASHER
VALVE TO CAB
848 A 0009976189 COUPLING
LINE TO HAND BRAKE VALVE
850 A 0099973948 SEAL RING
A 6205841038 GUMMED LABEL
PARKING BRAKE ACTUATION
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
