Transporto priemonė: 1617 C; VIN numerio dalis: 617019

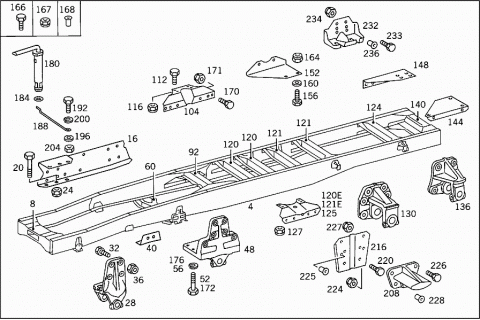

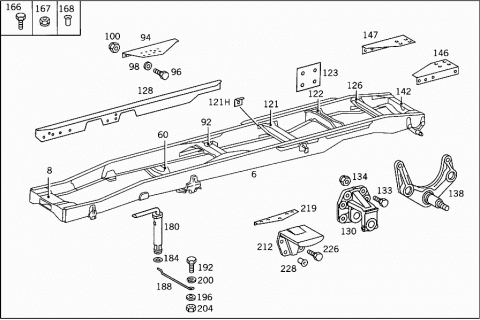

Grupė: 31 FRAME
| # | Kodas | Pavadinimas |
|---|---|---|
| 004 | A 6173102801 | FRAME |
| 004 | A 6173102901 | FRAME |
| 004 | A 6173103001 | FRAME |
| 004 | A 6173103101 | FRAME |
| 004 | A 6173102201 | FRAME |
| 004 | A 6173102702 | FRAME |
| 004 | A 6173102902 | FRAME |
| 004 | A 6173103002 | FRAME |
| 004 | A 6173103102 | FRAME |
| 004 | A 6173103202 | FRAME |
| 004 | A 6173102802 | FRAME |
| 004 | A 6173103201 | FRAME |
| 004 | A 6173103301 | FRAME |
| 006 | A 6173104001 | FRAME |
| 006 | A 6173105602 | FRAME |
| 008 | A 3873100422 | CROSS MEMBER |
| FRONT | ||
| 016 | A 3853122187 | GUSSET PLATE |
| FRONT LEFT | ||
| 016 | A 3853122187 | GUSSET PLATE |
| FRONT LEFT | ||
| 016 | A 6173122087 | GUSSET PLATE |
| Repalced by: A 3873122087 | ||
| 016 | A 3873122087 | GUSSET PLATE |
| FRONT LEFT | ||
| 016 | A 3853122287 | GUSSET PLATE |
| FRONT RIGHT | ||
| 016 | A 3853122287 | GUSSET PLATE |
| FRONT RIGHT | ||
| 016 | A 6173122187 | GUSSET PLATE |
| Repalced by: A 6203120987 | ||
| 016 | A 6203120987 | GUSSET PLATE |
| 020 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 020 | N 308676012026 | SCREW |
| CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS | ||
| 020 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 020 | N 308676012012 | SCREW |
| CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS | ||
| 024 | N 910113012002 | NUT |
| CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS | ||
| 024 | N 910113012002 | NUT |
| CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS | ||
| 028 | A 3833220101 | FRONT SPRING BRACKET |
| FRONT | ||
| 032 | A 3589900414 | SCREW |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| 036 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 036 | N 910113014000 | NUT |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| 040 | A 3833220131 | PLATE |
| HELPER SPRING | ||
| 048 | A 6173220003 | FRONT SPRING BRACKET |
| REAR | ||
| 048 | A 6173220103 | FRONT SPRING BRACKET |
| REAR | ||
| 052 | N 000961014154 | SCREW |
| CROSS MEMBER TO FRONT SPRING REAR BRACKET | ||
| 056 | N 912004014100 | LOCK WASHER |
| CROSS MEMBER TO FRONT SPRING REAR BRACKET | ||
| 060 | A 6163120310 | CROSS MEMBER |
| FRONT SPRING REAR BRACKET | ||
| NO.2 | ||
| A 6163120061 | STRUT | |
| FRONT SPRING REAR BRACKET | ||
| N 000961014050 | SCREW | |
| Repalced by: N 308676014020 | ||
| N 308676014020 | SCREW | |
| STRUT TO SIDE MEMBER | ||
| N 000961014113 | SCREW | |
| STRUT TO CROSS MEMBER | ||
| N 913004014002 | NUT | |
| Repalced by: N 910113014001 | ||
| N 910113014001 | NUT | |
| STRUT TO CROSS AND SIDE MEMBERS | ||
| A 3853100436 | CROSS MEMBER | |
| Repalced by: A 3813120015 | ||
| 092 | A 3813120015 | CROSS MEMBER |
| NO.3 | ||
| 094 | A 6193120687 | GUSSET PLATE |
| Repalced by: A 3813120652 | ||
| 094 | A 3813120652 | ANGLE |
| TOP LEFT | ||
| 094 | A 6193120787 | GUSSET PLATE |
| Repalced by: A 3813120752 | ||
| 094 | A 3813120752 | ANGLE |
| TOP RIGHT | ||
| 096 | N 308676012010 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS, TOP | ||
| 098 | A 3859901040 | WASHER |
| CROSS MEMBER TO SIDE MEMBERS, TOP | ||
| 100 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 100 | N 910113012003 | NUT |
| CROSS MEMBER TO SIDE MEMBERS, TOP | ||
| 104 | A 6173120352 | ANGLE |
| BOTTOM LEFT | ||
| 104 | A 6173120352 | ANGLE |
| BOTTOM LEFT | ||
| 104 | A 3813120252 | ANGLE |
| BOTTOM LEFT | ||
| 104 | A 6173120452 | ANGLE |
| BOTTOM RIGHT | ||
| 104 | A 6173120452 | ANGLE |
| BOTTOM RIGHT | ||
| 104 | A 3813120352 | ANGLE |
| BOTTOM RIGHT | ||
| 112 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 112 | N 308676012012 | SCREW |
| LOWER ANGLE TO CROSS MEMBER | ||
| 116 | N 910113012002 | NUT |
| LOWER ANGLE TO CROSS MEMBER | ||
| 120 | A 6173120117 | CROSS MEMBER |
| INTERMEDIATE SHAFT BEARING | ||
| NO.4 | ||
| 120 | A 6173120117 | CROSS MEMBER |
| INTERMEDIATE SHAFT BEARING | ||
| NO.5 | ||
| 120E | A 3833120360 | REINFORCEMENT |
| INTERMEDIATE BEARING CROSS MEMBER | ||
| NO.4 | ||
| 120E | A 3833120360 | REINFORCEMENT |
| INTERMEDIATE BEARING CROSS MEMBER | ||
| NO.5 | ||
| 121 | A 6173120017 | CROSS MEMBER |
| REAR SPRING FRONT BRACKET | ||
| NO.4 | ||
| 121 | A 6173120117 | CROSS MEMBER |
| REAR SPRING FRONT BRACKET | ||
| NO.4 | ||
| 121 | A 3813120017 | CROSS MEMBER |
| REAR SPRING FRONT BRACKET | ||
| NO.5 | ||
| 121 | A 3813120017 | CROSS MEMBER |
| REAR SPRING FRONT BRACKET | ||
| NO.6 | ||
| 121E | A 3523122360 | REINFORCEMENT |
| CROSS MEMBER AT REAR SPRING FRONT BRACKET | ||
| 121E | A 3833120360 | REINFORCEMENT |
| CROSS MEMBER AT REAR SPRING FRONT BRACKET | ||
| 121E | A 3833120360 | REINFORCEMENT |
| CROSS MEMBER AT REAR SPRING FRONT BRACKET | ||
| 121H | A 3523120884 | SHIM |
| Repalced by: A 6203121584 | ||
| 121H | A 6203121584 | SHIM |
| CROSS MEMBER AT REAR SPRING FRONT BRACKET TO FRAME SIDE MEMBER | ||
| 122 | A 6173100037 | CROSS MEMBER |
| SHOCK ABSORBER | ||
| NO.5 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR SHOCK ABSORBER CROSS MEMBER, SEE GROUP 32 | ||
| 123 | A 6193120084 | SHIM |
| SHOCK ABSORBER CROSS MEMBER TO SIDE MEMBERS | ||
| 124 | A 3813120021 | CROSS MEMBER |
| Repalced by: A 6173120117 | ||
| 124 | A 6173120117 | CROSS MEMBER |
| REAR-SPRING REAR BRACKET | ||
| NO.6 | ||
| 124 | A 6173120117 | CROSS MEMBER |
| REAR-SPRING REAR BRACKET | ||
| NO.7 | ||
| 125 | A 3833120360 | REINFORCEMENT |
| CROSS MEMBER AT REAR SPRING REAR BRACKET | ||
| 126 | A 6173100137 | CROSS MEMBER |
| NO.6 | ||
| 127 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 127 | N 910113014000 | NUT |
| INTERMEDIATE BEARING CROSS MEMBER REINFORCEMENT TO SIDE MEMBER | ||
| 128 | A 6173110353 | ANGLE |
| Repalced by: A 6173111553 | ||
| 128 | A 6173111553 | ANGLE |
| SADDLE PLATE,LEFT | ||
| 128 | A 6173110553 | ANGLE |
| Repalced by: A 6173110453 | ||
| 128 | A 6173110453 | ANGLE |
| Repalced by: A 6173111653 | ||
| 128 | A 6173111653 | ANGLE |
| SADDLE PLATE,RIGHT | ||
| A 3523250101 | REAR SPRING BRACKET | |
| Repalced by: A 6173250001 | ||
| 130 | A 6173250001 | REAR SPRING BRACKET |
| FRONT | ||
| 133 | A 3589901014 | SCREW |
| REAR SPRING FRONT BRACKET TO SIDE MEMBER | ||
| M 14X36 | ||
| 133 | A 3589900414 | SCREW |
| REAR SPRING FRONT BRACKET AND CROSS MEMBER TO SIDE MEMBER | ||
| M 14X48 | ||
| 134 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 134 | N 910113014000 | NUT |
| REAR SPRING FRONT BRACKET TO SIDE MEMBER | ||
| 136 | A 3523250101 | REAR SPRING BRACKET |
| REAR | ||
| 138 | A 6173250103 | REAR SPRING BRACKET |
| REAR LEFT | ||
| 138 | A 6173250203 | REAR SPRING BRACKET |
| REAR RIGHT | ||
| 140 | A 3833100246 | CROSS MEMBER |
| REAR | ||
| 140 | A 3833100246 | CROSS MEMBER |
| REAR | ||
| 140 | A 3853100146 | CROSS MEMBER |
| Repalced by: A 3853100246 | ||
| 140 | A 3853100246 | CROSS MEMBER |
| REAR | ||
| 142 | A 6173120035 | CROSS MEMBER |
| Repalced by: A 6173120735 | ||
| 142 | A 6173120735 | CROSS MEMBER |
| Repalced by: A 6553120335 | ||
| 142 | A 6553120335 | CROSS MEMBER |
| REAR | ||
| 144 | A 3853121087 | GUSSET PLATE |
| TOP LEFT, BOTTOM RIGHT | ||
| 144 | A 3853120987 | GUSSET PLATE |
| TOP RIGHT, BOTTOM LEFT | ||
| 146 | A 6173120087 | GUSSET PLATE |
| TOP LEFT | ||
| 146 | A 6173120987 | GUSSET PLATE |
| TOP LEFT | ||
| 147 | A 6173120187 | GUSSET PLATE |
| TOP RIGHT | ||
| 147 | A 6173121087 | GUSSET PLATE |
| TOP RIGHT | ||
| 148 | A 6193120087 | GUSSET PLATE |
| TOP LEFT, BOTTOM RIGHT | ||
| 148 | A 6193120087 | GUSSET PLATE |
| TOP RIGHT | ||
| 148 | A 6193120187 | GUSSET PLATE |
| TOP RIGHT, BOTTOM LEFT | ||
| 148 | A 6193120187 | GUSSET PLATE |
| TOP LEFT | ||
| 152 | A 6173120287 | GUSSET PLATE |
| BOTTOM LEFT | ||
| 152 | A 6173120387 | GUSSET PLATE |
| BOTTOM RIGHT | ||
| 156 | N 000961012205 | SCREW |
| GUSSET PLATES AND AUXILIARY FRAME TO SIDE MEMBERS | ||
| M 12X50 | ||
| 160 | A 3859901040 | WASHER |
| GUSSET PLATES AND AUXILIARY FRAME TO SIDE MEMBERS | ||
| 164 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 164 | N 910113012003 | NUT |
| GUSSET PLATE TO SIDE MEMBER | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| MOUNTING USED FOR FRAME CONNECTION PARTS | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| DIMENSIONS ARE INDICATED IN THE FOLLOWING ORDER: | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| THREAD X SHANK DIA. X SHANK LENGTH X TOTAL LENGTH | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 166 | N 000609010004 | FITTED SCREW |
| M 10X11X14X28 | ||
| 166 | N 000610010003 | FITTED SCREW |
| M 10X11X25X38 | ||
| 166 | N 000609010014 | FITTED SCREW |
| M 10X11X24X40 | ||
| 166 | A 3859900514 | SCREW |
| M 10X11X26.5X46 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 166 | A 3859900714 | SCREW |
| M 12X12X10X25 | ||
| 166 | A 3859901414 | SCREW |
| M 12X12X11X26 | ||
| 166 | A 0039900901 | SCREW |
| Repalced by: A 0029908201 | ||
| 166 | A 0029908201 | SCREW |
| M 12X12X12X28 | ||
| 166 | A 3859901514 | SCREW |
| M 12X12X13X28 | ||
| 166 | A 0029908201 | SCREW |
| M 12X12X14X30 | ||
| 166 | A 3859902114 | SCREW |
| M 12X12X15X30 | ||
| 166 | A 0029908301 | SCREW |
| Repalced by: N 308676012013 | ||
| 166 | N 308676012013 | SCREW |
| M 12X12X16X32 | ||
| 166 | A 3859902214 | SCREW |
| M 12X12X17X32 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 166 | A 6209900114 | SCREW |
| M 12X13X12X29 | ||
| 166 | A 3969900314 | SCREW |
| M 12X13X13X30 | ||
| 166 | A 3589901914 | SCREW |
| M 12X13X15X32 | ||
| 166 | A 3559900014 | SCREW |
| M 12X13X18X35 | ||
| 166 | A 3589900614 | SCREW |
| M 12X13X21X38 | ||
| 166 | A 6179900114 | SCREW |
| M 12X13X23X40 | ||
| 166 | A 6249900014 | SCREW |
| M 12X13X25X42 | ||
| 166 | A 3859900214 | SCREW |
| M 12X13X35X52 | ||
| 166 | A 6689900114 | SCREW |
| M 12X13X58X80 | ||
| 166 | A 6689900014 | SCREW |
| M 12X13X63X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 166 | A 3859900814 | SCREW |
| Repalced by: A 3229903101 | ||
| 166 | A 3229903101 | SCREW |
| M 14X14X18X32 | ||
| 166 | A 3859902014 | SCREW |
| M 14X14X18X34 | ||
| 166 | A 3559900114 | SCREW |
| M 12X14X13X35 | ||
| 166 | A 3219901601 | SCREW |
| M 14X14X17X35 | ||
| 166 | A 3219901901 | SCREW |
| M 14X14X22X40 | ||
| 166 | A 3559900501 | SCREW |
| M 14X14X24X42 | ||
| 166 | A 3409900201 | SCREW |
| M 14X14X27X45 | ||
| 166 | A 3609902001 | SCREW |
| M 14X14X32X50 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 166 | A 3589900114 | SCREW |
| M 14X15X15X32 | ||
| 166 | A 3589900814 | SCREW |
| M 14X15X17X34 | ||
| 166 | A 6459900014 | SCREW |
| M 14X15X18X35 | ||
| 166 | A 3589901014 | SCREW |
| M 14X15X19X36 | ||
| 166 | A 3589900214 | SCREW |
| M 14X15X21X38 | ||
| 166 | A 3589900414 | SCREW |
| M 14X15X25X42 | ||
| 166 | A 3589900714 | SCREW |
| M 14X15X27X44 | ||
| 166 | A 3589900914 | SCREW |
| M 14X15X26X46 | ||
| 166 | A 3859900414 | SCREW |
| M 14X15X31X48 | ||
| 166 | A 3859900314 | SCREW |
| M 14X15X35X52 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 166 | A 3859900914 | SCREW |
| Repalced by: N 308676016020 | ||
| 166 | N 308676016020 | SCREW |
| M 16X16X18X36 | ||
| 166 | A 3859901714 | SCREW |
| M 16X16X20X38 | ||
| 166 | A 3859901014 | SCREW |
| M 16X16X22X40 | ||
| 166 | A 3859901114 | SCREW |
| M 16X16X24X42 | ||
| 166 | A 0029909901 | SCREW |
| Repalced by: A 3959900501 | ||
| 166 | A 3959900501 | SCREW |
| M 16X16X20X45 | ||
| 166 | A 3859901814 | SCREW |
| M 16X16X30X48 | ||
| 166 | A 3859901914 | SCREW |
| M 16X16X32X50 | ||
| 166 | A 6259900301 | SCREW |
| M 16X16X38X90 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 166 | A 3589900514 | SCREW |
| M 16X17X22X42 | ||
| 166 | A 6459900714 | SCREW |
| M 16X17X24X44 | ||
| 166 | A 3609900114 | SCREW |
| M 16X17X28X48 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 166 | A 3469900014 | SCREW |
| M 16X18X18X40 | ||
| 166 | A 3859902314 | SCREW |
| M 18X18X23X45 | ||
| 166 | A 6209900014 | SCREW |
| M 16X18X26X48 | ||
| 166 | A 3469900114 | SCREW |
| M 16X18X31X50 | ||
| 166 | A 3859902414 | SCREW |
| M 18X18X33X55 | ||
| 166 | A 6229900014 | SCREW |
| M 16X18X38X60 | ||
| 166 | A 3919900014 | SCREW |
| M 16X18X63X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 166 | N 000610018004 | FITTED SCREW |
| M 18X19X25X45 | ||
| 166 | N 000610018009 | FITTED SCREW |
| M 18X19X33X55 | ||
| 166 | N 000610018006 | FITTED SCREW |
| M 18X19X38X60 | ||
| 166 | N 000609018000 | FITTED SCREW |
| M 18X19X57X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 167 | N 913004010011 | NUT |
| 167 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 167 | N 910113012003 | NUT |
| 167 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 167 | N 910113014000 | NUT |
| 167 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 167 | N 910113016001 | NUT |
| 167 | N 913004018004 | NUT |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 168 | N 910005010012 | RIVET |
| 10X24 MM | ||
| 168 | N 910005010014 | RIVET |
| 10X26 MM | ||
| 168 | N 910005010016 | RIVET |
| 10X28 MM | ||
| 168 | N 910005010020 | RIVET |
| 10X32 MM | ||
| 168 | N 910005010026 | RIVET |
| 10X38 MM | ||
| 168 | N 910005012073 | RIVET |
| 12X28 MM | ||
| 168 | N 910005012080 | RIVET |
| 12X42 MM | ||
| 168 | N 910005014056 | RIVET |
| 14X45 MM | ||
| 168 | N 910005014059 | RIVET |
| 14X55 MM | ||
| 168 | N 910005014066 | RIVET |
| 14X70 MM | ||
| 170 | A 3219901601 | SCREW |
| FOR CROSS MEMBER NO.3; ANGLE TO SIDE MEMBER | ||
| 171 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 171 | N 910113014000 | NUT |
| FOR CROSS MEMBER NO.3; ANGLE TO SIDE MEMBER | ||
| 172 | N 000961014154 | SCREW |
| FRONT SPRING REAR BRACKET TO CROSS MEMBER | ||
| 176 | N 912004014100 | LOCK WASHER |
| FRONT SPRING REAR BRACKET TO CROSS MEMBER | ||
| 180 | A 3873150106 | COUPLING PIN |
| FOR COUPLING MOUTH | ||
| 184 | A 0009874346 | SEALING CORD |
| FOR COUPLING MOUTH | ||
| 188 | A 3353150031 | LOCKING SPRING |
| COUPLING PIN | ||
| 192 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 192 | N 304017008034 | SCREW |
| LOCK SPRING TO CROSS MEMBER | ||
| 196 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 196 | N 000125008443 | WASHER |
| LOCK SPRING TO CROSS MEMBER | ||
| 200 | N 912004008102 | LOCK WASHER |
| LOCK SPRING TO CROSS MEMBER | ||
| 204 | N 304032008006 | NUT |
| LOCK SPRING TO CROSS MEMBER | ||
| 208 | A 6173250117 | HELPER SPRING BRACKET |
| Repalced by: A 6843250117 | ||
| 208 | A 6843250117 | HELPER SPRING BRACKET |
| IN FRONT OF,AND BEHIND,REAR AXLE | ||
| 212 | A 3893250117 | HELPER SPRING BRACKET |
| Repalced by: A 6843250017 | ||
| 212 | A 6843250017 | HELPER SPRING BRACKET |
| IN FRONT OF,AND BEHIND,REAR AXLE | ||
| 216 | A 3813250041 | STIFFENING |
| HELPER SPRING BRACKET | ||
| 219 | A 6173250048 | ANGLE |
| HELPER SPRING BRACKET | ||
| 220 | A 0039900901 | SCREW |
| Repalced by: A 0029908201 | ||
| 220 | A 0029908201 | SCREW |
| STIFFENING TO FRAME | ||
| 220 | N 000961012106 | SCREW |
| STIFFENINGS AND AUXILIARY FRAME TO SIDE MEMBERS | ||
| 224 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 224 | N 910113012003 | NUT |
| STIFFENING TO FRAME | ||
| 225 | N 910005012073 | RIVET |
| STIFFENING TO FRAME | ||
| 226 | A 6179900114 | SCREW |
| HELPER SPRING BRACKET TO SIDE MEMBER | ||
| M 12X40 | ||
| 226 | A 6179900614 | SCREW |
| HELPER SPRING BRACKET AND GUSSET PLATE TO SIDE MEMBER | ||
| M 12X48 | ||
| 227 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 227 | N 910113012003 | NUT |
| HELPER SPRING BRACKET TO SIDE MEMBER | ||
| 228 | N 910005012087 | RIVET |
| HELPER SPRING BRACKET TO SIDE MEMBER | ||
| 232 | A 3874030701 | SUPPORT |
| SPARE WHEEL MOUNTING | ||
| 233 | A 0029908201 | SCREW |
| SUPPORT TO FRAME | ||
| 234 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 234 | N 910113012003 | NUT |
| SUPPORT TO FRAME | ||
| 236 | N 910005012080 | RIVET |
| SUPPORT TO FRAME | ||
| 240 | A 3878912631 | CONSOLE |
| CAB MOUNTING,FRONT | ||
| 244 | A 6203170223 | STRUT |
| BUMPER,LEFT | ||
| 244 | A 6203170423 | STRUT |
| BUMPER,RIGHT | ||
| 248 | N 000961014101 | SCREW |
| Repalced by: N 308676014012 | ||
| 248 | N 308676014012 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| M 14X45 | ||
| 250 | N 000961014063 | SCREW |
| Repalced by: A 9429901304 | ||
| 250 | A 9429901304 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| M 14X40 | ||
| 252 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 252 | N 910113014000 | NUT |
| CONSOLE AND STRUT TO FRAME | ||
| 256 | A 3813106509 | BRACKET |
| CAB,LEFT | ||
| 256 | A 6208902103 | MOUNTING |
| CAB,LEFT | ||
| 256 | A 3813106609 | BRACKET |
| CAB, RIGHT | ||
| 256 | A 6208902203 | MOUNTING |
| CAB, RIGHT | ||
| 260 | A 3878902903 | MOUNTING |
| 260 | A 6208902003 | MOUNTING |

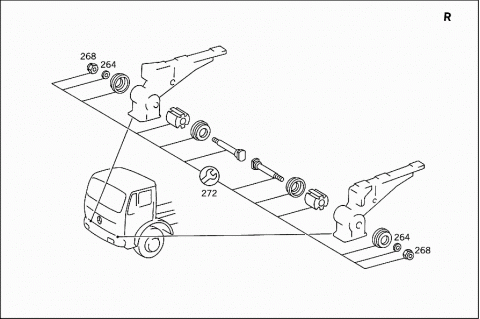

| 264 | N 007349017002 | WASHER |
| 268 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 268 | N 910113016002 | NUT |
| 272 | A 3815860031 | REPAIR KIT |
| CAB SUSPENSION,FRONT | ||
| 276 | N 000961014028 | SCREW |
| MOUNTING TO CAB | ||
| M 14X40 | ||
| 280 | N 912004014100 | LOCK WASHER |
| MOUNTING TO CAB | ||
| 284 | N 000961014064 | SCREW |
| MOUNTING TO CAB | ||
| M 14X50 | ||
| 288 | A 3209901840 | WASHER |
| MOUNTING TO CAB | ||
| 292 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 292 | N 910113014001 | NUT |
| MOUNTING TO CAB | ||
| 296 | N 000961014063 | SCREW |
| Repalced by: A 9429901304 | ||
| 296 | A 9429901304 | SCREW |
| MOUNTING TO CONSOLE | ||
| M 14X40 | ||
| 296 | N 000961014101 | SCREW |
| Repalced by: N 308676014012 | ||
| 296 | N 308676014012 | SCREW |
| MOUNTING TO CONSOLE | ||
| M 14X45 | ||
| 300 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 300 | N 910113014000 | NUT |
| MOUNTING TO CONSOLE | ||
| 304 | A 3813171201 | CONSOLE |
| VIBRATION ABSORBER TO FRAME | ||
| 308 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 308 | N 308676014020 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 14X35 | ||
| 308 | N 000961014028 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 14X40 | ||
| 312 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 312 | N 910113014001 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 316 | A 3813171926 | GUIDE |
| LEFT | ||
| 316 | A 3813172026 | GUIDE |
| RIGHT | ||
| 320 | N 000960012301 | SCREW |
| GUIDE TO CAB | ||
| 324 | N 912004012100 | LOCK WASHER |
| GUIDE TO CAB | ||
| 328 | A 3873170084 | SHIM |
| GUIDE TO CAB | ||
| 332 | A 3813170750 | BUSHING |
| LATERAL GUIDE OF CAB | ||
| 336 | A 3813170553 | SPACER TUBE |
| LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS | ||
| 340 | N 000960012230 | SCREW |
| LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS | ||
| 344 | N 910113012002 | NUT |
| LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS | ||
| 348 | A 3878901619 | SHOCK ABSORBER |
| Repalced by: A 3878901319 | ||
| 348 | A 3878901319 | SHOCK ABSORBER |
| (VIBRATION ABSORBER),CAB REAR SUSPENSION | ||
| 348 | A 3878901319 | SHOCK ABSORBER |
| (VIBRATION ABSORBER),CAB REAR SUSPENSION | ||
| 348 | A 6208900019 | SHOCK ABSORBER |
| Repalced by: A 6208900119 | ||
| 348 | A 6208900119 | SHOCK ABSORBER |
| (VIBRATION ABSORBER),CAB REAR SUSPENSION | ||
| 348 | A 6208900119 | SHOCK ABSORBER |
| (VIBRATION ABSORBER),CAB REAR SUSPENSION | ||
| 352 | A 0008910201 | RUBBER MOUNTING |
| TO 387 890 16 19,620 890 00 19 | ||
| 352 | A 0008900148 | JOINT |
| Repalced by: A 0008910301 | ||
| 352 | A 0008910301 | RUBBER MOUNTING |
| TO 387 890 13 19,620 890 01 19 | ||
| 356 | A 0008910751 | SPRING |
| Repalced by: A 0008910451 | ||
| 356 | A 0008910451 | SPRING |
| 356 | A 0008911051 | SPRING |
| TO 620 890 00 19 | ||
| 356 | A 0008911151 | SPRING |
| TO 620 890 01 19 | ||
| 358 | A 0008910123 | BUFFER |
| TO 620 890 00 19 | ||
| 360 | A 3813170753 | SPACER TUBE |
| SHOCK ABSORBER MOUNTING | ||
| 364 | A 3275045082 | RUBBER RING |
| SHOCK ABSORBER MOUNTING | ||
| 368 | N 000433015002 | WASHER |
| Repalced by: N 000433015005 | ||
| 368 | N 000433015005 | WASHER |
| SHOCK ABSORBER MOUNTING | ||
| 372 | A 3878912010 | WASHER |
| SHOCK ABSORBER MOUNTING | ||
| 376 | N 000934012022 | NUT |
| SHOCK ABSORBER MOUNTING | ||
| 380 | N 001587012008 | CAP NUT |
| Repalced by: N 001587012010 | ||
| 380 | N 001587012010 | CAP NUT |
| SHOCK ABSORBER MOUNTING | ||
| 384 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 384 | N 304017008034 | SCREW |
| SHOCK ABSORBER TO CONSOLE | ||
| 388 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 388 | N 009021008213 | WASHER |
| SHOCK ABSORBER TO CONSOLE | ||
| 392 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 392 | N 913004008001 | NUT |
| SHOCK ABSORBER TO CONSOLE | ||
| 396 | A 3813177840 | BRACKET |
| VIBRATION ABSORBER TO CAB,LEFT | ||
| 396 | A 3813177940 | BRACKET |
| VIBRATION ABSORBER TO CAB,RIGHT | ||
| 400 | A 3813170097 | BOOT |
| SHOCK ABSORBER,TOP | ||
| 404 | N 000933010105 | SCREW |
| BRACKET AND BOOT TO SIDE MEMBER | ||
| 408 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 408 | N 000125010532 | WASHER |
| BRACKET AND BOOT TO SIDE MEMBER | ||
| 412 | N 912004010102 | LOCK WASHER |
| BRACKET AND BOOT TO SIDE MEMBER | ||
| 416 | A 3813102075 | LOCKING MECHANISM |
| CAB,LEFT | ||
| 416 | A 3813101975 | LOCKING MECHANISM |
| CAB, RIGHT | ||
| 420 | A 3813170119 | LATCH |
| 424 | A 3813172374 | PIN |
| 428 | A 3813170924 | LEVER |
| 432 | A 3813170676 | WASHER |
| 436 | A 0009935426 | DISC SPRING |
| 440 | N 001481006041 | CLAMPING SLEEVE |
| 444 | N 910113012002 | NUT |
| 448 | N 000933010105 | SCREW |
| LOCKING MECHANISM TO CAB | ||
| 452 | N 912004010102 | LOCK WASHER |
| LOCKING MECHANISM TO CAB | ||
| 456 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 456 | N 000125010532 | WASHER |
| LOCKING MECHANISM TO CAB | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
