Transporto priemonė: 1617 C; VIN numerio dalis: 617019

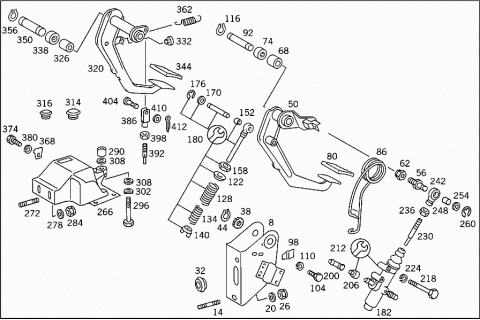

Grupė: 29 PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 008 | A 3812901219 | BEARING BRACKET |
| CLUTCH | ||
| 014 | N 000939008083 | STUD BOLT |
| BEARING BRACKET TO CAB | ||
| M 8X20 | ||
| 014 | N 000939008136 | STUD BOLT |
| BEARING BRACKET TO CAB | ||
| M 8X30 | ||
| 020 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 020 | N 000125008443 | WASHER |
| BEARING BRACKET TO CAB | ||
| 026 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 026 | N 913004008001 | NUT |
| BEARING BRACKET TO CAB | ||
| 032 | A 6179970081 | GROMMET |
| FIRE WALL,LEFT,IN FRONT LEGROOM | ||
| 038 | A 3812910186 | STOP |
| CLUTCH PEDAL | ||
| 044 | N 000471016001 | LOCK RING |
| Repalced by: A 0079942041 | ||
| 044 | A 0079942041 | LOCK |
| STOP TO BEARING BRACKET | ||
| 050 | A 6202900416 | PEDAL |
| Repalced by: A 6202900216 | ||
| 050 | A 6202900216 | PEDAL |
| CLUTCH | ||
| 056 | A 3812910274 | PIN |
| CLUTCH PEDAL | ||
| 062 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 062 | N 913004008001 | NUT |
| CLUTCH PEDAL | ||
| 068 | A 3812910053 | SPACER TUBE |
| CLUTCH PEDAL | ||
| 074 | A 0119813410 | NEEDLE BEARING |
| CLUTCH PEDAL | ||
| 080 | A 1072910182 | PAD |
| CLUTCH PEDAL | ||
| 086 | A 3819930710 | SPRING |
| CLUTCH PEDAL RESET | ||
| 092 | A 3812940707 | PIVOT PIN |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 098 | A 3812910073 | LOCK |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 104 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 104 | N 304017006016 | SCREW |
| LOCK TO BEARING BRACKET | ||
| 110 | N 912004006102 | LOCK WASHER |
| LOCK TO BEARING BRACKET | ||
| 116 | N 000471020001 | LOCK RING |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 122 | A 1112910491 | SPRING RETAINER |
| DEAD CENTER SPRING,TOP | ||
| 128 | A 1109930501 | SPRING |
| (DEAD CENTER SPRING) | ||
| 35 MM | ||
| 134 | A 3819930201 | SPRING |
| (DEAD CENTER SPRING) | ||
| 23.2 MM | ||
| 140 | A 3092910091 | SPRING RETAINER |
| BOTTOM | ||
| A 3812910233 | ROD | |
| OVER-CENTER ACTING SPRING | ||
| A 3812910333 | ROD | |
| OVER-CENTER ACTING SPRING | ||
| 152 | A 0059813810 | NEEDLE BEARING |
| ROD TO CLUTCH PEDAL | ||
| 152 | A 0059814410 | NEEDLE BEARING |
| ROD TO CLUTCH PEDAL | ||
| 152 | A 0089811210 | NEEDLE BEARING |
| ROD TO CLUTCH PEDAL | ||
| 152 | A 0139818210 | NEEDLE BEARING |
| ROD TO CLUTCH PEDAL | ||
| 158 | N 000439010216 | NUT |
| Repalced by: N 308675010000 | ||
| 158 | N 308675010000 | NUT |
| SPRING TO PUSH ROD | ||
| A 3812910574 | PIN | |
| PUSH ROD TO PEDAL | ||
| 170 | N 000433008406 | WASHER |
| PUSH ROD TO PEDAL | ||
| 176 | N 006799006003 | LOCK PLATE |
| PUSH ROD TO PEDAL | ||
| 180 | A 3802900193 | REPAIR KIT |
| DEAD CENTER SPRING | ||
| 182 | A 0012952906 | MASTER CYLINDER |
| Repalced by: A 0012956006 | ||
| 182 | A 0012956006 | MASTER CYLINDER |
| CLUTCH;LESS DE-AERATION | ||
| 200 | A 0002950836 | INTERMEDIATE PIECE |
| 206 | A 0009971186 | PLUG |
| 212 | A 0005863529 | REPAIR KIT |
| Repalced by: A 0002903412 | ||
| 212 | A 0002903412 | REPAIR KIT |
| TO MASTER CYLINDER HAVING ALUMINUM PISTON | ||
| TO 001 295 29 06 | ||
| 212 | A 0002904667 | REPAIR KIT |
| TO MASTER CYLINDER HAVING SYNTHETIC PISTON | ||
| TO 001 295 60 06 | ||
| 218 | N 000931006191 | SCREW |
| MASTER CYLINDER TO BEARING BRACKET | ||
| 224 | N 912004006102 | LOCK WASHER |
| MASTER CYLINDER TO BEARING BRACKET | ||
| 230 | A 3812950033 | ROD |
| MASTER CYLINDER | ||
| 236 | N 000439008211 | NUT |
| Repalced by: N 304035008001 | ||
| 236 | N 304035008001 | NUT |
| ROD TO YOKE | ||
| 242 | A 0009961045 | ARTICULATION PIECE |
| CLUTCH MASTER CYLINDER TO CLUTCH PEDAL | ||
| 242 | A 0009961145 | ARTICULATION PIECE |
| CLUTCH MASTER CYLINDER TO CLUTCH PEDAL | ||
| 248 | A 0059813810 | NEEDLE BEARING |
| CLUTCH MASTER CYLINDER TO CLUTCH PEDAL | ||
| 248 | A 0059814410 | NEEDLE BEARING |
| CLUTCH MASTER CYLINDER TO CLUTCH PEDAL | ||
| 248 | A 0089811210 | NEEDLE BEARING |
| CLUTCH MASTER CYLINDER TO CLUTCH PEDAL | ||
| 248 | A 0139818210 | NEEDLE BEARING |
| CLUTCH MASTER CYLINDER TO CLUTCH PEDAL | ||
| 254 | N 000433008406 | WASHER |
| PISTON ROD TO LEVER | ||
| 260 | N 006799006003 | LOCK PLATE |
| PISTON ROD TO LEVER | ||
| 266 | A 3812941001 | BEARING BRACKET |
| BRAKE | ||
| 272 | N 000939008136 | STUD BOLT |
| BEARING BRACKET TO CAB | ||
| 278 | N 007349008003 | WASHER |
| BEARING BRACKET TO CAB | ||
| 284 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 284 | N 913004008001 | NUT |
| BEARING BRACKET TO CAB | ||
| 290 | A 3604270253 | SPACER TUBE |
| BEARING BRACKET TO STEERING COLUMN BRACKET | ||
| 290 | A 3604270253 | SPACER TUBE |
| BEARING BRACKET TO WINDOW SILL GIRDER | ||
| 290 | A 3604270353 | SPACER TUBE |
| Repalced by: A 3604270253 | ||
| 296 | N 000931010272 | SCREW |
| BEARING BRACKET TO STEERING COLUMN BRACKET | ||
| 296 | N 000931010272 | SCREW |
| BEARING BRACKET TO WINDOW SILL GIRDER | ||
| 302 | N 000137010201 | SPRING WASHER |
| BEARING BRACKET TO STEERING COLUMN BRACKET | ||
| 302 | N 000137010201 | SPRING WASHER |
| BEARING BRACKET TO WINDOW SILL GIRDER | ||
| 308 | A 3859901840 | WASHER |
| Repalced by: A 4039900040 | ||
| 308 | A 4039900040 | WASHER |
| BEARING BRACKET TO STEERING COLUMN BRACKET | ||
| 308 | A 4039900040 | WASHER |
| BEARING BRACKET TO WINDOW SILL GIRDER | ||
| 314 | A 3819970486 | PLUG |
| TO PLUG BRAKE OPENING | ||
| 316 | A 3819970386 | PLUG |
| Repalced by: A 0009972020 | ||
| 316 | A 0009972020 | EXPANSION PLUG |
| Repalced by: A 0009973220 | ||
| 316 | A 0009973220 | EXPANSION PLUG |
| TO PLUG BRAKE OPENING | ||
| 320 | A 6202900818 | PEDAL |
| BRAKE | ||
| 320 | A 6202900818 | PEDAL |
| BRAKE | ||
| 320 | A 3852900518 | PEDAL |
| BRAKE | ||
| 326 | A 3852920053 | SPACER TUBE |
| BRAKE PEDAL | ||
| 332 | A 1152910186 | STOP |
| BRAKE PEDAL | ||
| 338 | A 0119813410 | NEEDLE BEARING |
| BRAKE PEDAL | ||
| 344 | A 1072910182 | PAD |
| BRAKE | ||
| 350 | A 3852940007 | PIVOT PIN |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 356 | N 000471020001 | LOCK RING |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 362 | A 3879935010 | SPRING |
| BRAKE PEDAL RESET | ||
| 368 | A 3852920073 | LOCK |
| Repalced by: A 6732920073 | ||
| 368 | A 6732920073 | LOCK |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 374 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 374 | N 304017006018 | SCREW |
| LOCK TO BEARING BRACKET | ||
| 380 | N 912004006102 | LOCK WASHER |
| LOCK TO BEARING BRACKET | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FOR BRAKE VALVE,SEE GROUP 42 | ||
| 386 | A 6209960001 | YOKE |
| PISTON ROD AND PUSH ROD | ||
| 392 | A 3852950133 | ROD |
| Repalced by: A 9702900039 | ||
| 392 | A 9702900039 | ROD |
| PISTON ROD AND PUSH ROD | ||
| 398 | N 000439008211 | NUT |
| Repalced by: N 304035008001 | ||
| 398 | N 304035008001 | NUT |
| ROD TO YOKE | ||
| 404 | A 3852920174 | PIN |
| PISTON ROD TO LEVER | ||
| 410 | N 000433008406 | WASHER |
| PISTON ROD TO LEVER | ||
| 412 | N 000094002059 | COTTER PIN |
| PISTON ROD TO LEVER | ||

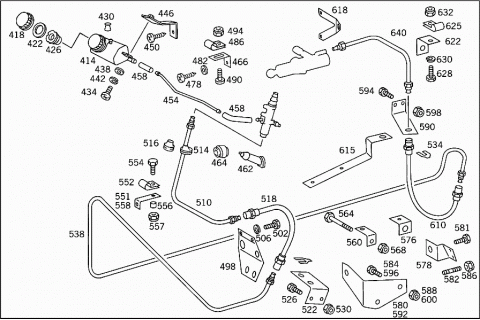

| 414 | A 0002951715 | RESERVOIR |
| EXPANSION TANK | ||
| 414 | A 0002952315 | RESERVOIR |
| EXPANSION TANK | ||
| 414 | A 0002952315 | RESERVOIR |
| EXPANSION TANK | ||
| 418 | A 0002950116 | LOCKING CAP |
| 422 | A 0002950260 | SEAL RING |
| Repalced by: A 0009972940 | ||
| 422 | A 0009972940 | SEAL RING |
| 426 | A 0004314334 | STRAINER |
| 430 | A 0009885435 | CAP |
| RESERVOIR DE-AERATION | ||
| 434 | N 000000001147 | SCREW |
| EXPANSION TANK TO BRACKET | ||
| M 6X20 | ||
| 438 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 438 | N 009021006208 | WASHER |
| EXPANSION TANK TO BRACKET | ||
| 442 | N 912004006102 | LOCK WASHER |
| EXPANSION TANK TO BRACKET | ||
| 446 | A 3872900433 | BRACKET |
| RESERVOIR | ||
| 450 | N 007981005308 | SHEET METAL SCREW |
| BRACKET TO CAB | ||
| 454 | A 3872950313 | PIPE |
| WITH BEAD | ||
| 10 MM | ||
| 454 | A 3872950313 | PIPE |
| FROM CLUTCH MASTER CYLINDER TO RESERVOIR | ||
| 10 MM | ||
| 458 | A 0009978952 | HOSE |
| LINES FROM MASTER CYLINDER TO RESERVOIR | ||
| 462 | A 3819970781 | GROMMET |
| CLUTCH LINE THRU CAB WINDOW SILL | ||
| 464 | A 6209970281 | GROMMET |
| CLUTCH LINE THRU CAB WINDOW SILL | ||
| 466 | A 3812950440 | BRACKET |
| HYDRAULIC LINE | ||
| 478 | N 007981005306 | SHEET METAL SCREW |
| BRACKET TO CAB | ||
| 482 | N 000125006421 | WASHER |
| BRACKET TO CAB | ||
| 486 | A 3609950301 | CLAMP |
| HYDRAULIC LINE TO BRACKET | ||
| 490 | N 000000001147 | SCREW |
| HYDRAULIC LINE TO BRACKET | ||
| M 6X20 | ||
| 494 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 494 | N 913004006001 | NUT |
| HYDRAULIC LINE TO BRACKET | ||
| 498 | A 6202953040 | BRACKET |
| HYDRAULIC LINE TO CAB FLOOR | ||
| 502 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 502 | N 304017006016 | SCREW |
| BRACKET TO CAB FLOOR | ||
| 506 | N 912004006102 | LOCK WASHER |
| BRACKET TO CAB FLOOR | ||
| 510 | A 3812901714 | LINE |
| Repalced by: A 3812903214 | ||
| 510 | A 3812903214 | LINE |
| FROM CLUTCH MASTER CYLINDER TO HYDRAULIC HOSE | ||
| 570 MM | ||
| 510 | A 3812901814 | LINE |
| FROM CLUTCH MASTER CYLINDER TO HYDRAULIC HOSE | ||
| 700 MM | ||
| 514 | A 3819971781 | GROMMET |
| Repalced by: A 3149970581 | ||
| 514 | A 3149970581 | GROMMET |
| 516 | A 3819970881 | GROMMET |
| 518 | A 3832950035 | HOSE |
| Repalced by: A 3982950035 | ||
| 518 | A 3982950035 | HOSE |
| FROM BRACKET UNDER CAB FLOOR TO OIL TANK BRACKET | ||
| 605 MM | ||
| 522 | A 6162950140 | BRACKET |
| AT OIL TANK | ||
| 522 | A 6162950940 | BRACKET |
| AT OIL TANK | ||
| 526 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 526 | N 304017006016 | SCREW |
| BRACKET TO OIL TANK | ||
| 530 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 530 | N 913004006001 | NUT |
| BRACKET TO OIL TANK | ||
| 534 | A 0004280473 | BRACKET |
| Repalced by: A 6525040038 | ||
| 534 | A 6525040038 | MOUNTING PLATE |
| HYDRAULIC HOSE TO BRACKET | ||
| 538 | A 3812902014 | LINE |
| FROM OIL TANK BRACKET TO BRACKET AT ENGINE REAR MOUNTING | ||
| 1100 MM | ||
| 538 | A 3812902214 | LINE |
| FROM OIL TANK BRACKET TO BRACKET AT ENGINE REAR MOUNTING | ||
| 2000 MM | ||
| 538 | A 3812902214 | LINE |
| FROM OIL TANK BRACKET TO BRACKET AT ENGINE REAR MOUNTING | ||
| 2000 MM | ||
| 538 | A 3812902314 | LINE |
| FROM OIL TANK BRACKET TO BRACKET AT ENGINE REAR MOUNTING | ||
| 2500 MM | ||
| 538 | A 3812902314 | LINE |
| FROM OIL TANK BRACKET TO BRACKET AT ENGINE REAR MOUNTING | ||
| 2500 MM | ||
| 551 | A 6162950440 | BRACKET |
| AT DELIVERY/SUCTION LINE BRACKET | ||
| 551 | A 6162950440 | BRACKET |
| AT DELIVERY/SUCTION LINE BRACKET | ||
| 552 | A 3609950201 | CLAMP |
| Repalced by: A 3604300143 | ||
| 552 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 552 | N 916016008200 | CLAMP |
| HYDRAULIC LINE TO BRACKET | ||
| 554 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 554 | N 304017006016 | SCREW |
| HYDRAULIC LINE TO BRACKET | ||
| M 6X16 | ||
| 554 | N 000933006124 | SCREW |
| HYDRAULIC LINE TO BRACKET | ||
| M 6X30 | ||
| 556 | A 3529910340 | SPACER TUBE |
| Repalced by: A 4082910153 | ||
| 556 | A 4082910153 | SPACER TUBE |
| HYDRAULIC LINE TO BRACKET | ||
| 557 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 557 | N 913004006001 | NUT |
| HYDRAULIC LINE TO BRACKET | ||
| 558 | A 6162950340 | BRACKET |
| HYDRAULIC LINE TO SIDE MEMBER,OUTSIDE CENTRAL | ||
| 558 | A 6162950340 | BRACKET |
| HYDRAULIC LINE TO SIDE MEMBER,OUTSIDE CENTRAL | ||
| 558 | A 6162950340 | BRACKET |
| HYDRAULIC LINE TO SIDE MEMBER,OUTSIDE CENTRAL | ||
| 558 | A 6162952340 | BRACKET |
| HYDRAULIC LINE TO SIDE MEMBER,OUTSIDE CENTRAL | ||
| 560 | A 3873020140 | BRACKET |
| HYDRAULIC LINE TO SIDE MEMBER,OUTSIDE FRONT | ||
| 560 | A 3604280243 | ANGLE |
| HYDRAULIC LINE TO SIDE MEMBER,OUTSIDE FRONT | ||
| 564 | N 000961012164 | SCREW |
| HYDRAULIC LINE TO SIDE MEMBER,OUTSIDE FRONT | ||
| 568 | N 910113012002 | NUT |
| HYDRAULIC LINE TO SIDE MEMBER,OUTSIDE FRONT | ||
| 576 | A 6162952240 | BRACKET |
| AT SIDE MEMBER | ||
| 578 | A 6162951940 | BRACKET |
| BRACKET TO EXHAUST PIPE BRACKET | ||
| 578 | A 6162951940 | BRACKET |
| BRACKET TO EXHAUST PIPE BRACKET | ||
| 580 | A 6162952040 | BRACKET |
| BRACKET TO EXHAUST PIPE BRACKET | ||
| 581 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 581 | N 304017008034 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 582 | N 000939008083 | STUD BOLT |
| BRACKET TO EXHAUST PIPE BRACKET | ||
| 582 | N 000939008083 | STUD BOLT |
| BRACKET TO EXHAUST PIPE BRACKET | ||
| 584 | N 000961014154 | SCREW |
| BRACKET TO EXHAUST PIPE BRACKET | ||
| 586 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 586 | N 913004008001 | NUT |
| BRACKET TO EXHAUST PIPE BRACKET | ||
| 586 | N 913004008001 | NUT |
| BRACKET TO EXHAUST PIPE BRACKET | ||
| 586 | N 913004008001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 588 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 588 | N 910113014001 | NUT |
| BRACKET TO EXHAUST PIPE BRACKET | ||
| 590 | A 6162951540 | BRACKET |
| AT SIDE MEMBER | ||
| 592 | A 6162952140 | BRACKET |
| AT SIDE MEMBER | ||
| 594 | N 000933010105 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 596 | N 000961014154 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 14X25 | ||
| 596 | N 000961014100 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 14X30 | ||
| 598 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 598 | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 600 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 600 | N 910113014001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 610 | A 0002952735 | HOSE |
| FROM BRACKET AT SIDE MEMBER TO CLUTCH SLAVE CYLINDER | ||
| 350 MM | ||
| 610 | A 0002952735 | HOSE |
| FROM BRACKET AT SIDE MEMBER TO CLUTCH SLAVE CYLINDER | ||
| 350 MM | ||
| 610 | A 0002951835 | HOSE |
| FROM REAR ENGINE-MOUNTING BRACKET TO TRANSMISSION BRACKET | ||
| 350 MM | ||
| 610 | A 0002951835 | HOSE |
| FROM REAR ENGINE-MOUNTING BRACKET TO TRANSMISSION BRACKET | ||
| 350 MM | ||
| 610 | A 0002951835 | HOSE |
| FROM REAR ENGINE-MOUNTING BRACKET TO TRANSMISSION BRACKET | ||
| 350 MM | ||
| 610 | A 6242950035 | HOSE |
| FROM REAR ENGINE-MOUNTING BRACKET TO TRANSMISSION BRACKET | ||
| 420 MM | ||
| 610 | A 6242950035 | HOSE |
| FROM REAR ENGINE-MOUNTING BRACKET TO TRANSMISSION BRACKET | ||
| 420 MM | ||
| 615 | A 6162950740 | BRACKET |
| HYDRAULIC HOSE TO TRANSMISSION CASE TOP COVER | ||
| 615 | A 6162950740 | BRACKET |
| HYDRAULIC HOSE TO TRANSMISSION CASE TOP COVER | ||
| A 6162952940 | BRACKET | |
| HYDRAULIC HOSE TO TRANSMISSION | ||
| 618 | A 6162952440 | BRACKET |
| HYDRAULIC LINE TO TRANSMISSION | ||
| 622 | A 3604280243 | ANGLE |
| HYDRAULIC LINE TO TRANSMISSION | ||
| N 000961014028 | SCREW | |
| HYDRAULIC HOSE TO TRANSMISSION | ||
| N 912004014100 | LOCK WASHER | |
| HYDRAULIC HOSE TO TRANSMISSION | ||
| N 913004014002 | NUT | |
| Repalced by: N 910113014001 | ||
| N 910113014001 | NUT | |
| HYDRAULIC HOSE TO TRANSMISSION | ||
| 625 | A 3609950201 | CLAMP |
| Repalced by: A 3604300143 | ||
| 625 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 625 | N 916016008200 | CLAMP |
| HYDRAULIC LINE TO BRACKET | ||
| 628 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 628 | N 304017006016 | SCREW |
| HYDRAULIC LINE TO BRACKET | ||
| 630 | N 912004006102 | LOCK WASHER |
| HYDRAULIC LINE TO BRACKET | ||
| 632 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 632 | N 913004006001 | NUT |
| HYDRAULIC LINE TO TRANSMISSION | ||
| 640 | A 3812901814 | LINE |
| FROM BRACKET AT TRANSMISSION TO CLUTCH SLAVE CYLINDER | ||
| 700 MM | ||
| 640 | A 3812902114 | LINE |
| FROM BRACKET AT TRANSMISSION TO CLUTCH SLAVE CYLINDER | ||
| 1500 MM | ||
| 640 | A 3812902014 | LINE |
| FROM BRACKET AT TRANSMISSION TO CLUTCH SLAVE CYLINDER | ||
| 1100 MM | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
