Transporto priemonė: 1619; VIN numerio dalis: 385028

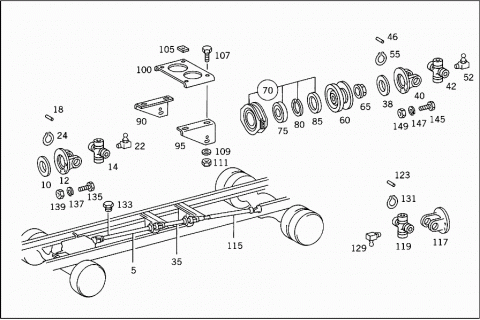

Grupė: 41 PROPELLER SHAFT
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3834100904 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING I | ||
| 1353 MM | ||
| 005 | A 3834100904 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1353 MM | ||
| 005 | A 3834101304 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1752 MM | ||
| 005 | A 3854102904 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING I | ||
| 1175 MM | ||
| 005 | A 3854102904 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1175 MM | ||
| 005 | A 3854106204 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING I | ||
| 1163 MM | ||
| 005 | A 3854106204 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1163 MM | ||
| 005 | A 3854102804 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1575 MM | ||
| 005 | A 3854102804 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING I | ||
| 1575 MM | ||
| 005 | A 3854101104 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1600 MM | ||
| 005 | A 3854104304 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1576 MM | ||
| 005 | A 3854106704 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1561 MM | ||
| 005 | A 3854106504 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1451 MM | ||
| 005 | A 3854101304 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1067 MM | ||
| 005 | A 3854106604 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1001 MM | ||
| 005 | A 3854106904 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1620 MM | ||
| 010 | A 3854130161 | PROTECTIVE CAP |
| 010 | A 3854130461 | PROTECTIVE CAP |
| 012 | A 3544110011 | DRIVE FLANGE |
| 012 | A 3604110611 | DRIVE FLANGE |
| Repalced by: A 3854111711 | ||
| 012 | A 3854111711 | DRIVE FLANGE |
| 014 | A 3854100131 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 014 | A 3604100231 | UNIVERSAL JOINT CROSS |
| Repalced by: A 3854100531 | ||
| 014 | A 3854100531 | UNIVERSAL JOINT CROSS |
| Repalced by: A 3814100231 | ||
| 014 | A 3814100231 | UNIVERSAL JOINT CROSS |
| Repalced by: A 9734100031 | ||
| 014 | A 9734100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| A 3834100042 | BEARING BUSHING | |
| A 3604100142 | BEARING BUSHING | |
| 018 | A 0009817187 | NEEDLE |
| Repalced by: A 3819810487 | ||
| 018 | A 3819810487 | NEEDLE |
| SET = 144 PIECES | ||
| A 0029970946 | SEAL RING | |
| A 3374110033 | EXPANSION PLUG | |
| A 3604110233 | EXPANSION PLUG | |
| 022 | N 071412008302 | GREASE NIPPLE |
| 024 | A 3379945035 | SNAP RING |
| AS REQUIRED | ||
| 2.80 MM | ||
| 024 | A 0029941241 | LOCK |
| Repalced by: A 0069940641 | ||
| 024 | A 0069940641 | LOCK |
| AS REQUIRED | ||
| 1.65 MM | ||
| 024 | A 3379945435 | SNAP RING |
| AS REQUIRED | ||
| 2.85 MM | ||
| 024 | A 0029941341 | LOCK |
| Repalced by: A 0069940841 | ||
| 024 | A 0069940841 | LOCK |
| AS REQUIRED | ||
| 1.70 MM | ||
| 024 | A 3379945135 | SNAP RING |
| AS REQUIRED | ||
| 2.90 MM | ||
| 024 | A 0029941441 | LOCK |
| Repalced by: N 000472048000 | ||
| 024 | N 000472048000 | LOCK RING |
| AS REQUIRED | ||
| 1.75 MM | ||
| 024 | A 3379945235 | SNAP RING |
| AS REQUIRED | ||
| 2.95 MM | ||
| 024 | A 0029941741 | LOCK |
| Repalced by: A 0069941241 | ||
| 024 | A 0069941241 | LOCK |
| AS REQUIRED | ||
| 1.80 MM | ||
| 024 | A 3379945335 | SNAP RING |
| AS REQUIRED | ||
| 3.00 MM | ||
| 024 | A 0029941841 | LOCK |
| Repalced by: A 0069941441 | ||
| 024 | A 0069941441 | LOCK |
| AS REQUIRED | ||
| 1.85 MM | ||
| 024 | A 0039943641 | LOCK |
| AS REQUIRED | ||
| 1.90 MM | ||
| 035 | A 3854101104 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II | ||
| 1600 MM | ||
| 035 | A 3854105204 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II | ||
| 1615 MM | ||
| 035 | A 3854106904 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II | ||
| 1620 MM | ||
| 035 | A 3854105004 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II | ||
| 1501 MM | ||
| 035 | A 3854106804 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II | ||
| 1486 MM | ||
| 035 | A 3854104704 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II | ||
| 1671 MM | ||
| 038 | A 3854130161 | PROTECTIVE CAP |
| 038 | A 3854130461 | PROTECTIVE CAP |
| 040 | A 3604110611 | DRIVE FLANGE |
| Repalced by: A 3854111711 | ||
| 040 | A 3854111711 | DRIVE FLANGE |
| 042 | A 3604100231 | UNIVERSAL JOINT CROSS |
| Repalced by: A 3854100531 | ||
| 042 | A 3854100531 | UNIVERSAL JOINT CROSS |
| Repalced by: A 3814100231 | ||
| 042 | A 3814100231 | UNIVERSAL JOINT CROSS |
| Repalced by: A 9734100031 | ||
| 042 | A 9734100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| A 3854100242 | BEARING BUSHING | |
| Repalced by: A 3854100842 | ||
| A 3854100842 | BEARING BUSHING | |
| A 3854100742 | BEARING BUSHING | |
| A 3854101042 | BEARING BUSHING | |
| A 3604100142 | BEARING BUSHING | |
| 046 | A 0009817187 | NEEDLE |
| Repalced by: A 3819810487 | ||
| 046 | A 3819810487 | NEEDLE |
| SET = 144 PIECES | ||
| A 0089970946 | SEAL RING | |
| A 3604110233 | EXPANSION PLUG | |
| 052 | N 071412008302 | GREASE NIPPLE |
| 055 | A 0029941241 | LOCK |
| Repalced by: A 0069940641 | ||
| 055 | A 0069940641 | LOCK |
| AS REQUIRED | ||
| 1.65 MM | ||
| 055 | A 0029941341 | LOCK |
| Repalced by: A 0069940841 | ||
| 055 | A 0069940841 | LOCK |
| AS REQUIRED | ||
| 1.70 MM | ||
| 055 | A 0029941441 | LOCK |
| Repalced by: N 000472048000 | ||
| 055 | N 000472048000 | LOCK RING |
| AS REQUIRED | ||
| 1.75 MM | ||
| 055 | A 0029941741 | LOCK |
| Repalced by: A 0069941241 | ||
| 055 | A 0069941241 | LOCK |
| AS REQUIRED | ||
| 1.80 MM | ||
| 055 | A 0029941841 | LOCK |
| Repalced by: A 0069941441 | ||
| 055 | A 0069941441 | LOCK |
| AS REQUIRED | ||
| 1.85 MM | ||
| 055 | A 0039943641 | LOCK |
| AS REQUIRED | ||
| 1.90 MM | ||
| 060 | A 3604100130 | CENTERING FLANGE |
| PROPELLER SHAFT BEARING | ||
| 060 | A 3854100030 | CENTERING FLANGE |
| Repalced by: A 3854110045 | ||
| 060 | A 3854110045 | FLANGE |
| PROPELLER SHAFT BEARING | ||
| A 3854130161 | PROTECTIVE CAP | |
| OUTSIDE | ||
| A 3854130461 | PROTECTIVE CAP | |
| OUTSIDE | ||
| 065 | A 3854110072 | NUT |
| Repalced by: A 3273530172 | ||
| 065 | A 3273530172 | NUT |
| Repalced by: A 3853510072 | ||
| 065 | A 3853510072 | NUT |
| Repalced by: A 3853510172 | ||
| 065 | A 3853510172 | NUT |
| FOLLOWER FLANGE TO PROPELLER SHAFT | ||
| A 3894110162 | THRUST WASHER | |
| FOLLOWER FLANGE TO PROPELLER SHAFT | ||
| A 3839900019 | SCREW | |
| FOLLOWER FLANGE TO PROPELLER SHAFT | ||
| 070 | A 3854100222 | INTERMEDIATE BEARING |
| Repalced by: A 3855860141 | ||
| 070 | A 3855860141 | REPAIR KIT |
| Repalced by: A 3854100110 | ||
| 070 | A 3854100110 | REPAIR KIT |
| Repalced by: A 3854100122 | ||
| 070 | A 3854100122 | INTERMEDIATE BEARING |
| Repalced by: A 3854100922 | ||
| 070 | A 3854100922 | INTERMEDIATE BEARING |
| Repalced by: A 3854101722 | ||
| 070 | A 3854101722 | INTERMEDIATE BEARING |
| Repalced by: A 9734100022 | ||
| 070 | A 9734100022 | INTERMEDIATE BEARING |
| PROPELLER SHAFT | ||
| 075 | A 0019818125 | BALL BEARING |
| 080 | A 0009943935 | SNAP RING |
| Repalced by: N 912009100200 | ||
| 080 | N 912009100200 | SNAP RING |
| 085 | A 3854130061 | PROTECTIVE CAP |
| INSIDE | ||
| A 9734110052 | SPACER WASHER | |
| PROPELLER SHAFT BEARING | ||
| 090 | A 3854130242 | BRACKET |
| PROPELLER SHAFT BEARING TO CROSS MEMBER, LEFT FRONT | ||
| 090 | A 3854130242 | BRACKET |
| PROPELLER SHAFT BEARING TO CROSS MEMBER, LEFT FRONT | ||
| 090 | A 3854130242 | BRACKET |
| PROPELLER SHAFT BEARING TO CROSS MEMBER, LEFT FRONT | ||
| 090 | A 3854130242 | BRACKET |
| PROPELLER SHAFT BEARING TO CROSS MEMBER, LEFT FRONT | ||
| 090 | A 3854132142 | BRACKET |
| PROPELLER SHAFT BEARING TO CROSS MEMBER, LEFT FRONT | ||
| 090 | A 3854132142 | BRACKET |
| PROPELLER SHAFT BEARING TO CROSS MEMBER, LEFT FRONT | ||
| 090 | A 3854135242 | BRACKET |
| PROPELLER SHAFT BEARING TO CROSS MEMBER, LEFT FRONT | ||
| 090 | A 3894131642 | BRACKET |
| PROPELLER SHAFT BEARING TO CROSS MEMBER, LEFT FRONT | ||
| 090 | A 3854134042 | BRACKET |
| PROPELLER SHAFT BEARING TO CROSS MEMBER, LEFT FRONT | ||
| 090 | A 3854134042 | BRACKET |
| PROPELLER SHAFT BEARING TO CROSS MEMBER, LEFT FRONT | ||
| 090 | A 3854132142 | BRACKET |
| PROPELLER SHAFT BEARING TO CROSS MEMBER, LEFT FRONT | ||
| 090 | A 3834131242 | BRACKET |
| PROPELLER SHAFT BEARING TO CROSS MEMBER, LEFT FRONT | ||
| 090 | A 3854131042 | BRACKET |
| PROPELLER SHAFT BEARING TO CROSS MEMBER, LEFT FRONT | ||
| 090 | A 3854130442 | BRACKET |
| PROPELLER SHAFT BEARING TO CROSS MEMBER, LEFT FRONT | ||
| 090 | A 3854130442 | BRACKET |
| PROPELLER SHAFT BEARING TO CROSS MEMBER, LEFT FRONT | ||
| 090 | A 3854130442 | BRACKET |
| PROPELLER SHAFT BEARING TO CROSS MEMBER,LEFT CENTRAL | ||
| 090 | A 3854130442 | BRACKET |
| PROPELLER SHAFT BEARING TO CROSS MEMBER,LEFT CENTRAL | ||
| 090 | A 3854130442 | BRACKET |
| PROPELLER SHAFT BEARING TO CROSS MEMBER,LEFT CENTRAL | ||
| 090 | A 3834130042 | BRACKET |
| PROPELLER SHAFT BEARING TO CROSS MEMBER,LEFT CENTRAL | ||
| 090 | A 3804130342 | BRACKET |
| PROPELLER SHAFT BEARING TO CROSS MEMBER,LEFT CENTRAL | ||
| 095 | A 3854130342 | BRACKET |
| PROPELLER SHAFT BEARING TO CROSS MEMBER,RIGHT FRONT | ||
| 095 | A 3854130342 | BRACKET |
| PROPELLER SHAFT BEARING TO CROSS MEMBER,RIGHT FRONT | ||
| 095 | A 3854130342 | BRACKET |
| PROPELLER SHAFT BEARING TO CROSS MEMBER,RIGHT FRONT | ||
| 095 | A 3854130342 | BRACKET |
| RIGHT,PROPELLER SHAFT BEARING | ||
| 095 | A 3894131742 | BRACKET |
| PROPELLER SHAFT BEARING TO CROSS MEMBER,RIGHT FRONT | ||
| 095 | A 3854134142 | BRACKET |
| PROPELLER SHAFT BEARING TO CROSS MEMBER,RIGHT FRONT | ||
| 095 | A 3854134142 | BRACKET |
| PROPELLER SHAFT BEARING TO CROSS MEMBER,RIGHT FRONT | ||
| 095 | A 3854132242 | BRACKET |
| PROPELLER SHAFT BEARING TO CROSS MEMBER,RIGHT FRONT | ||
| 095 | A 3854132242 | BRACKET |
| PROPELLER SHAFT BEARING TO CROSS MEMBER,RIGHT FRONT | ||
| 095 | A 3854132242 | BRACKET |
| PROPELLER SHAFT BEARING TO CROSS MEMBER,RIGHT FRONT | ||
| 095 | A 3834131342 | BRACKET |
| PROPELLER SHAFT BEARING TO CROSS MEMBER,RIGHT FRONT | ||
| 095 | A 3854135342 | BRACKET |
| PROPELLER SHAFT BEARING TO CROSS MEMBER,RIGHT FRONT | ||
| 095 | A 3854131142 | BRACKET |
| PROPELLER SHAFT BEARING TO CROSS MEMBER,RIGHT FRONT | ||
| 095 | A 3854130642 | BRACKET |
| PROPELLER SHAFT BEARING TO CROSS MEMBER,RIGHT FRONT | ||
| 095 | A 3854130642 | BRACKET |
| PROPELLER SHAFT BEARING TO CROSS MEMBER,RIGHT FRONT | ||
| 095 | A 3854130642 | BRACKET |
| PROPELLER SHAFT BEARING TO CROSS MEMBER,RIGHT CENTRAL | ||
| 095 | A 3854130642 | BRACKET |
| PROPELLER SHAFT BEARING TO CROSS MEMBER,RIGHT CENTRAL | ||
| 095 | A 3854130642 | BRACKET |
| PROPELLER SHAFT BEARING TO CROSS MEMBER,RIGHT CENTRAL | ||
| 095 | A 3834130142 | BRACKET |
| PROPELLER SHAFT BEARING TO CROSS MEMBER,RIGHT CENTRAL | ||
| 095 | A 3804130442 | BRACKET |
| PROPELLER SHAFT BEARING TO CROSS MEMBER,RIGHT CENTRAL | ||
| 100 | A 3854130011 | REINFORCEMENT |
| BRACKET TO CROSS MEMBER | ||
| 105 | A 3854130111 | REINFORCEMENT |
| BRACKET TO CROSS MEMBER | ||
| 107 | N 000960010026 | SCREW |
| Repalced by: N 000961010031 | ||
| 107 | N 000961010031 | SCREW |
| Repalced by: N 308676010023 | ||
| 107 | N 308676010023 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| M 10X1X40 | ||
| 107 | N 000961012094 | SCREW |
| Repalced by: N 308676012013 | ||
| 107 | N 308676012013 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| M 12X1.5X30 | ||
| 109 | N 007349010003 | WASHER |
| Repalced by: N 007349010007 | ||
| 109 | N 007349010007 | WASHER |
| BRACKET TO CROSS MEMBER | ||
| 109 | A 3299900040 | WASHER |
| Repalced by: A 1232420366 | ||
| 109 | A 1232420366 | WASHER |
| BRACKET TO CROSS MEMBER | ||
| 111 | N 913002010010 | NUT |
| BRACKET TO CROSS MEMBER | ||
| N 912004012100 | LOCK WASHER | |
| BRACKET TO CROSS MEMBER | ||
| N 007349010003 | WASHER | |
| Repalced by: N 007349010007 | ||
| N 007349010007 | WASHER | |
| FRONT PROPELLER SHAFT TO BRACKET | ||
| N 912004010102 | LOCK WASHER | |
| FRONT PROPELLER SHAFT TO BRACKET | ||
| N 000931010282 | SCREW | |
| FRONT PROPELLER SHAFT TO BRACKET | ||
| M 10X40 | ||
| N 000933010105 | SCREW | |
| FRONT PROPELLER SHAFT TO BRACKET | ||
| M 10X25 | ||
| 115 | A 3854101402 | PROPELLER SHAFT |
| Repalced by: A 3854109607 | ||
| 115 | A 3854109607 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1219 MM | ||
| 115 | A 3074101202 | PROPELLER SHAFT |
| Repalced by: A 3854105307 | ||
| 115 | A 3854105307 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1250 MM | ||
| 115 | A 3854105307 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1250 MM | ||
| 115 | A 3854105307 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1250 MM | ||
| 115 | A 3854103507 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1240 MM | ||
| 115 | A 3854104707 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1300 MM | ||
| 115 | A 3854101302 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1390 MM | ||
| 115 | A 3854104607 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING II TO REAR AXLE | ||
| 1190 MM | ||
| 115 | A 3854106702 | PROPELLER SHAFT |
| Repalced by: A 3854104907 | ||
| 115 | A 3854104907 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1450 MM | ||
| 115 | A 3854103407 | PROPELLER SHAFT |
| Repalced by: A 3854109707 | ||
| 115 | A 3854109707 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1554 MM | ||
| 115 | A 3854109707 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1554 MM | ||
| 115 | A 3854103707 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1594 MM | ||
| 115 | A 3854105207 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1520 MM | ||
| 115 | A 3854104507 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING II TO REAR AXLE | ||
| 1580 MM | ||
| 115 | A 3854104507 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1580 MM | ||
| 115 | A 3074100902 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 910 MM | ||
| 115 | A 3854100902 | PROPELLER SHAFT |
| Repalced by: A 3974100107 | ||
| 115 | A 3974100107 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 970 MM | ||
| 115 | A 3974100207 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING II TO REAR AXLE | ||
| 1035 MM | ||
| 115 | A 3974100207 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING II TO REAR AXLE | ||
| 1035 MM | ||
| 115 | A 3854106007 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING II TO REAR AXLE | ||
| 1085 MM | ||
| 115 | A 3854106007 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1085 MM | ||
| 115 | A 3854100202 | PROPELLER SHAFT |
| Repalced by: A 3854107207 | ||
| 115 | A 3854107207 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1620 MM | ||
| 115 | A 3854103402 | PROPELLER SHAFT |
| Repalced by: A 3854105702 | ||
| 115 | A 3854105702 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1645 MM | ||
| 115 | A 3854101102 | PROPELLER SHAFT |
| Repalced by: A 3854106007 | ||
| 115 | A 3854106007 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1085 MM | ||
| 115 | A 3854104407 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1130 MM | ||
| 115 | A 3854104407 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1130 MM | ||
| 115 | A 3854104207 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1185 MM | ||
| 115 | A 3854104607 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1190 MM | ||
| 115 | A 3854100702 | PROPELLER SHAFT |
| Repalced by: A 3854104302 | ||
| 115 | A 3854104302 | PROPELLER SHAFT |
| Repalced by: A 3854103007 | ||
| 115 | A 3854103007 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1750 MM | ||
| 115 | A 3854103007 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 1750 MM | ||
| 117 | A 3604110611 | DRIVE FLANGE |
| Repalced by: A 3854111711 | ||
| 117 | A 3854111711 | DRIVE FLANGE |
| 119 | A 3604100231 | UNIVERSAL JOINT CROSS |
| Repalced by: A 3854100531 | ||
| 119 | A 3854100531 | UNIVERSAL JOINT CROSS |
| Repalced by: A 3814100231 | ||
| 119 | A 3814100231 | UNIVERSAL JOINT CROSS |
| Repalced by: A 9734100031 | ||
| 119 | A 9734100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| A 3854100242 | BEARING BUSHING | |
| Repalced by: A 3854100842 | ||
| A 3854100842 | BEARING BUSHING | |
| A 3854100742 | BEARING BUSHING | |
| TO 381 410 02 31 | ||
| A 3854101042 | BEARING BUSHING | |
| TO 381 410 02 31 | ||
| A 3604100142 | BEARING BUSHING | |
| 123 | A 0009817187 | NEEDLE |
| Repalced by: A 3819810487 | ||
| 123 | A 3819810487 | NEEDLE |
| SET = 144 PIECES | ||
| A 0089970946 | SEAL RING | |
| A 3604110233 | EXPANSION PLUG | |
| 129 | N 071412008302 | GREASE NIPPLE |
| 131 | A 0029941241 | LOCK |
| Repalced by: A 0069940641 | ||
| 131 | A 0069940641 | LOCK |
| AS REQUIRED | ||
| 1.65 MM | ||
| 131 | A 0029941341 | LOCK |
| Repalced by: A 0069940841 | ||
| 131 | A 0069940841 | LOCK |
| AS REQUIRED | ||
| 1.70 MM | ||
| 131 | A 0029941441 | LOCK |
| Repalced by: N 000472048000 | ||
| 131 | N 000472048000 | LOCK RING |
| AS REQUIRED | ||
| 1.75 MM | ||
| 131 | A 0029941741 | LOCK |
| Repalced by: A 0069941241 | ||
| 131 | A 0069941241 | LOCK |
| AS REQUIRED | ||
| 1.80 MM | ||
| 131 | A 0029941841 | LOCK |
| Repalced by: A 0069941441 | ||
| 131 | A 0069941441 | LOCK |
| AS REQUIRED | ||
| 1.85 MM | ||
| 131 | A 0039943641 | LOCK |
| AS REQUIRED | ||
| 1.90 MM | ||
| 133 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 133 | N 071412008102 | GREASE NIPPLE |
| 135 | A 3529900401 | SCREW |
| Repalced by: A 3529904701 | ||
| 135 | A 3529904701 | SCREW |
| Repalced by: A 0079901001 | ||
| 135 | A 0079901001 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION | ||
| 137 | N 912004010102 | LOCK WASHER |
| PROPELLER SHAFT TO TRANSMISSION | ||
| 139 | N 000934010014 | NUT |
| PROPELLER SHAFT TO TRANSMISSION | ||
| 145 | A 3609901901 | SCREW |
| Repalced by: A 3609903001 | ||
| 145 | A 3609903001 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
| 145 | A 3609903001 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
| 147 | N 912004012100 | LOCK WASHER |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
| 147 | N 912004012100 | LOCK WASHER |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
| 149 | N 000934012034 | NUT |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
| 149 | N 000934012034 | NUT |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||

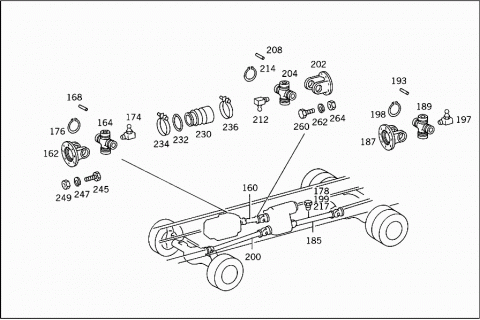

| 160 | A 3854102702 | PROPELLER SHAFT |
| Repalced by: A 6174100902 | ||
| 160 | A 6174100902 | PROPELLER SHAFT |
| Repalced by: A 3854106507 | ||
| 160 | A 3854106507 | PROPELLER SHAFT |
| Repalced by: A 3004101002 | ||
| 160 | A 3004101002 | PROPELLER SHAFT |
| FROM TRANSMISSION TO TRANSFER CASE | ||
| 440 MM | ||
| 162 | A 3604110611 | DRIVE FLANGE |
| Repalced by: A 3854111711 | ||
| 162 | A 3854111711 | DRIVE FLANGE |
| 164 | A 3604100231 | UNIVERSAL JOINT CROSS |
| Repalced by: A 3854100531 | ||
| 164 | A 3854100531 | UNIVERSAL JOINT CROSS |
| Repalced by: A 3814100231 | ||
| 164 | A 3814100231 | UNIVERSAL JOINT CROSS |
| Repalced by: A 9734100031 | ||
| 164 | A 9734100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| A 3854100242 | BEARING BUSHING | |
| Repalced by: A 3854100842 | ||
| A 3854100842 | BEARING BUSHING | |
| A 3854100842 | BEARING BUSHING | |
| A 3604100142 | BEARING BUSHING | |
| A 0009817187 | NEEDLE | |
| Repalced by: A 3819810487 | ||
| 168 | A 3819810487 | NEEDLE |
| SET = 144 PIECES | ||
| A 0089970946 | SEAL RING | |
| A 3604110233 | EXPANSION PLUG | |
| 174 | N 071412008302 | GREASE NIPPLE |
| 176 | A 0029941341 | LOCK |
| Repalced by: A 0069940841 | ||
| 176 | A 0069940841 | LOCK |
| AS REQUIRED | ||
| 1.70 MM | ||
| 176 | A 0029941441 | LOCK |
| Repalced by: N 000472048000 | ||
| 176 | N 000472048000 | LOCK RING |
| AS REQUIRED | ||
| 1.75 MM | ||
| 176 | A 0029941741 | LOCK |
| Repalced by: A 0069941241 | ||
| 176 | A 0069941241 | LOCK |
| AS REQUIRED | ||
| 1.80 MM | ||
| 176 | A 0029941841 | LOCK |
| Repalced by: A 0069941441 | ||
| 176 | A 0069941441 | LOCK |
| AS REQUIRED | ||
| 1.85 MM | ||
| 176 | A 0039943641 | LOCK |
| AS REQUIRED | ||
| 1.90 MM | ||
| 178 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 178 | N 071412008102 | GREASE NIPPLE |
| 185 | A 3854100902 | PROPELLER SHAFT |
| Repalced by: A 3974100107 | ||
| 185 | A 3974100107 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO REAR AXLE | ||
| 970 MM | ||
| 185 | A 3074100502 | PROPELLER SHAFT |
| Repalced by: A 3854106107 | ||
| 185 | A 3854106107 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO REAR AXLE | ||
| 955 MM | ||
| 185 | A 3854106307 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO REAR AXLE | ||
| 890 MM | ||
| 185 | A 3854101302 | PROPELLER SHAFT |
| Repalced by: A 3854105407 | ||
| 185 | A 3854105407 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO REAR AXLE | ||
| 1400 MM | ||
| 185 | A 3854104707 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO REAR AXLE | ||
| 1300 MM | ||
| 187 | A 3604110611 | DRIVE FLANGE |
| Repalced by: A 3854111711 | ||
| 187 | A 3854111711 | DRIVE FLANGE |
| 189 | A 3604100231 | UNIVERSAL JOINT CROSS |
| Repalced by: A 3854100531 | ||
| 189 | A 3854100531 | UNIVERSAL JOINT CROSS |
| Repalced by: A 3814100231 | ||
| 189 | A 3814100231 | UNIVERSAL JOINT CROSS |
| Repalced by: A 9734100031 | ||
| 189 | A 9734100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| A 3854100242 | BEARING BUSHING | |
| Repalced by: A 3854100842 | ||
| A 3854100842 | BEARING BUSHING | |
| A 3604100142 | BEARING BUSHING | |
| 193 | A 0009817187 | NEEDLE |
| Repalced by: A 3819810487 | ||
| 193 | A 3819810487 | NEEDLE |
| SET = 144 PIECES | ||
| A 0089970946 | SEAL RING | |
| A 3604110233 | EXPANSION PLUG | |
| 197 | N 071412008302 | GREASE NIPPLE |
| 198 | A 0029941341 | LOCK |
| Repalced by: A 0069940841 | ||
| 198 | A 0069940841 | LOCK |
| AS REQUIRED | ||
| 1.70 MM | ||
| 198 | A 0029941441 | LOCK |
| Repalced by: N 000472048000 | ||
| 198 | N 000472048000 | LOCK RING |
| AS REQUIRED | ||
| 1.75 MM | ||
| 198 | A 0029941741 | LOCK |
| Repalced by: A 0069941241 | ||
| 198 | A 0069941241 | LOCK |
| AS REQUIRED | ||
| 1.80 MM | ||
| 198 | A 0029941841 | LOCK |
| Repalced by: A 0069941441 | ||
| 198 | A 0069941441 | LOCK |
| AS REQUIRED | ||
| 1.85 MM | ||
| 198 | A 0039943641 | LOCK |
| AS REQUIRED | ||
| 1.90 MM | ||
| 199 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 199 | N 071412008102 | GREASE NIPPLE |
| 200 | A 3834102002 | PROPELLER SHAFT |
| Repalced by: A 6744103002 | ||
| 200 | A 3834102202 | PROPELLER SHAFT |
| Repalced by: A 3834102002 | ||
| 200 | A 3834105802 | PROPELLER SHAFT |
| Repalced by: A 6744103002 | ||
| 200 | A 6744103002 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO FRONT AXLE | ||
| 1108 MM | ||
| 202 | A 3544110011 | DRIVE FLANGE |
| TRANSFER CASE | ||
| 202 | A 3814110811 | DRIVE FLANGE |
| TRANSFER CASE | ||
| 202 | A 3604110111 | DRIVE FLANGE |
| FRONT AXLE | ||
| 202 | A 3814110911 | DRIVE FLANGE |
| FRONT AXLE | ||
| 204 | A 3854100131 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 204 | A 6174100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| A 3834100042 | BEARING BUSHING | |
| 208 | A 0009817187 | NEEDLE |
| Repalced by: A 3819810487 | ||
| 208 | A 3819810487 | NEEDLE |
| SET = 144 PIECES | ||
| A 3374110033 | EXPANSION PLUG | |
| 212 | N 071412008302 | GREASE NIPPLE |
| 214 | A 3379945035 | SNAP RING |
| AS REQUIRED | ||
| 2.80 MM | ||
| 214 | A 3379945435 | SNAP RING |
| AS REQUIRED | ||
| 2.85 MM | ||
| 214 | A 3379945135 | SNAP RING |
| AS REQUIRED | ||
| 2.90 MM | ||
| 214 | A 3379945235 | SNAP RING |
| AS REQUIRED | ||
| 2.95 MM | ||
| 214 | A 3379945335 | SNAP RING |
| AS REQUIRED | ||
| 3.00 MM | ||
| 214 | A 0039944541 | LOCK |
| Repalced by: A 0039944441 | ||
| 214 | A 0039944441 | LOCK |
| Repalced by: A 0059949441 | ||
| 214 | A 0059949441 | LOCK |
| Repalced by: N 000472042001 | ||
| 214 | N 000472042001 | LOCK RING |
| AS REQUIRED | ||
| 1.750 MM | ||
| 214 | A 0039945041 | LOCK |
| Repalced by: A 0059949941 | ||
| 214 | A 0059949941 | LOCK |
| AS REQUIRED | ||
| 1.875 MM | ||
| 214 | A 0059941041 | LOCK |
| Repalced by: A 0069940441 | ||
| 214 | A 0069940441 | LOCK |
| AS REQUIRED | ||
| 2.000 MM | ||
| 217 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 217 | N 071412008102 | GREASE NIPPLE |
| 230 | A 3814100080 | BOOT |
| Repalced by: A 3814100180 | ||
| 230 | A 3814100180 | BOOT |
| 232 | A 3214110053 | WIRE RING |
| 234 | N 916002078100 | CLAMP |
| 78 MM | ||
| 236 | N 916002098100 | CLAMP |
| 98 MM | ||
| 245 | A 3609901901 | SCREW |
| Repalced by: A 3609903001 | ||
| 245 | A 3609903001 | SCREW |
| TO MOUNT THE PROPELLER SHAFTS | ||
| 247 | N 912004012100 | LOCK WASHER |
| TO MOUNT THE PROPELLER SHAFTS | ||
| 249 | N 000934012034 | NUT |
| TO MOUNT THE PROPELLER SHAFTS | ||
| 260 | A 3529900401 | SCREW |
| Repalced by: A 3529904701 | ||
| 260 | A 3529904701 | SCREW |
| Repalced by: A 0079901001 | ||
| 260 | A 0079901001 | SCREW |
| TO MOUNT THE PROPELLER SHAFTS | ||
| 262 | N 912004010102 | LOCK WASHER |
| TO MOUNT THE PROPELLER SHAFTS | ||
| 264 | N 000934010010 | NUT |
| TO MOUNT THE PROPELLER SHAFTS | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
