Transporto priemonė: 1619 L; VIN numerio dalis: 385227
Grupė: 42 BRAKES

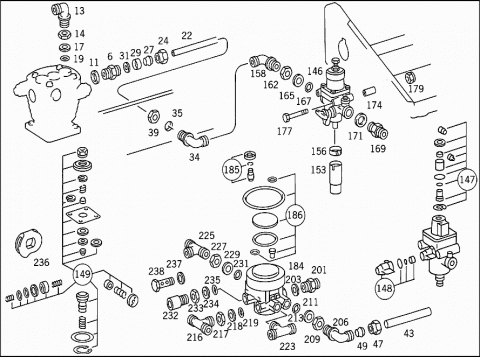

44175

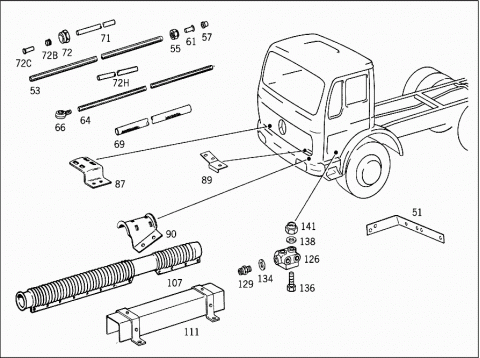

44176

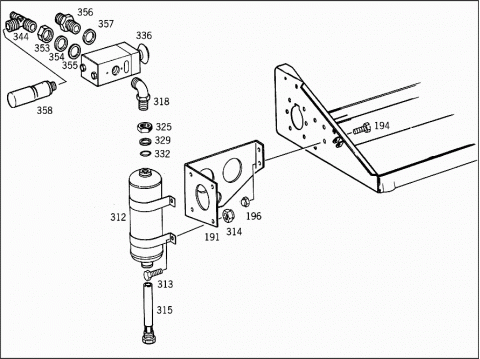

44177

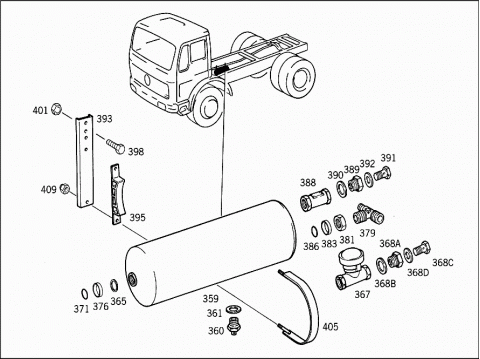

44178

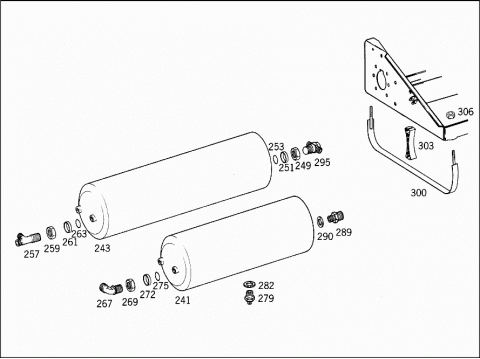

44179

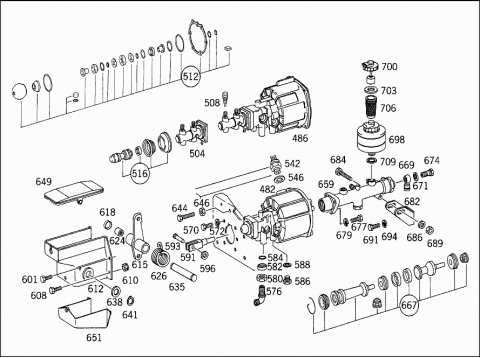

44180

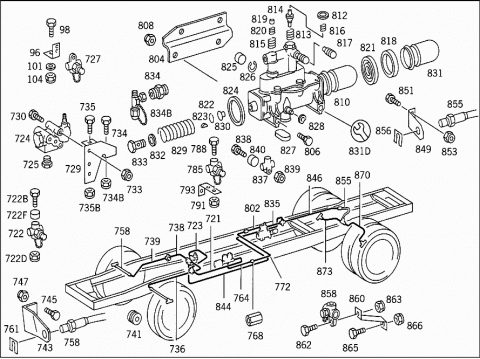

44181

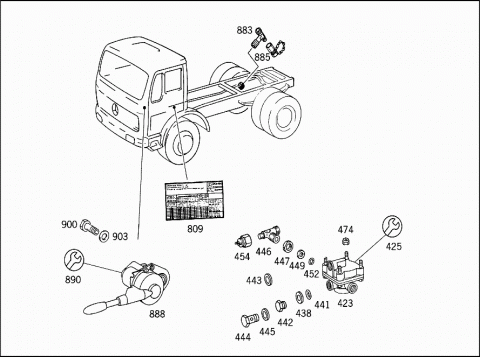

44182
# Kodas Pavadinimas
T YYYYYYYYYYYY PART NAME MISSING
FOR FRONT WHEEL BRAKE,SEE UNIT PARTS LIST:
730.0
T YYYYYYYYYYYY PART NAME MISSING
FOR REAR WHEEL BRAKE, SEE PARTS LIST:
744.5
T YYYYYYYYYYYY PART NAME MISSING
FOR REAR WHEEL BRAKE, SEE PARTS LIST:
740.1
006 N 074313018201 FITTING
AIR COMPRESSOR CONNECTION
011 N 007603026104 SEAL RING
AIR COMPRESSOR CONNECTION
013 A 0004294338 ELBOW FITTING
AIR COMPRESSOR CONNECTION
014 N 074305026202 NUT
AIR COMPRESSOR CONNECTION
017 A 0004290527 THRUST RING
AIR COMPRESSOR CONNECTION
019 A 0039973848 SEAL RING
AIR COMPRESSOR CONNECTION
N 074298022203 DOUBLE FITTING
AIR COMPRESSOR CONNECTION
022 A 0004291401 LINE
15 X 1.5 MM
024 N 915018015000 UNION NUT
027 N 003861015004 GLAND
029 N 915065015101 THRUST RING
031 N 915045012100 SEAL RING
Repalced by: N 007603012121
031 N 007603012121 SEAL RING
034 A 0009909671 ELBOW FITTING
Repalced by: A 0029901271
034 A 0029901271 ELBOW FITTING
LINE TO SIDE MEMBER
N 003941015101 FITTING
LINE TO SIDE MEMBER
035 N 074298022203 DOUBLE FITTING
039 N 074305022202 NUT
LINE TO SIDE MEMBER
043 A 0004292101 LINE
12X1.5 MM
047 N 915017012100 UNION NUT
Repalced by: N 000000006239
047 N 000000006239 UNION NUT
049 N 003861012007 GLAND
Repalced by: A 0019901967
049 A 0019901967 SEAL CONE
A 3609952001 CLAMP
Repalced by: A 6739950001
A 6739950001 CLAMP
AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE
N 000000001147 SCREW
AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE
M 6X20
N 913004006002 NUT
Repalced by: N 913004006001
N 913004006001 NUT
AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE
N 912004006102 LOCK WASHER
AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE
A 3854290540 BRACKET
AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE
N 000933008153 SCREW
Repalced by: N 304017008034
N 304017008034 SCREW
AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE
M 8X25
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE
A 3854291840 BRACKET
Repalced by: A 3854290540
A 3854290540 BRACKET
FROM AIR COMPRESSOR TO TIRE INFLATOR CYLINDER
A 6164290040 BRACKET
AT LEFT SIDE MEMBER
N 000961014050 SCREW
Repalced by: N 308676014020
N 308676014020 SCREW
BRACKET TO LEFT SIDE MEMBER
M 14X1,5X35
N 913004014002 NUT
Repalced by: N 910113014001
N 910113014001 NUT
BRACKET TO LEFT SIDE MEMBER
A 3609952001 CLAMP
Repalced by: A 6739950001
A 6739950001 CLAMP
COMPRESSED AIR LINE TO BRACKET
N 007985006145 SCREW
Repalced by: N 007985006581
N 007985006581 SCREW
COMPRESSED AIR LINE TO BRACKET
M 6X20
N 913004006002 NUT
Repalced by: N 913004006001
N 913004006001 NUT
COMPRESSED AIR LINE TO BRACKET
051 A 3854292540 BRACKET
N 000933008150 SCREW
Repalced by: N 304017008018
N 304017008018 SCREW
AT TRIANGULAR CONTROL ARM
M 8X35
N 912004008102 LOCK WASHER
AT TRIANGULAR CONTROL ARM
A 1801550053 SPACER TUBE
AT TRIANGULAR CONTROL ARM
A 3934310140 BRACKET
Repalced by: A 6514310240
A 6514310240 BRACKET
AT TRIANGULAR CONTROL ARM
N 000933008147 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
AT TRIANGULAR CONTROL ARM
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
AT TRIANGULAR CONTROL ARM
A 0019978490 LOOM TIE
LINE TO BRACKET
053 A 0109975982 HOSE
Repalced by: A 0009872827
053 A 0009872827 PLASTIC PIPE
9 X 12 MM
A 0049971772 FITTING
Repalced by: A 0029906171
A 0029906171 FITTING
(PARTS KIT),LINE RUPTURE
TO 010 997 59 82
N 040621013200 INSULATING HOSE
BLACK
13 X 0,8 MM
N 040621010200 INSULATING HOSE
BLACK
10 MM
055 N 915017012100 UNION NUT
Repalced by: N 000000006239
055 N 000000006239 UNION NUT
057 N 003861012007 GLAND
Repalced by: A 0019901967
057 A 0019901967 SEAL CONE
061 A 0009921505 BUSHING
Repalced by: N 915062009000
061 N 915062009000 SLEEVE
N 915052009009 BANJO UNION
N 074317012300 FITTING
064 A 0089979082 HOSE
6 X 8 MM
N 915017008100 UNION NUT
N 003861008005 GLAND
066 N 915052006021 BANJO UNION
A 0009906688 BANJO UNION
Repalced by: N 915052006013
N 915052006013 BANJO UNION
N 915052006014 BANJO UNION
A 0007630043 SLEEVE
Repalced by: N 915062006000
N 915062006000 SLEEVE
069 N 040621008216 INSULATING HOSE
A 0019976772 FITTING
Repalced by: N 915059006000
N 915059006002 FITTING
A 0049971772 FITTING
Repalced by: A 0029906171
A 0029906171 FITTING
COMPRESSED AIR LINE MOUNTING
A 3524290740 BRACKET
A 3524290040 BRACKET
Repalced by: A 3524281740
A 3524281740 BRACKET
Repalced by: A 3184280240
A 3184280240 BRACKET
N 000933008147 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
BRACKET TO LEFT SIDE MEMBER
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
BRACKET TO LEFT SIDE MEMBER
A 3604292540 BRACKET
Repalced by: A 3604293140
A 3604293140 BRACKET
N 000933008147 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
BRACKET TO CROSS MEMBER BEHIND CAB
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
BRACKET TO CROSS MEMBER BEHIND CAB
A 3609950401 CLAMP
COMPRESSED AIR LINE TO BRACKET
N 000084006137 SCREW
N 000084006137 SCREW
N 000084005114 SCREW
COMPRESSED AIR LINE TO BRACKET
N 913004006002 NUT
Repalced by: N 913004006001
N 913004006001 NUT
COMPRESSED AIR LINE TO BRACKET
N 304032005002 NUT
Repalced by: N 304032005005
N 304032005005 NUT
COMPRESSED AIR LINE TO BRACKET
N 304032005005 NUT
COMPRESSED AIR LINE TO BRACKET
N 912004005103 LOCK WASHER
COMPRESSED AIR LINE TO BRACKET
071 A 0089976082 HOSE
Repalced by: A 0009872627
071 A 0009872627 PLASTIC PIPE
BLACK
6 X 4 MM
072 N 915017006100 UNION NUT
072B N 003861006007 GLAND
Repalced by: A 0019901667
072B A 0019901667 SEAL CONE
072C A 0009920105 BUSHING
Repalced by: N 915062004000
072C N 915062004000 SLEEVE
A 0009903888 BANJO UNION
Repalced by: N 915052004006
N 915052004015 BANJO UNION
072H N 073379006203 HOSE
6 X 10 MM
A 0019978390 LOOM TIE
COMPRESSED AIR LINE MOUNTING
A 3229971581 GROMMET
A 3833020091 GROMMET
COMPRESSED AIR LINE MOUNTING
087 A 3874291140 BRACKET
HOSE TO CAB SUPPORT
N 000933008147 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
HOSE TO CAB SUPPORT
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
HOSE TO CAB SUPPORT
A 3874292740 BRACKET
PRESSURE GAUGE LINE TO BRACKET
089 A 3874291540 BRACKET
PRESSURE GAUGE LINE TO BRACKET
090 A 3874292540 BRACKET
HOSE TO BUMPER STRUT
A 3874292640 BRACKET
HOSE TO BUMPER STRUT
N 000933008145 SCREW
HOSE TO BUMPER STRUT
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
HOSE TO BUMPER STRUT
096 A 3274925419 BRACKET
Repalced by: A 6205240340
096 A 6205240340 BRACKET
HOSE TO CROSS MEMBER
098 N 000933008153 SCREW
Repalced by: N 304017008034
098 N 304017008034 SCREW
HOSE TO CROSS MEMBER
101 N 000125008418 WASHER
Repalced by: N 000125008443
101 N 000125008443 WASHER
HOSE TO CROSS MEMBER
104 N 913004008004 NUT
Repalced by: N 913004008001
104 N 913004008001 NUT
HOSE TO CROSS MEMBER
107 A 0004290086 PROTECTIVE TUBE
Repalced by: A 0004290286
107 A 0004290286 PROTECTIVE TUBE
HOSE TO CROSS MEMBER
111 A 3854200244 PROTECTIVE PLATE
Repalced by: A 3854200644
111 A 3854200644 PROTECTIVE PLATE
Repalced by: A 3854201544
111 A 3854201544 PROTECTIVE PLATE
HEAT INSULATION; PLASTIC LINES; ON THE LEFT
111 A 3854200244 PROTECTIVE PLATE
Repalced by: A 3854200744
A 3854200744 PROTECTIVE PLATE
Repalced by: A 3854201444
A 3854201444 PROTECTIVE PLATE
HEAT INSULATION;PLASTIC LINES;ON THE RIGHT
N 000933008153 SCREW
Repalced by: N 304017008034
N 304017008034 SCREW
HEAT SHIELD, PLASTIC LINES
N 000125008418 WASHER
Repalced by: N 000125008443
N 000125008443 WASHER
HEAT SHIELD, PLASTIC LINES
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
HEAT SHIELD, PLASTIC LINES
A 0004294137 DISTRIBUTOR
126 A 0004294037 DISTRIBUTOR
129 A 0009971572 FITTING
Repalced by: A 0019972572
129 A 0019972572 FITTING
Repalced by: N 000000006446
129 N 000000006446 FITTING
N 915036012203 HOLLOW SCREW
AT DISTRIBUTOR
N 915036008202 HOLLOW SCREW
DISTRIBUTOR,CONNECTIONS:
"1,2,3"
N 915047008202 HOLLOW SCREW
DISTRIBUTOR,CONNECTION:
1
N 000908012003 SCREW PLUG
Repalced by: N 000908012009
N 000908012009 SCREW PLUG
AT DISTRIBUTOR
N 007603016401 SEAL RING
AT DISTRIBUTOR
134 N 007603012405 SEAL RING
AT DISTRIBUTOR
136 N 304017006026 SCREW
Repalced by: N 304017006026
136 N 304017006026 SCREW
DISTRIBUTOR TO CAB
138 N 000125006421 WASHER
DISTRIBUTOR TO CAB
Repalced by: N 000125006449
138 N 000125006449 WASHER
DISTRIBUTOR TO CAB
141 N 913004006002 NUT
Repalced by: N 913004006001
141 N 913004006001 NUT
DISTRIBUTOR TO CAB
146 A 0014310006 PRESSURE REGULATOR
Repalced by: A 0024314906
146 A 0014310606 PRESSURE REGULATOR
Repalced by: A 0024313406
A 0024313406 PRESSURE REGULATOR
Repalced by: A 0024314306
146 A 0014311206 PRESSURE REGULATOR
Repalced by: A 0024314906
146 A 0014313406 PRESSURE REGULATOR
Repalced by: A 0024314306
146 A 0024314306 PRESSURE REGULATOR
WITH TIRE INFLATING CONNECTION
BOSCH
146 A 0024314906 PRESSURE REGULATOR
WABCO
146 A 0024318306 PRESSURE REGULATOR
KNORR
A 0025866043 REPAIR KIT
TO 001 431 34 06,GRAU 312 017 014
147 A 0004301768 REPAIR KIT
DIAPHRAGM
TO 002 431 34 06,BOSCH 0 481 039 221
147 A 0004301768 REPAIR KIT
DIAPHRAGM
TO 002 431 43 06,BOSCH.0 481 039 201
148 A 0004307960 REPAIR KIT
TIRE INFLATING CONNECTION
TO 002 431 34 06,BOSCH 0 481 039 221
148 A 0004307960 REPAIR KIT
TIRE INFLATING CONNECTION
TO 002 431 43 06,BOSCH 0 481 039 201
149 A 0015864343 REPAIR KIT
Repalced by: A 0004301107
149 A 0004301107 REPAIR KIT
TO 001 431 00 06,WABCO 975 300 110 0
A 0024304681 REPAIR KIT
VALVE KIT
TO 001 431 00 06,WABCO 975 300 110 0
A 0014304960 REPAIR KIT
TO 002 431 49 06,WABCO 975 303 460 0
A 0015868543 REPAIR KIT
Repalced by: A 0004301407
A 0004301407 REPAIR KIT
TO 001 431 06 06,BOSCH 0 481 039 101
A 0025866743 REPAIR KIT
TO 001 431 12 06,KNORR 3200
A 0004300407 REPAIR KIT
TO 002 431 83 06,KNORR 90309
153 A 0004300170 MUFFLER
PRESSURE REGULATOR,CONNECTION:
"3"
A 0159975082 HOSE
PRESSURE REGULATOR,CONNECTION:
"3"
156 N 916017032000 CLAMP
Repalced by: N 000000000670
156 N 000000000670 CLAMP
PRESSURE REGULATOR,CONNECTION:
"3"
156 N 916026016001 CLAMP
Repalced by: A 0059970190
156 A 0059970190 HOSE CLAMP
PRESSURE REGULATOR,CONNECTION:
"3"
156 N 916026020001 CLAMP
Repalced by: N 000000000667
156 N 000000000667 CLAMP
PRESSURE REGULATOR,CONNECTION:
"3"
A 0004310151 SPACER RING
PRESSURE REGULATOR,CONNECTION "3"
158 A 0009905871 ELBOW FITTING
PRESSURE REGULATOR,CONNECTION "1"
162 N 074305022202 NUT
PRESSURE REGULATOR,CONNECTION "1"
165 A 0004290227 THRUST RING
Repalced by: A 0009940203
165 A 0009940203 THRUST RING
PRESSURE REGULATOR,CONNECTION "1"
167 A 0009870446 O-RING
PRESSURE REGULATOR,CONNECTION "1"
169 A 0019972172 FITTING
PRESSURE REGULATOR,CONNECTION "2.1"
171 N 007603022102 SEAL RING
PRESSURE REGULATOR,CONNECTION "2.1"
A 0004290227 THRUST RING
Repalced by: A 0009940203
A 0009940203 THRUST RING
PRESSURE REGULATOR,CONNECTION "2.1"
A 0009870446 O-RING
PRESSURE REGULATOR,CONNECTION "2.1"
174 A 3809910040 SPACER TUBE
PRESSURE REGULATOR TO SUPPORT
177 N 000931008129 SCREW
PRESSURE REGULATOR TO SUPPORT
179 N 913004008004 NUT
Repalced by: N 913004008001
179 N 913004008001 NUT
PRESSURE REGULATOR TO SUPPORT
A 0014313506 VALVE
Repalced by: A 0014318406
A 0014318406 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE
KNORR
184 A 0014313806 VALVE
Repalced by: A 0024310406
184 A 0024310406 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE
BOSCH
A 0014314706 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE
WABCO
A 0014316806 VALVE
Repalced by: A 0024312906
A 0024312906 VALVE
Repalced by: A 0024319306
A 0024319306 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE
GRAU
A 0014310986 CUP
TO 002 421 04 06,BOSCH
A 0009934905 SPRING
Repalced by: A 0009935205
A 0009935205 SPRING
TO 002 421 04 06,BOSCH
A 0014311860 SEAL RING
34X2,3 MM TO 001 431 68 06,GRAU
A 0024298844 VALVE
TO 001 431 68 06,GRAU 37001
A 0099972448 SEAL RING
TO 001 431 68 06,19.3X2.4MM,GRAU 37001
A 0059973248 SEAL RING
TO 001 431 68 06 25,3X2,4 MM,GRAU
A 0004313188 VALVE SEAT
TO 001 431 68 06,GRAU 37001
A 0014311960 SEAL RING
Repalced by: A 0009971548
A 0009971548 SEAL RING
15X2 MM,TO 001 431 68 06,GRAU 19001
A 0004302906 GASKET KIT
BOOT
TO 002 431 04 06,BOSCH
A 0034300881 REPAIR KIT
TO 002 431 93 06 GRAU 74001
A 0015863842 REPAIR KIT
TO 001 431 35 06,KNORR
A 0004303160 REPAIR KIT
TO 001 431 84 06,KNORR
185 A 0025861743 REPAIR KIT
BOOT
TO 001 431 38 06,BOSCH
186 A 0015868443 REPAIR KIT
SEAL RING
TO 001 431 38 06,BOSCH
A 0025860643 REPAIR KIT
Repalced by: A 0025862843
A 0025862843 REPAIR KIT
TO 001 431 47 06,WABCO 2100
A 0004300468 REPAIR KIT
TO 001 431 47 06,WABCO 2210
N 074305022202 NUT
191 A 3854313540 BRACKET
FOUR-CIRCUIT PROTECTIVE VALVE
A 3854316740 BRACKET
FOUR-CIRCUIT PROTECTIVE VALVE
A 3854313440 BRACKET
FOUR-CIRCUIT PROTECTIVE VALVE
194 N 000933008147 SCREW
Repalced by: N 304017008021
194 N 304017008021 SCREW
BRACKET TO SUPPORT
196 N 913004008004 NUT
Repalced by: N 913004008001
196 N 913004008001 NUT
BRACKET TO SUPPORT
N 074313016401 FITTING
Repalced by: A 0019972372
201 A 0019972372 FITTING
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
N 007603022102 SEAL RING
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
203 A 0004290227 THRUST RING
Repalced by: A 0009940203
203 A 0009940203 THRUST RING
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
A 0009870446 O-RING
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
206 N 074315012100 FITTING
Repalced by: A 0019903371
206 A 0019903371 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.1"
N 074305012100 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"2"
209 N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
211 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
A 0029971640 SEAL RING
Repalced by: A 0009971548
213 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
A 0005455414 SWITCH
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.3"
216 A 0009904770 T-FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.3"
217 N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.3"
218 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.3"
A 0029971640 SEAL RING
Repalced by: A 0009971548
219 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.3"
223 A 0009904770 T-FITTING
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1.1"
A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1.1"
A 0029971640 SEAL RING
Repalced by: A 0009971548
A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1.1"
N 080705016003 NUT
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1.1"
225 A 0009904770 T-FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "1.2"
227 N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "1.2"
229 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "1.2"
A 0029971640 SEAL RING
Repalced by: A 0009971548
231 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "1.2"
232 A 0009909270 T-FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.4"
233 N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.4"
234 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.4"
A 0029971640 SEAL RING
Repalced by: A 0009971548
235 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.4"
236 A 3879970181 GROMMET
LINE THRU LEFT SIDE MEMBER
237 N 007603012405 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.4"
238 N 915036008202 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.4"
241 A 0004322601 RESERVOIR
Repalced by: A 0034321801
241 A 0034321801 RESERVOIR
30 L
243 A 0004325301 RESERVOIR
30/10 L.
A 0009902687 CROSS FITTING
OUTSIDE AIR RESERVOIR,FRONT CONNECTION
A 0004312031 TEST CONNECTION
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
VOSS
A 0004314531 TEST CONNECTION
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
SCHAEFER
A 0004314831 TEST CONNECTION
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
WABCO
A 0004316131 TEST CONNECTION
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
WIRA
A 0009979486 PROTECTIVE CAP
249 N 080705022002 NUT
OUTSIDE AIR RESERVOIR,FRONT CONNECTION
251 A 0004290227 THRUST RING
Repalced by: A 0009940203
251 A 0009940203 THRUST RING
253 A 0009870446 O-RING
257 A 0009903970 T-FITTING
Repalced by: A 0019901070
257 A 0019901070 T-FITTING
INSIDE AIR RESERVOIR,FRONT CONNECTION
259 N 074305022202 NUT
INSIDE AIR RESERVOIR,FRONT CONNECTION
261 A 0004290227 THRUST RING
Repalced by: A 0009940203
261 A 0009940203 THRUST RING
INSIDE AIR RESERVOIR,FRONT CONNECTION
263 A 0009870446 O-RING
INSIDE AIR RESERVOIR,FRONT CONNECTION
N 074315012101 FITTING
Repalced by: A 0009907771
267 A 0009907771 ELBOW FITTING
INSIDE AIR RESERVOIR, REAR CONNECTION
269 N 074305022202 NUT
INSIDE AIR RESERVOIR, REAR CONNECTION
272 A 0004290227 THRUST RING
Repalced by: A 0009940203
272 A 0009940203 THRUST RING
INSIDE AIR RESERVOIR, REAR CONNECTION
275 A 0009870446 O-RING
INSIDE AIR RESERVOIR, REAR CONNECTION
279 A 0004321107 VALVE
AIR RESERVOIR DRAIN
Repalced by: A 0004322407
279 A 0004322407 DRAIN VALVE
AIR RESERVOIR DRAIN
Repalced by: A 0004322107
279 A 0004322107 DRAIN VALVE
AIR RESERVOIR DRAIN
279 A 0004322107 VALVE
AIR RESERVOIR DRAIN
279 A 0004322407 VALVE
AIR RESERVOIR DRAIN
Repalced by: A 0004322107
279 A 0004322107 DRAIN VALVE
AIR RESERVOIR DRAIN
A 0005830296 RING
DRAIN VALVE
TO 000 432 08 07
N 007603022102 SEAL RING
AIR RESERVOIR,BOTTOM CONNECTION
282 A 0004290227 THRUST RING
Repalced by: A 0009940203
282 A 0009940203 THRUST RING
AIR RESERVOIR,BOTTOM CONNECTION
A 0009870446 O-RING
AIR RESERVOIR,BOTTOM CONNECTION
N 000908022001 SCREW PLUG
Repalced by: N 000908022011
N 000908022011 SCREW PLUG
OUTSIDE AIR RESERVOIR,REAR CONNECTION
N 007603022102 SEAL RING
OUTSIDE AIR RESERVOIR,REAR CONNECTION
N 074313012100 FITTING
Repalced by: A 0029971172
289 A 0029971172 FITTING
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
Repalced by: N 000000006191
289 N 000000006191 FITTING
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
N 007603022102 SEAL RING
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
290 A 0004290227 THRUST RING
Repalced by: A 0009940203
290 A 0009940203 THRUST RING
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
A 0009870446 O-RING
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
295 A 0024295844 VALVE
CHECK
A 0024295944 VALVE
CHECK
A 0024297544 VALVE
CHECK
A 0019902171 ELBOW FITTING
INSIDE AIR RESERVOIR, REAR CONNECTION
M 14X1.5 / M 14X1.5
300 A 3854300140 STRAP
303 A 3854320218 BASE
306 N 000934010014 NUT
312 A 0004326201 RESERVOIR
0,9 L
313 N 000933008147 SCREW
Repalced by: N 304017008021
313 N 304017008021 SCREW
314 N 913004008004 NUT
Repalced by: N 913004008001
314 N 913004008001 NUT
315 A 0004321707 VALVE
DRAIN
N 007603022102 SEAL RING
318 A 0004293838 ELBOW FITTING
Repalced by: A 0004294638
318 A 0004294638 ELBOW FITTING
CONDENSATION TANK (WET AIR RESERVOIR)
A 0039979472 FITTING
CONDENSATION TANK (WET AIR RESERVOIR)
N 074298022203 DOUBLE FITTING
CONDENSATION TANK (WET AIR RESERVOIR)
325 N 074305022202 NUT
CONDENSATION TANK (WET AIR RESERVOIR)
N 007603022102 SEAL RING
CONDENSATION TANK (WET AIR RESERVOIR)
329 A 0004290227 THRUST RING
Repalced by: A 0009940203
329 A 0009940203 THRUST RING
CONDENSATION TANK (WET AIR RESERVOIR)
332 A 0009870446 O-RING
CONDENSATION TANK (WET AIR RESERVOIR)
A 0019972172 FITTING
CONDENSATION TANK (WET AIR RESERVOIR)
336 A 0024293244 VALVE
Repalced by: A 0034296944
336 A 0034296944 VALVE
3/2-WAY
N 074305022202 NUT
3/2-WAY VALVE,CONNECTION "A"
A 0004290227 THRUST RING
Repalced by: A 0009940203
A 0009940203 THRUST RING
3/2-WAY VALVE,CONNECTION "A"
A 0009870446 O-RING
3/2-WAY VALVE,CONNECTION "A"
N 007603018104 SEAL RING
N 074305022202 NUT
A 0004290227 THRUST RING
Repalced by: A 0009940203
A 0009940203 THRUST RING
344 A 0009906770 T-FITTING
3/2-WAY VALVE; CONNECTIONS "P1,R2"
A 0009870446 O-RING
353 N 074305022202 NUT
3/2-WAY VALVE; CONNECTIONS "P1,R2"
A 0029971172 FITTING
3/2-WAY VALVE; CONNECTIONS "P1,R2"
Repalced by: N 000000006191
N 000000006191 FITTING
3/2-WAY VALVE; CONNECTIONS "P1,R2"
354 A 0004290227 THRUST RING
Repalced by: A 0009940203
354 A 0009940203 THRUST RING
3/2-WAY VALVE; CONNECTIONS "P1,R2"
355 A 0009870446 O-RING
3/2-WAY VALVE; CONNECTIONS "P1,R2"
N 074298022203 DOUBLE FITTING
3/2-WAY VALVE; CONNECTIONS "P1,R2"
356 A 0019972172 FITTING
3/2-WAY VALVE; CONNECTIONS "P2,R1"
357 N 007603022102 SEAL RING
3/2-WAY VALVE; CONNECTIONS "P2,R1"
A 0004290227 THRUST RING
Repalced by: A 0009940203
A 0009940203 THRUST RING
3/2-WAY VALVE; CONNECTIONS "P2,R1"
A 0009870446 O-RING
3/2-WAY VALVE; CONNECTIONS "P2,R1"
358 A 0024293444 VALVE
Repalced by: A 0044297244
358 A 0044297244 VALVE
(SAFETY VALVE)
A 0004294934 ADAPTER FITTING
N 007603018104 SEAL RING
359 A 0004322001 RESERVOIR
Repalced by: A 0034321101
359 A 0034321101 RESERVOIR
PNEUMATIC SUSPENSION
20 L
Repalced by: A 0064329801
359 A 0064329801 COMPRESSED AIR RESERVOIR
PNEUMATIC SUSPENSION
20 L
360 A 0004321107 VALVE
AIR RESERVOIR DRAIN
Repalced by: A 0004322407
360 A 0004322407 DRAIN VALVE
AIR RESERVOIR DRAIN
Repalced by: A 0004322107
360 A 0004322107 DRAIN VALVE
AIR RESERVOIR DRAIN
360 A 0004322107 VALVE
AIR RESERVOIR DRAIN
360 A 0004322407 VALVE
AIR RESERVOIR DRAIN
Repalced by: A 0004322107
360 A 0004322107 DRAIN VALVE
AIR RESERVOIR DRAIN
A 0005830296 RING
DRAIN VALVE
TO 000 432 08 07
N 007603022102 SEAL RING
AIR RESERVOIR,BOTTOM CONNECTION
361 A 0004290227 THRUST RING
Repalced by: A 0009940203
361 A 0009940203 THRUST RING
AIR RESERVOIR,BOTTOM CONNECTION
A 0009870446 O-RING
AIR RESERVOIR,BOTTOM CONNECTION
N 000908022001 SCREW PLUG
Repalced by: N 000908022011
N 000908022011 SCREW PLUG
RESERVOIR,FRONT CONNECTION
N 007603022102 SEAL RING
RESERVOIR,FRONT CONNECTION
365 A 0004290227 THRUST RING
Repalced by: A 0009940203
365 A 0009940203 THRUST RING
RESERVOIR,FRONT CONNECTION
A 0009870446 O-RING
RESERVOIR,FRONT CONNECTION
367 A 0024290044 VALVE
Repalced by: A 0044293144
367 A 0044293144 VALVE
OVERFLOW VALVE
WABCO
A 0014296544 VALVE
Repalced by: A 0044293144
A 0044293144 VALVE
OVERFLOW VALVE
WABCO
A 0024297044 VALVE
Repalced by: A 0044293244
A 0044293244 VALVE
OVERFLOW VALVE
GRAU
A 0004290745 DIAPHRAGM
TO 002 429 70 44,GRAU
A 0024298844 VALVE
TO 002 429 70 44,GRAU
A 0004290645 DIAPHRAGM
Repalced by: A 0004290745
A 0004290745 DIAPHRAGM
TO 004 429 32 44
A 0015862042 REPAIR KIT
TO 001 429 65 44,WABCO
A 0015862642 REPAIR KIT
TO 002 429 00 44,BOSCH
368A A 0009905168 FITTING
OVERFLOW VALVE,CONNECTION "1"
A 0004290227 THRUST RING
Repalced by: A 0009940203
A 0009940203 THRUST RING
OVERFLOW VALVE,CONNECTION "1"
368B A 0009870446 O-RING
OVERFLOW VALVE,CONNECTION "1"
368C N 915011010101 HOLLOW SCREW
Repalced by: N 915036012101
368C N 915036012203 HOLLOW SCREW
OVERFLOW VALVE,CONNECTION "1"
368D N 007603016401 SEAL RING
OVERFLOW VALVE,CONNECTION "1"
371 N 074305022202 NUT
REAR AIR RESERVOIR
A 0004290227 THRUST RING
Repalced by: A 0009940203
A 0009940203 THRUST RING
REAR AIR RESERVOIR
376 A 0009870446 O-RING
REAR AIR RESERVOIR
379 A 0009901670 T-FITTING
REAR PNEUMATIC-SUSPENSION AIR RESERVOIR
A 0004293838 ELBOW FITTING
Repalced by: A 0004294638
A 0004294638 ELBOW FITTING
REAR PNEUMATIC-SUSPENSION AIR RESERVOIR
A 0024296044 VALVE
(CHECK VALVE)
A 0024296144 VALVE
(CHECK VALVE)
A 0024297644 VALVE
(CHECK VALVE)
A 0009907771 ELBOW FITTING
REAR PNEUMATIC-SUSPENSION AIR RESERVOIR
381 N 074305022202 NUT
REAR PNEUMATIC-SUSPENSION AIR RESERVOIR
381 N 074305022202 NUT
REAR PNEUMATIC-SUSPENSION AIR RESERVOIR
383 A 0004290227 THRUST RING
Repalced by: A 0009940203
383 A 0009940203 THRUST RING
REAR PNEUMATIC-SUSPENSION AIR RESERVOIR
386 A 0009870446 O-RING
REAR PNEUMATIC-SUSPENSION AIR RESERVOIR
A 0029977272 FITTING
Repalced by: A 0049978972
A 0049978972 FITTING
REAR PNEUMATIC-SUSPENSION AIR RESERVOIR
A 0004312531 TEST CONNECTION
REAR PNEUMATIC-SUSPENSION AIR RESERVOIR
A 0009979486 PROTECTIVE CAP
388 A 0004290444 VALVE
Repalced by: A 0034290744
388 A 0034290744 VALVE
CHECK
A 0004290088 VALVE SEAT RING
TO 000 429 04 44,003 429 07 44
A 0004290049 BUSHING
TO 000 429 04 44,003 429 07 44
A 0005865942 REPAIR KIT
TO 000 429 04 44
389 A 0009905168 FITTING
CONNECTION "2"
389 A 0009905168 FITTING
CONNECTION "2"
390 N 007603022102 SEAL RING
CONNECTION "2"
390 N 007603022102 SEAL RING
CONNECTION "2"
A 0009905563 HOLLOW SCREW
Repalced by: N 915047012100
391 N 915047012100 HOLLOW SCREW
CONNECTION "2"
391 N 915047012100 HOLLOW SCREW
CONNECTION "2"
392 N 007603016401 SEAL RING
CONNECTION "2"
392 N 007603016401 SEAL RING
CONNECTION "2"
A 0009903970 T-FITTING
Repalced by: A 0019901070
A 0019901070 T-FITTING
CONNECTION "2"
N 074305022202 NUT
CONNECTION "2"
A 0004290227 THRUST RING
Repalced by: A 0009940203
A 0009940203 THRUST RING
CONNECTION "2"
A 0009870446 O-RING
CONNECTION "2"
393 A 3814320140 BRACKET
PNEUMATIC SUSPENSION RESERVOIR
395 A 3354320418 BASE
PNEUMATIC SUSPENSION RESERVOIR
N 000933010105 SCREW
PNEUMATIC SUSPENSION RESERVOIR
398 N 000933010129 SCREW
Repalced by: N 304017010002
398 N 304017010002 SCREW
PNEUMATIC SUSPENSION RESERVOIR
401 N 000934010014 NUT
PNEUMATIC SUSPENSION RESERVOIR
405 A 3524300040 STRAP
Repalced by: A 3354300340
405 A 3354300340 STRAP
PNEUMATIC SUSPENSION RESERVOIR
409 N 913004010008 NUT
Repalced by: N 910113010000
409 N 910113010000 NUT
PNEUMATIC SUSPENSION RESERVOIR
A 0014292044 VALVE
Repalced by: A 0034291644
A 0034291644 VALVE
RELAY VALVE
BOSCH
A 0024290744 VALVE
Repalced by: A 0034295344
A 0034295344 VALVE
RELAY VALVE
KNORR
A 0014299144 VALVE
RELAY VALVE
GRAU
423 A 0014296844 VALVE
RELAY VALVE
WABCO
A 0059972648 SEAL RING
22.3X2.4 MM,TO 001 429 91 44,GRAU
A 0004312788 VALVE SEAT
TO 001 429 91 44,GRAU
A 0059972748 SEAL RING
80X3 MM,TO 000 429 28 95, GRAU
A 0014311660 SEAL RING
28X2 MM,TO 001 429 91 44,GRAU
A 0014311760 SEAL RING
86X2 MM,TO 001 429 91 44,GRAU
A 0014311980 GASKET
Repalced by: A 0004311980
A 0004311980 GASKET
TO 001 429 91 44,34X2,6 MM,GRAU
A 0015862742 REPAIR KIT
TO 001 429 20 44,BOSCH
A 0025865642 REPAIR KIT
Repalced by: A 0004201071
A 0004201071 VALVE
GASKET KIT
TO 003 429 16 44,BOSCH; UP TO 03.82
A 0004201271 VALVE
GASKET KIT
TO 003 429 16 44,BOSCH; FROM 04.82
A 0025865742 REPAIR KIT
Repalced by: A 0004301109
A 0004301109 REPAIR KIT
BLEEDER VALVE
TO 003 429 16 44,BOSCH
425 A 0005865742 REPAIR KIT
TO 001 429 68 44,WABCO
A 0025863542 REPAIR KIT
TO 002 429 07 44,003 429 53 44,KNORR
438 A 0004290227 THRUST RING
Repalced by: A 0009940203
438 A 0009940203 THRUST RING
RELAY VALVE,CONNECTION "1"
441 A 0009870446 O-RING
RELAY VALVE,CONNECTION "1"
442 A 0009905168 FITTING
RELAY VALVE,CONNECTION "1"
443 N 007603022102 SEAL RING
RELAY VALVE,CONNECTION "1"
N 915011010101 HOLLOW SCREW
Repalced by: N 915036012101
444 N 915036012203 HOLLOW SCREW
RELAY VALVE,CONNECTION "1"
445 N 007603016401 SEAL RING
RELAY VALVE,CONNECTION "1"
446 A 0009904770 T-FITTING
RELAY VALVE,CONNECTION "2",RIGHT
447 N 080705016003 NUT
RELAY VALVE,CONNECTION "2",RIGHT
449 A 0004290927 THRUST RING
RELAY VALVE,CONNECTION "2",RIGHT
A 0029971640 SEAL RING
Repalced by: A 0009971548
452 A 0009971548 SEAL RING
RELAY VALVE,CONNECTION "2",RIGHT
454 A 0005455414 SWITCH
RELAY VALVE,CONNECTION "2",RIGHT
N 000908016001 SCREW PLUG
RELAY VALVE,CONNECTION "2",LEFT
N 007603016401 SEAL RING
RELAY VALVE,CONNECTION "2",LEFT
A 0004290927 THRUST RING
RELAY VALVE,CONNECTION "2",LEFT
A 0009971548 SEAL RING
RELAY VALVE,CONNECTION "2",LEFT
N 915011010101 HOLLOW SCREW
Repalced by: N 915036012101
N 915036012203 HOLLOW SCREW
RELAY VALVE,CONNECTION "4"
N 007603016401 SEAL RING
RELAY VALVE,CONNECTION "4"
474 N 913004008004 NUT
Repalced by: N 913004008001
474 N 913004008001 NUT
VALVE TO CROSS MEMBER
482 A 0004319614 BRAKE CYLINDER
Repalced by: A 0014317114
482 A 0014317114 BRAKE CYLINDER
BOSCH
482 A 0004316614 BRAKE CYLINDER
Repalced by: A 0014317114
486 A 0004319414 BRAKE CYLINDER
Repalced by: A 0014317314
486 A 0014310514 BRAKE CYLINDER
Repalced by: A 0014317314
486 A 0024300830 BRAKE BOOSTER ASSEMBLY
Repalced by: A 0014317314
486 A 0014313914 BRAKE CYLINDER
Repalced by: A 0014317314
486 A 0014317314 BRAKE CYLINDER
BOSCH-SCHAEFER
486 A 0014317314 BRAKE CYLINDER
BOSCH-SCHAEFER
A 0004315487 PROTECTIVE CAP
TO 001 431 05 14,000 431 66 14
A 0004317283 PISTON
TO 000 431 94 14,000 431 96 14
A 0049970248 SEAL RING
TO 000 431 94 14,000 431 96 14
A 0019979340 SEAL RING
Repalced by: A 0019975945
A 0019975945 SEAL RING
TO 000 431 94 14,000 431 96 14
N 000472030000 LOCK RING
TO 000 431 94 14,000 431 96 14
A 0004318986 CUP
TO 000 431 94 14,000 431 96 14
N 000472036000 LOCK RING
TO 000 431 94 14,000 431 96 14
A 0039979248 SEAL RING
TO 000 431 94 14,000 431 96 14
A 0004317183 PISTON
TO 000 431 94 14,000 431 96 14
A 0004317183 PISTON
TO 001 431 71 14,001 431 73 14
A 0069975645 SEAL RING
TO 000 431 94 14,000 431 96 14
A 0039979348 SEAL RING
TO 000 431 94 14,000 431 96 14
N 000933008152 SCREW
Repalced by: N 304017008027
N 304017008027 SCREW
TO 000 431 94 14,000 431 96 14,
Y YYYYYYYYYYYY PART NAME MISSING
001 431 71 14, 001 431 73 14
N 912004008102 LOCK WASHER
TO 000 431 94 14,000 431 96 14
A 0014310660 SEAL RING
TO 000 431 94 14,000 431 96 14
A 0004317383 PISTON
TO 000 431 94 14,000 431 96 14
A 0039979448 SEAL RING
TO 000 431 94 14,000 431 96 14
N 000934006007 NUT
TO 000 431 94 14,000 431 96 14
N 000963006014 SCREW
TO 000 431 94 14,000 431 96 14
A 0004311249 GUIDE BUSHING
TO 000 431 94 14,000 431 96 14
N 007993016100 SNAP RING
TO 000 431 94 14,000 431 96 14
N 000933010145 SCREW
TO 000 431 94 14,000 431 96 14
N 000933010094 SCREW
M 10X40,TO 001 431 71 14,73 14
N 912004010102 LOCK WASHER
TO 000 431 94 14,000 431 96 14
N 007993006100 SNAP RING
TO 000 431 94 14,000 431 96 14
N 001476003007 GROOVED NAIL
TO 000 431 94 14,000 431 96 14
N 000471022000 LOCK RING
TO 000 431 94 14,000 431 96 14,
Y YYYYYYYYYYYY PART NAME MISSING
TO 001 431 71 14, 001 431 73 14
A 0039974347 SEAL RING
TO 000 431 94 14,000 431 96 14
N 007603010103 SEAL RING
Repalced by: N 007603010110
N 007603010110 SEAL RING
TO 001 431 71 14,001 431 73 14
A 0004318886 CUP
TO 000 431 94 14,000 431 96 14
A 0004311322 COVER
TO 001 431 73 14,001 431 71 14
A 0009882735 CAP
TO 001 431 71 14
A 0044205518 WHEEL BRAKE CYLINDER
Repalced by: A 0074202018
504 A 0074202018 WHEEL BRAKE CYLINDER
Repalced by: A 0044206818
A 0044206818 WHEEL BRAKE CYLINDER
SLAVE CYLINDER
TO 001 431 73 14
A 0044206818 WHEEL BRAKE CYLINDER
SLAVE CYLINDER
TO 001 431 73 14
A 0004204155 BLEEDER VALVE
Repalced by: A 0004310265
508 A 0004310265 VALVE
Repalced by: A 3075530107
508 A 3075530107 VALVE
A 0004202155 BLEEDER VALVE
Repalced by: A 0004310265
A 3164210187 PROTECTIVE CAP
Repalced by: A 0004210887
A 0004210887 PROTECTIVE CAP
Repalced by: A 0004217187
A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
A 0004210887 PROTECTIVE CAP
A 0004212687 PROTECTIVE CAP
Repalced by: A 0004210887
512 A 0025860743 REPAIR KIT
Repalced by: A 0004302108
512 A 0004302108 REPAIR KIT
COMPRESSED AIR CYLINDER
TO 001 431 71 14
A 0025865543 REPAIR KIT
TO 000 431 66 14,001 431 05 14,
Y YYYYYYYYYYYY PART NAME MISSING
002 430 08 30
A 0025865643 REPAIR KIT
Repalced by: A 0025865543
A 0005864829 REPAIR KIT
SLAVE CYLINDER
TO 004 420 55 18
516 A 0025862442 REPAIR KIT
SLAVE CYLINDER
TO 007 420 20 18
A 0025860942 REPAIR KIT
SLAVE CYLINDER
TO 004 420 68 18
A 0025865542 REPAIR KIT
SLAVE CYLINDER
TO 004 420 68 18
A 0089979082 HOSE
BLEEDING
542 A 0005455214 SWITCH
BRAKE CYLINDER STROKE INDICATOR
M 24 X 1 MM
546 N 007603010103 SEAL RING
Repalced by: N 007603010110
546 N 007603010110 SEAL RING
BRAKE CYLINDER STROKE INDICATOR
570 N 000933010129 SCREW
Repalced by: N 304017010002
570 N 304017010002 SCREW
BRAKE CYLINDER TO SUPPORT
N 000931010331 SCREW
BRAKE CYLINDER TO SUPPORT
N 000931010094 SCREW
Repalced by: N 000931010407
N 000931010407 SCREW
BRAKE CYLINDER TO SUPPORT
572 N 912004010102 LOCK WASHER
BRAKE CYLINDER TO SUPPORT
576 N 074315012100 FITTING
Repalced by: A 0019903371
576 A 0019903371 ELBOW FITTING
BRAKE CYLINDER,CONNECTIONS "1.1,1.2"
580 N 080705016003 NUT
BRAKE CYLINDER,CONNECTIONS "1.1,1.2"
582 A 0004290927 THRUST RING
BRAKE CYLINDER,CONNECTIONS "1.1,1.2"
A 0029971640 SEAL RING
Repalced by: A 0009971548
584 A 0009971548 SEAL RING
BRAKE CYLINDER,CONNECTIONS "1.1,1.2"
586 N 000908016001 SCREW PLUG
BRAKE CYLINDER,CONNECTIONS "2.1,2.2"
588 N 007603016401 SEAL RING
BRAKE CYLINDER,CONNECTIONS "2.1,2.2"
588 A 0004290927 THRUST RING
BRAKE CYLINDER,CONNECTIONS "2.1,2.2"
A 0009971548 SEAL RING
BRAKE CYLINDER,CONNECTIONS "2.1,2.2"
591 A 3804310092 ROD
BRAKE LEVER TO SUPPORT
593 N 001434010009 PIN
BRAKE LEVER TO SUPPORT
596 N 000433010505 WASHER
Repalced by: N 000433010510
596 N 000433010510 WASHER
BRAKE LEVER TO SUPPORT
N 000094003217 COTTER PIN
BRAKE LEVER TO SUPPORT
601 N 000933010105 SCREW
BRAKE LEVER TO SUPPORT
608 N 000933010128 SCREW
BRAKE LEVER TO SUPPORT
610 N 913004010008 NUT
Repalced by: N 910113010000
610 N 910113010000 NUT
BRAKE LEVER TO SUPPORT
A 3854200168 SUPPORT
Repalced by: A 3854260240
612 A 3854260240 BRACKET
615 A 3854200042 BRAKE LEVER
618 A 0089978046 SEAL RING
Repalced by: A 0069979147
618 A 0069979147 SEAL RING
624 A 0009815610 NEEDLE BEARING
Repalced by: A 0119813410
624 A 0089811110 NEEDLE BEARING
Repalced by: A 0119813410
624 A 0119813410 NEEDLE BEARING
626 A 3859930010 SPRING
A 3802940507 PIVOT PIN
635 A 3854310853 SPACER TUBE
638 N 000433021002 WASHER
N 000931010379 SCREW
N 913004010008 NUT
Repalced by: N 910113010000
N 910113010000 NUT
641 N 000471020001 LOCK RING
644 N 304017010025 SCREW
Repalced by: N 304017010051
644 N 304017010051 SCREW
CABLE TO BRAKE LEVER
646 N 000934010014 NUT
CABLE TO BRAKE LEVER
649 A 3854260165 PROTECTIVE PLATE
TOP
651 A 3854260065 PROTECTIVE PLATE
BOTTOM
N 000961014014 SCREW
APPARATUS SUPPORT TO SIDE MEMBER
A 3859900440 WASHER
Repalced by: A 3379900440
A 3379900440 WASHER
APPARATUS SUPPORT TO SIDE MEMBER
659 A 0024306901 BRAKE MASTER CYLINDER
SCHAEFER
A 0034303101 BRAKE MASTER CYLINDER
TEVES
667 A 0015866743 REPAIR KIT
Repalced by: A 0004309960
667 A 0004309960 REPAIR KIT
TO 002 430 69 01,SCHAEFER
669 A 0004280830 CONNECTOR
CONNECTION "2.1"
671 N 007603014405 SEAL RING
CONNECTION "2.1"
674 A 0004280026 HOLLOW SCREW
CONNECTION "2.1"
677 N 000933010129 SCREW
Repalced by: N 304017010002
677 N 304017010002 SCREW
MASTER CYLINDER TO BRAKE BOOSTER
679 N 000127010203 LOCK WASHER
Repalced by: N 912004010102
679 N 912004010102 LOCK WASHER
MASTER CYLINDER TO BRAKE BOOSTER
682 A 3854300110 BRACKET
BRAKE MASTER CYLINDER
684 N 304014008004 SCREW
Repalced by: N 304014008001
684 N 304014008001 SCREW
BRAKE MASTER CYLINDER TO BRACKET
686 N 000125008418 WASHER
Repalced by: N 000125008443
686 N 000125008443 WASHER
BRAKE MASTER CYLINDER TO BRACKET
689 N 913004008004 NUT
Repalced by: N 913004008001
689 N 913004008001 NUT
BRAKE MASTER CYLINDER TO BRACKET
691 N 000933010128 SCREW
BRACKET TO APPARATUS SUPPORT
694 N 912004010102 LOCK WASHER
BRACKET TO APPARATUS SUPPORT
698 A 0004318702 RESERVOIR
700 A 0004312833 FILLER CAP
Repalced by: A 0004315533
700 A 0004315533 FILLER CAP
A 0014310287 PROTECTIVE CAP
703 A 0039976440 SEAL RING
706 A 0004312634 STRAINER
709 N 007603022102 SEAL RING
A 0004319702 RESERVOIR
Repalced by: A 0004318702
A 0004313433 FILLER CAP
N 007603022102 SEAL RING
N 000933010129 SCREW
Repalced by: N 304017010002
N 304017010002 SCREW
721 A 3404204029 LINE
FROM MASTER CYLINDER TO FRONT AXLE TEST CONNECTION
2600 MM
A 3404201529 LINE
FROM MASTER CYLINDER TO FRONT AXLE TEST CONNECTION
900 MM
722 A 0004311231 TEST CONNECTION
FRONT AXLE BRAKE CIRCUIT I
A 0004316631 TEST CONNECTION
FRONT AXLE BRAKE CIRCUIT I
722B N 000931008246 SCREW
Repalced by: N 304017008028
722B N 304017008028 SCREW
M 8X50
722D N 913004008004 NUT
Repalced by: N 913004008001
722D N 913004008001 NUT
A 0209975948 SEAL RING
TO 000 431 46 13
722F A 1801550053 SPACER TUBE
A 3604280243 ANGLE
BRAKE LINE TO SIDE MEMBER
N 000933008153 SCREW
Repalced by: N 304017008034
N 304017008034 SCREW
BRAKE LINE TO SIDE MEMBER
M 8X25
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
BRAKE LINE TO SIDE MEMBER
723 A 3404200529 LINE
FROM TEST CONNECTION TO VALVE
400 MM
724 A 0004314513 VALVE
PRESSURE REGULATOR
724 A 0004314613 VALVE
PRESSURE REGULATOR
A 0019970341 SEAL RING
TO 000 431 46 13
A 0019970441 SEAL RING
TO 000 431 46 13
A 0069974548 SEAL RING
Repalced by: A 0019975945
A 0019975945 SEAL RING
TO 000 431 46 13
A 0000600178 VALVE
Repalced by: A 3075530107
A 3075530107 VALVE
TO 000 431 46 13
725 A 0004280032 SCREW PLUG
727 A 0004312231 TEST CONNECTION
A 0004316531 TEST CONNECTION
729 A 3854315540 BRACKET
VALVE
730 N 000931008251 SCREW
VALVE TO BRACKET
N 000933008153 SCREW
Repalced by: N 304017008034
N 304017008034 SCREW
VALVE TO BRACKET
733 N 913004008004 NUT
Repalced by: N 913004008001
733 N 913004008001 NUT
VALVE TO BRACKET
734 N 000933008153 SCREW
Repalced by: N 304017008034
734 N 304017008034 SCREW
BRACKET TO CROSS MEMBER BEHIND CAB
734B N 913004008004 NUT
Repalced by: N 913004008001
734B N 913004008001 NUT
BRACKET TO CROSS MEMBER BEHIND CAB
735 N 000933010105 SCREW
BRACKET TO CROSS MEMBER BEHIND CAB
735B N 913004010008 NUT
Repalced by: N 910113010000
735B N 910113010000 NUT
BRACKET TO CROSS MEMBER BEHIND CAB
736 A 3404202929 LINE
FROM VALVE TO LEFT FRONT WHEEL
1600 MM
A 3404202329 LINE
FROM TEST CONNECTION TO LEFT FRONT WHEEL
1300 MM
738 A 3404200729 LINE
FROM VALVE TO TEST CONNECTION
500 MM
739 A 3404204129 LINE
FROM TEST CONNECTION TO RIGHT FRONT WHEEL BRAKE HOSE
2800 MM
A 3404203929 LINE
FROM TEST CONNECTION TO RIGHT FRONT WHEEL
2400 MM
741 A 3859970081 GROMMET
A 3879970181 GROMMET
AT LEFT SIDE MEMBER
A 0039973481 GROMMET
AT LEFT SIDE MEMBER
A 3859970381 GROMMET
AT LEFT SIDE MEMBER
743 A 3854280240 BRACKET
BRAKE HOSE
A 3854280340 BRACKET
BRAKE HOSE
745 N 000933008147 SCREW
Repalced by: N 304017008021
745 N 304017008021 SCREW
BRACKET TO SIDE MEMBER
747 N 913004008004 NUT
Repalced by: N 913004008001
747 N 913004008001 NUT
BRACKET TO SIDE MEMBER
A 3854291740 BRACKET
BRAKE LINE TO SUPPORT
A 3604280243 ANGLE
BRAKE LINE TO SUPPORT
A 3854280043 ANGLE
Repalced by: A 3604280243
A 3604280243 ANGLE
BRAKE LINE TO SUPPORT
N 000933008153 SCREW
Repalced by: N 304017008034
N 304017008034 SCREW
BRAKE LINE TO SUPPORT
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
BRAKE LINE TO SUPPORT
A 3604300143 CLAMP
Repalced by: N 916016008200
N 916016008200 CLAMP
Repalced by: N 000000000319
N 000000000319 CLAMP
BRAKE LINE TO SUPPORT
N 000933006158 SCREW
BRAKE LINE TO SUPPORT
N 913004006002 NUT
Repalced by: N 913004006001
N 913004006001 NUT
BRAKE LINE TO SUPPORT
A 3604292440 BRACKET
Repalced by: A 3604292940
A 3604292940 BRACKET
TEST CONNECTION
N 000933008153 SCREW
Repalced by: N 304017008034
N 304017008034 SCREW
TEST CONNECTION TO CROSS MEMBER
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
TEST CONNECTION TO CROSS MEMBER
A 3604280243 ANGLE
BRAKE LINE TO CROSS MEMBER BEHIND CAB
N 000933008147 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
BRAKE LINE TO CROSS MEMBER BEHIND CAB
M 8X20
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
BRAKE LINE TO CROSS MEMBER BEHIND CAB
A 3604300143 CLAMP
Repalced by: N 916016008200
N 916016008200 CLAMP
Repalced by: N 000000000319
N 000000000319 CLAMP
BRAKE LINE TO CROSS MEMBER BEHIND CAB
N 000000001147 SCREW
BRAKE LINE TO CROSS MEMBER BEHIND CAB
M 6X20
N 913004006002 NUT
Repalced by: N 913004006001
N 913004006001 NUT
BRAKE LINE TO CROSS MEMBER BEHIND CAB
758 A 0024281135 BRAKE HOSE
Repalced by: A 0004288935
758 A 0004288935 BRAKE HOSE
650 MM
758 A 0014284835 BRAKE HOSE
650 MM
761 A 0004280473 BRACKET
Repalced by: A 6525040038
761 A 6525040038 MOUNTING PLATE
BRAKE HOSE TO BRACKET
764 A 3404201129 LINE
FROM MASTER CYLINDER TO CONNECTOR
700 MM
768 A 0004292736 CONNECTOR
A 3609950601 CLAMP
AT BRACKET
N 000000001147 SCREW
AT BRACKET
M 6X20
N 913004006002 NUT
Repalced by: N 913004006001
N 913004006001 NUT
AT BRACKET
A 3604280243 ANGLE
CONNECTOR
N 000933008153 SCREW
Repalced by: N 304017008034
N 304017008034 SCREW
BRACKET TO LEFT SIDE MEMBER
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
BRACKET TO LEFT SIDE MEMBER
772 A 3404204729 LINE
FROM CONNECTOR TO TEST CONNECTION
4000 MM
A 3404205129 LINE
FROM CONNECTOR TO TEST CONNECTION
4800 MM
A 3404205529 LINE
FROM CONNECTOR TO TEST CONNECTION
5600 MM
A 3404205729 LINE
Repalced by: A 0004296201
A 0004296201 LINE
FROM CONNECTOR TO TEST CONNECTION
25000 MM
A 3404204329 LINE
FROM CONNECTOR TO TEST CONNECTION
3200 MM
A 3604293140 BRACKET
BRAKE LINE TO SUPPORT
A 3604280243 ANGLE
BRAKE LINE TO SUPPORT
N 000933008153 SCREW
Repalced by: N 304017008034
N 304017008034 SCREW
BRAKE LINE TO SUPPORT
N 000933008147 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
BRAKE LINE TO SUPPORT
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
BRAKE LINE TO SUPPORT
A 3609950601 CLAMP
BRAKE LINE TO SUPPORT
A 3604300143 CLAMP
Repalced by: N 916016008200
N 916016008200 CLAMP
Repalced by: N 000000000319
N 000000000319 CLAMP
BRAKE LINE TO SUPPORT
N 000000001147 SCREW
BRAKE LINE TO SUPPORT
M 6X20
N 913004006002 NUT
Repalced by: N 913004006001
N 913004006001 NUT
BRAKE LINE TO SUPPORT
N 000933008153 SCREW
Repalced by: N 304017008034
N 304017008034 SCREW
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
785 A 0004311231 TEST CONNECTION
REAR AXLE BRAKE CIRCUIT
A 0004316631 TEST CONNECTION
REAR AXLE BRAKE CIRCUIT
788 N 007985006160 SCREW
Repalced by: N 007985006590
788 N 007985006590 SCREW
Repalced by: N 000000001481
788 N 000000001481 SCREW
TEST CONNECTION TO BRACKET
N 000125006421 WASHER
TEST CONNECTION TO BRACKET
Repalced by: N 000125006449
N 000125006449 WASHER
TEST CONNECTION TO BRACKET
791 N 913004006002 NUT
Repalced by: N 913004006001
791 N 913004006001 NUT
TEST CONNECTION TO BRACKET
793 A 3604293140 BRACKET
TEST CONNECTION
A 3852670040 BRACKET
TEST CONNECTION
N 000933008153 SCREW
Repalced by: N 304017008034
N 304017008034 SCREW
BRACKET TO LEFT SIDE MEMBER
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
BRACKET TO LEFT SIDE MEMBER
802 A 3404201729 LINE
FROM TEST CONNECTION TO BRAKE POWER REGULATOR,CONNECTION "1"
1000 MM
804 A 3854314540 BRACKET
BRAKE POWER REGULATOR
806 N 000960012333 SCREW
BRAKE POWER REGULATOR TO BRACKET
N 000960012371 SCREW
BRAKE POWER REGULATOR TO BRACKET
M 12X115
808 N 910113012002 NUT
BRAKE POWER REGULATOR TO BRACKET
A 3604270253 SPACER TUBE
BRAKE POWER REGULATOR TO BRACKET
809 A 3855842021 GUIDE SIGN
LOAD-DEPENDING BRAKE
A 3855842221 GUIDE SIGN
LOAD-DEPENDING BRAKE
A 3855842121 GUIDE SIGN
LOAD-DEPENDING BRAKE
A 3875840055 ADHESIVE FOIL
A 0004314612 BRAKE PRESSURE REGULATOR
810 A 0014311212 BRAKE PRESSURE REGULATOR
812 N 007603018101 SEAL RING
TO 000 431 46 12,001 431 12 12
813 A 0014315493 SPRING
TO 000 431 46 12,001 431 12 12
814 A 0004311068 VALVE PART
TO 000 431 46 12,001 431 12 12
815 A 0029937201 SPRING
TO 000 431 46 12,001 431 12 12
816 A 0014315793 SPRING
TO 000 431 46 12,001 431 12 12
817 A 0004310465 VALVE
Repalced by: A 0004310265
817 A 0004310265 VALVE
Repalced by: A 3075530107
817 A 3075530107 VALVE
TO 000 431 46 12,001 431 12 12
818 A 0004314160 SEAL RING
TO 000 431 46 12,001 431 12 12
819 A 0004311049 GUIDE BUSHING
TO 000 431 46 12,001 431 12 12
820 A 0014315293 SPRING
TO 000 431 46 12,001 431 12 12
821 A 0004315786 CUP
TO 000 431 46 12,001 431 12 12
822 N 009045016101 SNAP RING
TO 000 431 46 12,001 431 12 12
823 N 006888004012 WOODRUFF KEY
TO 000 431 46 12,001 431 12 12
824 A 0004314060 SEAL RING
Repalced by: A 0129975448
824 A 0129975448 SEAL RING
TO 000 431 46 12,001 431 12 12
825 A 0079816310 NEEDLE BEARING
TO 000 431 46 12,001 431 12 12
826 N 000472010000 LOCK RING
TO 000 431 46 12,001 431 12 12
827 A 0004290695 AIR CLEANER
TO 000 431 46 12,001 431 12 12
828 N 000137004202 SPRING WASHER
TO 000 431 46 12,001 431 12 12
829 A 0014314293 SPRING
TO 000 431 46 12,001 431 12 12
830 A 0004317887 PROTECTIVE CAP
TO 000 431 46 12,001 431 12 12
831 A 0004318787 PROTECTIVE CAP
TO 000 431 46 12,001 431 12 12
831D A 0014304260 REPAIR KIT
TO 000 431 46 12,001 431 12 12
832 N 007603012405 SEAL RING
BRAKE POWER REGULATOR,CONNECTION:
"4"
832 N 007603012405 SEAL RING
BRAKE POWER REGULATOR,CONNECTION:
"4"
833 N 915036008202 HOLLOW SCREW
BRAKE POWER REGULATOR,CONNECTION:
"4"
834 A 0019972572 FITTING
BRAKE POWER REGULATOR,CONNECTION:
"4"
Repalced by: N 000000006446
834 N 000000006446 FITTING
BRAKE POWER REGULATOR,CONNECTION:
"4"
834B A 0024292444 VALVE
BRAKE POWER REGULATOR,CONNECTION:
"4"
A 0039974348 SEAL RING
A 0039974448 SEAL RING
A 0039974548 SEAL RING
A 0009971572 FITTING
Repalced by: A 0019972572
A 0019972572 FITTING
Repalced by: N 000000006446
N 000000006446 FITTING
N 000961012151 SCREW
BRAKE POWER REGULATOR TO SUPPORT
N 910113012002 NUT
BRAKE POWER REGULATOR TO SUPPORT
835 A 3404201329 LINE
FROM BRAKE POWER REGULATOR TO DISTRIBUTOR
800 MM
A 3404200729 LINE
FROM BRAKE POWER REGULATOR TO BRAKE HOSE
500 MM
837 A 0004290437 DISTRIBUTOR
837 A 0004294337 DISTRIBUTOR
838 N 000933008161 SCREW
Repalced by: N 304017008028
838 N 304017008028 SCREW
DISTRIBUTOR TO BRACKET
839 N 913004008004 NUT
Repalced by: N 913004008001
839 N 913004008001 NUT
DISTRIBUTOR TO BRACKET
840 A 1801550053 SPACER TUBE
A 3604292940 BRACKET
DISTRIBUTOR
N 000933008153 SCREW
Repalced by: N 304017008034
N 304017008034 SCREW
DISTRIBUTOR TO SIDE MEMBER
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
DISTRIBUTOR TO SIDE MEMBER
844 A 3404204729 LINE
FROM DISTRIBUTOR TO VALVE
4000 MM
A 3404205229 LINE
FROM DISTRIBUTOR TO VALVE
5000 MM
A 3404205529 LINE
FROM DISTRIBUTOR TO VALVE
5600 MM
A 3404205729 LINE
Repalced by: A 0004296201
A 0004296201 LINE
FROM DISTRIBUTOR TO VALVE
25000 MM
846 A 3404202129 LINE
FROM DISTRIBUTOR TO BRAKE HOSE
1200 MM
849 A 3124281040 BRACKET
Repalced by: A 3834280140
849 A 3834280140 BRACKET
BRAKE HOSE,REAR
851 N 000933008152 SCREW
Repalced by: N 304017008027
851 N 304017008027 SCREW
BRACKET TO RIGHT SIDE MEMBER
853 N 913004008004 NUT
Repalced by: N 913004008001
853 N 913004008001 NUT
BRACKET TO RIGHT SIDE MEMBER
855 A 0004286835 BRAKE HOSE
Repalced by: A 0024280535
855 A 0024280535 BRAKE HOSE
855 A 0014285535 BRAKE HOSE
A 0014283435 BRAKE HOSE
856 A 0004280473 BRACKET
Repalced by: A 6525040038
856 A 6525040038 MOUNTING PLATE
858 A 0004312231 TEST CONNECTION
REAR AXLE
A 0004316531 TEST CONNECTION
REAR AXLE
860 A 3814311940 BRACKET
TEST CONNECTION
860 A 3814311940 BRACKET
TEST CONNECTION
A 3854315040 BRACKET
TEST CONNECTION
A 3854315040 BRACKET
TEST CONNECTION
862 N 000933008153 SCREW
Repalced by: N 304017008034
862 N 304017008034 SCREW
TEST CONNECTION TO BRACKET
862 N 304017008034 SCREW
TEST CONNECTION TO BRACKET
N 000933008150 SCREW
Repalced by: N 304017008018
N 304017008018 SCREW
TEST CONNECTION TO BRACKET
N 304017008018 SCREW
TEST CONNECTION TO BRACKET
863 N 913004008004 NUT
Repalced by: N 913004008001
863 N 913004008001 NUT
TEST CONNECTION TO BRACKET
A 1801550053 SPACER TUBE
TEST CONNECTION TO BRACKET
A 1801550053 SPACER TUBE
TEST CONNECTION TO BRACKET
865 N 000933008152 SCREW
Repalced by: N 304017008027
865 N 304017008027 SCREW
BRACKET TO AXLE HOUSING
865 N 304017008027 SCREW
BRACKET TO AXLE HOUSING
N 000933008212 SCREW
Repalced by: N 304017008016
N 304017008016 SCREW
BRACKET TO AXLE HOUSING
N 304017008016 SCREW
BRACKET TO AXLE HOUSING
866 N 913004008004 NUT
Repalced by: N 913004008001
866 N 913004008001 NUT
866 N 913004008001 NUT
N 912004008102 LOCK WASHER
BRACKET TO AXLE HOUSING
N 912004008102 LOCK WASHER
BRACKET TO AXLE HOUSING
870 A 3404201929 LINE
FROM TEST CONNECTION TO LEFT WHEEL CYLINDER
1100 MM
870 A 3404201929 LINE
FROM TEST CONNECTION TO LEFT WHEEL CYLINDER
1100 MM
A 3404202429 LINE
FROM TEST CONNECTION TO LEFT WHEEL CYLINDER
1350 MM
A 3404202029 LINE
FROM TEST CONNECTION TO LEFT WHEEL CYLINDER
1150 MM
A 3604292940 BRACKET
A 3604292940 BRACKET
A 3854280740 BRACKET
A 3854280740 BRACKET
N 000933008152 SCREW
Repalced by: N 304017008027
N 304017008027 SCREW
BRACKET TO AXLE HOUSING
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
BRACKET TO AXLE HOUSING
N 913004008001 NUT
BRACKET TO AXLE HOUSING
N 000933008212 SCREW
Repalced by: N 304017008016
N 304017008016 SCREW
BRACKET TO AXLE HOUSING
N 912004008102 LOCK WASHER
BRACKET TO AXLE HOUSING
N 912004008102 LOCK WASHER
BRACKET TO AXLE HOUSING
873 A 3404201129 LINE
FROM TEST CONNECTION TO RIGHT WHEEL CYLINDER
700 MM
873 A 3404201129 LINE
FROM TEST CONNECTION TO RIGHT WHEEL CYLINDER
700 MM
A 3404201329 LINE
FROM TEST CONNECTION TO RIGHT WHEEL CYLINDER
800 MM
A 3404201029 LINE
FROM TEST CONNECTION TO RIGHT WHEEL CYLINDER
650 MM
A 3604300143 CLAMP
Repalced by: N 916016008200
N 916016008200 CLAMP
Repalced by: N 000000000319
N 000000000319 CLAMP
N 000933006121 SCREW
Repalced by: N 304017006020
N 304017006020 SCREW
N 913004006002 NUT
Repalced by: N 913004006001
N 913004006001 NUT
A 0009905563 HOLLOW SCREW
Repalced by: N 915047012100
N 915047012100 HOLLOW SCREW
LEFT SPRING-LOAD ACCUMULATOR
N 007603016015 SEAL RING
LEFT SPRING-LOAD ACCUMULATOR
883 A 0009904770 T-FITTING
RIGHT SPRING-LOAD ACCUMULATOR
N 080705016003 NUT
RIGHT SPRING-LOAD ACCUMULATOR
A 0004290927 THRUST RING
RIGHT SPRING-LOAD ACCUMULATOR
A 0029971640 SEAL RING
Repalced by: A 0009971548
A 0009971548 SEAL RING
RIGHT SPRING-LOAD ACCUMULATOR
885 A 0004312031 TEST CONNECTION
RIGHT SPRING-LOAD ACCUMULATOR
VOSS
885 A 0004314831 TEST CONNECTION
RIGHT SPRING-LOAD ACCUMULATOR
WABCO
885 A 0004316131 TEST CONNECTION
RIGHT SPRING-LOAD ACCUMULATOR
WIRA
A 0004314531 TEST CONNECTION
RIGHT SPRING-LOAD ACCUMULATOR
SCHAEFER
A 0009979486 PROTECTIVE CAP
888 A 0004305581 VALVE
HAND BRAKE VALVE
WABCO
A 0004306681 VALVE
HAND BRAKE VALVE
KNORR
888 A 0004305681 VALVE
HAND BRAKE VALVE
WABCO
888 A 0004306781 VALVE
HAND BRAKE VALVE
KNORR
890 A 0005868043 REPAIR KIT
Repalced by: A 0004305760
890 A 0004305760 REPAIR KIT
TO 000 430 55 81,WABCO
A 0005868143 REPAIR KIT
Repalced by: A 0004305860
A 0004305860 REPAIR KIT
TO 000 430 56 81,WABCO
A 0025866243 REPAIR KIT
Repalced by: A 0034303881
A 0034303881 REPAIR KIT
TO 000 430 66 81,000 430 67 81,KNORR
N 000965006003 SCREW
HAND BRAKE VALVE TO CAB
N 000965006003 SCREW
HAND BRAKE VALVE TO BRACKET
N 000965006000 SCREW
HAND BRAKE VALVE TO CAB
N 000965006000 SCREW
HAND BRAKE VALVE TO CAB
A 3854318140 BRACKET
HAND BRAKE VALVE
N 000965006058 SCREW
HAND BRAKE VALVE TO BRACKET
N 913004006003 NUT
Repalced by: N 910113006001
N 910113006001 NUT
HAND BRAKE VALVE TO BRACKET
A 3874310684 SHIM
HAND BRAKE VALVE TO CAB
A 3874310684 SHIM
HAND BRAKE VALVE TO CAB
N 000933006121 SCREW
Repalced by: N 304017006020
N 304017006020 SCREW
BRACKET TO CAB FLOOR
N 913004006003 NUT
Repalced by: N 910113006001
N 910113006001 NUT
BRACKET TO CAB FLOOR
A 3956190211 PLATE
BRACKET TO CAB FLOOR
A 3854200944 PROTECTIVE PLATE
BRACKET TO CAB FLOOR
900 N 915011008103 HOLLOW SCREW
Repalced by: N 915036010100
900 N 915036010204 HOLLOW SCREW
Repalced by: N 915036010108
900 N 915036010108 HOLLOW SCREW
LINE TO HAND BRAKE VALVE
903 N 007603014405 SEAL RING
LINE TO HAND BRAKE VALVE
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
