Transporto priemonė: 1619 L; VIN numerio dalis: 385227
Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|

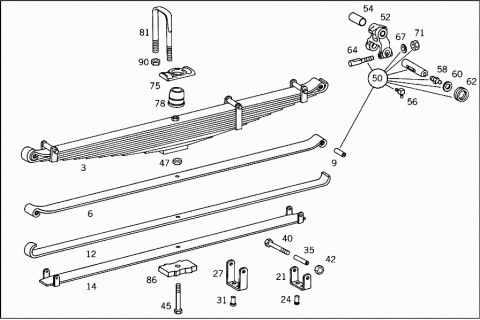

| 003 | A 3853202002 | FRONT SPRING |
| 11-LEAF | ||
| 003 | A 6173200802 | FRONT SPRING |
| 13-LEAF | ||
| 006 | A 3853202194 | SPRING LEAF |
| Repalced by: A 3853203194 | ||
| 006 | A 3853203194 | SPRING LEAF |
| NO.1 | ||
| 006 | A 6173200794 | SPRING LEAF |
| NO. 1 | ||
| 009 | A 3523220050 | BUSHING |
| 009 | A 3853220050 | BUSHING |
| 012 | A 3853212012 | SPRING LEAF |
| Repalced by: A 3853212712 | ||
| 012 | A 3853212712 | SPRING LEAF |
| NO.2 | ||
| 012 | A 6173210812 | SPRING LEAF |
| NO. 2 | ||
| 014 | A 3853202294 | SPRING LEAF |
| NO.3 | ||
| 021 | A 0003219433 | SPRING CLAMP |
| Repalced by: A 6173210333 | ||
| 021 | A 3223240233 | SPRING CLAMP |
| Repalced by: A 6173210333 | ||
| 021 | A 6173210333 | SPRING CLAMP |
| 024 | N 910006008024 | RIVET |
| A 6173210813 | SPRING LEAF | |
| NO. 3 | ||
| A 3853211814 | SPRING LEAF | |
| NO.4 | ||
| A 6173200894 | SPRING LEAF | |
| NO. 4 | ||
| A 0003219433 | SPRING CLAMP | |
| Repalced by: A 6173210333 | ||
| A 3223240233 | SPRING CLAMP | |
| Repalced by: A 6173210333 | ||
| A 6173210333 | SPRING CLAMP | |
| N 910006008025 | RIVET | |
| 027 | A 0013211433 | SPRING CLAMP |
| Repalced by: A 0003219433 | ||
| 027 | A 0003219433 | SPRING CLAMP |
| Repalced by: A 6173210333 | ||
| 027 | A 3223240233 | SPRING CLAMP |
| Repalced by: A 6173210333 | ||
| 027 | A 6173210333 | SPRING CLAMP |
| TO LEAF NO.9 | ||
| 027 | A 3223240233 | SPRING CLAMP |
| Repalced by: A 6173210333 | ||
| 027 | A 6173210333 | SPRING CLAMP |
| AT SPRING LEAF NO.11 | ||
| 031 | N 910006008024 | RIVET |
| 035 | A 0003212753 | SPACER TUBE |
| 040 | N 000960012216 | SCREW |
| Repalced by: N 308765012007 | ||
| 040 | N 308765012007 | SCREW |
| 042 | N 910113012002 | NUT |
| A 3553220084 | SHIM | |
| 045 | N 004626012171 | SPRING BOLT |
| 045 | N 004626012165 | SPRING BOLT |
| 047 | N 913004012007 | NUT |
| Repalced by: N 910113012005 | ||
| 047 | N 910113012005 | NUT |
| A 3853220030 | SHACKLE PIN | |
| Repalced by: A 3855860332 | ||
| A 3855860032 | REPAIR KIT | |
| Repalced by: A 3855860332 | ||
| 050 | A 3855860332 | REPAIR KIT |
| Repalced by: A 3853200165 | ||
| 050 | A 3853200165 | SHACKLE PIN |
| PARTS KIT | ||
| 052 | A 3523200063 | SHACKLE |
| Repalced by: A 6173200163 | ||
| 052 | A 6173200163 | SHACKLE |
| Repalced by: A 6173250120 | ||
| 052 | A 6173250120 | SHACKLE |
| LEAF SPRING | ||
| 054 | A 3523220050 | BUSHING |
| 054 | A 3853220050 | BUSHING |
| N 071412010100 | GREASE NIPPLE | |
| 056 | N 071412010300 | GREASE NIPPLE |
| 058 | N 071412010100 | GREASE NIPPLE |
| 060 | A 3523230376 | WASHER |
| SPRING SEAT | ||
| 4.00 MM | ||
| 060 | A 3523230476 | WASHER |
| SPRING SEAT | ||
| 4.20 MM | ||
| 060 | A 3523230576 | WASHER |
| SPRING SEAT | ||
| 4.30 MM | ||
| 062 | A 0029973140 | SEAL RING |
| SPRING BRACKET | ||
| 064 | A 3529900337 | BOLT |
| SPRING BRACKET | ||
| 067 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 067 | N 000125010532 | WASHER |
| SPRING BRACKET | ||
| 071 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 071 | N 910113010000 | NUT |
| SPRING BRACKET | ||
| 075 | A 3853220031 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 078 | A 3833240008 | HELPER SPRING |
| FRONT SPRINGS TO FRONT AXLE | ||
| 081 | A 3283510025 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 250 MM | ||
| 081 | A 3523510425 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 220 MM | ||
| 086 | A 3853220584 | SHIM |
| FRONT SPRINGS TO FRONT AXLE | ||
| 090 | N 000934018006 | NUT |
| FRONT SPRINGS TO FRONT AXLE | ||

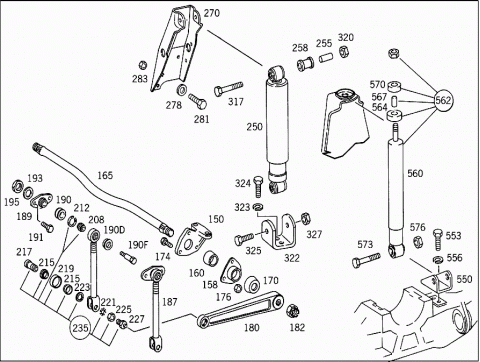

| 150 | A 3553230163 | BEARING BRACKET |
| TORSION BAR,FRONT | ||
| 158 | A 3523230283 | HOUSING |
| TORSION BAR,FRONT | ||
| 160 | A 3603230085 | RUBBER MOUNTING |
| TORSION BAR,FRONT | ||
| 165 | A 3603230065 | TORSION BAR |
| FRONT AXLE | ||
| 170 | A 3603230151 | SPACER RING |
| TORSION BAR | ||
| 174 | N 000933010145 | SCREW |
| HOUSING TO BEARING BRACKET | ||
| 176 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 176 | N 910113010000 | NUT |
| HOUSING TO BEARING BRACKET | ||
| 180 | A 3603230869 | LEVER |
| TORSION BAR,FRONT | ||
| 182 | N 000937030000 | NUT |
| LEVER TO TORSION BAR | ||
| N 000094006317 | COTTER PIN | |
| LEVER TO TORSION BAR | ||
| A 3813200589 | ROD | |
| Repalced by: A 6173200089 | ||
| A 3813200789 | ROD | |
| Repalced by: A 6173200089 | ||
| 187 | A 6173200189 | ROD |
| Repalced by: A 6173200089 | ||
| 187 | A 6173200089 | ROD |
| TORSION BAR,FRONT | ||
| A 0003300085 | BOOT | |
| Repalced by: A 0004631396 | ||
| A 0004631396 | BOOT | |
| TO 381 320 07 89,617 320 00 89 | ||
| 189 | A 3813230263 | BEARING BRACKET |
| Repalced by: A 6173200089 | ||
| 189 | A 6173200089 | ROD |
| TO 381 320 05 89 | ||
| 190 | A 3813230060 | SEAL RING |
| TO 381 320 05 89 | ||
| 190D | A 3813230158 | SEAL HOLDER |
| TO 381 320 05 89 | ||
| 190F | A 3813230171 | SCREW |
| TO 381 320 05 89 | ||
| 191 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 191 | N 308676012026 | SCREW |
| ROD TO FRAME | ||
| M 12X35 | ||
| N 000961012179 | SCREW | |
| ROD TO FRAME | ||
| M 12X38 | ||
| 193 | N 000125013008 | WASHER |
| N 000125015013 | WASHER | |
| Repalced by: N 000125015019 | ||
| N 000125015019 | WASHER | |
| ROD TO FRAME | ||
| N 006796016102 | CONICAL SPRING WASHER | |
| ROD TO FRAME | ||
| 195 | N 910113012002 | NUT |
| ROD TO FRAME | ||
| 195 | N 910113012002 | NUT |
| ROD TO FRAME | ||
| N 913004014002 | NUT | |
| Repalced by: N 910113014001 | ||
| N 910113014001 | NUT | |
| ROD TO FRAME | ||
| N 913004016004 | NUT | |
| Repalced by: N 910113016002 | ||
| N 910113016002 | NUT | |
| ROD TO FRAME | ||
| 208 | A 0009810731 | JOINT BEARING |
| Repalced by: A 0009817231 | ||
| 208 | A 0009810931 | JOINT BEARING |
| Repalced by: A 0009817331 | ||
| 208 | A 0009817331 | JOINT BEARING |
| Repalced by: A 0009817231 | ||
| 208 | A 0009817231 | JOINT BEARING |
| Repalced by: A 0019814631 | ||
| 208 | A 0019814631 | JOINT BEARING |
| A 0019814831 | JOINT BEARING | |
| 212 | N 007993035200 | SNAP RING |
| 215 | A 3603230460 | SEAL RING |
| ROD TO LEVER | ||
| 217 | A 3603230274 | PIN |
| Repalced by: A 3605860032 | ||
| 219 | A 3603230153 | SPACER TUBE |
| ROD TO LEVER | ||
| 221 | N 006797021201 | TOOTHED WASHER |
| ROD TO LEVER | ||
| 223 | N 006797021101 | TOOTHED WASHER |
| ROD TO LEVER | ||
| 225 | N 000936020010 | NUT |
| ROD TO LEVER | ||
| 227 | N 071412010100 | GREASE NIPPLE |
| PIN | ||
| 235 | A 3605860032 | REPAIR KIT |
| Repalced by: A 3603200041 | ||
| 235 | A 3603200041 | REPAIR KIT |
| TORSION BAR,FRONT | ||
| 250 | A 0023236100 | SHOCK ABSORBER |
| Repalced by: A 0043236600 | ||
| 250 | A 0043236600 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 250 | A 0033230000 | SHOCK ABSORBER |
| Repalced by: A 0043235400 | ||
| 250 | A 0043235400 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 255 | A 0003233150 | SPACER RING |
| TO 002 323 61 00,004 323 66 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 003 323 00 00 | ||
| 255 | A 0003235250 | BUSHING |
| TO 004 323 54 00 | ||
| 258 | A 0003232444 | RUBBER BUFFER |
| Repalced by: A 0003232885 | ||
| 258 | A 0003232885 | RUBBER MOUNTING |
| TO 002 323 61 00,004 323 66 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 003 323 00 00 | ||
| 258 | A 0003233044 | RUBBER BUFFER |
| Repalced by: A 0003233144 | ||
| 258 | A 0003233144 | RUBBER BUFFER |
| TO 004 323 54 00 | ||
| Repalced by: A 0003238085 | ||
| 258 | A 0003238085 | RUBBER MOUNTING |
| TO 004 323 54 00 | ||
| 270 | A 3833200278 | CONSOLE |
| Repalced by: A 6173200078 | ||
| 270 | A 6173200078 | CONSOLE |
| LEFT TOP | ||
| A 3833200378 | CONSOLE | |
| Repalced by: A 6173200178 | ||
| A 6173200178 | CONSOLE | |
| RIGHT TOP | ||
| 278 | N 007349013003 | WASHER |
| Repalced by: N 007349013005 | ||
| 278 | N 007349013005 | WASHER |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| 281 | N 000961012122 | SCREW |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| M 12X40 | ||
| 281 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 281 | N 308676012012 | HEXAGON HEAD BOLT |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| M12X1.5X25 | ||
| 283 | N 910113012002 | NUT |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| 317 | N 000960016244 | SCREW |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 320 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 320 | N 910113016002 | NUT |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 322 | A 3833231863 | BEARING BRACKET |
| BOTTOM | ||
| 323 | N 912004012101 | LOCK WASHER |
| BEARING BRACKET TO FRONT AXLE | ||
| 324 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 324 | N 308676012012 | HEXAGON HEAD BOLT |
| BEARING BRACKET TO FRONT AXLE | ||
| 325 | N 000960016164 | SCREW |
| Repalced by: N 000960016250 | ||
| 325 | N 000960016250 | SCREW |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 327 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 327 | N 910113016002 | NUT |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 330 | A 3833281941 | SUPPORT |
| AIR SPRING BELLOWS,LEFT | ||
| 330 | A 3833281941 | SUPPORT |
| AIR SPRING BELLOWS,LEFT | ||
| A 3833282041 | SUPPORT | |
| AIR SPRING BELLOWS,LEFT | ||
| A 3833282041 | SUPPORT | |
| AIR SPRING BELLOWS,LEFT | ||
| A 3833281841 | SUPPORT | |
| AIR SPRING BELLOWS,RIGHT | ||
| A 3833281841 | SUPPORT | |
| AIR SPRING BELLOWS,RIGHT | ||
| A 3833282141 | SUPPORT | |
| AIR SPRING BELLOWS,RIGHT | ||
| A 3833282141 | SUPPORT | |
| 333 | A 0009816131 | JOINT BEARING |
| TORSION BAR,REAR | ||
| 333 | A 0009817431 | JOINT BEARING |
| TORSION BAR,REAR | ||
| 336 | N 000472055000 | LOCK RING |
| TORSION BAR,REAR | ||
| 337 | N 071412008302 | GREASE NIPPLE |
| TORSION BAR,REAR | ||
| 339 | A 3833280084 | SHIM |
| AIR-SPRING-BELLOWS SUPPORT | ||
| 339 | A 3833280084 | SHIM |
| AIR-SPRING-BELLOWS SUPPORT | ||
| 339 | A 3833280184 | SHIM |
| AIR-SPRING-BELLOWS SUPPORT | ||
| 339 | A 3833280184 | SHIM |
| AIR-SPRING-BELLOWS SUPPORT | ||
| 341 | A 3873510325 | U-BOLT |
| AIR-SPRING-BELLOWS SUPPORT TO REAR AXLE | ||
| 343 | N 913004024004 | NUT |
| AIR-SPRING-BELLOWS SUPPORT TO REAR AXLE | ||

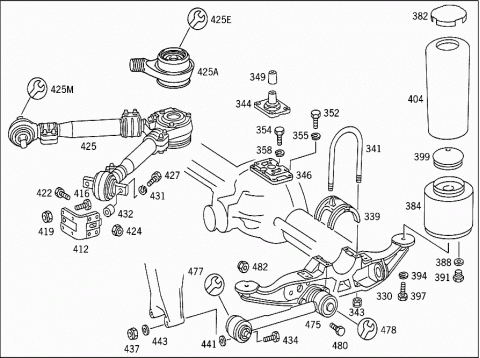

| 344 | A 3839910120 | BALL PIVOT |
| WISHBONE CONTROL ARM | ||
| 344 | A 3839910120 | BALL PIVOT |

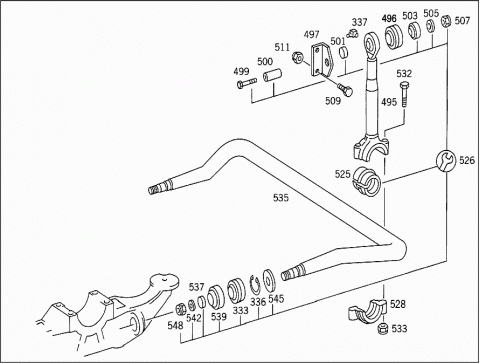

| WISHBONE CONTROL ARM | ||
| 344 | A 3839910220 | BALL PIVOT |
| WISHBONE CONTROL ARM | ||
| N 000961014063 | SCREW | |
| Repalced by: A 9429901304 | ||
| A 9429901304 | SCREW | |
| BALL PIVOT | ||
| A 9429901304 | SCREW | |
| BALL PIVOT | ||
| N 000961014063 | SCREW | |
| Repalced by: A 9429901304 | ||
| A 9429901304 | SCREW | |
| CONSOLE TO FRAME | ||
| M14X40 | ||
| N 912004014100 | LOCK WASHER | |
| BALL JOINT | ||
| N 912004014100 | LOCK WASHER | |
| CONSOLE TO FRAME | ||
| 346 | A 3853520084 | SHIM |
| UPPER CONTROL ARM | ||
| 346 | A 3853520384 | SHIM |
| UPPER CONTROL ARM | ||
| 346 | A 3853520384 | SHIM |
| UPPER CONTROL ARM | ||
| 349 | A 3859910364 | SHEAR BUSHING |
| SHIM TO REAR AXLE | ||
| 349 | A 3859910364 | SHEAR BUSHING |
| SHIM TO REAR AXLE | ||
| 352 | N 000961016036 | SCREW |
| Repalced by: N 308676016013 | ||
| 352 | N 308676016013 | SCREW |
| SHIM TO REAR AXLE | ||
| M16X40 | ||
| 352 | N 308676016013 | SCREW |
| SHIM TO REAR AXLE | ||
| M16X40 | ||
| 352 | N 308676016013 | SCREW |
| SHIM TO REAR AXLE | ||
| M16X40 | ||
| 354 | N 000961020035 | SCREW |
| SHIM TO REAR AXLE | ||
| M 20X40 | ||
| 354 | N 000961020035 | SCREW |
| SHIM TO REAR AXLE | ||
| M 20X40 | ||
| 355 | N 912004016101 | LOCK WASHER |
| SHIM TO REAR AXLE | ||
| 355 | N 912004016101 | LOCK WASHER |
| SHIM TO REAR AXLE | ||
| 355 | N 912004016101 | LOCK WASHER |
| SHIM TO REAR AXLE | ||
| 358 | N 007980020002 | LOCK WASHER |
| SHIM TO REAR AXLE | ||
| 358 | N 007980020002 | LOCK WASHER |
| SHIM TO REAR AXLE | ||
| 382 | A 3833200335 | PLATE |
| AIR SPRING BELLOWS | ||
| 384 | A 3873200518 | PISTON |
| Repalced by: A 3873200818 | ||
| 384 | A 3873200818 | PISTON |
| REAR AXLE | ||
| 388 | N 007603012405 | SEAL RING |
| 391 | A 0004290456 | SCREW PLUG |
| 394 | N 912004016101 | LOCK WASHER |
| PISTON TO AIR SPRING BELLOWS | ||
| 397 | N 000960016066 | SCREW |
| PISTON TO AIR SPRING BELLOWS | ||
| 399 | A 3603280039 | RUBBER BUFFER |
| (RUBBER STOP),EMERGENCY RUNNING | ||
| 404 | A 3873280001 | AIR SPRING BELLOWS |
| PNEUMATIC SUSPENSION | ||
| 404 | A 3873280101 | AIR SPRING BELLOWS |
| PNEUMATIC SUSPENSION | ||
| N 308675022001 | NUT | |
| PISTON TO FRAME | ||
| A 3833270053 | SPACER TUBE | |
| PISTON TO FRAME | ||
| 412 | A 3853520441 | BEARING BODY |
| WISHBONE CONTROL ARM | ||
| 412 | A 3853520441 | BEARING BODY |
| WISHBONE CONTROL ARM | ||
| A 3853520741 | BEARING BODY | |
| RIGHT | ||
| A 3853520641 | BEARING BODY | |
| LEFT | ||
| 416 | N 000960014190 | SCREW |
| BEARING BODY TO CROSS MEMBER | ||
| M14X60 | ||
| 416 | N 000960014190 | SCREW |
| BEARING BODY TO CROSS MEMBER | ||
| M14X60 | ||
| 416 | N 000960014190 | SCREW |
| BEARING BODY TO CROSS MEMBER | ||
| M14X60 | ||
| 419 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 419 | N 910113014000 | NUT |
| BEARING BODY TO CROSS MEMBER | ||
| 419 | N 910113014000 | NUT |
| BEARING BODY TO CROSS MEMBER | ||
| 419 | N 910113014000 | NUT |
| BEARING BODY TO CROSS MEMBER | ||
| N 000960010038 | SCREW | |
| BEARING BODY TO CROSS MEMBER | ||
| M10X60 | ||
| N 913004010014 | NUT | |
| Repalced by: N 910113010003 | ||
| N 910113010003 | NUT | |
| BEARING BODY TO CROSS MEMBER | ||
| N 000960018082 | SCREW | |
| BEARING BODY TO SIDE MEMBER | ||
| M18X135 | ||
| 422 | N 000960018111 | SCREW |
| Repalced by: N 308676018010 | ||
| 422 | N 308676018010 | SCREW |
| BEARING BODY TO SIDE MEMBER | ||
| M 18X70 | ||
| 422 | N 308676018010 | SCREW |
| BEARING BODY TO SIDE MEMBER | ||
| M 18X70 | ||
| 422 | N 308676018010 | SCREW |
| BEARING BODY TO SIDE MEMBER | ||
| M 18X70 | ||
| 422 | N 308676018010 | SCREW |
| BEARING BODY TO SIDE MEMBER | ||
| M 18X70 | ||
| N 000960018133 | SCREW | |
| BEARING BODY TO SIDE MEMBER | ||
| M18X75 | ||
| 424 | N 913004018004 | NUT |
| BEARING BODY TO SIDE MEMBER | ||
| 424 | N 913004018004 | NUT |
| BEARING BODY TO SIDE MEMBER | ||
| 424 | N 913004018004 | NUT |
| BEARING BODY TO SIDE MEMBER | ||
| 425 | A 3933505305 | CONTROL ARM |
| Repalced by: A 3933505505 | ||
| 425 | A 3933505505 | CONTROL ARM |
| Repalced by: A 6583500005 | ||
| 425 | A 6583500005 | CONTROL ARM |
| Repalced by: A 6583500205 | ||
| 425 | A 6583500205 | CONTROL ARM |
| TRIANGULAR | ||
| LEMFOERDER | ||
| 425 | A 3933505205 | CONTROL ARM |
| Repalced by: A 3933505405 | ||
| 425 | A 3933505405 | CONTROL ARM |
| Repalced by: A 6553500305 | ||
| 425 | A 6553500305 | CONTROL ARM |
| Repalced by: A 6583500005 | ||
| 425A | A 0003500313 | JOINT |
| (CENTRAL JOINT) | ||
| TO 393 350 53 05;393 350 55 05; | ||
| 425A | A 0003500713 | JOINT |
| (CENTRAL JOINT) | ||
| TO 393 350 54 05;LEMFOERDER | ||
| 425A | A 0003500813 | JOINT |
| (CENTRAL JOINT) | ||
| TO 658 350 00 05;EHRENREICH | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| EHRENREICH | ||
| 425A | A 0003501213 | JOINT |
| (CENTRAL JOINT) | ||
| TO 393 350 54 05;655 350 03 05; | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| LEMFOERDER | ||
| A 0003384445 | CLAMP | |
| 58 | ||
| 425E | A 0003500605 | CONTROL ARM |
| CENTRAL JOINT;WITH BALL PIVOT | ||
| TO 655 350 03 05;LEMFOERDER | ||
| 425E | A 0005860135 | REPAIR KIT |
| CENTRAL JOINT;WITH BALL PIVOT | ||
| TO 393 350 52 05;393 350 54 05; | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| LEMFOERDER | ||
| 425E | A 0003500405 | REPAIR KIT |
| CENTRAL JOINT;WITH BALL PIVOT | ||
| TO 658 350 00 05;EHRENREICH | ||
| 425E | A 0005861933 | REPAIR KIT |
| Repalced by: A 0005861833 | ||
| 425E | A 0005861833 | REPAIR KIT |
| Repalced by: A 0003500405 | ||
| 425E | A 0003500405 | REPAIR KIT |
| CENTRAL JOINT;WITH BALL PIVOT | ||
| TO 393 350 53 05;393 350 55 05; | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| EHRENREICH | ||
| 425M | A 0003500213 | JOINT |
| WITH BALL PIVOT | ||
| TO 393 350 52 05;393 350 54 05; | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 655 350 03 05;LEMFOERDER | ||
| 425M | A 0005861433 | REPAIR KIT |
| WITH BALL PIVOT | ||
| TO 393 350 53 05;393 350 55 05; | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 658 350 00 05;EHRENREICH | ||
| 427 | N 000960020143 | SCREW |
| CONTROL ARM TO BEARING BRACKET | ||
| M 20X100 | ||
| 427 | N 000960020143 | SCREW |
| CONTROL ARM TO BEARING BRACKET | ||
| M 20X100 | ||
| 427 | N 000960020143 | SCREW |
| CONTROL ARM TO BEARING BRACKET | ||
| M 20X100 | ||
| 427 | N 000960020037 | SCREW |
| CONTROL ARM TO BEARING BRACKET | ||
| M 20X110 | ||
| 427 | N 000960020157 | SCREW |
| Repalced by: N 308676020005 | ||
| 427 | N 308676020005 | SCREW |
| Repalced by: N 308676020014 | ||
| 427 | N 308676020014 | SCREW |
| Repalced by: N 308676020025 | ||
| 427 | N 308676020025 | SCREW |
| CONTROL ARM TO BEARING BRACKET | ||
| M 20X80 | ||
| 427 | N 000960020032 | SCREW |
| Repalced by: N 308765020012 | ||
| 427 | N 308765020012 | SCREW |
| CONTROL ARM TO BEARING BRACKET | ||
| M 20X90 | ||
| 431 | N 912004020100 | LOCK WASHER |
| CONTROL ARM TO BEARING BRACKET | ||
| N 000137020202 | SPRING WASHER | |
| Repalced by: N 000137020205 | ||
| N 000137020205 | SPRING WASHER | |
| CONTROL ARM TO BEARING BRACKET | ||
| 432 | A 3833270153 | SPACER TUBE |
| CONTROL ARM TO BEARING BRACKET | ||
| 432 | A 3833270153 | SPACER TUBE |
| Repalced by: A 6173520053 | ||
| 432 | A 6173520053 | SPACER TUBE |
| CONTROL ARM TO BEARING BRACKET | ||
| 434 | N 000960020093 | SCREW |
| Repalced by: N 308765020014 | ||
| 434 | N 308765020014 | HEXAGON HEAD BOLT |
| LONGITUDINAL CONTROL ARM TO BEARING BRACKET | ||
| 437 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 437 | N 913004020003 | NUT |
| LONGITUDINAL CONTROL ARM TO BEARING BRACKET | ||
| A 3933280152 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.50 MM | ||
| 441 | A 3933280252 | SPACER WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| 441 | A 3933280352 | SPACER WASHER |
| AS REQUIRED | ||
| 2.00 MM | ||
| A 3933280452 | SPACER WASHER | |
| AS REQUIRED | ||
| 4.00 MM | ||
| 443 | N 000125021006 | WASHER |
| LONGITUDINAL CONTROL ARM TO BEARING BRACKET | ||
| 475 | A 3813500606 | CONTROL ARM |
| Repalced by: A 6533500106 | ||
| 475 | A 6533500106 | CONTROL ARM |
| Repalced by: A 6523500306 | ||
| 475 | A 6523500306 | CONTROL ARM |
| BOTTOM | ||
| 477 | A 0003500213 | REPAIR KIT |
| WITH BALL PIVOT | ||
| TO 381 350 06 06 | ||
| 477 | A 0003500505 | REPAIR KIT |
| Repalced by: A 0003500305 | ||
| 477 | A 0003500305 | REPAIR KIT |
| Repalced by: A 0003500213 | ||
| 477 | A 0003500213 | REPAIR KIT |
| WITH BALL PIVOT | ||
| TO 653 350 01 06 | ||
| 478 | A 0005861035 | REPAIR KIT |
| WITH SPHERICAL PIECE | ||
| TO 381 350 06 06 | ||
| 478 | A 0003500205 | REPAIR KIT |
| WITH SPHERICAL PIECE | ||
| TO 653 350 01 06 | ||
| 480 | N 000961020027 | SCREW |
| CONTROL ARM TO SUPPORT | ||
| 482 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 482 | N 913004020003 | NUT |
| CONTROL ARM TO SUPPORT | ||
| 495 | A 3833200389 | ROD |
| TORSION BAR TO FRAME | ||
| 496 | A 0009816131 | JOINT BEARING |
| ROD TO FRAME | ||
| 496 | A 0009817431 | JOINT BEARING |
| ROD TO FRAME | ||
| 497 | A 3833260940 | BRACKET |
| TORSION BAR TO FRAME | ||
| A 3933260174 | PIN | |
| Repalced by: N 000960016247 | ||
| 499 | N 000960016285 | SCREW |
| ROD TO BRACKET | ||
| M 16X115 | ||
| 500 | A 3853230453 | SPACER TUBE |
| ROD TO BRACKET | ||
| 501 | A 3853230353 | SPACER TUBE |
| ROD TO BRACKET | ||
| 503 | A 3933230160 | SEAL RING |
| Repalced by: A 3803230260 | ||
| 503 | A 3803230260 | SEAL RING |
| ROD TO BRACKET | ||
| 505 | N 000125023006 | WASHER |
| ROD TO BRACKET | ||
| 505 | N 007349017002 | WASHER |
| ROD TO BRACKET | ||
| Repalced by: N 007349017003 | ||
| 505 | N 007349017003 | WASHER |
| ROD TO BRACKET | ||
| 507 | N 913004022002 | NUT |
| ROD TO BRACKET | ||
| 507 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 507 | N 910113016001 | NUT |
| ROD TO BRACKET | ||
| 509 | N 000961018020 | SCREW |
| BRACKET TO FRAME | ||
| 511 | N 913004018004 | NUT |
| BRACKET TO FRAME | ||
| 525 | A 3933260281 | RUBBER MOUNTING |
| TORSION BAR | ||
| 526 | A 3805860032 | REPAIR KIT |
| Repalced by: A 3803200028 | ||
| 526 | A 3803200028 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 528 | A 3933250419 | SPRING SEAT |
| ROD TO TORSION BAR | ||
| 532 | N 000960016269 | SCREW |
| Repalced by: N 308765016010 | ||
| 532 | N 308765016010 | SCREW |
| ROD TO TORSION BAR | ||
| 533 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 533 | N 910113016001 | NUT |
| ROD TO TORSION BAR | ||
| 535 | A 3833260265 | TORSION BAR |
| REAR AXLE | ||
| 537 | A 3853230353 | SPACER TUBE |
| TORSION BAR TO AIR-SPRING-BELLOWS SUPPORT | ||
| 539 | A 3933230160 | SEAL RING |
| Repalced by: A 3803230160 | ||
| 539 | A 3803230160 | SEAL RING |
| TORSION BAR TO AIR-SPRING-BELLOWS SUPPORT | ||
| 542 | N 000125036003 | WASHER |
| TORSION BAR TO AIR-SPRING-BELLOWS SUPPORT | ||
| 545 | A 3939900040 | WASHER |
| TORSION BAR TO AIR-SPRING-BELLOWS SUPPORT | ||
| 548 | N 913004022002 | NUT |
| TORSION BAR TO AIR-SPRING-BELLOWS SUPPORT | ||
| N 000961016039 | SCREW | |
| TORSION BAR TO AIR-SPRING-BELLOWS SUPPORT | ||
| N 000439016206 | NUT | |
| Repalced by: N 308675016001 | ||
| N 308675016001 | NUT | |
| AIR-SPRING-BELLOWS SUPPORT BRACING | ||
| 550 | A 3833260063 | BEARING BRACKET |
| SHOCK ABSORBER | ||
| 553 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 553 | N 308676012012 | HEXAGON HEAD BOLT |
| BEARING BRACKET TO AIR-SPRING-BELLOWS SUPPORT | ||
| 556 | N 912004012100 | LOCK WASHER |
| BEARING BRACKET TO AIR-SPRING-BELLOWS SUPPORT | ||
| 560 | A 0023265200 | SHOCK ABSORBER |
| Repalced by: A 3853260000 | ||
| 560 | A 0023232500 | SHOCK ABSORBER |
| Repalced by: A 3853260000 | ||
| A 0003232550 | BUSHING | |
| Repalced by: A 0003233150 | ||
| A 0003233150 | SPACER RING | |
| A 0003232444 | RUBBER BUFFER | |
| Repalced by: A 0003232885 | ||
| A 0003232885 | RUBBER MOUNTING | |
| 562 | A 3853260000 | SHOCK ABSORBER |
| (PARTS KIT) | ||
| 564 | A 3543260068 | RUBBER BUFFER |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 567 | A 3523230253 | SPACER TUBE |
| Repalced by: A 3179911240 | ||
| 567 | A 3179911240 | SPACER TUBE |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 570 | A 3173230344 | RUBBER BUFFER |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 573 | A 3609902401 | SCREW |
| Repalced by: A 3529903501 | ||
| 573 | A 3529903501 | SCREW |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 576 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 576 | N 910113016002 | NUT |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||

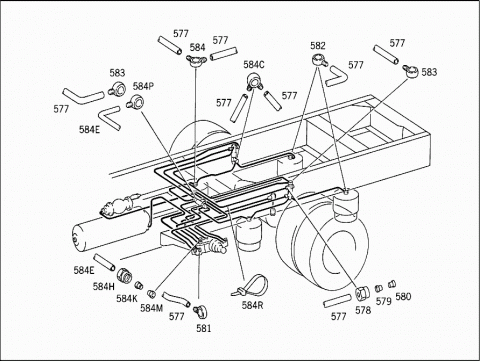

| 577 | A 0089979082 | HOSE |
| SHIFT VALVE,TWO-WAY VALVE,TEST CONNECTION | ||
| 6X8MM | ||
| A 0039978972 | FITTING | |
| Repalced by: A 0029905971 | ||
| A 0029905971 | FITTING | |
| (PARTS KIT),LINE RUPTURE | ||
| 578 | N 915017008100 | UNION NUT |
| SHIFT VALVE,TWO-WAY VALVE,TEST CONNECTION | ||
| 579 | N 003861008005 | GLAND |
| SHIFT VALVE,TWO-WAY VALVE,TEST CONNECTION | ||
| 580 | A 0007630043 | SLEEVE |
| Repalced by: N 915062006000 | ||
| 580 | N 915062006000 | SLEEVE |
| SHIFT VALVE,TWO-WAY VALVE,TEST CONNECTION | ||
| 581 | N 915052006014 | BANJO UNION |
| SHIFT VALVE,TWO-WAY VALVE,TEST CONNECTION | ||
| 6/16 MM | ||
| 582 | N 915052006021 | BANJO UNION |
| SHIFT VALVE,TWO-WAY VALVE,TEST CONNECTION | ||
| 6/14 MM | ||
| 583 | A 0009906688 | BANJO UNION |
| Repalced by: N 915052006013 | ||
| 583 | N 915052006013 | BANJO UNION |
| SHIFT VALVE,TWO-WAY VALVE,TEST CONNECTION | ||
| 6/12 MM | ||
| 584 | A 0009907378 | CONNECTOR |
| DOUBLE | ||
| 14 MM | ||
| 584C | A 0009909488 | BANJO UNION |
| DOUBLE | ||
| 16 MM | ||
| 584E | A 0089976082 | HOSE |
| Repalced by: A 0009872627 | ||
| 584E | A 0009872627 | PLASTIC PIPE |
| FROM TEST CONNECTION TO VALVE | ||
| 4X6 MM | ||
| A 0039979172 | FITTING | |
| (PARTS KIT),LINE RUPTURE | ||
| 584H | N 915017006100 | UNION NUT |
| SHIFT VALVE,TWO-WAY VALVE,TEST CONNECTION | ||
| 584K | N 003861006007 | GLAND |
| Repalced by: A 0019901667 | ||
| 584K | A 0019901667 | SEAL CONE |
| SHIFT VALVE,TWO-WAY VALVE,TEST CONNECTION | ||
| 584M | A 0009920105 | BUSHING |
| Repalced by: N 915062004000 | ||
| 584M | N 915062004000 | SLEEVE |
| SHIFT VALVE,TWO-WAY VALVE,TEST CONNECTION | ||
| 584P | A 0009903888 | BANJO UNION |
| Repalced by: N 915052004006 | ||
| 584P | N 915052004015 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/12 MM | ||
| 584R | A 0019978390 | LOOM TIE |
| LINE MOUNTING | ||

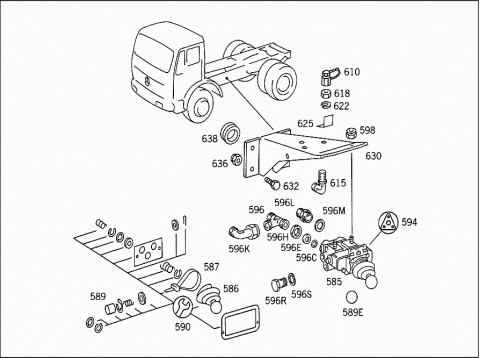

| 585 | A 0003275725 | VALVE |
| Repalced by: A 0003290425 | ||
| 585 | A 0003290425 | VALVE |
| Repalced by: A 0003290825 | ||
| 585 | A 0003290825 | VALVE |
| (SHIFT VALVE) | ||
| KNORR | ||
| 585 | A 0003290725 | VALVE |
| (SHIFT VALVE) | ||
| GRAU | ||
| 586 | A 0003270192 | BOOT |
| A 0003290193 | PROTECTIVE CAP | |
| TO 000 329 04 25,000 329 08 25 | ||
| A 0003290293 | PROTECTIVE CAP | |
| Repalced by: A 0003290092 | ||
| A 0003290092 | BOOT | |
| TO 000 329 04 25,000 329 08 25 | ||
| 587 | A 0029973690 | LOOM TIE |
| A 0005840129 | OPERATING PLATE | |
| 589 | A 0003270159 | PROTECTIVE CAP |
| 589E | A 0009973377 | HANDLE |
| A 0009973177 | HANDLE | |
| TO 000 329 04 25,000 329 08 25 | ||
| A 0003200058 | VALVE | |
| TO 000 329 04 25,000 329 08 25 | ||
| 590 | A 0005860832 | REPAIR KIT |
| CONTROL VALVE | ||
| KNORR | ||
| A 0005861132 | REPAIR KIT | |
| CONTROL VALVE | ||
| KNORR SV 3111-I/73100 | ||
| A 0003200767 | REPAIR KIT | |
| CONTROL VALVE | ||
| KNORR SV 3111-I/83153 | ||
| 594 | A 0003200567 | REPAIR KIT |
| CONTROL VALVE | ||
| GRAU | ||
| 596 | A 0009907470 | T-FITTING |
| SHIFT VALVE,CONNECTION: | ||
| "1.1" | ||
| N 915039012205 | HOLLOW SCREW FITTING | |
| SHIFT VALVE,CONNECTION: | ||
| 596C | A 0009971548 | SEAL RING |
| SHIFT VALVE,CONNECTION: | ||
| "1.1" | ||
| N 007603016401 | SEAL RING | |
| CONTROL VALVE | ||
| 596E | A 0004290927 | THRUST RING |
| SHIFT VALVE,CONNECTION: | ||
| "1.1" | ||
| 596H | N 080705016003 | NUT |
| SHIFT VALVE,CONNECTION: | ||
| "1.1" | ||
| 596K | A 0019902171 | ELBOW FITTING |
| SHIFT VALVE,CONNECTION: | ||
| "1.1" | ||
| 596L | N 074313008104 | FITTING |
| Repalced by: A 0029979572 | ||
| 596L | A 0029979572 | FITTING |
| CONNECTION "3" | ||
| 596M | N 007603016401 | SEAL RING |
| CONNECTION "3" | ||
| 596R | N 915036012203 | HOLLOW SCREW |
| SHIFT VALVE,CONNECTIONS: | ||
| "1.2";"1.3";"2.2";"2.3"; | ||
| 596R | N 915036012203 | HOLLOW SCREW |
| SHIFT VALVE,CONNECTIONS: | ||
| "1.2";"1.3";"2.2";"2.3"; | ||
| 596S | N 007603016401 | SEAL RING |
| SHIFT VALVE,CONNECTIONS: | ||
| "1.2";"1.3";"2.2";"2.3"; | ||
| 598 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 598 | N 913004008001 | NUT |
| VALVE TO BRACKET | ||
| N 000933008153 | SCREW | |
| Repalced by: N 304017008034 | ||
| N 304017008034 | SCREW | |
| VALVE TO BRACKET | ||
| 610 | A 0004312031 | TEST CONNECTION |
| AT SELF-LEVELLING DEVICE BRACKET | ||
| 610 | A 0004312031 | TEST CONNECTION |
| AT SELF-LEVELLING DEVICE BRACKET | ||
| 610 | A 0004314531 | TEST CONNECTION |
| AT SELF-LEVELLING DEVICE BRACKET | ||
| 610 | A 0004314531 | TEST CONNECTION |
| AT SELF-LEVELLING DEVICE BRACKET | ||
| 610 | A 0004314831 | TEST CONNECTION |
| AT SELF-LEVELLING DEVICE BRACKET | ||
| 610 | A 0004314831 | TEST CONNECTION |
| AT SELF-LEVELLING DEVICE BRACKET | ||
| 610 | A 0004316131 | TEST CONNECTION |
| AT SELF-LEVELLING DEVICE BRACKET | ||
| 610 | A 0004316131 | TEST CONNECTION |
| AT SELF-LEVELLING DEVICE BRACKET | ||
| A 0009979486 | PROTECTIVE CAP | |
| 615 | A 0019904071 | ELBOW FITTING |
| TEST CONNECTION | ||
| 618 | N 080705012003 | NUT |
| TEST CONNECTION | ||
| 618 | N 080705012003 | NUT |
| TEST CONNECTION | ||
| 622 | N 912004012100 | LOCK WASHER |
| TEST CONNECTION | ||
| 622 | N 912004012100 | LOCK WASHER |
| TEST CONNECTION | ||
| A 0019908168 | FITTING | |
| TEST CONNECTION | ||
| N 915036008202 | HOLLOW SCREW | |
| TEST CONNECTION | ||
| N 915047008202 | HOLLOW SCREW | |
| TEST CONNECTION | ||
| N 007603012405 | SEAL RING | |
| TEST CONNECTION | ||
| 625 | A 3935840721 | GUIDE SIGN |
| AIR SPRING BELLOWS,LEFT AND RIGHT | ||
| A 3185840621 | GUIDE SIGN | |
| SUPPLY | ||
| A 3875840055 | ADHESIVE FOIL | |
| SUPPLY | ||
| 630 | A 3873200343 | BRACKET |
| TEST CONNECTION | ||
| 630 | A 3873200443 | BRACKET |
| TEST CONNECTION | ||
| 632 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 632 | N 308676012026 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 12X35 | ||
| N 000961012122 | SCREW | |
| BRACKET TO SIDE MEMBER | ||
| M 12X40 | ||
| 636 | N 910113012002 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 638 | A 3609970681 | GROMMET |
| LINE THRU FRAME | ||

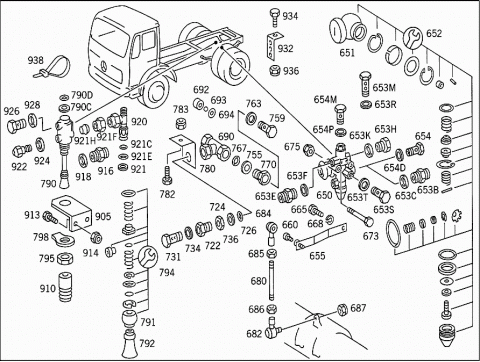

| 650 | A 0003283130 | VALVE |
| Repalced by: A 0003283230 | ||
| 650 | A 0003283230 | VALVE |
| Repalced by: A 0003283330 | ||
| 650 | A 0003283330 | VALVE |
| SELF-LEVELLING DEVICE | ||
| KNORR | ||
| A 0003280192 | BOOT | |
| Repalced by: A 0003280292 | ||
| 651 | A 0003280292 | BOOT |
| A 0005861332 | REPAIR KIT | |
| Repalced by: A 0003201067 | ||
| 652 | A 0003201067 | REPAIR KIT |
| AIR SPRING VALVE | ||
| KNORR SV-1280-I 80093 | ||
| 653B | N 074313008104 | FITTING |
| Repalced by: A 0029979572 | ||
| 653B | A 0029979572 | FITTING |
| CONNECTION "1.2",LEFT | ||
| 653C | N 007603016401 | SEAL RING |
| CONNECTION "1.2",LEFT | ||
| 653E | A 0009971572 | FITTING |
| Repalced by: A 0019972572 | ||
| 653E | A 0019972572 | FITTING |
| CONNECTION "2.1",FRONT LEFT | ||
| Repalced by: N 000000006446 | ||
| 653E | N 000000006446 | FITTING |
| CONNECTION "2.1",FRONT LEFT | ||
| 653F | N 007603012405 | SEAL RING |
| CONNECTION "2.1",FRONT LEFT | ||
| 653H | N 000908012003 | SCREW PLUG |
| Repalced by: N 000908012009 | ||
| 653H | N 000908012009 | SCREW PLUG |
| CONNECTION "2.1",REAR LEFT | ||
| 653H | N 007604012102 | SCREW PLUG |
| Repalced by: N 007604012105 | ||
| 653H | N 007604012105 | SCREW PLUG |
| 653K | N 007603012405 | SEAL RING |
| CONNECTION "2.1",REAR LEFT | ||
| A 0009903563 | HOLLOW SCREW | |
| Repalced by: N 915047008100 | ||
| 653M | N 915047008202 | HOLLOW SCREW |
| CONNECTION "1.1",LEFT | ||
| 653R | N 007603012405 | SEAL RING |
| CONNECTION "1.1",LEFT | ||
| 653S | N 915036012203 | HOLLOW SCREW |
| CONNECTION "2.3",LEFT | ||
| 653T | N 007603016401 | SEAL RING |
| CONNECTION "2.3",LEFT | ||
| 654 | N 915036012203 | HOLLOW SCREW |
| CONNECTION "1.2",RIGHT | ||
| 654D | N 007603016401 | SEAL RING |
| CONNECTION "1.2",RIGHT | ||
| A 0009971572 | FITTING | |
| Repalced by: A 0019972572 | ||
| A 0019972572 | FITTING | |
| CONNECTION "2.1",FRONT RIGHT | ||
| Repalced by: N 000000006446 | ||
| N 000000006446 | FITTING | |
| CONNECTION "2.1",FRONT RIGHT | ||
| N 007603012405 | SEAL RING | |
| CONNECTION "2.1",FRONT RIGHT | ||
| N 000908012003 | SCREW PLUG | |
| Repalced by: N 000908012009 | ||
| N 000908012009 | SCREW PLUG | |
| CONNECTION "2.1",REAR RIGHT | ||
| N 007603012405 | SEAL RING | |
| CONNECTION "2.1",REAR RIGHT | ||
| 654M | N 915036008202 | HOLLOW SCREW |
| CONNECTION "1.1",RIGHT | ||
| 654P | N 007603012405 | SEAL RING |
| CONNECTION "1.1",RIGHT | ||
| N 915036012203 | HOLLOW SCREW | |
| CONNECTION "2.3",RIGHT | ||
| N 007603016401 | SEAL RING | |
| CONNECTION "2.3",RIGHT | ||
| 655 | A 3603200927 | LEVER |
| Repalced by: A 6523200527 | ||
| 655 | A 6523200527 | LEVER |
| AIR SPRING VALVE | ||
| 660 | N 071803013208 | BALL PIVOT |
| 665 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 665 | N 304017008016 | SCREW |
| LEVER TO AIR SPRING VALVE | ||
| 668 | N 912004008102 | LOCK WASHER |
| LEVER TO AIR SPRING VALVE | ||
| 673 | N 000931008228 | SCREW |
| Repalced by: N 000933008134 | ||
| 673 | N 000933008134 | SCREW |
| AIR SPRING VALVE TO FRAME SIDE MEMBER | ||
| 675 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 675 | N 913004008001 | NUT |
| AIR SPRING VALVE TO FRAME SIDE MEMBER | ||
| A 3873200289 | ROD | |
| LEVEL ADJUSTMENT VALVE CONTROL | ||
| 680 | N 900331008427 | PULL ROD |
| LEVEL ADJUSTMENT VALVE CONTROL | ||
| 682 | A 0004310667 | YOKE |
| 684 | A 0004310767 | YOKE |
| 685 | N 000439008211 | NUT |
| Repalced by: N 304035008001 | ||
| 685 | N 304035008001 | NUT |
| R.H. THREAD | ||
| 686 | N 000439008203 | NUT |
| Repalced by: N 304035008002 | ||
| 686 | N 304035008002 | NUT |
| L.H. THREAD | ||
| 687 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 687 | N 913004008001 | NUT |
| ROD TO BRACKET | ||
| 690 | A 0014292444 | VALVE |
| (SHUTTLE VALVE) AUTOMATIC LOAD-DEPENDING BRAKE | ||
| WABCO | ||
| 690 | A 0034291144 | VALVE |
| (SHUTTLE VALVE) AUTOMATIC LOAD-DEPENDING BRAKE | ||
| VOSS | ||
| A 0004290682 | VALVE | |
| Repalced by: A 0004290782 | ||
| 692 | A 0004290782 | VALVE |
| Repalced by: A 0004291182 | ||
| 692 | A 0004291182 | VALVE BODY |
| PISTONS | ||
| WABCO | ||
| 693 | A 0029810485 | BALL |
| VOSS | ||
| 694 | A 0004290180 | GASKET |
| VOSS | ||
| A 0019972672 | FITTING | |
| Repalced by: A 0039978972 | ||
| A 0039978972 | FITTING | |
| Repalced by: A 0029905971 | ||
| A 0029905971 | FITTING | |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| A 3099900054 | NUT | |
| 722 | A 0009904468 | FITTING |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 724 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 724 | A 0009940203 | THRUST RING |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 726 | A 0009870446 | O-RING |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 731 | A 0009903563 | HOLLOW SCREW |
| Repalced by: N 915047008100 | ||
| 731 | N 915047008202 | HOLLOW SCREW |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 734 | N 007603012405 | SEAL RING |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 736 | A 3099900054 | NUT |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 755 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 755 | A 0009940203 | THRUST RING |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 759 | N 915039008202 | HOLLOW SCREW FITTING |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 763 | N 007603012405 | SEAL RING |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 767 | A 0009870446 | O-RING |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 770 | A 0009904468 | FITTING |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 780 | A 3603282140 | BRACKET |
| Repalced by: A 3183281840 | ||
| 780 | A 3183281840 | BRACKET |
| Repalced by: A 3094921819 | ||
| 780 | A 3094921819 | BRACKET |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 782 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 782 | N 304017008021 | SCREW |
| TWO-WAY VALVE TO CROSS MEMBER | ||
| 783 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 783 | N 913004008001 | NUT |
| TWO-WAY VALVE TO CROSS MEMBER | ||
| 790 | A 0019973836 | VALVE |
| Repalced by: A 0004342501 | ||
| 790 | A 0004342501 | VALVE |
| (CHANGE-OVER VALVE) AUTOMATIC LOAD-DEPENDING BRAKE | ||
| WABCO | ||
| 790 | A 0004342501 | VALVE |
| Repalced by: A 0029974936 | ||
| 790 | A 0029974936 | VALVE |
| (CHANGE-OVER VALVE) AUTOMATIC LOAD-DEPENDING BRAKE | ||
| 790C | A 0079972548 | SEAL RING |
| WABCO 463 013 118 0 | ||
| 790D | A 0079972448 | SEAL RING |
| WABCO 463 013 118 0 | ||
| 791 | A 0004340586 | CUP |
| WABCO 463 013 118 0 | ||
| 792 | A 0009972177 | HANDLE |
| WABCO 463 013 118 0 | ||
| A 0005869743 | REPAIR KIT | |
| AUTOMATIC LOAD-DEPENDING BRAKE CHANGEOVER VALVE | ||
| WABCO 463 013 018 0 | ||
| 794 | A 0025869843 | REPAIR KIT |
| AUTOMATIC LOAD-DEPENDING BRAKE CHANGEOVER VALVE | ||
| WABCO 463 013 118 0 | ||
| 795 | N 074305026202 | NUT |
| VALVE TO BRACKET | ||
| 798 | N 000093028001 | LOCK PLATE |
| VALVE TO BRACKET | ||
| 905 | A 3603281540 | BRACKET |
| AUTOMATIC LOAD-DEPENDING BRAKE CHANGEOVER VALVE | ||
| 905 | A 3833280040 | BRACKET |
| AUTOMATIC LOAD-DEPENDING BRAKE CHANGEOVER VALVE | ||
| 910 | A 3633280039 | RUBBER BUFFER |
| AUTOMATIC LOAD-DEPENDING BRAKE CHANGEOVER VALVE | ||
| 913 | N 000931008047 | SCREW |
| Repalced by: N 304017008018 | ||
| 913 | N 304017008018 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 914 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 914 | N 913004008001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 916 | A 0009971572 | FITTING |
| Repalced by: A 0019972572 | ||
| 916 | A 0019972572 | FITTING |
| AUTOMATIC LOAD-DEPENDING BRAKE CHANGEOVER VALVE | ||
| Repalced by: N 000000006446 | ||
| 916 | N 000000006446 | FITTING |
| AUTOMATIC LOAD-DEPENDING BRAKE CHANGEOVER VALVE | ||
| 918 | N 007603012405 | SEAL RING |
| AUTOMATIC LOAD-DEPENDING BRAKE CHANGEOVER VALVE | ||
| 918 | N 007603012405 | SEAL RING |
| AUTOMATIC LOAD-DEPENDING BRAKE CHANGEOVER VALVE | ||
| 920 | A 0024292444 | VALVE |
| (TEST VALVE) | ||
| 921 | A 0039974348 | SEAL RING |
| TEST VALVE | ||
| 921C | A 0039974448 | SEAL RING |
| TEST VALVE | ||
| 921E | A 0039974548 | SEAL RING |
| TEST VALVE | ||
| 921F | N 915017008100 | UNION NUT |
| TEST VALVE | ||
| 921H | N 003861008005 | GLAND |
| TEST VALVE | ||
| N 915039008202 | HOLLOW SCREW FITTING | |
| TEST VALVE | ||
| 922 | A 0024293344 | VALVE |
| (CHECK VALVE) | ||
| 924 | N 007603012405 | SEAL RING |
| CONNECTION "1" | ||
| 926 | N 915036008202 | HOLLOW SCREW |
| CONNECTION "3" | ||
| 928 | N 007603012405 | SEAL RING |
| CONNECTION "3" | ||
| 932 | A 3604292040 | BRACKET |
| Repalced by: A 3604292940 | ||
| 932 | A 3604292940 | BRACKET |
| LINE TO FRAME | ||
| 934 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 934 | N 304017008021 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 936 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 936 | N 913004008001 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 938 | A 0019978490 | LOOM TIE |
| LINE MOUNTING | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
