Transporto priemonė: 1620 L/LL; VIN numerio dalis: 617447
Grupė: 42 BRAKES

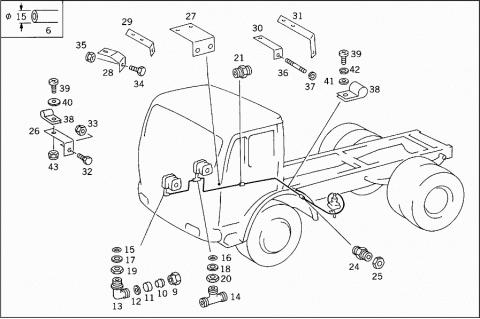

43130
43131

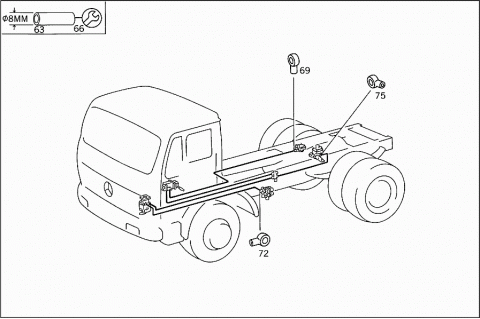

43132

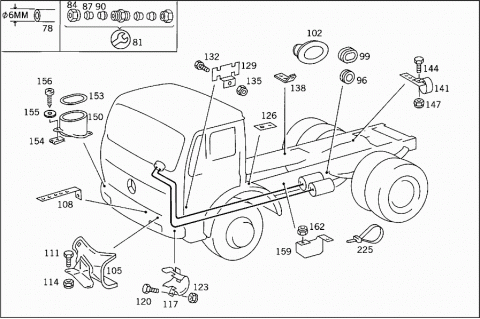

43133

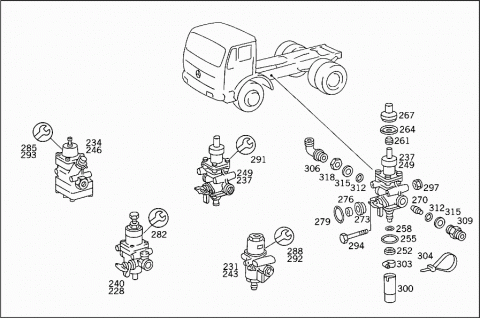

43134
43135

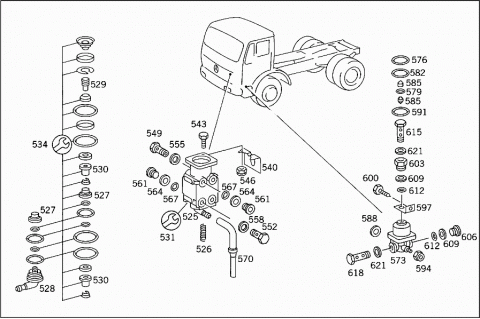

43136
43137
43138
43139
43140

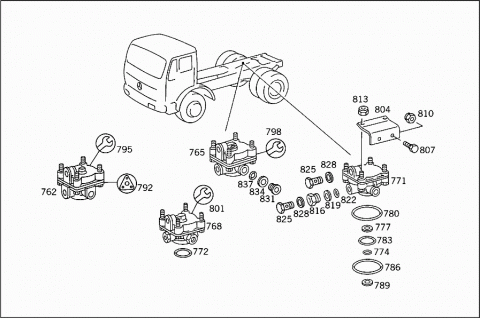

43141

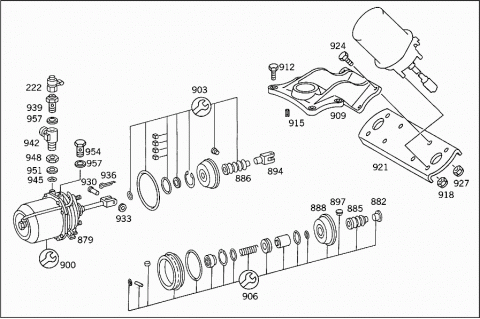

43142

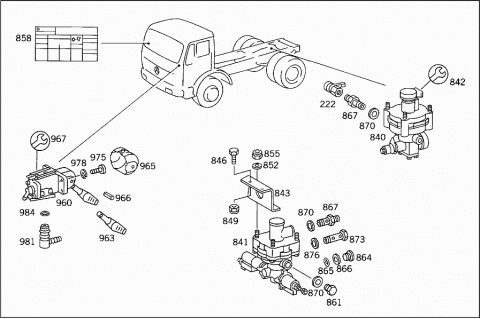

43143
# Kodas Pavadinimas
T YYYYYYYYYYYY PART NAME MISSING
FOR FRONT WHEEL BRAKE,SEE UNIT STANDARD VERSION, MODEL:
730.0
Y YYYYYYYYYYYY PART NAME MISSING
Y YYYYYYYYYYYY PART NAME MISSING
FOR FRONT WHEEL BRAKE,SEE UNIT STANDARD VERSION, MODEL:
739.1
T YYYYYYYYYYYY PART NAME MISSING
FOR BRAKES,SEE UNIT STANDARD VERSION, MODEL:
745.6
T YYYYYYYYYYYY PART NAME MISSING
740.3
A 6209970272 FITTING
AIR COMPRESSOR,CONNECTION:
"20"
N 007603026104 SEAL RING
AIR COMPRESSOR,CONNECTION:
"20"

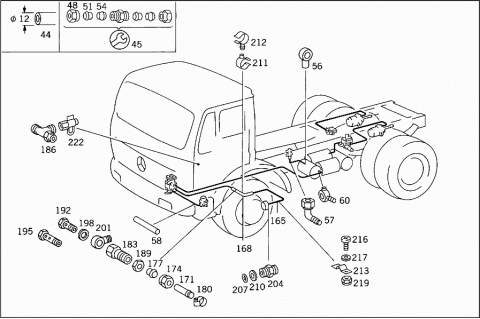

006 A 0004291401 LINE
BRASS
15 MM
T YYYYYYYYYYYY PART NAME MISSING
AIR COMPRESSOR,PRESSURE REGULATOR, FOUR-CIRCUIT PROTECTIVE VALVE
T YYYYYYYYYYYY PART NAME MISSING
AIR CLEANER,CHECK VALVE
009 N 915018015000 UNION NUT
009 N 915017015100 UNION NUT
010 N 003861015004 GLAND
011 N 915065015101 THRUST RING
012 N 915045012100 SEAL RING
Repalced by: N 007603012121
012 N 007603012121 SEAL RING
013 A 0004294338 ELBOW FITTING
BELT-DRIVEN AIR COMPRESSOR,CONNECTION:
"20"
013 A 6209900071 ELBOW FITTING
Repalced by: A 0039901671
013 A 0039901671 ELBOW FITTING
BELT-DRIVEN AIR COMPRESSOR,CONNECTION:
"20"
013 A 0039901671 ELBOW FITTING
BELT-DRIVEN AIR COMPRESSOR,CONNECTION:
"20"
014 N 074302022405 T-FITTING
Repalced by: A 0029901970
014 A 0029901970 T-FITTING
CAMSHAFT-DRIVEN AIR COMPRESSOR, CONNECTION:
"20"
014 A 0029901970 T-FITTING
CAMSHAFT-DRIVEN AIR COMPRESSOR, CONNECTION:
"20"
015 A 0039973848 SEAL RING
BELT-DRIVEN AIR COMPRESSOR,CONNECTION:
"20"
015 A 0039973848 SEAL RING
BELT-DRIVEN AIR COMPRESSOR,CONNECTION:
"20"
016 A 0139972248 SEAL RING
CAMSHAFT-DRIVEN AIR COMPRESSOR, CONNECTION:
"20"
016 A 0139972248 SEAL RING
CAMSHAFT-DRIVEN AIR COMPRESSOR, CONNECTION:
"20"
017 A 0004290527 THRUST RING
BELT-DRIVEN AIR COMPRESSOR,CONNECTION:
"20"
017 A 0004290527 THRUST RING
BELT-DRIVEN AIR COMPRESSOR,CONNECTION:
"20"
018 A 0004290227 THRUST RING
Repalced by: A 0009940203
018 A 0009940203 THRUST RING
CAMSHAFT-DRIVEN AIR COMPRESSOR, CONNECTION:
"20"
018 A 0009940203 THRUST RING
CAMSHAFT-DRIVEN AIR COMPRESSOR, CONNECTION:
"20"
019 N 074305026202 NUT
BELT-DRIVEN AIR COMPRESSOR,CONNECTION:
"20"
019 N 074305026202 NUT
BELT-DRIVEN AIR COMPRESSOR,CONNECTION:
"20"
020 N 074305022202 NUT
CAMSHAFT-DRIVEN AIR COMPRESSOR, CONNECTION:
"20"
020 N 074305022202 NUT
CAMSHAFT-DRIVEN AIR COMPRESSOR, CONNECTION:
"20"
021 A 0019972172 FITTING
BETWEEN THE LINES
021 N 003902015002 CONNECTION FITTING
BETWEEN THE LINES
024 A 0019972372 FITTING
THROUGH SIDE MEMBER
024 N 003910015002 BULKHEAD FITTING
THROUGH SIDE MEMBER
025 N 074305022202 NUT
FITTING TO FRAME SIDE MEMBER
026 A 6154290240 BRACKET
AIR COMPRESSOR LINE
027 A 6164290040 BRACKET
AIR COMPRESSOR LINE
028 A 6154290640 BRACKET
AIR COMPRESSOR LINE
028 A 6154290640 BRACKET
AIR COMPRESSOR LINE
029 A 6164290340 BRACKET
AIR COMPRESSOR LINE
029 A 6164290340 BRACKET
AIR COMPRESSOR LINE
030 A 6174291440 BRACKET
AIR COMPRESSOR LINE
031 A 6154290740 BRACKET
Repalced by: A 3434290940
031 A 3434290940 BRACKET
AIR COMPRESSOR LINE
032 N 000961014028 SCREW
BRACKET TO LEFT SIDE MEMBER
033 N 913004014002 NUT
Repalced by: N 910113014001
033 N 910113014001 NUT
BRACKET TO LEFT SIDE MEMBER
034 N 000933008116 SCREW
Repalced by: N 000933008337
034 N 000933008337 SCREW
Repalced by: A 0099900101
034 A 0099900101 SCREW
BRACKET TO LEFT SIDE MEMBER
034 A 0099900101 SCREW
BRACKET TO LEFT SIDE MEMBER
035 N 913004008004 NUT
Repalced by: N 913004008001
035 N 913004008001 NUT
BRACKET TO LEFT SIDE MEMBER
035 N 913004008001 NUT
BRACKET TO LEFT SIDE MEMBER
036 N 000933010105 SCREW
BRACKET TO CYLINDER BLOCK, REAR
036 N 000933010105 SCREW
BRACKET TO CYLINDER BLOCK, REAR
036 N 000939010026 STUD BOLT
BRACKET TO CYLINDER BLOCK, REAR
036 N 000933012064 SCREW
BRACKET TO CYLINDER BLOCK, REAR
037 N 912004010102 LOCK WASHER
BRACKET TO CYLINDER BLOCK, REAR
037 N 912004012100 LOCK WASHER
BRACKET TO CYLINDER BLOCK, REAR
038 A 3609952001 CLAMP
Repalced by: A 6739950001
038 A 6739950001 CLAMP
MOUNTING USED FOR COMPRESSED AIR LINES
039 N 007985006145 SCREW
Repalced by: N 007985006581
039 N 007985006581 SCREW
CLAMP TO BRACKET
040 N 009021006205 WASHER
Repalced by: N 009021006208
040 N 009021006208 WASHER
CLAMP TO BRACKET
041 N 000125006421 WASHER
CLAMP TO BRACKET
042 N 912004006102 LOCK WASHER
CLAMP TO BRACKET
043 N 913004006002 NUT
Repalced by: N 913004006001
043 N 913004006001 NUT
CLAMP TO BRACKET
044 A 0109975982 HOSE
Repalced by: A 0009872827
044 A 0009872827 PLASTIC PIPE
9X12 MM
T YYYYYYYYYYYY PART NAME MISSING
AIR RESERVOIR,BRAKE VALVE,BRAKE PRESSURE REGULATOR,SPRING-LOAD ACCUMULATOR
T YYYYYYYYYYYY PART NAME MISSING
BRAKE VALVE,FOUR-CIRCUIT PROTECTIVE VALVE,RELAY VALVE
044 A 0009872827 PLASTIC PIPE
PRESSURE RELIEF VALVE,OVERFLOW VALVE, PRESSURE RATIO VALVE
9X12 MM
T YYYYYYYYYYYY PART NAME MISSING
PARKING BRAKE VALVE BLEEDING
045 A 0049971772 FITTING
Repalced by: A 0029906171
045 A 0029906171 FITTING
(PARTS KIT),LINE RUPTURE
A 0009907378 CONNECTOR
REPAIR SIZE
048 N 915017012100 UNION NUT
051 N 003861012007 GLAND
Repalced by: A 0019901967
051 A 0019901967 SEAL CONE
054 N 915062009000 SLEEVE
056 N 915052009009 BANJO UNION
HOSE WIDTH, / I.D.,
9/16 MM
057 A 0019909771 ELBOW FITTING
LINE MOUNTING
058 N 040621013200 INSULATING HOSE
PRESSURE RELIEF VALVE,OVERFLOW VALVE
060 A 0019901088 BANJO UNION
AIR RESERVOIR,FOUR-CIRCUIT PROTECTIVE VALVE
063 A 0089979082 HOSE
6X8 MM
T YYYYYYYYYYYY PART NAME MISSING
BRAKE VALVE,FOUR-CIRCUIT PROTECTIVE VALVE,RELAY VALVE
T YYYYYYYYYYYY PART NAME MISSING
PARKING BRAKE VALVE
T YYYYYYYYYYYY PART NAME MISSING
FROM BRAKE POWER REGULATOR TO BRAKE VALVE
T YYYYYYYYYYYY PART NAME MISSING
REAR AXLE BREATHING
066 A 0039978972 FITTING
Repalced by: A 0029905971
066 A 0029905971 FITTING
(PARTS KIT),LINE RUPTURE
069 N 915052006021 BANJO UNION
HOSE WIDTH, / I.D.,
6/14 MM
072 N 915052006014 BANJO UNION
HOSE WIDTH, / I.D.,
6/16 MM
075 N 915052006013 BANJO UNION
HOSE WIDTH, / I.D.,
6/12 MM
078 A 0089976082 HOSE
Repalced by: A 0009872627
078 A 0009872627 PLASTIC PIPE
FROM AIR RESERVOIR TO DOUBLE PRESSURE GAUGE
4X6 MM
081 A 0039979172 FITTING
(PARTS KIT),LINE RUPTURE
084 N 915017006100 UNION NUT
087 N 003861006007 GLAND
Repalced by: A 0019901667
087 A 0019901667 SEAL CONE
090 N 915062004000 SLEEVE
A 0009904678 CONNECTOR
096 A 6209970181 GROMMET
LINE THRU FRAME
42/36 MM
099 A 3549970081 GROMMET
LINE THRU FRAME
32/27 MM
102 A 6209970081 GROMMET
LINE THRU FRAME
105 A 6204201186 BRACKET
LEFT COMPRESSED AIR LINES
105 A 6204201286 BRACKET
RIGHT COMPRESSED AIR LINES
108 A 6174290540 BRACKET
Repalced by: A 3604292940
108 A 3604292940 BRACKET
COMPRESSED AIR LINE
111 N 000933008147 SCREW
Repalced by: N 304017008021
111 N 304017008021 SCREW
BRACKET TO BUMPER STRUT
111 N 304017008021 SCREW
BRACKET TO CROSS MEMBER
114 N 913004008004 NUT
Repalced by: N 913004008001
114 N 913004008001 NUT
BRACKET TO BUMPER STRUT
114 N 913004008001 NUT
BRACKET TO CROSS MEMBER
117 A 6204201386 BRACKET
Repalced by: A 6154200086
117 A 6154200086 BRACKET
LEFT COMPRESSED AIR LINES
117 A 6204201486 BRACKET
Repalced by: A 6154200186
117 A 6154200186 BRACKET
RIGHT COMPRESSED AIR LINES
120 N 000933008153 SCREW
Repalced by: N 304017008034
120 N 304017008034 SCREW
BRACKET TO CAB CONSOLE
123 N 913004008004 NUT
Repalced by: N 913004008001
123 N 913004008001 NUT
BRACKET TO CAB CONSOLE
126 A 6204294340 BRACKET
Repalced by: A 3604293140
126 A 3604293140 BRACKET
COMPRESSED AIR LINE
129 A 6204293940 BRACKET
COMPRESSED AIR LINE
129 A 6204293940 BRACKET
COMPRESSED AIR LINE
132 N 000933008152 SCREW
Repalced by: N 304017008027
132 N 304017008027 SCREW
BRACKET TO SIDE MEMBER
135 N 913004008004 NUT
Repalced by: N 913004008001
135 N 913004008001 NUT
BRACKET TO SIDE MEMBER
138 A 6204296740 BRACKET
Repalced by: A 3184923441
138 A 3184923441 BRACKET
COMPRESSED AIR LINE
141 A 3934310140 BRACKET
Repalced by: A 6514310240
141 A 6514310240 BRACKET
COMPRESSED AIR LINE TO TRIANGULAR CONTROL ARM
144 N 000933008147 SCREW
Repalced by: N 304017008021
144 N 304017008021 SCREW
BRACKET TO CONTROL ARM
147 N 913004008004 NUT
Repalced by: N 913004008001
147 N 913004008001 NUT
BRACKET TO CONTROL ARM
150 A 6204291940 BRACKET
BRAKE LINE THRU CAB FLOOR
150 A 6204292440 BRACKET
BRAKE LINE THRU CAB FLOOR
153 A 6204290084 SEAL RING
BETWEEN BRACKET AND CAB FLOOR
154 A 0009946445 LOCK
BRACKET TO CAB FLOOR
155 N 009021005202 WASHER
Repalced by: N 009021005205
155 N 009021005205 WASHER
BRACKET TO CAB FLOOR
156 N 007981004252 SHEET METAL SCREW
BRACKET TO CAB FLOOR
159 A 6204295240 BRACKET
BETWEEN THE LINES
159 A 6204295240 BRACKET
BETWEEN THE LINES
162 N 913004006002 NUT
Repalced by: N 913004006001
162 N 913004006001 NUT
BRACKET TO CAB FLOOR
165 A 6194290301 LINE
Repalced by: A 6194290801
165 A 6194290801 LINE
Repalced by: A 6254293501
165 A 6254293501 LINE
FROM BRAKE HOSE TO LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
168 N 916027011014 HOSE
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
171 A 0004290541 FITTING
LEFT AND RIGHT BRAKE HOSES
174 N 915017012100 UNION NUT
177 N 003861012007 GLAND
Repalced by: A 0019901967
177 A 0019901967 SEAL CONE
180 N 916017016000 CLAMP
Repalced by: N 000000000666
180 N 000000000666 CLAMP
BRAKE HOSE TO COMPRESSED AIR LINE
183 A 0004296634 ADAPTER FITTING
Repalced by: A 0004296934
183 A 0004296934 ADAPTER FITTING
LEFT AND RIGHT BRAKE HOSES
186 A 0019907070 T-FITTING
BRAKE HOSE TO SIDE MEMBER
186 A 0019907070 T-FITTING
BRAKE HOSE TO SIDE MEMBER
189 N 080705018002 NUT
ADAPTER FITTING TO SIDE MEMBER
192 N 915036012203 HOLLOW SCREW
RIGHT FRONT BRAKE HOSE
192 N 915036012203 HOLLOW SCREW
RIGHT FRONT BRAKE HOSE
192 N 915036012203 HOLLOW SCREW
LEFT AND RIGHT BRAKE HOSES
195 N 915047012203 HOLLOW SCREW
LEFT FRONT BRAKE HOSE
198 N 007603016401 SEAL RING
LEFT AND RIGHT BRAKE HOSES
201 A 0019900788 BANJO UNION
LEFT FRONT BRAKE HOSE
201 A 0019900788 BANJO UNION
LEFT FRONT BRAKE HOSE
204 A 0029971572 FITTING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
207 A 0009971548 SEAL RING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
210 A 0004290927 THRUST RING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
211 A 1159950465 CLAMP
BRAKE HOSE MOUNTING
212 A 6209950065 CLAMP
BRAKE HOSE MOUNTING
213 A 3159955010 CLAMP
COMPRESSED AIR LINE TO BRACKET
216 N 007985006145 SCREW
Repalced by: N 007985006581
216 N 007985006581 SCREW
CLAMP TO BRACKET
217 N 000125006421 WASHER
CLAMP TO BRACKET
219 N 913004006002 NUT
Repalced by: N 913004006001
219 N 913004006001 NUT
CLAMP TO BRACKET
222 A 0004312031 TEST CONNECTION
VOSS
222 A 0004314531 TEST CONNECTION
SCHAEFER
222 A 0004314831 TEST CONNECTION
WABCO
222 A 0004316131 TEST CONNECTION
WIRA
222 A 0004316131 TEST CONNECTION
FRONT AXLE BRAKE CIRCUIT
WIRA
222 A 0004316131 TEST CONNECTION
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"21,22"
222 A 0004316131 TEST CONNECTION
BRAKE POWER REGULATOR,CONNECTION:
"40"
222 A 0004316131 TEST CONNECTION
TRISTOP CYLINDER;CONNECTIONS:
"11,12"
A 0009979486 PLUG
225 A 0019978390 LOOM TIE
LINE MOUNTING
280 MM
225 A 0019978490 LOOM TIE
LINE MOUNTING
376 MM
228 A 0014316506 PRESSURE REGULATOR
Repalced by: A 0024315006
231 A 0014319106 PRESSURE REGULATOR
Repalced by: A 0024318406
231 A 0024315006 PRESSURE REGULATOR
WABCO
234 A 0014316106 PRESSURE REGULATOR
Repalced by: A 0024313606
234 A 0024313606 PRESSURE REGULATOR
Repalced by: A 0024314406
237 A 0014319006 PRESSURE REGULATOR
Repalced by: A 0024314406
237 A 0024314406 PRESSURE REGULATOR
BOSCH
A 0024318406 PRESSURE REGULATOR
KNORR
240 A 0014310006 PRESSURE REGULATOR
Repalced by: A 0024314906
243 A 0014311206 PRESSURE REGULATOR
Repalced by: A 0024314906
243 A 0024314906 PRESSURE REGULATOR
WABCO
246 A 0014310606 PRESSURE REGULATOR
Repalced by: A 0024313406
246 A 0024313406 PRESSURE REGULATOR
Repalced by: A 0024314306
249 A 0014313406 PRESSURE REGULATOR
Repalced by: A 0024314306
249 A 0024314306 PRESSURE REGULATOR
WITH TIRE INFLATING CONNECTION
BOSCH
249 A 0024318306 PRESSURE REGULATOR
KNORR
252 A 0004312381 VALVE DISC
TO 001 431 90 06,GRAU
255 A 0059972948 SEAL RING
TO 001 431 90 06,GRAU
258 A 0059973048 SEAL RING
TO 001 431 90 06,GRAU
261 A 0004312481 VALVE DISC
TO 001 431 90 06,GRAU
264 A 0004311328 DIAPHRAGM
TO 001 431 90 06,GRAU
267 A 0004318687 PROTECTIVE CAP
TO 001 431 90 06,GRAU
270 A 0004313423 VALVE
TO 001 431 90 06,GRAU
273 A 0004313534 STRAINER
TO 001 431 90 06,GRAU
276 A 0004312888 VALVE SEAT
TO 001 431 90 06,GRAU
279 A 0059973148 SEAL RING
TO 001 431 90 06,GRAU
282 A 0015864343 REPAIR KIT
Repalced by: A 0004301107
282 A 0004301107 REPAIR KIT
TO 001 431 65 06,WABCO 975 300 151 0,
282 A 0004301107 REPAIR KIT
001 431 00 06,WABCO 975 300 100 0
282 A 0024304681 REPAIR KIT
VALVE KIT
TO 001 431 65 06,WABCO 975 300 15 0,
282 A 0024304681 REPAIR KIT
VALVE KIT
001 431 00 06,WABCO 975 300 110 0
285 A 0015868543 REPAIR KIT
Repalced by: A 0004301407
285 A 0004301407 REPAIR KIT
TO 001 431 61 06,BOSCH 0 481 039 105,
285 A 0004301407 REPAIR KIT
001 431 06 06,BOSCH 0 481 039 101
288 A 0025866743 REPAIR KIT
TO 001 431 91 06,KNORR 3211,
288 A 0025866743 REPAIR KIT
001 431 12 06,KNORR 3200
291 A 0025866043 REPAIR KIT
TO 001 431 34 06,GRAU,312 017 014
292 A 0014304960 REPAIR KIT
TO 002 431 49 06,WABCO 975 303 460 0,
292 A 0014304960 REPAIR KIT
002 431 50 06,WABCO 975 303 500 0
293 A 0004301768 REPAIR KIT
DIAPHRAGM
TO 002 431 34 06,BOSCH 0 481 039 221,
293 A 0004301768 REPAIR KIT
DIAPHRAGM
002 431 36 0O,BOSCH 0 481 039 225
293 A 0004301768 REPAIR KIT
DIAPHRAGM
TO 002 431 06,BOSCH 0 481 039 201,
293 A 0004301768 REPAIR KIT
DIAPHRAGM
002 431 44 06,BOSCH 0 481 039 205
293 A 0004307960 REPAIR KIT
TIRE INFLATING CONNECTION
TO 002 431 34 06,BOSCH 0 481 039 221,
293 A 0004307960 REPAIR KIT
TIRE INFLATING CONNECTION
002 431 36 06,BOSCH 0 481 039 225
293 A 0004307960 REPAIR KIT
TIRE INFLATING CONNECTION
TO 002 431 43 06,BOSCH 0 481 039 201,
293 A 0004307960 REPAIR KIT
TIRE INFLATING CONNECTION
002 431 44 06,BOSCH 0 481 039 205
A 0004300407 REPAIR KIT
TO 002 431 83 06,KNORR 90309
A 0004300507 REPAIR KIT
TO 002 431 84 06,KNORR 90310
294 N 000931008251 SCREW
PRESSURE REGULATOR TO BRACKET
M 8X75
294 N 000931008228 SCREW
Repalced by: N 000933008134
294 N 000933008134 SCREW
PRESSURE REGULATOR TO BRACKET
M 8X80
297 N 913004008004 NUT
Repalced by: N 913004008001
297 N 913004008001 NUT
PRESSURE REGULATOR TO BRACKET
300 A 0005461830 INSULATING HOSE
PRESSURE REGULATOR,CONNECTION:
"30"
300 A 0159975082 HOSE
PRESSURE REGULATOR,CONNECTION:
"30"
303 N 916026016001 CLAMP
Repalced by: A 0059970190
303 A 0059970190 LOOM TIE
HOSE TO PRESSURE REGULATOR
"30"
303 N 916026020001 CLAMP
Repalced by: N 000000000667
303 N 000000000667 CLAMP
HOSE TO PRESSURE REGULATOR
"30"
304 A 0019978390 LOOM TIE
HOSE TO PRESSURE REGULATOR
"30"
306 A 0009905871 ELBOW FITTING
PRESSURE REGULATOR,CONNECTION:
"10"
306 N 003911015102 FITTING
PRESSURE REGULATOR,CONNECTION:
"10"
309 A 0019972172 FITTING
PRESSURE REGULATOR,CONNECTION:
"21"
312 A 0009870446 SEALING CORD
PRESSURE REGULATOR,CONNECTIONS:
"10,21"
315 A 0004290227 THRUST RING
Repalced by: A 0009940203
315 A 0009940203 THRUST RING
PRESSURE REGULATOR,CONNECTIONS:
"10,21"
318 N 074305022202 NUT
PRESSURE REGULATOR,CONNECTION:
"10"
321 A 0004292595 AIR CLEANER
BOSCH
321 A 0004292695 AIR CLEANER
KNORR
321 A 0004292795 AIR CLEANER
WABCO
322 A 0004292895 AIR CLEANER
GRAU
324 A 0004290597 FILTER ELEMENT
TO 000 429 27 95,WABCO
330 A 0004290497 FILTER ELEMENT
TO 000 429 27 95,WABCO
330 A 0004290797 FILTER ELEMENT
TO 000 429 25 95,BOSCH
331 A 0004290397 FILTER ELEMENT
TO 000 429 28 95,GRAU
333 A 0059930901 SPRING
TO 000 429 27 95,WABCO
336 A 0089978048 SEAL RING
TO 000 429 28 95,GRAU
336 A 0019974048 SEAL RING
TO 000 429 25 95,BOSCH
339 A 0059972748 SEAL RING
TO 000 429 28 95,GRAU
339 A 0119974048 SEAL RING
TO 000 429 25 95,BOSCH
342 A 0004290845 DIAPHRAGM
TO 000 429 28 95,GRAU
342 A 0004291045 DIAPHRAGM
TO 000 429 25 95,BOSCH
343 A 0089978848 SEAL RING
Repalced by: A 0049972248
343 A 0049972248 SEAL RING
Repalced by: A 0289972348
343 A 0289972348 SEAL RING
TO 000 429 27 95,100X3 MM,WABCO
A 0089978948 SEAL RING
Repalced by: A 0009870746
343 A 0009870746 SEALING CORD
TO 000 429 27 95,75X3 MM,WABCO
345 A 0004204455 REPAIR KIT
AIR CLEANER
TO 000 429 27 95,WABCO 432 511 000 0
A 0004300369 REPAIR KIT
TO 000 429 26 95,KNORR
348 A 0019972372 FITTING
AIR CLEANER,CONNECTION:
"10"
351 A 0019972172 FITTING
AIR CLEANER,CONNECTION:
"20"
351 A 0029978972 FITTING
AIR CLEANER,CONNECTION:
"20"
354 A 0004290227 THRUST RING
Repalced by: A 0009940203
354 A 0009940203 THRUST RING
AIR CLEANER;CONNECTIONS:
"10,20"
357 A 0009870446 SEALING CORD
AIR CLEANER;CONNECTIONS:
"10,20"
360 N 074305022202 NUT
AIR CLEANER,CONNECTION:
"10"
363 A 6204310740 BRACKET
AIR CLEANER
366 N 000933008147 SCREW
Repalced by: N 304017008021
366 N 304017008021 SCREW
BRACKET TO APPARATUS SUPPORT
369 N 000125008418 WASHER
Repalced by: N 000125008443
369 N 000125008443 WASHER
BRACKET TO APPARATUS SUPPORT
372 N 913004008004 NUT
Repalced by: N 913004008001
372 N 913004008001 NUT
BRACKET TO APPARATUS SUPPORT
375 A 0024312406 VALVE
PRESSURE LIMIT
378 A 0004304960 REPAIR KIT
PRESSURE LIMIT VALVE
381 A 0019907370 T-FITTING
PRESSURE RELIEF VALVE OR TRAILER CONTROL VALVE TO SEPARATION POINT
"10"
381 A 0029902270 T-FITTING
PRESSURE RELIEF VALVE OR TRAILER CONTROL VALVE TO SEPARATION POINT
"10"
384 A 0004290927 THRUST RING
PRESSURE LIMIT VALVE,CONNECTIONS:
"10,20"
387 A 0009971548 SEAL RING
PRESSURE LIMIT VALVE,CONNECTIONS:
"10,20"
390 N 080705016003 NUT
PRESSURE RELIEF VALVE OR TRAILER CONTROL VALVE TO SEPARATION POINT
"10,20"
393 N 915036012203 HOLLOW SCREW
PRESSURE RELIEF VALVE OR TRAILER CONTROL VALVE TO SEPARATION POINT
"10"
396 N 007603016401 SEAL RING
PRESSURE RELIEF VALVE OR TRAILER CONTROL VALVE TO SEPARATION POINT
"10"
399 A 0034295544 VALVE
Repalced by: A 0024294244
399 A 0024294244 VALVE
Repalced by: A 0034290944
399 A 0034290944 VALVE
Repalced by: A 0044293144
399 A 0044293144 VALVE
(OVERFLOW VALVE)
WABCO
402 A 0034295644 VALVE
Repalced by: A 0024296544
402 A 0024296544 VALVE
Repalced by: A 0034290844
402 A 0034290844 VALVE
Repalced by: A 0044293244
402 A 0044293244 VALVE
(OVERFLOW VALVE)
GRAU
402 A 0024297044 VALVE
Repalced by: A 0044293244
402 A 0044293244 VALVE
(OVERFLOW VALVE)
GRAU
408 A 0014296544 VALVE
Repalced by: A 0044293144
408 A 0044293144 VALVE
(OVERFLOW VALVE)
WABCO
411 A 0024290044 VALVE
Repalced by: A 0044293144
411 A 0044293144 VALVE
(OVERFLOW VALVE)
WABCO
414 A 0004290745 DIAPHRAGM
TO 002 429 70 44,003 429 08 44
417 A 0024298844 VALVE
TO 002 429 70 44,003 429 08 44
A 0004290645 DIAPHRAGM
Repalced by: A 0004290745
A 0004290745 DIAPHRAGM
TO 004 429 32 44
420 A 0015862042 REPAIR KIT
TO 001 429 65 44,002 429 42 44,WABCO
420 A 0005865842 REPAIR KIT
TO 003 429 09 44,GRAU
423 A 0015862642 REPAIR KIT
TO 002 429 00 44,BOSCH
426 A 0009905168 FITTING
OVERFLOW VALVE,CONNECTION:
"10"
428 A 0019972372 FITTING
OVERFLOW VALVE TO AIR RESERVOIR, CONNECTION:
"20/24"
429 N 074305022202 NUT
OVERFLOW VALVE TO AIR RESERVOIR, CONNECTION:
"20/24"
432 A 0004290227 THRUST RING
Repalced by: A 0009940203
432 A 0009940203 THRUST RING
OVERFLOW VALVE,CONNECTION:
"10"
432 A 0009940203 THRUST RING
OVERFLOW VALVE TO AIR RESERVOIR, CONNECTION:
"20/24"
435 A 0009870446 SEALING CORD
OVERFLOW VALVE,CONNECTION:
"10"
435 A 0009870446 SEALING CORD
OVERFLOW VALVE TO AIR RESERVOIR, CONNECTION:
"20/24"
438 N 915036012203 HOLLOW SCREW
OVERFLOW VALVE,CONNECTION:
"10"
441 N 007603016401 SEAL RING
OVERFLOW VALVE,CONNECTION:
"10"
444 A 0014319306 VALVE
Repalced by: A 0034315006
447 A 0014318906 VALVE
Repalced by: A 0024314006
447 A 0024314006 VALVE
Repalced by: A 0034315006
450 A 0014318706 VALVE
Repalced by: A 0034315006
450 A 0024310206 VALVE
Repalced by: A 0024312706
450 A 0024312706 VALVE
Repalced by: A 0024319106
450 A 0024319106 VALVE
Repalced by: A 0034315006
A 0034315006 VALVE
(FOUR-CIRCUIT PROTECTIVE VALVE)
WABCO
456 A 0035860943 REPAIR KIT
TO 001 431 89 06,002 431 40 06,WABCO
459 A 0035861043 REPAIR KIT
TO 001 431 87 06,KNORR
462 A 0004304706 GASKET KIT
TO 001 431 93 06,BOSCH 62401
462 A 0004300260 REPAIR KIT
TO 001 431 93 06,BOSCH 62201
A 0034300981 GASKET KIT
TO 002 431 91 06,GRAU 6601
A 0004305106 REPAIR KIT
FOUR-CIRCUIT PROTECTIVE VALVE
WABCO; TO 003 431 50 06
465 N 000125017010 WASHER
Repalced by: N 000125017016
465 N 000125017016 WASHER
FOUR-CIRCUIT PROTECTIVE VALVE TO BRACKET
468 N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE TO BRACKET
471 A 0019903971 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"10"
471 A 0009909671 ELBOW FITTING
Repalced by: A 0029901271
471 A 0029901271 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"10"
471 A 0029902271 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"10"
477 N 074305022202 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"10"
480 A 0004290227 THRUST RING
Repalced by: A 0009940203
480 A 0009940203 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"10"
483 A 0009870446 SEALING CORD
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"10"
486 N 915039012205 HOLLOW SCREW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"21,22,23"
489 N 915036012203 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
492 N 007603016401 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"21,22,23"
492 N 007603016401 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
495 A 0004296434 ADAPTER FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
498 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
501 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
504 N 000439016206 NUT
Repalced by: N 308675016001
504 N 308675016001 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
505 N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
507 A 0034291044 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"23"
507 A 0044293744 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"23"
510 A 0019905268 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
511 A 0019905270 T-FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
513 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
516 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
519 N 915036008202 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
519 N 915047008202 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
522 N 007603012405 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
525 A 0024310605 BRAKE VALVE
TWO-CIRCUIT
WABCO
525 A 0024311005 BRAKE VALVE
TWO-CIRCUIT
BOSCH
525 A 0024312005 BRAKE VALVE
TWO-CIRCUIT
KNORR
525 A 0024310705 BRAKE VALVE
TWO-CIRCUIT
WABCO
525 A 0024311105 BRAKE VALVE
TWO-CIRCUIT
BOSCH
525 A 0024311905 BRAKE VALVE
TWO-CIRCUIT
KNORR
525 A 0014318305 BRAKE VALVE
TWO-CIRCUIT
WABCO
525 A 0014318905 BRAKE VALVE
TWO-CIRCUIT
BOSCH
525 A 0014319905 BRAKE VALVE
TWO-CIRCUIT
GRAU
525 A 0014319105 BRAKE VALVE
TWO-CIRCUIT
KNORR
526 A 0014316993 SPRING
TO 001 431 89 05,BOSCH
527 A 0004312185 FILLER RING
TO 001 431 83 05,WABCO
528 A 0004310273 BREATHER PIPE
TO 001 431 83 05,WABCO
529 A 0004318383 PISTON
TO 001 431 83 05,WABCO
530 A 0004313623 VALVE
WABCO
531 A 0004300060 REPAIR KIT
Repalced by: A 0014308460
531 A 0014308460 GASKET KIT
TWO-CIRCUIT BRAKE VALVE
TO 002 431 10 05,BOSCH
531 A 0004303306 REPAIR KIT
TWO-CIRCUIT BRAKE VALVE
TO 002 431 11 05,BOSCH
531 A 0004306360 REPAIR KIT
Repalced by: A 0004308206
531 A 0004308206 REPAIR KIT
TWO-CIRCUIT BRAKE VALVE
TO 002 431 06 05,002 431 07 05;WABCO
534 A 0004301160 REPAIR KIT
Repalced by: A 0004306260
534 A 0004306260 REPAIR KIT
Repalced by: A 0014300460
534 A 0014300460 REPAIR KIT
Repalced by: A 0004308006
534 A 0004308006 REPAIR KIT
TWO-CIRCUIT BRAKE VALVE
TO 001 431 83 05,WABCO
534 A 0035861243 REPAIR KIT
TWO-CIRCUIT BRAKE VALVE
TO 001 431 91 05,KNORR
534 A 0025868743 REPAIR KIT
Repalced by: A 0004303506
534 A 0004303506 REPAIR KIT
TWO-CIRCUIT BRAKE VALVE
TO 002 431 10 05,BOSCH
534 A 0004303506 REPAIR KIT
TWO-CIRCUIT BRAKE VALVE
TO 001 431 89 05;BOSCH
540 A 6202920140 BRACKET
TWO-CIRCUIT BRAKE VALVE
543 N 000933008152 SCREW
Repalced by: N 304017008027
543 N 304017008027 SCREW
TWO-CIRCUIT BRAKE VALVE TO PEDAL BEARING BRACKET
546 N 913004008004 NUT
Repalced by: N 913004008001
546 N 913004008001 NUT
TWO-CIRCUIT BRAKE VALVE TO PEDAL BEARING BRACKET
549 N 915036012203 HOLLOW SCREW
TWO-CIRCUIT BRAKE VALVE, LEFT CONNECTIONS:
"11,12,21,22"
552 N 915036008202 HOLLOW SCREW
TWO-CIRCUIT BRAKE VALVE,CONNECTION:
"40"
555 N 007603016401 SEAL RING
TWO-CIRCUIT BRAKE VALVE, LEFT CONNECTIONS:
"11,12,21,22"
558 N 007603012405 SEAL RING
TWO-CIRCUIT BRAKE VALVE,CONNECTION:
"40"
561 N 000908016001 SCREW PLUG
TWO-CIRCUIT BRAKE VALVE, RIGHT CONNECTIONS:
"11,12,21,22"
564 A 0004290927 THRUST RING
TWO-CIRCUIT BRAKE VALVE, RIGHT CONNECTIONS:
"11,12,21,22"
567 A 0009971548 SEAL RING
TWO-CIRCUIT BRAKE VALVE, RIGHT CONNECTIONS:
"11,12,21,22"
570 A 6174310073 BREATHER PIPE
AT BRAKE VALVE
570 A 6174310173 BREATHER PIPE
AT BRAKE VALVE
573 A 0014306481 VALVE
(PRESSURE RATIO VALVE) FRONT AXLE BRAKE PRESSURE
576 A 0019871746 SEALING CORD
579 A 0089970445 SEAL RING
582 A 0089978648 SEAL RING
585 A 0004313223 VALVE
588 N 007603016401 SEAL RING
591 A 0089978748 SEAL RING
594 N 913004008004 NUT
Repalced by: N 913004008001
594 N 913004008001 NUT
VALVE TO FLOOR
597 A 6204312440 BRACKET
PRESSURE RATIO VALVE
597 A 6204312540 BRACKET
PRESSURE RATIO VALVE
600 N 007976005204 SHEET METAL SCREW
BRACKET TO CAB FLOOR
603 A 0004296134 ADAPTER FITTING
Repalced by: A 0069970072
603 A 0069970072 FITTING
PRESSURE RATIO VALVE,CONNECTION:
"1"
606 N 000908016001 SCREW PLUG
PRESSURE RATIO VALVE,CONNECTION:
"2"
609 A 0004290927 THRUST RING
PRESSURE RATIO VALVE,CONNECTIONS:
"1,2"
612 A 0009971548 SEAL RING
PRESSURE RATIO VALVE,CONNECTIONS:
"1,2"
615 N 915036012203 HOLLOW SCREW
PRESSURE RATIO VALVE,CONNECTION:
"1"
618 N 915047012203 HOLLOW SCREW
PRESSURE RATIO VALVE,CONNECTION:
"2"
621 N 007603016401 SEAL RING
PRESSURE RATIO VALVE,CONNECTIONS:
"1,2"
622 A 0029900271 ELBOW FITTING
BETWEEN THE LINES
622 A 0029900871 ELBOW FITTING
BETWEEN THE LINES
623 N 913004008004 NUT
Repalced by: N 913004008001
623 N 913004008001 NUT
ELBOW FITTING TO CAB
624 N 915036012203 HOLLOW SCREW
ELBOW FITTING,CONNECTION:
"10"
625 N 915047012203 HOLLOW SCREW
ELBOW FITTING,CONNECTION:
"20"
626 N 007603016401 SEAL RING
ELBOW FITTING,CONNECTIONS:
"10,20"
627 A 0004324801 RESERVOIR
Repalced by: A 0014327501
627 A 0014327501 RESERVOIR
Repalced by: A 0034321201
627 A 0034321201 RESERVOIR
FRONT AIR RESERVOIR
20 L
627 A 0034321201 RESERVOIR
REAR AIR RESERVOIR
20 L
627 A 0004325101 RESERVOIR
Repalced by: A 0034321301
627 A 0034321301 RESERVOIR
REAR AIR RESERVOIR
20 L
630 A 3874320540 BRACKET
FRONT AIR RESERVOIR
630 A 3874320540 BRACKET
REAR AIR RESERVOIR
633 A 6204300440 STRAP
FRONT AIR RESERVOIR
633 A 6204300240 STRAP
FRONT AIR RESERVOIR
636 A 6204300540 STRAP
FRONT AIR RESERVOIR
636 A 6204301240 STRAP
FRONT AIR RESERVOIR
636 A 6204301040 STRAP
FRONT AIR RESERVOIR
639 A 3874300640 STRAP
REAR AIR RESERVOIR
642 N 000933008215 SCREW
Repalced by: A 0069909301
642 A 0069909301 SCREW
BRACKET TO APPARATUS SUPPORT
645 N 913004008004 NUT
Repalced by: N 913004008001
645 N 913004008001 NUT
BRACKET TO APPARATUS SUPPORT
648 N 913004010008 NUT
Repalced by: N 910113010000
648 N 910113010000 NUT
AIR RESERVOIR TO BRACKET
651 A 0019972172 FITTING
FRONT AIR RESERVOIR,CONNECTION:
"13"
654 A 0019972372 FITTING
REAR AIR RESERVOIR,CONNECTION:
"24"
657 A 0009905168 FITTING
FRONT AIR RESERVOIR,CONNECTION:
"23"
657 A 0009905168 FITTING
FRONT AIR RESERVOIR,CONNECTION:
"13"
657 A 0009905168 FITTING
REAR AIR RESERVOIR,CONNECTION:
"14"
N 000908022001 SCREW PLUG
Repalced by: N 000908022011
N 000908022011 SCREW PLUG
AIR RESERVOIR
N 007603022403 SEAL RING
AIR RESERVOIR
660 A 0004290227 THRUST RING
Repalced by: A 0009940203
660 A 0009940203 THRUST RING
AIR RESERVOIR,CONNECTIONS:
"13,14,23,24"
663 A 0009870446 SEALING CORD
AIR RESERVOIR,CONNECTIONS:
"13,14,23,24"
666 N 915036012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTIONS:
"23,24"
666 N 915036012203 HOLLOW SCREW
FRONT AIR RESERVOIR,CONNECTION:
"13"
669 N 007603016401 SEAL RING
AIR RESERVOIR,CONNECTIONS:
"23,24"
669 N 007603016401 SEAL RING
FRONT AIR RESERVOIR,CONNECTION:
"13"
672 A 0004322601 RESERVOIR
Repalced by: A 0034321801
672 A 0034321801 RESERVOIR
INSIDE AND OUTSIDE AIR RESERVOIRS
30 L
675 A 6204320018 BASE
AIR RESERVOIR,STRAP
678 A 6204300040 STRAP
INSIDE AND OUTSIDE AIR RESERVOIRS
681 N 000933010105 SCREW
AIR RESERVOIR TO APPARATUS SUPPORT
N 001440010002 WASHER
AIR RESERVOIR TO APPARATUS SUPPORT
684 N 913004010008 NUT
Repalced by: N 910113010000
684 N 910113010000 NUT
AIR RESERVOIR TO APPARATUS SUPPORT
687 A 3464320073 LOCK
PROTECTION AGAINST TORSION
690 A 0019907368 FITTING
INSIDE AND OUTSIDE AIR RESERVOIRS, CONNECTIONS:
"11,12,21,22"
693 A 0009905168 FITTING
INSIDE AIR RESERVOIR,CONNECTION:
"31"
696 N 000908022001 SCREW PLUG
Repalced by: N 000908022011
696 N 000908022011 SCREW PLUG
OUTSIDE AIR RESERVOIR,CONNECTION:
"32"
699 A 0004290227 THRUST RING
Repalced by: A 0009940203
699 A 0009940203 THRUST RING
INSIDE AND OUTSIDE AIR RESERVOIRS, CONNECTIONS:
"11,12,21,22,31,32"
702 A 0009870446 SEALING CORD
INSIDE AND OUTSIDE AIR RESERVOIRS, CONNECTIONS:
"11,12,21,22,31,32"
705 N 915036012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22,31"
708 N 007603016401 SEAL RING
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22,31"
711 A 0004322407 VALVE
DRAIN
711 A 0004321107 VALVE
DRAIN
711 A 0004322107 VALVE
DRAIN
TO 000 432 08 07
714 A 0009870446 SEALING CORD
DRAIN VALVE TO AIR RESERVOIR
717 A 0004290227 THRUST RING
Repalced by: A 0009940203
717 A 0009940203 THRUST RING
DRAIN VALVE TO AIR RESERVOIR
719 A 0024299644 VALVE
CHECK
VOSS
720 A 0034290444 VALVE
CHECK
WABCO
721 A 0034291244 VALVE
CHECK
SCHAEFER
722 A 0109970048 SEAL RING
13.6X2,SCHAEFER
723 A 0109970148 SEAL RING
15.3X2.4,SCHAEFER
724 A 0004290662 THRUST WASHER
SCHAEFER
725 A 0004290728 SEAL CONE
SCHAEFER
726 A 0002950320 VALVE
TO 003 429 04 44,WABCO 434 028 000 0
727 A 0004290383 VALVE TAPPET
VOSS
728 A 0004292584 SEAL RING
VOSS
A 0089977348 SEAL RING
TO 003 429 04 44,WEST.434 028 000 0
729 A 6204292540 BRACKET
Repalced by: A 6164290140
729 A 6164290140 BRACKET
CHECK VALVE
732 N 000933010129 SCREW
Repalced by: N 304017010002
732 N 304017010002 SCREW
BRACKET TO LEFT SIDE MEMBER
735 N 913004010008 NUT
Repalced by: N 910113010000
735 N 910113010000 NUT
BRACKET TO LEFT SIDE MEMBER
738 N 074305022202 NUT
CHECK VALVE TO BRACKET
N 915045012100 SEAL RING
Repalced by: N 007603012121
N 007603012121 SEAL RING
CHECK VALVE,CONNECTION:
"10"
741 N 915036012203 HOLLOW SCREW
CHECK VALVE,CONNECTION:
"21"
744 N 915036010204 HOLLOW SCREW
Repalced by: N 915036010108
744 N 915036010108 HOLLOW SCREW
CHECK VALVE,CONNECTION:
"23"
747 N 007603016401 SEAL RING
CHECK VALVE,CONNECTION:
"21"
750 N 007603014405 SEAL RING
CHECK VALVE,CONNECTION:
"23"
753 N 000908016001 SCREW PLUG
CHECK VALVE,CONNECTION:
"22"
756 A 0004290927 THRUST RING
CHECK VALVE,CONNECTION:
"22"
759 A 0009971548 SEAL RING
CHECK VALVE,CONNECTION:
"22"
762 A 0034291644 VALVE
RELAY
BOSCH
765 A 0014296844 VALVE
RELAY
WESTINGHOUSE
768 A 0034295344 VALVE
RELAY
KNORR
771 A 0014299144 VALVE
RELAY
GRAU
772 A 0109970048 SEAL RING
13.6X2 MM,SCHAEFER
774 A 0059972648 SEAL RING
22.3X2.4 MM;TO 001 429 91 44,GRAU
777 A 0004312788 VALVE SEAT
TO 001 429 91 44,GRAU
780 A 0059972748 SEAL RING
80X3 MM; TO 001 429 91 44, GRAU
783 A 0014311660 SEAL RING
28X2 MM;TO 001 429 91 44,GRAU
786 A 0014311760 SEAL RING
86X2 MM;TO 001 429 91 44,GRAU
789 A 0004311980 GASKET
34X2X6 MM;TO 001 429 91 44,GRAU
792 A 0025865642 REPAIR KIT
Repalced by: A 0004201071
792 A 0004201071 VALVE
GASKET KIT
TO 003 429 16 44,BOSCH; UP TO 03.82
792 A 0004201271 VALVE
GASKET KIT
TO 003 429 16 44,BOSCH; FROM 04.82
795 A 0025865742 REPAIR KIT
Repalced by: A 0004301109
795 A 0004301109 REPAIR KIT
BLEEDER VALVE
TO 003 429 16 44,BOSCH
798 A 0005865742 REPAIR KIT
TO 001 429 68 44,WABCO
801 A 0025863542 REPAIR KIT
TO 003 429 53 44,KNORR
804 A 3914311240 BRACKET
RELAY VALVE
807 N 000933008147 SCREW
Repalced by: N 304017008021
807 N 304017008021 SCREW
BRACKET TO CROSS MEMBER
810 N 913004008004 NUT
Repalced by: N 913004008001
810 N 913004008001 NUT
BRACKET TO CROSS MEMBER
813 N 913004008004 NUT
Repalced by: N 913004008001
813 N 913004008001 NUT
RELAY VALVE TO BRACKET
816 A 0009905168 FITTING
RELAY VALVE,CONNECTION:
"10"
819 A 0004290227 THRUST RING
Repalced by: A 0009940203
819 A 0009940203 THRUST RING
RELAY VALVE,CONNECTION:
"10"
822 A 0009870446 SEALING CORD
RELAY VALVE,CONNECTION:
"10"
825 N 915036012203 HOLLOW SCREW
RELAY VALVE;CONNECTIONS:
"10,20,40"
828 N 007603016401 SEAL RING
RELAY VALVE;CONNECTIONS:
"10,20,40"
831 N 000908016001 SCREW PLUG
RELAY VALVE,CONNECTION "20",LEFT
834 A 0004290927 THRUST RING
RELAY VALVE,CONNECTION "20",LEFT
837 A 0009971548 SEAL RING
RELAY VALVE,CONNECTION "20",LEFT
840 A 0014314412 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
WABCO
841 A 0014316312 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
WABCO
842 A 0004303660 REPAIR KIT
WABCO 475 711 007 0
843 A 6234310140 BRACKET
BRAKE POWER REGULATOR
846 N 000933008147 SCREW
Repalced by: N 304017008021
846 N 304017008021 SCREW
BRACKET TO CROSS MEMBER
849 N 913004008004 NUT
Repalced by: N 913004008001
849 N 913004008001 NUT
BRACKET TO CROSS MEMBER
852 N 000125008418 WASHER
Repalced by: N 000125008443
852 N 000125008443 WASHER
BRAKE POWER REGULATOR TO BRACKET
855 N 913004008004 NUT
Repalced by: N 913004008001
855 N 913004008001 NUT
BRAKE POWER REGULATOR TO BRACKET
858 A 6175842921 GUIDE SIGN
LOAD-DEPENDING BRAKE
858 A 6175844221 GUIDE SIGN
LOAD-DEPENDING BRAKE
858 A 6175846821 GUIDE SIGN
LOAD-DEPENDING BRAKE
858 A 6175843021 GUIDE SIGN
LOAD-DEPENDING BRAKE
858 A 6175844321 GUIDE SIGN
LOAD-DEPENDING BRAKE
A 3875840055 ADHESIVE FOIL
861 N 915036012203 HOLLOW SCREW
BRAKE POWER REGULATOR,CONNECTIONS:
"10,20"
864 N 000908016001 SCREW PLUG
BRAKE POWER REGULATOR,CONNECTION:
"20"
865 A 0004290927 THRUST RING
BRAKE POWER REGULATOR,CONNECTION:
"20"
866 A 0009971548 SEAL RING
BRAKE POWER REGULATOR,CONNECTION:
"20"
867 N 915039012205 HOLLOW SCREW FITTING
BRAKE POWER REGULATOR,CONNECTION:
"40"
870 N 007603016401 SEAL RING
BRAKE POWER REGULATOR,CONNECTIONS:
"10,20,40"
873 N 915047008202 HOLLOW SCREW
BRAKE POWER REGULATOR,CONNECTIONS:
"41,42"
876 N 007603012405 SEAL RING
BRAKE POWER REGULATOR,CONNECTIONS:
"41,42"
879 A 0074205718 WHEEL BRAKE CYLINDER
(TRISTOP CYLINDER)
WABCO
879 A 0084208918 WHEEL BRAKE CYLINDER
(TRISTOP CYLINDER)
BOSCH
879 A 0084205818 WHEEL BRAKE CYLINDER
(TRISTOP CYLINDER)
KNORR
879 A 0094209518 WHEEL BRAKE CYLINDER
(TRISTOP CYLINDER)
GRAU
882 A 0004231060 SEAL RING
TO 008 420 58 18,KNORR
885 A 0004234187 PROTECTIVE CAP
TO 008 420 58 18,KNORR
886 A 0004214886 CUP
Repalced by: A 0004213886
886 A 0004213886 CUP
TO 007 420 57 18,WABCO
888 A 0004212986 CUP
TO 007 420 57 18,WABCO
888 A 0004312928 DIAPHRAGM
TO 008 420 58 18,KNORR
888 A 0004313028 DIAPHRAGM
TO 008 420 89 18,BOSCH
894 A 0004211263 GUIDE
Repalced by: N 071752014000
894 N 071752014000 YOKE
TO 008 420 89 18,BOSCH
897 A 0004210111 PLUG
TO 007 420 57 18,WABCO
900 A 0025863742 REPAIR KIT
Repalced by: A 0025865242
900 A 0025865242 REPAIR KIT
Repalced by: A 0024301560
900 A 0024301560 REPAIR KIT
SPRING LOAD ACCUMULATOR
TO 007 420 57 18,WABCO
903 A 0014308660 REPAIR KIT
TO 008 420 89 18,BOSCH
906 A 0004304160 REPAIR KIT
Repalced by: A 0024209824
A 0024209824 REPAIR KIT
Repalced by: A 0024209524
A 0024209524 REPAIR KIT
DIAPHRAGM PART
TO 008 420 58 18,KNORR
A 0024209424 REPAIR KIT
SPRING LOAD ACCUMULATOR PART
TO 008 420 58 18,KNORR
909 A 3894201878 BEARING BRACKET
TRISTOP CYLINDER AND CONTROL ARM
912 N 000961016036 SCREW
Repalced by: N 308676016013
912 N 308676016013 SCREW
BEARING BRACKET TO REAR AXLE
915 N 001481028002 CLAMPING SLEEVE
BEARING BRACKET TO REAR AXLE
918 N 913004016004 NUT
Repalced by: N 910113016002
918 N 910113016002 NUT
TRISTOP CYLINDER TO BEARING BRACKET
921 A 3874230006 BRAKE ANCHOR
TRISTOP CYLINDER
924 N 000961014028 SCREW
SUPPORT TO BEARING BRACKET
927 N 913004014002 NUT
Repalced by: N 910113014001
927 N 910113014001 NUT
SUPPORT TO BEARING BRACKET
930 A 3619910005 PIN
TRISTOP CYLINDER TO SLACK ADJUSTER
933 N 000433015005 WASHER
TRISTOP CYLINDER TO SLACK ADJUSTER
936 N 000094004065 COTTER PIN
TRISTOP CYLINDER TO SLACK ADJUSTER
939 N 915040012206 HOLLOW SCREW FITTING
LEFT TRISTOP CYLINDER,CONNECTION:
"11"
939 N 915040012206 HOLLOW SCREW FITTING
RIGHT TRISTOP CYLINDER,CONNECTION:
"12"
939 N 915039012205 HOLLOW SCREW FITTING
LEFT TRISTOP CYLINDER,CONNECTION:
"12"
942 A 0019905370 T-FITTING
LEFT TRISTOP CYLINDER,CONNECTION:
"11"
945 A 0004290927 THRUST RING
LEFT TRISTOP CYLINDER,CONNECTION:
"11"
948 A 0009971548 SEAL RING
LEFT TRISTOP CYLINDER,CONNECTION:
"11"
951 N 080705016003 NUT
LEFT TRISTOP CYLINDER,CONNECTION:
"11"
954 N 915036012203 HOLLOW SCREW
RIGHT TRISTOP CYLINDER,CONNECTION:
"11"
957 N 007603016401 SEAL RING
TRISTOP CYLINDER;CONNECTIONS:
"11,12"
960 A 0014303481 VALVE
PARKING BRAKE
BOSCH
960 A 0014305681 VALVE
PARKING BRAKE
WABCO
960 A 0014306681 VALVE
Repalced by: A 0024309881
960 A 0024309881 VALVE
PARKING BRAKE
KNORR
960 A 0014304381 VALVE
PARKING BRAKE
BOSCH
960 A 0014305781 VALVE
PARKING BRAKE
WABCO
960 A 0014306781 VALVE
Repalced by: A 0024309981
960 A 0024309981 VALVE
PARKING BRAKE
KNORR
963 A 0009975577 HANDLE
KNORR
963 A 0009972477 HANDLE
WABCO
963 A 0009973477 HANDLE
BOSCH
965 A 0014311287 PROTECTIVE CAP
KNORR
965 A 0014310887 PROTECTIVE CAP
WABCO
965 A 0014311087 PROTECTIVE CAP
BOSCH
966 N 001481003025 CLAMPING SLEEVE
KNORR
967 A 0025867443 REPAIR KIT
Repalced by: A 0034303181
967 A 0034303181 REPAIR KIT
PARKING BRAKE VALVE
WABCO
967 A 0025866343 REPAIR KIT
PARKING BRAKE VALVE
BOSCH
967 A 0034302081 REPAIR KIT
TO 002 430 98 81,002 430 99 81,KNORR
A 0035860543 REPAIR KIT
PARKING BRAKE VALVE
KNORR
975 N 007985008119 SCREW
PARKING BRAKE VALVE TO CAB
978 N 912006008000 LOCK WASHER
PARKING BRAKE VALVE TO CAB
981 A 0009976189 COUPLING
PARKING BRAKE VALVE,CONNECTIONS:
"11,21"
984 A 0099973948 SEAL RING
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
