Transporto priemonė: 1620 L/LL; VIN numerio dalis: 617447

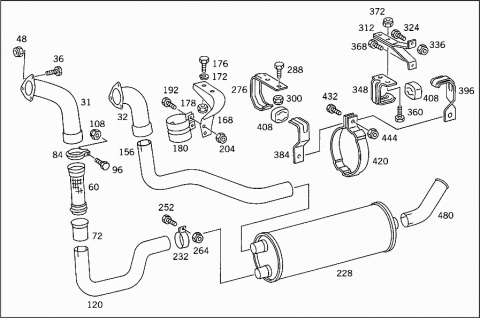

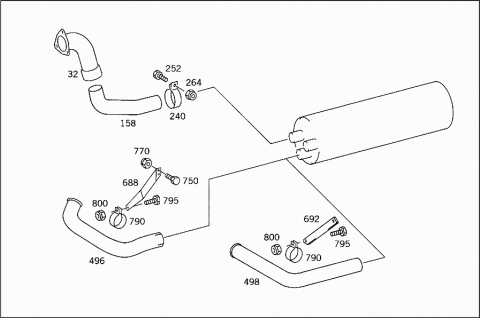

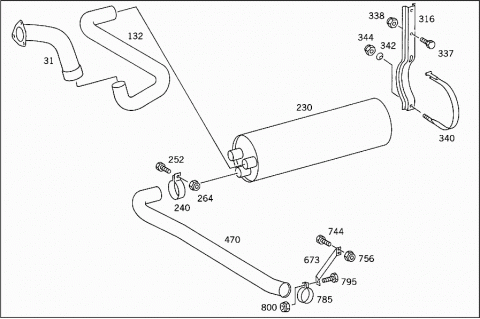

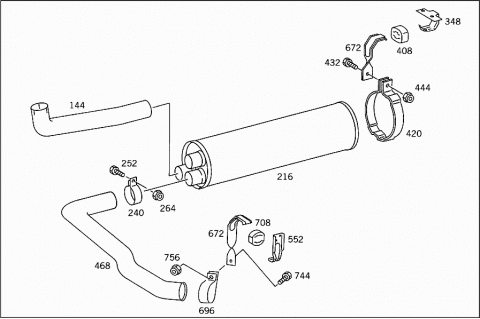

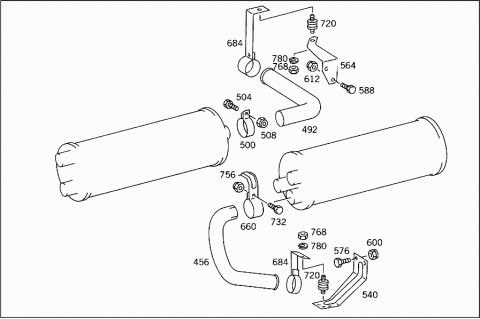

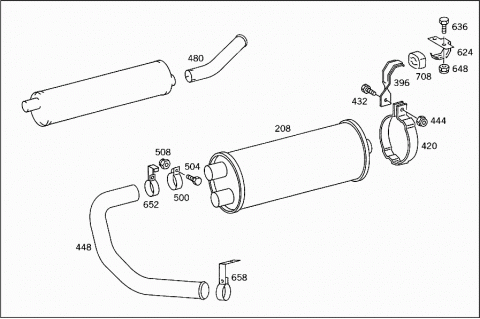

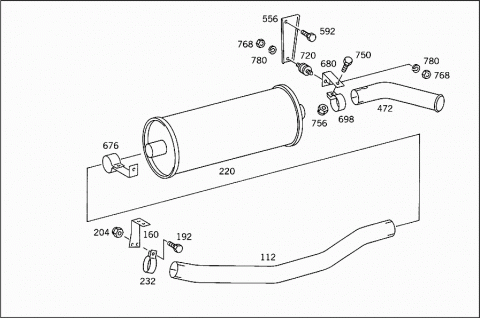

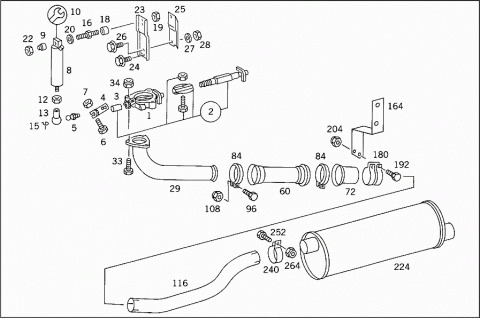

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| A 3661440012 | THROTTLE HOUSING | |
| Repalced by: A 3661400853 | ||
| A 3661400853 | THROTTLE HOUSING | |
| Repalced by: A 3661402253 | ||
| 001 | A 3661402253 | THROTTLE HOUSING |
| 001 | A 3661402353 | THROTTLE HOUSING |
| Repalced by: A 3661405353 | ||
| 001 | A 3661405353 | THROTTLE HOUSING |
| PARTS KIT | ||
| 002 | A 3661401063 | VALVE |
| PARTS KIT | ||
| 002 | A 3661401163 | VALVE |
| PARTS KIT | ||
| 003 | A 3521441650 | BUSHING |
| THROTTLE VALVE SHAFT | ||
| 003 | A 4031440550 | BUSHING |
| THROTTLE VALVE SHAFT | ||
| 004 | A 3661400032 | LEVER |
| Repalced by: A 3661400232 | ||
| 004 | A 3661400232 | LEVER |
| EXHAUST-BRAKE THROTTLE VALVE | ||
| 005 | N 071803013208 | BALL PIVOT |
| 006 | N 000933006124 | SCREW |
| LEVER TO THROTTLE VALVE SHAFT | ||
| TO 366 140 00 32 | ||
| 006 | N 914126006025 | SCREW |
| Repalced by: N 910105006005 | ||
| 006 | N 910105006005 | SCREW |
| Repalced by: N 000000001479 | ||
| 006 | N 000000001479 | SCREW |
| LEVER TO THROTTLE VALVE SHAFT | ||
| TO 366 140 02 32 | ||
| 007 | N 000934006007 | NUT |
| LEVER TO THROTTLE VALVE SHAFT | ||
| TO 366 140 00 32 | ||
| 007 | N 913017006000 | NUT |
| Repalced by: N 910112006001 | ||
| 007 | N 910112006001 | NUT |
| Repalced by: N 913023006001 | ||
| 007 | N 913023006001 | NUT |
| LEVER TO THROTTLE VALVE SHAFT | ||
| TO 366 140 02 32 | ||
| 008 | A 0004304226 | CYLINDER |
| Repalced by: A 0004303026 | ||
| 008 | A 0004303026 | CYLINDER |
| Repalced by: A 0004304826 | ||
| 008 | A 0004304826 | CYLINDER |
| Repalced by: A 0004306026 | ||
| 008 | A 0004303226 | CYLINDER |
| Repalced by: A 0004304926 | ||
| 008 | A 0004304926 | CYLINDER |
| Repalced by: A 0004306026 | ||
| 008 | A 0004306026 | CYLINDER |
| Repalced by: A 0004305926 | ||
| 008 | A 0004305926 | CYLINDER |
| (POWER CYLINDER),EXHAUST BRAKE | ||
| MOTORBREMSE TECHNOMATIK | ||
| 009 | A 0004340550 | BUSHING |
| Repalced by: A 0004340850 | ||
| 009 | A 0004340850 | BUSHING |
| TO 000 430 30 26/32 26 | ||
| A 4421440050 | BUSHING | |
| TO 000 430 48 26/49 26 | ||
| 010 | A 0004308460 | REPAIR KIT |
| SHIFTING CYLINDER | ||
| TO KNORR,SZ 1130 I/74963,000 430 30 26 | ||
| 010 | A 0004305426 | REPAIR KIT |
| SHIFTING CYLINDER | ||
| TO KNORR,000 430 48 26 | ||
| 012 | N 000439008211 | NUT |
| Repalced by: N 304035008001 | ||
| 012 | N 304035008001 | NUT |
| SHIFTING CYLINDER TO SHIFT LEVER | ||
| 013 | A 4039910222 | BALL SOCKET |
| SHIFTING CYLINDER TO SHIFT LEVER | ||
| 013 | A 3769917022 | BALL SOCKET |
| SHIFTING CYLINDER TO SHIFT LEVER | ||
| 015 | N 071805013402 | SECURING CLIP |
| SHIFTING CYLINDER TO SHIFT LEVER | ||
| 016 | A 4221440174 | PIN |
| Repalced by: A 4421440574 | ||
| 016 | A 4421440574 | PIN |
| SHIFTING CYLINDER TO BRACKET | ||
| A 4421440274 | PIN | |
| SHIFTING CYLINDER TO BRACKET | ||
| 018 | N 007349008003 | WASHER |
| SHIFTING CYLINDER TO BRACKET | ||
| 019 | N 304032008006 | NUT |
| SHIFTING CYLINDER TO BRACKET | ||
| 020 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 020 | N 000125008443 | WASHER |
| SHIFTING CYLINDER TO BRACKET | ||
| A 0039902940 | WASHER | |
| SHIFTING CYLINDER TO BRACKET | ||
| 022 | N 999900008005 | NUT |
| SHIFTING CYLINDER TO BRACKET | ||
| N 304032008006 | NUT | |
| SHIFTING CYLINDER TO BRACKET | ||
| 023 | A 3661440040 | BRACKET |
| Repalced by: A 3661440440 | ||
| 023 | A 3661440440 | BRACKET |
| SHIFTING CYLINDER | ||
| 024 | N 914126008007 | SCREW |
| BRACKET TO THROTTLE HOUSING | ||
| 025 | A 3661420020 | SCREENING PLATE |
| COMPRESSED AIR CYLINDER SCREENING | ||
| 026 | N 914126008007 | SCREW |
| SCREENING PLATE TO EXHAUST MANIFOLD | ||
| 027 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 027 | N 000125008443 | WASHER |
| SCREENING PLATE TO EXHAUST MANIFOLD | ||
| 028 | N 304032008006 | NUT |
| SCREENING PLATE TO EXHAUST MANIFOLD | ||
| 029 | A 6164900119 | EXHAUST PIPE |
| FRONT,FRONT PART | ||
| 029 | A 6164900919 | EXHAUST PIPE |
| FRONT,FRONT PART | ||
| A 6164902319 | EXHAUST PIPE | |
| FRONT,FRONT PART | ||
| 031 | A 6174900825 | CONNECTOR |
| LEFT FRONT | ||
| 032 | A 6174900925 | CONNECTOR |
| RIGHT FRONT | ||
| 033 | N 000960012221 | SCREW |
| FRONT EXHAUST PIPE TO THROTTLE HOUSING | ||
| 034 | N 910113012002 | NUT |
| FRONT EXHAUST PIPE TO THROTTLE HOUSING | ||
| 036 | N 000931012114 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 12X45 | ||
| N 000933012071 | SCREW | |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 12X40 | ||
| 048 | N 913004012010 | NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| A 6174900730 | PROTECTIVE PLATE | |
| Repalced by: A 6524920230 | ||
| A 6524920230 | PROTECTIVE PLATE | |
| A 6764921641 | BRACKET | |
| Repalced by: A 6764901040 | ||
| A 6764901040 | BRACKET | |
| PROTECTIVE PLATE | ||
| N 000933008291 | SCREW | |
| Repalced by: A 4609900601 | ||
| A 4609900601 | SCREW | |
| PROTECTIVE PLATE TO BRACKET | ||
| N 913004008004 | NUT | |
| Repalced by: N 913004008001 | ||
| N 913004008001 | NUT | |
| PROTECTIVE PLATE TO BRACKET | ||
| N 000125008418 | WASHER | |
| Repalced by: N 000125008443 | ||
| N 000125008443 | WASHER | |
| PROTECTIVE PLATE TO BRACKET | ||
| N 000961012052 | SCREW | |
| Repalced by: N 308676012012 | ||
| N 308676012012 | SCREW | |
| PROTECTIVE PLATE TO BRACKET | ||
| M 12X1,5X25 | ||
| 060 | A 6204900365 | FLEXIBLE METAL TUBE |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 060 | A 6204900365 | FLEXIBLE METAL TUBE |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 060 | A 6204900465 | FLEXIBLE METAL TUBE |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 072 | A 6204920008 | COLLAR |
| Repalced by: A 6524920008 | ||
| 072 | A 6524920008 | COLLAR |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 072 | A 6174920008 | COLLAR |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 072 | A 6174920008 | COLLAR |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 072 | A 6204920208 | COLLAR |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 084 | A 6209970490 | CLAMP |
| EXHAUST LINE FLEXIBLE METAL TUBE | ||
| 084 | A 6209970490 | CLAMP |
| EXHAUST LINE FLEXIBLE METAL TUBE | ||
| 084 | A 6209970590 | CLAMP |
| EXHAUST LINE FLEXIBLE METAL TUBE | ||
| 096 | N 000933008161 | SCREW |
| Repalced by: N 304017008028 | ||
| 096 | N 304017008028 | SCREW |
| CLAMP TO EXHAUST PIPE AND TO FLEXIBLE METAL TUBE | ||
| 108 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 108 | N 913004008001 | NUT |
| CLAMP TO EXHAUST PIPE AND TO FLEXIBLE METAL TUBE | ||
| 112 | A 6174902820 | EXHAUST PIPE |
| FRONT,REAR PART | ||
| 112 | A 6164900020 | EXHAUST PIPE |
| FRONT,REAR PART | ||
| 116 | A 6164901620 | EXHAUST PIPE |
| FRONT,REAR PART | ||
| A 6164902120 | EXHAUST PIPE | |
| FRONT,REAR PART | ||
| 120 | A 6174901220 | EXHAUST PIPE |
| Repalced by: A 6174904720 | ||
| 120 | A 6174904720 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 120 | A 6174904720 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 132 | A 6174901620 | EXHAUST PIPE |
| Repalced by: A 6174904020 | ||
| 132 | A 6174904020 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 132 | A 6194901920 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 132 | A 6194901320 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 132 | A 6174901820 | EXHAUST PIPE |
| Repalced by: A 6174904120 | ||
| 132 | A 6174904120 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 144 | A 6174901720 | EXHAUST PIPE |
| Repalced by: A 6174905020 | ||
| 144 | A 6174905020 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 144 | A 6174901920 | EXHAUST PIPE |
| Repalced by: A 6174904220 | ||
| 144 | A 6174904220 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 156 | A 6174901320 | EXHAUST PIPE |
| Repalced by: A 6174904820 | ||
| 156 | A 6174904820 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 156 | A 6174904820 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 158 | A 6194902020 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 158 | A 6194901220 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 160 | A 6164920641 | BRACKET |
| EXHAUST PIPE TO ENGINE MOUNTING | ||
| 164 | A 6164900340 | BRACKET |
| FRONT EXHAUST PIPE | ||
| A 6164900540 | BRACKET | |
| Repalced by: A 6504920241 | ||
| A 6504920241 | BRACKET | |
| FRONT EXHAUST PIPE | ||
| 168 | A 6174922941 | BRACKET |
| LEFT EXHAUST PIPE | ||
| 168 | A 6174923041 | BRACKET |
| RIGHT EXHAUST PIPE | ||
| 172 | N 912004014100 | LOCK WASHER |
| BRACKET TO CROSS MEMBER | ||
| 172 | N 912004014100 | LOCK WASHER |
| BRACKET TO CROSS MEMBER | ||
| 176 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 176 | N 308676014020 | SCREW |
| BRACKET TO SUPPORT | ||
| 176 | N 000961014100 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 176 | N 000961014100 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 178 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 178 | N 910113014001 | NUT |
| BRACKET TO SUPPORT | ||
| 180 | A 6204920840 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 180 | A 6204920840 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 180 | A 6204920940 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 192 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 192 | N 304017010002 | SCREW |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 204 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 204 | N 910113010000 | NUT |
| FRONT EXHAUST PIPE TO BRACKET | ||
| A 3834901030 | PROTECTIVE PLATE | |
| FRONT EXHAUST PIPE | ||
| N 071555090501 | CLAMP | |
| Repalced by: N 071555090502 | ||
| N 071555090502 | CLAMP | |
| PROTECTIVE PLATE TO FRONT EXHAUST PIPE | ||
| N 000933010129 | SCREW | |
| Repalced by: N 304017010002 | ||
| N 304017010002 | SCREW | |
| PROTECTIVE PLATE TO FRONT EXHAUST PIPE | ||
| N 913004010008 | NUT | |
| Repalced by: N 910113010000 | ||
| N 910113010000 | NUT | |
| PROTECTIVE PLATE TO FRONT EXHAUST PIPE | ||
| 208 | A 6174900401 | EXHAUST MUFFLER |
| 208 | A 6164900401 | EXHAUST MUFFLER |
| 216 | A 6174900001 | EXHAUST MUFFLER |
| 220 | A 6174900301 | EXHAUST MUFFLER |
| 224 | A 6164900501 | EXHAUST MUFFLER |
| 228 | A 6174900101 | EXHAUST MUFFLER |
| 230 | A 6174901901 | EXHAUST MUFFLER |
| 232 | N 071555075502 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 232 | N 071555094501 | CLAMP |
| Repalced by: N 071555094502 | ||
| 232 | N 071555094502 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 240 | N 071555078502 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 252 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 252 | N 304017010002 | SCREW |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 264 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 264 | N 910113010000 | NUT |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 276 | A 6174910616 | SUPPORT |
| FRONT EXHAUST MUFFLER | ||
| 276 | A 6174911216 | SUPPORT |
| FRONT EXHAUST MUFFLER | ||
| 288 | N 000961012151 | SCREW |
| SUPPORT TO CROSS MEMBER | ||
| 288 | N 000961012151 | SCREW |
| SUPPORT TO CROSS MEMBER | ||
| 300 | N 910113012002 | NUT |
| SUPPORT TO CROSS MEMBER | ||
| 300 | N 910113012002 | NUT |
| SUPPORT TO CROSS MEMBER | ||
| 312 | A 6174900034 | SUPPORT |
| REAR EXHAUST MUFFLER | ||
| 312 | A 6174900034 | SUPPORT |
| REAR EXHAUST MUFFLER | ||
| 316 | A 6174910541 | BRACKET |
| EXHAUST MUFFLER TO FRAME | ||
| 316 | A 6174910541 | BRACKET |
| EXHAUST MUFFLER TO FRAME | ||
| A 6174911841 | BRACKET | |
| EXHAUST MUFFLER TO FRAME | ||
| 324 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 324 | N 304017010002 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 324 | N 304017010002 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 336 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 336 | N 910113010000 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 337 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 337 | N 308676014020 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 338 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 338 | N 910113014001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 340 | A 6174900142 | STRAP |
| FRONT AND REAR EXHAUST MUFFLERS | ||
| 342 | N 006319010302 | SPHERICAL WASHER |
| STRAP TO BRACKET | ||
| 344 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 344 | N 910113010000 | NUT |
| STRAP TO BRACKET | ||
| 348 | A 6174911316 | SUPPORT |
| REAR EXHAUST MUFFLER | ||
| 348 | A 6174911316 | SUPPORT |
| REAR EXHAUST MUFFLER | ||
| 360 | N 000933010157 | SCREW |
| SUPPORT TO SUPPORT | ||
| M 10X28 | ||
| 360 | N 000933010157 | SCREW |
| SUPPORT TO CROSS MEMBER | ||
| M 10X28 | ||
| 368 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 368 | N 304017010002 | SCREW |
| SUPPORT TO CROSS MEMBER | ||
| M 10X30 | ||
| 372 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 372 | N 910113010000 | NUT |
| SUPPORT TO SUPPORT | ||
| 372 | N 910113010000 | NUT |
| SUPPORT TO CROSS MEMBER | ||
| 384 | A 6174920141 | BRACKET |
| FRONT EXHAUST MUFFLER | ||
| 384 | A 6174920141 | BRACKET |
| FRONT EXHAUST MUFFLER | ||
| 396 | A 6174923441 | BRACKET |
| REAR EXHAUST MUFFLER | ||
| 396 | A 6174923441 | BRACKET |
| REAR EXHAUST MUFFLER | ||
| 396 | A 6174923441 | BRACKET |
| REAR EXHAUST MUFFLER | ||
| 396 | A 6164923341 | BRACKET |
| 396 | A 6164923341 | BRACKET |
| 408 | A 3814920082 | DAMPING PAD |
| BRACKET TO SUPPORT | ||
| 408 | A 3814920082 | DAMPING PAD |
| BRACKET TO SUPPORT | ||
| 420 | A 6164910040 | CLAMP |
| EXHAUST MUFFLER TO BRACKET,FRONT AND REAR | ||
| 420 | A 6174910340 | CLAMP |
| Repalced by: A 6174910540 | ||
| 420 | A 6174910540 | CLAMP |
| EXHAUST MUFFLER TO BRACKET,FRONT AND REAR | ||
| 432 | N 000933010094 | SCREW |
| EXHAUST MUFFLER TO BRACKET,FRONT AND REAR | ||
| M 10X40 | ||
| 432 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 432 | N 304017010002 | SCREW |
| EXHAUST MUFFLER TO BRACKET,FRONT AND REAR | ||
| M 10X30 | ||
| 444 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 444 | N 910113010000 | NUT |
| EXHAUST MUFFLER TO BRACKET,FRONT AND REAR | ||
| 444 | N 910113010000 | NUT |
| EXHAUST MUFFLER TO BRACKET,FRONT AND REAR | ||
| 448 | A 6174921014 | END PIECE |
| 448 | A 6164921514 | END PIECE |
| Repalced by: A 6164922314 | ||
| 448 | A 6164922314 | END PIECE |
| 456 | A 6174921114 | END PIECE |
| 468 | A 6164920714 | END PIECE |
| 470 | A 6194923104 | REAR EXHAUST PIPE |
| TAIL PIPE,FRONT | ||
| 470 | A 6194921204 | REAR EXHAUST PIPE |
| TAIL PIPE,FRONT | ||
| 472 | A 3834926504 | REAR EXHAUST PIPE |
| 480 | A 6174920004 | REAR EXHAUST PIPE |
| Repalced by: A 6174920204 | ||
| 480 | A 6174920204 | REAR EXHAUST PIPE |
| 480 | A 6174920204 | REAR EXHAUST PIPE |
| 492 | A 6174920514 | END PIECE |
| Repalced by: A 6174920604 | ||
| 492 | A 6174920604 | REAR EXHAUST PIPE |
| 496 | A 6194921904 | REAR EXHAUST PIPE |
| TAIL PIPE,FRONT | ||
| 496 | A 6194922004 | REAR EXHAUST PIPE |
| TAIL PIPE,FRONT | ||
| 498 | A 6194922104 | REAR EXHAUST PIPE |
| TAIL PIPE,FRONT | ||
| 500 | N 071555075502 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 500 | N 071555090501 | CLAMP |
| Repalced by: N 071555090502 | ||
| 500 | N 071555090502 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 500 | N 071555090502 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 504 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 504 | N 304017010002 | SCREW |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 508 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 508 | N 910113010000 | NUT |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 540 | A 6164920316 | SUPPORT |
| REAR EXHAUST PIPE | ||
| 540 | A 6164920316 | SUPPORT |
| REAR EXHAUST PIPE | ||
| 552 | A 3814910416 | SUPPORT |
| REAR EXHAUST PIPE | ||
| 556 | A 6164920516 | SUPPORT |
| REAR EXHAUST PIPE | ||
| 564 | A 3814910616 | SUPPORT |
| Repalced by: A 3814920316 | ||
| 564 | A 3814920316 | SUPPORT |
| REAR EXHAUST PIPE | ||
| 576 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 576 | N 304017010002 | SCREW |
| SUPPORT TO FRONT APPARATUS SUPPORT | ||
| 576 | N 304017010002 | SCREW |
| SUPPORT TO FRONT APPARATUS SUPPORT | ||
| 588 | N 000933008150 | SCREW |
| Repalced by: N 304017008018 | ||
| 588 | N 304017008018 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 588 | N 304017008018 | SCREW |
| SUPPORT TO FRONT APPARATUS SUPPORT | ||
| 592 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 592 | N 304017008034 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 600 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 600 | N 910113010000 | NUT |
| SUPPORT TO FRONT APPARATUS SUPPORT | ||
| 600 | N 910113010000 | NUT |
| SUPPORT TO FRONT APPARATUS SUPPORT | ||
| 612 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 612 | N 913004008001 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 612 | N 913004008001 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 612 | N 913004008001 | NUT |
| SUPPORT TO FRONT APPARATUS SUPPORT | ||
| 624 | A 6174911316 | SUPPORT |
| REAR EXHAUST PIPE | ||
| 636 | N 000933010157 | SCREW |
| SUPPORT TO SUPPORT | ||
| 648 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 648 | N 910113010000 | NUT |
| SUPPORT TO SUPPORT | ||
| 652 | A 3834921341 | BRACKET |
| REAR EXHAUST PIPE TO DAMPING PAD | ||
| 658 | A 6164923041 | BRACKET |
| Repalced by: A 6164920141 | ||
| 658 | A 6164920141 | BRACKET |
| Repalced by: A 6164920241 | ||
| 658 | A 6164920241 | BRACKET |
| REAR EXHAUST PIPE | ||
| A 6164924341 | BRACKET | |
| Repalced by: A 6164920141 | ||
| A 6164920141 | BRACKET | |
| Repalced by: A 6164920241 | ||
| A 6164920241 | BRACKET | |
| REAR EXHAUST PIPE | ||
| 660 | A 6174923641 | BRACKET |
| REAR EXHAUST PIPE TO DAMPING PAD | ||
| 672 | A 6174920941 | BRACKET |
| REAR EXHAUST PIPE TO DAMPING PAD | ||
| 673 | A 6194921041 | BRACKET |
| TAIL PIPE,FRONT | ||
| 676 | A 6164922241 | BRACKET |
| Repalced by: A 3834927941 | ||
| 676 | A 3834927941 | BRACKET |
| REAR EXHAUST PIPE | ||
| 680 | A 6164924041 | BRACKET |
| Repalced by: A 3604923541 | ||
| 680 | A 3604923541 | BRACKET |
| REAR EXHAUST PIPE | ||
| 684 | A 6164920141 | BRACKET |
| Repalced by: A 6164920241 | ||
| 684 | A 6164920241 | BRACKET |
| REAR EXHAUST PIPE | ||
| 684 | A 6174922541 | BRACKET |
| Repalced by: A 6164923241 | ||
| 684 | A 6174923241 | BRACKET |
| REAR EXHAUST PIPE | ||
| 688 | A 6194921341 | BRACKET |
| TAIL PIPE,FRONT | ||
| 688 | A 6194921441 | BRACKET |
| TAIL PIPE,FRONT | ||
| 692 | A 6214921741 | BRACKET |
| Repalced by: A 6244920741 | ||
| 692 | A 6244920741 | BRACKET |
| TAIL PIPE,FRONT | ||
| 696 | A 3954920040 | CLAMP |
| Repalced by: A 6454921140 | ||
| 696 | A 6454921140 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 698 | N 071555094501 | CLAMP |
| Repalced by: N 071555094502 | ||
| 698 | N 071555094502 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 708 | A 3814920082 | DAMPING PAD |
| BRACKET TO SUPPORT | ||
| 720 | A 0019875340 | RUBBER BUFFER |
| REAR EXHAUST PIPE TO SUPPORT | ||
| 720 | A 0019875340 | RUBBER BUFFER |
| REAR EXHAUST PIPE TO SUPPORT | ||
| 720 | A 0019875340 | RUBBER BUFFER |
| REAR EXHAUST PIPE TO SUPPORT | ||
| 732 | N 000933010157 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| 732 | N 000933010157 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| 744 | N 000933010105 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| 744 | N 000933010105 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| 744 | N 000933010105 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| 744 | N 000933010105 | SCREW |
| BRACKET TO HYDRAULIC PUMP BRACKET | ||
| 744 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 744 | N 304017010002 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| 744 | N 304017010002 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 744 | N 304017010002 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 744 | N 304017010002 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| 750 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 750 | N 304017008034 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 756 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 756 | N 910113010000 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
| 756 | N 910113010000 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
| 756 | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 756 | N 910113010000 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
| 756 | N 910113010000 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 756 | N 910113010000 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
| 756 | N 910113010000 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
| 768 | N 000934010014 | NUT |
| RUBBER BUFFER TO BRACKET | ||
| 768 | N 000934010014 | NUT |
| RUBBER BUFFER TO BRACKET | ||
| 768 | N 000934010014 | NUT |
| RUBBER BUFFER TO BRACKET | ||
| 768 | N 000934010014 | NUT |
| BRACKET TO HYDRAULIC PUMP BRACKET | ||
| 770 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 770 | N 913004008001 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 780 | N 912004010102 | LOCK WASHER |
| RUBBER BUFFER TO BRACKET | ||
| 780 | N 912004010102 | LOCK WASHER |
| RUBBER BUFFER TO BRACKET | ||
| 780 | N 912004010102 | LOCK WASHER |
| RUBBER BUFFER TO BRACKET | ||
| 785 | N 071555090501 | CLAMP |
| Repalced by: N 071555090502 | ||
| 785 | N 071555090502 | CLAMP |
| TAIL PIPE TO BRACKET | ||
| 90.5 MM | ||
| 785 | N 071555090502 | CLAMP |
| TAIL PIPE TO BRACKET | ||
| 90.5 MM | ||
| 790 | A 3954920040 | CLAMP |
| Repalced by: A 6454921140 | ||
| 790 | A 6454921140 | CLAMP |
| TAIL PIPE TO BRACKET | ||
| 90 MM | ||
| 795 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 795 | N 304017010002 | SCREW |
| EXHAUST PIPE AND PIPE CLAMP TO BRACKET | ||
| 800 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 800 | N 910113010000 | NUT |
| EXHAUST PIPE AND PIPE CLAMP TO BRACKET | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| PARTICLE FILTER RETROFIT KIT | ||
| A 6524900049 | TANK | |
| A 0004910235 | RESERVOIR | |
| A 0004920011 | COVER | |
| ACTIVATING AGENT RESERVOIR | ||
| A 0189975348 | SEAL RING | |
| LINE CONNECTION | ||
| A 0004910181 | VALVE | |
| A 0004910581 | VALVE | |
| A 6524920430 | PROTECTIVE PLATE | |
| A 0035453714 | SWITCH | |
| Repalced by: A 0035455714 | ||
| A 0035455714 | SWITCH | |
| A 0009841636 | LOCKING PIN | |
| A 0039975336 | VALVE | |
| Repalced by: A 0049975736 | ||
| A 0049975736 | VALVE | |
| "WABCO" | ||
| A 0049972836 | VALVE | |
| "KNORR" | ||
| A 0049972736 | VALVE | |
| "BOSCH" | ||
| A 0034305481 | GASKET KIT | |
| KNORR | ||
| A 0069972572 | FITTING | |
| A 0069972472 | FITTING | |
| A 6524920018 | BASE PLATE | |
| A 6524900130 | PROTECTIVE PLATE | |
| A 6524901440 | BRACKET | |
| N 000931008246 | SCREW | |
| Repalced by: N 304017008028 | ||
| N 304017008028 | SCREW | |
| M 8X50 | ||
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| M 8X20 | ||
| N 000933008212 | SCREW | |
| Repalced by: N 304017008016 | ||
| N 304017008016 | SCREW | |
| M 8X16 | ||
| N 007985004136 | SCREW | |
| M 4X12 | ||
| N 912004008102 | LOCK WASHER | |
| N 913004008004 | NUT | |
| Repalced by: N 913004008001 | ||
| N 913004008001 | NUT | |
| N 913004004002 | NUT | |
| Repalced by: N 913002004001 | ||
| N 913002004001 | NUT | |
| A 0089976082 | HOSE | |
| Repalced by: A 0009872627 | ||
| A 0009872627 | PLASTIC PIPE | |
| 4X6 MM | ||
| N 915052004015 | BANJO UNION | |
| N 915017006100 | UNION NUT | |
| N 003861006007 | GLAND | |
| Repalced by: A 0019901667 | ||
| A 0019901667 | SEAL CONE | |
| N 915062004001 | SLEEVE | |
| A 6524901266 | LINE | |
| Repalced by: A 6524910837 | ||
| A 6524910837 | LINE | |
| Repalced by: A 6524901266 | ||
| A 6524901266 | LINE | |
| Repalced by: A 0004290001 | ||
| A 0004290001 | LINE | |
| 6X25000 MM | ||
| N 003901006007 | SCREW-IN FITTING | |
| N 003902006103 | CONNECTION FITTING | |
| N 915035000022 | SEAL RING | |
| A 0005400624 | DIODE CASE | |
| A 0009890050 | ACTIVATING AGENT | |
| Repalced by: A 0009890250 | ||
| A 0009890250 | ACTIVATING AGENT | |
| A 0015451815 | TELL-TALE LAMP | |
| A 0029908070 | FITTING | |
| A 0085450690 | LENS | |
| A 0095453532 | CONTROL UNIT | |
| N 071555078502 | CLAMP | |
| 78.5 | ||
| N 071555090501 | CLAMP | |
| Repalced by: N 071555090502 | ||
| N 071555090502 | CLAMP | |
| 90.5 | ||
| N 071555104501 | CLAMP | |
| 104.5 | ||
| A 3574900165 | FLEXIBLE METAL TUBE | |
| A 0009973175 | THREADED UNION | |
| A 4011423101 | EXHAUST MANIFOLD | |
| A 4011423201 | EXHAUST MANIFOLD | |
| A 6174900142 | STRAP | |
| A 6174911741 | BRACKET | |
| Repalced by: A 6524911641 | ||
| A 6524911641 | BRACKET | |
| A 6214900042 | STRAP | |
| Repalced by: A 6554900942 | ||
| A 6554900942 | STRAP | |
| A 6554900942 | STRAP | |
| A 6454901501 | EXHAUST MUFFLER | |
| A 6524900566 | LINE | |
| Repalced by: A 6524910037 | ||
| A 6524910037 | LINE | |
| A 6524901166 | LINE | |
| Repalced by: A 6524911537 | ||
| A 6524911537 | LINE | |
| A 6524902366 | LINE | |
| Repalced by: A 6524910037 | ||
| A 6524910037 | LINE | |
| A 6524910141 | BRACKET | |
| Repalced by: A 6524910741 | ||
| A 6524910741 | BRACKET | |
| A 3184923441 | BRACKET | |
| A 6524920008 | COLLAR | |
| A 6524921914 | END PIECE | |
| A 6525400009 | CABLE HARNESS | |
| A 0105422517 | SENDER UNIT | |
| A 6555421140 | BRACKET | |
| A 6565403337 | ELECTRIC CABLE | |
| A 6524921607 | CONNECTOR | |
| A 6524900031 | INTERMEDIATE PIECE | |
| A 6524910094 | SOOT FILTER | |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
