Transporto priemonė: 1620 L/LL; VIN numerio dalis: 617447

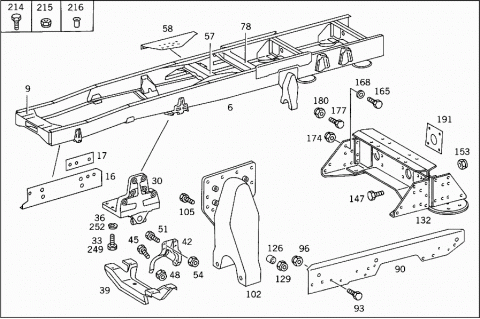

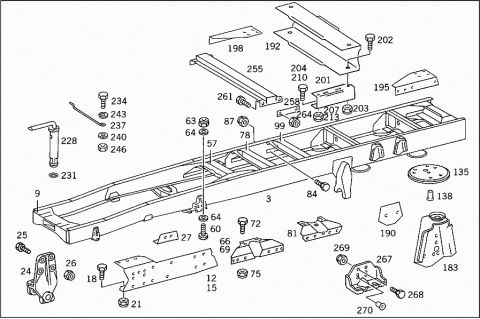

Grupė: 31 FRAME
| # | Kodas | Pavadinimas |
|---|---|---|
| 003 | A 6173100202 | FRAME |
| 003 | A 6173100302 | FRAME |
| 003 | A 6173105001 | FRAME |
| 003 | A 6173104801 | FRAME |
| 003 | A 6173105101 | FRAME |
| 003 | A 6173104901 | FRAME |
| 003 | A 6173105201 | FRAME |
| 003 | A 6173105301 | FRAME |
| 003 | A 6173101901 | FRAME |
| 003 | A 6173102002 | FRAME |
| 003 | A 6173107801 | FRAME |
| 003 | A 6173102102 | FRAME |
| 003 | A 6173106602 | FRAME |
| 006 | A 6173103802 | FRAME |
| 006 | A 6173106302 | FRAME |
| 006 | A 6173101701 | FRAME |
| 006 | A 6173102202 | FRAME |
| 006 | A 6173106402 | FRAME |
| 009 | A 3873100422 | CROSS MEMBER |
| FRONT | ||
| 012 | A 3853122187 | GUSSET PLATE |
| FRONT LEFT | ||
| 012 | A 3853122187 | GUSSET PLATE |
| FRONT LEFT | ||
| 015 | A 3853122287 | GUSSET PLATE |
| FRONT RIGHT | ||
| 015 | A 3853122287 | GUSSET PLATE |
| FRONT RIGHT | ||
| 016 | A 6173122087 | GUSSET PLATE |
| Repalced by: A 3873122087 | ||
| 016 | A 3873122087 | GUSSET PLATE |
| FRONT LEFT | ||
| 016 | A 6173122187 | GUSSET PLATE |
| Repalced by: A 6203120987 | ||
| 016 | A 6203120987 | GUSSET PLATE |
| 017 | A 6173110055 | COVER |
| Repalced by: A 3974750084 | ||
| 017 | A 3974750084 | SHIM |
| N 000933010160 | SCREW | |
| Repalced by: N 304017010053 | ||
| N 304017010053 | SCREW | |
| CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS | ||
| 018 | N 000961012092 | SCREW |
| Repalced by: N 000961012025 | ||
| 018 | N 000961012025 | SCREW |
| CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS | ||
| N 913004010011 | NUT | |
| CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS | ||
| 021 | N 910113012002 | NUT |
| CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS | ||
| 024 | A 3833220101 | FRONT SPRING BRACKET |
| FRONT | ||
| 024 | A 3833220101 | FRONT SPRING BRACKET |
| FRONT | ||
| 024 | A 6173220001 | FRONT SPRING BRACKET |
| FRONT | ||
| 024 | A 6173220001 | FRONT SPRING BRACKET |
| FRONT | ||
| 025 | A 3589900414 | SCREW |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| M 14X42 | ||
| 026 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 026 | N 910113014000 | NUT |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| 027 | A 3833220131 | PLATE |
| HELPER SPRING | ||
| 030 | A 6173220003 | FRONT SPRING BRACKET |
| REAR | ||
| 030 | A 6173220103 | FRONT SPRING BRACKET |
| REAR | ||
| 033 | N 000961014154 | SCREW |
| CROSS MEMBER TO FRONT SPRING REAR BRACKET | ||
| 036 | N 912004014100 | LOCK WASHER |
| CROSS MEMBER TO FRONT SPRING REAR BRACKET | ||
| 039 | A 6173120010 | CROSS MEMBER |
| Repalced by: A 6163120310 | ||
| 039 | A 6163120310 | CROSS MEMBER |
| FRONT SPRING REAR BRACKET | ||
| NO.2 | ||
| 042 | A 6163120061 | STRUT |
| 045 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 045 | N 308676014020 | SCREW |
| 048 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 048 | N 910113014001 | NUT |
| 051 | N 000961014113 | SCREW |
| 054 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 054 | N 910113014001 | NUT |
| A 3853100436 | CROSS MEMBER | |
| Repalced by: A 3813120015 | ||
| 057 | A 3813120015 | CROSS MEMBER |
| NO.3 | ||
| 058 | A 6193120687 | GUSSET PLATE |
| Repalced by: A 3813120652 | ||
| 058 | A 3813120652 | ANGLE |
| TOP LEFT | ||
| 058 | A 6193120787 | GUSSET PLATE |
| Repalced by: A 3813120752 | ||
| 058 | A 3813120752 | ANGLE |
| TOP RIGHT | ||
| 060 | N 308676012010 | SCREW |
| CROSS MEMBER TO REINFORCEMENT | ||
| 063 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 063 | N 910113012003 | NUT |
| CROSS MEMBER TO REINFORCEMENT | ||
| 064 | A 3859901040 | WASHER |
| CROSS MEMBER TO REINFORCEMENT | ||
| 066 | A 6173120352 | ANGLE |
| BOTTOM LEFT | ||
| 066 | A 6173120352 | ANGLE |
| BOTTOM LEFT | ||
| 066 | A 3813120252 | ANGLE |
| BOTTOM LEFT | ||
| 069 | A 6173120452 | ANGLE |
| BOTTOM RIGHT | ||
| 069 | A 6173120452 | ANGLE |
| BOTTOM RIGHT | ||
| 069 | A 3813120352 | ANGLE |
| BOTTOM RIGHT | ||
| 072 | N 308676012012 | SCREW |
| ANGLE TO CROSS MEMBER | ||
| 075 | N 910113012002 | NUT |
| ANGLE TO CROSS MEMBER | ||
| 078 | A 6173120117 | CROSS MEMBER |
| INTERMEDIATE SHAFT BEARING | ||
| NO.4 | ||
| 078 | A 6173120017 | CROSS MEMBER |
| INTERMEDIATE SHAFT BEARING | ||
| NO.4 | ||
| 081 | A 3833120360 | REINFORCEMENT |
| INTERMEDIATE BEARING CROSS MEMBER | ||
| 081 | A 3523122360 | REINFORCEMENT |
| INTERMEDIATE BEARING CROSS MEMBER | ||
| 084 | N 000933010278 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 087 | N 913004010011 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 090 | A 6173110283 | ANGLE |
| LEFT | ||
| 090 | A 6173110083 | ANGLE |
| LEFT | ||
| 090 | A 6173110383 | ANGLE |
| RIGHT | ||
| 090 | A 6173110183 | ANGLE |
| RIGHT | ||
| 093 | N 000933010094 | SCREW |
| ANGLE TO SIDE MEMBER | ||
| 096 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 096 | N 910113010000 | NUT |
| ANGLE TO SIDE MEMBER | ||
| 099 | A 3813100436 | CROSS MEMBER |
| NO.5 | ||
| 102 | A 3813500032 | SUPPORT |
| Repalced by: A 6523520341 | ||
| 102 | A 6523520341 | BEARING BODY |
| LONGITUDINAL CONTROL ARM | ||
| 105 | N 000961018018 | SCREW |
| BEARING BODY TO SIDE AND CROSS MEMBERS | ||
| M 18X40 | ||
| 105 | N 000961018041 | SCREW |
| Repalced by: N 308676018001 | ||
| 105 | N 308676018001 | SCREW |
| BEARING BODY TO SIDE AND CROSS MEMBERS | ||
| M 18X45 | ||
| 105 | N 308676018001 | SCREW |
| BEARING BODY TO SIDE AND CROSS MEMBERS | ||
| M 18X45 | ||
| 105 | N 308676018001 | SCREW |
| BEARING BODY TO SIDE AND CROSS MEMBERS | ||
| M 18X45 | ||
| 105 | N 000961018020 | SCREW |
| BEARING BODY TO SIDE AND CROSS MEMBERS | ||
| M 18X50 | ||
| 105 | N 000961018020 | SCREW |
| BEARING BODY TO SIDE AND CROSS MEMBERS | ||
| M 18X50 | ||
| 105 | N 000961018020 | SCREW |
| BEARING BODY TO SIDE AND CROSS MEMBERS | ||
| M 18X50 | ||
| 105 | N 000961018043 | SCREW |
| BEARING BODY TO SIDE AND CROSS MEMBERS | ||
| M 18X55 | ||
| 105 | N 000961018043 | SCREW |
| BEARING BODY TO SIDE AND CROSS MEMBERS | ||
| M 18X55 | ||
| 105 | N 000610018004 | FITTED SCREW |
| BEARING BODY TO SIDE AND CROSS MEMBERS | ||
| M 18X45 | ||
| 105 | N 000610018006 | FITTED SCREW |
| BEARING BODY TO SIDE AND CROSS MEMBERS | ||
| M 18X60 | ||
| 105 | N 000610018006 | FITTED SCREW |
| BEARING BODY TO SIDE AND CROSS MEMBERS | ||
| M 18X60 | ||
| 105 | N 000610018009 | FITTED SCREW |
| M 18X55 | ||
| 105 | N 000610018009 | FITTED SCREW |
| BEARING BODY TO SIDE AND CROSS MEMBERS | ||
| M 18X55 | ||
| 105 | N 000610018009 | FITTED SCREW |
| BEARING BODY TO SIDE AND CROSS MEMBERS | ||
| M 18X55 | ||
| 105 | N 000610018009 | FITTED SCREW |
| BEARING BODY TO SIDE AND CROSS MEMBERS | ||
| M 18X55 | ||
| 126 | A 6179900340 | WASHER |
| BEARING BODY TO SIDE AND CROSS MEMBERS | ||
| 129 | N 913004018004 | NUT |
| BEARING BODY TO SIDE AND CROSS MEMBERS | ||
| 132 | A 6173100237 | CROSS MEMBER |
| NO.6 | ||
| 132 | A 6173100237 | CROSS MEMBER |
| NO.7 | ||
| 132 | A 6173100237 | CROSS MEMBER |
| NO.4 | ||
| 132 | A 6173100237 | CROSS MEMBER |
| NO.5 | ||
| 132 | A 6173100237 | CROSS MEMBER |
| REAR | ||
| NO.6 | ||
| 132 | A 6173100637 | CROSS MEMBER |
| NO.4 | ||
| 132 | A 6173100737 | CROSS MEMBER |
| REAR | ||
| 135 | A 3833270304 | COVER PLATE |
| AIR SPRING BELLOWS | ||
| 138 | N 910005014056 | RIVET |
| COVER PLATE TO GUSSET PLATE | ||
| 14X45 MM | ||
| 138 | N 910005014059 | RIVET |
| COVER PLATE TO GUSSET PLATE | ||
| 14X16 MM | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 147 | ||
| 147 | N 000961014028 | SCREW |
| GUSSET PLATE TO CROSS MEMBER | ||
| M 14X40 | ||
| 147 | N 000961014028 | SCREW |
| GUSSET PLATE TO CROSS MEMBER | ||
| M 14X40 | ||
| 147 | N 000961014100 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| M 14X30 | ||
| 147 | N 000960010026 | SCREW |
| Repalced by: N 000961010031 | ||
| 147 | N 000961010031 | SCREW |
| Repalced by: N 308676010023 | ||
| 147 | N 308676010023 | SCREW |
| GUSSET PLATE TO CROSS MEMBER | ||
| 147 | N 308676010023 | SCREW |
| GUSSET PLATE TO CROSS MEMBER | ||
| 153 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 153 | N 910113014001 | NUT |
| GUSSET PLATE TO CROSS MEMBER | ||
| 153 | N 910113014001 | NUT |
| CROSS MEMBER TO REINFORCEMENT | ||
| 153 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 153 | N 910113010000 | NUT |
| GUSSET PLATE TO CROSS MEMBER | ||
| 153 | N 910113010000 | NUT |
| GUSSET PLATE TO CROSS MEMBER | ||
| 165 | A 0039908604 | SCREW |
| CROSS MEMBER TO REINFORCEMENTS AND TO SIDE MEMBERS | ||
| M 18X40 | ||
| 165 | A 0039908604 | SCREW |
| CROSS MEMBER TO REINFORCEMENTS AND TO SIDE MEMBERS | ||
| M 18X40 | ||
| 165 | A 0039908604 | SCREW |
| CROSS MEMBER TO REINFORCEMENTS AND TO SIDE MEMBERS | ||
| M 18X40 | ||
| 165 | N 000961018041 | SCREW |
| Repalced by: N 308676018001 | ||
| 165 | N 308676018001 | SCREW |
| CROSS MEMBER TO REINFORCEMENTS AND TO SIDE MEMBERS | ||
| M 18X45 | ||
| 165 | N 308676018001 | SCREW |
| CROSS MEMBER TO REINFORCEMENTS AND TO SIDE MEMBERS | ||
| M 18X45 | ||
| 165 | N 308676018001 | SCREW |
| CROSS MEMBER TO REINFORCEMENTS AND TO SIDE MEMBERS | ||
| M 18X45 | ||
| 168 | N 000125021006 | WASHER |
| CROSS MEMBER TO REINFORCEMENTS AND TO SIDE MEMBERS | ||
| 168 | N 000125019009 | WASHER |
| CROSS MEMBER TO REINFORCEMENTS AND TO SIDE MEMBERS | ||
| 174 | N 913004018003 | NUT |
| Repalced by: N 910113018004 | ||
| 174 | N 910113018004 | NUT |
| CROSS MEMBER TO REINFORCEMENTS AND TO SIDE MEMBERS | ||
| 177 | N 000961014028 | SCREW |
| CROSS MEMBER TO REINFORCEMENTS AND TO SIDE MEMBERS | ||
| 177 | N 000961014028 | SCREW |
| CROSS MEMBER TO REINFORCEMENTS AND TO SIDE MEMBERS | ||
| 177 | N 000961014100 | SCREW |
| CROSS MEMBER TO REINFORCEMENTS AND TO SIDE MEMBERS | ||
| 180 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 180 | N 910113014001 | NUT |
| CROSS MEMBER TO REINFORCEMENTS AND TO SIDE MEMBERS | ||
| 183 | A 3603200878 | CONSOLE |
| SHOCK ABSORBER | ||
| 190 | A 3833230284 | SHIM |
| CONSOLE TO SIDE MEMBER | ||
| 191 | A 6193260095 | WEB |
| 192 | A 3833100246 | CROSS MEMBER |
| (REAR CROSS MEMBER) | ||
| 192 | A 3853100146 | CROSS MEMBER |
| Repalced by: A 3853100246 | ||
| 192 | A 3853100246 | CROSS MEMBER |
| (REAR CROSS MEMBER) | ||
| 195 | A 6193120087 | GUSSET PLATE |
| TOP LEFT, BOTTOM RIGHT | ||
| 198 | A 6193120187 | GUSSET PLATE |
| TOP RIGHT, BOTTOM LEFT | ||
| 201 | A 6173120160 | REINFORCEMENT |
| REAR CROSS MEMBER | ||
| 202 | N 000961012151 | SCREW |
| REINFORCEMENT TO GUSSET PLATE AND TO CROSS MEMBER | ||
| M 12X25 | ||
| 202 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 202 | N 308676012012 | SCREW |
| REINFORCEMENT TO GUSSET PLATE AND TO SIDE MEMBER | ||
| M 12X30 | ||
| 203 | N 910113012002 | NUT |
| GUSSET PLATE TO SIDE MEMBER | ||
| 204 | N 000961012151 | SCREW |
| REINFORCEMENT TO GUSSET PLATE AND TO CROSS MEMBER | ||
| 207 | N 910113012002 | NUT |
| REINFORCEMENT TO GUSSET PLATE AND TO CROSS MEMBER | ||
| 210 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 210 | N 308676012012 | SCREW |
| REINFORCEMENT TO GUSSET PLATE AND TO CROSS MEMBER | ||
| 213 | N 910113012002 | NUT |
| REINFORCEMENT TO GUSSET PLATE AND TO CROSS MEMBER | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| MOUNTING USED FOR FRAME CONNECTION PARTS | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| DIMENSIONS ARE INDICATED IN THE FOLLOWING ORDER: | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| THREAD X SHANK DIA. X SHANK LENGTH X TOTAL LENGTH | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 214 | N 000609010004 | FITTED SCREW |
| M 10X11X14X28 | ||
| 214 | N 000610010003 | FITTED SCREW |
| M 10X11X25X38 | ||
| 214 | N 000609010014 | FITTED SCREW |
| M 10X11X24X40 | ||
| 214 | A 3859900514 | SCREW |
| M 10X11X26,5X46 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 214 | A 3859900714 | SCREW |
| M 12X12X10X25 | ||
| 214 | A 3859901414 | SCREW |
| M 12X12X11X26 | ||
| 214 | A 0039900901 | SCREW |
| Repalced by: A 0029908201 | ||
| 214 | A 0029908201 | SCREW |
| M 12X12X12X28 | ||
| 214 | A 3859901514 | SCREW |
| M 12X12X13X28 | ||
| 214 | A 0029908201 | SCREW |
| M 12X12X14X30 | ||
| 214 | A 3859902114 | SCREW |
| M 12X12X15X30 | ||
| 214 | A 0029908301 | SCREW |
| Repalced by: N 308676012013 | ||
| 214 | N 308676012013 | SCREW |
| M 12X12X16X32 | ||
| 214 | A 3859902214 | SCREW |
| M 12X12X17X32 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 214 | A 6209900114 | SCREW |
| M 12X13X12X29 | ||
| 214 | A 3969900314 | SCREW |
| M12X13X13X30 | ||
| 214 | A 3589901914 | SCREW |
| M 12X13X15X32 | ||
| 214 | A 3559900014 | SCREW |
| M 12X13X18X35 | ||
| 214 | A 3589900614 | SCREW |
| M 12X13X21X38 | ||
| 214 | A 6179900114 | SCREW |
| M 12X13X23X40 | ||
| 214 | A 6249900014 | SCREW |
| M 12X13X25X42 | ||
| 214 | A 3859900214 | SCREW |
| M 12X13X35X52 | ||
| 214 | A 6689900114 | SCREW |
| M 12X13X58X80 | ||
| 214 | A 6689900014 | SCREW |
| M 12X13X63X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 214 | A 3859900814 | SCREW |
| Repalced by: A 3229903101 | ||
| 214 | A 3229903101 | SCREW |
| M 14X14X18X32 | ||
| 214 | A 3859902014 | SCREW |
| M 14X14X18X34 | ||
| 214 | A 3559900114 | SCREW |
| M 12X14X13X35 | ||
| 214 | A 3219901601 | SCREW |
| Repalced by: A 3169900014 | ||
| 214 | A 3169900014 | SCREW |
| M 14X14X17X35 | ||
| 214 | A 3219901901 | SCREW |
| M 14X14X22X40 | ||
| 214 | A 3559900501 | SCREW |
| M 14X14X24X42 | ||
| 214 | A 3409900201 | SCREW |
| M 14X14X27X45 | ||
| 214 | A 3609902001 | SCREW |
| M 14X14X32X50 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 214 | A 3589900114 | SCREW |
| M 14X15X15X32 | ||
| 214 | A 3589900814 | SCREW |
| M 14X15X17X34 | ||
| 214 | A 6459900014 | SCREW |
| M 14X15X18X35 | ||
| 214 | A 3589901014 | SCREW |
| M 14X15X19X36 | ||
| 214 | A 3589900214 | SCREW |
| M 14X15X21X38 | ||
| 214 | A 3589900414 | SCREW |
| M 14X15X25X42 | ||
| 214 | A 3589900714 | SCREW |
| M 14X15X27X44 | ||
| 214 | A 3589900914 | SCREW |
| M 14X15X29X46 | ||
| 214 | A 3859900414 | SCREW |
| M 14X15X31X48 | ||
| 214 | A 3859900314 | SCREW |
| M 14X15X35X52 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 214 | A 3859900914 | SCREW |
| Repalced by: N 308676016020 | ||
| 214 | N 308676016020 | SCREW |
| M 16X16X18X36 | ||
| 214 | A 3859901714 | SCREW |
| M 16X16X20X38 | ||
| 214 | A 3859901014 | SCREW |
| M 16X16X22X40 | ||
| 214 | A 3859901114 | SCREW |
| M 16X16X24X42 | ||
| 214 | A 0029909901 | SCREW |
| Repalced by: A 3959900501 | ||
| 214 | A 3959900501 | SCREW |
| M 16X16X20X45 | ||
| 214 | A 3859901814 | SCREW |
| M 16X16X30X48 | ||
| 214 | A 3859901914 | SCREW |
| M 16X16X32X50 | ||
| 214 | A 6259900301 | SCREW |
| M 16X16X38X90 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 214 | A 3589900514 | SCREW |
| M 16X17X22X42 | ||
| 214 | A 6459900714 | SCREW |
| M 16X17X24X44 | ||
| 214 | A 3609900114 | SCREW |
| Repalced by: A 0009906314 | ||
| 214 | A 0009906314 | SCREW |
| M 16X17X28X48 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 214 | A 3469900014 | SCREW |
| M 16X18X18X40 | ||
| 214 | A 3859902314 | SCREW |
| M 18X18X23X45 | ||
| 214 | A 6209900014 | SCREW |
| M 16X18X26X48 | ||
| 214 | A 3469900114 | SCREW |
| M 16X18X31X50 | ||
| 214 | A 3859902414 | SCREW |
| Repalced by: N 000961018043 | ||
| 214 | N 000961018043 | SCREW |
| M 18X18X33X55 | ||
| 214 | A 6229900014 | SCREW |
| M 16X18X38X60 | ||
| 214 | A 3919900014 | SCREW |
| M 16X18X63X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 214 | N 000610018004 | FITTED SCREW |
| M 18X19X25X45 | ||
| 214 | N 000610018009 | FITTED SCREW |
| M 18X19X33X55 | ||
| 214 | N 000610018006 | FITTED SCREW |
| M 18X19X38X60 | ||
| 214 | N 000609018000 | FITTED SCREW |
| M 18X19X57X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 215 | N 913004010011 | NUT |
| 215 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 215 | N 910113012003 | NUT |
| 215 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 215 | N 910113014000 | NUT |
| 215 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 215 | N 910113016001 | NUT |
| 215 | N 913004018004 | NUT |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 216 | A 0009902193 | RIVET |
| Repalced by: N 910005010022 | ||
| 216 | N 910005010022 | RIVET |
| 10X32 MM | ||
| 216 | N 910005010012 | RIVET |
| 10X24 MM | ||
| 216 | N 910005010018 | RIVET |
| 10X30 MM | ||
| 216 | N 910005010026 | RIVET |
| 10X38 MM | ||
| 216 | N 910005012012 | RIVET |
| 12X26 MM | ||
| 216 | N 910005012073 | RIVET |
| 12X28 MM | ||
| 216 | N 910005012080 | RIVET |
| 12X42 MM | ||
| 216 | N 910005014056 | RIVET |
| 14X45 MM | ||
| 216 | N 910005014059 | RIVET |
| 14X55 MM | ||
| 216 | N 910005014066 | RIVET |
| 14X70 MM | ||
| 228 | A 3873150106 | COUPLING PIN |
| FOR COUPLING MOUTH | ||
| 231 | A 0009874346 | SEALING CORD |
| FOR COUPLING MOUTH | ||
| 234 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 234 | N 304017008034 | SCREW |
| LOCK SPRING TO CROSS MEMBER | ||
| 237 | A 3353150031 | LOCKING SPRING |
| COUPLING PIN | ||
| 240 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 240 | N 000125008443 | WASHER |
| LOCK SPRING TO CROSS MEMBER | ||
| 243 | N 912004008102 | LOCK WASHER |
| LOCK SPRING TO CROSS MEMBER | ||
| 246 | N 304032008006 | NUT |
| LOCK SPRING TO CROSS MEMBER | ||
| 249 | N 000961014154 | SCREW |
| BRACKET AND FRONT SPRING REAR BRACKET TO CROSS MEMBER | ||
| 249 | N 000961014100 | SCREW |
| BRACKET AND FRONT SPRING REAR BRACKET TO CROSS MEMBER | ||
| 252 | N 912004014100 | LOCK WASHER |
| BRACKET AND FRONT SPRING REAR BRACKET TO CROSS MEMBER | ||
| 255 | A 3834030201 | SUPPORT |
| SPARE WHEEL MOUNTING | ||
| 258 | A 3854030019 | BASE BLOCK |
| Repalced by: A 6744320019 | ||
| 258 | A 6744320019 | BASE |
| SPARE WHEEL MOUNTING | ||
| 261 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 261 | N 304017010002 | SCREW |
| SUPPORT TO FRAME | ||
| 264 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 264 | N 910113010000 | NUT |
| SUPPORT TO FRAME | ||
| 267 | A 3874030701 | SUPPORT |
| SPARE WHEEL MOUNTING | ||
| 268 | A 0029908201 | SCREW |
| SUPPORT TO FRAME | ||
| 269 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 269 | N 910113012003 | NUT |
| SUPPORT TO FRAME | ||
| 270 | N 910005012080 | RIVET |
| SUPPORT TO FRAME | ||
| 273 | A 3878912631 | CONSOLE |
| CAB MOUNTING,FRONT | ||
| 276 | A 6203170223 | STRUT |
| BUMPER,LEFT | ||
| 276 | A 6203170423 | STRUT |
| BUMPER,RIGHT | ||
| 279 | N 000961014101 | SCREW |
| Repalced by: N 308676014012 | ||
| 279 | N 308676014012 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| M 14X45 | ||
| 282 | N 000961014063 | SCREW |
| Repalced by: A 9429901304 | ||
| 282 | A 9429901304 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| M 14X40 | ||
| 285 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 285 | N 910113014000 | NUT |
| CONSOLE AND STRUT TO FRAME | ||

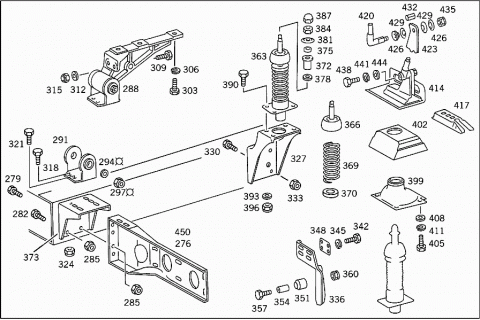

| 288 | A 3813106509 | BRACKET |
| CAB,LEFT | ||
| 288 | A 6208902103 | MOUNTING |
| CAB,LEFT | ||
| 288 | A 3813106609 | BRACKET |
| CAB, RIGHT | ||
| 288 | A 6208902203 | MOUNTING |
| CAB, RIGHT | ||
| 291 | A 3878902903 | MOUNTING |
| 291 | A 6208902003 | MOUNTING |

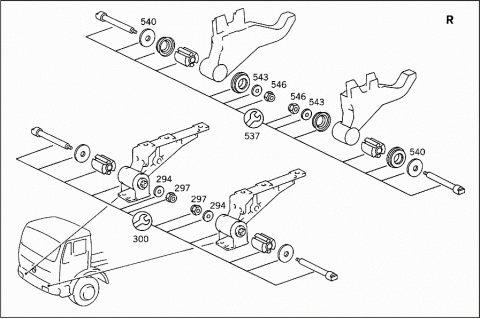

| 294 | N 007349017002 | WASHER |
| 297 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 297 | N 910113016002 | NUT |
| 300 | A 3815860031 | REPAIR KIT |
| CAB SUSPENSION,FRONT | ||
| 303 | N 000961014028 | SCREW |
| MOUNTING TO CAB | ||
| 306 | N 912004014100 | LOCK WASHER |
| MOUNTING TO CAB | ||
| 309 | N 000961014064 | SCREW |
| MOUNTING TO CAB | ||
| 312 | A 3209901840 | WASHER |
| MOUNTING TO CAB | ||
| 315 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 315 | N 910113014001 | NUT |
| MOUNTING TO CAB | ||
| 318 | N 000961014063 | SCREW |
| Repalced by: A 9429901304 | ||
| 318 | A 9429901304 | SCREW |
| MOUNTING TO CONSOLE | ||
| M 14X40 | ||
| 321 | N 000961014101 | SCREW |
| Repalced by: N 308676014012 | ||
| 321 | N 308676014012 | SCREW |
| MOUNTING TO CONSOLE | ||
| M 14X45 | ||
| 324 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 324 | N 910113014000 | NUT |
| MOUNTING TO CONSOLE | ||
| 327 | A 3813171201 | CONSOLE |
| VIBRATION ABSORBER TO FRAME | ||
| 330 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 330 | N 308676014020 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 14X35 | ||
| 330 | N 000961014028 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 14X40 | ||
| 333 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 333 | N 910113014001 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 336 | A 3813171926 | GUIDE |
| LEFT | ||
| 336 | A 3813172026 | GUIDE |
| RIGHT | ||
| 342 | N 000960012301 | SCREW |
| GUIDE TO CAB | ||
| 345 | N 912004012100 | LOCK WASHER |
| GUIDE TO CAB | ||
| 348 | A 3873170084 | SHIM |
| GUIDE TO CAB | ||
| 351 | A 3813170750 | BUSHING |
| LATERAL GUIDE OF CAB | ||
| 354 | A 3813170553 | SPACER TUBE |
| LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS | ||
| 357 | N 000960012230 | SCREW |
| LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS | ||
| 360 | N 910113012002 | NUT |
| LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS | ||
| 363 | A 3878901619 | SHOCK ABSORBER |
| Repalced by: A 3878901319 | ||
| 363 | A 3878901319 | SHOCK ABSORBER |
| (VIBRATION ABSORBER),CAB REAR SUSPENSION | ||
| 363 | A 3878901319 | SHOCK ABSORBER |
| (VIBRATION ABSORBER),CAB REAR SUSPENSION | ||
| 363 | A 6208900019 | SHOCK ABSORBER |
| Repalced by: A 6208900119 | ||
| 363 | A 6208900119 | SHOCK ABSORBER |
| (VIBRATION ABSORBER),CAB REAR SUSPENSION | ||
| 363 | A 6208900119 | SHOCK ABSORBER |
| (VIBRATION ABSORBER),CAB REAR SUSPENSION | ||
| 366 | A 0008910201 | RUBBER MOUNTING |
| TO 387 890 16 19,620 890 00 19 | ||
| 366 | A 0008900148 | JOINT |
| Repalced by: A 0008910301 | ||
| 366 | A 0008910301 | RUBBER MOUNTING |
| TO 620 890 01 19,387 890 13 19 | ||
| 369 | A 0008910751 | SPRING |
| Repalced by: A 0008910451 | ||
| 369 | A 0008910451 | SPRING |
| 369 | A 0008911051 | SPRING |
| TO 620 890 00 19 | ||
| 369 | A 0008911151 | SPRING |
| TO 620 890 01 19 | ||
| 370 | A 0008910123 | BUFFER |
| TO 620 890 00 19 | ||
| 372 | A 3813170753 | SPACER TUBE |
| SHOCK ABSORBER MOUNTING | ||
| 375 | A 3275045082 | RUBBER RING |
| SHOCK ABSORBER MOUNTING | ||
| 378 | N 000433015005 | WASHER |
| SHOCK ABSORBER MOUNTING | ||
| 381 | A 3878912010 | WASHER |
| SHOCK ABSORBER MOUNTING | ||
| 384 | N 000934012022 | NUT |
| SHOCK ABSORBER MOUNTING | ||
| 387 | N 001587012008 | CAP NUT |
| Repalced by: N 001587012010 | ||
| 387 | N 001587012010 | CAP NUT |
| SHOCK ABSORBER MOUNTING | ||
| 390 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 390 | N 304017008034 | SCREW |
| SHOCK ABSORBER TO CONSOLE | ||
| 393 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 393 | N 009021008213 | WASHER |
| SHOCK ABSORBER TO CONSOLE | ||
| 396 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 396 | N 913004008001 | NUT |
| SHOCK ABSORBER TO CONSOLE | ||
| 399 | A 3813177840 | BRACKET |
| VIBRATION ABSORBER TO CAB,LEFT | ||
| 399 | A 3813177940 | BRACKET |
| VIBRATION ABSORBER TO CAB,RIGHT | ||
| 402 | A 3813170097 | BOOT |
| SHOCK ABSORBER,TOP | ||
| 405 | N 000933010105 | SCREW |
| BRACKET AND BOOT TO SIDE MEMBER | ||
| 408 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 408 | N 000125010532 | WASHER |
| BRACKET AND BOOT TO SIDE MEMBER | ||
| 411 | N 912004010102 | LOCK WASHER |
| BRACKET AND BOOT TO SIDE MEMBER | ||
| 414 | A 3813102075 | LOCKING MECHANISM |
| CAB,LEFT | ||
| 414 | A 3813101975 | LOCKING MECHANISM |
| CAB, RIGHT | ||
| 417 | A 3813170119 | LATCH |
| 420 | A 3813172374 | PIN |
| 423 | A 3813170924 | LEVER |
| 426 | A 3813170676 | WASHER |
| 429 | A 0009935426 | DISC SPRING |
| 432 | N 001481006041 | CLAMPING SLEEVE |
| 435 | N 910113012002 | NUT |
| 438 | N 000933010105 | SCREW |
| LOCKING MECHANISM TO CAB | ||
| 441 | N 912004010102 | LOCK WASHER |
| LOCKING MECHANISM TO CAB | ||
| 444 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 444 | N 000125010532 | WASHER |
| LOCKING MECHANISM TO CAB | ||
| 447 | A 3878912631 | CONSOLE |

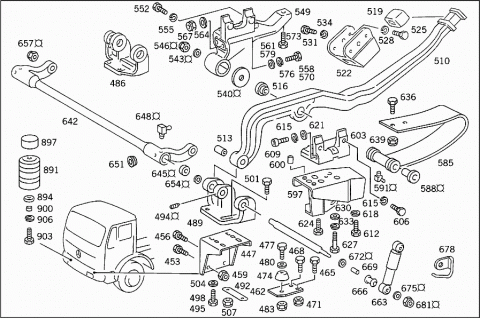

| CAB MOUNTING,FRONT | ||
| 450 | A 6203170223 | STRUT |
| BUMPER,LEFT | ||
| 450 | A 6203100253 | STRUT |
| BUMPER,LEFT | ||
| 450 | A 6203170423 | STRUT |
| BUMPER,RIGHT | ||
| 450 | A 6203100353 | STRUT |
| BUMPER,RIGHT | ||
| 453 | N 000961014063 | SCREW |
| Repalced by: A 9429901304 | ||
| 453 | A 9429901304 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| M 14X40 | ||
| 456 | N 000961014101 | SCREW |
| Repalced by: N 308676014012 | ||
| 456 | N 308676014012 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| M 14X45 | ||
| 459 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 459 | N 910113014000 | NUT |
| CONSOLE AND STRUT TO FRAME | ||
| 462 | A 3878910914 | BRACKET |
| BUFFER | ||
| 465 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 465 | N 308676012026 | SCREW |
| BRACKET TO FRAME | ||
| M 12X35 | ||
| 468 | N 000961012151 | SCREW |
| BRACKET TO FRAME | ||
| M 12X30 | ||
| 471 | N 910113012002 | NUT |
| BRACKET TO FRAME | ||
| 474 | A 3348910072 | MOUNTING |
| (RUBBER BUFFER) | ||
| 477 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 477 | N 304017008034 | SCREW |
| BUFFER TO BRACKET | ||
| 480 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 480 | N 009021008213 | WASHER |
| BUFFER TO BRACKET | ||
| 483 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 483 | N 913004008001 | NUT |
| BUFFER TO BRACKET | ||
| 486 | A 3878916020 | MOUNTING |
| Repalced by: A 6558910320 | ||
| 486 | A 6558910320 | MOUNTING |
| CAB SUSPENSION,FRONT LEFT | ||
| 486 | A 3878916120 | MOUNTING |
| Repalced by: A 6558910420 | ||
| 486 | A 6558910420 | MOUNTING |
| CAB SUSPENSION,FRONT RIGHT | ||
| 489 | A 3878913720 | MOUNTING |
| CAB SUSPENSION,FRONT LEFT | ||
| 489 | A 3878913820 | MOUNTING |
| CAB SUSPENSION,FRONT RIGHT | ||
| 492 | A 3878910498 | SHIM |
| MOUNTING TO CONSOLE | ||
| 494 | N 000417008004 | HEADLESS SETSCREW |
| BEARING BRACKET | ||
| 495 | N 000961014008 | SCREW |
| Repalced by: N 308676014003 | ||
| 495 | N 308676014003 | SCREW |
| MOUNTING TO CONSOLE | ||
| M 14X30 | ||
| 498 | N 000961014088 | SCREW |
| Repalced by: N 308676014008 | ||
| 498 | N 308676014008 | SCREW |
| MOUNTING TO CONSOLE | ||
| M14X35 | ||
| 501 | N 000961014103 | SCREW |
| MOUNTING TO CONSOLE | ||
| M 14X55 | ||
| 504 | N 007349015003 | WASHER |
| MOUNTING TO CONSOLE | ||
| 507 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 507 | N 910113014000 | NUT |
| MOUNTING TO CONSOLE | ||
| 510 | A 3878912556 | LEVER |
| (TILTING LEVER),CAB | ||
| 510 | A 3878912856 | LEVER |
| (TILTING LEVER),CAB | ||
| 513 | A 3879920203 | BUSHING |
| LEVER | ||
| 513 | A 3879920003 | BUSHING |
| LEVER | ||
| 516 | A 6208910017 | BUSHING |
| LEVER | ||
| 519 | A 3638910023 | BUFFER |
| LEVER | ||
| A 3875860431 | REPAIR KIT | |
| Repalced by: A 3879920003 | ||
| A 3879920003 | BUSHING | |
| CAB MOUNTING | ||
| 522 | A 6208901603 | MOUNTING |
| TILTING LEVER TO CAB SIDE MEMBER | ||
| 525 | N 000933010105 | SCREW |
| MOUNTING TO CAB | ||
| 528 | N 912004010102 | LOCK WASHER |
| MOUNTING TO CAB | ||
| 531 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 531 | N 308676012012 | SCREW |
| MOUNTING TO CAB | ||
| 531 | N 308676012012 | SCREW |
| MOUNTING TO CAB | ||
| 534 | N 912004012100 | LOCK WASHER |
| MOUNTING TO CAB | ||
| 537 | A 6205860031 | REPAIR KIT |
| CAB SUSPENSION,FRONT | ||
| 540 | A 3873170376 | WASHER |
| CAB SUSPENSION,FRONT | ||
| 543 | N 007349017002 | WASHER |
| CAB SUSPENSION,FRONT | ||
| 546 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 546 | N 910113016002 | NUT |
| CAB SUSPENSION,FRONT | ||
| 549 | A 3878916420 | MOUNTING |
| CAB SUSPENSION,FRONT LEFT | ||
| 549 | A 3878916520 | MOUNTING |
| CAB SUSPENSION,FRONT RIGHT | ||
| 552 | N 000960012189 | SCREW |
| Repalced by: N 308676012031 | ||
| 552 | N 308676012031 | SCREW |
| Repalced by: N 308676012011 | ||
| 552 | N 308676012011 | SCREW |
| MOUNTING TO CAB | ||
| 555 | N 912004012100 | LOCK WASHER |
| MOUNTING TO CAB | ||
| 558 | N 000960014167 | SCREW |
| Repalced by: N 000961014064 | ||
| 558 | N 000961014064 | SCREW |
| MOUNTING TO CAB | ||
| 561 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 561 | N 000125015019 | WASHER |
| MOUNTING TO CAB | ||
| 564 | A 3209901840 | WASHER |
| MOUNTING TO CAB | ||
| 567 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 567 | N 910113014001 | NUT |
| MOUNTING TO CAB | ||
| 570 | N 000961014054 | SCREW |
| MOUNTING TO CAB | ||
| M 14X45 | ||
| 573 | N 000961014028 | SCREW |
| MOUNTING TO CAB | ||
| M 14X40 | ||
| 576 | N 912004014100 | LOCK WASHER |
| MOUNTING TO CAB | ||
| 579 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 579 | N 000125015019 | WASHER |
| MOUNTING TO CAB | ||
| 582 | A 3873100077 | REPAIR KIT |
| CAB SUSPENSION,FRONT | ||

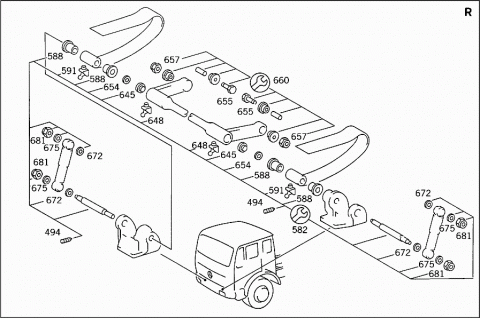

| 585 | A 3878910551 | SPRING |
| (LEAF SPRING),CAB SUSPENSION | ||
| 588 | A 3638910617 | BUSHING |
| LEAF SPRING | ||
| 591 | N 071412008200 | GREASE NIPPLE |
| LEAF SPRING | ||
| 597 | A 6218900203 | MOUNTING |
| Repalced by: A 6218900403 | ||
| 597 | A 6218900403 | MOUNTING |
| STABILIZER TO CAB,LEFT | ||
| 597 | A 6218900303 | MOUNTING |
| Repalced by: A 6218900503 | ||
| 597 | A 6218900503 | MOUNTING |
| STABILIZER TO CAB,RIGHT | ||
| 600 | A 6218910157 | PIN |
| 603 | A 6208910631 | CONSOLE |
| CAB SUSPENSION,FRONT LEFT | ||
| 603 | A 6208910731 | CONSOLE |
| CAB SUSPENSION,FRONT RIGHT | ||
| 606 | N 000961012069 | SCREW |
| Repalced by: N 308676012015 | ||
| 606 | N 308676012015 | SCREW |
| LEFT AND RIGHT CONSOLES TO CAB | ||
| M 12X45 | ||
| 609 | N 006912012013 | SCREW |
| LEFT AND RIGHT CONSOLES TO CAB | ||
| M 12X30 | ||
| 612 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 612 | N 308676014020 | SCREW |
| LEFT AND RIGHT CONSOLES TO CAB | ||
| 615 | N 912004012100 | LOCK WASHER |
| LEFT AND RIGHT CONSOLES TO CAB | ||
| 618 | N 912004014100 | LOCK WASHER |
| LEFT AND RIGHT CONSOLES TO CAB | ||
| 621 | A 3609900940 | WASHER |
| LEFT AND RIGHT CONSOLES TO CAB | ||
| 624 | N 000961014028 | SCREW |
| MOUNTING WITH LEAF SPRING TO CAB | ||
| M 14X40 | ||
| 627 | N 000960014138 | SCREW |
| Repalced by: N 000961014084 | ||
| 627 | N 000961014084 | SCREW |
| Repalced by: N 000961014148 | ||
| 627 | N 000961014148 | SCREW |
| MOUNTING WITH LEAF SPRING TO CAB | ||
| M 14X75 | ||
| 630 | N 007349015003 | WASHER |
| MOUNTING WITH LEAF SPRING TO CAB | ||
| 633 | N 912004014100 | LOCK WASHER |
| MOUNTING WITH LEAF SPRING TO CAB | ||
| 636 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 636 | N 304017008034 | SCREW |
| MOUNTING WITH LEAF SPRING TO CAB | ||
| 639 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 639 | N 913004008001 | NUT |
| MOUNTING WITH LEAF SPRING TO CAB | ||
| 642 | A 6218900304 | STABILIZER |
| Repalced by: A 6528900104 | ||
| 642 | A 6528900104 | STABILIZER |
| CAB SUSPENSION,FRONT | ||
| 645 | A 0009817331 | JOINT BEARING |
| Repalced by: A 0009817231 | ||
| 645 | A 0009817231 | JOINT BEARING |
| Repalced by: A 0019814631 | ||
| 645 | A 0019814631 | JOINT BEARING |
| A 0019814831 | JOINT BEARING | |
| 648 | N 071412008200 | GREASE NIPPLE |
| 651 | N 000906010000 | SCREW PLUG |
| STABILIZER | ||
| 654 | A 3878911910 | WASHER |
| STABILIZER TO BEARING BRACKET | ||
| 655 | N 000960014245 | SCREW |
| STABILIZER TO BEARING BRACKET | ||
| 657 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 657 | N 910113014001 | NUT |
| STABILIZER TO BEARING BRACKET | ||
| 660 | A 3875860531 | REPAIR KIT |
| CAB FRONT SUSPENSION STABILIZER | ||
| 660 | A 6203100177 | REPAIR KIT |
| CAB FRONT SUSPENSION STABILIZER | ||
| 663 | A 0008911805 | SHOCK ABSORBER |
| CAB SUSPENSION,FRONT | ||
| 666 | A 0008910617 | BUSHING |
| 669 | A 0008910501 | RUBBER MOUNTING |
| 672 | A 3873170176 | WASHER |
| Repalced by: A 6203170176 | ||
| 672 | A 6203170176 | WASHER |
| SHOCK ABSORBER TO CONSOLE AND TO CAB | ||
| 675 | A 3873170276 | WASHER |
| Repalced by: N 000125013008 | ||
| 675 | N 000125013008 | WASHER |
| 675 | N 000125013008 | WASHER |
| 678 | A 6208900332 | BOW |
| SHOCK ABSORBER,BOTTOM LEFT | ||
| 681 | N 910113012002 | NUT |
| SHOCK ABSORBER TO CONSOLE AND TO CAB | ||

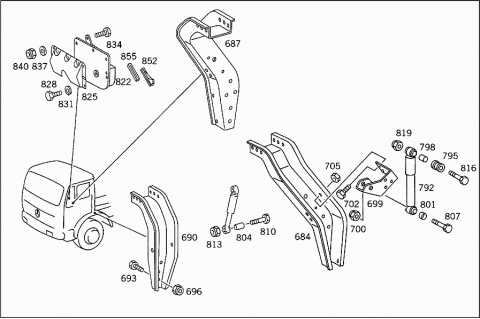

| 684 | A 3878911531 | CONSOLE |
| CAB SUSPENSION,REAR LEFT | ||
| 687 | A 3878911631 | CONSOLE |
| CAB SUSPENSION,REAR RIGHT | ||
| 690 | A 3878911731 | CONSOLE |
| CAB SUSPENSION,REAR | ||
| 693 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 693 | N 308676014020 | SCREW |
| CONSOLE TO FRAME | ||
| M 14X35 | ||
| 693 | N 000961014028 | SCREW |
| CONSOLE TO FRAME | ||
| M 14X40 | ||
| 696 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 696 | N 910113014001 | NUT |
| CONSOLE TO FRAME | ||
| 699 | A 3878908303 | MOUNTING |
| Repalced by: A 3878918520 | ||
| 699 | A 3878918520 | MOUNTING |
| LEFT VIBRATION ABSORBER | ||
| 699 | A 3878908403 | MOUNTING |
| Repalced by: A 3878918620 | ||
| 699 | A 3878918620 | MOUNTING |
| RIGHT VIBRATION ABSORBER | ||
| 700 | N 000439018210 | NUT |
| SHOCK ABSORBER TO CONSOLE | ||
| 702 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 702 | N 308676012012 | SCREW |
| MOUNTING TO CONSOLE | ||
| 705 | N 910113012002 | NUT |
| MOUNTING TO CONSOLE | ||

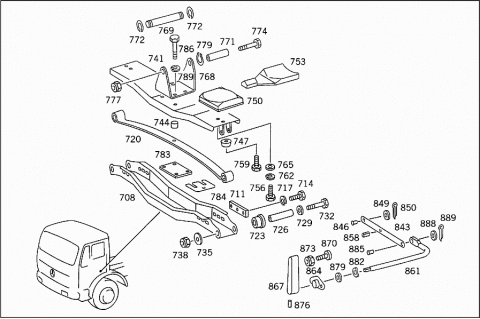

| 708 | A 3878910024 | STRUT |
| Repalced by: A 6558910224 | ||
| 708 | A 6558910224 | STRUT |
| CAB MOUNTING,REAR | ||
| 711 | A 3878910198 | SHIM |
| STRUT TO CONSOLE | ||
| 714 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 714 | N 308676012012 | SCREW |
| STRUT TO CONSOLE | ||
| 717 | N 912004012100 | LOCK WASHER |
| STRUT TO CONSOLE | ||
| 720 | A 3878911051 | SPRING |
| CAB SUSPENSION,REAR | ||
| 723 | A 3638910717 | BUSHING |
| SPRING TO STRUT | ||
| 726 | A 3638910218 | TUBE |
| SPRING TO STRUT | ||
| 729 | A 3638910010 | WASHER |
| SPRING TO STRUT | ||
| 732 | N 000960012153 | SCREW |
| SPRING TO STRUT | ||
| 732 | N 000960012332 | SCREW |
| SPRING TO STRUT | ||
| 735 | N 009021013203 | WASHER |
| SPRING TO STRUT | ||
| 738 | N 910113012002 | NUT |
| SPRING TO STRUT | ||
| 741 | A 3878900422 | RAIL |
| Repalced by: A 6558900022 | ||
| 741 | A 6558900022 | RAIL |
| (CONNECTING RAIL) | ||
| 741 | A 3878900522 | RAIL |
| Repalced by: A 6558900122 | ||
| 741 | A 6558900122 | RAIL |
| (CONNECTING RAIL) | ||
| 744 | N 000007012201 | CYLINDRICAL PIN |
| 747 | A 3878910323 | BUFFER |
| (RUBBER BUFFER) | ||
| 750 | A 3878910072 | MOUNTING |
| (RUBBER BUFFER) | ||
| 753 | A 6208910372 | MOUNTING |
| Repalced by: A 3878910072 | ||
| 753 | A 6208910472 | MOUNTING |
| Repalced by: A 3878910072 | ||
| 753 | A 6208910072 | MOUNTING |
| Repalced by: A 3878910072 | ||
| 753 | A 6208910172 | MOUNTING |
| Repalced by: A 3878910072 | ||
| 756 | N 000933008154 | SCREW |
| Repalced by: N 304017008021 | ||
| 756 | N 304017008021 | SCREW |
| BUFFER AND MOUNTING TO RAIL | ||
| M 8X22 | ||
| 759 | N 000084008122 | SCREW |
| BUFFER AND MOUNTING TO RAIL | ||
| M 8X18 | ||
| 762 | N 912004008102 | LOCK WASHER |
| BUFFER AND MOUNTING TO RAIL | ||
| 765 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 765 | N 000125008443 | WASHER |
| BUFFER AND MOUNTING TO RAIL | ||
| 768 | A 3878916820 | MOUNTING |
| CAB MOUNTING,REAR | ||
| 768 | A 3878918120 | MOUNTING |
| CAB MOUNTING,REAR | ||
| 768 | A 6208911320 | MOUNTING |
| CAB MOUNTING,REAR | ||
| 768 | A 6208910020 | MOUNTING |
| CAB MOUNTING,REAR | ||
| 769 | A 3878911057 | PIN |
| MOUNTING | ||
| 769 | A 3638910457 | PIN |
| MOUNTING | ||
| 771 | A 3878911653 | SPACER TUBE |
| MOUNTING | ||
| 771 | A 3878911753 | SPACER TUBE |
| MOUNTING | ||
| 772 | N 000471025002 | LOCK RING |
| MOUNTING | ||
| 774 | N 000960016286 | SCREW |
| MOUNTING | ||
| M 16X185 | ||
| 774 | N 000960016242 | SCREW |
| Repalced by: N 000960016251 | ||
| 774 | N 000960016251 | SCREW |
| MOUNTING | ||
| M 16X155 | ||
| 777 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 777 | N 910113016002 | NUT |
| MOUNTING | ||
| 779 | N 000471025002 | LOCK RING |
| MOUNTING | ||
| 783 | A 3878910811 | PLATE |
| MOUNTING | ||
| 784 | A 6208910296 | BASE |
| RAIL AND PLATE TO SPRING | ||
| 786 | N 000931010258 | SCREW |
| RAIL AND PLATE TO SPRING | ||
| 789 | N 912004010102 | LOCK WASHER |
| RAIL AND PLATE TO SPRING | ||
| 792 | A 0008912205 | SHOCK ABSORBER |
| CAB SUSPENSION,REAR | ||
| 792 | A 0008911805 | SHOCK ABSORBER |
| CAB SUSPENSION,REAR | ||
| 795 | A 0008910501 | RUBBER MOUNTING |
| 798 | A 0008910617 | BUSHING |
| 801 | A 3878910353 | SPACER TUBE |
| Repalced by: A 3878910953 | ||
| 801 | A 3878910953 | SPACER TUBE |
| SHOCK ABSORBER TO CONSOLE | ||
| 6 MM | ||
| 804 | A 3878910453 | SPACER TUBE |
| SHOCK ABSORBER TO CONSOLE | ||
| 807 | N 000960018111 | SCREW |
| Repalced by: N 308676018010 | ||
| 807 | N 308676018010 | SCREW |
| SHOCK ABSORBER TO CONSOLE | ||
| M 18X70 | ||
| 810 | N 000960018125 | SCREW |
| Repalced by: N 000960018072 | ||
| 810 | N 000960018072 | SCREW |
| SHOCK ABSORBER TO CONSOLE | ||
| M 18X135 | ||
| 813 | N 913004018003 | NUT |
| Repalced by: N 910113018004 | ||
| 813 | N 910113018004 | NUT |
| SHOCK ABSORBER TO CONSOLE | ||
| 816 | N 000960018111 | SCREW |
| Repalced by: N 308676018010 | ||
| 816 | N 308676018010 | SCREW |
| SHOCK ABSORBER TO RAIL | ||
| M 18X70 | ||
| 816 | N 000960018040 | SCREW |
| Repalced by: N 000960018142 | ||
| 816 | N 000960018142 | SCREW |
| SHOCK ABSORBER TO RAIL | ||
| M 18X65 | ||
| 819 | N 913004018003 | NUT |
| Repalced by: N 910113018004 | ||
| 819 | N 910113018004 | NUT |
| SHOCK ABSORBER TO RAIL | ||
| 822 | A 0008900089 | FASTENER |
| Repalced by: A 0008902389 | ||
| 822 | A 0008901389 | FASTENER |
| Repalced by: A 0008902389 | ||
| 822 | A 0008902389 | FASTENER |
| (CENTRAL LOCK) | ||
| 825 | A 3878911131 | CONSOLE |
| CENTRAL LOCK | ||
| 828 | N 000933010128 | SCREW |
| CENTRAL LOCK TO CAB | ||
| M 10X20 | ||
| 828 | N 000933010198 | SCREW |
| CENTRAL LOCK TO CAB | ||
| M 10X16 | ||
| 831 | N 912004010102 | LOCK WASHER |
| CENTRAL LOCK TO CAB | ||
| 834 | N 000933010105 | SCREW |
| CENTRAL LOCK TO CAB | ||
| M 10X25 | ||
| 837 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 837 | N 000125010532 | WASHER |
| CENTRAL LOCK TO CAB | ||
| 840 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 840 | N 910113010000 | NUT |
| CENTRAL LOCK TO CAB | ||
| 843 | A 3878910170 | ROD |
| CENTRAL LOCK | ||
| 843 | A 6208910170 | ROD |
| CENTRAL LOCK | ||
| 843 | A 3878910070 | ROD |
| CENTRAL LOCK | ||
| 846 | N 001444008202 | PIN |
| PULL TO FASTENER | ||
| 849 | N 000433008406 | WASHER |
| PULL TO FASTENER | ||
| 850 | N 000094002059 | COTTER PIN |
| PULL TO FASTENER | ||
| 852 | A 3878910814 | BRACKET |
| SEAL | ||
| 855 | A 3878910085 | SEAL |
| CENTRAL LOCK TO CAB | ||
| 858 | N 007346005003 | CLAMPING SLEEVE |
| AIR RESERVOIR,BOTTOM CONNECTION | ||
| 861 | A 3878911956 | LEVER |
| CAB LOCKING MECHANISM | ||
| 861 | A 6208910056 | LEVER |
| CAB LOCKING MECHANISM | ||
| 861 | A 6208910456 | LEVER |
| CAB LOCKING MECHANISM | ||
| 861 | A 3878911456 | LEVER |
| CAB LOCKING MECHANISM | ||
| 864 | A 3638910317 | BUSHING |
| CAB LOCKING MECHANISM | ||
| 867 | A 3638910073 | HANDLE |
| Repalced by: A 6208910073 | ||
| 867 | A 6208910073 | HANDLE |
| CAB LOCKING MECHANISM | ||
| 870 | N 007985008142 | SCREW |
| BUSHING AND LEVER TO CAB | ||
| 873 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 873 | N 913004008001 | NUT |
| BUSHING AND LEVER TO CAB | ||
| 876 | N 007346005004 | CLAMPING SLEEVE |
| Repalced by: N 001481005039 | ||
| 876 | N 001481005039 | CLAMPING SLEEVE |
| HANDLE TO LEVER | ||
| 876 | N 001481005039 | CLAMPING SLEEVE |
| LEVER MOUNTING | ||
| 879 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 879 | N 000125015019 | WASHER |
| LEVER MOUNTING | ||
| 882 | N 900055014401 | LOCK RING |
| LEVER MOUNTING | ||
| 885 | N 001444008233 | PIN |
| PULL ROD TO LEVER | ||
| 888 | N 000433008406 | WASHER |
| PULL ROD TO LEVER | ||
| 889 | N 000094002059 | COTTER PIN |
| PULL ROD TO LEVER | ||
| 891 | A 3638910223 | BUFFER |
| CAB,FRONT | ||
| 894 | A 3638910047 | FLANGE |
| BUFFER TO CAB | ||
| 897 | A 3638910517 | BUSHING |
| BUFFER TO CAB | ||
| 900 | A 3878912210 | WASHER |
| Repalced by: A 4432610076 | ||
| 900 | A 4432610076 | WASHER |
| BUFFER TO CAB | ||
| 903 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 903 | N 304017010002 | SCREW |
| BUFFER TO CAB | ||
| 906 | N 912004010102 | LOCK WASHER |
| BUFFER TO CAB | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
