Transporto priemonė: 1620 L/LL; VIN numerio dalis: 617447

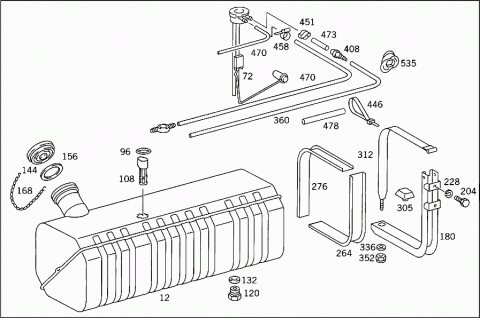

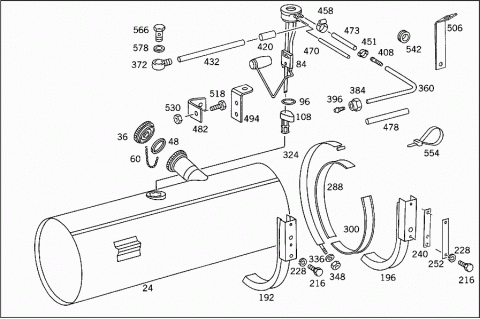

Grupė: 47 FUEL SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 012 | A 3834701101 | FUEL TANK |
| Repalced by: A 6164700001 | ||
| 012 | A 6164700001 | FUEL TANK |
| Repalced by: A 6524700101 | ||
| 012 | A 6524700101 | FUEL TANK |
| Repalced by: A 6704700101 | ||
| 012 | A 6704700101 | FUEL TANK |
| 125 L | ||
| 024 | A 3874701501 | FUEL TANK |
| Repalced by: A 3874701301 | ||
| 024 | A 3874701301 | FUEL TANK |
| Repalced by: A 3554700101 | ||
| 024 | A 3554700101 | FUEL TANK |
| 200 L | ||
| 036 | A 0004710530 | FILLER CAP |
| Repalced by: A 0004717930 | ||
| 036 | A 0004717930 | FILLER CAP |
| Repalced by: A 0004700305 | ||
| 036 | A 0004718030 | FILLER CAP |
| Repalced by: A 0004700305 | ||
| 036 | A 0004700305 | FILLER CAP |
| 036 | A 0004700105 | FILLER CAP |
| Repalced by: A 0004700305 | ||
| 048 | A 3049970340 | SEAL RING |
| 060 | A 3034700031 | CHAIN |
| 072 | A 0055423417 | SENDER UNIT |
| Repalced by: A 0085427717 | ||
| 072 | A 0085427717 | SENDER UNIT |
| FUEL GAUGE | ||
| 072 | A 0055423617 | SENDER UNIT |
| Repalced by: A 0085427917 | ||
| 072 | A 0085427917 | SENDER UNIT |
| Repalced by: A 0085428917 | ||
| 084 | A 0055423817 | SENDER UNIT |
| Repalced by: A 0085428017 | ||
| 084 | A 0085428017 | SENDER UNIT |
| FUEL GAUGE | ||
| 096 | A 0119970745 | SEAL RING |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 108 | A 0004710235 | FUEL STRAINER |
| AT TANK | ||
| 120 | N 007604014106 | SCREW PLUG |
| Repalced by: N 007604014110 | ||
| 120 | N 007604014110 | SCREW PLUG |
| AT TANK | ||
| 132 | N 915035000017 | SEAL RING |
| AT TANK | ||
| 144 | A 0004718030 | FILLER CAP |
| Repalced by: A 0004700305 | ||
| 144 | A 0004710530 | FILLER CAP |
| Repalced by: A 0004717930 | ||
| 144 | A 0004717930 | FILLER CAP |
| Repalced by: A 0004700305 | ||
| 144 | A 0004700305 | FILLER CAP |
| 144 | A 0004700105 | FILLER CAP |
| Repalced by: A 0004700305 | ||
| 156 | A 3049970340 | SEAL RING |
| 168 | A 3034700031 | CHAIN |
| 180 | A 6174700742 | SUPPORT |
| FUEL TANK | ||
| 180 | A 6174701242 | SUPPORT |
| FUEL TANK | ||
| 192 | A 3854700442 | SUPPORT |
| FRONT TANK | ||
| 192 | A 3854700442 | SUPPORT |
| FRONT TANK | ||
| 196 | A 3854700342 | SUPPORT |
| REAR TANK | ||
| 196 | A 3854700342 | SUPPORT |
| REAR TANK | ||
| A 6174703342 | SUPPORT | |
| FUEL TANK | ||
| 204 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 204 | N 308676014020 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14 X 35 | ||
| 204 | N 308676014020 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14 X 35 | ||
| 216 | N 000961014028 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14 X 40 | ||
| 216 | N 000961014028 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14 X 40 | ||
| 216 | N 000961014028 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14 X 40 | ||
| 228 | N 912004014100 | LOCK WASHER |
| SUPPORT TO SIDE MEMBER | ||
| A 3209901840 | WASHER | |
| CONSOLE TO SIDE MEMBER | ||
| 240 | A 3834750384 | SHIM |
| CONSOLE TO SIDE MEMBER | ||
| 252 | A 3974750084 | SHIM |
| CONSOLE TO SIDE MEMBER | ||
| 264 | A 3634750220 | PAD |
| FUEL TANK TO CONSOLE | ||
| 276 | A 3634750320 | PAD |
| STRAP | ||
| 288 | A 6174750620 | PAD |
| STRAP | ||
| 300 | A 6174750020 | PAD |
| FUEL TANK TO CONSOLE | ||
| 305 | A 3834750087 | STOP |
| FUEL TANK TO CONSOLE | ||
| 312 | A 3834700540 | STRAP |
| FUEL TANK TO CONSOLE | ||
| 312 | A 6174700040 | STRAP |
| Repalced by: A 6174700240 | ||
| 312 | A 6174700240 | STRAP |
| FUEL TANK TO CONSOLE | ||
| 324 | A 3874700140 | STRAP |
| Repalced by: A 6204700340 | ||
| 324 | A 6204700340 | STRAP |
| FUEL TANK TO CONSOLE | ||
| 336 | N 000125013008 | WASHER |
| 348 | N 000934012021 | NUT |
| STRAP TO SUPPORT | ||
| M 12 | ||
| 352 | N 910113012002 | NUT |
| STRAP TO SUPPORT | ||
| M 12X1.5 | ||
| 360 | A 0089975482 | HOSE |
| FEED & RETURN | ||
| 8X11 MM | ||
| 372 | N 915052008016 | BANJO UNION |
| FEED LINE | ||
| 372 | A 0009908188 | BANJO UNION |
| FEED LINE | ||
| 384 | N 915017010200 | UNION NUT |
| RETURN LINE | ||
| N 915017008200 | UNION NUT | |
| RETURN LINE | ||
| 396 | A 0019974972 | FITTING |
| RETURN LINE | ||
| A 0019975272 | FITTING | |
| RETURN LINE | ||
| 408 | A 3879900078 | CONNECTOR |
| Repalced by: N 915062008000 | ||
| 408 | N 915062008000 | SLEEVE |
| FUEL LINE | ||
| 420 | N 040621011200 | INSULATING HOSE |
| FEED LINE | ||
| N 915017010200 | UNION NUT | |
| RETURN LINE | ||
| 432 | A 3054760126 | HOSE |
| FEED LINE AND RETURN LINE | ||
| 446 | A 0029978790 | CLIP |
| FEED LINE AND RETURN LINE | ||
| 451 | N 916002010100 | CLAMP |
| FEED LINE AND RETURN LINE | ||
| 458 | N 916026010000 | CLAMP |
| Repalced by: N 000000000665 | ||
| 458 | N 000000000665 | CLAMP |
| FUEL LINE TO SENDER UNIT | ||
| 470 | A 0089979082 | HOSE |
| AERATION | ||
| 6 X 8 MM | ||
| 473 | A 0109977082 | HOSE |
| LEAK LINE | ||
| 478 | N 073379006203 | HOSE |
| N 915062004000 | SLEEVE | |
| 482 | A 3874760136 | BRACKET |
| Repalced by: A 6454310740 | ||
| 482 | A 6454310740 | BRACKET |
| FUEL LINE TO ENGINE | ||
| 482 | A 6454310740 | BRACKET |
| FUEL LINE TO ENGINE | ||
| A 6174760536 | BRACKET | |
| FUEL LINES TO TRANSMISSION | ||
| 494 | A 3854760036 | BRACKET |
| Repalced by: A 6205240340 | ||
| 494 | A 6205240340 | BRACKET |
| FUEL LINE TO CLUTCH SLAVE CYLINDER | ||
| 494 | A 6205240340 | BRACKET |
| FUEL LINE TO CLUTCH SLAVE CYLINDER | ||
| 506 | A 3854760736 | BRACKET |
| Repalced by: A 3184924841 | ||
| 506 | A 3184924841 | BRACKET |
| FUEL LINE TO FRAME | ||
| A 6174760636 | BRACKET | |
| Repalced by: A 6174761336 | ||
| A 6174761336 | BRACKET | |
| FUEL LINE TO FRAME | ||
| 518 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 518 | N 304017008034 | SCREW |
| BRACKET TO ENGINE SUSPENSION EYE | ||
| N 000933008152 | SCREW | |
| Repalced by: N 304017008027 | ||
| N 304017008027 | SCREW | |
| FUEL LINE TO FRAME | ||
| 530 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 530 | N 913004008001 | NUT |
| BRACKET TO ENGINE SUSPENSION EYE | ||
| 530 | N 913004008001 | NUT |
| FUEL LINE TO FRAME | ||
| 535 | A 3879970481 | GROMMET |
| FUEL LINE THRU FRAME SIDE MEMBER | ||
| 38/30 MM | ||
| 542 | A 6209970181 | GROMMET |
| FUEL LINE THRU FRAME SIDE MEMBER | ||
| 42/36 MM | ||
| 554 | A 0019978490 | LOOM TIE |
| FUEL LINE | ||
| 376 MM | ||
| 554 | A 0019978390 | LOOM TIE |
| FUEL LINE | ||
| 280 MM | ||
| 566 | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 566 | N 915036010108 | HOLLOW SCREW |
| FUEL LINE TO FEED PUMP | ||
| 578 | N 007603014405 | SEAL RING |
| FUEL LINE TO FEED PUMP | ||
