Transporto priemonė: 1620 L/LL; VIN numerio dalis: 617447

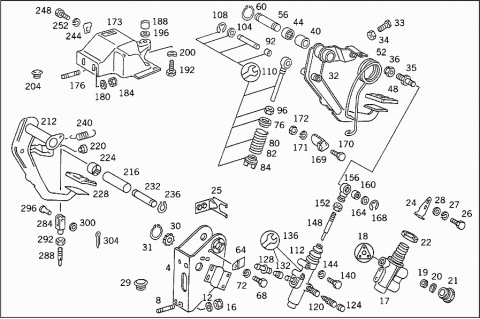

Grupė: 29 PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 004 | A 3812901319 | BEARING BRACKET |
| Repalced by: A 3812901219 | ||
| 004 | A 3812901219 | BEARING BRACKET |
| CLUTCH | ||
| 004 | A 3812901219 | BEARING BRACKET |
| CLUTCH | ||
| 004 | A 3812901219 | BEARING BRACKET |
| CLUTCH | ||
| 008 | N 000939008083 | STUD BOLT |
| BEARING BRACKET TO CAB | ||
| 008 | N 000939008136 | STUD BOLT |
| BEARING BRACKET TO CAB | ||
| 012 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 012 | N 000125008443 | WASHER |
| BEARING BRACKET TO CAB | ||
| 016 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 016 | N 913004008001 | NUT |
| BEARING BRACKET TO CAB | ||
| 017 | A 0004343801 | VALVE |
| 3/2-WAY | ||
| 018 | A 0014307460 | GASKET KIT |
| 3/2-WAY VALVE | ||
| 019 | A 0009940047 | SEAL RING |
| Repalced by: A 0009940747 | ||
| 019 | A 0009940747 | LOCK RING |
| SPLITTER-BOX PILOT-VALVE PLUGCONNECTION | ||
| TO M 16 | ||
| 020 | A 0009941248 | LOCK |
| Repalced by: A 0009945448 | ||
| 020 | A 0009945448 | LOCK |
| SPLITTER-BOX PILOT-VALVE PLUGCONNECTION | ||
| TO M 16 | ||
| 021 | A 0009970834 | UNION SCREW |
| Repalced by: A 0009973734 | ||
| 021 | A 0009973734 | UNION SCREW |
| SPLITTER-BOX PILOT-VALVE PLUGCONNECTION | ||
| M 16 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR CONNECTING PARTS AND PNEUMATIC LINES SEE GROUP 26 | ||
| 022 | N 074305026202 | NUT |
| 3/2-WAY VALVE TO PEDAL BEARING BRACKET | ||
| A 3609900840 | WASHER | |
| Repalced by: N 001440027000 | ||
| N 001440027000 | WASHER | |
| VALVE TO BRACKET | ||
| 024 | A 6202953540 | BRACKET |
| 3/2-WAY VALVE | ||
| 024 | A 6202954340 | BRACKET |
| 3/2-WAY VALVE | ||
| 025 | A 6202900133 | BRACKET |
| 3/2-WAY VALVE | ||
| 026 | N 000933006207 | SCREW |
| BRACKET TO PEDAL BEARING BRACKET | ||
| 026 | N 000933006130 | SCREW |
| BRACKET TO PEDAL BEARING BRACKET | ||
| 027 | N 912004006102 | LOCK WASHER |
| BRACKET TO PEDAL BEARING BRACKET | ||
| 028 | N 000125006421 | WASHER |
| BRACKET TO PEDAL BEARING BRACKET | ||
| 028 | N 000125006421 | WASHER |
| BRACKET TO PEDAL BEARING BRACKET | ||
| 029 | A 6179970081 | GROMMET |
| FIRE WALL,LEFT,IN FRONT LEGROOM | ||
| 029 | A 6179970081 | GROMMET |
| FIRE WALL,LEFT,IN FRONT LEGROOM | ||
| 029 | A 6179970081 | GROMMET |
| FIRE WALL,LEFT,IN FRONT LEGROOM | ||
| 030 | A 3812910186 | STOP |
| PEDAL ASSEMBLY | ||
| 031 | N 000471016001 | LOCK RING |
| Repalced by: A 0079942041 | ||
| 031 | A 0079942041 | LOCK |
| STOP TO BEARING BRACKET | ||
| 032 | A 6202900416 | PEDAL |
| Repalced by: A 6202900216 | ||
| 032 | A 6202900216 | PEDAL |
| CLUTCH | ||
| 032 | A 6202900216 | PEDAL |
| CLUTCH | ||
| 032 | A 6202900216 | PEDAL |
| CLUTCH | ||
| 032 | A 6202901816 | PEDAL |
| CLUTCH | ||
| 032 | A 6202902316 | PEDAL |
| CLUTCH | ||
| 033 | A 3529902101 | SCREW |
| CLUTCH PEDAL | ||
| 034 | N 000439008211 | NUT |
| Repalced by: N 304035008001 | ||
| 034 | N 304035008001 | NUT |
| CLUTCH PEDAL | ||
| 035 | A 3812910274 | PIN |
| CLUTCH PEDAL | ||
| 035 | A 3812910274 | PIN |
| CLUTCH PEDAL | ||
| 035 | A 3812910274 | PIN |
| CLUTCH PEDAL | ||
| 035 | A 3812910874 | PIN |
| CLUTCH PEDAL | ||
| 036 | N 913002008004 | NUT |
| CLUTCH PEDAL | ||
| 040 | A 3812910053 | SPACER TUBE |
| CLUTCH PEDAL | ||
| 044 | A 0009815610 | NEEDLE BEARING |
| Repalced by: A 0119813410 | ||
| 044 | A 0089811110 | NEEDLE BEARING |
| Repalced by: A 0119813410 | ||
| 044 | A 0119813410 | NEEDLE BEARING |
| CLUTCH PEDAL | ||
| 048 | A 1072910182 | PAD |
| CLUTCH PEDAL | ||
| 052 | A 3819930710 | SPRING |
| CLUTCH PEDAL RESET | ||
| 056 | A 3812940707 | PIVOT PIN |
| PEDAL TO BEARING BRACKET | ||
| 060 | N 000471020001 | LOCK RING |
| PEDAL TO BEARING BRACKET | ||
| 064 | A 3812910073 | LOCK |
| PEDAL TO BEARING BRACKET | ||
| 068 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 068 | N 304017006016 | SCREW |
| LOCK TO BEARING BRACKET | ||
| 072 | N 912004006102 | LOCK WASHER |
| LOCK TO BEARING BRACKET | ||
| 076 | A 1112910491 | SPRING RETAINER |
| DEAD CENTER SPRING,TOP | ||
| 080 | A 1109930501 | SPRING |
| (DEAD CENTER SPRING) | ||
| 35 MM | ||
| 082 | A 3819930201 | SPRING |
| (DEAD CENTER SPRING) | ||
| 23.2 MM | ||
| 084 | A 3092910091 | SPRING RETAINER |
| BOTTOM | ||
| A 3812910233 | ROD | |
| OVER-CENTER ACTING SPRING | ||
| A 3812910333 | ROD | |
| OVER-CENTER ACTING SPRING | ||
| 092 | A 0059813810 | NEEDLE BEARING |
| ROD TO CLUTCH PEDAL | ||
| 092 | A 0059814410 | NEEDLE BEARING |
| ROD TO CLUTCH PEDAL | ||
| 092 | A 0089811210 | NEEDLE BEARING |
| ROD TO CLUTCH PEDAL | ||
| 092 | A 0139818210 | NEEDLE BEARING |
| ROD TO CLUTCH PEDAL | ||
| 096 | N 000439010216 | NUT |
| Repalced by: N 308675010000 | ||
| 096 | N 308675010000 | NUT |
| SPRING TO PUSH ROD | ||
| A 3812910574 | PIN | |
| PUSH ROD TO PEDAL | ||
| A 3812910674 | PIN | |
| PUSH ROD TO PEDAL | ||
| 104 | N 000433008406 | WASHER |
| PUSH ROD TO PEDAL | ||
| 108 | N 006799006003 | LOCK PLATE |
| PUSH ROD TO PEDAL | ||
| 110 | A 3802900193 | REPAIR KIT |
| DEAD CENTER SPRING | ||
| 110 | A 3802900293 | REPAIR KIT |
| DEAD CENTER SPRING | ||
| 112 | A 0002956806 | MASTER CYLINDER |
| Repalced by: A 0012952906 | ||
| 112 | A 0012952906 | MASTER CYLINDER |
| Repalced by: A 0012956006 | ||
| 112 | A 0012956006 | MASTER CYLINDER |
| CLUTCH;LESS DE-AERATION | ||
| 120 | A 0004310265 | VALVE |
| Repalced by: A 3075530107 | ||
| 120 | A 3075530107 | VALVE |
| BREATHER | ||
| TO 000 295 68 06 | ||
| 124 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 0004217187 | ||
| 124 | A 0004217187 | PROTECTIVE CAP |
| TO 000 295 68 06 | ||
| 128 | A 0002950836 | INTERMEDIATE PIECE |
| 132 | A 0009971186 | PLUG |
| 136 | A 0005863529 | REPAIR KIT |
| Repalced by: A 0002903412 | ||
| 136 | A 0002903412 | REPAIR KIT |
| TO MASTER CYLINDER HAVING ALUMINUM PISTON | ||
| TO 000 295 68 06,001 295 29 06 | ||
| 136 | A 0002904667 | REPAIR KIT |
| TO MASTER CYLINDER HAVING SYNTHETIC PISTON | ||
| TO 001 295 60 06 | ||
| 140 | N 000931006191 | SCREW |
| MASTER CYLINDER TO BEARING BRACKET | ||
| M 6X55 | ||
| 140 | N 000931006191 | SCREW |
| MASTER CYLINDER TO BEARING BRACKET | ||
| M 6X55 | ||
| N 000931006134 | SCREW | |
| MASTER CYLINDER TO BEARING BRACKET | ||
| M 6X60 | ||
| 144 | N 912004006102 | LOCK WASHER |
| MASTER CYLINDER TO BEARING BRACKET | ||
| 148 | A 3812950033 | ROD |
| FROM CLUTCH PEDAL TO MASTER CYLINDER | ||
| 152 | N 000439008211 | NUT |
| Repalced by: N 304035008001 | ||
| 152 | N 304035008001 | NUT |
| ROD TO YOKE | ||
| 156 | A 0009961045 | ARTICULATION PIECE |
| CLUTCH MASTER CYLINDER TO CLUTCH PEDAL | ||
| 156 | A 0009961145 | ARTICULATION PIECE |
| CLUTCH MASTER CYLINDER TO CLUTCH PEDAL | ||
| 160 | A 0059813810 | NEEDLE BEARING |
| CLUTCH MASTER CYLINDER TO CLUTCH PEDAL | ||
| 160 | A 0059814410 | NEEDLE BEARING |
| CLUTCH MASTER CYLINDER TO CLUTCH PEDAL | ||
| 160 | A 0089811210 | NEEDLE BEARING |
| CLUTCH MASTER CYLINDER TO CLUTCH PEDAL | ||
| 160 | A 0139818210 | NEEDLE BEARING |
| CLUTCH MASTER CYLINDER TO CLUTCH PEDAL | ||
| 164 | N 000433008406 | WASHER |
| PISTON ROD TO LEVER | ||
| 168 | N 006799006003 | LOCK PLATE |
| PISTON ROD TO LEVER | ||
| 169 | A 6202950228 | LEVER |
| 3/2-WAY VALVE OPERATION | ||
| 169 | A 6202900334 | LEVER |
| 3/2-WAY VALVE OPERATION | ||
| 170 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 170 | N 304017006020 | SCREW |
| LVER TO CLUTCH PEDAL | ||
| 171 | N 912004006102 | LOCK WASHER |
| LVER TO CLUTCH PEDAL | ||
| 172 | N 000934006007 | NUT |
| LVER TO CLUTCH PEDAL | ||
| 173 | A 3812941001 | BEARING BRACKET |
| BRAKE | ||
| 176 | N 000939008136 | STUD BOLT |
| BEARING BRACKET TO CAB | ||
| 180 | N 007349008003 | WASHER |
| BEARING BRACKET TO CAB | ||
| 184 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 184 | N 913004008001 | NUT |
| BEARING BRACKET TO CAB | ||
| 188 | A 3524270153 | SPACER TUBE |
| Repalced by: A 3604270253 | ||
| 188 | A 3604270353 | SPACER TUBE |
| Repalced by: A 3604270253 | ||
| 188 | A 3604270253 | SPACER TUBE |
| BEARING BRACKET TO STEERING COLUMN BRACKET | ||
| 188 | A 3604270253 | SPACER TUBE |
| BEARING BRACKET TO WINDOW SILL GIRDER | ||
| 192 | N 000933010151 | SCREW |
| BEARING BRACKET TO STEERING COLUMN BRACKET | ||
| 192 | N 000933010151 | SCREW |
| BEARING BRACKET TO WINDOW SILL GIRDER | ||
| 196 | A 3859901840 | WASHER |
| Repalced by: A 4039900040 | ||
| 196 | A 4039900040 | WASHER |
| BEARING BRACKET TO STEERING COLUMN BRACKET | ||
| 196 | A 4039900040 | WASHER |
| BEARING BRACKET TO WINDOW SILL GIRDER | ||
| 200 | N 000137010201 | SPRING WASHER |
| BEARING BRACKET TO STEERING COLUMN BRACKET | ||
| 200 | N 000137010201 | SPRING WASHER |
| BEARING BRACKET TO WINDOW SILL GIRDER | ||
| 204 | A 3819970486 | PLUG |
| TO PLUG BRAKE OPENING | ||
| 29.50 MM | ||
| 204 | A 3819970386 | PLUG |
| Repalced by: A 0009972020 | ||
| 204 | A 0009972020 | EXPANSION PLUG |
| Repalced by: A 0009973220 | ||
| 204 | A 0009973220 | EXPANSION PLUG |
| TO PLUG BRAKE OPENING | ||
| 19.50 MM | ||
| 212 | A 6202900818 | PEDAL |
| BRAKE | ||
| 212 | A 3852900518 | PEDAL |
| BRAKE | ||
| 216 | A 3852920053 | SPACER TUBE |
| BRAKE PEDAL | ||
| 220 | A 1152910186 | STOP |
| BRAKE PEDAL | ||
| 224 | A 0009815610 | NEEDLE BEARING |
| Repalced by: A 0119813410 | ||
| 224 | A 0089811110 | NEEDLE BEARING |
| Repalced by: A 0119813410 | ||
| 224 | A 0119813410 | NEEDLE BEARING |
| BRAKE PEDAL | ||
| 228 | A 1072910182 | PAD |
| BRAKE PEDAL | ||
| 232 | A 3852940007 | PIVOT PIN |
| PEDAL TO BEARING BRACKET | ||
| 236 | N 000471020001 | LOCK RING |
| PEDAL TO BEARING BRACKET | ||
| 240 | A 3879935010 | SPRING |
| BRAKE PEDAL RELEASE SPRING | ||
| 244 | A 3852920073 | LOCK |
| Repalced by: A 6732920073 | ||
| 244 | A 6732920073 | LOCK |
| PEDAL TO BEARING BRACKET | ||
| 248 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 248 | N 304017006018 | SCREW |
| LOCK TO BEARING BRACKET | ||
| 252 | N 912004006102 | LOCK WASHER |
| LOCK TO BEARING BRACKET | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR BRAKE VALVE,SEE GROUP 42 | ||
| 284 | A 6209960001 | YOKE |
| PISTON ROD AND PUSH ROD | ||
| 288 | A 3852950133 | ROD |
| Repalced by: A 9702900039 | ||
| 288 | A 9702900039 | ROD |
| PISTON ROD AND PUSH ROD | ||
| 292 | N 000439008211 | NUT |
| Repalced by: N 304035008001 | ||
| 292 | N 304035008001 | NUT |
| PISTON ROD AND PUSH ROD | ||
| 296 | A 3852920174 | PIN |
| PISTON ROD TO LEVER | ||
| 300 | N 000433008406 | WASHER |
| PISTON ROD TO LEVER | ||
| 304 | N 000094002059 | COTTER PIN |
| PISTON ROD TO LEVER | ||

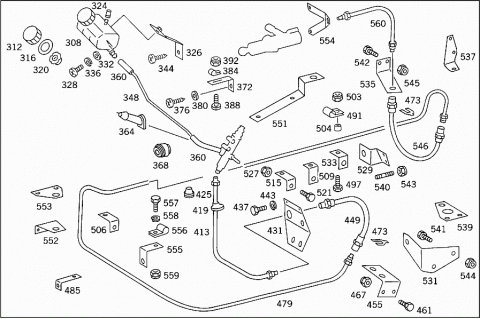

| 308 | A 0002951715 | RESERVOIR |
| EXPANSION TANK | ||
| 308 | A 0002952315 | RESERVOIR |
| EXPANSION TANK | ||
| 312 | A 0002950116 | LOCKING CAP |
| 316 | A 0002950260 | SEAL RING |
| Repalced by: A 0009972940 | ||
| 316 | A 0009972940 | SEAL RING |
| 320 | A 0002950123 | STRAINER |
| Repalced by: A 0004314334 | ||
| 320 | A 0004314334 | STRAINER |
| 324 | A 0009885435 | CAP |
| RESERVOIR DE-AERATION | ||
| 326 | A 3872900433 | BRACKET |
| RESERVOIR | ||
| 328 | N 007985006145 | SCREW |
| Repalced by: N 007985006581 | ||
| 328 | N 007985006581 | SCREW |
| EXPANSION TANK TO BRACKET | ||
| 332 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 332 | N 009021006208 | WASHER |
| EXPANSION TANK TO BRACKET | ||
| 336 | N 912004006102 | LOCK WASHER |
| EXPANSION TANK TO BRACKET | ||
| 344 | N 007981005306 | SHEET METAL SCREW |
| BRACKET TO CAB | ||
| 348 | A 3872950313 | PIPE |
| FROM CLUTCH MASTER CYLINDER TO RESERVOIR | ||
| 700 MM | ||
| 360 | A 0009978952 | HOSE |
| BETWEEN MASTER CYLINDER AND LINES | ||
| 364 | A 3819970781 | GROMMET |
| CLUTCH LINE THRU CAB WINDOW SILL | ||
| 368 | A 6209970281 | GROMMET |
| CLUTCH LINE THRU CAB WINDOW SILL | ||
| 372 | A 3812950440 | BRACKET |
| HYDRAULIC LINE | ||
| 376 | N 007981005306 | SHEET METAL SCREW |
| BRACKET TO CAB | ||
| 380 | N 000125006421 | WASHER |
| BRACKET TO CAB | ||
| 384 | A 3609950301 | CLAMP |
| HYDRAULIC LINE TO BRACKET | ||
| 388 | N 007985006145 | SCREW |
| Repalced by: N 007985006581 | ||
| 388 | N 007985006581 | SCREW |
| HYDRAULIC LINE TO BRACKET | ||
| 392 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 392 | N 913004006001 | NUT |
| HYDRAULIC LINE TO BRACKET | ||
| 413 | A 6162900013 | LINE |
| Repalced by: A 3812901714 | ||
| 413 | A 3812901714 | LINE |
| Repalced by: A 3812903214 | ||
| 413 | A 3812903214 | LINE |
| FROM CLUTCH MASTER CYLINDER TO HYDRAULIC HOSE | ||
| 570 MM | ||
| 413 | A 6162900113 | LINE |
| Repalced by: A 3812901814 | ||
| 413 | A 3812901814 | LINE |
| FROM CLUTCH MASTER CYLINDER TO HYDRAULIC HOSE | ||
| 700 MM | ||
| 419 | A 3819971781 | GROMMET |
| Repalced by: A 3149970581 | ||
| 419 | A 3149970581 | GROMMET |
| 425 | A 3819970881 | GROMMET |
| 431 | A 6202953040 | BRACKET |
| HYDRAULIC LINE TO CAB FLOOR | ||
| 437 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 437 | N 304017006016 | SCREW |
| BRACKET TO BRACKET | ||
| 443 | N 912004006102 | LOCK WASHER |
| BRACKET TO BRACKET | ||
| 449 | A 3832950035 | HOSE |
| Repalced by: A 3982950035 | ||
| 449 | A 3982950035 | HOSE |
| FROM BRACKET UNDER CAB FLOOR TO OIL TANK BRACKET | ||
| 455 | A 6162950140 | BRACKET |
| AT OIL TANK BRACKET | ||
| 455 | A 6162950240 | BRACKET |
| AT OIL TANK BRACKET | ||
| 455 | A 6162950940 | BRACKET |
| AT OIL TANK BRACKET | ||
| 461 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 461 | N 304017006016 | SCREW |
| BRACKET TO OIL TANK | ||
| 467 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 467 | N 913004006001 | NUT |
| BRACKET TO OIL TANK | ||
| 473 | A 0004280473 | BRACKET |
| Repalced by: A 6525040038 | ||
| 473 | A 6525040038 | MOUNTING PLATE |
| HYDRAULIC HOSE TO BRACKET | ||
| 479 | A 6162900213 | LINE |
| Repalced by: A 3812902214 | ||
| 479 | A 6162900313 | LINE |
| Repalced by: A 3812902214 | ||
| 479 | A 3812902214 | LINE |
| FROM BRACKET TO BRACKET | ||
| 2000 MM | ||
| 479 | A 3812902214 | LINE |
| FROM BRACKET TO BRACKET | ||
| 2000 MM | ||
| 479 | A 3812902214 | LINE |
| FROM BRACKET TO BRACKET | ||
| 2000 MM | ||
| 479 | A 3812902314 | LINE |
| FROM BRACKET TO BRACKET | ||
| 2500 MM | ||
| 479 | A 3812902314 | LINE |
| FROM BRACKET TO BRACKET | ||
| 2500 MM | ||
| 485 | A 6162950440 | BRACKET |
| AT DELIVERY/SUCTION LINE BRACKET | ||
| 485 | A 6162950440 | BRACKET |
| AT DELIVERY/SUCTION LINE BRACKET | ||
| 491 | A 3609950201 | CLAMP |
| Repalced by: A 3604300143 | ||
| 491 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 491 | N 916016008200 | CLAMP |
| Repalced by: N 000000000319 | ||
| 491 | N 000000000319 | CLAMP |
| HYDRAULIC LINE TO BRACKET | ||
| 497 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 497 | N 304017006016 | SCREW |
| HYDRAULIC LINE TO BRACKET | ||
| M 6X16 | ||
| 497 | N 000933006124 | SCREW |
| HYDRAULIC LINE TO BRACKET | ||
| M 6X30 | ||
| 503 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 503 | N 913004006001 | NUT |
| HYDRAULIC LINE TO BRACKET | ||
| 504 | A 3529910340 | SPACER TUBE |
| Repalced by: A 4082910153 | ||
| 504 | A 4082910153 | SPACER TUBE |
| HYDRAULIC LINE TO BRACKET | ||
| 506 | A 3873020140 | BRACKET |
| HYDRAULIC LINE TO SIDE MEMBER,OUTSIDE FRONT | ||
| 506 | A 3873020140 | BRACKET |
| HYDRAULIC LINE TO SIDE MEMBER,OUTSIDE CENTRAL | ||
| 506 | A 6162952340 | BRACKET |
| HYDRAULIC LINE TO SIDE MEMBER,OUTSIDE CENTRAL | ||
| 509 | A 6162950340 | BRACKET |
| HYDRAULIC LINE TO SIDE MEMBER,OUTSIDE CENTRAL | ||
| 509 | A 6162950340 | BRACKET |
| HYDRAULIC LINE TO SIDE MEMBER,OUTSIDE CENTRAL | ||
| 509 | A 6162950340 | BRACKET |
| HYDRAULIC LINE TO SIDE MEMBER,OUTSIDE FRONT | ||
| 515 | A 3604280243 | ANGLE |
| HYDRAULIC LINE TO SIDE MEMBER,OUTSIDE FRONT | ||
| 521 | N 000961012164 | SCREW |
| HYDRAULIC LINE TO SIDE MEMBER | ||
| 527 | N 910113012002 | NUT |
| HYDRAULIC LINE TO SIDE MEMBER | ||
| 529 | A 6162951940 | BRACKET |
| HYDRAULIC LINE TO FRONT EXHAUST PIPE BRACKET | ||
| 531 | A 6162952040 | BRACKET |
| HYDRAULIC LINE TO FRONT EXHAUST PIPE BRACKET | ||
| 533 | A 6162951340 | BRACKET |
| Repalced by: A 6162950340 | ||
| 533 | A 6162950340 | BRACKET |
| HYDRAULIC LINE TO SIDE MEMBER,OUTSIDE CENTRAL | ||
| 533 | A 6162950340 | BRACKET |
| HYDRAULIC LINE TO SIDE MEMBER,OUTSIDE CENTRAL | ||
| 533 | A 3914280043 | ANGLE |
| Repalced by: A 3464295540 | ||
| 533 | A 3464295540 | BRACKET |
| Repalced by: A 3464296040 | ||
| 533 | A 3464296040 | BRACKET |
| HYDRAULIC LINE TO SIDE MEMBER,OUTSIDE CENTRAL | ||
| 535 | A 6162951540 | BRACKET |
| AT SIDE MEMBER | ||
| 537 | A 6162952140 | BRACKET |
| AT SIDE MEMBER | ||
| 539 | A 6162950540 | BRACKET |
| AT ENGINE MOUNTING CONSOLE | ||
| 539 | A 6162952740 | BRACKET |
| AT ENGINE MOUNTING CONSOLE | ||
| 540 | N 000939008083 | STUD BOLT |
| HYDRAULIC LINE TO FRONT EXHAUST PIPE BRACKET | ||
| 541 | N 000961014154 | SCREW |
| HYDRAULIC LINE TO FRONT EXHAUST PIPE BRACKET | ||
| 542 | N 000933010105 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 542 | N 000961014100 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 543 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 543 | N 913004008001 | NUT |
| HYDRAULIC LINE TO FRONT EXHAUST PIPE BRACKET | ||
| 544 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 544 | N 910113014001 | NUT |
| HYDRAULIC LINE TO FRONT EXHAUST PIPE BRACKET | ||
| 545 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 545 | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 545 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 545 | N 910113014001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 546 | A 0002951835 | HOSE |
| FROM BRACKET AT ENGINE REAR MOUNTING TO BRACKET AT TRANSMISSION | ||
| 350 MM | ||
| 546 | A 0002951835 | HOSE |
| FROM BRACKET AT ENGINE REAR MOUNTING TO BRACKET AT TRANSMISSION | ||
| 350 MM | ||
| 546 | A 0002951835 | HOSE |
| FROM BRACKET AT ENGINE REAR MOUNTING TO BRACKET AT TRANSMISSION | ||
| 350 MM | ||
| 546 | A 0002952735 | HOSE |
| FROM BRACKET AT SIDE MEMBER TO CLUTCH SLAVE CYLINDER | ||
| 350 MM | ||
| 546 | A 0002952735 | HOSE |
| FROM BRACKET AT SIDE MEMBER TO CLUTCH SLAVE CYLINDER | ||
| 350 MM | ||
| 546 | A 0002952735 | HOSE |
| FROM BRACKET AT SIDE MEMBER TO CLUTCH SLAVE CYLINDER | ||
| 350 MM | ||
| A 6242950035 | HOSE | |
| FROM BRACKET ON SIDE MEMBER TO BRACKET ON TRANSMISSION | ||
| 420 MM | ||
| 551 | A 6162950740 | BRACKET |
| HYDRAULIC HOSE TO TRANSMISSION | ||
| 552 | A 6162951040 | BRACKET |
| HYDRAULIC HOSE TO TRANSMISSION | ||
| 553 | A 6162951140 | BRACKET |
| HYDRAULIC HOSE TO TRANSMISSION | ||
| 554 | A 6162952440 | BRACKET |
| HYDRAULIC HOSE TO TRANSMISSION | ||
| 554 | A 6162952440 | BRACKET |
| HYDRAULIC HOSE TO TRANSMISSION | ||
| 555 | A 3604280243 | ANGLE |
| HYDRAULIC LINE TO TRANSMISSION | ||
| 555 | A 3604280243 | ANGLE |
| HYDRAULIC LINE TO TRANSMISSION | ||
| 556 | A 3609950201 | CLAMP |
| Repalced by: A 3604300143 | ||
| 556 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 556 | N 916016008200 | CLAMP |
| Repalced by: N 000000000319 | ||
| 556 | N 000000000319 | CLAMP |
| HYDRAULIC LINE TO BRACKET | ||
| 556 | N 000000000319 | CLAMP |
| HYDRAULIC LINE TO BRACKET | ||
| 557 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 557 | N 304017006016 | SCREW |
| HYDRAULIC LINE TO BRACKET | ||
| 557 | N 304017006016 | SCREW |
| HYDRAULIC LINE TO BRACKET | ||
| 558 | N 912004006102 | LOCK WASHER |
| HYDRAULIC LINE TO BRACKET | ||
| 558 | N 912004006102 | LOCK WASHER |
| HYDRAULIC LINE TO BRACKET | ||
| 559 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 559 | N 913004006001 | NUT |
| HYDRAULIC LINE TO BRACKET | ||
| 559 | N 913004006001 | NUT |
| HYDRAULIC LINE TO BRACKET | ||
| 560 | A 6162901213 | LINE |
| Repalced by: A 3812901514 | ||
| 560 | A 6162901313 | LINE |
| Repalced by: A 3812901514 | ||
| 560 | A 3812901514 | LINE |
| FROM BRACKET AT TRANSMISSION TO CLUTCH SLAVE CYLINDER | ||
| 400 MM | ||
| 560 | A 6162901013 | LINE |
| Repalced by: A 3812901614 | ||
| 560 | A 6162901113 | LINE |
| Repalced by: A 3812901614 | ||
| 560 | A 3812901614 | LINE |
| FROM BRACKET AT TRANSMISSION TO CLUTCH SLAVE CYLINDER | ||
| 550 MM | ||
| 560 | A 3812902014 | LINE |
| FROM BRACKET AT TRANSMISSION TO CLUTCH SLAVE CYLINDER | ||
| 1100 MM | ||
| 560 | A 3812901914 | LINE |
| FROM BRACKET AT TRANSMISSION TO CLUTCH SLAVE CYLINDER | ||
| 800 MM | ||
| 560 | A 3812901914 | LINE |
| FROM BRACKET AT TRANSMISSION TO CLUTCH SLAVE CYLINDER | ||
| 800 MM | ||
| 560 | A 3812901914 | LINE |
| FROM BRACKET AT TRANSMISSION TO CLUTCH SLAVE CYLINDER | ||
| 800 MM | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
