Transporto priemonė: 1620 L/LL; VIN numerio dalis: 617447

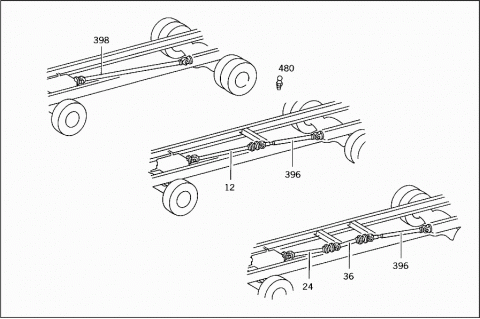

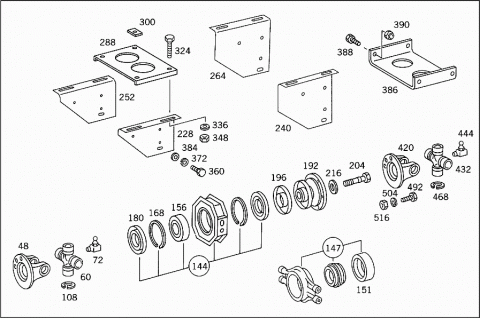

Grupė: 41 PROPELLER SHAFT
| # | Kodas | Pavadinimas |
|---|---|---|
| 012 | A 3854106404 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1672 MM | ||
| 012 | A 6164100004 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 2022 MM | ||
| 012 | A 3854106504 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1451 MM | ||
| 012 | A 3854108204 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1513 MM | ||
| 012 | A 3854106704 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1543 MM | ||
| 012 | A 3854106904 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1602 MM | ||
| 012 | A 3854107204 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1775 MM | ||
| 012 | A 3854107404 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1872 MM | ||
| 012 | A 3874102201 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1547 MM | ||
| 012 | A 3894108901 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1623 MM | ||
| 012 | A 3894109901 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1460 MM | ||
| 012 | A 3894100004 | PROPELLER SHAFT |
| Repalced by: A 3894109401 | ||
| 012 | A 3894100004 | PROPELLER SHAFT |
| 389 410 00 04=ZA 95273 | ||
| 012 | A 3894109401 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1737 MM | ||
| 012 | A 3894108701 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1838 MM | ||
| 012 | A 3894107401 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1667 MM | ||
| 024 | A 3854106304 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING I | ||
| 1272 MM | ||
| 024 | A 3854106204 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING I | ||
| 1145 MM | ||
| 024 | A 3894106101 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING I | ||
| 1092 MM | ||
| 036 | A 3854106804 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II | ||
| 1468 MM | ||
| 036 | A 3854106704 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II | ||
| 1543 MM | ||
| 036 | A 3894101204 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II | ||
| 1413 MM | ||
| 048 | A 3854111711 | DRIVE FLANGE |
| 048 | A 3874110011 | DRIVE FLANGE |
| Repalced by: A 3894110511 | ||
| 048 | A 3894110511 | DRIVE FLANGE |
| 060 | A 3814100231 | UNIVERSAL JOINT CROSS |
| Repalced by: A 9734100031 | ||
| 060 | A 9734100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 060 | A 6204100131 | UNIVERSAL JOINT CROSS |
| Repalced by: A 0004100231 | ||
| 060 | A 0004100231 | UNIVERSAL JOINT CROSS |
| Repalced by: A 0004101628 | ||
| 060 | A 0004101628 | UNIVERSAL JOINT |
| Repalced by: A 9424100131 | ||
| 060 | A 9424100131 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 072 | N 071412008302 | GREASE NIPPLE |
| 108 | A 0029941241 | LOCK |
| Repalced by: A 0069940641 | ||
| 108 | A 0069940641 | LOCK |
| AS REQUIRED | ||
| 1.65 MM | ||
| 108 | A 0069940841 | LOCK |
| AS REQUIRED | ||
| 1.70 MM | ||
| 108 | N 000472048000 | LOCK RING |
| AS REQUIRED | ||
| 1.75 MM | ||
| 108 | A 0069941241 | LOCK |
| AS REQUIRED | ||
| 1.80 MM | ||
| 108 | A 0069941441 | LOCK |
| AS REQUIRED | ||
| 1.85 MM | ||
| 108 | A 0069941941 | LOCK |
| AS REQUIRED | ||
| 2.00 MM | ||
| 108 | A 0069942341 | LOCK |
| AS REQUIRED | ||
| 2.10 MM | ||
| 108 | A 0069942741 | LOCK |
| AS REQUIRED | ||
| 2.20 MM | ||
| A 3854130161 | PROTECTIVE CAP | |
| OUTSIDE | ||
| A 3854130461 | PROTECTIVE CAP | |
| OUTSIDE | ||
| A 3874130061 | PROTECTIVE CAP | |
| ZA 95273 | ||
| A 3894130161 | PROTECTIVE CAP | |
| A 3894130161 | PROTECTIVE CAP | |
| A 3894130361 | PROTECTIVE CAP | |
| 144 | A 3854100110 | REPAIR KIT |
| Repalced by: A 3854100122 | ||
| 144 | A 3854100122 | INTERMEDIATE BEARING |
| Repalced by: A 3854100922 | ||
| 144 | A 3854100922 | INTERMEDIATE BEARING |
| Repalced by: A 3854101722 | ||
| 144 | A 3854101722 | INTERMEDIATE BEARING |
| Repalced by: A 9734100022 | ||
| 144 | A 9734100022 | INTERMEDIATE BEARING |
| PROPELLER SHAFT | ||
| 144 | A 3894100122 | INTERMEDIATE BEARING |
| Repalced by: A 3894100222 | ||
| 144 | A 3894100222 | INTERMEDIATE BEARING |
| Repalced by: A 6544100022 | ||
| 144 | A 6544100022 | INTERMEDIATE BEARING |
| PROPELLER SHAFT | ||
| 144 | A 6544100022 | INTERMEDIATE BEARING |
| PROPELLER SHAFT | ||
| 147 | A 3874100010 | REPAIR KIT |
| INTERMEDIATE SHAFT BEARING | ||
| ZA 95273 | ||
| 151 | A 3634130012 | RUBBER MOUNTING |
| INTERMEDIATE BEARING | ||
| ZA 95273 | ||
| 156 | A 0019818125 | BALL BEARING |
| INTERMEDIATE BEARING | ||
| 156 | A 3634100151 | BALL BEARING |
| INTERMEDIATE BEARING | ||
| ZA 95273 | ||
| 156 | A 0029819725 | BALL BEARING |
| INTERMEDIATE BEARING | ||
| 156 | A 0029819725 | BALL BEARING |
| INTERMEDIATE BEARING | ||
| 156 | A 0029819625 | BALL BEARING |
| INTERMEDIATE BEARING | ||
| 156 | A 0029819625 | BALL BEARING |
| INTERMEDIATE BEARING | ||
| 168 | N 912009100200 | SNAP RING |
| INTERMEDIATE BEARING | ||
| 168 | N 912009110200 | SNAP RING |
| INTERMEDIATE BEARING | ||
| 168 | N 912009110200 | SNAP RING |
| INTERMEDIATE BEARING | ||
| 180 | A 3854130061 | PROTECTIVE CAP |
| INSIDE | ||
| 180 | A 3874130061 | PROTECTIVE CAP |
| INSIDE | ||
| ZA 95273 | ||
| 180 | A 3894130261 | PROTECTIVE CAP |
| INSIDE | ||
| 180 | A 3894130261 | PROTECTIVE CAP |
| INSIDE | ||
| A 6544110052 | SPACER WASHER | |
| PROPELLER SHAFT BEARING | ||
| A 9734110052 | SPACER WASHER | |
| PROPELLER SHAFT BEARING | ||
| 192 | A 3854100030 | CENTERING FLANGE |
| Repalced by: A 3854110045 | ||
| 192 | A 3854110045 | FLANGE |
| PROPELLER SHAFT BEARING | ||
| 192 | A 3874100030 | CENTERING FLANGE |
| PROPELLER SHAFT BEARING | ||
| ZA 95273 | ||
| 192 | A 3894100130 | CENTERING FLANGE |
| Repalced by: A 3894110046 | ||
| 192 | A 3894110046 | FLANGE |
| PROPELLER SHAFT BEARING | ||
| 192 | A 3894110046 | FLANGE |
| PROPELLER SHAFT BEARING | ||
| 196 | A 3874130061 | PROTECTIVE CAP |
| TO 387 410 00 30,ZA 95273 | ||
| 196 | A 3854130161 | PROTECTIVE CAP |
| TO 385 411 00 45 | ||
| 196 | A 3854130461 | PROTECTIVE CAP |
| TO 385 411 00 45 | ||
| 196 | A 3894130161 | PROTECTIVE CAP |
| TO 389 411 00 46 | ||
| 196 | A 3894130161 | PROTECTIVE CAP |
| TO 389 411 00 46 | ||
| 196 | A 3894130361 | PROTECTIVE CAP |
| TO 389 411 00 46 | ||
| A 3663530072 | NUT | |
| Repalced by: A 3853510672 | ||
| A 3853510672 | NUT | |
| ZA 95273 | ||
| 204 | A 3839900019 | SCREW |
| FOLLOWER FLANGE TO PROPELLER SHAFT | ||
| 204 | A 3839900019 | SCREW |
| FOLLOWER FLANGE TO PROPELLER SHAFT | ||
| 204 | A 3839900019 | SCREW |
| FOLLOWER FLANGE TO PROPELLER SHAFT | ||
| 216 | A 3894110162 | THRUST WASHER |
| FOLLOWER FLANGE TO PROPELLER SHAFT | ||
| 216 | A 3894110162 | THRUST WASHER |
| FOLLOWER FLANGE TO PROPELLER SHAFT | ||
| 216 | A 3894110162 | THRUST WASHER |
| FOLLOWER FLANGE TO PROPELLER SHAFT | ||
| 228 | A 3854137842 | BRACKET |
| PROPELLER SHAFT BEARING,LEFT | ||
| 228 | A 3854136442 | BRACKET |
| PROPELLER SHAFT BEARING,LEFT | ||
| 228 | A 3854130242 | BRACKET |
| PROPELLER SHAFT BEARING,LEFT | ||
| 228 | A 3854135242 | BRACKET |
| PROPELLER SHAFT BEARING,LEFT | ||
| 228 | A 3854132542 | BRACKET |
| PROPELLER SHAFT BEARING,LEFT | ||
| 228 | A 3854132142 | BRACKET |
| PROPELLER SHAFT BEARING,LEFT | ||
| 228 | A 3854135642 | BRACKET |
| FRONT PROPELLER SHAFT BEARING,LEFT | ||
| 228 | A 3854134042 | BRACKET |
| FRONT PROPELLER SHAFT BEARING,LEFT | ||
| 228 | A 3854136842 | BRACKET |
| FRONT PROPELLER SHAFT BEARING,LEFT | ||
| 228 | A 3854135442 | BRACKET |
| PROPELLER SHAFT BEARING,LEFT | ||
| 228 | A 6174130542 | BRACKET |
| PROPELLER SHAFT BEARING,LEFT | ||
| 228 | A 3854132342 | BRACKET |
| PROPELLER SHAFT BEARING,LEFT | ||
| 228 | A 6174130742 | BRACKET |
| PROPELLER SHAFT BEARING,LEFT | ||
| 240 | A 3854134842 | BRACKET |
| REAR PROPELLER SHAFT BEARING,LEFT | ||
| 240 | A 3814130242 | BRACKET |
| REAR PROPELLER SHAFT BEARING,LEFT | ||
| 240 | A 6174130942 | BRACKET |
| REAR PROPELLER SHAFT BEARING,LEFT | ||
| 252 | A 3854137942 | BRACKET |
| PROPELLER SHAFT BEARING,RIGHT | ||
| 252 | A 3854136542 | BRACKET |
| PROPELLER SHAFT BEARING,RIGHT | ||
| 252 | A 3854130342 | BRACKET |
| PROPELLER SHAFT BEARING,RIGHT | ||
| 252 | A 3854135342 | BRACKET |
| PROPELLER SHAFT BEARING,RIGHT | ||
| 252 | A 3854132642 | BRACKET |
| PROPELLER SHAFT BEARING,RIGHT | ||
| 252 | A 3854132242 | BRACKET |
| PROPELLER SHAFT BEARING,RIGHT | ||
| 252 | A 3854135742 | BRACKET |
| FRONT PROPELLER SHAFT BEARING,RIGHT | ||
| 252 | A 3854134142 | BRACKET |
| FRONT PROPELLER SHAFT BEARING,RIGHT | ||
| 252 | A 3854136942 | BRACKET |
| FRONT PROPELLER SHAFT BEARING,RIGHT | ||
| 252 | A 3854135542 | BRACKET |
| PROPELLER SHAFT BEARING,RIGHT | ||
| 252 | A 6174130642 | BRACKET |
| PROPELLER SHAFT BEARING,RIGHT | ||
| 252 | A 3854132442 | BRACKET |
| PROPELLER SHAFT BEARING,RIGHT | ||
| 252 | A 6174130842 | BRACKET |
| PROPELLER SHAFT BEARING,RIGHT | ||
| 264 | A 3854134942 | BRACKET |
| REAR PROPELLER SHAFT BEARING,RIGHT | ||
| 264 | A 3814130342 | BRACKET |
| REAR PROPELLER SHAFT BEARING,RIGHT | ||
| 264 | A 6174131042 | BRACKET |
| REAR PROPELLER SHAFT BEARING,RIGHT | ||
| 288 | A 3854130011 | REINFORCEMENT |
| BRACKET TO CROSS MEMBER | ||
| 300 | A 3854130111 | REINFORCEMENT |
| BRACKET TO CROSS MEMBER | ||
| 324 | N 000960010026 | SCREW |
| Repalced by: N 000961010031 | ||
| 324 | N 000961010031 | SCREW |
| Repalced by: N 308676010023 | ||
| 324 | N 308676010023 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 324 | N 000961012106 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 336 | N 007349010003 | WASHER |
| Repalced by: N 007349010007 | ||
| 336 | N 007349010007 | WASHER |
| BRACKET TO CROSS MEMBER | ||
| 336 | A 6739900640 | WASHER |
| Repalced by: A 3879900040 | ||
| 336 | A 3879900040 | WASHER |
| Repalced by: N 007349013003 | ||
| 336 | N 007349013005 | WASHER |
| BRACKET TO CROSS MEMBER | ||
| 348 | N 913002010010 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 348 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 348 | N 910113012003 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 360 | N 000931010282 | SCREW |
| BRACKET TO HOUSING | ||
| M 10X40 | ||
| 360 | N 000933010105 | SCREW |
| BRACKET TO HOUSING | ||
| M 10X25 | ||
| 360 | N 000961012094 | SCREW |
| Repalced by: N 308676012013 | ||
| 360 | N 308676012013 | SCREW |
| BRACKET TO HOUSING | ||
| 372 | N 912004010102 | LOCK WASHER |
| BRACKET TO HOUSING | ||
| 372 | N 912004012100 | LOCK WASHER |
| BRACKET TO HOUSING | ||
| 384 | N 007349010003 | WASHER |
| Repalced by: N 007349010007 | ||
| 384 | N 007349010007 | WASHER |
| BRACKET TO HOUSING | ||
| 384 | A 3299900040 | WASHER |
| Repalced by: A 1232420366 | ||
| 384 | A 1232420366 | WASHER |
| BRACKET TO HOUSING | ||
| 386 | A 3874130211 | REINFORCEMENT |
| Repalced by: A 3874130111 | ||
| 386 | A 3874130111 | REINFORCEMENT |
| STRUT TO BRACKET | ||
| 388 | N 000961010018 | SCREW |
| Repalced by: A 0079901001 | ||
| 388 | A 0079901001 | SCREW |
| STRUT TO PROPELLER SHAFT BEARING BRACKET | ||
| 390 | N 913001010000 | NUT |
| Repalced by: N 910113010003 | ||
| 390 | N 910113010003 | NUT |
| STRUT TO PROPELLER SHAFT BEARING BRACKET | ||
| 396 | A 3854105207 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1520 MM | ||
| 396 | A 6164100807 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1910 MM | ||
| 396 | A 3854104507 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1580 MM | ||
| 396 | A 3854103007 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1750 MM | ||
| 396 | A 3854108307 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1920 MM | ||
| 396 | A 3974100007 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1884 MM | ||
| 396 | A 3854105107 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1355 MM | ||
| 396 | A 3894107901 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1648 MM | ||
| 396 | A 3894109001 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1843 MM | ||
| 396 | A 3894101702 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1346 MM | ||
| 398 | A 3894107601 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 1545 MM | ||
| 398 | A 3874109801 | PROPELLER SHAFT |
| Repalced by: A 6174100302 | ||
| 398 | A 6174100302 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 2050 MM | ||
| 398 | A 6174100702 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 1950 MM | ||
| 420 | A 3854111711 | DRIVE FLANGE |
| 420 | A 3874110011 | DRIVE FLANGE |
| Repalced by: A 3894110511 | ||
| 420 | A 3894110511 | DRIVE FLANGE |
| 432 | A 3814100231 | UNIVERSAL JOINT CROSS |
| Repalced by: A 9734100031 | ||
| 432 | A 9734100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 432 | A 6204100131 | UNIVERSAL JOINT CROSS |
| Repalced by: A 0004100231 | ||
| 432 | A 0004100231 | UNIVERSAL JOINT CROSS |
| Repalced by: A 0004101628 | ||
| 432 | A 0004101628 | UNIVERSAL JOINT |
| Repalced by: A 9424100131 | ||
| 432 | A 9424100131 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 444 | N 071412008302 | GREASE NIPPLE |
| 468 | A 0029941241 | LOCK |
| Repalced by: A 0069940641 | ||
| 468 | A 0069940641 | LOCK |
| AS REQUIRED | ||
| 1.65 MM | ||
| 468 | A 0069940841 | LOCK |
| AS REQUIRED | ||
| 1.70 MM | ||
| 468 | N 000472048000 | LOCK RING |
| AS REQUIRED | ||
| 1.75 MM | ||
| 468 | A 0069941241 | LOCK |
| AS REQUIRED | ||
| 1.80 MM | ||
| 468 | A 0069941441 | LOCK |
| AS REQUIRED | ||
| 1.85 MM | ||
| 468 | A 0069941941 | LOCK |
| AS REQUIRED | ||
| 2.00 MM | ||
| 468 | A 0069942341 | LOCK |
| AS REQUIRED | ||
| 2.10 MM | ||
| 468 | A 0069942741 | LOCK |
| AS REQUIRED | ||
| 2.20 MM | ||
| 480 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 480 | N 071412008102 | GREASE NIPPLE |
| 492 | A 3609901901 | SCREW |
| Repalced by: A 3609903001 | ||
| 492 | A 3609903001 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION, INTERMEDIATE BEARING,AND REAR AXLE | ||
| 492 | A 0029909901 | SCREW |
| Repalced by: A 3959900501 | ||
| 492 | A 3959900501 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION, INTERMEDIATE BEARING,AND REAR AXLE | ||
| 492 | A 3959900501 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
| 504 | N 912004012100 | LOCK WASHER |
| PROPELLER SHAFT TO TRANSMISSION, INTERMEDIATE BEARING,AND REAR AXLE | ||
| 504 | N 912004016101 | LOCK WASHER |
| PROPELLER SHAFT TO TRANSMISSION, INTERMEDIATE BEARING,AND REAR AXLE | ||
| 504 | N 912004016101 | LOCK WASHER |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
| 516 | N 000934012034 | NUT |
| PROPELLER SHAFT TO TRANSMISSION, INTERMEDIATE BEARING,AND REAR AXLE | ||
| 516 | N 000934016013 | NUT |
| Repalced by: N 308673016001 | ||
| 516 | N 308673016001 | NUT |
| PROPELLER SHAFT TO TRANSMISSION, INTERMEDIATE BEARING,AND REAR AXLE | ||
| 516 | N 308673016001 | NUT |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
