Transporto priemonė: 1620 L/LL; VIN numerio dalis: 617447
Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|

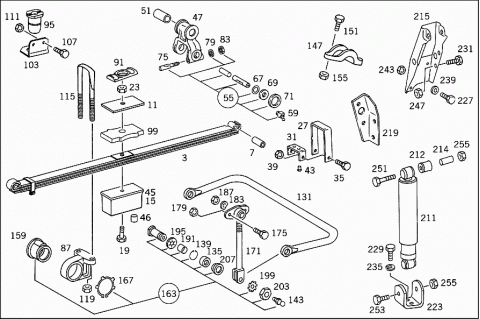

| 003 | A 6173200502 | FRONT SPRING |
| (PARABOLIC SPRING);NUMBER OF LEAVES: | ||
| "3" | ||
| 003 | A 6173200502 | FRONT SPRING |
| Repalced by: A 6173201202 | ||
| 003 | A 6173201202 | FRONT SPRING |
| (PARABOLIC SPRING);NUMBER OF LEAVES: | ||
| "4" | ||
| 007 | A 3523220050 | BUSHING |
| 007 | A 3853220050 | BUSHING |
| 011 | A 3853210284 | SHIM |
| Repalced by: A 3963210084 | ||
| 011 | A 3963210084 | SHIM |
| BETWEEN THE SPRING LEAVES | ||
| 011 | A 3963210084 | SHIM |
| BETWEEN THE SPRING LEAVES | ||
| 011 | A 3963210084 | SHIM |
| BETWEEN THE SPRING LEAVES | ||
| 015 | A 6173220384 | SHIM |
| Repalced by: A 6173221584 | ||
| 015 | A 6173220384 | SHIM |
| Repalced by: A 6173221584 | ||
| 015 | A 6173220284 | SHIM |
| Repalced by: A 6173221484 | ||
| 019 | N 004626012167 | SPRING BOLT |
| M 12X165 | ||
| 019 | N 004626012172 | SPRING BOLT |
| M 12X95 | ||
| 019 | N 004626012106 | SPRING BOLT |
| M 12X105 | ||
| 023 | N 913004012007 | NUT |
| Repalced by: N 910113012005 | ||
| 023 | N 910113012005 | NUT |
| SPRING BOLT | ||
| 027 | A 6173210233 | SPRING CLAMP |
| Repalced by: A 6753210133 | ||
| 027 | A 6753210133 | SPRING CLAMP |
| Repalced by: A 6763210033 | ||
| 027 | A 6763210033 | SPRING CLAMP |
| 031 | A 6173210135 | CLAMP |
| SPRING CLAMP TO SPRING LEAF | ||
| 035 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 035 | N 304017008027 | SCREW |
| SPRING CLAMP TO SPRING LEAF | ||
| 039 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 039 | N 913004008001 | NUT |
| SPRING CLAMP TO SPRING LEAF | ||
| 043 | N 910006008024 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 045 | A 6173221584 | SHIM |
| FRONT SPRINGS TO FRONT AXLE | ||
| 045 | A 6173221584 | SHIM |
| FRONT SPRINGS TO FRONT AXLE | ||
| 045 | A 6173221484 | SHIM |
| FRONT SPRINGS TO FRONT AXLE | ||
| 046 | A 3449917260 | DOWEL PIN |
| (CENTERING CONE) | ||
| 047 | A 6173200163 | SHACKLE |
| FRONT SPRING SUSPENSION,REAR | ||
| 051 | A 3523220050 | BUSHING |
| 051 | A 3853220050 | BUSHING |
| 055 | A 3855860332 | REPAIR KIT |
| Repalced by: A 3853200165 | ||
| 055 | A 3853200165 | SHACKLE PIN |
| PARTS KIT | ||
| 059 | N 071412010300 | GREASE NIPPLE |
| SHACKLE PIN | ||
| 059 | N 071412010100 | GREASE NIPPLE |
| SHACKLE | ||
| 067 | A 3523230376 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 069 | A 3523230476 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 069 | A 3523230576 | WASHER |
| AS REQUIRED | ||
| 4.30 MM | ||
| 071 | A 0029973140 | SEAL RING |
| SPRING SUSPENSION | ||
| 075 | A 3529900337 | BOLT |
| FRONT SPRING TO FRONT SPRING FRONT AND REAR BRACKETS | ||
| 079 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 079 | N 000125010532 | WASHER |
| FRONT SPRING TO FRONT SPRING FRONT AND REAR BRACKETS | ||
| 083 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 083 | N 910113010000 | NUT |
| FRONT SPRING TO FRONT SPRING FRONT AND REAR BRACKETS | ||
| 087 | A 6173230163 | BEARING BRACKET |
| TORSION BAR,FRONT | ||
| 091 | A 3853220031 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 095 | A 3833240008 | HELPER SPRING |
| FRONT SPRINGS TO FRONT AXLE | ||
| 095 | A 3833240008 | HELPER SPRING |
| LEFT AND RIGHT SIDE MEMBERS | ||
| 099 | A 3853220584 | SHIM |
| TOP | ||
| 103 | A 3953210040 | BRACKET |
| HELPER SPRING | ||
| 107 | N 000933010145 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 111 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 111 | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 115 | A 3283510025 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 250 MM | ||
| 119 | N 000934018006 | NUT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 131 | A 6173260065 | TORSION BAR |
| FRONT | ||
| 135 | A 0009817331 | JOINT BEARING |
| Repalced by: A 0009817231 | ||
| 135 | A 0009817231 | JOINT BEARING |
| Repalced by: A 0019814631 | ||
| 135 | A 0019814631 | JOINT BEARING |
| TORSION BAR,FRONT | ||
| A 0019814831 | JOINT BEARING | |
| TORSION BAR,FRONT | ||
| 139 | N 000472035000 | LOCK RING |
| TORSION BAR,FRONT | ||
| 143 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 143 | N 071412008102 | GREASE NIPPLE |
| TORSION BAR,FRONT | ||
| 147 | A 6173230040 | BRACKET |
| TORSION BAR | ||
| 151 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 151 | N 308676012012 | SCREW |
| TORSION BAR TO FRAME FLOOR UNIT | ||
| 155 | N 910113012002 | NUT |
| TORSION BAR TO FRAME FLOOR UNIT | ||
| 159 | A 3873230385 | RUBBER MOUNTING |
| TORSION BAR | ||
| 163 | A 6173200128 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 167 | N 000983068000 | LOCK RING |
| TORSION BAR TO SHACKLE | ||
| 171 | A 6173200189 | ROD |
| Repalced by: A 6173200089 | ||
| 171 | A 6173200089 | ROD |
| (ARTICULATED ROD) | ||
| 175 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 175 | N 308676012026 | SCREW |
| ROD TO FRAME | ||
| 179 | N 910113012002 | NUT |
| ROD TO FRAME | ||
| 183 | N 006796016102 | CONICAL SPRING WASHER |
| ROD TO FRAME | ||
| 187 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 187 | N 910113016002 | NUT |
| ROD TO FRAME | ||
| 191 | A 3603230153 | SPACER TUBE |
| ROD TO LEVER | ||
| 195 | N 006797021201 | TOOTHED WASHER |
| ROD TO LEVER | ||
| 199 | N 006797021101 | TOOTHED WASHER |
| ROD TO LEVER | ||
| 203 | N 000936020010 | NUT |
| ROD TO LEVER | ||
| 207 | A 3603230460 | SEAL RING |
| ROD TO LEVER | ||
| 211 | A 0033238100 | SHOCK ABSORBER |
| Repalced by: A 0043232100 | ||
| 211 | A 0043232100 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 211 | A 0033238200 | SHOCK ABSORBER |
| Repalced by: A 0043232200 | ||
| 211 | A 0043232200 | SHOCK ABSORBER |
| Repalced by: A 0043233900 | ||
| 211 | A 0043233900 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 211 | A 0033238200 | SHOCK ABSORBER |
| Repalced by: A 0043233500 | ||
| 211 | A 0043233500 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 211 | A 0033238100 | SHOCK ABSORBER |
| Repalced by: A 0043236900 | ||
| 211 | A 0043236900 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 212 | A 0003232444 | RUBBER BUFFER |
| Repalced by: A 0003232885 | ||
| 212 | A 0003232885 | RUBBER MOUNTING |
| TO 003 323 81 00,004 323 21 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 004 323 69 00,003 323 82 00 | ||
| 212 | A 0003233044 | RUBBER BUFFER |
| Repalced by: A 0003233144 | ||
| 212 | A 0003233144 | RUBBER BUFFER |
| TO 004 323 39 00,004 323 35 00 | ||
| 214 | A 0003232550 | BUSHING |
| Repalced by: A 0003233150 | ||
| 214 | A 0003233150 | BUSHING |
| TO 003 323 81 00,004 323 21 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 004 323 69 00,003 323 82 00 | ||
| 214 | A 0003235250 | BUSHING |
| TO 004 323 39 00,004 323 35 00 | ||
| 215 | A 3833200278 | CONSOLE |
| Repalced by: A 6173200078 | ||
| 215 | A 6173200078 | CONSOLE |
| LEFT SHOCK ABSORBER | ||
| 215 | A 3833200378 | CONSOLE |
| Repalced by: A 6173200178 | ||
| 215 | A 6173200178 | CONSOLE |
| RIGHT SHOCK ABSORBER | ||
| 219 | A 3853230695 | REINFORCEMENT |
| LEFT SHOCK ABSORBER | ||
| 219 | A 3853230795 | REINFORCEMENT |
| RIGHT SHOCK ABSORBER | ||
| 223 | A 3833231863 | BEARING BRACKET |
| SHOCK ABSORBER,BOTTOM | ||
| 227 | N 000961012122 | SCREW |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| M 12 X 40 | ||
| 229 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 229 | N 308676012012 | SCREW |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| M 12 X 25 | ||
| 229 | N 308676012012 | SCREW |
| BOTTOM BEARING BRACKET TO FRONT AXLE | ||
| M 12 X 25 | ||
| 231 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 231 | N 308676014020 | SCREW |
| REINFORCEMENT TO FRAME | ||
| 235 | N 912004012100 | LOCK WASHER |
| BOTTOM BEARING BRACKET TO FRONT AXLE | ||
| 239 | N 007349013003 | WASHER |
| Repalced by: N 007349013005 | ||
| 239 | N 007349013005 | WASHER |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| 243 | N 910113012002 | NUT |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| 247 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 247 | N 910113014001 | NUT |
| REINFORCEMENT TO FRAME | ||
| 251 | N 000960016244 | SCREW |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 253 | N 000960016164 | SCREW |
| Repalced by: N 000960016250 | ||
| 253 | N 000960016250 | SCREW |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 255 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 255 | N 910113016002 | NUT |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 255 | N 910113016002 | NUT |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||

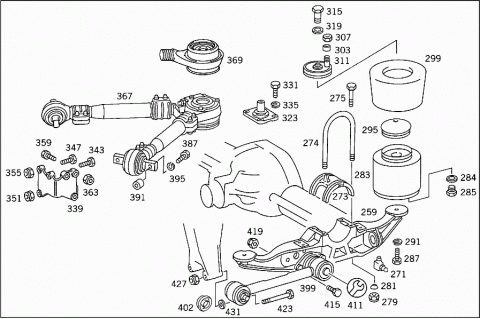

| 259 | A 3833282041 | SUPPORT |
| AIR SPRING BELLOWS,LEFT | ||
| 259 | A 6163280041 | SUPPORT |
| AIR SPRING BELLOWS,LEFT | ||
| 259 | A 3833281941 | SUPPORT |
| AIR SPRING BELLOWS,LEFT | ||
| 259 | A 6173280141 | SUPPORT |
| AIR SPRING BELLOWS,LEFT | ||
| 259 | A 3833282141 | SUPPORT |
| AIR SPRING BELLOWS,RIGHT | ||
| 259 | A 6163280141 | SUPPORT |
| AIR SPRING BELLOWS,RIGHT | ||
| 259 | A 3833281841 | SUPPORT |
| AIR SPRING BELLOWS,RIGHT | ||
| 259 | A 6173280241 | SUPPORT |
| AIR SPRING BELLOWS,RIGHT | ||
| 271 | N 071412008302 | GREASE NIPPLE |
| 273 | A 3833280184 | SHIM |
| AIR-SPRING-BELLOWS SUPPORT TO REAR AXLE | ||
| 273 | A 3833280084 | SHIM |
| AIR-SPRING-BELLOWS SUPPORT TO REAR AXLE | ||
| 274 | A 3873510325 | U-BOLT |
| AIR-SPRING-BELLOWS SUPPORT TO REAR AXLE | ||
| 320 MM | ||
| 275 | N 000960024059 | SCREW |
| AIR-SPRING-BELLOWS SUPPORT TO REAR AXLE | ||
| 279 | N 913004024004 | NUT |
| AIR-SPRING-BELLOWS SUPPORT TO REAR AXLE | ||
| 281 | A 6203250070 | SPHERICAL WASHER |
| WISHBONE CONTROL ARM | ||
| 283 | A 3873200818 | PISTON |
| REAR AXLE PNEUMATIC SUSPENSION | ||
| 283 | A 3873200418 | PISTON |
| REAR AXLE PNEUMATIC SUSPENSION | ||
| 284 | N 007603012405 | SEAL RING |
| TO 387 320 04 18 | ||
| 285 | A 0004290456 | SCREW PLUG |
| TO 387 320 04 18 | ||
| 287 | N 000960016224 | SCREW |
| PISTON TO AIR-SPRING-BELLOWS SUPPORT | ||
| 291 | N 912004016101 | LOCK WASHER |
| PISTON TO AIR-SPRING-BELLOWS SUPPORT | ||
| 295 | A 3603280039 | RUBBER BUFFER |
| (RUBBER STOP),EMERGENCY RUNNING | ||
| 299 | A 3873280001 | AIR SPRING BELLOWS |
| REAR AXLE PNEUMATIC SUSPENSION | ||
| 299 | A 3873280101 | AIR SPRING BELLOWS |
| REAR AXLE PNEUMATIC SUSPENSION | ||
| 303 | A 3833270053 | SPACER TUBE |
| PISTON TO FRAME | ||
| 307 | N 308675022001 | NUT |
| PISTON TO FRAME | ||
| 311 | A 3833200335 | PLATE |
| AIR SPRING BELLOWS,TOP | ||
| 315 | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 315 | N 915036010108 | HOLLOW SCREW |
| AIR SPRING BELLOWS,CONNECTION: | ||
| "10" | ||
| 315 | N 915047010202 | HOLLOW SCREW |
| AIR SPRING BELLOWS,CONNECTION: | ||
| "10" | ||
| 319 | N 007603014405 | SEAL RING |
| AIR SPRING BELLOWS,CONNECTION: | ||
| "10" | ||
| 323 | A 3839910220 | BALL PIVOT |
| WISHBONE CONTROL ARM | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE GROUP 42,FIG.NO.: | ||
| "909" | ||
| 331 | N 000961020034 | SCREW |
| Repalced by: N 308676020015 | ||
| 331 | N 308676020015 | SCREW |
| BEARING TO REAR AXLE | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE GROUP 42,FIG.NO.: | ||
| "912" | ||
| 335 | N 912004020100 | LOCK WASHER |
| BEARING TO REAR AXLE | ||
| 339 | A 3853520641 | BEARING BODY |
| Repalced by: A 6163520441 | ||
| 339 | A 6163520441 | BEARING BODY |
| LEFT | ||
| 339 | A 3853520741 | BEARING BODY |
| Repalced by: A 6163520341 | ||
| 339 | A 6163520341 | BEARING BODY |
| RIGHT | ||
| 343 | N 000960014190 | SCREW |
| BEARING BODY TO CROSS MEMBER | ||
| 347 | N 000960010038 | SCREW |
| BEARING BODY TO CROSS MEMBER | ||
| 351 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 351 | N 910113014000 | NUT |
| BEARING BODY TO CROSS MEMBER | ||
| 355 | N 913004010014 | NUT |
| Repalced by: N 910113010003 | ||
| 355 | N 910113010003 | NUT |
| BEARING BODY TO CROSS MEMBER | ||
| N 000125010518 | WASHER | |
| Repalced by: N 000125010532 | ||
| N 000125010532 | WASHER | |
| BEARING BODY TO CROSS MEMBER | ||
| 359 | N 000960018111 | SCREW |
| Repalced by: N 308676018010 | ||
| 359 | N 308676018010 | SCREW |
| BEARING BODY TO SIDE MEMBER | ||
| 363 | N 913004018004 | NUT |
| BEARING BODY TO SIDE MEMBER | ||
| A 6173260025 | PLATE | |
| BEARING BODY TO SIDE MEMBER | ||
| 367 | A 3933505405 | CONTROL ARM |
| Repalced by: A 3933505505 | ||
| 367 | A 3933505505 | CONTROL ARM |
| Repalced by: A 6543500105 | ||
| 367 | A 6543500105 | CONTROL ARM |
| TRIANGULAR | ||
| 369 | A 0003500313 | JOINT |
| (CENTRAL JOINT) | ||
| TO 393 350 55 05 ; EHRENREICH | ||
| 369 | A 0003500713 | JOINT |
| (CENTRAL JOINT) | ||
| TO 393 350 54 05 ; LEMFOERDER | ||
| 369 | A 0003500105 | CONTROL ARM |
| (CENTRAL JOINT) | ||
| TO 654 350 01 05 ; LEMFOERDER | ||

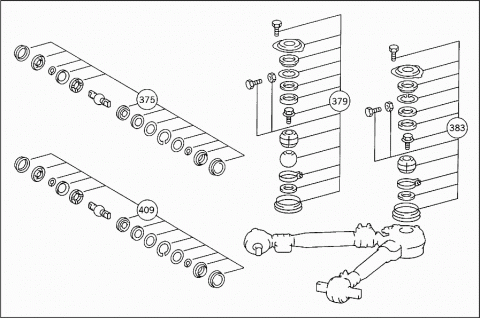

| 375 | A 0005861533 | REPAIR KIT |
| LESS BALL PIVOT | ||
| TO 393 350 55 05 ; EHRENREICH | ||
| 375 | A 0005861433 | REPAIR KIT |
| FRONT TRIANGULAR CONTROL ARM; WITH BALL PIVOT | ||
| TO 393 350 55 05 ; EHRENREICH | ||
| 375 | A 0003500505 | REPAIR KIT |
| Repalced by: A 0003500305 | ||
| 375 | A 0003500305 | REPAIR KIT |
| Repalced by: A 0003500213 | ||
| 375 | A 0003500213 | REPAIR KIT |
| FRONT TRIANGULAR CONTROL ARM; WITH BALL PIVOT | ||
| TO 393 350 5405,654 350 0105;LEMFOERD | ||
| 379 | A 0005860135 | REPAIR KIT |
| Repalced by: A 0005861833 | ||
| 383 | A 0005861933 | REPAIR KIT |
| Repalced by: A 0005861833 | ||
| 383 | A 0005861833 | REPAIR KIT |
| Repalced by: A 0003500405 | ||
| 383 | A 0003500405 | REPAIR KIT |
| CENTRAL JOINT;WITH BALL PIVOT | ||
| TO 393 350 55 05 ; EHRENREICH | ||
| 387 | N 000960020143 | SCREW |
| CONTROL ARM TO BEARING BODY | ||
| M 20X100 | ||
| 387 | N 000960020037 | SCREW |
| CONTROL ARM TO BEARING BODY | ||
| M 20X110 | ||
| 387 | N 000960020037 | SCREW |
| CONTROL ARM TO BEARING BODY | ||
| M 20X110 | ||
| 387 | N 000961020014 | SCREW |
| CONTROL ARM TO BEARING BODY | ||
| M 20X50 | ||
| 391 | A 6173520053 | SPACER TUBE |
| CONTROL ARM TO BEARING BODY | ||
| 391 | A 6173280053 | SPACER TUBE |
| CONTROL ARM TO BEARING BODY | ||
| 391 | A 3833270153 | SPACER TUBE |
| CONTROL ARM TO BEARING BODY | ||
| 391 | A 6173280153 | SPACER TUBE |
| CONTROL ARM TO BEARING BODY | ||
| 395 | N 912004020100 | LOCK WASHER |
| CONTROL ARM TO BEARING BODY | ||
| 395 | N 000137020202 | SPRING WASHER |
| Repalced by: N 000137020205 | ||
| 395 | N 000137020205 | SPRING WASHER |
| CONTROL ARM TO BEARING BODY | ||
| 399 | A 3813500606 | CONTROL ARM |
| Repalced by: A 6533500106 | ||
| 399 | A 6533500106 | CONTROL ARM |
| Repalced by: A 6523500306 | ||
| 399 | A 6523500306 | CONTROL ARM |
| ALONGSIDE; LEFT & RIGHT | ||
| 402 | A 0003381797 | BOOT |
| 409 | A 0005861533 | REPAIR KIT |
| PLATE TO SIDE MEMBER | ||
| TO 381 350 06 06 | ||
| 409 | A 0005861433 | REPAIR KIT |
| WITH DOUBLE BALL STUD | ||
| TO 381 350 06 06 | ||
| 409 | A 0003500213 | REPAIR KIT |
| WITH DOUBLE BALL STUD | ||
| 411 | A 0005861035 | REPAIR KIT |
| WITH HOLLOW BALL STUD | ||
| TO 381 350 06 06 | ||
| 411 | A 0003500205 | REPAIR KIT |
| WITH HOLLOW BALL STUD | ||
| TO 653 350 01 06 | ||
| 415 | N 000960020018 | SCREW |
| CONTROL ARM TO SUPPORT | ||
| 419 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 419 | N 913004020003 | NUT |
| CONTROL ARM TO SUPPORT | ||
| 423 | N 000960020093 | SCREW |
| Repalced by: N 308765020014 | ||
| 423 | N 308765020014 | SCREW |
| CONTROL ARM TO BEARING BODY | ||
| 427 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 427 | N 913004020003 | NUT |
| CONTROL ARM TO BEARING BODY | ||
| 431 | A 3933280152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.50 MM | ||
| 431 | A 3933280252 | SPACER WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| 431 | A 3933280352 | SPACER WASHER |
| AS REQUIRED | ||
| 2.00 MM | ||
| 431 | A 3933280452 | SPACER WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 431 | N 000125021006 | WASHER |
| AS REQUIRED | ||
| 3.00 MM | ||

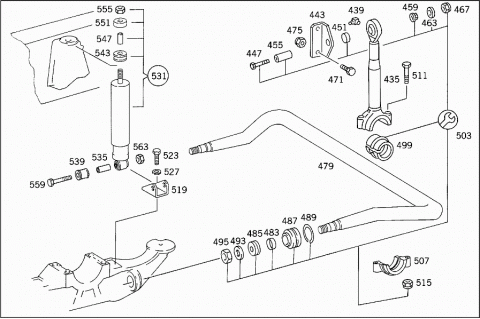

| 435 | A 3833200389 | ROD |
| TORSION BAR,REAR | ||
| 439 | N 071412008302 | GREASE NIPPLE |
| ARTICULATED ROD | ||
| 443 | A 3833260940 | BRACKET |
| ROD TO FRAME | ||
| 447 | N 000960016285 | SCREW |
| ROD TO BRACKET | ||
| 451 | A 3853230353 | SPACER TUBE |
| ROD TO BRACKET | ||
| 455 | A 3853230453 | SPACER TUBE |
| ROD TO BRACKET | ||
| 459 | A 3803230260 | SEAL RING |
| ROD TO BRACKET | ||
| 463 | N 007349017002 | WASHER |
| ROD TO BRACKET | ||
| 467 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 467 | N 910113016001 | NUT |
| ROD TO BRACKET | ||
| 471 | N 000961018020 | SCREW |
| BRACKET TO FRAME | ||
| 475 | N 913004018004 | NUT |
| BRACKET TO FRAME | ||
| 479 | A 3833260265 | TORSION BAR |
| REAR AXLE | ||
| 483 | A 3853230353 | SPACER TUBE |
| TORSION BAR TO AIR-SPRING-BELLOWS SUPPORT | ||
| 485 | A 0009816131 | JOINT BEARING |
| TORSION BAR,REAR | ||
| 485 | A 0009817431 | JOINT BEARING |
| TORSION BAR,REAR | ||
| 487 | A 3803230160 | SEAL RING |
| TORSION BAR TO AIR-SPRING-BELLOWS SUPPORT | ||
| 489 | N 000472055000 | LOCK RING |
| JOINT BEARING TO BEARING BRACKET | ||
| 493 | A 3939900040 | WASHER |
| TORSION BAR TO AIR-SPRING-BELLOWS SUPPORT | ||
| 495 | N 913004022002 | NUT |
| TORSION BAR TO AIR-SPRING-BELLOWS SUPPORT | ||
| 499 | A 3933260281 | RUBBER MOUNTING |
| TORSION BAR | ||
| 503 | A 3803200028 | REPAIR KIT |
| TORSION BAR BEARING | ||
| 507 | A 3933250419 | SPRING SEAT |
| ROD TO TORSION BAR | ||
| 511 | N 000960016269 | SCREW |
| Repalced by: N 308765016010 | ||
| 511 | N 308765016010 | SCREW |
| ROD TO TORSION BAR | ||
| 515 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 515 | N 910113016001 | NUT |
| ROD TO TORSION BAR | ||
| 519 | A 3833260063 | BEARING BRACKET |
| SHOCK ABSORBER,BOTTOM | ||
| 523 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 523 | N 308676012012 | SCREW |
| BEARING BRACKET TO AIR-SPRING-BELLOWS SUPPORT | ||
| 527 | N 912004012100 | LOCK WASHER |
| BEARING BRACKET TO AIR-SPRING-BELLOWS SUPPORT | ||
| 531 | A 3853260000 | SHOCK ABSORBER |
| PARTS KIT,REAR | ||
| 531 | A 3853260000 | SHOCK ABSORBER |
| Repalced by: A 6163260000 | ||
| 531 | A 6163260000 | SHOCK ABSORBER |
| PARTS KIT,REAR | ||
| 535 | A 0003232550 | BUSHING |
| Repalced by: A 0003233150 | ||
| 535 | A 0003233150 | BUSHING |
| BOTTOM | ||
| 539 | A 0003232444 | RUBBER BUFFER |
| Repalced by: A 0003232885 | ||
| 539 | A 0003232885 | RUBBER MOUNTING |
| BOTTOM | ||
| 543 | A 3543260068 | RUBBER BUFFER |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 547 | A 3523230253 | SPACER TUBE |
| Repalced by: A 3179911240 | ||
| 547 | A 3179911240 | SPACER TUBE |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 551 | A 3173230344 | RUBBER BUFFER |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 555 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 555 | N 910113014000 | NUT |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 559 | A 3529903501 | SCREW |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 563 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 563 | N 910113016002 | NUT |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||

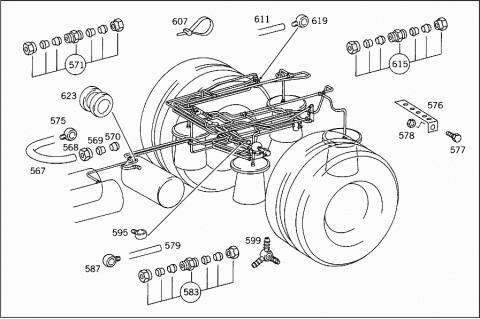

| 567 | A 0109975982 | HOSE |
| Repalced by: A 0009872827 | ||
| 567 | A 0009872827 | PLASTIC PIPE |
| FROM AIR RESERVOIR TO OPERATING VALVE | ||
| 9X12 MM | ||
| 568 | N 915017012100 | UNION NUT |
| LINE CONNECTIONS | ||
| 569 | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 569 | A 0019901967 | SEAL CONE |
| LINE CONNECTIONS | ||
| 570 | N 915062009000 | SLEEVE |
| LINE CONNECTIONS | ||
| 571 | A 0049971772 | FITTING |
| Repalced by: A 0029906171 | ||
| 571 | A 0029906171 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 575 | N 915052009009 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 9/16 MM | ||
| 576 | A 3604292940 | BRACKET |
| COMPRESSED AIR LINE TO SIDE MEMBER | ||
| 577 | N 000961012151 | SCREW |
| COMPRESSED AIR LINE TO SIDE MEMBER | ||
| 578 | N 910113012002 | NUT |
| COMPRESSED AIR LINE TO SIDE MEMBER | ||
| 579 | A 0089979082 | HOSE |
| SHIFT VALVE,TWO-WAY VALVE,TEST CONNECTION | ||
| 6X8 MM | ||
| 583 | A 0039978972 | FITTING |
| Repalced by: A 0029905971 | ||
| 583 | A 0029905971 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 587 | N 915052006014 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 6/16 MM | ||
| 587 | N 915052006021 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 6/14 MM | ||
| 595 | N 915052006013 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 6/12 MM | ||
| 599 | A 0009909488 | BANJO UNION |
| TRIPLE | ||
| 16 MM | ||
| 607 | A 0019978390 | LOOM TIE |
| LINE MOUNTING | ||
| 280 MM | ||
| 607 | A 0019978490 | LOOM TIE |
| LINE MOUNTING | ||
| 376 MM | ||
| 611 | A 0089976082 | HOSE |
| Repalced by: A 0009872627 | ||
| 611 | A 0009872627 | PLASTIC PIPE |
| FROM BRAKE POWER REGULATOR TO TEST CONNECTION | ||
| 4X6 MM | ||
| 615 | A 0039979172 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 619 | N 915052004015 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/12 MM | ||
| 623 | A 3609970681 | GROMMET |
| LINE THRU FRAME | ||

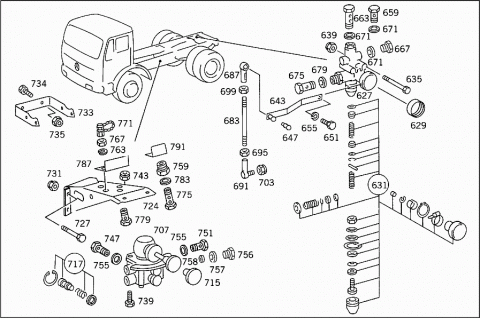

| 627 | A 0003283230 | VALVE |
| SELF-LEVELLING DEVICE | ||
| 629 | A 0003280192 | BOOT |
| Repalced by: A 0003280292 | ||
| 629 | A 0003280292 | BOOT |
| 631 | A 0005861332 | REPAIR KIT |
| Repalced by: A 0003201067 | ||
| 631 | A 0003201067 | REPAIR KIT |
| AIR SPRING VALVE | ||
| KNORR SV 1280-I/80093 | ||
| 631 | A 0003200967 | REPAIR KIT |
| AIR SPRING VALVE | ||
| KNORR SV 1281-I/80095 | ||
| 635 | N 000931008228 | SCREW |
| Repalced by: N 000933008134 | ||
| 635 | N 000933008134 | SCREW |
| VALVE TO SIDE MEMBER | ||
| 635 | N 000933008134 | SCREW |
| VALVE TO SIDE MEMBER | ||
| 635 | N 000931008309 | SCREW |
| VALVE TO SIDE MEMBER | ||
| 639 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 639 | N 913004008001 | NUT |
| VALVE TO SIDE MEMBER | ||
| 643 | A 3603200927 | LEVER |
| Repalced by: A 6523200527 | ||
| 643 | A 6523200527 | LEVER |
| SELF-LEVELLING DEVICE | ||
| 647 | N 071803013208 | BALL PIVOT |
| 651 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 651 | N 304017008016 | SCREW |
| LEVER TO VALVE | ||
| 655 | N 912004008102 | LOCK WASHER |
| LEVER TO VALVE | ||
| 659 | N 915036008202 | HOLLOW SCREW |
| PNEUMATIC SUSPENSION VALVE, CONNECTIONS: | ||
| " 11,21 " | ||
| 663 | N 915047008202 | HOLLOW SCREW |
| PNEUMATIC SUSPENSION VALVE,CONNECTION: | ||
| "11" | ||
| 667 | N 000908012003 | SCREW PLUG |
| Repalced by: N 000908012009 | ||
| 667 | N 000908012009 | SCREW PLUG |
| PNEUMATIC SUSPENSION VALVE,CONNECTION: | ||
| " 21 " | ||
| 671 | N 007603012405 | SEAL RING |
| PNEUMATIC SUSPENSION VALVE, CONNECTIONS: | ||
| " 11,21 " | ||
| 675 | N 915036012203 | HOLLOW SCREW |
| PNEUMATIC SUSPENSION VALVE, CONNECTIONS: | ||
| "12,23" | ||
| 679 | N 007603016401 | SEAL RING |
| PNEUMATIC SUSPENSION VALVE, CONNECTIONS: | ||
| "12,23" | ||
| 683 | N 900331008427 | PULL ROD |
| PNEUMATIC SUSPENSION CONTROL | ||
| 687 | A 0004310667 | YOKE |
| TOP | ||
| 691 | A 0004310767 | YOKE |
| BOTTOM | ||
| 695 | N 000439008211 | NUT |
| Repalced by: N 304035008001 | ||
| 695 | N 304035008001 | NUT |
| R.H. THREAD | ||
| 699 | N 000439008203 | NUT |
| Repalced by: N 304035008002 | ||
| 699 | N 304035008002 | NUT |
| L.H. THREAD | ||
| 703 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 703 | N 913004008001 | NUT |
| PULL ROD TO AXLE | ||

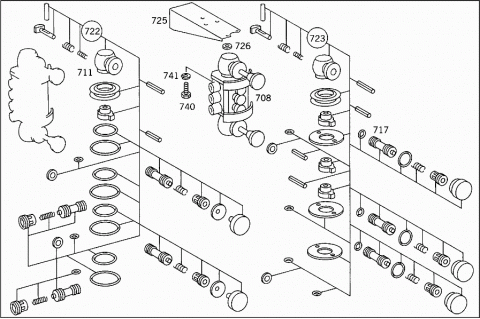

| 707 | A 0003290725 | VALVE |
| CONTROL VALVE | ||
| GRAU | ||
| 707 | A 0003290725 | VALVE |
| CONTROL VALVE | ||
| GRAU | ||
| 707 | A 0003290725 | VALVE |
| CONTROL VALVE | ||
| GRAU | ||
| 707 | A 0003290425 | VALVE |
| Repalced by: A 0003290825 | ||
| 707 | A 0003290825 | VALVE |
| CONTROL VALVE | ||
| KNORR | ||
| 707 | A 0003290825 | VALVE |
| CONTROL VALVE | ||
| KNORR | ||
| 707 | A 0003290825 | VALVE |
| CONTROL VALVE | ||
| KNORR | ||
| A 0003290525 | VALVE | |
| Repalced by: A 0003290925 | ||
| 708 | A 0003290925 | VALVE |
| Repalced by: A 0003291125 | ||
| 708 | A 0003291125 | VALVE |
| CONTROL VALVE | ||
| KNORR | ||
| 709 | A 0003290193 | PROTECTIVE CAP |
| KNORR | ||
| 709 | A 0003290193 | PROTECTIVE CAP |
| KNORR | ||
| 709 | A 0003290193 | PROTECTIVE CAP |
| KNORR | ||
| 709 | A 0003290193 | PROTECTIVE CAP |
| KNORR | ||
| 711 | A 0003290293 | PROTECTIVE CAP |
| Repalced by: A 0003290092 | ||
| 711 | A 0003290092 | BOOT |
| KNORR | ||
| 711 | A 0003290092 | BOOT |
| KNORR | ||
| 711 | A 0003290092 | BOOT |
| KNORR | ||
| 711 | A 0003290092 | BOOT |
| KNORR | ||
| 715 | A 0009973177 | HANDLE |
| KNORR | ||
| 715 | A 0009973177 | HANDLE |
| KNORR | ||
| 715 | A 0009973177 | HANDLE |
| KNORR | ||
| 715 | A 0009973177 | HANDLE |
| KNORR | ||
| 717 | A 0003200058 | VALVE |
| KNORR | ||
| 717 | A 0003200058 | VALVE |
| KNORR | ||
| 717 | A 0003200058 | VALVE |
| KNORR | ||
| 717 | A 0003200058 | VALVE |
| KNORR | ||
| A 0003291325 | VALVE | |

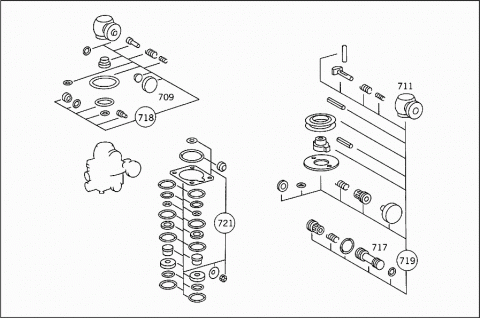

| 718 | A 0005861132 | REPAIR KIT |
| CONTROL VALVE | ||
| KNORR SV 3111-I/73100 | ||
| 718 | A 0005861132 | REPAIR KIT |
| CONTROL VALVE | ||
| KNORR SV 3111-I/73100 | ||
| 718 | A 0005861132 | REPAIR KIT |
| CONTROL VALVE | ||
| KNORR SV 3111-I/73100 | ||
| 719 | A 0003200767 | REPAIR KIT |
| CONTROL VALVE | ||
| KNORR SV 3111-I/83153 | ||
| 719 | A 0003200767 | REPAIR KIT |
| CONTROL VALVE | ||
| KNORR SV 3111-I/83153 | ||
| 719 | A 0003200767 | REPAIR KIT |
| CONTROL VALVE | ||
| KNORR SV 3111-I/83153 | ||
| 721 | A 0003200567 | REPAIR KIT |
| CONTROL VALVE | ||
| GRAU | ||
| 721 | A 0003200567 | REPAIR KIT |
| CONTROL VALVE | ||
| GRAU | ||
| 721 | A 0003200567 | REPAIR KIT |
| CONTROL VALVE | ||
| GRAU | ||
| 722 | A 0003200667 | REPAIR KIT |
| CONTROL VALVE | ||
| KNORR SV 3118-I/75379 | ||
| 723 | A 0003200867 | GASKET |
| CONTROL VALVE | ||
| KNORR SV 3118-I/86025 | ||
| 724 | A 3873200443 | BRACKET |
| CONTROL VALVE | ||
| 724 | A 3873200443 | BRACKET |
| CONTROL VALVE | ||
| 725 | A 6163270040 | BRACKET |
| CONTROL VALVE | ||
| 726 | A 6169900140 | WASHER |
| CONTROL VALVE | ||
| 727 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 727 | N 308676012026 | SCREW |
| BRACKET TO FRAME | ||
| 727 | N 308676012026 | SCREW |
| BRACKET TO FRAME | ||
| 727 | N 000933008154 | SCREW |
| Repalced by: N 304017008021 | ||
| 727 | N 304017008021 | SCREW |
| BRACKET TO FRAME | ||
| M 8X22 | ||
| 727 | N 000933008150 | SCREW |
| Repalced by: N 304017008018 | ||
| 727 | N 304017008018 | SCREW |
| BRACKET TO FRAME | ||
| M 8X35 | ||
| 731 | N 910113012002 | NUT |
| BRACKET TO FRAME | ||
| 731 | N 910113012002 | NUT |
| BRACKET TO FRAME | ||
| 731 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 731 | N 913004008001 | NUT |
| BRACKET TO FRAME | ||
| 733 | A 6203270240 | BRACKET |
| CONTROL VALVE | ||
| 734 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 734 | N 304017008021 | SCREW |
| BRACKET TO SUPPORT | ||
| 735 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 735 | N 913004008001 | NUT |
| BRACKET TO SUPPORT | ||
| 739 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 739 | N 304017008034 | SCREW |
| SHIFT VALVE TO BRACKET | ||
| 739 | N 304017008034 | SCREW |
| SHIFT VALVE TO BRACKET | ||
| 739 | N 304017008034 | SCREW |
| SHIFT VALVE TO BRACKET | ||
| 740 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 740 | N 304017008016 | SCREW |
| SHIFT VALVE TO BRACKET | ||
| 741 | N 912004008102 | LOCK WASHER |
| SHIFT VALVE TO BRACKET | ||
| 743 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 743 | N 913004008001 | NUT |
| SHIFT VALVE TO BRACKET | ||
| 743 | N 913004008001 | NUT |
| SHIFT VALVE TO BRACKET | ||
| 743 | N 913004008001 | NUT |
| SHIFT VALVE TO BRACKET | ||
| 747 | N 915039012206 | HOLLOW SCREW FITTING |
| SHIFT VALVE,CONNECTION: | ||
| " 11 " | ||
| 751 | N 915036012203 | HOLLOW SCREW |
| SHIFT VALVE,CONNECTIONS: | ||
| "12,13,22,23" | ||
| N 915047012203 | HOLLOW SCREW | |
| SHIFT VALVE,CONNECTION: | ||
| "15" | ||
| 755 | N 007603016105 | SEAL RING |
| SHIFT VALVE,CONNECTIONS: | ||
| "11,12,13,22,23" | ||
| 755 | N 007603016105 | SEAL RING |
| SHIFT VALVE,CONNECTIONS: | ||
| "15" | ||
| 756 | N 000908016001 | SCREW PLUG |
| SHIFT VALVE,CONNECTIONS: | ||
| "14,24" | ||
| 757 | A 0009971548 | SEAL RING |
| SHIFT VALVE,CONNECTIONS: | ||
| "14,24" | ||
| 758 | A 0004290927 | THRUST RING |
| SHIFT VALVE,CONNECTIONS: | ||
| "14,24" | ||
| 759 | A 0019908168 | FITTING |
| AT BRACKET | ||
| 763 | N 912004012100 | LOCK WASHER |
| TEST CONNECTION TO BRACKET | ||
| 767 | N 080705012003 | NUT |
| TEST CONNECTION TO BRACKET | ||
| 771 | A 0004312031 | TEST CONNECTION |
| 771 | A 0004314531 | TEST CONNECTION |
| 771 | A 0004314831 | TEST CONNECTION |
| 771 | A 0004316131 | TEST CONNECTION |
| 775 | N 915047008202 | HOLLOW SCREW |
| TEST CONNECTION | ||
| 779 | N 915036008202 | HOLLOW SCREW |
| TEST CONNECTION | ||
| 783 | N 007603012405 | SEAL RING |
| TEST CONNECTION | ||
| 787 | A 3935840721 | GUIDE SIGN |
| AIR SPRING BELLOWS,LEFT AND RIGHT | ||
| 791 | A 3185840621 | GUIDE SIGN |
| SUPPLY | ||
| A 3875840055 | ADHESIVE FOIL | |
| SUPPLY | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
