Transporto priemonė: 1622; VIN numerio dalis: 617027
Grupė: 42 BRAKES

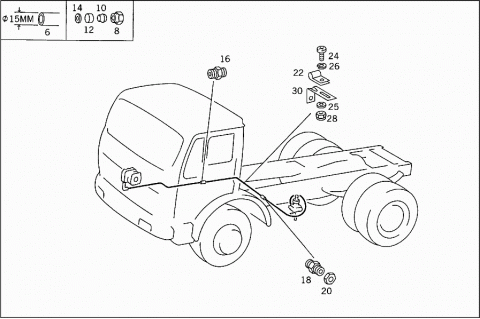

43115

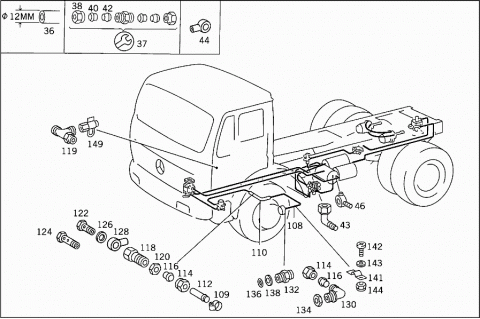

43116

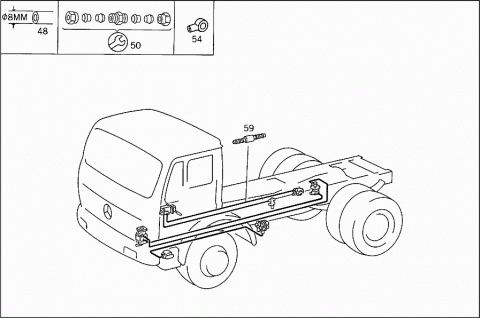

43117
43118
43119

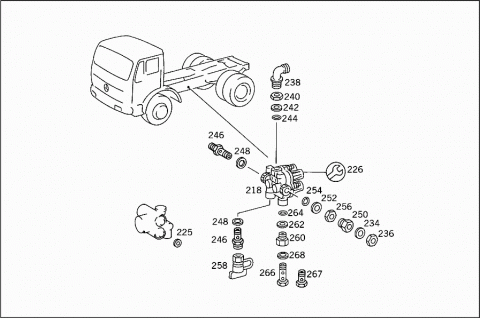

43120

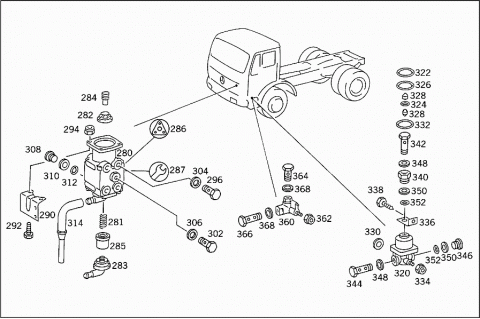

43121
43122

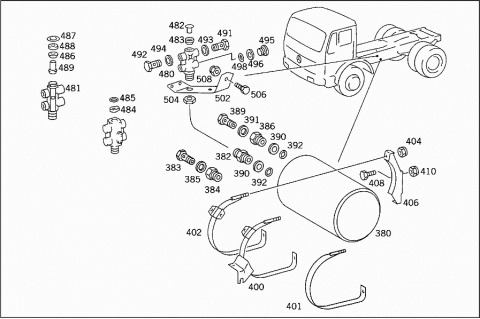

43123

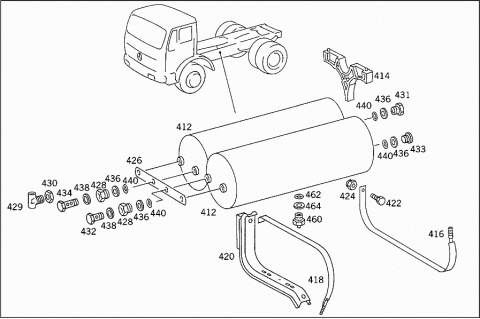

43124

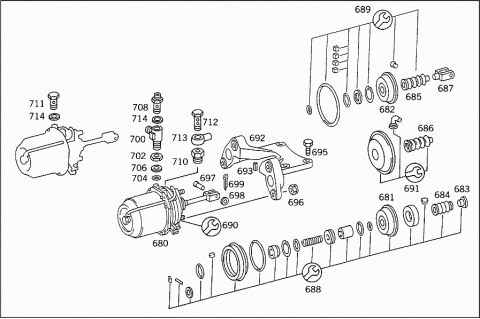

43125
43126
# Kodas Pavadinimas
T YYYYYYYYYYYY PART NAME MISSING
FOR FRONT WHEEL BRAKE,SEE UNIT STANDARD VERSION, MODEL:
730.0
T YYYYYYYYYYYY PART NAME MISSING
FOR FRONT WHEEL BRAKE,SEE UNIT STANDARD VERSION, MODEL:
731.6
T YYYYYYYYYYYY PART NAME MISSING
FOR BRAKES,SEE UNIT STANDARD VERSION, MODEL:
745.6
T YYYYYYYYYYYY PART NAME MISSING
FOR BRAKES,SEE UNIT STANDARD VERSION, MODEL:
740.1
A 6209970272 FITTING
AIR COMPRESSOR,CONNECTION:
"20"
N 007603026104 SEAL RING
AIR COMPRESSOR,CONNECTION:
"20"
006 A 0004291401 LINE
BRASS
15 MM
T YYYYYYYYYYYY PART NAME MISSING
AIR COMPRESSOR,PRESSURE REGULATOR, FILTER,FOUR-CIRCUIT PROTECTIVE VALVE
T YYYYYYYYYYYY PART NAME MISSING
FROM AIR RESERVOIR TO CHECK VALVE
008 N 915018015000 UNION NUT
008 N 915017015100 UNION NUT
010 N 003861015004 GLAND
012 N 915065015101 THRUST RING
014 N 915045012100 SEAL RING
Repalced by: N 007603012121
014 N 007603012121 SEAL RING
016 A 0019972172 FITTING
BETWEEN THE LINES
016 N 003902015002 CONNECTION FITTING
BETWEEN THE LINES
018 A 0019972372 FITTING
THROUGH SIDE MEMBER
018 N 003910015002 BULKHEAD FITTING
THROUGH SIDE MEMBER
020 N 074305022202 NUT
THROUGH SIDE MEMBER

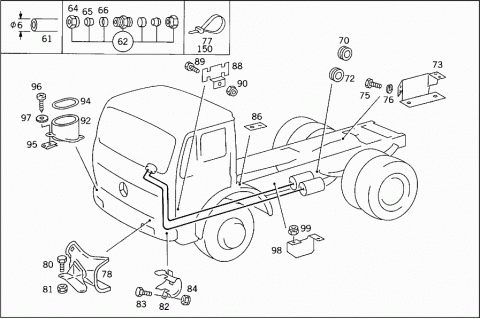

022 A 3609952001 CLAMP
Repalced by: A 6739950001
022 A 6739950001 CLAMP
MOUNTING USED FOR COMPRESSED AIR LINES
024 N 007985006145 SCREW
Repalced by: N 007985006581
024 N 007985006581 SCREW
CLAMP TO BRACKET
025 N 000125006421 WASHER
CLAMP TO BRACKET
026 N 912004006102 LOCK WASHER
CLAMP TO BRACKET
028 N 913004006002 NUT
Repalced by: N 913004006001
028 N 913004006001 NUT
CLAMP TO BRACKET
030 A 3854290540 BRACKET
MOUNTING USED FOR COMPRESSED AIR LINES
036 A 0109975982 HOSE
Repalced by: A 0009872827
036 A 0009872827 PLASTIC PIPE
9X12 MM
T YYYYYYYYYYYY PART NAME MISSING
AIR RESERVOIR,BRAKE VALVE,BRAKE PRESSURE REGULATOR,SPRING-LOAD ACCUMULATOR
T YYYYYYYYYYYY PART NAME MISSING
BRAKE VALVE,FOUR-CIRCUIT PROTECTIVE VALVE,RELAY VALVE
036 A 0009872827 PLASTIC PIPE
PRESSURE RATIO VALVE
9X12 MM
T YYYYYYYYYYYY PART NAME MISSING
HAND BRAKE VALVE BLEEDING
037 A 0049971772 FITTING
Repalced by: A 0029906171
037 A 0029906171 FITTING
(PARTS KIT),LINE RUPTURE
TO 010 997 59 82
A 0009907378 CONNECTOR
REPAIR SIZE
038 N 915017012100 UNION NUT
040 N 003861012007 GLAND
Repalced by: A 0019901967
040 A 0019901967 SEAL CONE
042 N 915062009000 SLEEVE
043 A 0019909771 ELBOW FITTING
FROM AIR RESERVOIR TO CHECK VALVE
044 N 915052009009 BANJO UNION
I.D., / HOSE WIDTH,
16/9 MM
044 N 915052006014 BANJO UNION
I.D., / HOSE WIDTH,
16/6 MM
046 A 0019901088 BANJO UNION
048 A 0089979082 HOSE
6X8 MM
T YYYYYYYYYYYY PART NAME MISSING
BRAKE VALVE,FOUR-CIRCUIT PROTECTIVE VALVE,RELAY VALVE
T YYYYYYYYYYYY PART NAME MISSING
PARKING BRAKE VALVE
T YYYYYYYYYYYY PART NAME MISSING
FROM BRAKE POWER REGULATOR TO BRAKE VALVE
T YYYYYYYYYYYY PART NAME MISSING
AXLE BREATHING
050 A 0039978972 FITTING
Repalced by: A 0029905971
050 A 0029905971 FITTING
(PARTS KIT),LINE RUPTURE
TO 008 997 90 82
054 N 915052006021 BANJO UNION
HOSE WIDTH, / I.D.,
6/14 MM
054 N 915052006014 BANJO UNION
HOSE WIDTH, / I.D.,
6/16 MM
054 N 915052006013 BANJO UNION
HOSE WIDTH, / I.D.,
6/12 MM
059 A 0009904678 CONNECTOR
COMPRESSED AIR LINE
061 A 0089976082 HOSE
Repalced by: A 0009872627
061 A 0009872627 PLASTIC PIPE
FROM AIR RESERVOIR TO DOUBLE PRESSURE GAUGE
4X6 MM
062 A 0039979172 FITTING
(PARTS KIT),LINE RUPTURE
TO 008 997 60 82
064 N 915017006100 UNION NUT
065 N 003861006007 GLAND
Repalced by: A 0019901667
065 A 0019901667 SEAL CONE
066 N 915062004000 SLEEVE
070 A 6209970181 GROMMET
LINE THRU LEFT SIDE MEMBER
42/36 MM
072 A 3549970081 GROMMET
LINE THRU LEFT SIDE MEMBER
32/27 MM
073 A 6173530040 BRACKET
BREATHER LINE TO REAR AXLE
A 6173530140 BRACKET
BREATHER LINE TO FRONT AXLE
A 6179950035 CLAMP
BREATHER LINE TO REAR AXLE
075 N 000933008212 SCREW
Repalced by: N 304017008016
075 N 304017008016 SCREW
BREATHER LINE TO FRONT AXLE
N 913004006002 NUT
Repalced by: N 913004006001
N 913004006001 NUT
BREATHER LINE TO REAR AXLE
076 N 912004008102 LOCK WASHER
BREATHER LINE TO FRONT AXLE
077 A 0019978390 LOOM TIE
BREATHER LINE TO REAR AXLE
078 A 6204201186 BRACKET
COMPRESSED AIR LINE
078 A 6204201286 BRACKET
COMPRESSED AIR LINE
A 3609902440 WASHER
Repalced by: A 3609902340
A 3609902340 WASHER
LINE MOUNTING
080 N 000933008147 SCREW
Repalced by: N 304017008021
080 N 304017008021 SCREW
BRACKET TO BUMPER STRUT
081 N 913004008004 NUT
Repalced by: N 913004008001
081 N 913004008001 NUT
BRACKET TO BUMPER STRUT
082 A 6204201386 BRACKET
Repalced by: A 6154200086
082 A 6154200086 BRACKET
LEFT COMPRESSED AIR LINES
082 A 6204201486 BRACKET
Repalced by: A 6154200186
082 A 6154200186 BRACKET
RIGHT COMPRESSED AIR LINES
083 N 000933008153 SCREW
Repalced by: N 304017008034
083 N 304017008034 SCREW
BRACKET TO CAB CONSOLE
084 N 913004008004 NUT
Repalced by: N 913004008001
084 N 913004008001 NUT
BRACKET TO CAB CONSOLE
086 A 6204294340 BRACKET
Repalced by: A 3604293140
086 A 3604293140 BRACKET
COMPRESSED AIR LINE
088 A 6204293940 BRACKET
COMPRESSED AIR LINE
088 A 6204293940 BRACKET
COMPRESSED AIR LINE
089 N 000933008152 SCREW
Repalced by: N 304017008027
089 N 304017008027 SCREW
BRACKET TO SIDE MEMBER
090 N 913004008004 NUT
Repalced by: N 913004008001
090 N 913004008001 NUT
BRACKET TO SIDE MEMBER
092 A 6204291940 BRACKET
BRAKE LINE THRU CAB FLOOR
092 A 6204292440 BRACKET
BRAKE LINE THRU CAB FLOOR
094 A 6204290084 SEAL RING
BETWEEN BRACKET AND CAB FLOOR
095 A 0009946445 LOCK
BRACKET TO CAB FLOOR
096 N 007981004252 SHEET METAL SCREW
BRACKET TO CAB FLOOR
097 N 009021005202 WASHER
Repalced by: N 009021005205
097 N 009021005205 WASHER
BRACKET TO CAB FLOOR
098 A 6204295240 BRACKET
BETWEEN THE LINES
099 N 913004006002 NUT
Repalced by: N 913004006001
099 N 913004006001 NUT
BRACKET TO CAB FLOOR
A 6174200244 PROTECTIVE PLATE
N 000933008147 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
LEFT COMPRESSED AIR LINES
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
LEFT COMPRESSED AIR LINES
108 A 3834290801 LINE
Repalced by: A 6194290801
108 A 6194290801 LINE
Repalced by: A 6254293501
108 A 6254293501 LINE
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
109 N 916017016000 CLAMP
Repalced by: N 000000000666
109 N 000000000666 CLAMP
LEFT AND RIGHT BRAKE HOSES
110 N 916027011014 HOSE
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
112 A 0004290541 FITTING
LEFT AND RIGHT BRAKE HOSES
114 N 915017012100 UNION NUT
116 N 003861012007 GLAND
Repalced by: A 0019901967
116 A 0019901967 SEAL CONE
118 A 0004296034 ADAPTER FITTING
Repalced by: A 0004296634
118 A 0004296634 ADAPTER FITTING
Repalced by: A 0004296934
118 A 0004296934 ADAPTER FITTING
LEFT AND RIGHT BRAKE HOSES
119 A 0019907070 T-FITTING
ADAPTER FITTING TO SIDE MEMBER
119 A 0019907070 T-FITTING
ADAPTER FITTING TO SIDE MEMBER
120 N 080705018002 NUT
ADAPTER FITTING TO SIDE MEMBER
122 N 915036012203 HOLLOW SCREW
RIGHT FRONT BRAKE HOSE
122 N 915036012203 HOLLOW SCREW
RIGHT FRONT BRAKE HOSE
122 N 915036012203 HOLLOW SCREW
RIGHT FRONT BRAKE HOSE
124 N 915047012203 HOLLOW SCREW
LEFT FRONT BRAKE HOSE
126 N 007603016401 SEAL RING
LEFT AND RIGHT BRAKE HOSES
128 A 0019900788 BANJO UNION
LEFT FRONT BRAKE HOSE
128 A 0019900788 BANJO UNION
LEFT FRONT BRAKE HOSE
130 N 074315012100 FITTING
Repalced by: A 0019903371
130 A 0019903371 ELBOW FITTING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
132 N 003901012014 SCREW-IN FITTING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
134 N 080705016003 NUT
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
136 A 0009971548 SEAL RING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
138 A 0004290927 THRUST RING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
141 A 3159955010 CLAMP
LINE MOUNTING
142 N 007985006145 SCREW
Repalced by: N 007985006581
142 N 007985006581 SCREW
LINE MOUNTING
143 N 000125006421 WASHER
LINE MOUNTING
144 N 913004006002 NUT
Repalced by: N 913004006001
144 N 913004006001 NUT
LINE MOUNTING
149 A 0004316131 TEST CONNECTION
FRONT AXLE BRAKE CIRCUIT
WIRA
149 A 0004316131 TEST CONNECTION
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"21,22"
149 A 0004316131 TEST CONNECTION
BRAKE POWER REGULATOR,CONNECTION:
"4"
149 A 0004316131 TEST CONNECTION
TRISTOP CYLINDER;CONNECTIONS:
"11,12"
A 0009979486 PLUG
150 A 0019978390 LOOM TIE
280 MM
150 A 0019978490 LOOM TIE
LINE MOUNTING
376 MM

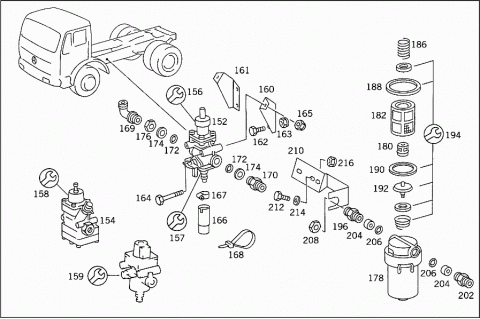

152 A 0014310006 PRESSURE REGULATOR
Repalced by: A 0024314906
152 A 0014311206 PRESSURE REGULATOR
Repalced by: A 0024314906
152 A 0024314906 PRESSURE REGULATOR
Repalced by: A 0034313706
152 A 0034313706 PRESSURE REGULATOR
WABCO
154 A 0014310606 PRESSURE REGULATOR
Repalced by: A 0024313406
154 A 0024313406 PRESSURE REGULATOR
Repalced by: A 0024314306
154 A 0014313406 PRESSURE REGULATOR
Repalced by: A 0024314306
154 A 0024314306 PRESSURE REGULATOR
Repalced by: A 0034313506
154 A 0034313506 PRESSURE REGULATOR
BOSCH
154 A 0024318306 PRESSURE REGULATOR
Repalced by: A 0034313506
156 A 0015864343 REPAIR KIT
Repalced by: A 0004301107
156 A 0004301107 REPAIR KIT
TO 001 431 00 06,WABCO 975 300 110 0
156 A 0014304960 REPAIR KIT
TO 002 431 49 06,WABCO.975 303 460 0
156 A 0014304960 REPAIR KIT
TO 003 431 37 06
156 A 0025866743 REPAIR KIT
TO 001 431 12 06,KNORR 32 00
157 A 0024304681 REPAIR KIT
VALVE KIT
TO 001 431 00 06,WABCO.975 300 110 0
158 A 0015868543 REPAIR KIT
Repalced by: A 0004301407
158 A 0004301407 REPAIR KIT
TO 001 431 06 06,BOSCH 0 481 039 101
158 A 0025866043 REPAIR KIT
TO 001 431 34 06,GRAU 312 017 014
158 A 0004301768 REPAIR KIT
DIAPHRAGM
TO 002 431 34 06,BOSCH 0 481 039 221
158 A 0004301768 REPAIR KIT
DIAPHRAGM
TO 002 431 43 06,BOSCH 0 481 039 201
159 A 0004307960 REPAIR KIT
TIRE INFLATING CONNECTION
TO 002 431 34 06,BOSCH 0 481 039 221
159 A 0004307960 REPAIR KIT
TIRE INFLATING CONNECTION
TO 002 431 43 06,BOSCH 0 481 039 201
A 0004300407 REPAIR KIT
TO 002 431 83 06,KNORR 903 09
A 0004300907 REPAIR KIT
TO 003 431 35 06,BOSCH
160 A 6164310140 BRACKET
PRESSURE REGULATOR TO BATTERY SUPPORT
161 A 6174311440 BRACKET
PRESSURE REGULATOR TO BATTERY SUPPORT
162 N 000933008154 SCREW
Repalced by: N 304017008021
162 N 304017008021 SCREW
BRACKET TO APPARATUS SUPPORT
163 N 913004008004 NUT
Repalced by: N 913004008001
163 N 913004008001 NUT
BRACKET TO APPARATUS SUPPORT
164 N 000931008228 SCREW
Repalced by: N 000933008134
164 N 000933008134 SCREW
PRESSURE REGULATOR TO BRACKET
M 8X80
164 N 000931008251 SCREW
PRESSURE REGULATOR TO BRACKET
M 8X75
165 N 913004008004 NUT
Repalced by: N 913004008001
165 N 913004008001 NUT
PRESSURE REGULATOR TO BRACKET
166 A 0005461830 INSULATING HOSE
PRESSURE REGULATOR,CONNECTION:
"3"
166 A 0159975082 HOSE
PRESSURE REGULATOR,CONNECTION:
"3"
167 N 916026016001 CLAMP
Repalced by: A 0059970190
167 A 0059970190 LOOM TIE
PRESSURE REGULATOR,CONNECTION:
"3"
167 N 916026020001 CLAMP
Repalced by: N 000000000667
167 N 000000000667 CLAMP
PRESSURE REGULATOR,CONNECTION:
"3"
168 A 0019978390 LOOM TIE
PRESSURE REGULATOR,CONNECTION:
"3"
169 A 0009905871 ELBOW FITTING
PRESSURE REGULATOR,CONNECTION:
"1"
169 N 003911015102 FITTING
PRESSURE REGULATOR,CONNECTION:
"1"
170 A 0019972172 FITTING
PRESSURE REGULATOR,CONNECTION:
"2"
N 007604012102 SCREW PLUG
PRESSURE REGULATOR,CONNECTIONS:
"4,23"
N 007603012405 SEAL RING
PRESSURE REGULATOR,CONNECTIONS:
"4,23"
172 A 0009870446 SEALING CORD
PRESSURE REGULATOR,CONNECTIONS:
"1,2"
174 A 0004290227 THRUST RING
PRESSURE REGULATOR,CONNECTIONS:
"1,2"
176 N 074305022202 NUT
PRESSURE REGULATOR,CONNECTION:
"1"
178 A 0004292595 AIR CLEANER
BOSCH
178 A 0004292695 AIR CLEANER
KNORR
178 A 0004292795 AIR CLEANER
WABCO
178 A 0004292895 AIR CLEANER
GRAU
180 A 0004290597 FILTER ELEMENT
TO 000 429 27 95,WABCO
182 A 0004290497 FILTER ELEMENT
TO 000 429 27 95,WABCO
182 A 0004290397 FILTER ELEMENT
TO 000 429 28 95,GRAU
182 A 0004290797 FILTER ELEMENT
TO 000 429 25 95,BOSCH
186 A 0059930901 SPRING
TO 000 429 27 95,WABCO
188 A 0089978048 SEAL RING
TO 000 429 28 95,GRAU
188 A 0019974048 SEAL RING
TO 000 429 25 95,BOSCH
188 A 0089978848 SEAL RING
TO 000 429 27 95,WABCO
190 A 0059972748 SEAL RING
TO 000 429 28 95, GRAU
190 A 0119974048 SEAL RING
TO 000 429 25 95,BOSCH
190 A 0009870746 SEALING CORD
TO 000 429 27 95,WABCO
192 A 0004290845 DIAPHRAGM
TO 000 429 28 95,GRAU
192 A 0004291045 DIAPHRAGM
TO 000 429 25 95,BOSCH
194 A 0004204455 REPAIR KIT
TO 000 429 27 95,WABCO
A 0004300369 REPAIR KIT
TO 000 429 26 95,KNORR
196 A 0019972372 FITTING
AIR CLEANER,CONNECTION:
"1"
196 A 0019972372 FITTING
AIR CLEANER,CONNECTION:
"1"
202 A 0019972172 FITTING
AIR CLEANER,CONNECTION:
"2"
202 A 0029978972 FITTING
AIR CLEANER,CONNECTION:
"2"
204 A 0004290227 THRUST RING
AIR CLEANER;CONNECTIONS:
"1,2"
206 A 0009870446 SEALING CORD
AIR CLEANER;CONNECTIONS:
"1,2"
208 N 074305022202 NUT
AIR CLEANER TO BRACKET
210 A 6204310740 BRACKET
AIR CLEANER
210 A 6204310740 BRACKET
AIR CLEANER
212 N 000933008147 SCREW
Repalced by: N 304017008021
212 N 304017008021 SCREW
BRACKET TO APPARATUS SUPPORT
212 N 304017008021 SCREW
BRACKET TO APPARATUS SUPPORT
214 N 000125008418 WASHER
Repalced by: N 000125008443
214 N 000125008443 WASHER
BRACKET TO APPARATUS SUPPORT
214 N 000125008443 WASHER
BRACKET TO APPARATUS SUPPORT
216 N 913004008004 NUT
Repalced by: N 913004008001
216 N 913004008001 NUT
BRACKET TO APPARATUS SUPPORT
216 N 913004008001 NUT
BRACKET TO APPARATUS SUPPORT
218 A 0014319306 VALVE
Repalced by: A 0034315006
218 A 0014318906 VALVE
Repalced by: A 0024314006
218 A 0024314006 VALVE
Repalced by: A 0034315006
218 A 0014318706 VALVE
Repalced by: A 0034315006
218 A 0024310206 VALVE
Repalced by: A 0024312706
218 A 0024312706 VALVE
Repalced by: A 0024319106
218 A 0024319106 VALVE
Repalced by: A 0034315006
218 A 0034315006 VALVE
(FOUR-CIRCUIT PROTECTIVE VALVE)
WABCO
225 A 0059973248 SEAL RING
TO 002 431 02 06,GRAU
226 A 0035860943 REPAIR KIT
TO 001 431 89 06,002 431 40 06,WABCO
226 A 0035861043 REPAIR KIT
TO 001 431 87 06,KNORR
226 A 0004304706 GASKET KIT
TO 001 431 93 06,BOSCH 62401
226 A 0004300260 REPAIR KIT
TO 001 431 93 06,BOSCH 62201
A 0034300981 GASKET KIT
TO 002 431 91 06 GRAU 66 001
226 A 0004305106 REPAIR KIT
FOUR-CIRCUIT PROTECTIVE VALVE
WABCO; TO 003 431 50 06
A 6164310240 BRACKET
FOUR-CIRCUIT PROTECTIVE VALVE
A 6154311640 BRACKET
FOUR-CIRCUIT PROTECTIVE VALVE
N 000933008147 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
BRACKET TO BATTERY/APPARATUS SUPPORT
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
BRACKET TO BATTERY/APPARATUS SUPPORT
234 N 000125017010 WASHER
Repalced by: N 000125017016
234 N 000125017016 WASHER
VALVE TO BRACKET
236 N 080705016003 NUT
VALVE TO BRACKET
238 A 0009909671 ELBOW FITTING
Repalced by: A 0029901271
238 A 0029901271 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
238 A 0029902271 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
240 N 074305022202 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
242 A 0004290227 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
244 A 0009870446 SEALING CORD
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
246 N 915039012205 HOLLOW SCREW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"21,22,23"
248 N 007603016401 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"21,22,23"
250 A 0004296434 ADAPTER FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
252 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
254 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
256 N 000439016206 NUT
Repalced by: N 308675016001
256 N 308675016001 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
258 A 0034291044 VALVE
EMERGENCY RELEASE VALVE,CONNECTION:
"23"
A 0044293744 VALVE
EMERGENCY RELEASE VALVE,CONNECTION:
"23"
260 A 0019905268 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
262 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
264 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
266 N 915047008202 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
266 N 915047008202 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
267 N 915036008202 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
268 N 007603012405 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
280 A 0024310705 BRAKE VALVE
TRUCK-TRACTOR BRAKE
WABCO
280 A 0024310705 BRAKE VALVE
TRUCK-TRACTOR BRAKE
WABCO
280 A 0024311105 BRAKE VALVE
TRUCK-TRACTOR BRAKE
BOSCH
280 A 0024311105 BRAKE VALVE
TRUCK-TRACTOR BRAKE
BOSCH
280 A 0024311905 BRAKE VALVE
TRUCK-TRACTOR BRAKE
KNORR
280 A 0024311905 BRAKE VALVE
TRUCK-TRACTOR BRAKE
KNORR
280 A 0024310605 BRAKE VALVE
TRUCK-TRACTOR BRAKE
WABCO
280 A 0024310605 BRAKE VALVE
TRUCK-TRACTOR BRAKE
WABCO
280 A 0024310605 BRAKE VALVE
TRUCK-TRACTOR BRAKE
WABCO
280 A 0024311005 BRAKE VALVE
TRUCK-TRACTOR BRAKE
BOSCH
280 A 0024311005 BRAKE VALVE
TRUCK-TRACTOR BRAKE
BOSCH
280 A 0024311005 BRAKE VALVE
TRUCK-TRACTOR BRAKE
BOSCH
280 A 0024312005 BRAKE VALVE
TRUCK-TRACTOR BRAKE
KNORR
280 A 0024312005 BRAKE VALVE
TRUCK-TRACTOR BRAKE
KNORR
280 A 0024312005 BRAKE VALVE
TRUCK-TRACTOR BRAKE
KNORR
280 A 0014318305 BRAKE VALVE
TRUCK-TRACTOR BRAKE
WABCO
280 A 0014318905 BRAKE VALVE
TRUCK-TRACTOR BRAKE
BOSCH
280 A 0014319105 BRAKE VALVE
TRUCK-TRACTOR BRAKE
KNORR
280 A 0014319905 BRAKE VALVE
TRUCK-TRACTOR BRAKE
GRAU
281 A 0014316993 SPRING
TO 001 431 89 05,BOSCH
282 A 0004312185 FILLER RING
TO 001 431 83 05,WABCO
283 A 0004310273 BREATHER PIPE
TO 001 431 83 05,WABCO
284 A 0004318383 PISTON
TO 001 431 83 05,WABCO
285 A 0004313623 VALVE
WABCO
286 A 0004300060 REPAIR KIT
Repalced by: A 0014308460
286 A 0014308460 GASKET KIT
TWO-CIRCUIT BRAKE VALVE
TO 002 431 10 05,BOSCH
287 A 0004300160 REPAIR KIT
Repalced by: A 0004303306
287 A 0004303306 REPAIR KIT
TWO-CIRCUIT BRAKE VALVE
TO 002 431 11 05,BOSCH
287 A 0035861143 REPAIR KIT
Repalced by: A 0004306360
287 A 0004306360 REPAIR KIT
TWO-CIRCUIT BRAKE VALVE
TO 002 431 06 05,002 431 07 05,WABCO
287 A 0035861243 REPAIR KIT
TWO-CIRCUIT BRAKE VALVE
TO 001 431 91 05,KNORR
287 A 0004301160 REPAIR KIT
Repalced by: A 0004306260
287 A 0004306260 REPAIR KIT
Repalced by: A 0014300460
287 A 0014300460 REPAIR KIT
TWO-CIRCUIT BRAKE VALVE
TO 001 431 83 05,WABCO
287 A 0025868743 REPAIR KIT
Repalced by: A 0004303506
287 A 0004303506 REPAIR KIT
TWO-CIRCUIT BRAKE VALVE
TO 001 431 89 05,BOSCH
290 A 6202920140 BRACKET
BRAKE VALVE TO PEDAL BEARING BRACKET
292 N 000933008152 SCREW
Repalced by: N 304017008027
292 N 304017008027 SCREW
BRAKE VALVE TO PEDAL BEARING BRACKET
294 N 913004008004 NUT
Repalced by: N 913004008001
294 N 913004008001 NUT
BRAKE VALVE TO PEDAL BEARING BRACKET
296 N 915036012203 HOLLOW SCREW
BRAKE VALVE,RIGHT CONNECTIONS:
"11,12,21,22"
302 N 915036008202 HOLLOW SCREW
BRAKE VALVE,CONNECTION:
"4"
304 N 007603016401 SEAL RING
BRAKE VALVE,RIGHT CONNECTIONS:
"11,12,21,22"
306 N 007603012405 SEAL RING
BRAKE VALVE,CONNECTION:
"4"
308 N 000908016001 SCREW PLUG
BRAKE VALVE,LEFT CONNECTIONS:
"11,12,21,22"
310 A 0004290927 THRUST RING
BRAKE VALVE,LEFT CONNECTIONS:
"11,12,21,22"
312 A 0009971548 SEAL RING
BRAKE VALVE,LEFT CONNECTIONS:
"11,12,21,22"
314 A 6174310073 BREATHER PIPE
AT BRAKE VALVE
314 A 6174310173 BREATHER PIPE
AT BRAKE VALVE
320 A 0014306481 VALVE
(PRESSURE RATIO VALVE) FRONT AXLE BRAKE PRESSURE
322 A 0019871746 SEALING CORD
38X3 MM
324 A 0089970445 SEAL RING
34.6X2.6 MM
326 A 0089978648 SEAL RING
28.4X2.6 MM
328 A 0004313223 VALVE
330 N 007603016401 SEAL RING
16X20 MM
332 A 0089978748 SEAL RING
56X1.7 MM
334 N 913004008004 NUT
Repalced by: N 913004008001
334 N 913004008001 NUT
VALVE TO FLOOR
336 A 6204312440 BRACKET
PRESSURE RATIO VALVE
336 A 6204312540 BRACKET
PRESSURE RATIO VALVE
338 N 007976005204 SHEET METAL SCREW
BRACKET TO CAB FLOOR
340 A 0004296134 ADAPTER FITTING
Repalced by: A 0069970072
340 A 0069970072 FITTING
PRESSURE RATIO VALVE,CONNECTION:
"1"
342 N 915036012203 HOLLOW SCREW
PRESSURE RATIO VALVE,CONNECTION:
"1"
344 N 915047012203 HOLLOW SCREW
PRESSURE RATIO VALVE,CONNECTION:
"2"
346 N 000908016001 SCREW PLUG
PRESSURE RATIO VALVE,CONNECTION:
"2"
348 N 007603016401 SEAL RING
PRESSURE RATIO VALVE,CONNECTIONS:
"1,2"
350 A 0004290927 THRUST RING
PRESSURE RATIO VALVE,CONNECTIONS:
"1,2"
352 A 0009971548 SEAL RING
PRESSURE RATIO VALVE,CONNECTIONS:
"1,2"
360 A 0029900271 ELBOW FITTING
360 A 0029900871 ELBOW FITTING
362 N 913004008004 NUT
Repalced by: N 913004008001
362 N 913004008001 NUT
FITTING TO CAB FLOOR
364 N 915036012203 HOLLOW SCREW
AT FITTING
366 N 915047012203 HOLLOW SCREW
AT FITTING
368 N 007603016401 SEAL RING
AT FITTING
380 A 0004324801 RESERVOIR
Repalced by: A 0014327501
380 A 0014327501 RESERVOIR
Repalced by: A 0034321201
380 A 0034321201 RESERVOIR
FRONT AIR RESERVOIR
20 L
382 A 0019972172 FITTING
AIR RESERVOIR,CONNECTION:
"13"
383 N 915036012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTION:
"13"
384 A 0009905168 FITTING
AIR RESERVOIR,CONNECTION:
"13"
385 N 007603016401 SEAL RING
AIR RESERVOIR,CONNECTION:
"13"
386 A 0009905168 FITTING
AIR RESERVOIR,CONNECTION:
"23"
N 000908022001 SCREW PLUG
Repalced by: N 000908022011
N 000908022011 SCREW PLUG
AIR RESERVOIR
N 007603022403 SEAL RING
AIR RESERVOIR
389 N 915036012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTION:
"23"
390 A 0004290227 THRUST RING
AIR RESERVOIR,CONNECTIONS:
"13,23"
391 N 007603016401 SEAL RING
AIR RESERVOIR,CONNECTION:
"23"
392 A 0009870446 SEALING CORD
AIR RESERVOIR,CONNECTIONS:
"13,23"
400 A 6204300440 STRAP
FRONT AIR RESERVOIR
400 A 6204300440 STRAP
FRONT AIR RESERVOIR
400 A 6204301040 STRAP
400 A 6204301240 STRAP
401 A 6204300240 STRAP
FRONT AIR RESERVOIR
401 A 3874300640 STRAP
REAR AIR RESERVOIR
402 A 6204300540 STRAP
FRONT AIR RESERVOIR
402 A 6204300540 STRAP
FRONT AIR RESERVOIR
404 N 913004010008 NUT
Repalced by: N 910113010000
404 N 910113010000 NUT
AIR RESERVOIR TO BRACKET
406 A 3874320540 BRACKET
FRONT AIR RESERVOIR
408 N 000933008215 SCREW
Repalced by: A 0069909301
408 A 0069909301 SCREW
AIR RESERVOIR TO SUPPORT
410 N 913004008004 NUT
Repalced by: N 913004008001
410 N 913004008001 NUT
AIR RESERVOIR TO SUPPORT
412 A 0004322601 RESERVOIR
Repalced by: A 0034321801
412 A 0034321801 RESERVOIR
INSIDE AND OUTSIDE AIR RESERVOIRS
30 L
414 A 6204320018 BASE
STRAP TO SUPPORT
416 A 6204300040 STRAP
INSIDE AND OUTSIDE AIR RESERVOIRS
418 A 3874301140 STRAP
Repalced by: A 3874300540
418 A 3874300540 STRAP
Repalced by: A 6204300040
418 A 6204300040 STRAP
INSIDE AND OUTSIDE AIR RESERVOIRS
420 A 3874300339 SUPPORT
AIR RESERVOIR
422 N 000933010105 SCREW
STRAP TO SUPPORT
N 001440010002 WASHER
STRAP TO SUPPORT
424 N 913004010008 NUT
Repalced by: N 910113010000
424 N 910113010000 NUT
STRAP TO SUPPORT
426 A 3464320073 LOCK
PROTECTION AGAINST TORSION
428 A 0019907368 FITTING
AIR RESERVOIR,CONNECTIONS:
"11,12,22"
428 A 0019907368 FITTING
AIR RESERVOIR,CONNECTION:
"11"
428 A 0019907368 FITTING
AIR RESERVOIR,CONNECTION:
"21"
429 A 0019907170 T-FITTING
AIR RESERVOIR,CONNECTION:
"11"
430 N 074305022202 NUT
AIR RESERVOIR,CONNECTION:
"11"
431 A 0009905168 FITTING
INSIDE AIR RESERVOIR,CONNECTION:
"31"
432 N 915036012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTIONS:
"11,21,22"
432 N 915036012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTIONS:
"11,21,22"
432 N 915036012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTION:
"12"
432 N 915036012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTION:
"31"
433 N 000908022001 SCREW PLUG
Repalced by: N 000908022011
433 N 000908022011 SCREW PLUG
AIR RESERVOIR,CONNECTION:
"32"
433 N 000908022011 SCREW PLUG
AIR RESERVOIR,CONNECTIONS:
"31,32"
433 N 000908022011 SCREW PLUG
FRONT BRAKE CIRCUIT AIR RESERVOIR, CENTRAL CONNECTION
"32"
434 N 915047012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTION:
"11"
436 A 0004290227 THRUST RING
AIR RESERVOIR,CONNECTIONS:
"11,12,22"
436 A 0004290227 THRUST RING
AIR RESERVOIR,CONNECTION:
"21"
436 A 0004290227 THRUST RING
AIR RESERVOIR,CONNECTION:
"32"
436 A 0004290227 THRUST RING
AIR RESERVOIR,CONNECTIONS:
"31,32"
438 N 007603016401 SEAL RING
AIR RESERVOIR,CONNECTIONS:
"11,21,22"
438 N 007603016401 SEAL RING
AIR RESERVOIR,CONNECTION:
"12"
438 N 007603016401 SEAL RING
AIR RESERVOIR,CONNECTION:
"31"
438 N 007603016401 SEAL RING
FRONT BRAKE CIRCUIT AIR RESERVOIR, CENTRAL CONNECTION
"11,21,22"
440 A 0009870446 SEALING CORD
AIR RESERVOIR,CONNECTIONS:
"11,12,22"
440 A 0009870446 SEALING CORD
AIR RESERVOIR,CONNECTION:
"21"
440 A 0009870446 SEALING CORD
AIR RESERVOIR,CONNECTION:
"32"
440 A 0009870446 SEALING CORD
AIR RESERVOIR,CONNECTIONS:
"31,32"
460 A 0004322407 VALVE
DRAIN
460 A 0004321107 VALVE
DRAIN
460 A 0004322107 VALVE
DRAIN
462 A 0009870446 SEALING CORD
DRAIN VALVE TO AIR RESERVOIR
464 A 0004290227 THRUST RING
DRAIN VALVE TO AIR RESERVOIR
480 A 0024299644 VALVE
(CHECK VALVE)
VOSS
480 A 0034290444 VALVE
(CHECK VALVE)
WABCO
481 A 0034291244 VALVE
(CHECK VALVE)
SCHAEFER
482 A 0004290383 VALVE TAPPET
TO 002 429 96 44,VOSS
483 A 0004292584 SEAL RING
TO 002 429 96 44,VOSS
484 A 0002950320 VALVE
TO 003 429 04 44,WABCO
485 A 0089977348 SEAL RING
TO 003 429 04 44,WABCO
486 A 0109970048 SEAL RING
13.6X2 MM,TO 003 429 12 44,SCHAEFER
487 A 0109970148 SEAL RING
15.3X2.4 MM,TO 003 429 12 44,SCHAEFER
488 A 0004290662 THRUST WASHER
TO 003 429 12 44,SCHAEFER
489 A 0004290728 SEAL CONE
TO 003 429 12 44,SCHAEFER
N 915045012100 SEAL RING
Repalced by: N 007603012121
N 007603012121 SEAL RING
CHECK VALVE,CONNECTION:
"10"
491 N 915036012203 HOLLOW SCREW
CHECK VALVE,CONNECTION:
"21"
492 N 915036010204 HOLLOW SCREW
Repalced by: N 915036010108
492 N 915036010108 HOLLOW SCREW
CHECK VALVE,CONNECTION:
"23"
493 N 007603016401 SEAL RING
CHECK VALVE,CONNECTION:
"21"
494 N 007603014405 SEAL RING
CHECK VALVE,CONNECTION:
"23"
495 N 000908016001 SCREW PLUG
CHECK VALVE,CONNECTION:
"22"
496 A 0004290927 THRUST RING
CHECK VALVE,CONNECTION:
"22"
498 A 0009971548 SEAL RING
CHECK VALVE,CONNECTION:
"22"
502 A 6204292540 BRACKET
Repalced by: A 6164290140
502 A 6164290140 BRACKET
CHECK VALVE
504 N 074305022202 NUT
CHECK VALVE TO BRACKET
506 N 000933010129 SCREW
Repalced by: N 304017010002
506 N 304017010002 SCREW
BRACKET TO LEFT SIDE MEMBER
508 N 913004010008 NUT
Repalced by: N 910113010000
508 N 910113010000 NUT
BRACKET TO LEFT SIDE MEMBER

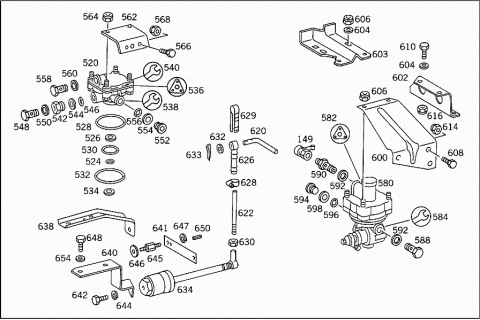

520 A 0034291644 VALVE
(RELAY VALVE)
BOSCH
520 A 0014296844 VALVE
(RELAY VALVE)
WABCO
520 A 0034295344 VALVE
(RELAY VALVE)
KNORR
520 A 0014299144 VALVE
(RELAY VALVE)
GRAU
524 A 0059972648 SEAL RING
22.3X2.4 MM;TO 001 429 91 44,GRAU
526 A 0004312788 VALVE SEAT
TO 001 429 91 44,GRAU
528 A 0059972748 SEAL RING
80X3 MM;TO 000 429 28 95,GRAU
530 A 0014311660 SEAL RING
28X2 MM;TO 001 429 91 44,GRAU
532 A 0014311760 SEAL RING
86X2 MM;TO 001 429 91 44,GRAU
534 A 0004311980 GASKET
34X2X6 MM;TO 001 429 91 44,GRAU
536 A 0025865642 REPAIR KIT
Repalced by: A 0004201071
536 A 0004201071 VALVE
GASKET KIT
TO 003 429 16 44,BOSCH; UP TO 03.82
536 A 0004201271 VALVE
GASKET KIT
TO 003 429 16 44,BOSCH; FROM 04.82
538 A 0025865742 REPAIR KIT
Repalced by: A 0004301109
538 A 0004301109 REPAIR KIT
BLEEDER VALVE
TO 003 429 16 44,BOSCH
540 A 0005865742 REPAIR KIT
TO 001 429 68 44,WABCO
540 A 0005863542 REPAIR KIT
TO 003 429 53 44,KNORR
542 A 0009905168 FITTING
RELAY VALVE,CONNECTION:
"1"
544 A 0004290227 THRUST RING
RELAY VALVE,CONNECTION:
"1"
546 A 0009870446 SEALING CORD
RELAY VALVE,CONNECTION:
"1"
548 N 915036012203 HOLLOW SCREW
RELAY VALVE,CONNECTION:
"1"
550 N 007603016401 SEAL RING
RELAY VALVE,CONNECTION:
"1"
552 N 000908016001 SCREW PLUG
RELAY VALVE,CONNECTION:
"2"
554 A 0004290927 THRUST RING
RELAY VALVE,CONNECTION:
"2"
556 A 0009971548 SEAL RING
RELAY VALVE,CONNECTION:
"2"
558 N 915036012203 HOLLOW SCREW
RELAY VALVE,CONNECTION:
"4"
560 N 007603016401 SEAL RING
RELAY VALVE,CONNECTION:
"4"
562 A 6174310640 BRACKET
RELAY VALVE
564 N 913004008004 NUT
Repalced by: N 913004008001
564 N 913004008001 NUT
RELAY VALVE TO BRACKET
N 000125008418 WASHER
Repalced by: N 000125008443
N 000125008443 WASHER
RELAY VALVE TO BRACKET
566 N 000933010105 SCREW
BRACKET TO LEFT SIDE MEMBER
568 N 913004010008 NUT
Repalced by: N 910113010000
568 N 910113010000 NUT
BRACKET TO LEFT SIDE MEMBER
580 A 0014313212 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
WABCO
580 A 0014313612 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
BOSCH
580 A 0024310412 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
KNORR
580 A 0014313312 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
WABCO
580 A 0014313312 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
WABCO
580 A 0014313512 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
BOSCH
580 A 0014313512 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
BOSCH
580 A 0024310512 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
KNORR
580 A 0024310512 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
KNORR
582 A 0004301868 REPAIR KIT
GASKETS
TO 001 431 35 12,36 12,BOSCH
584 A 0035860243 REPAIR KIT
Repalced by: A 0004307560
584 A 0004307560 REPAIR KIT
TO 001 431 32 12,001 431 33 12,WABCO
584 A 0014311586 REPAIR KIT
COVERING
TO 001 431 36 12,BOSCH
584 A 0014311486 REPAIR KIT
COVERING
TO 001 431 35 12,BOSCH
584 A 0004301883 REPAIR KIT
VALVE
TO 001 431 35 12,36 12,BOSCH
A 0004300207 REPAIR KIT
BRAKE POWER REGULATOR
TO 002 431 04 12,KNORR
A 0004300307 REPAIR KIT
Repalced by: A 0004300207
A 0004300207 REPAIR KIT
BRAKE POWER REGULATOR
TO 002 431 05 12,KNORR

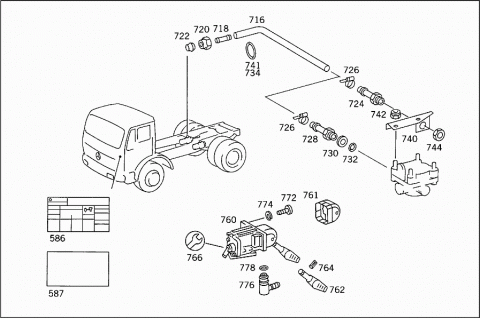

586 A 6175841621 GUIDE SIGN
LOAD-DEPENDING BRAKE
586 A 6175844521 GUIDE SIGN
LOAD-DEPENDING BRAKE
586 A 6175846021 GUIDE SIGN
LOAD-DEPENDING BRAKE
586 A 6175842121 GUIDE SIGN
LOAD-DEPENDING BRAKE
586 A 6175842321 GUIDE SIGN
LOAD-DEPENDING BRAKE
586 A 6175842421 GUIDE SIGN
LOAD-DEPENDING BRAKE
586 A 6175842421 GUIDE SIGN
LOAD-DEPENDING BRAKE
586 A 6175846421 GUIDE SIGN
LOAD-DEPENDING BRAKE
587 A 3875840055 ADHESIVE FOIL
588 N 915036012203 HOLLOW SCREW
BRAKE POWER REGULATOR,CONNECTIONS:
"1,2"
590 N 915039012205 HOLLOW SCREW FITTING
BRAKE POWER REGULATOR,CONNECTION:
"4"
592 N 007603016401 SEAL RING
BRAKE POWER REGULATOR,CONNECTIONS:
"1,2,4"
594 N 000908016001 SCREW PLUG
BRAKE POWER REGULATOR,CONNECTION:
"2"
596 A 0009971548 SEAL RING
BRAKE POWER REGULATOR,CONNECTION:
"2"
598 A 0004290927 THRUST RING
BRAKE POWER REGULATOR,CONNECTION:
"2"
600 A 6174310040 BRACKET
BRAKE POWER REGULATOR
602 A 6174310240 BRACKET
BRAKE POWER REGULATOR
603 A 6454310440 BRACKET
BRAKE POWER REGULATOR
A 6174310195 WEB
AT BRACKET
N 000933008147 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
REINFORCEMENT TO CONSOLE
604 N 000125008418 WASHER
Repalced by: N 000125008443
604 N 000125008443 WASHER
BRAKE POWER REGULATOR TO BRACKET
604 N 000125008443 WASHER
REINFORCEMENT TO CONSOLE
604 N 000125010518 WASHER
Repalced by: N 000125010532
604 N 000125010532 WASHER
CONSOLE TO SIDE MEMBER
N 007349010003 WASHER
Repalced by: N 007349010007
N 007349010007 WASHER
CONSOLE TO SIDE MEMBER
606 N 913004008004 NUT
Repalced by: N 913004008001
606 N 913004008001 NUT
BRAKE POWER REGULATOR TO BRACKET
606 N 913004008001 NUT
REINFORCEMENT TO CONSOLE
608 N 000961016113 SCREW
BRACKET TO SIDE MEMBER
608 N 000961016100 SCREW
Repalced by: N 308676016020
608 N 308676016020 SCREW
BRACKET & BEARING BRACKET TO SIDE MEMBER
610 N 000933010128 SCREW
BRACKET TO CROSS MEMBER
M 10X20
610 N 000933010128 SCREW
CONSOLE TO SIDE MEMBER
M 10X20
N 000933010129 SCREW
Repalced by: N 304017010002
N 304017010002 SCREW
CONSOLE TO SIDE MEMBER
M 10X30
610 N 000933010164 SCREW
CONSOLE TO SIDE MEMBER
M 10X22
N 000933010105 SCREW
CONSOLE TO SIDE MEMBER
M 10X25
614 N 913004016004 NUT
Repalced by: N 910113016002
614 N 910113016002 NUT
BRACKET TO SIDE MEMBER
616 N 913004010008 NUT
Repalced by: N 910113010000
616 N 910113010000 NUT
BRACKET TO CROSS MEMBER
620 A 3854310239 LEVER
Repalced by: A 6204310839
620 A 6204310839 LEVER
Repalced by: A 6744310039
620 A 6744310039 LEVER
BRAKE POWER REGULATOR CONTROL
622 N 900331008419 PULL ROD
BRAKE POWER REGULATOR CONTROL
622 N 900331008419 PULL ROD
BRAKE POWER REGULATOR CONTROL
622 N 900331008420 PULL ROD
BRAKE POWER REGULATOR CONTROL
622 N 900331008420 PULL ROD
BRAKE POWER REGULATOR CONTROL
626 A 0004310735 CONNECTOR
BRAKE POWER REGULATOR CONTROL
628 N 916026010000 CLAMP
Repalced by: N 000000000665
628 N 000000000665 CLAMP
CONNECTOR TO ROD
629 A 6249950065 CLAMP
CONNECTOR TO ROD
630 N 304032008006 NUT
PULL ROD TO METAL-SPRING-BELLOWS BALL JOINT
632 N 000125008418 WASHER
Repalced by: N 000125008443
632 N 000125008443 WASHER
CONNECTOR TO ROD
633 N 000094002077 COTTER PIN
CONNECTOR TO ROD
634 A 0004311018 METAL SPRING BELLOWS
BRAKE POWER REGULATOR CONTROL
634 A 0004311018 METAL SPRING BELLOWS
BRAKE POWER REGULATOR CONTROL
634 A 0004311418 METAL SPRING BELLOWS
Repalced by: A 0004311718
634 A 0004311718 METAL SPRING BELLOWS
BRAKE POWER REGULATOR CONTROL
634 A 0004311718 METAL SPRING BELLOWS
BRAKE POWER REGULATOR CONTROL
A 6174310175 THREADED UNION
METAL SPRING BELLOWS
N 009021013200 WASHER
METAL SPRING BELLOWS
N 912004010102 LOCK WASHER
METAL SPRING BELLOWS
N 912004012100 LOCK WASHER
METAL SPRING BELLOWS
638 A 6174310140 BRACKET
Repalced by: A 6174311040
638 A 6174311040 BRACKET
BRAKE POWER REGULATOR CONTROL
640 A 6204310840 BRACKET
Repalced by: A 6204313740
640 A 6204313740 BRACKET
BRAKE POWER REGULATOR CONTROL
640 A 3874311240 BRACKET
Repalced by: A 6204313740
641 A 6154311140 BRACKET
METAL SPRING BELLOWS
642 N 000961012173 SCREW
METAL SPRING BELLOWS TO BRACKET
M 12X16
642 N 000933012039 SCREW
METAL SPRING BELLOWS TO BRACKET
M 12X18
642 N 000933012039 SCREW
METAL SPRING BELLOWS TO BRACKET
M 12X18
642 N 000961012047 SCREW
METAL SPRING BELLOWS TO BRACKET
M 12X1.5X18
642 N 000961012047 SCREW
METAL SPRING BELLOWS TO BRACKET
M 12X1.5X18
644 N 912004012100 LOCK WASHER
METAL SPRING BELLOWS TO BRACKET
644 N 912004012100 LOCK WASHER
METAL SPRING BELLOWS TO BRACKET
645 A 6174310075 THREADED UNION
METAL SPRING BELLOWS
645 A 6174310175 THREADED UNION
646 N 009021013200 WASHER
METAL SPRING BELLOWS
647 N 912004010102 LOCK WASHER
METAL SPRING BELLOWS
648 N 000961012052 SCREW
Repalced by: N 308676012012
648 N 308676012012 SCREW
BRACKET TO REAR AXLE
648 N 914140010006 SCREW
BRACKET TO REAR AXLE
648 N 000961016096 SCREW
Repalced by: N 308676016007
648 N 308676016007 SCREW
BRACKET TO REAR AXLE
650 N 001470004001 GROOVED PIN
BRACKET TO REAR AXLE
654 A 3609900940 WASHER
BRACKET TO REAR AXLE
654 A 6209900640 WASHER
BRACKET TO REAR AXLE
680 A 0094209618 WHEEL BRAKE CYLINDER
TRISTOP CYLINDER
GRAU
680 A 0074206018 WHEEL BRAKE CYLINDER
TRISTOP CYLINDER
WABCO
680 A 0084208518 WHEEL BRAKE CYLINDER
TRISTOP CYLINDER
KNORR
680 A 0084209218 WHEEL BRAKE CYLINDER
TRISTOP CYLINDER
BOSCH
681 A 0004312928 DIAPHRAGM
TO 008 420 85 18,KNORR
682 A 0004313028 DIAPHRAGM
TO 008 420 92 18,BOSCH
683 A 0004231060 SEAL RING
TO 008 420 85 18,KNORR
684 A 0004234187 PROTECTIVE CAP
TO 008 420 85 18,KNORR
685 A 0004233886 CUP
TO 008 420 92 18,BOSCH
686 A 0004212286 CUP
Repalced by: A 0004215286
686 A 0004215286 CUP
TO 007 420 60 18,WABCO
687 A 0004211263 GUIDE
Repalced by: N 071752014000
687 N 071752014000 YOKE
TO 008 420 92 18,BOSCH
688 A 0004304060 REPAIR KIT
Repalced by: A 0024209524
A 0024209524 REPAIR KIT
DIAPHRAGM PART
TO 008 420 85 18,KNORR
A 0024209424 REPAIR KIT
SPRING LOAD ACCUMULATOR PART
TO 008 420 85 18,KNORR
689 A 0014308660 REPAIR KIT
TRISTOP CYLINDER
TO 008 420 92 18,BOSCH
A 0025863742 REPAIR KIT
Repalced by: A 0025865242
690 A 0025865242 REPAIR KIT
Repalced by: A 0024301560
A 0024301560 REPAIR KIT
DIAPHRAGM CYLINDER
TO 007 420 60 18,WABCO
691 A 0025865042 REPAIR KIT
SPRING LOAD ACCUMULATOR CYLINDER
TO 007 420 60 18,WABCO
692 A 3894230133 BEARING BRACKET
Repalced by: A 3634230033
692 A 3634230033 BEARING BRACKET
TRISTOP CYLINDER
692 A 3854204078 BEARING BRACKET
TRISTOP CYLINDER
693 N 007346012003 CLAMPING SLEEVE
A 3634230033 BEARING BRACKET
TRISTOP CYLINDER
695 N 000961016036 SCREW
Repalced by: N 308676016013
695 N 308676016013 SCREW
BEARING BRACKET TO REAR AXLE
696 N 913004016004 NUT
Repalced by: N 910113016002
696 N 910113016002 NUT
TRISTOP CYLINDER TO BEARING BRACKET
697 A 3619910005 PIN
TRISTOP CYLINDER TO SLACK ADJUSTER
698 N 000433015005 WASHER
TRISTOP CYLINDER TO SLACK ADJUSTER
699 N 000094004051 COTTER PIN
TRISTOP CYLINDER TO SLACK ADJUSTER
700 A 0019905370 T-FITTING
TRISTOP CYLINDER;CONNECTIONS:
"11,12"
702 N 080705016003 NUT
TRISTOP CYLINDER;CONNECTIONS:
"11,12"
704 A 0009971548 SEAL RING
TRISTOP CYLINDER;CONNECTIONS:
"11,12"
706 A 0004290927 THRUST RING
TRISTOP CYLINDER;CONNECTIONS:
"11,12"
708 N 915039012205 HOLLOW SCREW FITTING
TRISTOP CYLINDER;CONNECTIONS:
"11,12"
708 N 915039012205 HOLLOW SCREW FITTING
RIGHT TRISTOP CYLINDER,CONNECTION:
"12"
708 N 915039012205 HOLLOW SCREW FITTING
RIGHT TRISTOP CYLINDER,CONNECTION:
"11"
708 N 915039012205 HOLLOW SCREW FITTING
LEFT TRISTOP CYLINDER,CONNECTION:
"12"
710 A 0004296134 ADAPTER FITTING
Repalced by: A 0069970072
710 A 0069970072 FITTING
LEFT TRISTOP CYLINDER,CONNECTION:
"11,12"
711 N 915036012203 HOLLOW SCREW
RIGHT TRISTOP CYLINDER,CONNECTION:
"11"
712 N 915047012203 HOLLOW SCREW
TRISTOP CYLINDER;CONNECTION:
"12"
713 A 0019900788 BANJO UNION
LEFT TRISTOP CYLINDER,CONNECTION:
"12"
713 A 0019900788 BANJO UNION
TRISTOP CYLINDER;CONNECTIONS:
"11,12"
713 A 0019900788 BANJO UNION
RIGHT TRISTOP CYLINDER,CONNECTION:
"12"
714 N 007603016401 SEAL RING
TRISTOP CYLINDER;CONNECTIONS:
"11,12"
716 N 916027011014 HOSE
FROM COMPRESSED AIR LINE TO TRISTOP CYLINDER
718 A 0004290541 FITTING
AT TRISTOP CYLINDER
720 N 915017012100 UNION NUT
AT TRISTOP CYLINDER
722 N 003861012007 GLAND
Repalced by: A 0019901967
722 A 0019901967 SEAL CONE
AT TRISTOP CYLINDER
724 A 0004290641 FITTING
AT BRACKET
726 N 916017016000 CLAMP
Repalced by: N 000000000666
726 N 000000000666 CLAMP
728 N 074304016201 FITTING
AT RELAY VALVE
730 A 0004290927 THRUST RING
FITTING TO RELAY VALVE
730 A 0004290927 THRUST RING
FITTING TO BRAKE POWER REGULATOR
732 A 0009971548 SEAL RING
FITTING TO RELAY VALVE
732 A 0009971548 SEAL RING
FITTING TO BRAKE POWER REGULATOR
734 A 3039971440 SEAL RING
BRAKE HOSE TO PARKING BRAKE HOSE
A 1159950465 CLAMP
BRAKE HOSE TO PARKING BRAKE HOSE
A 6209950065 CLAMP
BRAKE HOSE TO PARKING BRAKE HOSE
740 A 6204292040 BRACKET
FITTING
741 A 0039975745 SEAL RING
BRAKE HOSE TO PARKING BRAKE HOSE
742 N 913004008004 NUT
Repalced by: N 913004008001
742 N 913004008001 NUT
BRACKET TO RELAY VALVE
744 N 080705018002 NUT
FITTING TO BRACKET
760 A 0014303481 VALVE
PARKING BRAKE
BOSCH
760 A 0014305681 VALVE
PARKING BRAKE
WESTINGHOUSE
760 A 0014306681 VALVE
Repalced by: A 0024309881
760 A 0024309881 VALVE
PARKING BRAKE
KNORR
760 A 0014304381 VALVE
PARKING BRAKE
BOSCH
760 A 0014305781 VALVE
PARKING BRAKE
WABCO
760 A 0014306781 VALVE
Repalced by: A 0024309981
760 A 0024309981 VALVE
PARKING BRAKE
KNORR
761 A 0014311287 PROTECTIVE CAP
KNORR
761 A 0014310887 PROTECTIVE CAP
TO 001 430 56 81,57 81,WABCO
761 A 0014311087 PROTECTIVE CAP
TO 001 430 34 81,43 81,BOSCH
762 A 0009975577 HANDLE
KNORR
762 A 0009972477 HANDLE
TO 001 430 56 81,001 430 57 81,WABCO
762 A 0009973477 HANDLE
TO 001 430 34 81,001 430 43 81,BOSCH
764 N 001481003025 CLAMPING SLEEVE
KNORR
766 A 0025867443 REPAIR KIT
Repalced by: A 0034303181
766 A 0034303181 REPAIR KIT
TO 001 430 56 81,001 430 57 81,WABCO
766 A 0025866343 REPAIR KIT
GASKET KIT
TO 001 430 34 81,001 430 43 81,BOSCH
A 0034302081 REPAIR KIT
TO 002 430 98 81,002 430 99 81,KNORR
766 A 0035860543 REPAIR KIT
TO 001 430 66 81,001 430 67 81,KNORR
772 N 007985008119 SCREW
VALVE TO CAB
774 N 912006008000 LOCK WASHER
VALVE TO CAB
776 A 0009976189 COUPLING
LINE TO HAND BRAKE VALVE
778 A 0099973948 SEAL RING
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
