Transporto priemonė: 1622; VIN numerio dalis: 617027

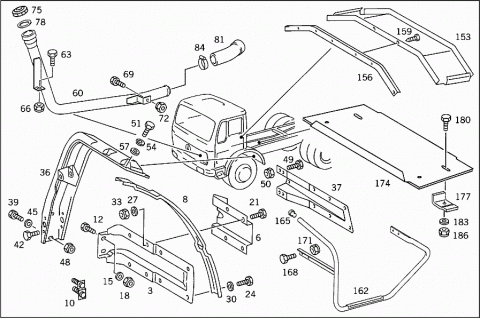

Grupė: 52 CHASSIS SHEET METAL
| # | Kodas | Pavadinimas |
|---|---|---|
| 003 | A 3875210240 | BRACKET |
| Repalced by: A 6575210140 | ||
| 003 | A 6575210140 | BRACKET |
| FENDER | ||
| 006 | A 3875210140 | BRACKET |
| Repalced by: A 6575210040 | ||
| 006 | A 6575210040 | BRACKET |
| Repalced by: A 6575200033 | ||
| 006 | A 6575200033 | SUPPORT |
| (CONSOLE),FOR FENDER | ||
| 008 | A 3815200026 | FENDER STAY |
| 010 | A 6175202741 | BRACKET |
| LEFT FENDER | ||
| 012 | N 000961014063 | SCREW |
| Repalced by: A 9429901304 | ||
| 012 | A 9429901304 | SCREW |
| FENDER BRACKET TO SIDE MEMBER | ||
| M 14X40 | ||
| 012 | A 9429901304 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 14X40 | ||
| 012 | N 000961014116 | SCREW |
| FENDER BRACKET TO SIDE MEMBER | ||
| M 14X50 | ||
| 012 | N 000961014116 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 14X50 | ||
| 015 | A 3609901840 | WASHER |
| FENDER BRACKET TO SIDE MEMBER | ||
| 018 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 018 | N 910113014000 | NUT |
| FENDER BRACKET TO SIDE MEMBER | ||
| 018 | N 910113014000 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 021 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 021 | N 304017008034 | SCREW |
| FENDER TO FENDER BRACKET | ||
| M 8X25 | ||
| 024 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 024 | N 304017008027 | SCREW |
| FENDER TO FENDER BRACKET | ||
| M 8X30 | ||
| 024 | N 304017008027 | SCREW |
| FENDER TO FENDER BRACKET | ||
| M 8X30 | ||
| 024 | N 000933008145 | SCREW |
| FENDER TO FENDER BRACKET | ||
| M 8X18 | ||
| 027 | A 1159904540 | WASHER |
| Repalced by: A 6312670276 | ||
| 027 | A 6312670276 | WASHER |
| FENDER TO FENDER BRACKET | ||
| 030 | N 000433008406 | WASHER |
| FENDER TO FENDER BRACKET | ||
| N 912004008102 | LOCK WASHER | |
| FENDER TO FENDER BRACKET | ||
| 033 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 033 | N 913004008001 | NUT |
| FENDER TO FENDER BRACKET | ||
| 033 | N 913004008001 | NUT |
| FENDER TO FENDER BRACKET | ||
| 033 | N 913004008001 | NUT |
| FENDER TO FENDER BRACKET | ||
| 036 | A 3815201433 | SUPPORT |
| LEFT FENDER | ||
| 036 | A 3815202333 | SUPPORT |
| RIGHT FENDER | ||
| 037 | A 3875212040 | BRACKET |
| LEFT FENDER | ||
| 037 | A 3875212140 | BRACKET |
| RIGHT FENDER | ||
| 039 | N 000961012106 | SCREW |
| SUPPORT TO FRAME AND TO CAB CONSOLE | ||
| M 12X35 | ||
| 042 | N 000961012190 | SCREW |
| Repalced by: N 308676012012 | ||
| 042 | N 308676012012 | SCREW |
| SUPPORT TO FRAME AND TO CAB CONSOLE | ||
| M 12X25 | ||
| 045 | N 000125013008 | WASHER |
| 048 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 048 | N 910113012003 | NUT |
| SUPPORT TO FRAME AND TO CAB CONSOLE | ||
| 049 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 049 | N 308676012012 | SCREW |
| BRACKET TO CONSOLE | ||
| 050 | N 910113012002 | NUT |
| BRACKET TO CONSOLE | ||
| 051 | N 000933008150 | SCREW |
| Repalced by: N 304017008018 | ||
| 051 | N 304017008018 | SCREW |
| FENDER AND FENDER STAY TO SUPPORT | ||
| M 8X35 | ||
| 051 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 051 | N 304017008027 | SCREW |
| FENDER AND FENDER STAY TO SUPPORT | ||
| M 8X30 | ||
| 054 | N 912004008102 | LOCK WASHER |
| FENDER AND FENDER STAY TO SUPPORT | ||
| 057 | N 000433008406 | WASHER |
| FENDER AND FENDER STAY TO SUPPORT | ||
| 060 | A 6175200106 | PIPE ELBOW |
| OIL REFILLING | ||
| 063 | N 000933010128 | SCREW |
| OIL FILLER NECK TO SIDE AND CROSS MEMBERS | ||
| M 10X20 | ||
| 066 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 066 | N 910113010000 | NUT |
| OIL FILLER NECK TO SIDE AND CROSS MEMBERS | ||
| 069 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 069 | N 308676012026 | SCREW |
| OIL FILLER NECK TO SIDE AND CROSS MEMBERS | ||
| M 12X35 | ||
| 072 | N 910113012002 | NUT |
| OIL FILLER NECK TO SIDE AND CROSS MEMBERS | ||
| 075 | A 0000180702 | CAP |
| OIL REFILLING | ||
| 075 | A 1020180302 | CAP |
| OIL REFILLING | ||
| 075 | A 1020180402 | CAP |
| OIL REFILLING | ||
| 078 | A 0000180180 | GASKET |
| Repalced by: A 1020180080 | ||
| A 1020180080 | GASKET | |
| Repalced by: A 1020180380 | ||
| A 1020180380 | GASKET | |
| 081 | A 6205280182 | HOSE |
| FROM OIL FILLER NECK TO OIL PAN | ||
| 084 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 084 | N 000000000671 | CLAMP |
| FROM OIL FILLER NECK TO OIL PAN | ||
| 087 | A 3815280191 | BOOT |
| AIR INTAKE | ||
| 090 | A 3815280443 | CLAMP |
| BOOT TO AIR DUCT AND TO AIR CLEANER | ||
| 093 | N 000084004425 | SCREW |
| BOOT TO AIR DUCT AND TO AIR CLEANER | ||
| 096 | N 000934004006 | NUT |
| BOOT TO AIR DUCT AND TO AIR CLEANER | ||

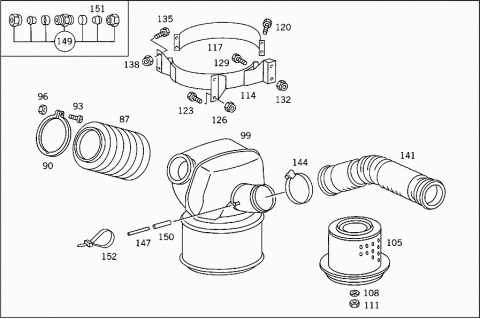

| 099 | A 0090945702 | AIR CLEANER |
| A 0090945802 | AIR CLEANER | |
| 105 | A 0010949304 | FILTER ELEMENT |
| 108 | A 0000940276 | WASHER |
| FELT | ||
| 111 | A 0009901550 | NUT |
| 114 | A 3855200633 | SUPPORT |
| Repalced by: A 6505200333 | ||
| 114 | A 6505200333 | SUPPORT |
| AIR CLEANER | ||
| A 3855200733 | SUPPORT | |
| Repalced by: A 6505200433 | ||
| A 6505200433 | SUPPORT | |
| AIR CLEANER | ||
| 117 | A 3855280421 | STRAP |
| AIR CLEANER TO SUPPORT | ||
| 120 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 120 | N 304017008021 | SCREW |
| STRAP TO SUPPORT | ||
| 123 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 123 | N 308676014020 | SCREW |
| AIR CLEANER SUPPORT TO SIDE MEMBER, FRONT | ||
| 126 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 126 | N 910113014001 | NUT |
| AIR CLEANER SUPPORT TO SIDE MEMBER, FRONT | ||
| 129 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 129 | N 308676012026 | SCREW |
| AIR CLEANER SUPPORT TO SIDE MEMBER, REAR | ||
| 129 | N 308676012026 | SCREW |
| AIR CLEANER SUPPORT TO SIDE MEMBER, REAR | ||
| 132 | N 910113012002 | NUT |
| AIR CLEANER SUPPORT TO SIDE MEMBER, REAR | ||
| 132 | N 910113012002 | NUT |
| AIR CLEANER SUPPORT TO SIDE MEMBER, REAR | ||
| 135 | N 000933010128 | SCREW |
| AIR CLEANER SUPPORT TO BUMPER STRUT | ||
| 138 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 138 | N 910113010000 | NUT |
| AIR CLEANER SUPPORT TO BUMPER STRUT | ||
| 141 | A 3855280008 | AIR INTAKE PIPE |
| Repalced by: A 6215280182 | ||
| 141 | A 6215280182 | HOSE |
| FROM AIR CLEANER TO MUFFLER | ||
| 141 | A 3835280308 | AIR INTAKE PIPE |
| Repalced by: A 6215280282 | ||
| 141 | A 6215280282 | HOSE |
| AIR INTAKE PIPE,LEFT REAR | ||
| 144 | N 916017110001 | CLAMP |
| Repalced by: A 0059971490 | ||
| 144 | A 0059971490 | LOOM TIE |
| HOSE TO AIR CLEANER AND TO INTAKE PIPE | ||
| 147 | A 0089976082 | HOSE |
| Repalced by: A 0009872627 | ||
| 147 | A 0009872627 | PLASTIC PIPE |
| FROM WARNING INDICATOR TO AIR CLEANER | ||
| 4X6 MM | ||
| 149 | A 0039979172 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 150 | N 073379006203 | HOSE |
| FROM WARNING INDICATOR TO AIR CLEANER | ||
| 6X10 MM | ||
| 151 | N 915062004000 | SLEEVE |
| 152 | A 0019978390 | LOOM TIE |
| 280 MM | ||
| 153 | A 3835240529 | COVER |
| ENGINE COVERING | ||
| 156 | A 3875240084 | SHIM |
| COVER PLATE TO CAB REAR PANEL | ||
| 159 | N 007981005306 | SHEET METAL SCREW |
| COVER PLATE TO CAB REAR PANEL | ||
| 162 | A 6205200130 | SUPPORT |
| ROCKER PANEL | ||
| 165 | N 915042025003 | PLUG |
| 168 | N 000933010105 | SCREW |
| FROM SUPPORT TO BATTERY/APPARATUS SUPPORT | ||
| 171 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 171 | N 910113010000 | NUT |
| FROM SUPPORT TO BATTERY/APPARATUS SUPPORT | ||
| 174 | A 6205200031 | RUNNING BOARD |
| 177 | A 6205230019 | MOUNTING ANGLE |
| ROCKER PANEL TO FRAME | ||
| 180 | A 3819900901 | SCREW |
| ROCKER PANEL TO FRAME | ||
| 183 | N 007349013003 | WASHER |
| Repalced by: N 007349013005 | ||
| 183 | N 007349013005 | WASHER |
| ROCKER PANEL TO FRAME | ||
| 183 | N 007349010003 | WASHER |
| Repalced by: N 007349010007 | ||
| 183 | N 007349010007 | WASHER |
| ROCKER PANEL TO FRAME | ||
| 186 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 186 | N 910113010000 | NUT |
| ROCKER PANEL TO FRAME | ||
