Transporto priemonė: 1622; VIN numerio dalis: 617027

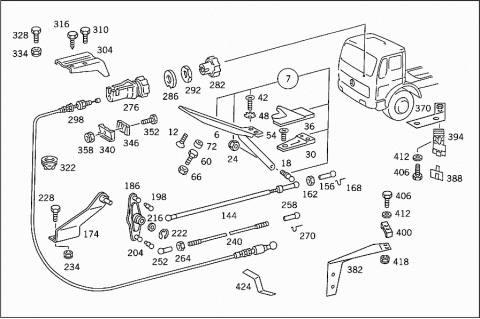

Grupė: 30 CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| 006 | A 6243000104 | ACCELERATOR PEDAL |
| Repalced by: A 6243000304 | ||
| 007 | A 6243000304 | ACCELERATOR PEDAL |
| (PARTS KIT) | ||
| A 6153000104 | PAD | |
| ACCELERATOR PEDAL | ||
| 012 | N 007991005007 | SCREW |
| ACCELERATOR PEDAL | ||
| 018 | A 0009911015 | BALL PIVOT |
| ACCELERATOR PEDAL | ||
| 024 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 024 | N 913004006001 | NUT |
| ACCELERATOR PEDAL | ||
| 030 | A 6153010084 | SHIM |
| ACCELERATOR PEDAL | ||
| 036 | A 6153010097 | BOOT |
| ACCELERATOR PEDAL | ||
| 042 | N 000965006003 | SCREW |
| ACCELERATOR PEDAL TO CAB | ||
| M 6X25 | ||
| 048 | N 006798006300 | SERRATED WASHER |
| ACCELERATOR PEDAL TO CAB | ||
| 054 | N 000965006006 | SCREW |
| ACCELERATOR PEDAL TO CAB | ||
| M 6X20 | ||
| A 6553010093 | GUIDE RAIL | |
| ACCELERATOR PEDAL TO FLOOR PLATE | ||
| N 000965006077 | SCREW | |
| GUIDE RAIL RETROFIT | ||
| 060 | N 000931008254 | SCREW |
| Repalced by: N 304014008002 | ||
| 060 | N 304014008002 | SCREW |
| PEDAL STOP TO CAB FLOOR | ||
| 066 | N 304032008006 | NUT |
| PEDAL STOP TO CAB FLOOR | ||
| 072 | A 3813010041 | STOP |
| ACCELERATOR PEDAL | ||
| 078 | A 3819910123 | BALL SOCKET |
| FROM ACCELERATOR PEDAL TO SHAFT | ||
| 084 | N 071805010403 | SECURING CLIP |
| FROM ACCELERATOR PEDAL TO SHAFT | ||
| 090 | A 3813000021 | BEARING TUBE |
| Repalced by: A 6153000021 | ||
| 090 | A 6153000021 | BEARING TUBE |
| CONTROL SHAFT | ||
| 096 | A 3813020050 | BUSHING |
| BEARING TUBE | ||
| 102 | A 3813000020 | SHAFT |
| Repalced by: A 6153000020 | ||
| 102 | A 6153000020 | SHAFT |
| CONTROL | ||
| 108 | N 071803010204 | BALL PIVOT |
| 114 | A 3813000625 | LEVER |
| (CONTROL LEVER) | ||
| 120 | N 071803010204 | BALL PIVOT |
| 126 | N 001481004017 | CLAMPING SLEEVE |
| Repalced by: N 308752004001 | ||
| 126 | N 308752004001 | CLAMPING PIN |
| LEVER TO SHAFT | ||
| 132 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 132 | N 304017008016 | SCREW |
| INTERMEDIATE BEARING TO CAB FLOOR | ||
| 138 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 138 | N 913004008001 | NUT |
| INTERMEDIATE BEARING TO CAB FLOOR | ||
| 144 | A 3604302992 | ROD |
| Repalced by: A 6203000615 | ||
| 144 | A 6203000615 | ROD |
| FROM ACCELERATOR PEDAL TO INTERMEDIATE LEVER | ||
| 150 | A 3604301992 | ROD |
| FROM ACCELERATOR PEDAL TO CONTROL SHAFT BEARING | ||
| 156 | A 0009912422 | BALL SOCKET |
| 162 | N 000934006007 | NUT |
| 168 | N 071805010403 | SECURING CLIP |
| 174 | A 6203000336 | BEARING BRACKET |
| Repalced by: A 6203000536 | ||
| 174 | A 6203000536 | BEARING BRACKET |
| INTERMEDIATE BEARING | ||
| 180 | A 3813000636 | BEARING BRACKET |
| Repalced by: A 6203000436 | ||
| 180 | A 6203000436 | BEARING BRACKET |
| INTERMEDIATE BEARING | ||
| 186 | A 6153000028 | LEVER |
| Repalced by: A 6203000628 | ||
| 186 | A 6203000628 | LEVER |
| (REVERSING LEVER) | ||
| 192 | A 6213000028 | LEVER |
| Repalced by: A 6203000928 | ||
| 192 | A 6203000928 | LEVER |
| (REVERSING LEVER) | ||
| 198 | N 071803010209 | BALL PIVOT |
| Repalced by: A 3129910120 | ||
| 198 | A 3129910120 | BALL PIVOT |
| B10X4.5 MM | ||
| 204 | N 071803013208 | BALL PIVOT |
| B13X5 MM | ||
| 210 | A 3813020050 | BUSHING |
| INTERMEDIATE BEARING | ||
| 210 | A 3813020050 | BUSHING |
| INTERMEDIATE BEARING | ||
| 216 | A 3813010388 | COVERING |
| Repalced by: A 6153010088 | ||
| 216 | A 6153010088 | COVERING |
| INTERMEDIATE BEARING | ||
| 222 | N 006799010001 | LOCK PLATE |
| INTERMEDIATE BEARING | ||
| 228 | N 000933010105 | SCREW |
| BEARING BRACKET TO SUBSTRUCTURE | ||
| 234 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 234 | N 910113010000 | NUT |
| BEARING BRACKET TO SUBSTRUCTURE | ||
| 240 | N 900331008422 | PULL ROD |
| FROM INTERMEDIATE LEVER TO ENGINE | ||
| 246 | N 900331008421 | PULL ROD |
| FROM INTERMEDIATE LEVER TO ENGINE | ||
| 252 | N 071805013203 | BALL SOCKET |
| FRONT | ||
| 258 | A 4069910022 | BALL SOCKET |
| REAR | ||
| 264 | N 304032008006 | NUT |
| 270 | N 071805013402 | SECURING CLIP |
| 276 | A 3813000326 | MANUAL CONTROL |
| IDLING ADJUSTMENT | ||
| A 3813020108 | GUIDE | |
| IDLING ADJUSTMENT | ||
| 282 | A 3813020201 | KNOB |
| Repalced by: A 6153020001 | ||
| 282 | A 6153020001 | KNOB |
| IDLING ADJUSTMENT | ||
| 286 | A 3819940016 | LOCK |
| Repalced by: N 000988030003 | ||
| 286 | N 000988030003 | FITTED WASHER |
| IDLING ADJUSTMENT | ||
| 292 | A 3819900051 | NUT |
| IDLING ADJUSTMENT | ||
| 298 | A 6153000030 | WIRE CABLE |
| Repalced by: A 6203000130 | ||
| 298 | A 6153000130 | WIRE CABLE |
| Repalced by: A 6203000130 | ||
| 298 | A 6203000130 | WIRE CABLE |
| IDLING ADJUSTMENT | ||
| 304 | A 3813020340 | BRACKET |
| Repalced by: A 3813020240 | ||
| 304 | A 3813020240 | BRACKET |
| IDLING ADJUSTER | ||
| 310 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 310 | N 304017006018 | SCREW |
| BRACKET TO WINDOW SILL GIRDER | ||
| M 6X12 | ||
| 316 | N 007976005207 | SHEET METAL SCREW |
| Repalced by: N 914031005208 | ||
| 316 | N 914031005208 | COMBINATION BOLT |
| BRACKET TO WINDOW SILL GIRDER | ||
| N 000125006421 | WASHER | |
| BRACKET TO WINDOW SILL GIRDER | ||
| 322 | A 0069978881 | GROMMET |
| WIRE CABLE THRU WINDOW SILL | ||
| 328 | N 000933006102 | SCREW |
| FRESH AIR DUCT | ||
| M 6X16 | ||
| 334 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 334 | N 913004006001 | NUT |
| FRESH AIR DUCT | ||
| 340 | A 6175460044 | CLAMPING PIECE |
| CABLE PULL TO FIRE WALL | ||
| 346 | A 6175460144 | CLAMPING PIECE |
| CABLE PULL TO FIRE WALL | ||
| 346 | A 6175460344 | CLAMPING PIECE |
| CABLE PULL TO FIRE WALL | ||
| 346 | A 3875460344 | CLAMPING PIECE |
| CABLE PULL TO FIRE WALL | ||
| 352 | N 000931006118 | SCREW |
| CABLE PULL TO FIRE WALL | ||
| 358 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 358 | N 913004006001 | NUT |
| CABLE PULL TO FIRE WALL | ||
| 370 | A 6153000040 | BRACKET |
| CABLE TO RADIATOR MOUNTING | ||
| 370 | A 6153000140 | BRACKET |
| CABLE TO RADIATOR MOUNTING | ||
| 382 | A 6203010240 | BRACKET |
| WIRE CABLE TO FRAME SIDE MEMBER | ||
| 388 | A 6203010036 | COVER |
| CABLE TO BRACKET | ||
| 394 | A 6203010043 | CLAMPING PIECE |
| CABLE TO BRACKET | ||
| 400 | A 3975460144 | CLAMPING PIECE |
| CABLE TO BRACKET | ||
| 406 | N 000933006127 | SCREW |
| CLAMPING PIECE TO BRACKET | ||
| M 6X25 | ||
| 406 | N 000933006124 | SCREW |
| CLAMPING PIECE TO BRACKET | ||
| M 6X30 | ||
| 412 | N 000125006421 | WASHER |
| CLAMPING PIECE TO BRACKET | ||
| 412 | N 000125006421 | WASHER |
| CLAMPING PIECE TO BRACKET | ||
| 418 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 418 | N 913004006001 | NUT |
| CLAMPING PIECE TO BRACKET | ||
| 424 | A 6153010240 | BRACKET |
| CABLE | ||
| A 0019978390 | LOOM TIE | |
| CABLE TO BRACKET | ||
