Transporto priemonė: 1622; VIN numerio dalis: 617027

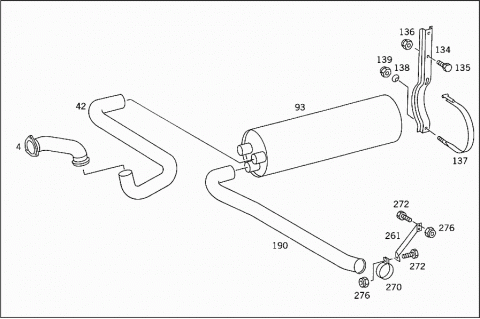

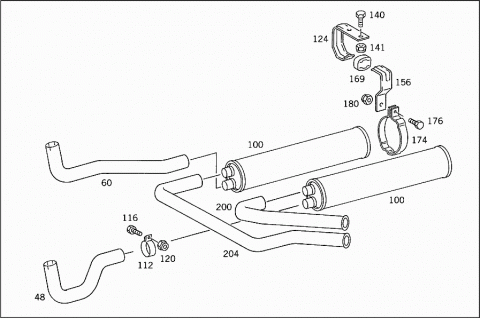

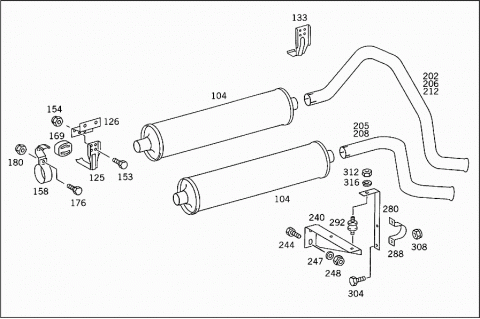

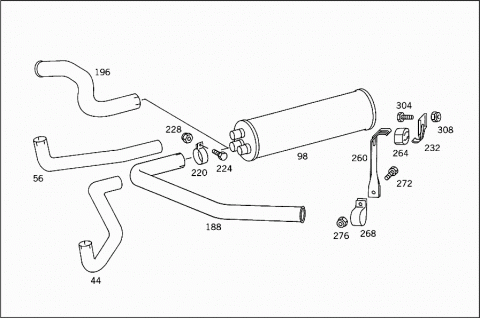

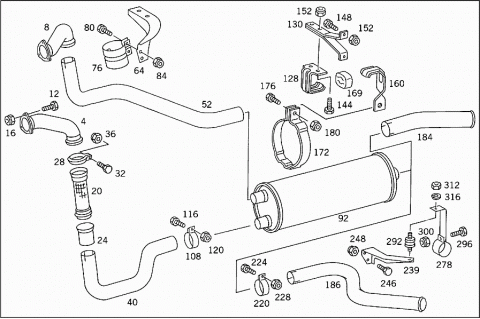

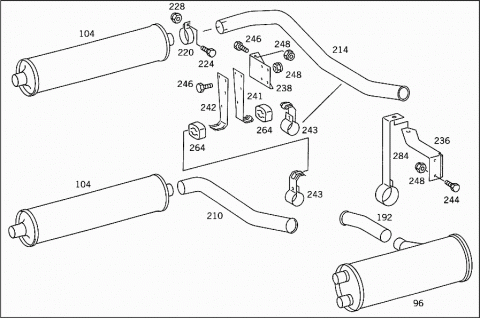

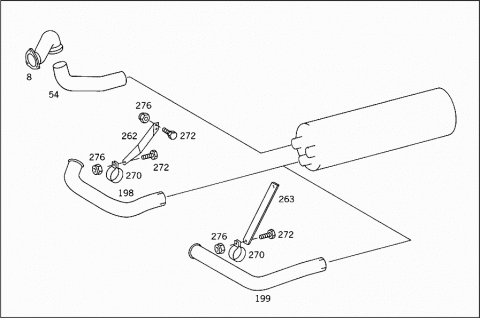

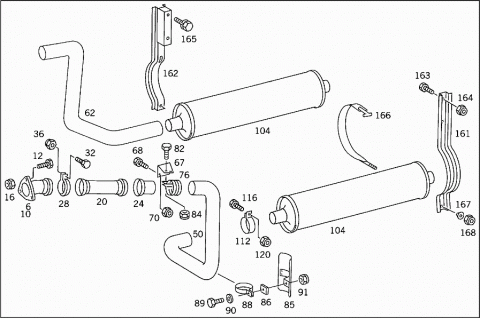

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 004 | A 6174900825 | CONNECTOR |
| LEFT FRONT | ||
| 006 | A 6174900129 | FLANGE |
| LEFT FRONT | ||
| 008 | A 6174900925 | CONNECTOR |
| RIGHT FRONT | ||
| 010 | A 6174900229 | FLANGE |
| RIGHT FRONT | ||
| 012 | N 000931012034 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 12X50 | ||
| N 000931012114 | SCREW | |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 12X45 | ||
| 016 | N 913004012010 | NUT |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 020 | A 6204900365 | FLEXIBLE METAL TUBE |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 024 | A 6204920008 | COLLAR |
| Repalced by: A 6524920008 | ||
| 024 | A 6524920008 | COLLAR |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 024 | A 6174920008 | COLLAR |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 024 | A 6174920008 | COLLAR |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 028 | A 6209970490 | CLAMP |
| EXHAUST LINE FLEXIBLE METAL TUBE | ||
| 032 | N 000933008161 | SCREW |
| Repalced by: N 304017008028 | ||
| 032 | N 304017008028 | SCREW |
| EXHAUST HOSE TO EXHAUST PIPE | ||
| 036 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 036 | N 913004008001 | NUT |
| EXHAUST HOSE TO EXHAUST PIPE | ||
| 040 | A 6174901220 | EXHAUST PIPE |
| Repalced by: A 6174904720 | ||
| 040 | A 6174904720 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 042 | A 6194901920 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 044 | A 6174901620 | EXHAUST PIPE |
| Repalced by: A 6174904020 | ||
| 044 | A 6174904020 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 044 | A 6174901820 | EXHAUST PIPE |
| Repalced by: A 6174904120 | ||
| 044 | A 6174904120 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 048 | A 6174901420 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 048 | A 6174902920 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 050 | A 6174903320 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 050 | A 6174906520 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 052 | A 6174901320 | EXHAUST PIPE |
| Repalced by: A 6174904820 | ||
| 052 | A 6174904820 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 054 | A 6194902020 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 056 | A 6174901720 | EXHAUST PIPE |
| Repalced by: A 6174905020 | ||
| 056 | A 6174905020 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 056 | A 6174901920 | EXHAUST PIPE |
| Repalced by: A 6174904220 | ||
| 056 | A 6174904220 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 060 | A 6174901520 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 060 | A 6174903020 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 062 | A 6174903420 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 062 | A 6174906620 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 064 | A 6174922941 | BRACKET |
| LEFT EXHAUST PIPE | ||
| 064 | A 6174923041 | BRACKET |
| RIGHT EXHAUST PIPE | ||
| A 6174923841 | BRACKET | |
| LEFT EXHAUST PIPE | ||
| 067 | A 6174924441 | BRACKET |
| LEFT EXHAUST PIPE | ||
| A 6174923941 | BRACKET | |
| RIGHT EXHAUST PIPE | ||
| 067 | A 6174924541 | BRACKET |
| RIGHT EXHAUST PIPE | ||
| 068 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 068 | N 308676014020 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 070 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 070 | N 910113014001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 076 | A 6204920840 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 080 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 080 | N 304017010002 | SCREW |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 10X30 | ||
| 082 | N 000933010145 | SCREW |
| FRONT EXHAUST PIPE TO BRACKET | ||
| M 10X35 | ||
| 084 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 084 | N 910113010000 | NUT |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 085 | A 3834901030 | PROTECTIVE PLATE |
| FRONT EXHAUST PIPE | ||
| 086 | A 1204920083 | INSULATION |
| PROTECTIVE PLATE TO FRONT EXHAUST PIPE | ||
| N 071555090501 | CLAMP | |
| Repalced by: N 071555090502 | ||
| N 071555090502 | CLAMP | |
| PROTECTIVE PLATE TO FRONT EXHAUST PIPE | ||
| 088 | N 071555075502 | CLAMP |
| PROTECTIVE PLATE TO FRONT EXHAUST PIPE | ||
| 089 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 089 | N 304017010002 | SCREW |
| PROTECTIVE PLATE TO FRONT EXHAUST PIPE | ||
| 090 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 090 | N 000125008443 | WASHER |
| PROTECTIVE PLATE TO FRONT EXHAUST PIPE | ||
| 091 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 091 | N 910113010000 | NUT |
| PROTECTIVE PLATE TO FRONT EXHAUST PIPE | ||
| 092 | A 6174900101 | EXHAUST MUFFLER |
| 092 | A 6174900101 | EXHAUST MUFFLER |
| 093 | A 6174901901 | EXHAUST MUFFLER |
| 096 | A 3874900601 | EXHAUST MUFFLER |
| 098 | A 6174900001 | EXHAUST MUFFLER |
| 100 | A 6174900201 | EXHAUST MUFFLER |
| LEFT AND RIGHT | ||
| 104 | A 3834900201 | EXHAUST MUFFLER |
| LEFT AND RIGHT | ||
| 104 | A 3834900201 | EXHAUST MUFFLER |
| LEFT AND RIGHT | ||
| 104 | A 3834900201 | EXHAUST MUFFLER |
| LEFT AND RIGHT | ||
| 104 | A 6174901601 | EXHAUST MUFFLER |
| LEFT AND RIGHT | ||
| 108 | N 071555078502 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 78.5 MM | ||
| 112 | N 071555075502 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 75.5 MM | ||
| 112 | N 071555075502 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 75.5 MM | ||
| 116 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 116 | N 304017010002 | SCREW |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 116 | N 304017010002 | SCREW |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 120 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 120 | N 910113010000 | NUT |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 120 | N 910113010000 | NUT |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 124 | A 6174910616 | SUPPORT |
| FRONT EXHAUST MUFFLER | ||
| 124 | A 6174910616 | SUPPORT |
| FRONT EXHAUST MUFFLER | ||
| 125 | A 3814910816 | SUPPORT |
| FRONT EXHAUST MUFFLER | ||
| 126 | A 6164920216 | SUPPORT |
| FRONT EXHAUST MUFFLER | ||
| 128 | A 6174911316 | SUPPORT |
| REAR EXHAUST MUFFLER | ||
| 128 | A 6174911316 | SUPPORT |
| REAR EXHAUST MUFFLER | ||
| 130 | A 6174900034 | SUPPORT |
| REAR EXHAUST MUFFLER | ||
| 133 | A 3814910416 | SUPPORT |
| REAR EXHAUST MUFFLER | ||
| 134 | A 6174910541 | BRACKET |
| EXHAUST MUFFLER TO FRAME | ||
| 135 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 135 | N 308676014020 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 136 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 136 | N 910113014001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 137 | A 6174900142 | STRAP |
| FRONT AND REAR EXHAUST MUFFLERS | ||
| 138 | N 006319010302 | SPHERICAL WASHER |
| STRAP TO BRACKET | ||
| 139 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 139 | N 910113010000 | NUT |
| STRAP TO BRACKET | ||
| 140 | N 000933012151 | SCREW |
| Repalced by: N 304017012022 | ||
| 140 | N 304017012022 | SCREW |
| SUPPORT TO CROSS MEMBER | ||
| M 12X1.5X30 | ||
| 140 | N 304017012022 | SCREW |
| SUPPORT TO CROSS MEMBER | ||
| M 12X1.5X30 | ||
| 141 | N 910113012002 | NUT |
| SUPPORT TO CROSS MEMBER | ||
| 141 | N 910113012002 | NUT |
| SUPPORT TO CROSS MEMBER | ||
| 144 | N 000933010157 | SCREW |
| SUPPORT TO CROSS MEMBER | ||
| M 10X28 | ||
| 144 | N 000933010157 | SCREW |
| SUPPORT TO CROSS MEMBER | ||
| M 10X28 | ||
| 148 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 148 | N 304017010002 | SCREW |
| SUPPORT TO FRAME | ||
| M 10X30 | ||
| 152 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 152 | N 910113010000 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 152 | N 910113010000 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 152 | N 910113010000 | NUT |
| SUPPORT TO CROSS MEMBER | ||
| 153 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 153 | N 304017008027 | SCREW |
| SUPPORT TO FRAME | ||
| M 8X30 | ||
| 154 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 154 | N 913004008001 | NUT |
| SUPPORT TO FRAME | ||
| 156 | A 6174920141 | BRACKET |
| FRONT EXHAUST MUFFLER | ||
| 156 | A 6174920141 | BRACKET |
| FRONT EXHAUST MUFFLER | ||
| 158 | A 6174922841 | BRACKET |
| FRONT AND REAR EXHAUST MUFFLERS | ||
| 160 | A 6174920241 | BRACKET |
| REAR EXHAUST MUFFLER | ||
| 160 | A 6174920241 | BRACKET |
| REAR EXHAUST MUFFLER | ||
| 160 | A 6174923441 | BRACKET |
| REAR EXHAUST MUFFLER | ||
| 160 | A 6174922741 | BRACKET |
| REAR EXHAUST MUFFLER | ||
| 161 | A 6174910441 | BRACKET |
| Repalced by: A 6524912141 | ||
| 161 | A 6524912141 | BRACKET |
| EXHAUST MUFFLER | ||
| 162 | A 6174900340 | BRACKET |
| EXHAUST MUFFLER | ||
| 163 | N 000961014028 | SCREW |
| BRACKET TO FRAME | ||
| M 14X40 | ||
| 163 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 163 | N 308676014020 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 14X35 | ||
| N 000961014100 | SCREW | |
| BRACKET TO SIDE MEMBER | ||
| M 14X30 | ||
| 164 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 164 | N 910113014001 | NUT |
| BRACKET TO FRAME | ||
| 165 | N 912004014100 | LOCK WASHER |
| BRACKET TO SIDE MEMBER | ||
| 166 | A 6174900042 | STRAP |
| EXHAUST MUFFLER TO BRACKET | ||
| 167 | N 006319010302 | SPHERICAL WASHER |
| STRAP TO BRACKET | ||
| 168 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 168 | N 910113010000 | NUT |
| STRAP TO BRACKET | ||
| 169 | A 3814920082 | DAMPING PAD |
| FRONT AND REAR EXHAUST MUFFLERS | ||
| 169 | A 3814920082 | DAMPING PAD |
| FRONT AND REAR EXHAUST MUFFLERS | ||
| 172 | A 6174910340 | CLAMP |
| Repalced by: A 6174910540 | ||
| 172 | A 6174910540 | CLAMP |
| EXHAUST MUFFLER TO BRACKET,FRONT AND REAR | ||
| 174 | A 6174910440 | CLAMP |
| EXHAUST MUFFLER TO BRACKET,FRONT AND REAR | ||
| 174 | A 6174900041 | CLAMP |
| EXHAUST MUFFLER TO BRACKET,FRONT AND REAR | ||
| 176 | N 000933010094 | SCREW |
| EXHAUST MUFFLER TO BRACKET,FRONT AND REAR | ||
| M 10X40 | ||
| 176 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 176 | N 304017010002 | SCREW |
| EXHAUST MUFFLER TO BRACKET,FRONT AND REAR | ||
| M 10X30 | ||
| 176 | N 304017010002 | SCREW |
| EXHAUST MUFFLER TO BRACKET,FRONT AND REAR | ||
| M 10X30 | ||
| 180 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 180 | N 910113010000 | NUT |
| EXHAUST MUFFLER TO BRACKET,FRONT AND REAR | ||
| 180 | N 910113010000 | NUT |
| EXHAUST MUFFLER TO BRACKET,FRONT AND REAR | ||
| 184 | A 6174920004 | REAR EXHAUST PIPE |
| Repalced by: A 6174920204 | ||
| 184 | A 6174920204 | REAR EXHAUST PIPE |
| 184 | A 6174920204 | REAR EXHAUST PIPE |
| A 6174920204 | REAR EXHAUST PIPE | |
| Repalced by: A 6174920914 | ||
| 186 | A 6174920914 | END PIECE |
| 188 | A 6174920014 | END PIECE |
| 190 | A 6194921204 | REAR EXHAUST PIPE |
| TAIL PIPE,FRONT | ||
| 192 | A 3974920404 | REAR EXHAUST PIPE |
| 196 | A 6174920514 | END PIECE |
| 196 | A 6174920604 | REAR EXHAUST PIPE |
| 198 | A 6194922004 | REAR EXHAUST PIPE |
| TAIL PIPE,FRONT | ||
| 199 | A 6194922104 | REAR EXHAUST PIPE |
| TAIL PIPE,FRONT | ||
| 200 | A 6174920114 | END PIECE |
| LONG;EXHAUST MUFFLER,RIGHT | ||
| 202 | A 6174921214 | END PIECE |
| LONG;EXHAUST MUFFLER,RIGHT | ||
| 204 | A 6174920214 | END PIECE |
| SHORT;EXHAUST MUFFLER,LEFT | ||
| 205 | A 6174921314 | END PIECE |
| SHORT;EXHAUST MUFFLER,LEFT | ||
| 205 | A 6174921314 | END PIECE |
| SHORT;EXHAUST MUFFLER,RIGHT | ||
| 206 | A 6174921814 | END PIECE |
| LONG;EXHAUST MUFFLER,LEFT | ||
| 208 | A 6174920714 | END PIECE |
| SHORT;EXHAUST MUFFLER,LEFT | ||
| 208 | A 6174920714 | END PIECE |
| SHORT;EXHAUST MUFFLER,RIGHT | ||
| 210 | A 6174923314 | END PIECE |
| 212 | A 6174920814 | END PIECE |
| LONG;EXHAUST MUFFLER,RIGHT | ||
| 212 | A 6174922414 | END PIECE |
| LONG;EXHAUST MUFFLER,LEFT | ||
| 214 | A 6174923414 | END PIECE |
| LONG;EXHAUST MUFFLER,RIGHT | ||
| 214 | A 6174923514 | END PIECE |
| LONG;EXHAUST MUFFLER,LEFT | ||
| A 6214921004 | REAR EXHAUST PIPE | |
| 220 | N 071555090501 | CLAMP |
| Repalced by: N 071555090502 | ||
| 220 | N 071555090502 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 90.5 MM | ||
| 224 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 224 | N 304017010002 | SCREW |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 228 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 228 | N 910113010000 | NUT |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 232 | A 3814910416 | SUPPORT |
| REAR EXHAUST PIPE | ||
| 236 | A 3814920316 | SUPPORT |
| REAR EXHAUST PIPE | ||
| 236 | A 3814910616 | SUPPORT |
| REAR EXHAUST PIPE | ||
| 236 | A 3814910616 | SUPPORT |
| REAR EXHAUST PIPE | ||
| 236 | A 3814910616 | SUPPORT |
| REAR EXHAUST PIPE | ||
| 238 | A 6174920716 | SUPPORT |
| REAR EXHAUST PIPE | ||
| 239 | A 3814910516 | SUPPORT |
| REAR EXHAUST PIPE | ||
| 239 | A 3814910516 | SUPPORT |
| REAR EXHAUST PIPE | ||
| 239 | A 6174920616 | SUPPORT |
| REAR EXHAUST PIPE | ||
| 240 | A 3464920841 | BRACKET |
| REAR EXHAUST PIPE | ||
| 241 | A 6214920341 | BRACKET |
| SUPPORT TO SIDE MEMBER | ||
| 242 | A 6214920441 | BRACKET |
| SUPPORT TO SIDE MEMBER | ||
| 243 | A 3834921041 | BRACKET |
| SUPPORT TO SIDE MEMBER | ||
| 244 | N 000933010145 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 10X35 | ||
| 244 | N 000933010145 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 10X35 | ||
| 244 | N 000933010094 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 10X40 | ||
| 244 | N 000933010328 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 10X45 | ||
| 244 | N 000933008150 | SCREW |
| Repalced by: N 304017008018 | ||
| 244 | N 304017008018 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M8X35 | ||
| 244 | N 304017008018 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M8X35 | ||
| 246 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 246 | N 304017008027 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 8X30 | ||
| 246 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 246 | N 304017008034 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 8X25 | ||
| 246 | N 304017008034 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 8X25 | ||
| 247 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 247 | N 000125010532 | WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 248 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 248 | N 913004008001 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 248 | N 913004008001 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 248 | N 913004008001 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 248 | N 913004008001 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 248 | N 913004008001 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 248 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 248 | N 910113010000 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 248 | N 910113010000 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 260 | A 6174920941 | BRACKET |
| TAIL PIPE,FRONT | ||
| 261 | A 6194921041 | BRACKET |
| TAIL PIPE,FRONT | ||
| 262 | A 6194921341 | BRACKET |
| TAIL PIPE,FRONT | ||
| 263 | A 6214921741 | BRACKET |
| Repalced by: A 6244920741 | ||
| 263 | A 6244920741 | BRACKET |
| TAIL PIPE,FRONT | ||
| 264 | A 3814920082 | DAMPING PAD |
| TAIL PIPE TO BRACKET | ||
| 264 | A 3814920082 | DAMPING PAD |
| TAIL PIPE TO BRACKET | ||
| 268 | A 3954920040 | CLAMP |
| Repalced by: A 6454921140 | ||
| 268 | A 6454921140 | CLAMP |
| TAIL PIPE TO BRACKET | ||
| 270 | N 071555090501 | CLAMP |
| Repalced by: N 071555090502 | ||
| 270 | N 071555090502 | CLAMP |
| TAIL PIPE TO BRACKET | ||
| 272 | N 000933010105 | SCREW |
| TAIL PIPE TO BRACKET | ||
| 272 | N 000933010105 | SCREW |
| BRACKET TO HYDRAULIC PUMP BRACKET | ||
| 272 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 272 | N 304017010002 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 272 | N 304017010002 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 272 | N 304017010002 | SCREW |
| TAIL PIPE,FRONT | ||
| 276 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 276 | N 910113010000 | NUT |
| TAIL PIPE,FRONT | ||
| 276 | N 910113010000 | NUT |
| TAIL PIPE,FRONT | ||
| 276 | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 276 | N 910113010000 | NUT |
| TAIL PIPE,FRONT | ||
| 276 | N 910113010000 | NUT |
| BRACKET TO HYDRAULIC PUMP BRACKET | ||
| 278 | A 6164920141 | BRACKET |
| Repalced by: A 6164920241 | ||
| 278 | A 6164920241 | BRACKET |
| REAR EXHAUST PIPE TO SUPPORT | ||
| 280 | A 6174920841 | BRACKET |
| Repalced by: A 6174926341 | ||
| A 6174925441 | BRACKET | |
| Repalced by: A 6174922341 | ||
| A 6174923741 | BRACKET | |
| Repalced by: A 6174922341 | ||
| 280 | A 6174922241 | BRACKET |
| Repalced by: A 6174922341 | ||
| 280 | A 6174922341 | BRACKET |
| Repalced by: A 6174926341 | ||
| 280 | A 6174926341 | BRACKET |
| REAR EXHAUST PIPE TO SUPPORT | ||
| 284 | A 6174922441 | BRACKET |
| Repalced by: A 6164920241 | ||
| 284 | A 6164920241 | BRACKET |
| REAR EXHAUST PIPE TO SUPPORT | ||
| 284 | A 6174922541 | BRACKET |
| Repalced by: A 6164923241 | ||
| 284 | A 6174923241 | BRACKET |
| REAR EXHAUST PIPE TO SUPPORT | ||
| 288 | A 6174920140 | CLAMP |
| REAR EXHAUST PIPE TO SUPPORT | ||
| 292 | A 0019875340 | RUBBER BUFFER |
| REAR EXHAUST PIPE TO SUPPORT | ||
| 292 | A 0019875340 | RUBBER BUFFER |
| REAR EXHAUST PIPE TO SUPPORT | ||
| 292 | A 0019875340 | RUBBER BUFFER |
| REAR EXHAUST PIPE TO SUPPORT | ||
| 296 | N 000933010105 | SCREW |
| REAR EXHAUST PIPE TO SUPPORT | ||
| 296 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 296 | N 304017010002 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| 300 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 300 | N 910113010000 | NUT |
| REAR EXHAUST PIPE TO SUPPORT | ||
| 300 | N 910113010000 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
| 304 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 304 | N 304017008034 | SCREW |
| CLAMP TO BRACKET | ||
| 308 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 308 | N 913004008001 | NUT |
| CLAMP TO BRACKET | ||
| 312 | N 000934010014 | NUT |
| RUBBER BUFFER TO BRACKET | ||
| 312 | N 000934010014 | NUT |
| RUBBER BUFFER TO BRACKET | ||
| 312 | N 000934010014 | NUT |
| RUBBER BUFFER TO BRACKET | ||
| 316 | N 912004010102 | LOCK WASHER |
| RUBBER BUFFER TO BRACKET | ||
| 316 | N 912004010102 | LOCK WASHER |
| RUBBER BUFFER TO BRACKET | ||
| 316 | N 912004010102 | LOCK WASHER |
| RUBBER BUFFER TO BRACKET | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| PARTICLE FILTER RETROFIT KIT | ||
| A 6524900049 | TANK | |
| A 0004910235 | RESERVOIR | |
| A 0004920011 | COVER | |
| ACTIVATING AGENT RESERVOIR | ||
| A 0004920080 | FLANGE GASKET | |
| FILLER CAP | ||
| A 0189975348 | SEAL RING | |
| LINE CONNECTION | ||
| A 0004910181 | VALVE | |
| A 0004910581 | VALVE | |
| A 6524920430 | PROTECTIVE PLATE | |
| A 0035453714 | SWITCH | |
| Repalced by: A 0035455714 | ||
| A 0035455714 | SWITCH | |
| A 0009841636 | LOCKING PIN | |
| A 0039975336 | VALVE | |
| "WABCO" | ||
| A 0049972836 | VALVE | |
| "KNORR" | ||
| A 0049972736 | VALVE | |
| "BOSCH" | ||
| A 0034305481 | GASKET KIT | |
| KNORR | ||
| A 0069972572 | FITTING | |
| A 0069972472 | FITTING | |
| A 6524920018 | BASE PLATE | |
| A 6524900130 | PROTECTIVE PLATE | |
| A 6524901440 | BRACKET | |
| N 000931008246 | SCREW | |
| Repalced by: N 304017008028 | ||
| N 304017008028 | SCREW | |
| M 8X50 | ||
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| M 8X20 | ||
| N 000933008212 | SCREW | |
| Repalced by: N 304017008016 | ||
| N 304017008016 | SCREW | |
| M 8X16 | ||
| N 007985004136 | SCREW | |
| M 4X12 | ||
| N 912004008102 | LOCK WASHER | |
| N 913004008004 | NUT | |
| Repalced by: N 913004008001 | ||
| N 913004008001 | NUT | |
| N 913004004002 | NUT | |
| Repalced by: N 913002004001 | ||
| N 913002004001 | NUT | |
| A 0089976082 | HOSE | |
| Repalced by: A 0009872627 | ||
| A 0009872627 | PLASTIC PIPE | |
| 4X6 MM | ||
| N 915052004015 | BANJO UNION | |
| N 915017006100 | UNION NUT | |
| N 003861006007 | GLAND | |
| Repalced by: A 0019901667 | ||
| A 0019901667 | SEAL CONE | |
| N 915062004001 | SLEEVE | |
| A 6524901266 | LINE | |
| Repalced by: A 6524910837 | ||
| A 6524910837 | LINE | |
| N 003901006007 | SCREW-IN FITTING | |
| N 003902006103 | CONNECTION FITTING | |
| N 915035000022 | SEAL RING | |
| A 0005400624 | DIODE CASE | |
| A 0009890050 | ACTIVATING AGENT | |
| Repalced by: A 0009890250 | ||
| A 0009890250 | ACTIVATING AGENT | |
| A 0015451815 | TELL-TALE LAMP | |
| A 0029908070 | FITTING | |
| A 0085450690 | LENS | |
| A 0095453532 | CONTROL UNIT | |
| N 071555078502 | CLAMP | |
| 78.5 | ||
| N 071555090501 | CLAMP | |
| Repalced by: N 071555090502 | ||
| N 071555090502 | CLAMP | |
| 90.5 | ||
| N 071555104501 | CLAMP | |
| 104.5 | ||
| A 3574900165 | FLEXIBLE METAL TUBE | |
| A 0009973175 | THREADED UNION | |
| A 4011423101 | EXHAUST MANIFOLD | |
| A 4011423201 | EXHAUST MANIFOLD | |
| A 6174900142 | STRAP | |
| A 6174911741 | BRACKET | |
| Repalced by: A 6524911641 | ||
| A 6524911641 | BRACKET | |
| A 6214900042 | STRAP | |
| Repalced by: A 6554900942 | ||
| A 6554900942 | STRAP | |
| A 6554900942 | STRAP | |
| A 6454901501 | EXHAUST MUFFLER | |
| A 6524900566 | LINE | |
| Repalced by: A 6524910037 | ||
| A 6524910037 | LINE | |
| A 6524901166 | LINE | |
| Repalced by: A 6524911537 | ||
| A 6524911537 | LINE | |
| A 6524902366 | LINE | |
| Repalced by: A 6524910037 | ||
| A 6524910037 | LINE | |
| A 6524910141 | BRACKET | |
| Repalced by: A 6524910741 | ||
| A 6524910741 | BRACKET | |
| A 3184923441 | BRACKET | |
| A 6524920008 | COLLAR | |
| A 6524921914 | END PIECE | |
| A 6525400009 | CABLE HARNESS | |
| A 0105422517 | SENDER UNIT | |
| A 6555421140 | BRACKET | |
| A 6565403337 | ELECTRIC CABLE | |
| A 6524921607 | CONNECTOR | |
| A 6524900031 | INTERMEDIATE PIECE | |
| A 6524910094 | SOOT FILTER | |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
