Transporto priemonė: 1622; VIN numerio dalis: 617027

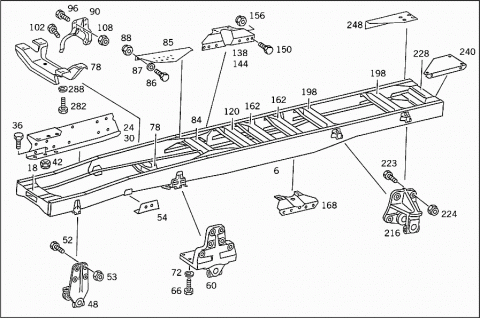

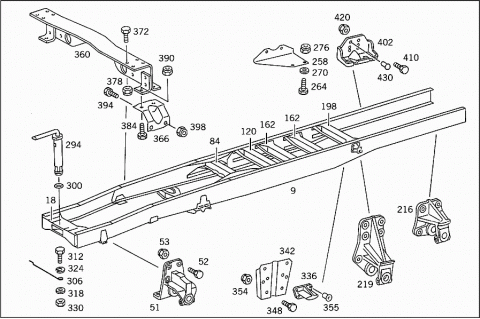

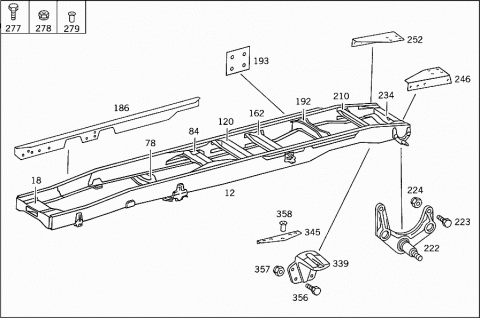

Grupė: 31 FRAME
| # | Kodas | Pavadinimas |
|---|---|---|
| 006 | A 6173103501 | FRAME |
| 006 | A 6173103601 | FRAME |
| 006 | A 6173102301 | FRAME |
| 006 | A 6173103701 | FRAME |
| 006 | A 6173102101 | FRAME |
| 006 | A 6173103801 | FRAME |
| 006 | A 6173103901 | FRAME |
| 006 | A 6173102601 | FRAME |
| 006 | A 6173102701 | FRAME |
| 009 | A 6173104101 | FRAME |
| 012 | A 6173104201 | FRAME |
| 012 | A 6173105702 | FRAME |
| 012 | A 6173104301 | FRAME |
| 012 | A 6173105802 | FRAME |
| 018 | A 3873100422 | CROSS MEMBER |
| FRONT | ||
| 024 | A 3853122187 | GUSSET PLATE |
| FRONT LEFT | ||
| 024 | A 3853122187 | GUSSET PLATE |
| FRONT LEFT | ||
| 024 | A 6173122087 | GUSSET PLATE |
| Repalced by: A 3873122087 | ||
| 024 | A 3873122087 | GUSSET PLATE |
| FRONT LEFT | ||
| 030 | A 3853122287 | GUSSET PLATE |
| FRONT RIGHT | ||
| 030 | A 3853122287 | GUSSET PLATE |
| FRONT RIGHT | ||
| 030 | A 6173122187 | GUSSET PLATE |
| Repalced by: A 6203120987 | ||
| 030 | A 6203120987 | GUSSET PLATE |
| 036 | N 000961012106 | SCREW |
| CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS | ||
| 036 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 036 | N 308676012012 | SCREW |
| BOTTOM GUSSET PLATE TO CROSS MEMBER | ||
| 042 | N 910113012002 | NUT |
| CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS | ||
| 042 | N 910113012002 | NUT |
| BOTTOM GUSSET PLATE TO CROSS MEMBER | ||
| 048 | A 3833220101 | FRONT SPRING BRACKET |
| FRONT | ||
| 051 | A 3833220001 | FRONT SPRING BRACKET |
| FRONT AND REAR | ||
| 052 | A 3589900414 | SCREW |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| M 14X42 | ||
| 053 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 053 | N 910113014000 | NUT |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| 054 | A 3833220131 | PLATE |
| HELPER SPRING | ||
| 054 | A 3833220231 | PLATE |
| HELPER SPRING | ||
| 060 | A 6173220003 | FRONT SPRING BRACKET |
| REAR | ||
| 060 | A 6173220103 | FRONT SPRING BRACKET |
| REAR | ||
| 066 | N 000961014154 | SCREW |
| FRONT SPRING REAR BRACKET TO CROSS MEMBER | ||
| 072 | N 912004014100 | LOCK WASHER |
| FRONT SPRING REAR BRACKET TO CROSS MEMBER | ||
| 078 | A 6163120310 | CROSS MEMBER |
| FRONT SPRING REAR BRACKET | ||
| NO.2 | ||
| 084 | A 3853100437 | CROSS MEMBER |
| Repalced by: A 3853120015 | ||
| 084 | A 3853120015 | CROSS MEMBER |
| NO.2 | ||
| 084 | A 3813120015 | CROSS MEMBER |
| NO.3 | ||
| 085 | A 6193120687 | GUSSET PLATE |
| Repalced by: A 3813120652 | ||
| 085 | A 3813120652 | ANGLE |
| TOP LEFT | ||
| 085 | A 6193120787 | GUSSET PLATE |
| Repalced by: A 3813120752 | ||
| 085 | A 3813120752 | ANGLE |
| TOP RIGHT | ||
| 086 | N 308676012010 | SCREW |
| CROSS MEMBER TO FRAME TRUSSING | ||
| M 12X40 | ||
| 087 | A 3859901040 | WASHER |
| CROSS MEMBER TO SIDE MEMBERS, TOP | ||
| 088 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 088 | N 910113012003 | NUT |
| CROSS MEMBER TO FRAME TRUSSING | ||
| 090 | A 6163120061 | STRUT |
| FRONT SPRING REAR BRACKET | ||
| 096 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 096 | N 308676014020 | SCREW |
| STRUT TO SIDE MEMBER | ||
| M 14X35 | ||
| 102 | N 000961014113 | SCREW |
| STRUT TO CROSS MEMBER | ||
| M 14X28 | ||
| 108 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 108 | N 910113014001 | NUT |
| STRUT TO CROSS AND SIDE MEMBERS | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 84 | ||
| 120 | A 3813120017 | CROSS MEMBER |
| REAR SPRING FRONT BRACKET | ||
| NO.3 | ||
| 120 | A 3813120017 | CROSS MEMBER |
| REAR SPRING FRONT BRACKET | ||
| NO.5 | ||
| 120 | A 3813120017 | CROSS MEMBER |
| REAR SPRING FRONT BRACKET | ||
| NO.6 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 168 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 86 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 88 | ||
| 138 | A 6173120352 | ANGLE |
| BOTTOM LEFT | ||
| 138 | A 6173120352 | ANGLE |
| BOTTOM LEFT | ||
| 138 | A 3813120252 | ANGLE |
| BOTTOM LEFT | ||
| 144 | A 6173120452 | ANGLE |
| BOTTOM RIGHT | ||
| 144 | A 6173120452 | ANGLE |
| BOTTOM RIGHT | ||
| 144 | A 3813120352 | ANGLE |
| BOTTOM RIGHT | ||
| 150 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 150 | N 308676012012 | SCREW |
| ANGLE TO CROSS MEMBER | ||
| M 12X25 | ||
| 156 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 156 | N 910113012003 | NUT |
| ANGLE TO CROSS MEMBER | ||
| 162 | A 6173120117 | CROSS MEMBER |
| INTERMEDIATE SHAFT BEARING | ||
| NO.4 | ||
| 162 | A 6173120117 | CROSS MEMBER |
| REAR SPRING FRONT BRACKET | ||
| NO.4 | ||
| 162 | A 6173120117 | CROSS MEMBER |
| INTERMEDIATE SHAFT BEARING | ||
| NO.5 | ||
| 162 | A 6173120017 | CROSS MEMBER |
| REAR SPRING FRONT BRACKET | ||
| NO.4 | ||
| 162 | A 6173120017 | CROSS MEMBER |
| INTERMEDIATE SHAFT BEARING | ||
| NO.4 | ||
| 162 | A 6173120017 | CROSS MEMBER |
| REAR SPRING FRONT BRACKET | ||
| NO.5 | ||
| 168 | A 3833120360 | REINFORCEMENT |
| INTERMEDIATE BEARING CROSS MEMBER | ||
| 168 | A 3833120360 | REINFORCEMENT |
| CROSS MEMBER AT REAR SPRING FRONT BRACKET | ||
| 168 | A 3833120360 | REINFORCEMENT |
| INTERMEDIATE BEARING CROSS MEMBER | ||
| 168 | A 3833120360 | REINFORCEMENT |
| CROSS MEMBER AT REAR SPRING REAR BRACKET | ||
| 168 | A 3523122360 | REINFORCEMENT |
| CROSS MEMBER AT REAR SPRING FRONT BRACKET | ||
| 168 | A 3523122360 | REINFORCEMENT |
| INTERMEDIATE BEARING CROSS MEMBER | ||
| A 3523120884 | SHIM | |
| Repalced by: A 6203121584 | ||
| A 6203121584 | SHIM | |
| CROSS MEMBER AT REAR SPRING FRONT BRACKET TO FRAME SIDE MEMBER | ||
| 186 | A 6173110953 | ANGLE |
| Repalced by: A 6173110353 | ||
| 186 | A 6173110353 | ANGLE |
| Repalced by: A 6173111553 | ||
| 186 | A 6173111553 | ANGLE |
| SADDLE PLATE,LEFT | ||
| 186 | A 6173110553 | ANGLE |
| Repalced by: A 6173110453 | ||
| 186 | A 6173110453 | ANGLE |
| Repalced by: A 6173111653 | ||
| 186 | A 6173111653 | ANGLE |
| SADDLE PLATE,RIGHT | ||
| 192 | A 6173100037 | CROSS MEMBER |
| SHOCK ABSORBER | ||
| NO.5 | ||
| 192 | A 6173100037 | CROSS MEMBER |
| SHOCK ABSORBER | ||
| NO.6 | ||
| 193 | A 6193120084 | SHIM |
| SHOCK ABSORBER CROSS MEMBER TO SIDE MEMBERS | ||
| 198 | A 3813120021 | CROSS MEMBER |
| Repalced by: A 6173120117 | ||
| 198 | A 6173120117 | CROSS MEMBER |
| REAR-SPRING REAR BRACKET | ||
| NO.6 | ||
| 198 | A 6173120117 | CROSS MEMBER |
| REAR-SPRING REAR BRACKET | ||
| NO.7 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 168 | ||
| 210 | A 6173100137 | CROSS MEMBER |
| NO.6 | ||
| 210 | A 6173100137 | CROSS MEMBER |
| NO.7 | ||
| A 3523250101 | REAR SPRING BRACKET | |
| Repalced by: A 6173250001 | ||
| 216 | A 6173250001 | REAR SPRING BRACKET |
| FRONT | ||
| 216 | A 3523250101 | REAR SPRING BRACKET |
| REAR | ||
| 219 | A 3803250001 | REAR SPRING BRACKET |
| FRONT | ||
| 222 | A 6173250103 | REAR SPRING BRACKET |
| REAR LEFT | ||
| 222 | A 6173250203 | REAR SPRING BRACKET |
| REAR RIGHT | ||
| 223 | A 3589900414 | SCREW |
| REAR SPRING FRONT BRACKET TO SIDE MEMBER | ||
| M 14X42 | ||
| 223 | A 3589901014 | SCREW |
| REAR SPRING FRONT BRACKET TO SIDE MEMBER | ||
| M 14X36 | ||
| 224 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 224 | N 910113014000 | NUT |
| REAR SPRING FRONT BRACKET TO SIDE MEMBER | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR SHOCK ABSORBER CROSS MEMBER, SEE GROUP 32 | ||
| 228 | A 3853100146 | CROSS MEMBER |
| Repalced by: A 3853100246 | ||
| 228 | A 3853100246 | CROSS MEMBER |
| REAR | ||
| 234 | A 6173120035 | CROSS MEMBER |
| Repalced by: A 6173120735 | ||
| 234 | A 6173120735 | CROSS MEMBER |
| Repalced by: A 6553120335 | ||
| 234 | A 6553120335 | CROSS MEMBER |
| REAR | ||
| 240 | A 3853121087 | GUSSET PLATE |
| TOP LEFT | ||
| 240 | A 3853121087 | GUSSET PLATE |
| BOTTOM RIGHT | ||
| 240 | A 6193120087 | GUSSET PLATE |
| TOP LEFT | ||
| 240 | A 6193120087 | GUSSET PLATE |
| BOTTOM RIGHT | ||
| 240 | A 6193120087 | GUSSET PLATE |
| TOP RIGHT | ||
| 246 | A 6173120087 | GUSSET PLATE |
| TOP LEFT | ||
| 246 | A 6173120987 | GUSSET PLATE |
| TOP LEFT | ||
| 248 | A 6193120187 | GUSSET PLATE |
| TOP RIGHT | ||
| 248 | A 6193120187 | GUSSET PLATE |
| BOTTOM LEFT | ||
| 248 | A 6193120187 | GUSSET PLATE |
| TOP LEFT | ||
| 248 | A 3853120987 | GUSSET PLATE |
| TOP RIGHT | ||
| 248 | A 3853120987 | GUSSET PLATE |
| BOTTOM LEFT | ||
| 252 | A 6173120187 | GUSSET PLATE |
| TOP RIGHT | ||
| 252 | A 6173121087 | GUSSET PLATE |
| TOP RIGHT | ||
| 258 | A 6173120287 | GUSSET PLATE |
| BOTTOM LEFT | ||
| 258 | A 6173120387 | GUSSET PLATE |
| BOTTOM RIGHT | ||
| 264 | N 000961012205 | SCREW |
| GUSSET PLATES AND AUXILIARY FRAME TO SIDE MEMBERS | ||
| M 12X50 | ||
| 264 | N 000961012106 | SCREW |
| GUSSET PLATES AND AUXILIARY FRAME TO SIDE MEMBERS | ||
| M 12X35 | ||
| 270 | A 3859901040 | WASHER |
| GUSSET PLATES AND AUXILIARY FRAME TO SIDE MEMBERS | ||
| 276 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 276 | N 910113012003 | NUT |
| GUSSET PLATE TO SIDE MEMBER | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| MOUNTING USED FOR FRAME CONNECTION PARTS | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| DIMENSIONS ARE INDICATED IN THE FOLLOWING ORDER: | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| THREAD X SHANK DIA. X SHANK LENGTH X TOTAL LENGTH | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 277 | N 000609010004 | FITTED SCREW |
| M 10X11X14X28 | ||
| 277 | N 000610010003 | FITTED SCREW |
| M 10X11X25X38 | ||
| 277 | N 000609010014 | FITTED SCREW |
| M 10X11X24X40 | ||
| 277 | A 3859900514 | SCREW |
| M 10X11X26,5X46 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 277 | A 3859900714 | SCREW |
| M 12X12X10X25 | ||
| 277 | A 3859901414 | SCREW |
| M 12X12X11X26 | ||
| 277 | A 0039900901 | SCREW |
| Repalced by: A 0029908201 | ||
| 277 | A 0029908201 | SCREW |
| M 12X12X12X28 | ||
| 277 | A 3859901514 | SCREW |
| M 12X12X13X28 | ||
| 277 | A 0029908201 | SCREW |
| M 12X12X14X30 | ||
| 277 | A 3859902114 | SCREW |
| M 12X12X15X30 | ||
| 277 | A 0029908301 | SCREW |
| Repalced by: N 308676012013 | ||
| 277 | N 308676012013 | SCREW |
| M 12X12X16X32 | ||
| 277 | A 3859902214 | SCREW |
| M 12X12X17X32 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 277 | A 6209900114 | SCREW |
| M 12X13X12X29 | ||
| 277 | A 3969900314 | SCREW |
| M 12X13X13X30 | ||
| 277 | A 3589901914 | SCREW |
| M 12X13X15X32 | ||
| 277 | A 3559900014 | SCREW |
| M 12X13X18X35 | ||
| 277 | A 3589900614 | SCREW |
| M 12X13X21X38 | ||
| 277 | A 6179900114 | SCREW |
| M 12X13X23X40 | ||
| 277 | A 6249900014 | SCREW |
| M 12X13X25X42 | ||
| 277 | A 3859900214 | SCREW |
| M 12X13X35X52 | ||
| 277 | A 6689900114 | SCREW |
| M 12X13X58X80 | ||
| 277 | A 6689900014 | SCREW |
| M 12X13X63X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 277 | A 3859900814 | SCREW |
| Repalced by: A 3229903101 | ||
| 277 | A 3229903101 | SCREW |
| M 14X14X18X32 | ||
| 277 | A 3859902014 | SCREW |
| M 14X14X18X34 | ||
| 277 | A 3559900114 | SCREW |
| M 12X14X13X35 | ||
| 277 | A 3219901601 | SCREW |
| M 14X14X17X35 | ||
| 277 | A 3219901901 | SCREW |
| M 14X14X22X40 | ||
| 277 | A 3559900501 | SCREW |
| M 14X14X24X42 | ||
| 277 | A 3409900201 | SCREW |
| M 14X14X27X45 | ||
| 277 | A 3609902001 | SCREW |
| M 14X14X32X50 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 277 | A 3589900114 | SCREW |
| M 14X15X15X32 | ||
| 277 | A 3589900814 | SCREW |
| M 14X15X17X34 | ||
| 277 | A 6459900014 | SCREW |
| M 14X15X18X35 | ||
| 277 | A 3589901014 | SCREW |
| M 14X15X19X36 | ||
| 277 | A 3589900214 | SCREW |
| M 14X15X21X38 | ||
| 277 | A 3589900414 | SCREW |
| M 14X15X25X42 | ||
| 277 | A 3589900714 | SCREW |
| M 14X15X27X44 | ||
| 277 | A 3589900914 | SCREW |
| M 14X15X29X46 | ||
| 277 | A 3859900414 | SCREW |
| M 14X15X31X48 | ||
| 277 | A 3859900314 | SCREW |
| M 14X15X35X52 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 277 | A 3859900914 | SCREW |
| Repalced by: N 308676016020 | ||
| 277 | N 308676016020 | SCREW |
| M 16X16X18X36 | ||
| 277 | A 3859901714 | SCREW |
| M 16X16X20X38 | ||
| 277 | A 3859901014 | SCREW |
| M 16X16X22X40 | ||
| 277 | A 3859901114 | SCREW |
| M 16X16X24X42 | ||
| 277 | A 0029909901 | SCREW |
| Repalced by: A 3959900501 | ||
| 277 | A 3959900501 | SCREW |
| M 16X16X20X45 | ||
| 277 | A 3859901814 | SCREW |
| M 16X16X30X48 | ||
| 277 | A 3859901914 | SCREW |
| M 16X16X32X50 | ||
| 277 | A 6259900301 | SCREW |
| M 16X16X38X90 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 277 | A 3589900514 | SCREW |
| M 16X17X22X42 | ||
| 277 | A 6459900714 | SCREW |
| M 16X17X24X44 | ||
| 277 | A 3609900114 | SCREW |
| M 16X17X28X48 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 277 | A 3469900014 | SCREW |
| M 16X18X18X40 | ||
| 277 | A 3859902314 | SCREW |
| M 18X18X23X45 | ||
| 277 | A 6209900014 | SCREW |
| M 16X18X26X48 | ||
| 277 | A 3469900114 | SCREW |
| M 16X18X31X50 | ||
| 277 | A 3859902414 | SCREW |
| M 18X18X33X55 | ||
| 277 | A 6229900014 | SCREW |
| M 16X18X38X60 | ||
| 277 | A 3919900014 | SCREW |
| M 16X18X63X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 277 | N 000610018004 | FITTED SCREW |
| M 18X19X25X45 | ||
| 277 | N 000610018009 | FITTED SCREW |
| M 18X19X33X55 | ||
| 277 | N 000610018006 | FITTED SCREW |
| M 18X19X38X60 | ||
| 277 | N 000609018000 | FITTED SCREW |
| M 18X19X57X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 278 | N 913004010011 | NUT |
| 278 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 278 | N 910113012003 | NUT |
| 278 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 278 | N 910113014000 | NUT |
| 278 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 278 | N 910113016001 | NUT |
| 278 | N 913004018004 | NUT |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 279 | N 910005010012 | RIVET |
| 10X24 MM | ||
| 279 | N 910005010014 | RIVET |
| 10X26 MM | ||
| 279 | N 910005010016 | RIVET |
| 10X28 MM | ||
| 279 | N 910005010020 | RIVET |
| 10X32 MM | ||
| 279 | N 910005012011 | RIVET |
| 12X24 MM | ||
| 279 | N 910005012012 | RIVET |
| 12X26 MM | ||
| 279 | N 910005012073 | RIVET |
| 12X28 MM | ||
| 279 | N 910005012080 | RIVET |
| 12X42 MM | ||
| 279 | N 910005014056 | RIVET |
| 14X45 MM | ||
| 279 | N 910005014059 | RIVET |
| 14X55 MM | ||
| 279 | N 910005014066 | RIVET |
| 14X70 MM | ||
| 282 | N 000961014100 | SCREW |
| FRONT SPRING REAR BRACKET TO CROSS MEMBER | ||
| 288 | N 912004014100 | LOCK WASHER |
| FRONT SPRING REAR BRACKET TO CROSS MEMBER | ||
| 294 | A 3873150106 | COUPLING PIN |
| FOR COUPLING MOUTH | ||
| 300 | A 0009874346 | SEALING CORD |
| FOR COUPLING MOUTH | ||
| 306 | A 3353150031 | LOCKING SPRING |
| COUPLING PIN | ||
| 312 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 312 | N 304017008034 | SCREW |
| LOCK SPRING TO CROSS MEMBER | ||
| 318 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 318 | N 000125008443 | WASHER |
| LOCK SPRING TO CROSS MEMBER | ||
| 324 | N 912004008102 | LOCK WASHER |
| LOCK SPRING TO CROSS MEMBER | ||
| 330 | N 304032008006 | NUT |
| LOCK SPRING TO CROSS MEMBER | ||
| 336 | A 6173250117 | HELPER SPRING BRACKET |
| Repalced by: A 6843250117 | ||
| 336 | A 6843250117 | HELPER SPRING BRACKET |
| IN FRONT OF,AND BEHIND,REAR AXLE | ||
| 336 | A 3893250117 | HELPER SPRING BRACKET |
| Repalced by: A 6843250017 | ||
| 339 | A 6843250017 | HELPER SPRING BRACKET |
| IN FRONT OF,AND BEHIND,REAR AXLE | ||
| 342 | A 3813250041 | STIFFENING |
| HELPER SPRING BRACKET | ||
| 342 | A 3583250041 | STIFFENING |
| HELPER SPRING BRACKET | ||
| 345 | A 6173250048 | ANGLE |
| HELPER SPRING BRACKET | ||
| 348 | A 0039900901 | SCREW |
| Repalced by: A 0029908201 | ||
| 348 | A 0029908201 | SCREW |
| STIFFENING TO FRAME | ||
| 348 | N 000961012106 | SCREW |
| STIFFENINGS AND AUXILIARY FRAME TO SIDE MEMBERS | ||
| 348 | N 000961012106 | SCREW |
| AUXILIARY FRAME TO FRAME | ||
| 354 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 354 | N 910113012003 | NUT |
| STIFFENING TO FRAME | ||
| 354 | N 910113012003 | NUT |
| AUXILIARY FRAME TO FRAME | ||
| 355 | N 910005012073 | RIVET |
| STIFFENING TO FRAME | ||
| 356 | A 6179900114 | SCREW |
| HELPER SPRING BRACKET TO SIDE MEMBER | ||
| M 12X40 | ||
| 356 | A 6179900614 | SCREW |
| HELPER SPRING BRACKET AND GUSSET PLATE TO SIDE MEMBER | ||
| M 12X48 | ||
| 357 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 357 | N 910113012003 | NUT |
| HELPER SPRING BRACKET TO SIDE MEMBER | ||
| 358 | N 910005012080 | RIVET |
| HELPER SPRING BRACKET TO SIDE MEMBER | ||
| 12X42 MM | ||
| 358 | N 910005012087 | RIVET |
| HELPER SPRING BRACKET TO SIDE MEMBER | ||
| 12X58 MM | ||
| 360 | A 3833100927 | CROSS MEMBER |
| TRANSFER CASE | ||
| 366 | A 6173120752 | ANGLE |
| AT FRAME | ||
| 372 | N 000961010037 | SCREW |
| TRANSFER CASE CROSS MEMBER TO FRAME | ||
| 378 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 378 | N 910113010000 | NUT |
| TRANSFER CASE CROSS MEMBER TO FRAME | ||
| 384 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 384 | N 308676012012 | SCREW |
| ANGLE TO FRAME | ||
| 390 | N 910113012002 | NUT |
| ANGLE TO FRAME | ||
| 394 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 394 | N 308676014020 | SCREW |
| TRANSFER CASE CROSS MEMBER TO FRAME | ||
| 398 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 398 | N 910113014001 | NUT |
| TRANSFER CASE CROSS MEMBER TO FRAME | ||
| 402 | A 3874030701 | SUPPORT |
| SPARE WHEEL MOUNTING | ||
| 410 | A 0029908201 | SCREW |
| SUPPORT TO FRAME | ||
| 420 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 420 | N 910113012003 | NUT |
| SUPPORT TO FRAME | ||
| 430 | N 910005012080 | RIVET |
| SUPPORT TO FRAME | ||
| 450 | A 3878912631 | CONSOLE |
| CAB MOUNTING,FRONT | ||
| 453 | A 6203170223 | STRUT |
| BUMPER,LEFT | ||
| 453 | A 6203170423 | STRUT |
| BUMPER,RIGHT | ||
| 456 | N 000961014101 | SCREW |
| Repalced by: N 308676014012 | ||
| 456 | N 308676014012 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| M 14X45 | ||
| 459 | N 000961014063 | SCREW |
| Repalced by: A 9429901304 | ||
| 459 | A 9429901304 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| M 14X40 | ||
| 462 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 462 | N 910113014000 | NUT |
| CONSOLE AND STRUT TO FRAME | ||
| 465 | A 3813106509 | BRACKET |
| CAB,LEFT | ||
| 465 | A 6208902103 | MOUNTING |
| CAB,LEFT | ||
| 465 | A 3813106609 | BRACKET |
| CAB, RIGHT | ||
| 465 | A 6208902203 | MOUNTING |
| CAB, RIGHT | ||

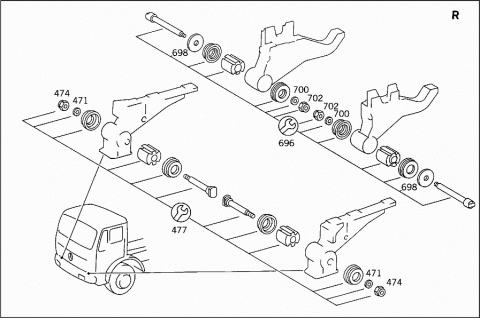

| 468 | A 3878902903 | MOUNTING |
| 468 | A 6208902003 | MOUNTING |
| 471 | N 007349017002 | WASHER |
| 474 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 474 | N 910113016002 | NUT |
| 477 | A 3815860031 | REPAIR KIT |
| CAB SUSPENSION,FRONT | ||
| 480 | N 000961014028 | SCREW |
| MOUNTING TO CAB | ||
| 483 | N 912004014100 | LOCK WASHER |
| MOUNTING TO CAB | ||
| 486 | N 000961014064 | SCREW |
| MOUNTING TO CAB | ||
| 489 | A 3209901840 | WASHER |
| MOUNTING TO CAB | ||
| 492 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 492 | N 910113014001 | NUT |
| MOUNTING TO CAB | ||
| 495 | N 000961014063 | SCREW |
| Repalced by: A 9429901304 | ||
| 495 | A 9429901304 | SCREW |
| MOUNTING TO CONSOLE | ||
| M 14X40 | ||
| 498 | N 000961014101 | SCREW |
| Repalced by: N 308676014012 | ||
| 498 | N 308676014012 | SCREW |
| MOUNTING TO CONSOLE | ||
| M 14X45 | ||
| 504 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 504 | N 910113014000 | NUT |
| MOUNTING TO CONSOLE | ||
| 507 | A 3813171201 | CONSOLE |
| VIBRATION ABSORBER TO FRAME | ||
| 510 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 510 | N 308676014020 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 513 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 513 | N 910113014001 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 516 | A 3813171926 | GUIDE |
| LEFT | ||
| 516 | A 3813172026 | GUIDE |
| RIGHT | ||
| 519 | N 000960012301 | SCREW |
| GUIDE TO CAB | ||
| 521 | N 912004012100 | LOCK WASHER |
| GUIDE TO CAB | ||
| 524 | A 3873170084 | SHIM |
| GUIDE TO CAB | ||
| 527 | A 3813170750 | BUSHING |
| LATERAL GUIDE OF CAB | ||
| 530 | A 3813170553 | SPACER TUBE |
| LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS | ||
| 533 | N 000960012230 | SCREW |
| LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS | ||
| 536 | N 910113012002 | NUT |
| LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS | ||
| 539 | A 3878901619 | SHOCK ABSORBER |
| Repalced by: A 3878901319 | ||
| 539 | A 3878901319 | SHOCK ABSORBER |
| (VIBRATION ABSORBER),CAB REAR SUSPENSION | ||
| 539 | A 3878901319 | SHOCK ABSORBER |
| (VIBRATION ABSORBER),CAB REAR SUSPENSION | ||
| 539 | A 6208900019 | SHOCK ABSORBER |
| Repalced by: A 6208900119 | ||
| 539 | A 6208900119 | SHOCK ABSORBER |
| (VIBRATION ABSORBER),CAB REAR SUSPENSION | ||
| 539 | A 6208900119 | SHOCK ABSORBER |
| (VIBRATION ABSORBER),CAB REAR SUSPENSION | ||
| 542 | A 0008910201 | RUBBER MOUNTING |
| TO 387 890 16 19,620 890 00 19 | ||
| 542 | A 0008900148 | JOINT |
| Repalced by: A 0008910301 | ||
| 542 | A 0008910301 | RUBBER MOUNTING |
| TO 620 890 01 19,387 890 13 19 | ||
| 545 | A 0008910751 | SPRING |
| Repalced by: A 0008910451 | ||
| 545 | A 0008910451 | SPRING |
| 545 | A 0008911051 | SPRING |
| TO 620 890 00 19 | ||
| 545 | A 0008911151 | SPRING |
| TO 620 890 01 19 | ||
| 546 | A 0008910123 | BUFFER |
| TO 620 890 00 19 | ||
| 548 | A 3813170753 | SPACER TUBE |
| SHOCK ABSORBER MOUNTING | ||
| 551 | A 3275045082 | RUBBER RING |
| SHOCK ABSORBER MOUNTING | ||
| 554 | N 000433015005 | WASHER |
| SHOCK ABSORBER MOUNTING | ||
| 557 | A 3878912010 | WASHER |
| SHOCK ABSORBER MOUNTING | ||
| 560 | N 000934012022 | NUT |
| SHOCK ABSORBER MOUNTING | ||
| 563 | N 001587012008 | CAP NUT |
| Repalced by: N 001587012010 | ||
| 563 | N 001587012010 | CAP NUT |
| SHOCK ABSORBER MOUNTING | ||
| 569 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 569 | N 304017008034 | SCREW |
| SHOCK ABSORBER TO CONSOLE | ||
| 572 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 572 | N 009021008213 | WASHER |
| SHOCK ABSORBER TO CONSOLE | ||
| 575 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 575 | N 913004008001 | NUT |
| SHOCK ABSORBER TO CONSOLE | ||
| 578 | A 3813177840 | BRACKET |
| VIBRATION ABSORBER TO CAB,LEFT | ||
| 578 | A 3813177940 | BRACKET |
| VIBRATION ABSORBER TO CAB,RIGHT | ||
| 581 | A 3813170097 | BOOT |
| SHOCK ABSORBER,TOP | ||
| 584 | N 000933010105 | SCREW |
| BRACKET AND BOOT TO SIDE MEMBER | ||
| 587 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 587 | N 000125010532 | WASHER |
| BRACKET AND BOOT TO SIDE MEMBER | ||
| 590 | N 912004010102 | LOCK WASHER |
| BRACKET AND BOOT TO SIDE MEMBER | ||
| 593 | A 3813102075 | LOCKING MECHANISM |
| CAB,LEFT | ||
| 593 | A 3813101975 | LOCKING MECHANISM |
| CAB, RIGHT | ||
| 596 | A 3813170119 | LATCH |
| 599 | A 3813172374 | PIN |
| 602 | A 3813170924 | LEVER |
| 605 | A 3813170676 | WASHER |
| 608 | A 0009935426 | DISC SPRING |
| 611 | N 001481006041 | CLAMPING SLEEVE |
| 614 | N 910113012002 | NUT |
| 617 | N 000933010105 | SCREW |
| LOCKING MECHANISM TO CAB | ||
| 620 | N 912004010102 | LOCK WASHER |
| LOCKING MECHANISM TO CAB | ||
| 623 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 623 | N 000125010532 | WASHER |
| LOCKING MECHANISM TO CAB | ||

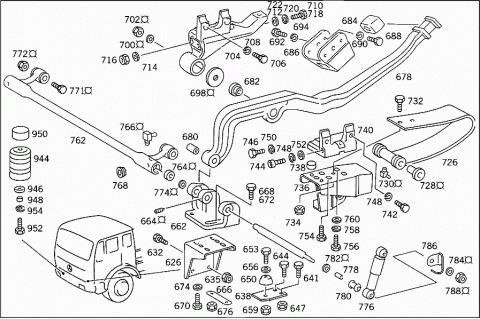

| 626 | A 3878912631 | CONSOLE |
| CAB MOUNTING,FRONT | ||
| 629 | A 6203170223 | STRUT |
| BUMPER,LEFT | ||
| 629 | A 6203100253 | STRUT |
| BUMPER,LEFT | ||
| 629 | A 6203170423 | STRUT |
| BUMPER,RIGHT | ||
| 629 | A 6203100353 | STRUT |
| BUMPER,RIGHT | ||
| 632 | N 000961014101 | SCREW |
| Repalced by: N 308676014012 | ||
| 632 | N 308676014012 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| M 14X45 | ||
| 632 | N 000961014063 | SCREW |
| Repalced by: A 9429901304 | ||
| 632 | A 9429901304 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| M 14X40 | ||
| 635 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 635 | N 910113014000 | NUT |
| CONSOLE AND STRUT TO FRAME | ||
| 638 | A 3878910914 | BRACKET |
| BUFFER | ||
| 641 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 641 | N 308676012026 | SCREW |
| BRACKET TO FRAME | ||
| M 12X35 | ||
| 644 | N 000961012151 | SCREW |
| BRACKET TO FRAME | ||
| M 12X30 | ||
| 647 | N 910113012002 | NUT |
| BRACKET TO FRAME | ||
| 650 | A 3348910072 | MOUNTING |
| (RUBBER BUFFER) | ||
| 653 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 653 | N 304017008034 | SCREW |
| BUFFER TO BRACKET | ||
| 656 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 656 | N 009021008213 | WASHER |
| BUFFER TO BRACKET | ||
| 659 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 659 | N 913004008001 | NUT |
| BUFFER TO BRACKET | ||
| 662 | A 3878916020 | MOUNTING |
| Repalced by: A 6558910320 | ||
| 662 | A 6558910320 | MOUNTING |
| CAB SUSPENSION,FRONT LEFT | ||
| 662 | A 3878913720 | MOUNTING |
| CAB SUSPENSION,FRONT LEFT | ||
| 662 | A 3878916120 | MOUNTING |
| Repalced by: A 6558910420 | ||
| 662 | A 6558910420 | MOUNTING |
| CAB SUSPENSION,FRONT RIGHT | ||
| 662 | A 3878913820 | MOUNTING |
| CAB SUSPENSION,FRONT RIGHT | ||
| 664 | N 000417008004 | HEADLESS SETSCREW |
| CAB SUSPENSION,FRONT RIGHT | ||
| 666 | A 3878910498 | SHIM |
| MOUNTING TO CONSOLE | ||
| 668 | N 000961014088 | SCREW |
| Repalced by: N 308676014008 | ||
| 668 | N 308676014008 | SCREW |
| MOUNTING TO CONSOLE | ||
| M 14X35 | ||
| 670 | N 000961014103 | SCREW |
| MOUNTING TO CONSOLE | ||
| M 14X55 | ||
| 672 | N 000961014008 | SCREW |
| Repalced by: N 308676014003 | ||
| 672 | N 308676014003 | SCREW |
| MOUNTING TO CONSOLE | ||
| M 14X30 | ||
| 674 | N 007349015003 | WASHER |
| MOUNTING TO CONSOLE | ||
| 676 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 676 | N 910113014000 | NUT |
| MOUNTING TO CONSOLE | ||
| 678 | A 3878912556 | LEVER |
| (TILTING LEVER),CAB | ||
| 678 | A 3878912856 | LEVER |
| (TILTING LEVER),CAB | ||
| 680 | A 3879920203 | BUSHING |
| LEVER | ||
| 680 | A 3879920003 | BUSHING |
| LEVER | ||
| 682 | A 6208910017 | BUSHING |
| LEVER | ||
| 684 | A 3638910023 | BUFFER |
| LEVER | ||
| A 3875860431 | REPAIR KIT | |
| Repalced by: A 3879920003 | ||
| A 3879920003 | BUSHING | |
| CAB MOUNTING | ||
| 686 | A 6208901603 | MOUNTING |
| TILTING LEVER TO CAB SIDE MEMBER | ||
| 688 | N 000933010105 | SCREW |
| MOUNTING TO CAB | ||
| 690 | N 912004010102 | LOCK WASHER |
| MOUNTING TO CAB | ||
| 692 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 692 | N 308676012012 | SCREW |
| MOUNTING TO CAB | ||
| 692 | N 308676012012 | SCREW |
| MOUNTING TO CAB | ||
| 694 | N 912004012100 | LOCK WASHER |
| MOUNTING TO CAB | ||
| 696 | A 6205860031 | REPAIR KIT |
| CAB SUSPENSION,FRONT | ||
| 698 | A 3873170376 | WASHER |
| CAB SUSPENSION,FRONT | ||
| 700 | N 007349017002 | WASHER |
| CAB SUSPENSION,FRONT | ||
| 702 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 702 | N 910113016002 | NUT |
| CAB SUSPENSION,FRONT | ||
| 704 | A 3878916420 | MOUNTING |
| CAB SUSPENSION,FRONT LEFT | ||
| 704 | A 3878916520 | MOUNTING |
| CAB SUSPENSION,FRONT RIGHT | ||
| 706 | N 000960012189 | SCREW |
| Repalced by: N 308676012031 | ||
| 706 | N 308676012031 | SCREW |
| Repalced by: N 308676012011 | ||
| 706 | N 308676012011 | SCREW |
| MOUNTING TO CAB | ||
| 708 | N 912004012100 | LOCK WASHER |
| MOUNTING TO CAB | ||
| 710 | N 000960014167 | SCREW |
| Repalced by: N 000961014064 | ||
| 710 | N 000961014064 | SCREW |
| MOUNTING TO CAB | ||
| 712 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 712 | N 000125015019 | WASHER |
| MOUNTING TO CAB | ||
| 714 | A 3209901840 | WASHER |
| MOUNTING TO CAB | ||
| 716 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 716 | N 910113014001 | NUT |
| MOUNTING TO CAB | ||
| 718 | N 000961014054 | SCREW |
| MOUNTING TO CAB | ||
| M 14X45 | ||
| 718 | N 000961014028 | SCREW |
| MOUNTING TO CAB | ||
| M 14X40 | ||
| 720 | N 912004014100 | LOCK WASHER |
| MOUNTING TO CAB | ||
| 722 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 722 | N 000125015019 | WASHER |
| MOUNTING TO CAB | ||
| 724 | A 3873100077 | REPAIR KIT |
| CAB SUSPENSION,FRONT | ||
| 726 | A 3878910551 | SPRING |
| (LEAF SPRING),CAB SUSPENSION | ||
| 728 | A 3638910617 | BUSHING |
| LEAF SPRING | ||
| 730 | N 071412008200 | GREASE NIPPLE |
| LEAF SPRING | ||
| 732 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 732 | N 304017008034 | SCREW |
| (LEAF SPRING),CAB SUSPENSION | ||
| 734 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 734 | N 913004008001 | NUT |
| (LEAF SPRING),CAB SUSPENSION | ||
| 736 | A 6218900203 | MOUNTING |
| Repalced by: A 6218900403 | ||
| 736 | A 6218900403 | MOUNTING |
| STABILIZER TO CAB,LEFT | ||
| 736 | A 6218900303 | MOUNTING |
| Repalced by: A 6218900503 | ||
| 736 | A 6218900503 | MOUNTING |
| STABILIZER TO CAB,RIGHT | ||
| 738 | A 6218910157 | PIN |
| 740 | A 6208910631 | CONSOLE |
| CAB SUSPENSION,FRONT LEFT | ||
| 740 | A 6208910731 | CONSOLE |
| CAB SUSPENSION,FRONT RIGHT | ||
| 742 | N 000961012069 | SCREW |
| Repalced by: N 308676012015 | ||
| 742 | N 308676012015 | SCREW |
| LEFT AND RIGHT CONSOLES TO CAB | ||
| M 12X45 | ||
| 744 | N 006912012013 | SCREW |
| LEFT AND RIGHT CONSOLES TO CAB | ||
| M 12X30 | ||
| 746 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 746 | N 308676014020 | SCREW |
| LEFT AND RIGHT CONSOLES TO CAB | ||
| 748 | N 912004012100 | LOCK WASHER |
| LEFT AND RIGHT CONSOLES TO CAB | ||
| 750 | N 912004014100 | LOCK WASHER |
| LEFT AND RIGHT CONSOLES TO CAB | ||
| 752 | A 3609900940 | WASHER |
| LEFT AND RIGHT CONSOLES TO CAB | ||
| 754 | N 000961014028 | SCREW |
| MOUNTING WITH LEAF SPRING TO CAB | ||
| M 14X40 | ||
| 756 | N 000960014138 | SCREW |
| Repalced by: N 000961014084 | ||
| 756 | N 000961014084 | SCREW |
| Repalced by: N 000961014148 | ||
| 756 | N 000961014148 | SCREW |
| MOUNTING WITH LEAF SPRING TO CAB | ||
| M 14X75 | ||
| 758 | N 912004014100 | LOCK WASHER |
| MOUNTING WITH LEAF SPRING TO CAB | ||
| 760 | N 007349015003 | WASHER |
| MOUNTING WITH LEAF SPRING TO CAB | ||
| 762 | A 6218900304 | STABILIZER |
| Repalced by: A 6528900104 | ||
| 762 | A 6528900104 | STABILIZER |
| CAB SUSPENSION,FRONT | ||
| 764 | A 0009817331 | JOINT BEARING |
| Repalced by: A 0009817231 | ||
| 764 | A 0009817231 | JOINT BEARING |
| Repalced by: A 0019814631 | ||
| 764 | A 0019814631 | JOINT BEARING |
| A 0019814831 | JOINT BEARING | |
| 766 | N 071412008200 | GREASE NIPPLE |
| 768 | N 000906010003 | SCREW PLUG |
| STABILIZER | ||
| 770 | A 3875860531 | REPAIR KIT |
| CAB FRONT SUSPENSION STABILIZER | ||
| 770 | A 6203100177 | REPAIR KIT |
| CAB FRONT SUSPENSION STABILIZER | ||
| 771 | N 000960014245 | SCREW |
| STABILIZER TO BEARING BRACKET | ||
| 772 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 772 | N 910113014001 | NUT |
| STABILIZER TO BEARING BRACKET | ||
| 774 | A 3878911910 | WASHER |
| STABILIZER TO BEARING BRACKET | ||
| 776 | A 0008911805 | SHOCK ABSORBER |
| CAB SUSPENSION,FRONT | ||
| 778 | A 0008910317 | BUSHING |
| Repalced by: A 0009810617 | ||
| 778 | A 0008910617 | BUSHING |
| 780 | A 0008910501 | RUBBER MOUNTING |
| 782 | A 3873170176 | WASHER |
| Repalced by: A 6203170176 | ||
| 782 | A 6203170176 | WASHER |
| SHOCK ABSORBER TO CONSOLE AND TO CAB | ||
| 784 | A 3873170276 | WASHER |
| Repalced by: N 000125013008 | ||
| 784 | N 000125013008 | WASHER |
| 784 | N 000125013008 | WASHER |
| 786 | A 6208900332 | BOW |
| SHOCK ABSORBER,BOTTOM LEFT | ||
| 788 | N 910113012002 | NUT |
| SHOCK ABSORBER TO CONSOLE AND TO CAB | ||

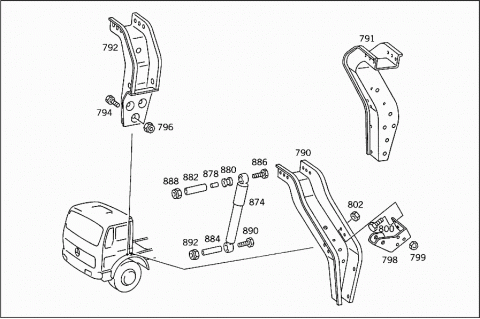

| 790 | A 3878911531 | CONSOLE |
| CAB SUSPENSION,REAR LEFT | ||
| 791 | A 3878911631 | CONSOLE |
| CAB SUSPENSION,REAR RIGHT | ||
| 792 | A 3878911731 | CONSOLE |
| CAB SUSPENSION,REAR | ||
| 794 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 794 | N 308676014020 | SCREW |
| CONSOLE TO FRAME | ||
| M 14X35 | ||
| 794 | N 000961014028 | SCREW |
| CONSOLE TO FRAME | ||
| M 14X40 | ||
| 796 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 796 | N 910113014001 | NUT |
| CONSOLE TO FRAME | ||
| 798 | A 3878908303 | MOUNTING |
| Repalced by: A 3878918520 | ||
| 798 | A 3878918520 | MOUNTING |
| LEFT VIBRATION ABSORBER | ||
| 798 | A 3878908403 | MOUNTING |
| Repalced by: A 3878918620 | ||
| 798 | A 3878918620 | MOUNTING |
| RIGHT VIBRATION ABSORBER | ||
| 799 | N 000439018210 | NUT |
| SHOCK ABSORBER TO CONSOLE | ||
| 800 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 800 | N 308676012012 | SCREW |
| MOUNTING TO CONSOLE | ||
| 802 | N 910113012002 | NUT |
| MOUNTING TO CONSOLE | ||

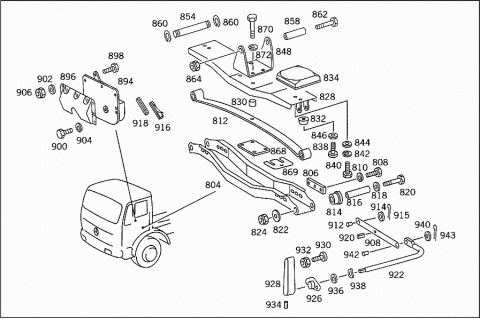

| 804 | A 3878910024 | STRUT |
| Repalced by: A 6558910224 | ||
| 804 | A 6558910224 | STRUT |
| CAB MOUNTING,REAR | ||
| 806 | A 3878910198 | SHIM |
| STRUT TO CONSOLE | ||
| 808 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 808 | N 308676012012 | SCREW |
| STRUT TO CONSOLE | ||
| 810 | N 912004012100 | LOCK WASHER |
| STRUT TO CONSOLE | ||
| 812 | A 3878911051 | SPRING |
| CAB SUSPENSION,REAR | ||
| 814 | A 3638910717 | BUSHING |
| SPRING TO STRUT | ||
| 816 | A 3638910218 | TUBE |
| SPRING TO STRUT | ||
| 818 | A 3638910010 | WASHER |
| SPRING TO STRUT | ||
| 820 | N 000960012153 | SCREW |
| SPRING TO STRUT | ||
| 820 | N 000960012332 | SCREW |
| SPRING TO STRUT | ||
| 822 | N 009021013200 | WASHER |
| SPRING TO STRUT | ||
| 824 | N 910113012002 | NUT |
| SPRING TO STRUT | ||
| 828 | A 3878900422 | RAIL |
| Repalced by: A 6558900022 | ||
| 828 | A 6558900022 | RAIL |
| (CONNECTING RAIL) | ||
| 828 | A 3878900522 | RAIL |
| Repalced by: A 6558900122 | ||
| 828 | A 6558900122 | RAIL |
| (CONNECTING RAIL) | ||
| 830 | N 000007012201 | CYLINDRICAL PIN |
| 832 | A 3878910323 | BUFFER |
| (RUBBER BUFFER) | ||
| 834 | A 3878910072 | MOUNTING |
| (RUBBER BUFFER) | ||
| A 6208910372 | MOUNTING | |
| Repalced by: A 3878910072 | ||
| A 6208910472 | MOUNTING | |
| Repalced by: A 3878910072 | ||
| A 6208910072 | MOUNTING | |
| Repalced by: A 3878910072 | ||
| A 6208910172 | MOUNTING | |
| Repalced by: A 3878910072 | ||
| 838 | N 000084008122 | SCREW |
| BUFFER AND MOUNTING TO RAIL | ||
| M 8X18 | ||
| 840 | N 000933008154 | SCREW |
| Repalced by: N 304017008021 | ||
| 840 | N 304017008021 | SCREW |
| BUFFER AND MOUNTING TO RAIL | ||
| M 8X22 | ||
| 842 | N 912004008102 | LOCK WASHER |
| BUFFER AND MOUNTING TO RAIL | ||
| 844 | N 000433008406 | WASHER |
| BUFFER AND MOUNTING TO RAIL | ||
| 846 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 846 | N 000125008443 | WASHER |
| BUFFER AND MOUNTING TO RAIL | ||
| 848 | A 3878916820 | MOUNTING |
| CAB MOUNTING,REAR | ||
| 848 | A 3878918120 | MOUNTING |
| CAB MOUNTING,REAR | ||
| 848 | A 6208911320 | MOUNTING |
| CAB MOUNTING,REAR | ||
| 848 | A 6208910020 | MOUNTING |
| CAB MOUNTING,REAR | ||
| 854 | A 3878911057 | PIN |
| MOUNTING | ||
| 854 | A 3638910457 | PIN |
| MOUNTING | ||
| 858 | A 3878911653 | SPACER TUBE |
| MOUNTING | ||
| 858 | A 3878911753 | SPACER TUBE |
| MOUNTING | ||
| 860 | N 000471025002 | LOCK RING |
| MOUNTING | ||
| 862 | N 000960016286 | SCREW |
| MOUNTING | ||
| 862 | N 000960016242 | SCREW |
| Repalced by: N 000960016251 | ||
| 862 | N 000960016251 | SCREW |
| MOUNTING | ||
| 864 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 864 | N 910113016002 | NUT |
| MOUNTING | ||
| 868 | A 3878910811 | PLATE |
| MOUNTING | ||
| 869 | A 6208910296 | BASE |
| RAIL AND PLATE TO SPRING | ||
| 870 | N 000931010258 | SCREW |
| RAIL AND PLATE TO SPRING | ||
| 872 | N 912004010102 | LOCK WASHER |
| RAIL AND PLATE TO SPRING | ||
| 874 | A 0008912205 | SHOCK ABSORBER |
| CAB SUSPENSION,REAR | ||
| 874 | A 0008911805 | SHOCK ABSORBER |
| CAB SUSPENSION,REAR | ||
| 878 | A 0008910617 | BUSHING |
| 880 | A 0008910501 | RUBBER MOUNTING |
| 882 | A 3878910353 | SPACER TUBE |
| Repalced by: A 3878910953 | ||
| 882 | A 3878910953 | SPACER TUBE |
| SHOCK ABSORBER TO CONSOLE | ||
| 6 MM | ||
| 884 | A 3878910453 | SPACER TUBE |
| SHOCK ABSORBER TO CONSOLE | ||
| 886 | N 000960018111 | SCREW |
| SHOCK ABSORBER TO CONSOLE | ||
| M 18X70 | ||
| 886 | N 000960018125 | SCREW |
| Repalced by: N 000960018072 | ||
| 886 | N 000960018072 | SCREW |
| SHOCK ABSORBER TO CONSOLE | ||
| M 18X135 | ||
| 888 | N 913004018003 | NUT |
| Repalced by: N 910113018004 | ||
| 888 | N 910113018004 | NUT |
| SHOCK ABSORBER TO CONSOLE | ||
| 890 | N 000960018111 | SCREW |
| SHOCK ABSORBER TO RAIL | ||
| M 18X70 | ||
| 890 | N 000960018040 | SCREW |
| Repalced by: N 000960018142 | ||
| 890 | N 000960018142 | SCREW |
| SHOCK ABSORBER TO RAIL | ||
| M 18X65 | ||
| 892 | N 913004018003 | NUT |
| Repalced by: N 910113018004 | ||
| 892 | N 910113018004 | NUT |
| SHOCK ABSORBER TO RAIL | ||
| 894 | A 0008900089 | FASTENER |
| Repalced by: A 0008902389 | ||
| 894 | A 0008901389 | FASTENER |
| Repalced by: A 0008902389 | ||
| 894 | A 0008902389 | FASTENER |
| (CENTRAL LOCK) | ||
| 896 | A 3878911131 | CONSOLE |
| CENTRAL LOCK | ||
| 898 | N 000933010128 | SCREW |
| CENTRAL LOCK TO CAB | ||
| M 10X20 | ||
| 898 | N 000933010198 | SCREW |
| CENTRAL LOCK TO CAB | ||
| M 10X16 | ||
| 900 | N 000933010105 | SCREW |
| CENTRAL LOCK TO CAB | ||
| M 10X25 | ||
| 902 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 902 | N 000125010532 | WASHER |
| CENTRAL LOCK TO CAB | ||
| 904 | N 912004010102 | LOCK WASHER |
| CENTRAL LOCK TO CAB | ||
| 906 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 906 | N 910113010000 | NUT |
| CENTRAL LOCK TO CAB | ||
| 908 | A 3878910170 | ROD |
| CENTRAL LOCK | ||
| 908 | A 6208910170 | ROD |
| CENTRAL LOCK | ||
| 908 | A 3878910070 | ROD |
| CENTRAL LOCK | ||
| 912 | N 001444008202 | PIN |
| PULL TO FASTENER | ||
| 914 | N 000433008406 | WASHER |
| PULL TO FASTENER | ||
| 915 | N 000094002059 | COTTER PIN |
| PULL TO FASTENER | ||
| 916 | A 3878910814 | BRACKET |
| SEAL | ||
| 918 | A 3878910085 | SEAL |
| CENTRAL LOCK TO CAB | ||
| 920 | N 007346005003 | CLAMPING SLEEVE |
| BRACKET TO DRAWBAR | ||
| 922 | A 3878911956 | LEVER |
| CAB LOCKING MECHANISM | ||
| 922 | A 6208910056 | LEVER |
| CAB LOCKING MECHANISM | ||
| 922 | A 6208910456 | LEVER |
| CAB LOCKING MECHANISM | ||
| 922 | A 3878911456 | LEVER |
| CAB LOCKING MECHANISM | ||
| 926 | A 3638910317 | BUSHING |
| CAB LOCKING MECHANISM | ||
| 928 | A 3638910073 | HANDLE |
| Repalced by: A 6208910073 | ||
| 928 | A 6208910073 | HANDLE |
| CAB LOCKING MECHANISM | ||
| 930 | N 007985008142 | SCREW |
| BUSHING AND LEVER TO CAB | ||
| 932 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 932 | N 913004008001 | NUT |
| BUSHING AND LEVER TO CAB | ||
| 934 | N 007346005004 | CLAMPING SLEEVE |
| Repalced by: N 001481005039 | ||
| 934 | N 001481005039 | CLAMPING SLEEVE |
| HANDLE TO LEVER | ||
| 934 | N 001481005039 | CLAMPING SLEEVE |
| LEVER MOUNTING | ||
| 936 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 936 | N 000125015019 | WASHER |
| LEVER MOUNTING | ||
| 938 | N 900055014401 | LOCK RING |
| LEVER MOUNTING | ||
| 940 | N 000433008406 | WASHER |
| PULL ROD TO LEVER | ||
| 942 | N 001444008233 | PIN |
| PULL ROD TO LEVER | ||
| 943 | N 000094002059 | COTTER PIN |
| PULL ROD TO LEVER | ||
| 944 | A 3638910223 | BUFFER |
| CAB,FRONT | ||
| 946 | A 3638910047 | FLANGE |
| BUFFER TO CAB | ||
| 948 | A 3638910517 | BUSHING |
| BUFFER TO CAB | ||
| 950 | A 3878912210 | WASHER |
| Repalced by: A 4432610076 | ||
| 950 | A 4432610076 | WASHER |
| BUFFER TO CAB | ||
| 952 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 952 | N 304017010002 | SCREW |
| BUFFER TO CAB | ||
| 954 | N 912004010102 | LOCK WASHER |
| BUFFER TO CAB | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
