Transporto priemonė: 1622; VIN numerio dalis: 617027

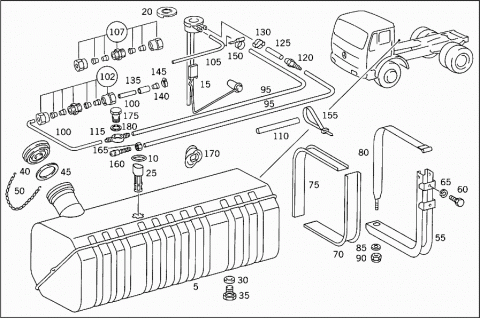

Grupė: 47 FUEL SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3834701101 | FUEL TANK |
| Repalced by: A 6164700001 | ||
| 005 | A 3834701101 | FUEL TANK |
| Repalced by: A 6164700001 | ||
| A 3834700901 | FUEL TANK | |
| Repalced by: A 6164700001 | ||
| 005 | A 6164700001 | FUEL TANK |
| Repalced by: A 6524700101 | ||
| 005 | A 6164700001 | FUEL TANK |
| 010 | A 0119970745 | SEAL RING |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 015 | A 0055423417 | SENDER UNIT |
| Repalced by: A 0085427717 | ||
| 015 | A 0085427717 | SENDER UNIT |
| FUEL GAUGE | ||
| 015 | A 0085427717 | SENDER UNIT |
| FUEL GAUGE | ||
| 015 | A 0055423617 | SENDER UNIT |
| Repalced by: A 0085427917 | ||
| A 0085427917 | SENDER UNIT | |
| Repalced by: A 0085428917 | ||
| A 0085427917 | SENDER UNIT | |
| Repalced by: A 0085428917 | ||
| 020 | A 0009970920 | EXPANSION PLUG |
| FUEL GAUGE SENDER UNIT | ||
| 020 | A 0009970920 | EXPANSION PLUG |
| FUEL GAUGE SENDER UNIT | ||
| 025 | A 0004710235 | FUEL STRAINER |
| AT SENDER UNIT | ||
| 030 | N 915035000017 | SEAL RING |
| AT TANK | ||
| 035 | N 007604014106 | SCREW PLUG |
| Repalced by: N 007604014110 | ||
| 035 | N 007604014110 | SCREW PLUG |
| AT TANK | ||
| 040 | A 0004718030 | FILLER CAP |
| Repalced by: A 0004700305 | ||
| 040 | A 0004700105 | FILLER CAP |
| Repalced by: A 0004700305 | ||
| 040 | A 0004710530 | FILLER CAP |
| Repalced by: A 0004717930 | ||
| 040 | A 0004717930 | FILLER CAP |
| Repalced by: A 0004700305 | ||
| 040 | A 0004700305 | FILLER CAP |
| 045 | A 3049970340 | SEAL RING |
| 050 | A 3034700031 | CHAIN |
| FILLER CAP TO FILLER NECK | ||
| 055 | A 6174700742 | SUPPORT |
| FUEL TANK | ||
| TO 383 470 09 01,1101 | ||
| A 6174701242 | SUPPORT | |
| FUEL TANK | ||
| TO 616 470 00 01 | ||
| A 6174701242 | SUPPORT | |
| FUEL TANK | ||
| TO 616 470 00 01 | ||
| 055 | A 6174700842 | SUPPORT |
| FUEL TANK | ||
| 055 | A 6174701442 | SUPPORT |
| FUEL TANK | ||
| 055 | A 6174701442 | SUPPORT |
| FUEL TANK | ||
| 055 | A 6174703042 | SUPPORT |
| FUEL TANK | ||
| 060 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 060 | N 308676014020 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X35 | ||
| 060 | N 000961014028 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X40 | ||
| 065 | N 912004014100 | LOCK WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 070 | A 6174750420 | PAD |
| Repalced by: A 6174750020 | ||
| 070 | A 6174750020 | PAD |
| FUEL TANK TO CONSOLE | ||
| 075 | A 3634750220 | PAD |
| STRAP | ||
| A 3834750087 | STOP | |
| FUEL TANK TO CONSOLE | ||
| A 3834750087 | STOP | |
| FUEL TANK TO CONSOLE | ||
| 080 | A 3834700540 | STRAP |
| FUEL TANK | ||
| 080 | A 3834700540 | STRAP |
| FUEL TANK | ||
| 080 | A 6174700040 | STRAP |
| Repalced by: A 6174700240 | ||
| 080 | A 6174700240 | STRAP |
| FUEL TANK | ||
| 085 | N 000125013008 | WASHER |
| 090 | N 000934012021 | NUT |
| STRAP TO SUPPORT | ||
| M 12 | ||
| 090 | N 910113012002 | NUT |
| STRAP TO SUPPORT | ||
| M 12X1.5 | ||
| 095 | A 0089975482 | HOSE |
| FEED LINE AND RETURN LINE | ||
| 8X11 MM | ||
| 100 | A 0109977082 | HOSE |
| LEAK LINE | ||
| 4X6 MM | ||
| 102 | A 0039979172 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 105 | A 0089979082 | HOSE |
| FUEL TANK BREATHING | ||
| 6X8 MM | ||
| 107 | A 0039978972 | FITTING |
| Repalced by: A 0029905971 | ||
| 107 | A 0029905971 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 110 | N 040621011200 | INSULATING HOSE |
| FEED LINE | ||
| 115 | A 0009908188 | BANJO UNION |
| FEED | ||
| 115 | N 915052008016 | BANJO UNION |
| FEED | ||
| 120 | A 3879900078 | CONNECTOR |
| Repalced by: N 915062008000 | ||
| 120 | N 915062008000 | SLEEVE |
| FEED & RETURN | ||
| 125 | A 3054760126 | HOSE |
| FEED LINE AND RETURN LINE | ||
| 130 | A 0029978790 | CLIP |
| FEED LINE AND RETURN LINE | ||
| 135 | N 073379006203 | HOSE |
| LEAK LINE | ||
| 140 | N 915062004000 | SLEEVE |
| LEAK LINE | ||
| 145 | N 900288010001 | CLAMP |
| LEAK LINE | ||
| 145 | N 900288010001 | CLAMP |
| LEAK LINE | ||
| 150 | N 916026010000 | CLAMP |
| Repalced by: N 000000000665 | ||
| 150 | N 000000000665 | CLAMP |
| FUEL LINE TO SENDER UNIT | ||
| 155 | A 0019978490 | LOOM TIE |
| FUEL LINES | ||
| 376 MM | ||
| 155 | A 0019978390 | LOOM TIE |
| FUEL LINES | ||
| 280 MM | ||
| 160 | A 0019975272 | FITTING |
| RETURN | ||
| A 0019974972 | FITTING | |
| RETURN | ||
| A 6174760336 | BRACKET | |
| FUEL LINE TO TRANSMISSION | ||
| A 6174760436 | BRACKET | |
| FUEL LINE TO TRANSMISSION | ||
| A 6174760536 | BRACKET | |
| A 6174760636 | BRACKET | |
| Repalced by: A 6174761336 | ||
| A 6174761336 | BRACKET | |
| FUEL LINE TO FRAME | ||
| N 000933008152 | SCREW | |
| Repalced by: N 304017008027 | ||
| N 304017008027 | SCREW | |
| FUEL LINE TO FRAME | ||
| N 913004008004 | NUT | |
| Repalced by: N 913004008001 | ||
| N 913004008001 | NUT | |
| FUEL LINE TO FRAME | ||
| 165 | N 915017008201 | UNION NUT |
| RETURN | ||
| N 915017010200 | UNION NUT | |
| RETURN | ||
| 170 | A 3879970481 | GROMMET |
| FUEL LINE THRU FRAME SIDE MEMBER | ||
| 38/30 MM | ||
| 175 | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 175 | N 915036010108 | HOLLOW SCREW |
| FUEL LINES TO ENGINE | ||
| 180 | N 007603014405 | SEAL RING |
| FUEL LINES TO ENGINE | ||
