Transporto priemonė: 1622; VIN numerio dalis: 617027

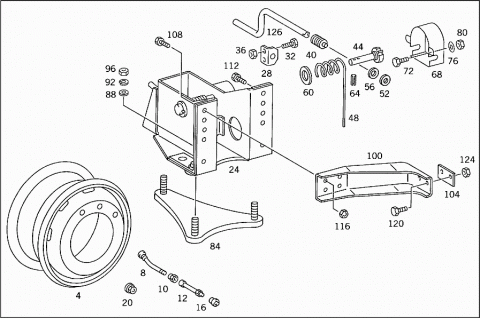

Grupė: 40 WHEELS
| # | Kodas | Pavadinimas |
|---|---|---|
| 004 | A 6174000002 | DISC WHEEL |
| Repalced by: A 3854001302 | ||
| 004 | A 3854001302 | DISC WHEEL |
| Repalced by: A 0004017405 | ||
| 004 | A 0004017405 | RIM |
| 7.50X22.5 | ||
| 004 | A 0004018705 | RIM |
| Repalced by: A 0004012302 | ||
| 004 | A 0004012302 | DISC WHEEL |
| Repalced by: A 0004002902 | ||
| 004 | A 0004002902 | DISC WHEEL |
| 7.50X22.5 | ||
| 004 | A 0004019805 | RIM |
| 7.50X22.5 | ||
| 008 | A 0004012913 | VALVE |
| Repalced by: A 0004017113 | ||
| 008 | A 0004017113 | VALVE |
| 27 DEGREES | ||
| 010 | A 0004010272 | NUT |
| VALVE TO DISC WHEEL | ||
| 012 | A 3854010013 | VALVE |
| EXTENSION | ||
| 012 | A 3854010113 | VALVE |
| EXTENSION | ||
| 016 | N 007757008600 | VALVE CAP |
| 020 | A 3854000124 | WHEEL NUT |
| Repalced by: A 0004010672 | ||
| 020 | A 6174000024 | WHEEL NUT |
| Repalced by: A 0004010672 | ||
| 020 | A 0004010672 | NUT |
| DISC WHEELS TO FRONT AND REAR AXLES | ||
| 024 | A 3854000039 | BRACKET |
| Repalced by: A 3854000539 | ||
| 024 | A 3854000539 | SPARE WHEEL CARRIER |
| 028 | A 3854030003 | BEARING BRACKET |
| CRANK | ||
| 032 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 032 | N 304017006020 | SCREW |
| BEARING BRACKET TO BRACKET | ||
| 036 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 036 | N 913004006001 | NUT |
| BEARING BRACKET TO BRACKET | ||
| A 3854030085 | WORM | |
| Repalced by: A 6204030085 | ||
| 040 | A 6204030085 | WORM |
| 044 | A 3854030083 | STOP GEAR |
| Repalced by: A 6204030583 | ||
| 044 | A 6204030583 | STOP GEAR |
| 048 | N 083331008500 | WIRE CABLE |
| Repalced by: N 083334008000 | ||
| 048 | N 083334008000 | WIRE CABLE |
| N 001481006027 | CLAMPING SLEEVE | |
| CRANK TO WORM | ||
| 052 | A 3149900440 | WASHER |
| WORM AND SHAFT TO BRACKET | ||
| 056 | N 002093031201 | DISC SPRING |
| WORM AND SHAFT TO BRACKET | ||
| 060 | A 3819900140 | WASHER |
| WORM AND SHAFT TO BRACKET | ||
| 064 | N 001481008038 | CLAMPING SLEEVE |
| Repalced by: N 308752008000 | ||
| 064 | N 308752008000 | CLAMPING PIN |
| WORM AND SHAFT TO BRACKET | ||
| 068 | A 3854000020 | COVERING |
| PROTECTION PLATE TO BRACKET | ||
| 072 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 072 | N 304017006020 | SCREW |
| PROTECTION PLATE TO BRACKET | ||
| 076 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 076 | N 009021006208 | WASHER |
| PROTECTION PLATE TO BRACKET | ||
| 080 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 080 | N 913004006001 | NUT |
| PROTECTION PLATE TO BRACKET | ||
| 084 | A 3854000439 | BRACKET |
| SPARE WHEEL | ||
| 088 | N 007349019002 | WASHER |
| BRACKET TO SPARE WHEEL CARRIER | ||
| 092 | N 912004018101 | LOCK WASHER |
| BRACKET TO SPARE WHEEL CARRIER | ||
| 096 | N 000934018006 | NUT |
| BRACKET TO SPARE WHEEL CARRIER | ||
| 100 | A 3814030508 | REINFORCEMENT |
| Repalced by: A 6154030019 | ||
| 100 | A 6154030019 | BASE BLOCK |
| SPARE WHEEL CARRIER TO SIDE MEMBER | ||
| 104 | A 3834030019 | BASE BLOCK |
| SPARE WHEEL CARRIER TO SIDE MEMBER | ||
| 108 | N 000961012122 | SCREW |
| SPARE WHEEL CARRIER TO SIDE MEMBER | ||
| M 12X40 | ||
| 108 | N 000961012122 | SCREW |
| SPARE WHEEL CARRIER TO SIDE MEMBER | ||
| M 12X40 | ||
| 112 | N 000961012106 | SCREW |
| SPARE WHEEL CARRIER TO SIDE MEMBER | ||
| M 12X32 | ||
| 116 | N 910113012002 | NUT |
| SPARE WHEEL CARRIER TO SIDE MEMBER | ||
| 116 | N 910113012002 | NUT |
| SPARE WHEEL CARRIER TO SIDE MEMBER | ||
| 120 | N 000933010128 | SCREW |
| SPARE WHEEL CARRIER TO SIDE MEMBER | ||
| M 10X20 | ||
| 124 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 124 | N 910113010000 | NUT |
| SPARE WHEEL CARRIER TO SIDE MEMBER | ||
| 126 | A 3354030130 | CRANK |
| SPARE WHEEL HOIST | ||
| 128 | A 3814001739 | BRACKET |
| Repalced by: A 3814001639 | ||
| 128 | A 3814001639 | SPARE WHEEL HOIST |
| 132 | A 3814030185 | WORM |
| Repalced by: A 6204030085 | ||
| 132 | A 6204030085 | WORM |
| SPARE WHEEL HOIST | ||
| 136 | A 3814030250 | BUSHING |
| SPARE WHEEL HOIST | ||
| 140 | N 001481006027 | CLAMPING SLEEVE |
| BUSHING TO WORM | ||
| 6X24 MM | ||
| 144 | A 3814030183 | STOP GEAR |
| Repalced by: A 6204030483 | ||
| 144 | A 6204030483 | STOP GEAR |
| SPARE WHEEL HOIST | ||
| 148 | N 083331008500 | WIRE CABLE |
| Repalced by: N 083334008000 | ||
| 148 | N 083334008000 | WIRE CABLE |
| SPARE WHEEL HOIST | ||
| 152 | A 3819900340 | WASHER |
| WORM AND SHAFT TO BRACKET | ||
| 152 | A 6179900540 | WASHER |
| WORM AND SHAFT TO BRACKET | ||
| 156 | A 3819900140 | WASHER |
| WORM AND SHAFT TO BRACKET | ||
| 160 | N 001481008038 | CLAMPING SLEEVE |
| Repalced by: N 308752008000 | ||
| 160 | N 308752008000 | CLAMPING PIN |
| WORM AND SHAFT TO BRACKET | ||
| 8X50 MM | ||
| 164 | N 002093031201 | DISC SPRING |
| WORM AND SHAFT TO BRACKET | ||
| 168 | A 3814030044 | COVER PLATE |
| SPARE WHEEL HOIST | ||
| 172 | N 000933010128 | SCREW |
| SPARE WHEEL HOIST TO CROSS MEMBER | ||
| 176 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 176 | N 910113010000 | NUT |
| SPARE WHEEL HOIST TO CROSS MEMBER | ||
| 180 | A 3814030150 | BUSHING |
| AT FRAME | ||
| 184 | A 3814030045 | CRANK |
| SPARE WHEEL HOIST | ||
| 188 | N 001481006027 | CLAMPING SLEEVE |
| CRANK TO BUSHING | ||
| 192 | A 6174000639 | BRACKET |
| SPARE WHEEL CARRIER | ||
| 192 | A 6514000339 | BRACKET |
| SPARE WHEEL CARRIER | ||
| 196 | A 3874030074 | PIN |
| SPARE WHEEL CARRIER | ||
| 200 | A 3874030319 | BASE BLOCK |
| SPARE WHEEL CARRIER TO FRAME | ||
| 204 | A 3859900023 | SCREW |
| Repalced by: A 6519900023 | ||
| 204 | A 6519900023 | SCREW |
| SPARE WHEEL CARRIER TO FRAME | ||
| 208 | N 912004016101 | LOCK WASHER |
| SPARE WHEEL CARRIER TO FRAME | ||
| 212 | N 000934016011 | NUT |
| Repalced by: N 308673016001 | ||
| 212 | N 308673016001 | NUT |
| SPARE WHEEL CARRIER TO FRAME | ||
| 216 | N 007346004016 | CLAMPING SLEEVE |
| SPARE WHEEL CARRIER TO FRAME | ||
| 218 | N 000094004065 | COTTER PIN |
| SPARE WHEEL CARRIER TO FRAME | ||
| 220 | N 007349021001 | WASHER |
| SPARE WHEEL TO BRACKET | ||
| 224 | N 912004020100 | LOCK WASHER |
| SPARE WHEEL TO BRACKET | ||
| 228 | N 000934020008 | NUT |
| Repalced by: N 308673020002 | ||
| 228 | N 308673020002 | NUT |
| Repalced by: N 308674020000 | ||
| 228 | N 308674020000 | NUT |
| SPARE WHEEL TO BRACKET | ||
| 232 | A 3609902201 | SCREW |
| Repalced by: A 3529900802 | ||
| 232 | A 3529900802 | SCREW |
| SPARE WHEEL TO CROSS MEMBER | ||
| 232 | A 3529900802 | SCREW |
| SPARE WHEEL TO CROSS MEMBER | ||
| 236 | A 3524030067 | SHIM |
| SPARE WHEEL TO CROSS MEMBER | ||
| 236 | A 3524030067 | SHIM |
| SPARE WHEEL TO CROSS MEMBER | ||
| 240 | N 000934012022 | NUT |
| SPARE WHEEL TO CROSS MEMBER | ||
| 240 | N 000934012022 | NUT |
| SPARE WHEEL TO CROSS MEMBER | ||
| 244 | A 3524003439 | SPARE WHEEL HOIST |
| Repalced by: A 3524003339 | ||
| 244 | A 3524003339 | SPARE WHEEL HOIST |
| 248 | A 0004030090 | CHAIN |
| 252 | A 0004030036 | CABLE |
| 256 | A 0004030012 | COVERING |
| 261 | A 3525850003 | PROTECTIVE WRAPPER |
| SPARE WHEEL HOIST | ||
| 264 | A 3464005339 | BRACKET |
| Repalced by: A 6554000049 | ||
| 264 | A 6554000049 | PLATE |
| SPARE WHEEL | ||
