Transporto priemonė: 1624; VIN numerio dalis: 385039
Grupė: 25 CLUTCH
| # | Kodas | Pavadinimas |
|---|---|---|

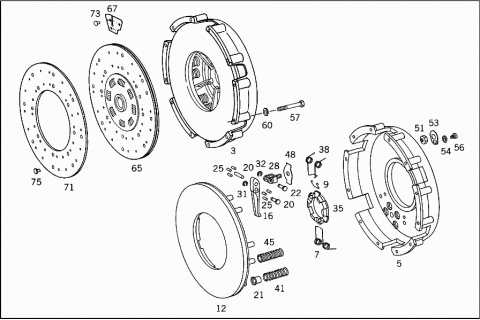

| 003 | A 0022504004 | CLUTCH PRESSURE PLATE |
| Repalced by: A 0032502504 | ||
| 003 | A 0022503104 | CLUTCH PRESSURE PLATE |
| Repalced by: A 0032502504 | ||
| 003 | A 0032502504 | CLUTCH PRESSURE PLATE |
| 005 | A 0002520932 | HOUSING |
| 007 | A 0002520727 | SPRING |
| SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING | ||
| 007 | A 0002523927 | SPRING |
| SUSPENDED BELOW LEAF SPRING | ||
| A 0002520929 | CLAMP | |
| Repalced by: A 0002523227 | ||
| 009 | A 0002521829 | CLAMP |
| Repalced by: A 0002523227 | ||
| A 0002523412 | PRESSURE PLATE | |
| 012 | A 0002520412 | PRESSURE PLATE |
| 016 | A 0002524613 | RELEASE LEVER |
| 020 | A 0002522916 | SPINDLE |
| Repalced by: A 0002520616 | ||
| 020 | A 0002520616 | SPINDLE |
| FOR RELEASE LEVERS | ||
| 021 | A 0002520535 | SLEEVE |
| 022 | A 0002522116 | SPINDLE |
| Repalced by: A 0002522816 | ||
| 022 | A 0002522816 | SPINDLE |
| FOR BRACKETS | ||
| 025 | A 0002520118 | ROLLER |
| 028 | A 0002520614 | BRACKET |
| 031 | N 006799008005 | LOCK PLATE |
| 8 MM | ||
| 032 | N 006799007007 | LOCK PLATE |
| 7 MM | ||
| 035 | A 0002521345 | FLANGE |
| Repalced by: A 0002522145 | ||
| 035 | A 0002522145 | FLANGE |
| 038 | A 0002521927 | SPRING |
| Repalced by: A 0002523227 | ||
| 032 | A 0002523227 | SPRING |
| SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING | ||
| 032 | A 0002524027 | SPRING |
| SUSPENDED BELOW LEAF SPRING | ||
| 041 | A 0002524320 | PRESSURE SPRING |
| SPRING STEEL WIRE DIA., | ||
| 3.75 MM;TO 002 250 40 04 | ||
| 041 | A 0002524320 | PRESSURE SPRING |
| SPRING STEEL WIRE DIA., | ||
| TO 002 250 31 04,003 250 25 04 | ||
| 045 | A 0002524420 | PRESSURE SPRING |
| SPRING STEEL WIRE DIA., | ||
| 4.00 MM;TO 002 250 40 04 | ||
| 045 | A 0002524420 | PRESSURE SPRING |
| SPRING STEEL WIRE DIA., | ||
| TO 002 250 31 04,003 250 25 04 | ||
| 048 | A 0002520519 | LEAF SPRING |
| THIGH SPRING SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING | ||
| 048 | A 0002523719 | LEAF SPRING |
| THIGH SPRING SUSPENDED BELOW LEAF SPRING | ||
| 051 | A 0002521372 | NUT |
| Repalced by: A 0002523072 | ||
| 051 | A 0002523072 | NUT |
| 053 | A 0002521073 | LOCK |
| 054 | N 912004005103 | LOCK WASHER |
| N 007985005157 | SCREW | |
| M 5X10 | ||
| 056 | A 0002522971 | SCREW |
| M 5X8 | ||
| 057 | N 912004010102 | LOCK WASHER |
| CLUTCH TO FLYWHEEL | ||
| 060 | N 000931010268 | SCREW |
| Repalced by: N 304017010050 | ||
| 060 | N 304017010050 | SCREW |
| CLUTCH TO FLYWHEEL | ||
| 065 | A 0072500903 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| 065 | A 0072501003 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| 065 | A 0022509703 | CLUTCH DISC |
| Repalced by: A 0022509803 | ||
| 065 | A 0022509803 | CLUTCH DISC |
| Repalced by: A 0052506403 | ||
| 065 | A 0052506403 | CLUTCH DISC |
| Repalced by: A 0062504603 | ||
| 065 | A 0062504603 | CLUTCH DISC |
| 065 | A 0052504303 | CLUTCH DISC |
| Repalced by: A 0062504503 | ||
| 065 | A 0062504503 | CLUTCH DISC |
| Repalced by: A 0072500803 | ||
| 065 | A 0072500803 | CLUTCH DISC |
| 067 | A 0002520419 | LEAF SPRING |
| Repalced by: A 0002523819 | ||
| 067 | A 0002523819 | LEAF SPRING |
| A 0002522075 | RIVET | |
| LEAF SPRING TO CLUTCH DISC | ||
| 5X6 MM | ||
| A 0002523975 | RIVET | |
| LEAF SPRING TO CLUTCH DISC | ||
| 6X6 MM | ||
| 071 | A 0002523210 | CLUTCH LINING |
| ASBESTOS-FREE | ||
| 071 | A 0002523110 | CLUTCH LINING |
| Repalced by: A 0012522910 | ||
| 071 | A 0002528310 | CLUTCH LINING |
| Repalced by: A 0012522910 | ||
| 071 | A 0012522910 | CLUTCH LINING |
| 073 | A 0002520375 | RIVET |
| Repalced by: A 0002521275 | ||
| 073 | A 0002521275 | RIVET |
| Repalced by: A 0002524375 | ||
| 073 | A 0002524375 | RIVET |
| LINING WITH INTERMEDIATE SPRING | ||
| 075 | A 0002521475 | RIVET |
| Repalced by: A 0002523875 | ||
| 075 | A 0002523875 | RIVET |
| LINING WITH CLUTCH DISC | ||

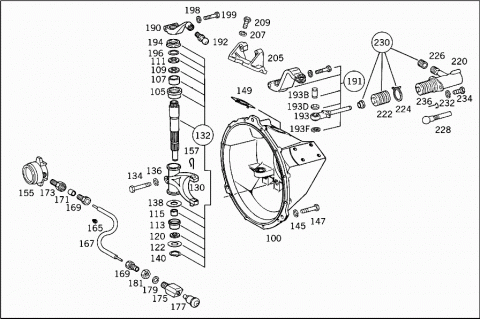

| 100 | A 3852501605 | HOUSING |
| Repalced by: A 3972500305 | ||
| 100 | A 3972500305 | HOUSING |
| Repalced by: A 6202501205 | ||
| 100 | A 6202501205 | HOUSING |
| BELL HOUSING WITH BUSHINGS | ||
| 100 | A 3852502405 | HOUSING |
| Repalced by: A 3972500405 | ||
| 100 | A 3972500405 | HOUSING |
| Repalced by: A 6202501105 | ||
| 100 | A 6202501105 | HOUSING |
| CLUTCH | ||
| 105 | A 3852510250 | BUSHING |
| Repalced by: A 3852510450 | ||
| 105 | A 3852510450 | BUSHING |
| Repalced by: A 6202510050 | ||
| 105 | A 6202510050 | BUSHING |
| TOP | ||
| 107 | A 3389920103 | BUSHING |
| TOP | ||
| 109 | A 3859970040 | SEAL RING |
| 109 | A 3859970040 | SEAL RING |
| 109 | A 0119978846 | SEAL RING |
| 109 | A 0099971547 | SEAL RING |
| 111 | A 3852930027 | COVER PLATE |
| TOP | ||
| 111 | A 3852930027 | COVER PLATE |
| TOP | ||
| 113 | A 3432510150 | BUSHING |
| BOTTOM | ||
| 115 | A 3439920103 | BUSHING |
| BOTTOM | ||
| A 3852510083 | PLUG | |
| Repalced by: A 6202510383 | ||
| A 6202510383 | PLUG | |
| BELL HOUSING | ||
| 120 | A 3379975040 | SEAL RING |
| BOTTOM | ||
| 122 | A 3172930177 | WASHER |
| AS REQUIRED | ||
| 0.80 MM | ||
| 122 | A 3172930277 | WASHER |
| AS REQUIRED | ||
| 0.90 MM | ||
| 122 | A 3172930377 | WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| 122 | A 3172930477 | WASHER |
| AS REQUIRED | ||
| 1.10 MM | ||
| 122 | A 3172930577 | WASHER |
| AS REQUIRED | ||
| 1.20 MM | ||
| 122 | A 3172930677 | WASHER |
| AS REQUIRED | ||
| 1.30 MM | ||
| 130 | A 3372540208 | RELEASE LEVER |
| Repalced by: A 6202540108 | ||
| 130 | A 6202540108 | RELEASE LEVER |
| A 3852540507 | SHAFT | |
| Repalced by: A 3895860025 | ||
| 132 | A 3895860025 | REPAIR KIT |
| Repalced by: A 3892500014 | ||
| 132 | A 3892500014 | SHAFT |
| Repalced by: A 3852500014 | ||
| 132 | A 3852500014 | SHAFT |
| (PARTS KIT),RELEASE SHAFT | ||
| 134 | N 000931012033 | SCREW |
| Repalced by: N 000933012102 | ||
| 134 | N 000933012102 | SCREW |
| RELEASE YOKE TO SHAFT | ||
| M 12X50 | ||
| 136 | N 912004012100 | LOCK WASHER |
| RELEASE YOKE TO SHAFT | ||
| 138 | A 3432930052 | SPACER WASHER |
| RELEASE YOKE TO SHAFT | ||
| 140 | N 000471024000 | LOCK RING |
| RELEASE YOKE TO SHAFT | ||
| 145 | N 912004010102 | LOCK WASHER |
| BELL HOUSING TO TIMING GEAR CASE | ||
| 147 | N 000931010264 | SCREW |
| BELL HOUSING TO TIMING GEAR CASE | ||
| N 000125010518 | WASHER | |
| Repalced by: N 000125010532 | ||
| N 000125010532 | WASHER | |
| BELL HOUSING TO TIMING GEAR CASE | ||
| 149 | A 3852500155 | COVER |
| TOP | ||
| 155 | A 0002501915 | RELEASE BEARING |
| Repalced by: A 0002507415 | ||
| 155 | A 0002502515 | RELEASE BEARING |
| Repalced by: A 0002507415 | ||
| 155 | A 0002507415 | RELEASE BEARING |
| 155 | A 0002507715 | RELEASE BEARING |
| 157 | A 3179930225 | SPRING |
| RELEASE YOKE TO RELEASE BEARING | ||
| A 6209970288 | GREASE NIPPLE | |
| (PARTS KIT) RELEASE BEARING LUBRICATION | ||
| 165 | N 071428004102 | SCREW-IN FITTING |
| RELEASE BEARING LUBRICATION | ||
| 167 | A 3859970582 | HOSE |
| RELEASE BEARING LUBRICATION | ||
| 169 | N 003871004102 | UNION SCREW |
| RELEASE BEARING LUBRICATION | ||
| 171 | N 003862004001 | DOUBLE TAPER RING |
| RELEASE BEARING LUBRICATION | ||
| 173 | N 071428004102 | SCREW-IN FITTING |
| RELEASE BEARING LUBRICATION | ||
| 175 | A 3872510108 | INTERMEDIATE PIECE |
| Repalced by: A 6209970088 | ||
| 175 | A 6209970088 | GREASE NIPPLE |
| RELEASE BEARING LUBRICATION | ||
| 177 | N 003411002001 | GREASE CUP |
| Repalced by: A 6209880135 | ||
| 177 | A 6209880135 | CAP |
| RELEASE BEARING LUBRICATION | ||
| 179 | N 912004014100 | LOCK WASHER |
| RELEASE BEARING LUBRICATION | ||
| 181 | N 000936014010 | NUT |
| Repalced by: N 308675014000 | ||
| 181 | N 308675014000 | NUT |
| Repalced by: N 308675014002 | ||
| 181 | N 308675014002 | NUT |
| RELEASE BEARING LUBRICATION | ||
| N 000960018111 | SCREW | |
| BELL HOUSING TO TRANSMISSION | ||
| N 912004018101 | LOCK WASHER | |
| BELL HOUSING TO TRANSMISSION | ||
| 190 | A 3852950628 | LEVER |
| Repalced by: A 6202900534 | ||
| A 3072950228 | LEVER | |
| CLUTCH ACTUATION | ||
| 191 | A 6202900534 | LEVER |
| (PARTS KIT),CLUTCH ACTUATION | ||
| 192 | A 3029910115 | BALL PIVOT |
| CLUTCH ACTUATION | ||
| 193 | A 0009966440 | ROD END |
| CLUTCH ACTUATION | ||
| 193B | A 3072560074 | PIN |
| CLUTCH ACTUATION | ||
| 193D | A 0019970041 | SEAL RING |
| Repalced by: A 0019972141 | ||
| 193D | A 0019972141 | SEAL RING |
| CLUTCH ACTUATION | ||
| 193F | N 000471012001 | LOCK RING |
| CLUTCH ACTUATION | ||
| 194 | A 3852540576 | WASHER |
| Repalced by: A 6202540176 | ||
| 194 | A 6202540176 | WASHER |
| LEVER TO RELEASE SHAFT | ||
| 194 | A 6202500155 | COVER |
| LEVER TO RELEASE SHAFT | ||
| 196 | A 0029972948 | SEAL RING |
| LEVER TO RELEASE SHAFT | ||
| 198 | N 912004010102 | LOCK WASHER |
| LEVER TO RELEASE SHAFT | ||
| 199 | N 304017010030 | SCREW |
| LEVER TO RELEASE SHAFT | ||
| A 3852510110 | COVER PLATE | |
| Repalced by: A 3852510210 | ||
| A 3852510210 | COVER PLATE | |
| Repalced by: A 0002510283 | ||
| A 0002510283 | PLUG | |
| BELL HOUSING | ||
| A 0002510183 | PLUG | |
| BELL HOUSING | ||
| N 912004008102 | LOCK WASHER | |
| COVER PLATE TO BELL HOUSING | ||
| N 000933008212 | SCREW | |
| Repalced by: N 304017008016 | ||
| N 304017008016 | SCREW | |
| COVER PLATE TO BELL HOUSING | ||
| A 3852950340 | BRACKET | |
| Repalced by: A 3072950840 | ||
| 205 | A 3852951740 | BRACKET |
| Repalced by: A 3072950840 | ||
| 205 | A 3072950840 | BRACKET |
| LEVER TO RELEASE SHAFT | ||
| 207 | N 912004010102 | LOCK WASHER |
| BRACKET TO BELL HOUSING | ||
| 209 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 209 | N 304017010002 | SCREW |
| BRACKET TO BELL HOUSING | ||
| 220 | A 0002957907 | SLAVE CYLINDER |
| Repalced by: A 0012950307 | ||
| A 0012950307 | SLAVE CYLINDER | |
| Repalced by: A 0012955307 | ||
| A 0012955307 | SLAVE CYLINDER | |
| Repalced by: A 0012958807 | ||
| A 0012958807 | SLAVE CYLINDER | |
| Repalced by: A 0022950407 | ||
| A 0022950407 | SLAVE CYLINDER | |
| 222 | A 0002952683 | BOOT |
| Repalced by: A 0005863129 | ||
| 224 | A 0002950673 | LOCK |
| A 0004310265 | VALVE | |
| Repalced by: A 3075530107 | ||
| A 3075530107 | VALVE | |
| CLUTCH SLAVE CYLINDER | ||
| 226 | A 0004212687 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 226 | A 3164210187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 226 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 0004217187 | ||
| 226 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 226 | A 0004210887 | PROTECTIVE CAP |
| CLUTCH SLAVE CYLINDER | ||
| 228 | A 0002950974 | PIN |
| CLUTCH SLAVE CYLINDER | ||
| 230 | A 0005863129 | REPAIR KIT |
| Repalced by: A 0002900911 | ||
| 230 | A 0002900911 | REPAIR KIT |
| CLUTCH SLAVE CYLINDER | ||
| 232 | N 912004010102 | LOCK WASHER |
| CLUTCH SLAVE CYLINDER TO BRACKET | ||
| 234 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 234 | N 304017010002 | SCREW |
| CLUTCH SLAVE CYLINDER TO BRACKET | ||
| M 10X30 | ||
| 236 | N 071805019402 | SECURING CLIP |
| Repalced by: N 073130019300 | ||
| 236 | N 073130019300 | SNAP RING |
| CLUTCH SLAVE CYLINDER TO LEVER | ||
| N 071805019301 | SNAP RING | |
| CLUTCH SLAVE CYLINDER TO LEVER | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
