Transporto priemonė: 1625 S; VIN numerio dalis: 617130
Grupė: 42 BRAKES

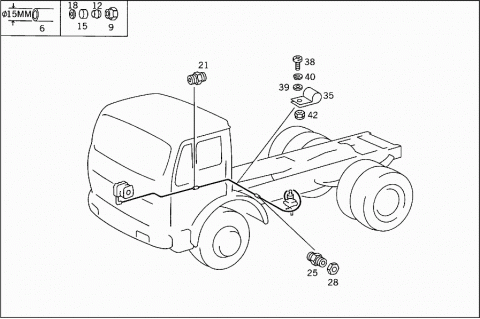

43448
43449
43450
43451

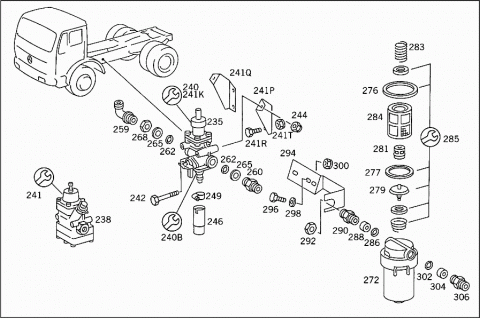

43452
43453
43454
43455

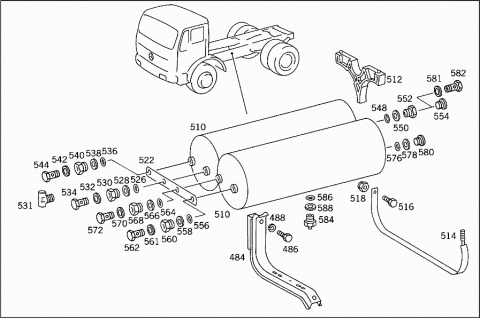

43456
43457

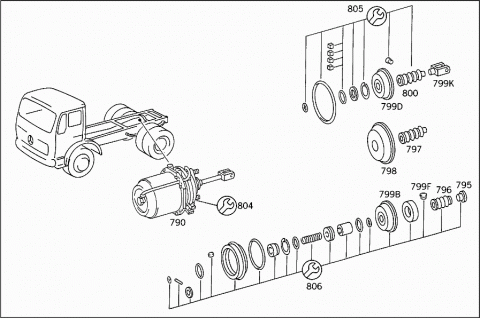

43458

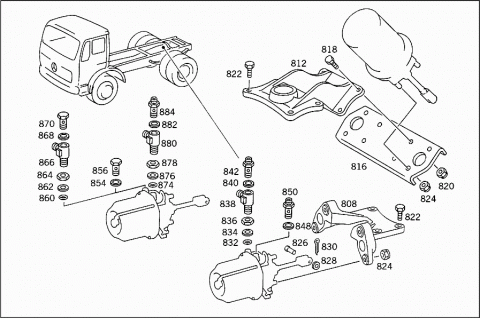

43459
43460
# Kodas Pavadinimas
Y YYYYYYYYYYYY PART NAME MISSING
FOR FRONT WHEEL BRAKE,SEE UNIT STANDARD VERSION, MODEL:
730.0
Y YYYYYYYYYYYY PART NAME MISSING
FOR FRONT WHEEL BRAKE,SEE UNIT STANDARD VERSION, MODEL:
739.1
T YYYYYYYYYYYY PART NAME MISSING
FOR FRONT WHEEL BRAKE,SEE UNIT STANDARD VERSION, MODEL:
731.6
T YYYYYYYYYYYY PART NAME MISSING
FOR BRAKES,SEE UNIT STANDARD VERSION, MODEL:
740.3
A 6209970272 FITTING
AIR COMPRESSOR,CONNECTION:
"20"
A 0004290527 THRUST RING
AIR COMPRESSOR,CONNECTION:
"20"
006 A 0004291401 LINE
AIR COMPRESSOR,PRESSURE REGULATOR, FOUR-CIRCUIT PROTECTIVE VALVE
15 MM
006 A 0004291401 LINE
AIR CLEANER,CHECK VALVE
15 MM
009 N 915018015000 UNION NUT
009 N 915017015100 UNION NUT
012 N 003861015004 GLAND
015 N 915065015101 THRUST RING
018 N 915045012100 SEAL RING
Repalced by: N 007603012121
018 N 007603012121 SEAL RING
021 A 0019972172 FITTING

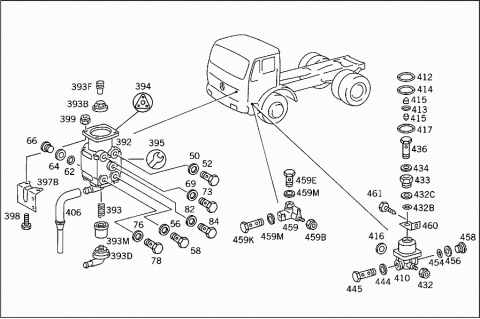

BETWEEN THE LINES
021 N 003902015002 CONNECTION FITTING
BETWEEN THE LINES
025 A 0019972372 FITTING
THROUGH SIDE MEMBER
025 N 003910015002 BULKHEAD FITTING
THROUGH SIDE MEMBER
028 N 074305022202 NUT
THROUGH SIDE MEMBER
035 A 3609952001 CLAMP
Repalced by: A 6739950001
035 A 6739950001 CLAMP
MOUNTING USED FOR COMPRESSED AIR LINES
038 N 007985006145 SCREW
Repalced by: N 007985006581
038 N 007985006581 SCREW
CLAMP TO BRACKET
039 N 000125006421 WASHER
CLAMP TO BRACKET
040 N 912004006102 LOCK WASHER
CLAMP TO BRACKET
042 N 913004006002 NUT
Repalced by: N 913004006001
042 N 913004006001 NUT
CLAMP TO BRACKET
050 N 007603016401 SEAL RING
BRAKE VALVE,CONNECTION:
"11"
052 N 915036012203 HOLLOW SCREW
BRAKE VALVE,CONNECTION:
"11"
056 N 007603016401 SEAL RING
BRAKE VALVE,CONNECTION:
"12"
058 N 915036012203 HOLLOW SCREW
BRAKE VALVE,CONNECTION:
"12"
062 A 0009971548 SEAL RING
BRAKE VALVE,RIGHT CONNECTIONS:
"11,12,21,22"
064 A 0004290927 THRUST RING
BRAKE VALVE,RIGHT CONNECTIONS:
"11,12,21,22"
066 N 000908016001 SCREW PLUG
BRAKE VALVE,RIGHT CONNECTIONS:
"11,12,21,22"
069 N 007603016401 SEAL RING
BRAKE VALVE,CONNECTION:

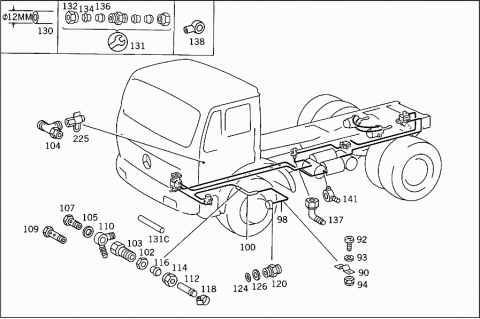

"21"
073 N 915036012203 HOLLOW SCREW
BRAKE VALVE,CONNECTION:
"21"
076 N 007603016107 SEAL RING
BRAKE VALVE,LEFT CONNECTIONS:
"21,22"
078 N 915036012203 HOLLOW SCREW
BRAKE VALVE,LEFT CONNECTIONS:
"21,22"
082 N 007603012405 SEAL RING
BRAKE VALVE,CONNECTION:
"4"
084 N 915036008202 HOLLOW SCREW
BRAKE VALVE,CONNECTION:
"4"
090 A 3159955010 CLAMP
MOUNTING USED FOR COMPRESSED AIR LINES
092 N 007985006145 SCREW
Repalced by: N 007985006581
092 N 007985006581 SCREW
MOUNTING USED FOR COMPRESSED AIR LINES
093 N 000125006421 WASHER
MOUNTING USED FOR COMPRESSED AIR LINES
094 N 913004006002 NUT
Repalced by: N 913004006001
094 N 913004006001 NUT
MOUNTING USED FOR COMPRESSED AIR LINES
098 A 3834290801 LINE
Repalced by: A 6194290801
098 A 6194290801 LINE
Repalced by: A 6254293501
098 A 6254293501 LINE
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
100 N 916027011014 HOSE
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
102 N 080705018002 NUT
BRAKE HOSE TO SIDE MEMBER
103 A 0004296034 ADAPTER FITTING
Repalced by: A 0004296634
103 A 0004296634 ADAPTER FITTING
Repalced by: A 0004296934
103 A 0004296934 ADAPTER FITTING
BRAKE HOSE TO SIDE MEMBER
104 A 0019907070 T-FITTING
BRAKE HOSE TO SIDE MEMBER
104 A 0019907070 T-FITTING
BRAKE HOSE TO SIDE MEMBER
105 N 007603016401 SEAL RING

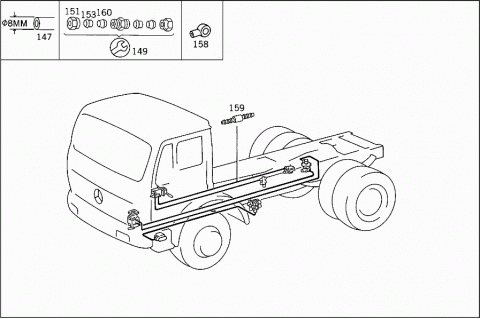

BRAKE HOSE TO SIDE MEMBER
107 N 915036012203 HOLLOW SCREW
BRAKE HOSE TO SIDE MEMBER
107 N 915036012203 HOLLOW SCREW
BRAKE HOSE TO SIDE MEMBER
107 N 915036012203 HOLLOW SCREW
BRAKE HOSE TO SIDE MEMBER
109 N 915047012203 HOLLOW SCREW
LEFT AND RIGHT BRAKE HOSES
110 A 0019900788 BANJO UNION
BRAKE HOSE,FRONT
110 A 0019900788 BANJO UNION
BRAKE HOSE,FRONT
112 A 0004290541 FITTING

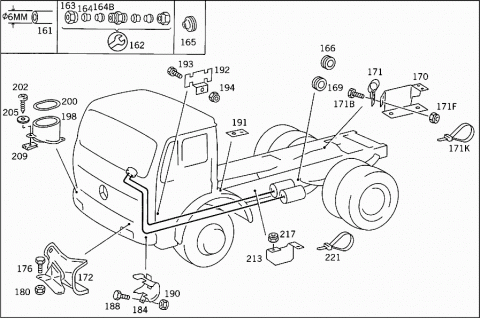

LEFT AND RIGHT BRAKE HOSES
114 N 915017012100 UNION NUT
116 N 003861012007 GLAND
Repalced by: A 0019901967
116 A 0019901967 SEAL CONE
118 N 916017016000 CLAMP
Repalced by: N 000000000666
118 N 000000000666 CLAMP
LINE MOUNTING
N 074315012100 FITTING
Repalced by: A 0019903371
A 0019903371 ELBOW FITTING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
120 N 003901012014 SCREW-IN FITTING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
N 080705016003 NUT
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
124 A 0029971640 SEAL RING
Repalced by: A 0009971548
124 A 0009971548 SEAL RING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
126 A 0004290927 THRUST RING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
130 A 0109975982 HOSE
Repalced by: A 0009872827
130 A 0009872827 PLASTIC PIPE
AIR RESERVOIR,FOUR-CIRCUIT PROTECTIVE VALVE,BRAKE CYLINDER
9X12 MM
130 A 0009872827 PLASTIC PIPE
CHECK VALVE,RELAY VALVE
9X12 MM
130 A 0009872827 PLASTIC PIPE
BRAKE VALVE,BRAKE POWER REGULATOR
9X12 MM
130 A 0009872827 PLASTIC PIPE
LOAD/NO-LOAD VALVE
9X12 MM
130 A 0009872827 PLASTIC PIPE
FROM TRISTOP CYLINDER TO TRISTOP CYLINDER
9X12 MM
130 A 0009872827 PLASTIC PIPE
BREATHER LINE TO BELL HOUSING
9X12 MM
131 A 0049971772 FITTING
Repalced by: A 0029906171
131 A 0029906171 FITTING
(PARTS KIT),LINE RUPTURE
TO 010 997 59 82
A 0009907388 BANJO UNION
REPAIR SIZE
131C N 040621013200 INSULATING HOSE
BLACK
13X0.8 MM
132 N 915017012100 UNION NUT
134 N 003861012007 GLAND
Repalced by: A 0019901967
134 A 0019901967 SEAL CONE
136 A 0009921505 BUSHING
Repalced by: N 915062009000
136 N 915062009000 SLEEVE
137 A 0019909771 ELBOW FITTING
FROM AIR RESERVOIR TO CHECK VALVE
138 N 915052009009 BANJO UNION
HOSE WIDTH, / I.D.,
9/16 MM
141 A 0019901088 BANJO UNION
144 A 0009976189 COUPLING
PARKING BRAKE VALVE,CONNECTIONS:
"11,21"
145 A 0099973948 SEAL RING
147 A 0089979082 HOSE
BRAKE VALVE,FOUR-CIRCUIT PROTECTIVE VALVE,RELAY VALVE
6X8 MM
147 A 0089979082 HOSE
AXLE BREATHING
6X8 MM
149 A 0039978972 FITTING
Repalced by: A 0029905971
149 A 0029905971 FITTING
(PARTS KIT),LINE RUPTURE
151 N 915017008100 UNION NUT
153 N 003861008005 GLAND
158 N 915052006021 BANJO UNION
HOSE WIDTH, / I.D.,
6/14 MM
158 N 915052006014 BANJO UNION
HOSE WIDTH, / I.D.,
6/16 MM
158 N 915052006013 BANJO UNION
HOSE WIDTH, / I.D.,
6/12 MM
159 A 0009904678 CONNECTOR
160 A 0007630043 SLEEVE
Repalced by: N 915062006000
160 N 915062006000 SLEEVE
161 A 0089976082 HOSE
Repalced by: A 0009872627
161 A 0009872627 PLASTIC PIPE
PRESSURE GAUGE
4X6 MM
162 A 0039979172 FITTING
(PARTS KIT),LINE RUPTURE
163 N 915017006100 UNION NUT
164 N 003861006007 GLAND
Repalced by: A 0019901667
164 A 0019901667 SEAL CONE
164B N 915062004000 SLEEVE
165 A 1869970481 GROMMET
166 A 6209970181 GROMMET
LINE THRU FRAME
42/36 MM
A 3609970481 GROMMET
LINE THRU FRAME
A 3859970381 GROMMET
LINE THRU FRAME
169 A 3549970081 GROMMET
LINE THRU FRAME
32/27 MM
170 A 6173530040 BRACKET
BREATHER LINE TO REAR AXLE
A 6173530140 BRACKET
171 A 6179950035 CLAMP
BREATHER LINE TO REAR AXLE
171B N 000933008212 SCREW
Repalced by: N 304017008016
171B N 304017008016 SCREW
BREATHER LINE TO FRONT AXLE
171F N 913004006002 NUT
Repalced by: N 913004006001
171F N 913004006001 NUT
BREATHER LINE TO REAR AXLE
N 912004008102 LOCK WASHER
BREATHER LINE TO FRONT AXLE
171K A 0019978390 LOOM TIE
BREATHER LINE TO FRONT AXLE
172 A 6204201186 BRACKET
COMPRESSED AIR LINE
172 A 6204201286 BRACKET
COMPRESSED AIR LINE
A 3609902440 WASHER
Repalced by: A 3609902340
A 3609902340 WASHER
LINE MOUNTING
176 N 000933008147 SCREW
Repalced by: N 304017008021
176 N 304017008021 SCREW
BRACKET TO STRUT
180 N 913004008004 NUT
Repalced by: N 913004008001
180 N 913004008001 NUT
BRACKET TO STRUT
A 6174200244 PROTECTIVE PLATE
N 000933008147 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
LEFT COMPRESSED AIR LINES
N 999901008005 NUT
Repalced by: A 0009903250
A 0009903250 NUT
LEFT COMPRESSED AIR LINES
184 A 6204201386 BRACKET
Repalced by: A 6154200086
184 A 6154200086 BRACKET
LEFT COMPRESSED AIR LINES
184 A 6204201486 BRACKET
Repalced by: A 6154200186
184 A 6154200186 BRACKET
RIGHT COMPRESSED AIR LINES
188 N 000933008153 SCREW
Repalced by: N 304017008034
188 N 304017008034 SCREW
BRACKET TO CONSOLE
190 N 913004008004 NUT
Repalced by: N 913004008001
190 N 913004008001 NUT
BRACKET TO CONSOLE
191 A 6204294340 BRACKET
Repalced by: A 3604293140
191 A 3604293140 BRACKET
COMPRESSED AIR LINE
A 6204200886 BRACKET
COMPRESSED AIR LINE
192 A 6204293940 BRACKET
COMPRESSED AIR LINE
192 A 6204293940 BRACKET
COMPRESSED AIR LINE
193 N 000933008152 SCREW
Repalced by: N 304017008027
193 N 304017008027 SCREW
BRACKET TO SIDE MEMBER
194 N 913004008004 NUT
Repalced by: N 913004008001
194 N 913004008001 NUT
BRACKET TO SIDE MEMBER
198 A 6204291940 BRACKET
BRAKE LINE THRU CAB FLOOR
198 A 6204292440 BRACKET
BRAKE LINE THRU CAB FLOOR
200 A 6204290084 SEAL RING
202 N 007981004252 SHEET METAL SCREW
BRACKET TO CAB FLOOR
205 N 009021005202 WASHER
Repalced by: N 009021005205
205 N 009021005205 WASHER
BRACKET TO CAB FLOOR
209 A 0009946445 LOCK
BRACKET TO CAB FLOOR
213 A 6204295240 BRACKET
PROTECTIVE PLATE
217 N 913004006002 NUT
Repalced by: N 913004006001
217 N 913004006001 NUT
PROTECTIVE PLATE TO CAB FLOOR
221 A 0019978390 LOOM TIE
LINE MOUNTING
280 MM
221 A 0019978490 LOOM TIE
LINE MOUNTING
376 MM
225 A 0004316131 TEST CONNECTION
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"21,22"
225 A 0004316131 TEST CONNECTION
FRONT AXLE BRAKE CIRCUIT
WIRA
225 A 0004316131 TEST CONNECTION
BRAKE POWER REGULATOR
WIRA
225 A 0004316131 TEST CONNECTION
TRISTOP CYLINDER;CONNECTIONS:
"11,12"
A 0009979486 PLUG
235 A 0014310006 PRESSURE REGULATOR
Repalced by: A 0024314906
235 A 0014311206 PRESSURE REGULATOR
Repalced by: A 0024314906
235 A 0024314906 PRESSURE REGULATOR
WABCO
A 0014313406 PRESSURE REGULATOR
Repalced by: A 0024314306
238 A 0014310606 PRESSURE REGULATOR
Repalced by: A 0024313406
238 A 0024313406 PRESSURE REGULATOR
Repalced by: A 0024314306
238 A 0024314306 PRESSURE REGULATOR
WITH TIRE INFLATING CONNECTION
BOSCH
238 A 0024318306 PRESSURE REGULATOR
KNORR
240 A 0015864343 REPAIR KIT
Repalced by: A 0004301107
240 A 0004301107 REPAIR KIT
TO 001 431 00 06,WABCO 975 300 110 0
240B A 0024304681 REPAIR KIT
VALVE KIT
TO 001 431 00 06,WABCO 975 300 110 0
241 A 0015868543 REPAIR KIT
Repalced by: A 0004301407
241 A 0004301407 REPAIR KIT
TO 001 431 06 06,BOSCH 0 481 039 101
241 A 0004301768 REPAIR KIT
DIAPHRAGM
TO 002 431 34 06,BOSCH 0 481 039 221
241 A 0004301768 REPAIR KIT
DIAPHRAGM
TO 002 431 43 06,BOSCH 0 481 039 201
241 A 0004307960 REPAIR KIT
TIRE INFLATING CONNECTION
TO 002 431 34 06,BOSCH 0 481 039 221
241 A 0004307960 REPAIR KIT
TIRE INFLATING CONNECTION
TO 002 431 43 06,BOSCH 0 481 039 201
241 A 0025866043 REPAIR KIT
TO 001 431 34 06,GRAU 312 017 014
241K A 0025866743 REPAIR KIT
TO 001 431 12 06,KNORR 32 00
241K A 0014304960 REPAIR KIT
TO 002 431 49 06,WABCO 975 303 460 0
A 0004300407 REPAIR KIT
TO 002 431 83 06,KNORR 903 09
241P A 6164310140 BRACKET
PRESSURE REGULATOR TO BATTERY SUPPORT
241Q A 6174311440 BRACKET
PRESSURE REGULATOR TO BATTERY SUPPORT
241R N 000933008154 SCREW
Repalced by: N 304017008021
241R N 304017008021 SCREW
BRACKET TO BATTERY/APPARATUS SUPPORT
241T N 913004008004 NUT
Repalced by: N 913004008001
241T N 913004008001 NUT
BRACKET TO BATTERY/APPARATUS SUPPORT
242 N 000931008251 SCREW
PRESSURE REGULATOR TO BRACKET
M 8X75
244 N 913004008004 NUT
Repalced by: N 913004008001
244 N 913004008001 NUT
PRESSURE REGULATOR TO BRACKET
246 A 0005461830 INSULATING HOSE
PRESSURE REGULATOR,CONNECTION:
"30"
246 A 0159975082 HOSE
PRESSURE REGULATOR,CONNECTION:
"30"
249 N 916026016001 CLAMP
Repalced by: A 0059970190
249 A 0059970190 LOOM TIE
PRESSURE REGULATOR,CONNECTION:
"30"
249 N 916026020001 CLAMP
Repalced by: N 000000000667
249 N 000000000667 CLAMP
PRESSURE REGULATOR,CONNECTION:
"30"
259 A 0009905871 ELBOW FITTING
PRESSURE REGULATOR,CONNECTION:
"10"
259 N 003911015102 FITTING
PRESSURE REGULATOR,CONNECTION:
"10"
260 A 0019972172 FITTING
PRESSURE REGULATOR,CONNECTION:
"21"
262 A 0009870446 SEALING CORD
PRESSURE REGULATOR,CONNECTIONS:
"10,21"
265 A 0004290227 THRUST RING
Repalced by: A 0009940203
265 A 0009940203 THRUST RING
PRESSURE REGULATOR,CONNECTIONS:
"10,21"
268 N 074305022202 NUT
PRESSURE REGULATOR,CONNECTION:
"10"
272 A 0004292595 AIR CLEANER
BOSCH
272 A 0004292695 AIR CLEANER
KNORR
272 A 0004292795 AIR CLEANER
WABCO
272 A 0004292895 AIR CLEANER
GRAU
276 A 0089978848 SEAL RING
Repalced by: A 0049972248
276 A 0049972248 SEAL RING
Repalced by: A 0289972348
276 A 0289972348 SEAL RING
TO 000 429 27 95,100X3 MM,WABCO
276 A 0089978048 SEAL RING
TO 000 429 28 95,GRAU
276 A 0019974048 SEAL RING
TO 000 429 25 95,BOSCH
277 A 0089978948 SEAL RING
Repalced by: A 0009870746
277 A 0009870746 SEALING CORD
TO 000 429 27 95, 75X3MM,WABCO
277 A 0059972748 SEAL RING
TO 000 429 28 95, GRAU
277 A 0119974048 SEAL RING
TO 000 429 25 95,BOSCH
279 A 0004290845 DIAPHRAGM
TO 000 429 28 95,GRAU
279 A 0004291045 DIAPHRAGM
TO 000 429 25 95,BOSCH
281 A 0004290597 FILTER ELEMENT
TO 000 429 27 95,WABCO
A 0049971840 SEAL RING
TO 000 429 27 95,WABCO
283 A 0059930901 SPRING
TO 000 429 27 95,WABCO
284 A 0004290497 FILTER ELEMENT
TO 000 429 27 95,WABCO
284 A 0004290397 FILTER ELEMENT
TO 000 429 28 95,GRAU
284 A 0004290797 FILTER ELEMENT
TO 000 429 25 95,BOSCH
285 A 0004204455 REPAIR KIT
TO 000 429 27 95,WABCO
A 0004300369 REPAIR KIT
TO 000 429 26 95,KNORR
286 A 0009870446 SEALING CORD
AIR CLEANER,CONNECTION:
"1"
288 A 0004290227 THRUST RING
Repalced by: A 0009940203
288 A 0009940203 THRUST RING
AIR CLEANER,CONNECTION:
"1"
290 A 0019972372 FITTING
AIR CLEANER,CONNECTION:
"1"
290 A 0019972372 FITTING
AIR CLEANER,CONNECTION:
"1"
292 N 074305022202 NUT
AIR CLEANER TO PRESSURE REGULATOR
294 A 6204310740 BRACKET
AIR CLEANER
294 A 6204310740 BRACKET
AIR CLEANER
296 N 000933008147 SCREW
Repalced by: N 304017008021
296 N 304017008021 SCREW
BRACKET TO APPARATUS SUPPORT
296 N 304017008021 SCREW
BRACKET TO APPARATUS SUPPORT
298 N 000125008418 WASHER
Repalced by: N 000125008443
298 N 000125008443 WASHER
BRACKET TO APPARATUS SUPPORT
298 N 000125008443 WASHER
BRACKET TO APPARATUS SUPPORT
300 N 913004008004 NUT
Repalced by: N 913004008001
300 N 913004008001 NUT
BRACKET TO APPARATUS SUPPORT
302 A 0009870446 SEALING CORD
AIR CLEANER,CONNECTION:
"20"
304 A 0004290227 THRUST RING
Repalced by: A 0009940203
304 A 0009940203 THRUST RING
AIR CLEANER,CONNECTION:
"20"
306 A 0019972172 FITTING
AIR CLEANER,CONNECTION:
"20"
306 A 0029978972 FITTING
AIR CLEANER,CONNECTION:
"20"

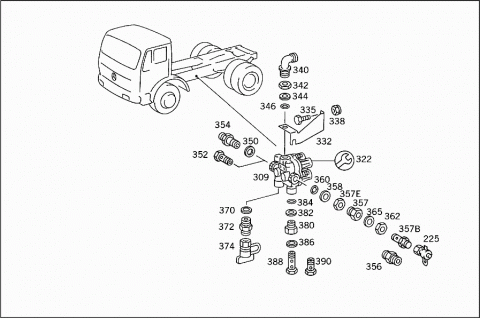

309 A 0014319306 VALVE
Repalced by: A 0034315006
A 0014318906 VALVE
Repalced by: A 0024314006
309 A 0024314006 VALVE
Repalced by: A 0034315006
309 A 0014318706 VALVE
Repalced by: A 0034315006
A 0024310206 VALVE
Repalced by: A 0024312706
309 A 0024312706 VALVE
Repalced by: A 0024319106
309 A 0024319106 VALVE
Repalced by: A 0034315006
309 A 0034315006 VALVE
(FOUR-CIRCUIT PROTECTIVE VALVE)
WABCO
322 A 0035860943 REPAIR KIT
TO 001 431 89 06,002 431 40 06,WABCO
322 A 0035861043 REPAIR KIT
TO 001 431 87 06,KNORR
322 A 0004304706 GASKET KIT
TO 001 431 93 06,BOSCH 62401
322 A 0004300260 REPAIR KIT
TO 001 431 93 06,BOSCH 62201
322 A 0034300981 GASKET KIT
TO 002 431 91 06 GRAU 66001
322 A 0004305106 REPAIR KIT
FOUR-CIRCUIT PROTECTIVE VALVE
WABCO; TO 003 431 50 06
332 A 6164310240 BRACKET
FOUR-CIRCUIT PROTECTIVE VALVE
A 6154311640 BRACKET
FOUR-CIRCUIT PROTECTIVE VALVE
335 N 000933008147 SCREW
Repalced by: N 304017008021
335 N 304017008021 SCREW
BRACKET TO BATTERY/APPARATUS SUPPORT
338 N 913004008004 NUT
Repalced by: N 913004008001
338 N 913004008001 NUT
BRACKET TO BATTERY/APPARATUS SUPPORT
340 A 0009909671 ELBOW FITTING
Repalced by: A 0029901271
340 A 0029901271 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"10"
340 A 0029902271 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"10"
342 N 074305022202 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"10"
344 A 0004290227 THRUST RING
Repalced by: A 0009940203
344 A 0009940203 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"10"
346 A 0009870446 SEALING CORD
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"10"
350 N 007603016401 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"21,22"
352 N 915036012203 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"21"
354 N 915039012205 HOLLOW SCREW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"21"
356 N 074313012304 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
357 A 0004296434 ADAPTER FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
357B N 915039012205 HOLLOW SCREW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
357E N 000439016206 NUT
Repalced by: N 308675016001
357E N 308675016001 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
358 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
360 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
362 N 080705018002 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
362 N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
365 N 000125017010 WASHER
Repalced by: N 000125017016
365 N 000125017016 WASHER
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
370 N 007603016401 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"23"
372 N 915039012205 HOLLOW SCREW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"23"
374 A 0034291044 VALVE
EMERGENCY RELEASE
374 A 0044293744 VALVE
EMERGENCY RELEASE
380 A 0019905268 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
382 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
384 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
386 N 007603012405 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
388 N 915047008202 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
388 N 915047008202 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
390 N 915036008202 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
392 A 0024310605 BRAKE VALVE
SERVICE BRAKE
WABCO
392 A 0024310605 BRAKE VALVE
SERVICE BRAKE
WABCO
392 A 0024310605 BRAKE VALVE
SERVICE BRAKE
WABCO
392 A 0024311005 BRAKE VALVE
SERVICE BRAKE
BOSCH
392 A 0024311005 BRAKE VALVE
SERVICE BRAKE
BOSCH
392 A 0024311005 BRAKE VALVE
SERVICE BRAKE
BOSCH
392 A 0024312005 BRAKE VALVE
SERVICE BRAKE
KNORR
392 A 0024312005 BRAKE VALVE
SERVICE BRAKE
KNORR
392 A 0024312005 BRAKE VALVE
SERVICE BRAKE
KNORR
392 A 0024310705 BRAKE VALVE
SERVICE BRAKE
WABCO
392 A 0024310705 BRAKE VALVE
SERVICE BRAKE
WABCO
392 A 0024311105 BRAKE VALVE
SERVICE BRAKE
BOSCH
392 A 0024311105 BRAKE VALVE
SERVICE BRAKE
BOSCH
392 A 0024311905 BRAKE VALVE
SERVICE BRAKE
KNORR
392 A 0024311905 BRAKE VALVE
SERVICE BRAKE
KNORR
392 A 0014318305 BRAKE VALVE
SERVICE BRAKE
WABCO
392 A 0014318905 BRAKE VALVE
TRUCK-TRACTOR BRAKE
BOSCH
392 A 0014319105 BRAKE VALVE
TRUCK-TRACTOR BRAKE
KNORR
392 A 0014319905 BRAKE VALVE
TRUCK-TRACTOR BRAKE
GRAU
393 A 0014316993 SPRING
TO 001 431 89 05,BOSCH
393B A 0004312185 FILLER RING
TO 001 431 83 05,WABCO
393D A 0004310273 BREATHER PIPE
TO 001 431 83 05,WABCO
393F A 0004318383 PISTON
TO 001 431 83 05,WABCO
393M A 0004313623 VALVE
WABCO
A 0004300060 REPAIR KIT
Repalced by: A 0014308460
394 A 0014308460 GASKET KIT
TWO-CIRCUIT BRAKE VALVE
TO 002 431 10 05,BOSCH
A 0004303306 REPAIR KIT
TWO-CIRCUIT BRAKE VALVE
TO 002 431 11 05,BOSCH
395 A 0035861243 REPAIR KIT
TWO-CIRCUIT BRAKE VALVE
TO 001 431 91 05,KNORR
A 0035861143 REPAIR KIT
Repalced by: A 0004306360
395 A 0004306360 REPAIR KIT
Repalced by: A 0004308206
395 A 0004308206 REPAIR KIT
TO 002 431 06 05,002 431 07 05,WABCO
A 0025868043 REPAIR KIT
Repalced by: A 0004301160
A 0004301160 REPAIR KIT
Repalced by: A 0004306260
A 0004306260 REPAIR KIT
Repalced by: A 0014300460
395 A 0014300460 REPAIR KIT
Repalced by: A 0004308006
395 A 0004308006 REPAIR KIT
TO 001 431 83 05,WABCO
395 A 0025868743 REPAIR KIT
Repalced by: A 0004303506
395 A 0004303506 REPAIR KIT
TO 001 431 89 05,BOSCH
397B A 6202920140 BRACKET
BRAKE VALVE TO PEDAL BEARING BRACKET
398 N 000933008152 SCREW
Repalced by: N 304017008027
398 N 304017008027 SCREW
BRAKE VALVE TO PEDAL BEARING BRACKET
399 N 913004008004 NUT
Repalced by: N 913004008001
399 N 913004008001 NUT
BRAKE VALVE TO PEDAL BEARING BRACKET
A 6204290035 BRAKE HOSE
Repalced by: A 6174310073
A 6204290041 FITTING
Repalced by: A 6174310073
A 0004300270 MUFFLER
Repalced by: A 6174310073
406 A 6174310073 BREATHER PIPE
AT BRAKE VALVE
406 A 6174310173 BREATHER PIPE
410 A 0014306481 VALVE
(PRESSURE RATIO VALVE) FRONT AXLE BRAKE PRESSURE
412 A 0019871746 SEALING CORD
413 A 0089970445 SEAL RING
414 A 0089978648 SEAL RING
415 A 0004313223 VALVE
416 N 007603016401 SEAL RING
417 A 0089978748 SEAL RING
A 6174310440 BRACKET
REGULATING VALVE
A 6174310062 COVERING
REGULATING VALVE
N 000961012106 SCREW
REGULATING VALVE TO CROSS MEMBER
M 12X32
N 000933010128 SCREW
REGULATING VALVE TO CROSS MEMBER
M 10X20
N 910113012002 NUT
REGULATING VALVE TO CROSS MEMBER
432 N 913004008004 NUT
Repalced by: N 913004008001
432 N 913004008001 NUT
VALVE TO CAB
432B A 0009971548 SEAL RING
PRESSURE RATIO VALVE,CONNECTION:
"10"
432C A 0004290927 THRUST RING
PRESSURE RATIO VALVE,CONNECTION:
"10"
433 A 0004296134 ADAPTER FITTING
Repalced by: A 0069970072
433 A 0069970072 FITTING
PRESSURE RATIO VALVE,CONNECTION:
"10"
434 N 007603016107 SEAL RING
PRESSURE RATIO VALVE,CONNECTION:
"10"
436 N 915036012203 HOLLOW SCREW
PRESSURE RATIO VALVE,CONNECTION:
"10"
444 N 007603016401 SEAL RING
PRESSURE RATIO VALVE,CONNECTION:
"20"
445 N 915047012203 HOLLOW SCREW
PRESSURE RATIO VALVE,CONNECTION:
"20"
N 915039012205 HOLLOW SCREW FITTING
REGULATING VALVE,CONNECTION:
"20"
454 A 0009971548 SEAL RING
PRESSURE RATIO VALVE,CONNECTION:
"20"
456 A 0004290927 THRUST RING
PRESSURE RATIO VALVE,CONNECTION:
"20"
458 N 000908016001 SCREW PLUG
PRESSURE RATIO VALVE,CONNECTION:
"20"
459 A 0029900271 ELBOW FITTING
459 A 0029900871 ELBOW FITTING
459B N 913004008004 NUT
Repalced by: N 913004008001
459B N 913004008001 NUT
FITTING TO CAB FLOOR
459E N 915036012203 HOLLOW SCREW
AT FITTING
459K N 915047012203 HOLLOW SCREW
AT FITTING
459M N 007603016401 SEAL RING
AT FITTING
460 A 6204312440 BRACKET
BRACKET TO CONTROL VALVE
460 A 6204312540 BRACKET
BRACKET TO CONTROL VALVE
461 N 007976005204 SHEET METAL SCREW
BRACKET TO CAB FLOOR

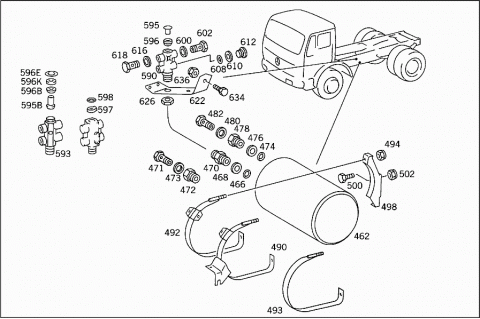

462 A 0004324801 RESERVOIR
Repalced by: A 0014327501
462 A 0014327501 RESERVOIR
Repalced by: A 0034321201
462 A 0034321201 RESERVOIR
COMPRESSED AIR
466 A 0009870446 SEALING CORD
AIR RESERVOIR,CONNECTION:
"13"
468 A 0004290227 THRUST RING
Repalced by: A 0009940203
468 A 0009940203 THRUST RING
AIR RESERVOIR,CONNECTION:
"13"
470 A 0019972172 FITTING
AIR RESERVOIR,CONNECTION:
"13"
471 N 915036012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTION:
"13"
472 A 0009905168 FITTING
AIR RESERVOIR,CONNECTION:
"13"
473 N 007603016401 SEAL RING
AIR RESERVOIR,CONNECTION:
"13"
474 A 0009870446 SEALING CORD
AIR RESERVOIR,CONNECTION:
"23"
476 A 0004290227 THRUST RING
Repalced by: A 0009940203
476 A 0009940203 THRUST RING
AIR RESERVOIR,CONNECTION:
"23"
478 A 0009905168 FITTING
AIR RESERVOIR,CONNECTION:
"23"
N 000908022001 SCREW PLUG
Repalced by: N 000908022011
N 000908022011 SCREW PLUG
AIR RESERVOIR
N 007603022403 SEAL RING
AIR RESERVOIR
480 N 007603016401 SEAL RING
AIR RESERVOIR,CONNECTION:
"23"
482 N 915036012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTION:
"23"
484 A 3874300339 SUPPORT
AIR RESERVOIR
486 N 308676012012 SCREW
APPARATUS SUPPORT TO FRAME SIDE MEMBER
488 N 912004012100 LOCK WASHER
APPARATUS SUPPORT TO FRAME SIDE MEMBER
490 A 6204300440 STRAP
FRONT AIR RESERVOIR
490 A 6204300440 STRAP
FRONT AIR RESERVOIR
490 A 6204300240 STRAP
FRONT AIR RESERVOIR
492 A 6204300540 STRAP
FRONT AIR RESERVOIR
492 A 6204300540 STRAP
FRONT AIR RESERVOIR
492 A 6204301040 STRAP
FRONT AIR RESERVOIR
492 A 6204301240 STRAP
FRONT AIR RESERVOIR
493 A 3874300640 STRAP
REAR AIR RESERVOIR
494 N 913004010008 NUT
Repalced by: N 910113010000
494 N 910113010000 NUT
498 A 3874320540 BRACKET
AIR RESERVOIR
500 N 000933008215 SCREW
Repalced by: A 0069909301
500 A 0069909301 SCREW
AIR RESERVOIR TO SUPPORT
502 N 913004008004 NUT
Repalced by: N 913004008001
502 N 913004008001 NUT
AIR RESERVOIR TO SUPPORT
510 A 0004322601 RESERVOIR
Repalced by: A 0034321801
510 A 0034321801 RESERVOIR
FRONT BRAKE CIRCUIT AIR RESERVOIR
30 L
510 A 0034321801 RESERVOIR
REAR BRAKE CIRCUIT AIR RESERVOIR
30 L
512 A 6204320018 BASE
STRAP TO SUPPORT
514 A 6204300040 STRAP
INSIDE AND OUTSIDE AIR RESERVOIRS
514 A 3874301140 STRAP
Repalced by: A 3874300540
514 A 3874300540 STRAP
Repalced by: A 6204300040
514 A 6204300040 STRAP
INSIDE AND OUTSIDE AIR RESERVOIRS
516 N 000933010105 SCREW
STRAP TO SUPPORT
N 001440010002 WASHER
STRAP TO SUPPORT
518 N 913004010008 NUT
Repalced by: N 910113010000
518 N 910113010000 NUT
STRAP TO SUPPORT
522 A 3464320073 LOCK
PROTECTION AGAINST TORSION
526 A 0009870446 SEALING CORD
REAR BRAKE CIRCUIT AIR RESERVOIR, CONNECTION
"11"
528 A 0004290227 THRUST RING
Repalced by: A 0009940203
528 A 0009940203 THRUST RING
REAR BRAKE CIRCUIT AIR RESERVOIR, CONNECTION
"11"
530 A 0019907368 FITTING
REAR BRAKE CIRCUIT AIR RESERVOIR, CONNECTION
"11"
530 A 0019907368 FITTING
REAR BRAKE CIRCUIT AIR RESERVOIR, CONNECTION
"11"
531 A 0019907170 T-FITTING
FRONT BRAKE CIRCUIT AIR RESERVOIR, CONNECTION:
"11"
N 074305022202 NUT
FRONT BRAKE CIRCUIT AIR RESERVOIR, CONNECTION:
"11"
532 N 007603016401 SEAL RING
REAR BRAKE CIRCUIT AIR RESERVOIR, CONNECTION
"11"
532 N 007603016401 SEAL RING
REAR BRAKE CIRCUIT AIR RESERVOIR, CONNECTION
"11"
534 N 915036012203 HOLLOW SCREW
REAR BRAKE CIRCUIT AIR RESERVOIR, CONNECTION
"11"
534 N 915036012203 HOLLOW SCREW
REAR BRAKE CIRCUIT AIR RESERVOIR, CONNECTION
"11"
536 A 0009870446 SEALING CORD
REAR BRAKE CIRCUIT AIR RESERVOIR, CONNECTION
"21"
538 A 0004290227 THRUST RING
Repalced by: A 0009940203
538 A 0009940203 THRUST RING
REAR BRAKE CIRCUIT AIR RESERVOIR, CONNECTION
"21"
540 A 0019907368 FITTING
REAR BRAKE CIRCUIT AIR RESERVOIR, CONNECTION
"21"
542 N 007603016107 SEAL RING
REAR BRAKE CIRCUIT AIR RESERVOIR, CONNECTION
"21"
544 N 915036012203 HOLLOW SCREW
REAR BRAKE CIRCUIT AIR RESERVOIR, CONNECTION
"21"
548 A 0009870446 SEALING CORD
REAR BRAKE CIRCUIT AIR RESERVOIR, CONNECTION
"31"
550 A 0004290227 THRUST RING
Repalced by: A 0009940203
550 A 0009940203 THRUST RING
REAR BRAKE CIRCUIT AIR RESERVOIR, CONNECTION
"31"
552 A 0009905168 FITTING
REAR BRAKE CIRCUIT AIR RESERVOIR, CONNECTION
"31"
554 N 000908022001 SCREW PLUG
Repalced by: N 000908022011
554 N 000908022011 SCREW PLUG
REAR BRAKE CIRCUIT AIR RESERVOIR, CONNECTION
"31"
556 A 0009870446 SEALING CORD
FRONT BRAKE CIRCUIT AIR RESERVOIR, CONNECTION:
"12"
558 A 0004290227 THRUST RING
Repalced by: A 0009940203
558 A 0009940203 THRUST RING
FRONT BRAKE CIRCUIT AIR RESERVOIR, CONNECTION:
"12"
560 A 0019907368 FITTING
FRONT BRAKE CIRCUIT AIR RESERVOIR, CONNECTION:
"12"
561 N 007603016107 SEAL RING
FRONT BRAKE CIRCUIT AIR RESERVOIR, CONNECTION:
"12"
562 N 915036012203 HOLLOW SCREW
FRONT BRAKE CIRCUIT AIR RESERVOIR, CONNECTION:
"12"
564 A 0009870446 SEALING CORD
FRONT BRAKE CIRCUIT AIR RESERVOIR, CONNECTION:
"22"
566 A 0004290227 THRUST RING
Repalced by: A 0009940203
566 A 0009940203 THRUST RING
FRONT BRAKE CIRCUIT AIR RESERVOIR, CONNECTION:
"22"
568 A 0019907368 FITTING
FRONT BRAKE CIRCUIT AIR RESERVOIR, CONNECTION:
"22"
570 N 007603016401 SEAL RING
FRONT BRAKE CIRCUIT AIR RESERVOIR, CONNECTION:
"22"
572 N 915036012203 HOLLOW SCREW
FRONT BRAKE CIRCUIT AIR RESERVOIR, CONNECTION:
"22"
576 A 0009870446 SEALING CORD
FRONT BRAKE CIRCUIT AIR RESERVOIR, CONNECTION:
"32"
578 A 0004290227 THRUST RING
Repalced by: A 0009940203
578 A 0009940203 THRUST RING
FRONT BRAKE CIRCUIT AIR RESERVOIR, CONNECTION:
"32"
580 N 000908022001 SCREW PLUG
Repalced by: N 000908022011
580 N 000908022011 SCREW PLUG
FRONT BRAKE CIRCUIT AIR RESERVOIR, CONNECTION:
"32"
581 N 007603016401 SEAL RING
REAR BRAKE CIRCUIT AIR RESERVOIR, CONNECTION
"31"
582 N 915036012203 HOLLOW SCREW
REAR BRAKE CIRCUIT AIR RESERVOIR, CONNECTION
"31"
584 A 0004322407 VALVE
AIR RESERVOIR DRAIN
584 A 0004321107 VALVE
AIR RESERVOIR DRAIN
584 A 0004322107 VALVE
AIR RESERVOIR DRAIN
A 0005830296 RING
DRAIN VALVE
586 A 0009870446 SEALING CORD
DRAIN VALVE TO AIR RESERVOIR
588 A 0004290227 THRUST RING
Repalced by: A 0009940203
588 A 0009940203 THRUST RING
DRAIN VALVE TO AIR RESERVOIR
590 A 0024299644 VALVE
(CHECK VALVE)
VOSS
A 0034290444 VALVE
(CHECK VALVE)
WABCO
593 A 0034291244 VALVE
(CHECK VALVE)
SCHAEFER
595 A 0004290383 VALVE TAPPET
TO 002 429 96 44,VOSS
595B A 0004290728 SEAL CONE
TO 003 429 12 44, SCHAEFER
596 A 0004292584 SEAL RING
TO 002 429 96 44,VOSS
596B A 0109970048 SEAL RING
TO 003 429 12 44, SCHAEFER
596E A 0109970148 SEAL RING
TO 003 429 12 44, SCHAEFER
596K A 0004290662 THRUST WASHER
TO 003 429 12 44, SCHAEFER
597 A 0002950320 VALVE
003 429 04 44,WABCO
598 A 0089977348 SEAL RING
TO 003 429 04 44,WABCO
N 915045012100 SEAL RING
Repalced by: N 007603012121
N 007603012121 SEAL RING
CHECK VALVE,CONNECTION:
"10"
600 N 007603016401 SEAL RING
CHECK VALVE,CONNECTION:
"21"
602 N 915036012203 HOLLOW SCREW
CHECK VALVE,CONNECTION:
"21"
608 A 0009971548 SEAL RING
CHECK VALVE,CONNECTION:
"22"
610 A 0004290927 THRUST RING
CHECK VALVE,CONNECTION:
"22"
612 N 000908016001 SCREW PLUG
CHECK VALVE,CONNECTION:
"22"
616 N 007603014405 SEAL RING
CHECK VALVE,CONNECTION:
"23"
618 N 915036010204 HOLLOW SCREW
Repalced by: N 915036010108
618 N 915036010108 HOLLOW SCREW
CHECK VALVE,CONNECTION:
"23"
622 A 6204292540 BRACKET
Repalced by: A 6164290140
622 A 6164290140 BRACKET
CHECK VALVE
626 N 074305022202 NUT
CHECK VALVE TO BRACKET
634 N 000933010129 SCREW
Repalced by: N 304017010002
634 N 304017010002 SCREW
BRACKET TO LEFT SIDE MEMBER
636 N 913004010008 NUT
Repalced by: N 910113010000
636 N 910113010000 NUT
BRACKET TO LEFT SIDE MEMBER

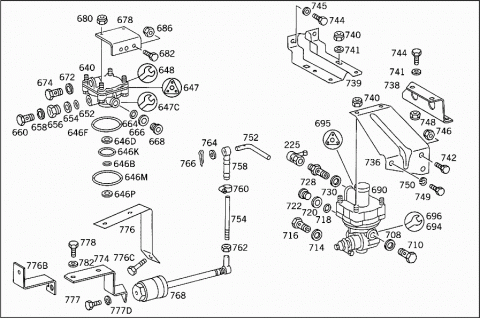

640 A 0034291644 VALVE
RELAY VALVE
BOSCH
A 0024290744 VALVE
Repalced by: A 0034295344
640 A 0034295344 VALVE
RELAY VALVE
KNORR
640 A 0014299144 VALVE
RELAY VALVE
GRAU
640 A 0014296844 VALVE
RELAY VALVE
WABCO
646B A 0059972648 SEAL RING
22.3X2.4 MM; TO 001 429 91 44,GRAU
646D A 0004312788 VALVE SEAT
TO 001 429 91 44,GRAU
646F A 0059972748 SEAL RING
80X3 MM; TO 000 429 28 95, GRAU
646K A 0014311660 SEAL RING
28X2 MM; TO 001 429 91 44,GRAU
646M A 0014311760 SEAL RING
86X2 MM; TO 001 429 91 44,GRAU
646P A 0004311980 GASKET
34X2X6 MM; TO 001 429 91 44,GRAU
647 A 0025865642 REPAIR KIT
Repalced by: A 0004201071
647 A 0004201071 VALVE
GASKET KIT
TO 003 429 16 44,BOSCH; UP TO 03.82
647 A 0004201271 VALVE
GASKET KIT
TO 003 429 16 44,BOSCH; FROM 04.82
647C A 0025865742 REPAIR KIT
Repalced by: A 0004301109
647C A 0004301109 REPAIR KIT
BLEEDER VALVE
TO 003 429 16 44,BOSCH
648 A 0005865742 REPAIR KIT
TO 001 429 68 44,WABCO
648 A 0005863542 REPAIR KIT
TO 002 429 07 44,003 429 53 44,WABCO
652 A 0009870446 SEALING CORD
RELAY VALVE,CONNECTION:
"10"
654 A 0004290227 THRUST RING
Repalced by: A 0009940203
654 A 0009940203 THRUST RING
RELAY VALVE,CONNECTION:
"10"
656 A 0009905168 FITTING
RELAY VALVE,CONNECTION:
"10"
658 N 007603016401 SEAL RING
RELAY VALVE,CONNECTION:
"10"
660 N 915036012203 HOLLOW SCREW
RELAY VALVE,CONNECTION:
"10"
664 A 0009971548 SEAL RING
RELAY VALVE,CONNECTION:
"20"
666 A 0004290927 THRUST RING
RELAY VALVE,CONNECTION:
"20"
668 N 000908016001 SCREW PLUG
RELAY VALVE,CONNECTION:
"20"
672 N 007603016401 SEAL RING
RELAY VALVE,CONNECTION:
"40"
674 N 915036012203 HOLLOW SCREW
RELAY VALVE,CONNECTION:
"40"
678 A 6174310640 BRACKET
RELAY VALVE
680 N 913004008004 NUT
Repalced by: N 913004008001
680 N 913004008001 NUT
RELAY VALVE TO BRACKET
N 000125008418 WASHER
Repalced by: N 000125008443
N 000125008443 WASHER
RELAY VALVE TO BRACKET
682 N 000933010105 SCREW
BRACKET TO LEFT SIDE MEMBER
N 912004010102 LOCK WASHER
BRACKET TO LEFT SIDE MEMBER
686 N 913004010008 NUT
Repalced by: N 910113010000
686 N 910113010000 NUT
BRACKET TO LEFT SIDE MEMBER
690 A 0014313212 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
WABCO
690 A 0014313312 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
WABCO
690 A 0014313312 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
WABCO
690 A 0014313612 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
BOSCH
690 A 0024310412 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
690 A 0014313512 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
BOSCH
690 A 0014313512 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
BOSCH
690 A 0024310512 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
KNORR
690 A 0024310512 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
KNORR
694 A 0035860243 REPAIR KIT
Repalced by: A 0004307560
694 A 0004307560 REPAIR KIT
TO 001 431 32 12,001 431 33 12,WABCO
695 A 0004301868 REPAIR KIT
GASKETS
TO 001 431 35 12,36 12,BOSCH
A 0004300207 REPAIR KIT
BRAKE POWER REGULATOR
TO 002 431 04 12,KNORR
A 0004300307 REPAIR KIT
Repalced by: A 0004300207
A 0004300207 REPAIR KIT
BRAKE POWER REGULATOR
TO 002 431 05 12,KNORR
696 A 0014311486 REPAIR KIT
COVERING
TO 001 431 35 12,BOSCH
696 A 0014311586 REPAIR KIT
COVERING
TO 001 431 36 12,BOSCH
696 A 0004301883 REPAIR KIT
VALVE
TO 001 431 35 12,36 12,BOSCH
698 A 6175841621 GUIDE SIGN
LOAD-DEPENDING BRAKE
698 A 6175844521 GUIDE SIGN
LOAD-DEPENDING BRAKE
698 A 6175846021 GUIDE SIGN
LOAD-DEPENDING BRAKE
698 A 6175842121 GUIDE SIGN
LOAD-DEPENDING BRAKE
698 A 6175842321 GUIDE SIGN
LOAD-DEPENDING BRAKE
698 A 6175842421 GUIDE SIGN
LOAD-DEPENDING BRAKE
698 A 6175842421 GUIDE SIGN
LOAD-DEPENDING BRAKE
698 A 6175846421 GUIDE SIGN
LOAD-DEPENDING BRAKE
700 A 3875840055 ADHESIVE FOIL
708 N 007603016401 SEAL RING
BRAKE POWER REGULATOR,CONNECTION:
"10"
710 N 915036012203 HOLLOW SCREW
BRAKE POWER REGULATOR,CONNECTION:
"10"
714 N 007603016401 SEAL RING
BRAKE POWER REGULATOR,CONNECTION:
"20"
716 N 915036012203 HOLLOW SCREW
BRAKE POWER REGULATOR,CONNECTION:
"20"
718 A 0009971548 SEAL RING
BRAKE POWER REGULATOR,CONNECTION:
720 A 0004290927 THRUST RING
BRAKE POWER REGULATOR,CONNECTION:
722 N 000908016001 SCREW PLUG
BRAKE POWER REGULATOR,CONNECTION:
728 N 915039012205 HOLLOW SCREW FITTING
BRAKE POWER REGULATOR,CONNECTION:
"40"
730 N 007603016401 SEAL RING
BRAKE POWER REGULATOR,CONNECTION:
"40"
736 A 6174310040 BRACKET
BRAKE POWER REGULATOR
738 A 6174310240 BRACKET
BRAKE POWER REGULATOR
739 A 6454310440 BRACKET
BRAKE POWER REGULATOR
A 6174310195 WEB
AT BRACKET
N 000933008147 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
REINFORCEMENT TO CONSOLE
740 N 913004008004 NUT
Repalced by: N 913004008001
740 N 913004008001 NUT
BRAKE POWER REGULATOR TO BRACKET
740 N 913004008001 NUT
REINFORCEMENT TO CONSOLE
741 N 000125008418 WASHER
Repalced by: N 000125008443
741 N 000125008443 WASHER
BRAKE POWER REGULATOR TO BRACKET
741 N 000125008443 WASHER
REINFORCEMENT TO CONSOLE
742 N 000961016113 SCREW
BRACKET TO SIDE MEMBER
744 N 000933010128 SCREW
BRACKET TO CROSS MEMBER
M 10X20
744 N 000933010128 SCREW
CONSOLE TO SIDE MEMBER
M 10X20
N 000933010129 SCREW
Repalced by: N 304017010002
N 304017010002 SCREW
CONSOLE TO SIDE MEMBER
M 10X30
744 N 000933010164 SCREW
CONSOLE TO SIDE MEMBER
M 10X22
N 000933010105 SCREW
CONSOLE TO SIDE MEMBER
M 10X25
745 N 000125010518 WASHER
Repalced by: N 000125010532
745 N 000125010532 WASHER
CONSOLE TO SIDE MEMBER
N 007349010003 WASHER
Repalced by: N 007349010007
N 007349010007 WASHER
CONSOLE TO SIDE MEMBER
746 N 913004016004 NUT
Repalced by: N 910113016002
746 N 910113016002 NUT
BRACKET TO SIDE MEMBER
748 N 913004010008 NUT
Repalced by: N 910113010000
748 N 910113010000 NUT
BRACKET TO SUPPORT
749 N 000933008152 SCREW
Repalced by: N 304017008027
749 N 304017008027 SCREW
BRACKET TO SUPPORT
750 N 912004012100 LOCK WASHER
BRACKET TO SUPPORT
752 A 3854310239 LEVER
Repalced by: A 6204310839
752 A 6204310839 LEVER
Repalced by: A 6744310039
752 A 6744310039 LEVER
BRAKE POWER REGULATOR CONTROL
754 N 900331008419 PULL ROD
BRAKE POWER REGULATOR CONTROL
754 N 900331008419 PULL ROD
BRAKE POWER REGULATOR CONTROL
754 N 900331008419 PULL ROD
BRAKE POWER REGULATOR CONTROL
754 N 900331008420 PULL ROD
BRAKE POWER REGULATOR CONTROL
754 N 900331008420 PULL ROD
BRAKE POWER REGULATOR CONTROL
758 A 0004310735 CONNECTOR
BRAKE POWER REGULATOR CONTROL
760 N 916026010000 CLAMP
Repalced by: N 000000000665
760 N 000000000665 CLAMP
CONNECTOR TO ROD
760 A 6249950065 CLAMP
CONNECTOR TO ROD
762 N 304032008006 NUT
CONNECTOR TO ROD
764 N 000125008418 WASHER
Repalced by: N 000125008443
764 N 000125008443 WASHER
CONNECTOR TO ROD
766 N 000094002077 COTTER PIN
CONNECTOR TO ROD
768 A 0004311418 METAL SPRING BELLOWS
Repalced by: A 0004311718
768 A 0004311718 METAL SPRING BELLOWS
BRAKE POWER REGULATOR CONTROL
768 A 0004311018 METAL SPRING BELLOWS
BRAKE POWER REGULATOR CONTROL
774 A 6204310840 BRACKET
Repalced by: A 6204313740
774 A 6204313740 BRACKET
BRAKE POWER REGULATOR CONTROL
776 A 6204311040 BRACKET
BRAKE POWER REGULATOR CONTROL
776B A 6454310640 BRACKET
BRAKE POWER REGULATOR CONTROL
A 6174312940 BRACKET
BRAKE POWER REGULATOR CONTROL
776C N 000933012039 SCREW
METAL SPRING BELLOWS TO BRACKET
M 12X18
776C N 000933012039 SCREW
METAL SPRING BELLOWS TO BRACKET
M 12X18
777 N 000961012047 SCREW
METAL SPRING BELLOWS TO BRACKET
M 12X1.5X18
777 N 000961012047 SCREW
METAL SPRING BELLOWS TO BRACKET
M 12X1.5X18
777D N 912004012100 LOCK WASHER
METAL SPRING BELLOWS TO BRACKET
778 N 000961016096 SCREW
Repalced by: N 308676016007
778 N 308676016007 SCREW
BRACKET AND BEARING BRACKET TO REAR AXLE
M 16X1.5X50
N 000961014100 SCREW
BRACKET TO REAR AXLE
N 000125017015 WASHER
BRACKET TO REAR AXLE
782 A 6209900640 WASHER
BRACKET AND BEARING BRACKET TO REAR AXLE
N 913004014002 NUT
Repalced by: N 910113014001
N 910113014001 NUT
BRACKET TO REAR AXLE
790 A 0074206318 WHEEL BRAKE CYLINDER
TRISTOP CYLINDER
WABCO
790 A 0084209318 WHEEL BRAKE CYLINDER
TRISTOP CYLINDER
BOSCH
790 A 0094209418 WHEEL BRAKE CYLINDER
TRISTOP CYLINDER
GRAU
790 A 0084205718 WHEEL BRAKE CYLINDER
TRISTOP CYLINDER
KNORR
790 A 0074205718 WHEEL BRAKE CYLINDER
TRISTOP CYLINDER
WABCO
790 A 0084208918 WHEEL BRAKE CYLINDER
TRISTOP CYLINDER
BOSCH
790 A 0084205818 WHEEL BRAKE CYLINDER
TRISTOP CYLINDER
KNORR
795 A 0004231060 SEAL RING
TO 008 420 57 18,KNORR
796 A 0004234187 PROTECTIVE CAP
TO 008 420 57 18,008 420 58 18,KNORR
797 A 0004214886 CUP
Repalced by: A 0004213886
797 A 0004213886 CUP
TO 007 420 57 18,WABCO
798 A 0004212986 DIAPHRAGM
799B A 0004312928 DIAPHRAGM
TO 008 420 57 18,008 420 58 18,KNORR
799D A 0004313028 DIAPHRAGM
TO 008 420 89 18,008 420 93 18,BOSCH
799F A 0004210111 PLUG
799K A 0004211263 GUIDE
Repalced by: N 071752014000
799K N 071752014000 YOKE
TO 008 420 89 18,008 420 93 18,BOSCH
800 A 0004212286 CUP
Repalced by: A 0004215286
800 A 0004215286 CUP
PUSH ROD
800 A 0004233886 CUP
TO 008 420 93 18,BOSCH
804 A 0025863742 REPAIR KIT
Repalced by: A 0025865242
804 A 0025865242 REPAIR KIT
Repalced by: A 0024301560
804 A 0024301560 REPAIR KIT
TO 007 420 63 18,007 420 57 18,WABCO
805 A 0014308660 REPAIR KIT
TRISTOP CYLINDER
TO 008 420 89 18/93 18,BOSCH
805 A 0004304060 REPAIR KIT
Repalced by: A 0024209524
A 0024209524 REPAIR KIT
DIAPHRAGM PART
TO 008 420 57 18,BOSCH
A 0024209424 REPAIR KIT
SPRING LOAD ACCUMULATOR PART
TO 008 420 57 18,BOSCH
806 A 0004304160 REPAIR KIT
Repalced by: A 0024209824
A 0024209824 REPAIR KIT
Repalced by: A 0024209524
A 0024209524 REPAIR KIT
DIAPHRAGM PART
TO 008 420 58 18,KNORR
A 0024209424 REPAIR KIT
SPRING LOAD ACCUMULATOR PART
TO 008 420 58 18,KNORR
808 A 3894230133 BEARING BRACKET
Repalced by: A 3634230033
808 A 3634230033 BEARING BRACKET
TRISTOP CYLINDER
812 A 6214230033 BEARING BRACKET
TRISTOP CYLINDER
816 A 3874230006 BRAKE ANCHOR
TRISTOP CYLINDER
818 N 000961014028 SCREW
SUPPORT TO BEARING BRACKET
M 14 X 40
818 N 000961014028 SCREW
SUPPORT TO BEARING BRACKET
M 14 X 40
818 N 000961014054 SCREW
SUPPORT TO BEARING BRACKET
M 14 X 45
N 000961014108 SCREW
M 14 X 50
820 N 913004014002 NUT
Repalced by: N 910113014001
820 N 910113014001 NUT
SUPPORT TO BEARING BRACKET
822 N 000961016036 SCREW
Repalced by: N 308676016013
822 N 308676016013 SCREW
BEARING BRACKET TO REAR AXLE
M 16X1.5X40
824 N 913004016004 NUT
Repalced by: N 910113016002
824 N 910113016002 NUT
TRISTOP CYLINDER TO BEARING BRACKET
826 A 3619910005 PIN
TRISTOP CYLINDER TO SLACK ADJUSTER
828 N 000433015005 WASHER
TRISTOP CYLINDER TO SLACK ADJUSTER
830 N 000094004051 COTTER PIN
TRISTOP CYLINDER TO SLACK ADJUSTER
832 A 0009971548 SEAL RING
LEFT TRISTOP CYLINDER,CONNECTION:
"11"
834 A 0004290927 THRUST RING
LEFT TRISTOP CYLINDER,CONNECTION:
"11"
836 N 080705016003 NUT
LEFT TRISTOP CYLINDER,CONNECTION:
"11"
838 A 0019905370 T-FITTING
LEFT TRISTOP CYLINDER,CONNECTION:
"11"
840 N 007603016401 SEAL RING
LEFT TRISTOP CYLINDER,CONNECTION:
"11"
842 N 915039012205 HOLLOW SCREW FITTING
LEFT TRISTOP CYLINDER,CONNECTION:
"11"
842 N 915039012205 HOLLOW SCREW FITTING
LEFT TRISTOP CYLINDER,CONNECTION:
"12"
848 N 007603016401 SEAL RING
LEFT TRISTOP CYLINDER,CONNECTION:
"12"
850 N 915039012205 HOLLOW SCREW FITTING
LEFT TRISTOP CYLINDER,CONNECTION:
"12"
854 N 007603016401 SEAL RING
RIGHT TRISTOP CYLINDER,CONNECTION:
"11"
856 N 915036012203 HOLLOW SCREW
RIGHT TRISTOP CYLINDER,CONNECTION:
"11"
860 A 0009971548 SEAL RING
RIGHT TRISTOP CYLINDER,CONNECTION:
"11"
862 A 0004290927 THRUST RING
RIGHT TRISTOP CYLINDER,CONNECTION:
"11"
864 N 080705016003 NUT
RIGHT TRISTOP CYLINDER,CONNECTION:
"11"
866 A 0019905370 T-FITTING
RIGHT TRISTOP CYLINDER,CONNECTION:
"11"
868 N 007603016401 SEAL RING
LEFT TRISTOP CYLINDER,CONNECTION:
"11"
870 N 915036012203 HOLLOW SCREW
LEFT TRISTOP CYLINDER,CONNECTION:
"11"
874 A 0009971548 SEAL RING
RIGHT TRISTOP CYLINDER,CONNECTION:
"12"
876 A 0004290927 THRUST RING
RIGHT TRISTOP CYLINDER,CONNECTION:
"12"
878 N 080705016003 NUT
RIGHT TRISTOP CYLINDER,CONNECTION:
"12"
880 A 0019905370 T-FITTING
RIGHT TRISTOP CYLINDER,CONNECTION:
"12"
882 N 007603016401 SEAL RING
RIGHT TRISTOP CYLINDER,CONNECTION:
"12"
884 N 915039012205 HOLLOW SCREW FITTING
RIGHT TRISTOP CYLINDER,CONNECTION:
"12"
884 N 915039012205 HOLLOW SCREW FITTING
RIGHT TRISTOP CYLINDER,CONNECTION:
"11"
890 N 916027011014 HOSE
FROM RELAY VALVE TO SPRING-LOAD ACCUMULATOR CYLINDER
892 A 0004290541 FITTING
894 N 915017012100 UNION NUT
896 N 003861012007 GLAND
Repalced by: A 0019901967
896 A 0019901967 SEAL CONE
898 A 0004290641 FITTING
900 N 916017016000 CLAMP
Repalced by: N 000000000666
900 N 000000000666 CLAMP
902 N 074304016201 FITTING
904 A 0004290927 THRUST RING
RELAY VALVE,CONNECTION:
"20"
906 A 0009971548 SEAL RING
RELAY VALVE,CONNECTION:
"20"
908 A 6204292040 BRACKET
BRAKE HOSE
909 A 0039975745 SEAL RING
BRAKE HOSE TO PARKING BRAKE HOSE
910 N 913004008004 NUT
Repalced by: N 913004008001
910 N 913004008001 NUT
BRACKET TO RELAY VALVE
912 N 080705018002 NUT
BRAKE HOSE
918 A 3039971440 SEAL RING
BRAKE HOSE TO PARKING BRAKE HOSE
A 1159950465 CLAMP
BRAKE HOSE TO PARKING BRAKE HOSE
A 6209950065 CLAMP
BRAKE HOSE TO PARKING BRAKE HOSE
920 A 0014303481 VALVE
HAND BRAKE VALVE
BOSCH
920 A 0014305681 VALVE
HAND BRAKE VALVE
WABCO
920 A 0014306681 VALVE
Repalced by: A 0024309881
920 A 0024309881 VALVE
HAND BRAKE VALVE
KNORR
920 A 0014304381 VALVE
HAND BRAKE VALVE
BOSCH
920 A 0014305781 VALVE
HAND BRAKE VALVE
WABCO
920 A 0014306781 VALVE
Repalced by: A 0024309981
920 A 0024309981 VALVE
HAND BRAKE VALVE
KNORR
921 A 0014310887 PROTECTIVE CAP
TO 001 430 56 81,001 430 57 81,WABCO
921 A 0014311087 PROTECTIVE CAP
TO 001 430 34 81,001 430 43 81,BOSCH
921 A 0014311287 PROTECTIVE CAP
KNORR
922 A 0009972477 HANDLE
TO 001 430 56 81,001 430 57 81,WABCO
922 A 0009973477 HANDLE
TO 001 430 34 81,001 430 43 81,BOSCH
922 A 0009975577 HANDLE
KNORR
922B N 001481003025 CLAMPING SLEEVE
KNORR
923 A 0025867443 REPAIR KIT
Repalced by: A 0034303181
923 A 0034303181 REPAIR KIT
TO 001 430 56 81,001 430 57 81,WABCO
923 A 0025866343 REPAIR KIT
TO 001 430 34 81,001 430 43 81,BOSCH
A 0034302081 REPAIR KIT
TO 002 430 98 81,002 430 99 81,KNORR
A 0035860543 REPAIR KIT
TO 001 430 66 81,001 430 67 81,KNORR
926 N 007985008119 SCREW
VALVE TO CAB
928 N 912006008000 LOCK WASHER
VALVE TO CAB
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
