Transporto priemonė: 1625 S; VIN numerio dalis: 617130

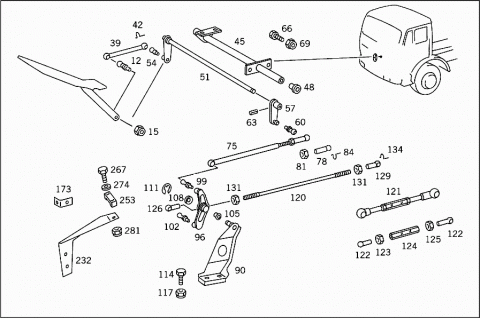

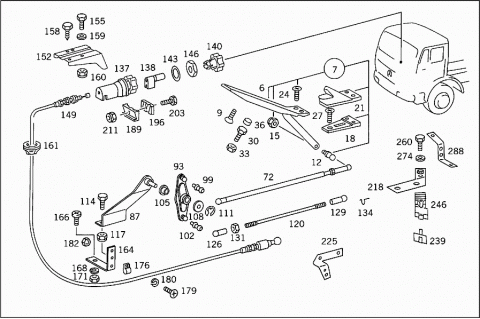

Grupė: 30 CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| 006 | A 3813000104 | ACCELERATOR PEDAL |
| Repalced by: A 6243000304 | ||
| 006 | A 6243000104 | ACCELERATOR PEDAL |
| Repalced by: A 6243000304 | ||
| 007 | A 6243000304 | ACCELERATOR PEDAL |
| (PARTS KIT) | ||
| A 6153000104 | PAD | |
| ACCELERATOR PEDAL | ||
| 009 | N 007991005007 | SCREW |
| ACCELERATOR PEDAL | ||
| 012 | N 071803010301 | BALL PIVOT |
| ACCELERATOR PEDAL | ||
| 012 | A 0009911015 | BALL PIVOT |
| ACCELERATOR PEDAL | ||
| 015 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 015 | N 913004006001 | NUT |
| ACCELERATOR PEDAL | ||
| 018 | A 3813010284 | SHIM |
| Repalced by: A 6153010084 | ||
| 018 | A 6153010084 | SHIM |
| ACCELERATOR PEDAL | ||
| 021 | A 3813010297 | BOOT |
| ACCELERATOR PEDAL | ||
| 021 | A 6153010097 | BOOT |
| ACCELERATOR PEDAL | ||
| 024 | N 000965006003 | SCREW |
| ACCELERATOR PEDAL TO CAB | ||
| M 6 X 25 | ||
| 027 | N 000965006006 | SCREW |
| ACCELERATOR PEDAL TO CAB | ||
| M 6 X 20 | ||
| A 6553010093 | GUIDE RAIL | |
| ACCELERATOR PEDAL TO FLOOR PLATE | ||
| N 000965006077 | SCREW | |
| GUIDE RAIL RETROFIT | ||
| 030 | N 000931008254 | SCREW |
| Repalced by: N 304014008002 | ||
| 030 | N 304014008002 | SCREW |
| PEDAL STOP TO CAB FLOOR | ||
| 033 | N 304032008006 | NUT |
| PEDAL STOP TO CAB FLOOR | ||
| 036 | A 3813010041 | STOP |
| ACCELERATOR PEDAL | ||
| 039 | A 3819910123 | BALL SOCKET |
| FROM ACCELERATOR PEDAL TO SHAFT | ||
| 042 | N 071805010403 | SECURING CLIP |
| BALL SOCKET TO BALL PIVOT | ||
| 045 | A 3813000021 | BEARING TUBE |
| Repalced by: A 6153000021 | ||
| 045 | A 6153000021 | BEARING TUBE |
| CONTROL SHAFT | ||
| 048 | A 3813020050 | BUSHING |
| BEARING TUBE | ||
| 051 | A 3813000020 | SHAFT |
| Repalced by: A 6153000020 | ||
| 051 | A 6153000020 | SHAFT |
| CONTROL | ||
| 054 | N 071803010204 | BALL PIVOT |
| 057 | A 3813000625 | LEVER |
| CONTROL | ||
| 060 | N 071803010204 | BALL PIVOT |
| 063 | N 001481004017 | CLAMPING SLEEVE |
| Repalced by: N 308752004001 | ||
| 063 | N 308752004001 | CLAMPING PIN |
| LEVER TO SHAFT | ||
| 066 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 066 | N 304017008016 | SCREW |
| INTERMEDIATE BEARING TO CAB FLOOR | ||
| 069 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 069 | N 913004008001 | NUT |
| INTERMEDIATE BEARING TO CAB FLOOR | ||
| 072 | A 3873000215 | ROD |
| Repalced by: A 3604302992 | ||
| 072 | A 3604302992 | ROD |
| Repalced by: A 6203000615 | ||
| 072 | A 6203000615 | ROD |
| FROM ACCELERATOR PEDAL TO INTERMEDIATE LEVER | ||
| 075 | A 3604301992 | ROD |
| FROM ACCELERATOR PEDAL TO CONTROL SHAFT BEARING | ||
| 078 | A 0009912422 | BALL SOCKET |
| 081 | N 000934006007 | NUT |
| 084 | N 071805010403 | SECURING CLIP |
| 087 | A 3813000436 | BEARING BRACKET |
| Repalced by: A 6203000336 | ||
| 087 | A 6203000336 | BEARING BRACKET |
| Repalced by: A 6203000536 | ||
| 087 | A 6203000536 | BEARING BRACKET |
| INTERMEDIATE BEARING | ||
| 090 | A 3973000136 | BEARING BRACKET |
| Repalced by: A 6203000436 | ||
| 090 | A 6203000436 | BEARING BRACKET |
| INTERMEDIATE BEARING | ||
| 093 | A 3813000328 | LEVER |
| Repalced by: A 6153000028 | ||
| 093 | A 6153000028 | LEVER |
| Repalced by: A 6203000628 | ||
| 093 | A 6203000628 | LEVER |
| INTERMEDIATE BEARING | ||
| 096 | A 6213000028 | LEVER |
| Repalced by: A 6203000928 | ||
| 096 | A 6203000928 | LEVER |
| INTERMEDIATE BEARING | ||
| 099 | N 071803010209 | BALL PIVOT |
| Repalced by: A 3129910120 | ||
| 099 | A 3129910120 | BALL PIVOT |
| B10X4.5 MM | ||
| 102 | N 071803013208 | BALL PIVOT |
| B13X5 MM | ||
| 105 | A 3813020050 | BUSHING |
| INTERMEDIATE BEARING | ||
| 105 | A 3813020050 | BUSHING |
| INTERMEDIATE BEARING | ||
| 108 | A 3813010388 | COVERING |
| Repalced by: A 6153010088 | ||
| 108 | A 6153010088 | COVERING |
| INTERMEDIATE BEARING | ||
| 111 | N 006799010001 | LOCK PLATE |
| INTERMEDIATE BEARING | ||
| 114 | N 000933010105 | SCREW |
| BEARING BRACKET TO SUBSTRUCTURE | ||
| 117 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 117 | N 910113010000 | NUT |
| BEARING BRACKET TO SUBSTRUCTURE | ||
| 120 | N 900331008421 | PULL ROD |
| FROM INTERMEDIATE LEVER TO ENGINE | ||
| 121 | A 6173000715 | ROD |
| Repalced by: A 6173000615 | ||
| 121 | A 6173000815 | ROD |
| Repalced by: A 6173000615 | ||
| 121 | A 6173000615 | ROD |
| FROM INTERMEDIATE LEVER TO ENGINE | ||
| 122 | N 071805013203 | BALL SOCKET |
| 123 | N 304032008006 | NUT |
| R.H. THREAD | ||
| 124 | A 3812920033 | NUT |
| TO ROD WITH TURNBUCKLE NUT | ||
| 125 | N 000934008035 | NUT |
| L.H. THREAD | ||
| 126 | N 071805013203 | BALL SOCKET |
| TO ROD LESS TURNBUCKLE NUT | ||
| 129 | A 4069910022 | BALL SOCKET |
| TO ROD LESS TURNBUCKLE NUT | ||
| 131 | N 304032008006 | NUT |
| TO ROD LESS TURNBUCKLE NUT | ||
| 134 | N 071805013402 | SECURING CLIP |
| 137 | A 3813000326 | MANUAL CONTROL |
| IDLING ADJUSTMENT | ||
| 138 | A 3813020108 | GUIDE |
| IDLING ADJUSTMENT | ||
| 140 | A 3813020201 | KNOB |
| Repalced by: A 6153020001 | ||
| 140 | A 6153020001 | KNOB |
| 143 | A 3819940016 | LOCK |
| Repalced by: N 000988030003 | ||
| 143 | N 000988030003 | FITTED WASHER |
| IDLING ADJUSTMENT | ||
| 146 | A 3819900051 | NUT |
| IDLING ADJUSTMENT | ||
| 149 | A 3813001430 | WIRE CABLE |
| IDLING ADJUSTMENT | ||
| 149 | A 6153000030 | WIRE CABLE |
| Repalced by: A 6203000130 | ||
| 149 | A 6203000130 | WIRE CABLE |
| IDLING ADJUSTMENT | ||
| 152 | A 6173020040 | BRACKET |
| IDLING ADJUSTER | ||
| 152 | A 3813020340 | BRACKET |
| Repalced by: A 3813020240 | ||
| 152 | A 3813020240 | BRACKET |
| IDLING ADJUSTER | ||
| 155 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 155 | N 304017006018 | SCREW |
| BRACKET TO WINDOW SILL GIRDER | ||
| M 6X12 | ||
| 155 | N 000933006102 | SCREW |
| BRACKET TO WINDOW SILL GIRDER | ||
| M 6X15 | ||
| 158 | N 007976005207 | SHEET METAL SCREW |
| Repalced by: N 914031005208 | ||
| 158 | N 914031005208 | COMBINATION BOLT |
| BRACKET TO WINDOW SILL GIRDER | ||
| 159 | N 000125006421 | WASHER |
| BRACKET TO WINDOW SILL GIRDER | ||
| 160 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 160 | N 913004006001 | NUT |
| BRACKET TO WINDOW SILL GIRDER | ||
| 161 | A 3833020091 | GROMMET |
| Repalced by: A 0069978881 | ||
| 161 | A 0069978881 | GROMMET |
| WIRE CABLE THRU WINDOW SILL | ||
| 164 | A 6173020240 | BRACKET |
| WIRE CABLE | ||
| 166 | N 000000001147 | SCREW |
| BRACKET TO FIRE WALL | ||
| M 6X20 | ||
| 168 | N 912004006102 | LOCK WASHER |
| BRACKET TO FIRE WALL | ||
| 171 | N 000934006007 | NUT |
| BRACKET TO FIRE WALL | ||
| 173 | A 3873020140 | BRACKET |
| WIRE CABLE | ||
| 176 | A 3609952001 | CLAMP |
| Repalced by: A 6739950001 | ||
| 176 | A 6739950001 | CLAMP |
| WIRE CABLE | ||
| 179 | N 000000001147 | SCREW |
| CLAMP TO BRACKET | ||
| M 6X20 | ||
| 180 | N 912004006102 | LOCK WASHER |
| CLAMP TO BRACKET | ||
| 182 | N 000934006007 | NUT |
| CLAMP TO BRACKET | ||
| 189 | A 6175460044 | CLAMPING PIECE |
| CABLE PULL TO FIRE WALL | ||
| 189 | A 6175460344 | CLAMPING PIECE |
| CABLE PULL TO FIRE WALL | ||
| 196 | A 6175460144 | CLAMPING PIECE |
| CABLE PULL TO FIRE WALL | ||
| 196 | A 3875460344 | CLAMPING PIECE |
| CABLE PULL TO FIRE WALL | ||
| 203 | N 000931006118 | SCREW |
| CABLE PULL TO FIRE WALL | ||
| 211 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 211 | N 913004006001 | NUT |
| CABLE PULL TO FIRE WALL | ||
| 218 | A 6153000040 | BRACKET |
| CABLE TO RADIATOR MOUNTING | ||
| 225 | A 6153000140 | BRACKET |
| CABLE TO RADIATOR MOUNTING | ||
| 232 | A 6203010240 | BRACKET |
| CABLE TO SIDE MEMBER | ||
| 239 | A 6203010036 | COVER |
| CABLE TO BRACKET | ||
| 246 | A 6203010043 | CLAMPING PIECE |
| CABLE TO BRACKET | ||
| 253 | A 3975460144 | CLAMPING PIECE |
| CABLE TO BRACKET | ||
| 260 | N 000933006127 | SCREW |
| CLAMPING PIECE TO BRACKET | ||
| M 6X25 | ||
| 267 | N 000933006124 | SCREW |
| CLAMPING PIECE TO BRACKET | ||
| M 6X30 | ||
| 274 | N 000125006421 | WASHER |
| CLAMPING PIECE TO BRACKET | ||
| 274 | N 000125006421 | WASHER |
| CLAMPING PIECE TO BRACKET | ||
| 281 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 281 | N 913004006001 | NUT |
| CLAMPING PIECE TO BRACKET | ||
| 288 | A 6153010240 | BRACKET |
| CABLE TO SIDE MEMBER | ||
