Transporto priemonė: 1625 S; VIN numerio dalis: 617131

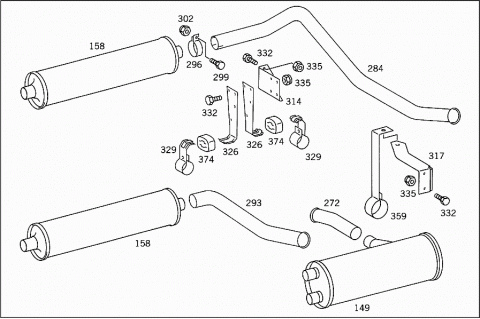

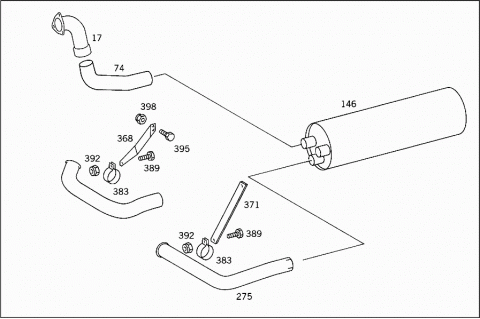

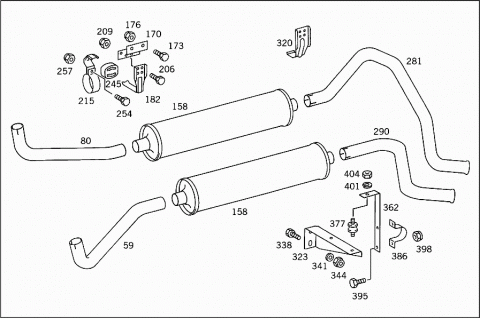

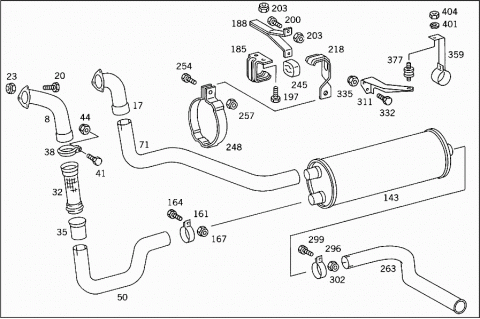

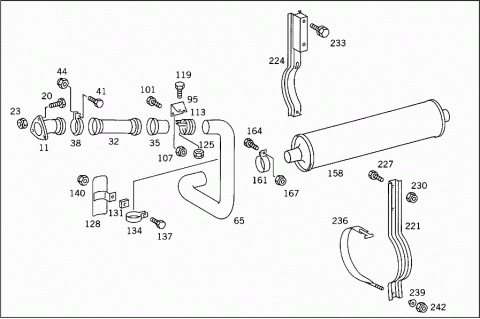

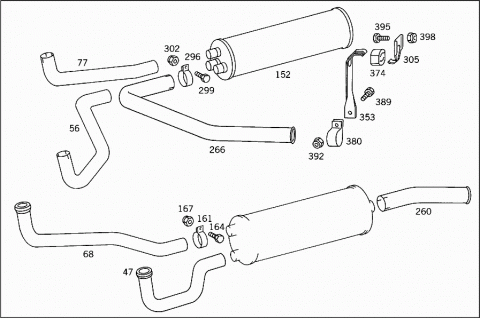

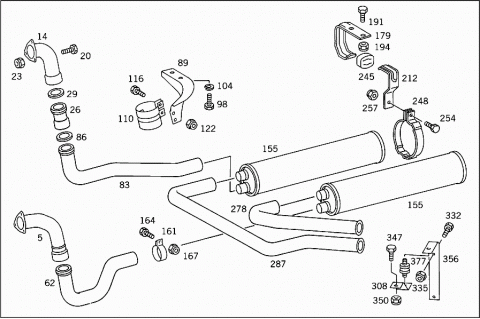

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6174900025 | CONNECTOR |
| LEFT FRONT | ||
| 008 | A 6174900825 | CONNECTOR |
| LEFT FRONT | ||
| 011 | A 6174900129 | FLANGE |
| LEFT FRONT | ||
| 011 | A 6174900229 | FLANGE |
| RIGHT FRONT | ||
| 014 | A 6174900125 | CONNECTOR |
| RIGHT FRONT | ||
| 017 | A 6174900925 | CONNECTOR |
| RIGHT FRONT | ||
| 020 | N 000931012034 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 12X50 | ||
| 020 | N 000931012114 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 12X45 | ||
| 023 | N 913004012010 | NUT |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 12 | ||
| 026 | A 6204900525 | CONNECTOR |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 029 | A 0001423957 | SEAL RING |
| 032 | A 6204900365 | FLEXIBLE METAL TUBE |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 035 | A 6204920008 | COLLAR |
| Repalced by: A 6524920008 | ||
| 035 | A 6524920008 | COLLAR |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 035 | A 6174920008 | COLLAR |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 038 | A 6209970490 | CLAMP |
| EXHAUST LINE FLEXIBLE METAL TUBE | ||
| 041 | N 000933008161 | SCREW |
| Repalced by: N 304017008028 | ||
| 041 | N 304017008028 | SCREW |
| EXHAUST HOSE TO EXHAUST PIPE | ||
| 044 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 044 | N 913004008001 | NUT |
| EXHAUST HOSE TO EXHAUST PIPE | ||
| 047 | A 6174900019 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 050 | A 6174901220 | EXHAUST PIPE |
| Repalced by: A 6174904720 | ||
| 050 | A 6174904720 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 053 | A 6194901920 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 053 | A 6194901320 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 056 | A 6174900420 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 056 | A 6174901620 | EXHAUST PIPE |
| Repalced by: A 6174904020 | ||
| 056 | A 6174904020 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 056 | A 6174900620 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 059 | A 6174901820 | EXHAUST PIPE |
| Repalced by: A 6174904120 | ||
| 059 | A 6174904120 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 062 | A 6174900219 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 062 | A 6174902420 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 062 | A 6174902920 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 065 | A 6174903320 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 065 | A 6174906520 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 065 | A 6174903420 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 065 | A 6174906620 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 068 | A 6174902320 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 071 | A 6174901320 | EXHAUST PIPE |
| Repalced by: A 6174904820 | ||
| 071 | A 6174904820 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 074 | A 6194902020 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 074 | A 6194901220 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 077 | A 6174900419 | EXHAUST PIPE |
| Repalced by: A 6174900119 | ||
| 077 | A 6174900119 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 077 | A 6174901720 | EXHAUST PIPE |
| Repalced by: A 6174905020 | ||
| 077 | A 6174905020 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 077 | A 6174900720 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 080 | A 6174901920 | EXHAUST PIPE |
| Repalced by: A 6174904220 | ||
| 080 | A 6174904220 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 083 | A 6174900319 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 083 | A 6174902520 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 083 | A 6174903020 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 086 | A 0001423957 | SEAL RING |
| 089 | A 6174921341 | BRACKET |
| LEFT EXHAUST PIPE | ||
| 089 | A 6174921441 | BRACKET |
| RIGHT EXHAUST PIPE | ||
| 089 | A 6174922941 | BRACKET |
| LEFT EXHAUST PIPE | ||
| 089 | A 6174923041 | BRACKET |
| RIGHT EXHAUST PIPE | ||
| 095 | A 6174924441 | BRACKET |
| LEFT EXHAUST PIPE | ||
| 095 | A 6174924541 | BRACKET |
| RIGHT EXHAUST PIPE | ||
| 098 | N 000961014100 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 101 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 101 | N 308676014020 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 104 | N 912004014100 | LOCK WASHER |
| BRACKET TO CROSS MEMBER | ||
| 107 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 107 | N 910113014001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 110 | A 3874920240 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 113 | A 6204920840 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 116 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 116 | N 304017008027 | SCREW |
| FRONT EXHAUST PIPE TO BRACKET | ||
| M 8X30 | ||
| 119 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 119 | N 304017010002 | SCREW |
| FRONT EXHAUST PIPE TO BRACKET | ||
| M 10 X 30 | ||
| 119 | N 000933010145 | SCREW |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 122 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 122 | N 913004008001 | NUT |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 125 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 125 | N 910113010000 | NUT |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 128 | A 3834901030 | PROTECTIVE PLATE |
| (HEAT SHIELD) | ||
| 131 | A 1204920083 | INSULATION |
| PROTECTIVE PLATE TO FRONT EXHAUST PIPE | ||
| 134 | N 071555090501 | CLAMP |
| Repalced by: N 071555090502 | ||
| 134 | N 071555090502 | CLAMP |
| 137 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 137 | N 304017010002 | SCREW |
| PROTECTIVE PLATE TO FRONT EXHAUST PIPE | ||
| N 000125008418 | WASHER | |
| Repalced by: N 000125008443 | ||
| N 000125008443 | WASHER | |
| PROTECTIVE PLATE TO FRONT EXHAUST PIPE | ||
| 140 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 140 | N 910113010000 | NUT |
| PROTECTIVE PLATE TO FRONT EXHAUST PIPE | ||
| 143 | A 6174900101 | EXHAUST MUFFLER |
| 143 | A 6174900101 | EXHAUST MUFFLER |
| 143 | A 6174900101 | EXHAUST MUFFLER |
| 146 | A 6174901901 | EXHAUST MUFFLER |
| 149 | A 3874900601 | EXHAUST MUFFLER |
| 149 | A 3874900601 | EXHAUST MUFFLER |
| 152 | A 6174900001 | EXHAUST MUFFLER |
| 155 | A 6174900201 | EXHAUST MUFFLER |
| LEFT AND RIGHT | ||
| 158 | A 3834900201 | EXHAUST MUFFLER |
| LEFT AND RIGHT | ||
| 158 | A 3834900201 | EXHAUST MUFFLER |
| LEFT AND RIGHT | ||
| 158 | A 3834900201 | EXHAUST MUFFLER |
| LEFT AND RIGHT | ||
| 158 | A 6174901601 | EXHAUST MUFFLER |
| LEFT AND RIGHT | ||
| 161 | N 071555078502 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 78.5 MM | ||
| 161 | N 071555075502 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 75.5 MM | ||
| 161 | N 071555075502 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 75.5 MM | ||
| 164 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 164 | N 304017010002 | SCREW |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 167 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 167 | N 910113010000 | NUT |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| M 10 | ||
| 170 | A 6164920216 | SUPPORT |
| FRONT EXHAUST MUFFLER | ||
| 173 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 173 | N 304017008027 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 176 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 176 | N 913004008001 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 179 | A 6174910616 | SUPPORT |
| FRONT EXHAUST MUFFLER | ||
| 179 | A 6174910616 | SUPPORT |
| FRONT EXHAUST MUFFLER | ||
| 182 | A 3814910816 | SUPPORT |
| FRONT EXHAUST MUFFLER | ||
| 182 | A 3814910416 | SUPPORT |
| REAR EXHAUST MUFFLER | ||
| 185 | A 6174911116 | SUPPORT |
| Repalced by: A 6174911316 | ||
| 185 | A 6174911316 | SUPPORT |
| REAR EXHAUST MUFFLER | ||
| 185 | A 6174911316 | SUPPORT |
| REAR EXHAUST MUFFLER | ||
| 188 | A 6174900034 | SUPPORT |
| REAR EXHAUST MUFFLER | ||
| 191 | N 000933012151 | SCREW |
| Repalced by: N 304017012022 | ||
| 191 | N 304017012022 | SCREW |
| SUPPORT TO CROSS MEMBER | ||
| M 12X1.5X30 | ||
| 191 | N 304017012022 | SCREW |
| SUPPORT TO CROSS MEMBER | ||
| M 12X1.5X30 | ||
| 194 | N 910113012002 | NUT |
| SUPPORT TO CROSS MEMBER | ||
| 194 | N 910113012002 | NUT |
| SUPPORT TO CROSS MEMBER | ||
| 197 | N 000933010157 | SCREW |
| SUPPORT TO CROSS MEMBER | ||
| M 10X28 | ||
| 197 | N 000933010157 | SCREW |
| SUPPORT TO CROSS MEMBER | ||
| M 10X28 | ||
| 200 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 200 | N 304017010002 | SCREW |
| SUPPORT TO FRAME | ||
| M 10X30 | ||
| 203 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 203 | N 910113010000 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 203 | N 910113010000 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 203 | N 910113010000 | NUT |
| SUPPORT TO CROSS MEMBER | ||
| 206 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 206 | N 304017008027 | SCREW |
| SUPPORT TO FRAME | ||
| 209 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 209 | N 913004008001 | NUT |
| SUPPORT TO FRAME | ||
| 212 | A 6174920141 | BRACKET |
| FRONT EXHAUST MUFFLER | ||
| 212 | A 6174920141 | BRACKET |
| FRONT EXHAUST MUFFLER | ||
| 215 | A 6174922841 | BRACKET |
| FRONT AND REAR EXHAUST MUFFLERS | ||
| 218 | A 6174920241 | BRACKET |
| REAR EXHAUST MUFFLER | ||
| 218 | A 6174920241 | BRACKET |
| REAR EXHAUST MUFFLER | ||
| 218 | A 6174922741 | BRACKET |
| REAR EXHAUST MUFFLER | ||
| 221 | A 6174910441 | BRACKET |
| Repalced by: A 6524912141 | ||
| 221 | A 6524912141 | BRACKET |
| EXHAUST MUFFLER TO FRAME | ||
| 221 | A 6174910541 | BRACKET |
| EXHAUST MUFFLER TO FRAME | ||
| 221 | A 6174910541 | BRACKET |
| EXHAUST MUFFLER TO FRAME | ||
| 221 | A 6174911841 | BRACKET |
| EXHAUST MUFFLER TO FRAME | ||
| 224 | A 6174900340 | BRACKET |
| EXHAUST MUFFLER | ||
| 227 | N 000961014028 | SCREW |
| BRACKET TO FRAME | ||
| 227 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 227 | N 308676014020 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 14X35 | ||
| 227 | N 000961014100 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 14X30 | ||
| 230 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 230 | N 910113014001 | NUT |
| BRACKET TO FRAME | ||
| 233 | N 912004014100 | LOCK WASHER |
| BRACKET TO SIDE MEMBER | ||
| 236 | A 6174900042 | STRAP |
| FRONT AND REAR EXHAUST MUFFLERS | ||
| 236 | A 6174900142 | STRAP |
| FRONT AND REAR EXHAUST MUFFLERS | ||
| 239 | N 006319010302 | SPHERICAL WASHER |
| STRAP TO BRACKET | ||
| 242 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 242 | N 910113010000 | NUT |
| STRAP TO BRACKET | ||
| 245 | A 3814920082 | DAMPING PAD |
| FRONT AND REAR EXHAUST MUFFLERS | ||
| 245 | A 3814920082 | DAMPING PAD |
| FRONT AND REAR EXHAUST MUFFLERS | ||
| 248 | A 6174910340 | CLAMP |
| Repalced by: A 6174910540 | ||
| 248 | A 6174910540 | CLAMP |
| EXHAUST MUFFLER TO BRACKET,FRONT AND REAR | ||
| 248 | A 6174910440 | CLAMP |
| EXHAUST MUFFLER TO BRACKET,FRONT AND REAR | ||
| 254 | N 000933010094 | SCREW |
| EXHAUST MUFFLER TO BRACKET,FRONT AND REAR | ||
| M 10X40 | ||
| 254 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 254 | N 304017010002 | SCREW |
| EXHAUST MUFFLER TO BRACKET,FRONT AND REAR | ||
| M 10X30 | ||
| 254 | N 304017010002 | SCREW |
| EXHAUST MUFFLER TO BRACKET,FRONT AND REAR | ||
| M 10X30 | ||
| 257 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 257 | N 910113010000 | NUT |
| EXHAUST MUFFLER TO BRACKET,FRONT AND REAR | ||
| M 10 | ||
| 257 | N 910113010000 | NUT |
| EXHAUST MUFFLER TO BRACKET,FRONT AND REAR | ||
| M 10 | ||
| 260 | A 6174920004 | REAR EXHAUST PIPE |
| Repalced by: A 6174920204 | ||
| 260 | A 6174920204 | REAR EXHAUST PIPE |
| 260 | A 6174920204 | REAR EXHAUST PIPE |
| 263 | A 6174920204 | REAR EXHAUST PIPE |
| Repalced by: A 6174920914 | ||
| 263 | A 6174920914 | END PIECE |
| 263 | A 6174920604 | REAR EXHAUST PIPE |
| 266 | A 6174920014 | END PIECE |
| TAIL PIPE,FRONT | ||
| 269 | A 6194923104 | REAR EXHAUST PIPE |
| TAIL PIPE,FRONT | ||
| 269 | A 6194921204 | REAR EXHAUST PIPE |
| TAIL PIPE,FRONT | ||
| 272 | A 3974920404 | REAR EXHAUST PIPE |
| 272 | A 3974920404 | REAR EXHAUST PIPE |
| 272 | A 6174920514 | END PIECE |
| 275 | A 6194921904 | REAR EXHAUST PIPE |
| TAIL PIPE,FRONT | ||
| 275 | A 6194922004 | REAR EXHAUST PIPE |
| TAIL PIPE,FRONT | ||
| 275 | A 6194922104 | REAR EXHAUST PIPE |
| TAIL PIPE,FRONT | ||
| 278 | A 6174920114 | END PIECE |
| SHORT;EXHAUST MUFFLER,LEFT | ||
| 281 | A 6174921214 | END PIECE |
| LONG;EXHAUST MUFFLER,RIGHT | ||
| 281 | A 6174921814 | END PIECE |
| LONG;EXHAUST MUFFLER,LEFT | ||
| 281 | A 6174920814 | END PIECE |
| LONG;EXHAUST MUFFLER,RIGHT | ||
| 281 | A 6174922414 | END PIECE |
| LONG;EXHAUST MUFFLER,LEFT | ||
| 284 | A 6174923414 | END PIECE |
| LONG;EXHAUST MUFFLER,RIGHT | ||
| 284 | A 6174923514 | END PIECE |
| LONG;EXHAUST MUFFLER,LEFT | ||
| 287 | A 6174920214 | END PIECE |
| LONG;EXHAUST MUFFLER,RIGHT | ||
| 290 | A 6174921314 | END PIECE |
| SHORT;EXHAUST MUFFLER,LEFT | ||
| 290 | A 6174921314 | END PIECE |
| SHORT;EXHAUST MUFFLER,RIGHT | ||
| 290 | A 6174920714 | END PIECE |
| SHORT;EXHAUST MUFFLER,LEFT | ||
| 290 | A 6174920714 | END PIECE |
| SHORT;EXHAUST MUFFLER,RIGHT | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 117 | ||
| 293 | A 6174923314 | END PIECE |
| SHORT;EXHAUST MUFFLER,LEFT | ||
| 293 | A 6174923314 | END PIECE |
| SHORT;EXHAUST MUFFLER,RIGHT | ||
| 296 | N 071555090501 | CLAMP |
| Repalced by: N 071555090502 | ||
| 296 | N 071555090502 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 90.5 MM | ||
| 296 | N 071555075502 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 75.5 MM | ||
| 299 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 299 | N 304017010002 | SCREW |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 299 | N 304017010002 | SCREW |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 302 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 302 | N 910113010000 | NUT |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 302 | N 910113010000 | NUT |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 305 | A 3814910416 | SUPPORT |
| REAR EXHAUST PIPE | ||
| 308 | A 6174920316 | SUPPORT |
| Repalced by: A 6174920516 | ||
| 308 | A 6174920516 | SUPPORT |
| REAR EXHAUST PIPE | ||
| 311 | A 6174920616 | SUPPORT |
| REAR EXHAUST PIPE | ||
| 311 | A 3814910516 | SUPPORT |
| REAR EXHAUST PIPE | ||
| 311 | A 3814910516 | SUPPORT |
| REAR EXHAUST PIPE | ||
| 314 | A 6174920716 | SUPPORT |
| REAR EXHAUST PIPE | ||
| 317 | A 3814910316 | SUPPORT |
| Repalced by: A 3604910016 | ||
| 317 | A 3604910016 | SUPPORT |
| REAR EXHAUST PIPE | ||
| 320 | A 3814910616 | SUPPORT |
| REAR EXHAUST PIPE | ||
| 320 | A 3814910616 | SUPPORT |
| REAR EXHAUST PIPE | ||
| 320 | A 3814910616 | SUPPORT |
| REAR EXHAUST PIPE | ||
| 323 | A 3464920841 | BRACKET |
| REAR EXHAUST PIPE | ||
| 326 | A 6214920341 | BRACKET |
| SUPPORT TO SIDE MEMBER | ||
| 326 | A 6214920441 | BRACKET |
| SUPPORT TO SIDE MEMBER | ||
| 329 | A 3834921041 | BRACKET |
| SUPPORT TO SIDE MEMBER | ||
| 332 | N 000933008150 | SCREW |
| Repalced by: N 304017008018 | ||
| 332 | N 304017008018 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 8X35 | ||
| 332 | N 304017008018 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 8X35 | ||
| 332 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 332 | N 304017008027 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 8 X 30 | ||
| 332 | N 304017008027 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 8 X 30 | ||
| 332 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 332 | N 304017008034 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 8X25 | ||
| 332 | N 304017008034 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 8X25 | ||
| 335 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 335 | N 913004008001 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 335 | N 913004008001 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 335 | N 913004008001 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 335 | N 913004008001 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 338 | N 000933010094 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 10X40 | ||
| 338 | N 000933010328 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 10X45 | ||
| 341 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 341 | N 000125010532 | WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 344 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 344 | N 910113010000 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| M 10 | ||
| 347 | N 000933012064 | SCREW |
| FROM SUPPORT TO BATTERY/APPARATUS SUPPORT | ||
| M 12 X 25 | ||
| 350 | N 913002012004 | NUT |
| FROM SUPPORT TO BATTERY/APPARATUS SUPPORT | ||
| M 12 | ||
| 353 | A 6174920941 | BRACKET |
| REAR EXHAUST PIPE | ||
| 356 | A 6174920841 | BRACKET |
| Repalced by: A 6174926341 | ||
| 356 | A 6174925441 | BRACKET |
| Repalced by: A 6174922341 | ||
| 356 | A 6174923741 | BRACKET |
| Repalced by: A 6174922341 | ||
| 356 | A 6174922341 | BRACKET |
| Repalced by: A 6174926341 | ||
| 356 | A 6174926341 | BRACKET |
| REAR EXHAUST PIPE | ||
| 359 | A 6174922541 | BRACKET |
| Repalced by: A 6164923241 | ||
| 359 | A 6174923241 | BRACKET |
| REAR EXHAUST PIPE TO SUPPORT | ||
| 359 | A 6174923241 | BRACKET |
| REAR EXHAUST PIPE TO SUPPORT | ||
| 359 | A 6164920141 | BRACKET |
| Repalced by: A 6164920241 | ||
| 359 | A 6164920241 | BRACKET |
| REAR EXHAUST PIPE TO SUPPORT | ||
| 359 | A 6164920241 | BRACKET |
| REAR EXHAUST PIPE TO SUPPORT | ||
| 362 | A 6174922241 | BRACKET |
| Repalced by: A 6174926341 | ||
| 362 | A 6174926341 | BRACKET |
| REAR EXHAUST PIPE TO SUPPORT | ||
| 365 | A 6194921041 | BRACKET |
| TAIL PIPE,FRONT | ||
| 368 | A 6194921341 | BRACKET |
| TAIL PIPE,FRONT | ||
| 368 | A 6194921441 | BRACKET |
| TAIL PIPE,FRONT | ||
| 371 | A 6214921741 | BRACKET |
| Repalced by: A 6244920741 | ||
| 371 | A 6244920741 | BRACKET |
| TAIL PIPE,FRONT | ||
| 374 | A 3814920082 | DAMPING PAD |
| TAIL PIPE,FRONT | ||
| 374 | A 3814920082 | DAMPING PAD |
| TAIL PIPE,FRONT | ||
| 377 | A 0019875340 | RUBBER BUFFER |
| REAR EXHAUST PIPE TO SUPPORT | ||
| 377 | A 0019875340 | RUBBER BUFFER |
| REAR EXHAUST PIPE TO SUPPORT | ||
| 377 | A 0019875340 | RUBBER BUFFER |
| REAR EXHAUST PIPE TO SUPPORT | ||
| 377 | A 0019875340 | RUBBER BUFFER |
| REAR EXHAUST PIPE TO SUPPORT | ||
| 380 | A 3954920040 | CLAMP |
| Repalced by: A 6454921140 | ||
| 380 | A 6454921140 | CLAMP |
| TAIL PIPE TO BRACKET | ||
| 380 | A 6454921140 | CLAMP |
| TAIL PIPE TO BRACKET | ||
| 383 | N 071555090501 | CLAMP |
| Repalced by: N 071555090502 | ||
| 383 | N 071555090502 | CLAMP |
| 383 | N 071555090502 | CLAMP |
| 386 | A 6174920140 | CLAMP |
| REAR EXHAUST PIPE TO SUPPORT | ||
| 389 | N 000933010105 | SCREW |
| TAIL PIPE,FRONT | ||
| 389 | N 000933010105 | SCREW |
| BRACKET TO HYDRAULIC PUMP BRACKET | ||
| 389 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 389 | N 304017010002 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| 389 | N 304017010002 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 389 | N 304017010002 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| 389 | N 304017010002 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 389 | N 304017010002 | SCREW |
| TAIL PIPE,FRONT | ||
| 392 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 392 | N 910113010000 | NUT |
| REAR EXHAUST PIPE TO SUPPORT | ||
| 392 | N 910113010000 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
| 392 | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 392 | N 910113010000 | NUT |
| TAIL PIPE,FRONT | ||
| 395 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 395 | N 304017008034 | SCREW |
| REAR EXHAUST PIPE TO SUPPORT | ||
| 395 | N 304017008034 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 398 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 398 | N 913004008001 | NUT |
| REAR EXHAUST PIPE TO SUPPORT | ||
| 398 | N 913004008001 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 401 | N 912004010102 | LOCK WASHER |
| RUBBER BUFFER TO BRACKET | ||
| 401 | N 912004010102 | LOCK WASHER |
| RUBBER BUFFER TO BRACKET | ||
| 401 | N 912004010102 | LOCK WASHER |
| RUBBER BUFFER TO BRACKET | ||
| 404 | N 000934010014 | NUT |
| RUBBER BUFFER TO BRACKET | ||
| 404 | N 000934010014 | NUT |
| RUBBER BUFFER TO BRACKET | ||
| 404 | N 000934010014 | NUT |
| RUBBER BUFFER TO BRACKET | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
