Transporto priemonė: 1625 S; VIN numerio dalis: 617131

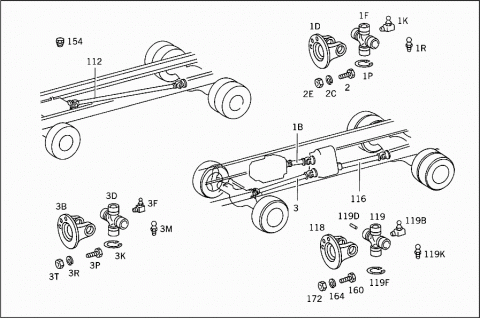

Grupė: 41 PROPELLER SHAFT
| # | Kodas | Pavadinimas |
|---|---|---|
| 001B | A 3854106407 | PROPELLER SHAFT |
| FROM TRANSMISSION TO TRANSFER CASE | ||
| 590 MM | ||
| 001D | A 3854111711 | DRIVE FLANGE |
| 001F | A 3814100231 | UNIVERSAL JOINT CROSS |
| Repalced by: A 9734100031 | ||
| 001F | A 9734100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 001K | N 071412008302 | GREASE NIPPLE |
| 001P | A 0029941341 | LOCK |
| Repalced by: A 0069940841 | ||
| 001P | A 0069940841 | LOCK |
| AS REQUIRED | ||
| 1.70 MM | ||
| 001P | N 000472048000 | LOCK RING |
| AS REQUIRED | ||
| 1.75 MM | ||
| 001P | A 0029941741 | LOCK |
| Repalced by: A 0069941241 | ||
| 001P | A 0069941241 | LOCK |
| AS REQUIRED | ||
| 1.80 MM | ||
| 001P | A 0029941841 | LOCK |
| Repalced by: A 0069941441 | ||
| 001P | A 0069941441 | LOCK |
| AS REQUIRED | ||
| 1.85 MM | ||
| 001P | A 0039943641 | LOCK |
| AS REQUIRED | ||
| 1.90 MM | ||
| A 3854110059 | SEAL RING | |
| PROTECTIVE TUBE | ||
| 001R | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 001R | N 071412008102 | GREASE NIPPLE |
| 002 | A 3609901901 | SCREW |
| Repalced by: A 3609903001 | ||
| 002 | A 3609903001 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION AND TO TRANSFER CASE | ||
| 002C | N 912004012100 | LOCK WASHER |
| PROPELLER SHAFT TO TRANSMISSION AND TO TRANSFER CASE | ||
| 002E | N 000934012034 | NUT |
| PROPELLER SHAFT TO TRANSMISSION AND TO TRANSFER CASE | ||
| 003 | A 3854104407 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO FRONT AXLE | ||
| 1130 MM | ||
| 003B | A 3854111711 | DRIVE FLANGE |
| 003D | A 3814100231 | UNIVERSAL JOINT CROSS |
| Repalced by: A 9734100031 | ||
| 003D | A 9734100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 003F | N 071412008302 | GREASE NIPPLE |
| 003K | A 0029941341 | LOCK |
| Repalced by: A 0069940841 | ||
| 003K | A 0069940841 | LOCK |
| AS REQUIRED | ||
| 1.70 MM | ||
| 003K | N 000472048000 | LOCK RING |
| AS REQUIRED | ||
| 1.75 MM | ||
| 003K | A 0029941741 | LOCK |
| Repalced by: A 0069941241 | ||
| 003K | A 0069941241 | LOCK |
| AS REQUIRED | ||
| 1.80 MM | ||
| 003K | A 0029941841 | LOCK |
| Repalced by: A 0069941441 | ||
| 003K | A 0069941441 | LOCK |
| AS REQUIRED | ||
| 1.85 MM | ||
| 003K | A 0039943641 | LOCK |
| AS REQUIRED | ||
| 1.90 MM | ||
| A 3854110059 | SEAL RING | |
| PROTECTIVE TUBE | ||
| 003M | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 003M | N 071412008102 | GREASE NIPPLE |
| 003P | A 3609901901 | SCREW |
| Repalced by: A 3609903001 | ||
| 003P | A 3609903001 | SCREW |
| PROPELLER SHAFT TO TRANSFER CASE AND TO FRONT AXLE | ||
| 003R | N 912004012100 | LOCK WASHER |
| PROPELLER SHAFT TO TRANSFER CASE AND TO FRONT AXLE | ||
| 003T | N 000934012034 | NUT |
| PROPELLER SHAFT TO TRANSFER CASE AND TO FRONT AXLE | ||
| 004 | A 3894100104 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1044 MM | ||
| 004 | A 3874104504 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1486 MM | ||
| 004 | A 3874101501 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1439 MM | ||
| 004 | A 3894109901 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1460 MM | ||
| 004 | A 3894101104 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1364 MM | ||
| 004 | A 3874105604 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1677 MM | ||
| 004 | A 3874105204 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1650 MM | ||
| 004 | A 3894108901 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1623 MM | ||
| 004 | A 3894109901 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1460 MM | ||
| 004 | A 3874105401 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1820 MM | ||
| 004 | A 3894108701 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1829 MM | ||
| 004 | A 3894107401 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1667 MM | ||
| 008 | A 3874110011 | DRIVE FLANGE |
| Repalced by: A 3894110511 | ||
| 008 | A 3894110511 | DRIVE FLANGE |
| 008 | A 3894110511 | DRIVE FLANGE |
| 012 | A 3634100631 | UNIVERSAL JOINT CROSS |
| Repalced by: A 6204100131 | ||
| 012 | A 6204100131 | UNIVERSAL JOINT CROSS |
| Repalced by: A 0004100231 | ||
| 012 | A 0004100231 | UNIVERSAL JOINT CROSS |
| Repalced by: A 0004101628 | ||
| 012 | A 0004101628 | UNIVERSAL JOINT |
| Repalced by: A 9424100131 | ||
| 012 | A 9424100131 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 012 | A 9424100131 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 016 | N 071412008302 | GREASE NIPPLE |
| 020 | A 3874100042 | BEARING BUSHING |
| 024 | A 3959810087 | NEEDLE |
| SET = 164 PIECES | ||
| TO 363 410 06 31; 36;25 MM | ||
| 028 | A 3634110080 | GASKET |
| 032 | A 3634110173 | LOCK |
| Repalced by: A 0069941941 | ||
| 032 | A 0069941941 | LOCK |
| AS REQUIRED | ||
| 2.00 MM | ||
| 032 | A 3634110573 | LOCK |
| Repalced by: A 0069942341 | ||
| 032 | A 0069942341 | LOCK |
| AS REQUIRED | ||
| 2.10 MM | ||
| 032 | A 3634111373 | LOCK |
| Repalced by: A 0069942741 | ||
| 032 | A 0069942741 | LOCK |
| AS REQUIRED | ||
| 2.20 MM | ||
| A 3894130161 | PROTECTIVE CAP | |
| A 3894130361 | PROTECTIVE CAP | |
| 040 | A 3634130001 | HOUSING |
| Repalced by: A 3874100010 | ||
| 040 | A 3874100010 | REPAIR KIT |
| INTERMEDIATE SHAFT BEARING | ||
| 040 | A 3894100122 | INTERMEDIATE BEARING |
| Repalced by: A 3894100222 | ||
| 040 | A 3894100222 | INTERMEDIATE BEARING |
| Repalced by: A 6544100022 | ||
| 040 | A 6544100022 | INTERMEDIATE BEARING |
| PROPELLER SHAFT | ||
| 044 | A 3634100151 | BALL BEARING |
| PROPELLER SHAFT BEARING | ||
| 044 | A 0029819625 | BALL BEARING |
| 044 | A 0029819725 | BALL BEARING |
| 046 | A 3894130261 | PROTECTIVE CAP |
| 047 | N 912009110200 | SNAP RING |
| A 6544110052 | SPACER WASHER | |
| PROPELLER SHAFT BEARING | ||
| 048 | A 3634130012 | RUBBER MOUNTING |
| PROPELLER SHAFT BEARING | ||
| 052 | A 3874100030 | CENTERING FLANGE |
| PROPELLER SHAFT BEARING | ||
| 052 | A 3894100130 | CENTERING FLANGE |
| Repalced by: A 3894110046 | ||
| A 3894110046 | FLANGE | |
| PROPELLER SHAFT BEARING | ||
| 054 | A 3874130061 | PROTECTIVE CAP |
| 054 | A 3894130161 | PROTECTIVE CAP |
| 054 | A 3894130361 | PROTECTIVE CAP |
| 056 | A 3663530072 | NUT |
| Repalced by: A 3853510672 | ||
| 056 | A 3853510672 | NUT |
| FOLLOWER FLANGE TO PROPELLER SHAFT | ||
| 058 | A 3894110162 | THRUST WASHER |
| FOLLOWER FLANGE TO PROPELLER SHAFT | ||
| 060 | A 3839900019 | SCREW |
| FOLLOWER FLANGE TO PROPELLER SHAFT | ||
| 062 | A 3834130642 | BRACKET |
| PROPELLER SHAFT BEARING,LEFT | ||
| 062 | A 3854132342 | BRACKET |
| PROPELLER SHAFT BEARING,LEFT | ||
| 062 | A 6174130342 | BRACKET |
| PROPELLER SHAFT BEARING,LEFT | ||
| 062 | A 3834131642 | BRACKET |
| PROPELLER SHAFT BEARING,LEFT | ||
| 062 | A 3854135442 | BRACKET |
| PROPELLER SHAFT BEARING,LEFT | ||
| 062 | A 6174130542 | BRACKET |
| PROPELLER SHAFT BEARING,LEFT | ||
| 062 | A 6174130742 | BRACKET |
| PROPELLER SHAFT BEARING,LEFT | ||
| 066 | A 3834130742 | BRACKET |
| PROPELLER SHAFT BEARING,RIGHT | ||
| 066 | A 3854132442 | BRACKET |
| PROPELLER SHAFT BEARING,RIGHT | ||
| 066 | A 6174130442 | BRACKET |
| PROPELLER SHAFT BEARING,RIGHT | ||
| 066 | A 3834131742 | BRACKET |
| PROPELLER SHAFT BEARING,RIGHT | ||
| 066 | A 3854135542 | BRACKET |
| PROPELLER SHAFT BEARING,RIGHT | ||
| 066 | A 6174130642 | BRACKET |
| PROPELLER SHAFT BEARING,RIGHT | ||
| 066 | A 6174130842 | BRACKET |
| PROPELLER SHAFT BEARING,RIGHT | ||
| 070 | N 000961012094 | SCREW |
| Repalced by: N 308676012013 | ||
| 070 | N 308676012013 | SCREW |
| BRACKET TO HOUSING | ||
| M12X1.5X30 | ||
| 070 | N 308676012013 | SCREW |
| BRACKET TO HOUSING | ||
| M12X1.5X30 | ||
| 072 | A 3299900040 | WASHER |
| Repalced by: A 1232420366 | ||
| 072 | A 1232420366 | WASHER |
| BRACKET TO HOUSING | ||
| 072 | A 1232420366 | WASHER |
| BRACKET TO HOUSING | ||
| 074 | N 912004012100 | LOCK WASHER |
| BRACKET TO HOUSING | ||
| 074 | N 912004012100 | LOCK WASHER |
| BRACKET TO HOUSING | ||
| 090 | N 000961012106 | SCREW |
| PROPELLER SHAFT BEARING TO CROSS MEMBER | ||
| M12X1.5X35 | ||
| 090 | N 000961012106 | SCREW |
| PROPELLER SHAFT BEARING TO CROSS MEMBER | ||
| M12X1.5X35 | ||
| 094 | A 6739900640 | WASHER |
| Repalced by: A 3879900040 | ||
| 094 | A 3879900040 | WASHER |
| Repalced by: N 007349013003 | ||
| 094 | N 007349013005 | WASHER |
| PROPELLER SHAFT BEARING TO CROSS MEMBER | ||
| 094 | N 007349013005 | WASHER |
| PROPELLER SHAFT BEARING TO CROSS MEMBER | ||
| 098 | N 910113012002 | NUT |
| PROPELLER SHAFT BEARING TO CROSS MEMBER | ||
| 098 | N 910113012002 | NUT |
| PROPELLER SHAFT BEARING TO CROSS MEMBER | ||
| 102 | A 0029909901 | SCREW |
| Repalced by: A 3959900501 | ||
| 102 | A 3959900501 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION | ||
| 106 | N 912004016101 | LOCK WASHER |
| PROPELLER SHAFT TO TRANSMISSION | ||
| 110 | N 000934016013 | NUT |
| Repalced by: N 308673016001 | ||
| 110 | N 308673016001 | NUT |
| PROPELLER SHAFT TO TRANSMISSION | ||
| 112 | A 6174100102 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 2350 MM | ||
| 112 | A 6174100202 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 2250 MM | ||
| 112 | A 3874102001 | PROPELLER SHAFT |
| Repalced by: A 3894107801 | ||
| 112 | A 3894107801 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 1490 MM | ||
| 112 | A 3894101702 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 1346 MM | ||
| 112 | A 3874102501 | PROPELLER SHAFT |
| Repalced by: A 3894105901 | ||
| 112 | A 3894105901 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 1723 MM | ||
| 112 | A 3954101401 | PROPELLER SHAFT |
| Repalced by: A 3894107901 | ||
| 112 | A 3894107901 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 1648 MM | ||
| 112 | A 3894107601 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 1545 MM | ||
| 112 | A 6174100501 | PROPELLER SHAFT |
| Repalced by: A 6174100302 | ||
| 112 | A 6174100302 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 2050 MM | ||
| 112 | A 6174100302 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 2050 MM | ||
| 112 | A 6174100702 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 1950 MM | ||
| 116 | A 3894106301 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO REAR AXLE | ||
| 1189 MM | ||
| 118 | A 3874110011 | DRIVE FLANGE |
| Repalced by: A 3894110511 | ||
| 118 | A 3894110511 | DRIVE FLANGE |
| 118 | A 3894110511 | DRIVE FLANGE |
| 119 | A 3634100631 | UNIVERSAL JOINT CROSS |
| Repalced by: A 6204100131 | ||
| 119 | A 6204100131 | UNIVERSAL JOINT CROSS |
| Repalced by: A 0004100231 | ||
| 119 | A 0004100231 | UNIVERSAL JOINT CROSS |
| Repalced by: A 0004101628 | ||
| 119 | A 0004101628 | UNIVERSAL JOINT |
| Repalced by: A 9424100131 | ||
| 119 | A 9424100131 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 119 | A 9424100131 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 119B | N 071412008302 | GREASE NIPPLE |
| A 3874100042 | BEARING BUSHING | |
| 119D | A 3959810087 | NEEDLE |
| SET = 164 PIECES | ||
| TO 363 410 06 31;36.25 MM | ||
| A 3634110080 | GASKET | |
| 119F | A 3634110173 | LOCK |
| Repalced by: A 0069941941 | ||
| 119F | A 0069941941 | LOCK |
| AS REQUIRED | ||
| 2.00 MM | ||
| 119F | A 3634110573 | LOCK |
| Repalced by: A 0069942341 | ||
| 119F | A 0069942341 | LOCK |
| AS REQUIRED | ||
| 2.10 MM | ||
| 119F | A 3634111373 | LOCK |
| Repalced by: A 0069942741 | ||
| 119F | A 0069942741 | LOCK |
| AS REQUIRED | ||
| 2.20 MM | ||
| A 3894110080 | GASKET | |
| PROTECTIVE TUBE | ||
| 119K | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 119K | N 071412008102 | GREASE NIPPLE |
| 120 | A 3874104901 | PROPELLER SHAFT |
| Repalced by: A 3894101702 | ||
| 120 | A 3894101702 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1346 MM | ||
| 120 | A 3874102001 | PROPELLER SHAFT |
| Repalced by: A 3894107801 | ||
| 120 | A 3894107801 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1490 MM | ||
| 120 | A 3954101801 | PROPELLER SHAFT |
| Repalced by: A 3894107601 | ||
| 120 | A 3894107601 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1545 MM | ||
| 120 | A 3894107801 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1490 MM | ||
| 120 | A 3874101801 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1619 MM | ||
| 120 | A 3894107901 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1648 MM | ||
| 120 | A 3874102904 | PROPELLER SHAFT |
| Repalced by: A 3894109001 | ||
| 120 | A 3894109001 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1843 MM | ||
| 126 | A 3874110011 | DRIVE FLANGE |
| Repalced by: A 3894110511 | ||
| 126 | A 3894110511 | DRIVE FLANGE |
| 126 | A 3894110511 | DRIVE FLANGE |
| 130 | A 3634100631 | UNIVERSAL JOINT CROSS |
| Repalced by: A 6204100131 | ||
| 130 | A 6204100131 | UNIVERSAL JOINT CROSS |
| Repalced by: A 0004100231 | ||
| 130 | A 0004100231 | UNIVERSAL JOINT CROSS |
| Repalced by: A 0004101628 | ||
| 130 | A 0004101628 | UNIVERSAL JOINT |
| Repalced by: A 9424100131 | ||
| 130 | A 9424100131 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 130 | A 9424100131 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 134 | N 071412008302 | GREASE NIPPLE |
| 138 | A 3874100042 | BEARING BUSHING |
| 142 | A 3959810087 | NEEDLE |
| SET = 164 PIECES | ||
| TO 363 410 06 31;36.25 MM | ||
| 146 | A 3634110080 | GASKET |
| 150 | A 3634110173 | LOCK |
| Repalced by: A 0069941941 | ||
| 150 | A 0069941941 | LOCK |
| AS REQUIRED | ||
| 2.00 MM | ||
| 150 | A 3634110573 | LOCK |
| Repalced by: A 0069942341 | ||
| 150 | A 0069942341 | LOCK |
| AS REQUIRED | ||
| 2.10 MM | ||
| 150 | A 3634111373 | LOCK |
| Repalced by: A 0069942741 | ||
| 150 | A 0069942741 | LOCK |
| AS REQUIRED | ||
| 2.20 MM | ||
| A 3894110080 | GASKET | |
| PROTECTIVE TUBE | ||
| 154 | N 900087008000 | PLUG |
| 156 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 156 | N 071412008102 | GREASE NIPPLE |
| 158 | A 0029909901 | SCREW |
| Repalced by: A 3959900501 | ||
| 158 | A 3959900501 | SCREW |
| PROPELLER SHAFT TO PROPELLER SHAFT BEARING AND TO REAR AXLE | ||
| 158 | A 3959900501 | SCREW |
| PROPELLER SHAFT TO PROPELLER SHAFT BEARING AND TO REAR AXLE | ||
| 158 | A 3959900501 | SCREW |
| PROPELLER SHAFT TO TRANSFER CASE AND TO REAR AXLE | ||
| 160 | A 3609901901 | SCREW |
| Repalced by: A 3609903001 | ||
| 160 | A 3609903001 | SCREW |
| PROPELLER SHAFT TO TRANSFER CASE AND TO REAR AXLE | ||
| 162 | N 912004016101 | LOCK WASHER |
| PROPELLER SHAFT TO PROPELLER SHAFT BEARING AND TO REAR AXLE | ||
| 162 | N 912004016101 | LOCK WASHER |
| PROPELLER SHAFT TO PROPELLER SHAFT BEARING AND TO REAR AXLE | ||
| 162 | N 912004016101 | LOCK WASHER |
| PROPELLER SHAFT TO TRANSFER CASE AND TO REAR AXLE | ||
| 164 | N 912004012100 | LOCK WASHER |
| PROPELLER SHAFT TO TRANSFER CASE AND TO REAR AXLE | ||
| 166 | N 000934016013 | NUT |
| Repalced by: N 308673016001 | ||
| 166 | N 308673016001 | NUT |
| PROPELLER SHAFT TO PROPELLER SHAFT BEARING AND TO REAR AXLE | ||
| 166 | N 308673016001 | NUT |
| PROPELLER SHAFT TO PROPELLER SHAFT BEARING AND TO REAR AXLE | ||
| 166 | N 308673016001 | NUT |
| PROPELLER SHAFT TO TRANSFER CASE AND TO REAR AXLE | ||
| 172 | N 000934012034 | NUT |
| PROPELLER SHAFT TO TRANSFER CASE AND TO REAR AXLE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
