Transporto priemonė: 1625 S; VIN numerio dalis: 617131
Grupė: 50 RADIATOR
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 0005016001 | RADIATOR |
| Repalced by: A 0015010801 | ||
| 005 | A 0015010801 | RADIATOR |
| BEHR | ||
| 008 | A 0005000649 | TANK |
| EXPANSION TANK | ||
| 011 | A 0005013715 | RADIATOR CAP |
| LATERAL | ||
| 011 | A 0005017115 | RADIATOR CAP |
| LATERAL | ||
| 014 | A 0005014615 | RADIATOR CAP |
| FILLER NECK | ||
| 014 | A 0005017215 | RADIATOR CAP |
| FILLER NECK | ||
| 017 | A 0005010480 | GASKET |
| O.D., | ||
| 52 MM | ||
| 020 | A 0005010880 | GASKET |
| O.D., | ||
| 37 MM | ||
| 023 | A 0019973230 | SCREW PLUG |
| Repalced by: N 007604014101 | ||
| 023 | N 007604014101 | SCREW PLUG |
| WATER DRAIN | ||
| 026 | N 007603014405 | SEAL RING |
| WATER DRAIN | ||
| 029 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 029 | N 304017008016 | SCREW |
| FROM EXPANSION TANK TO RADIATOR | ||
| 032 | N 912004008102 | LOCK WASHER |
| FROM EXPANSION TANK TO RADIATOR | ||
| 035 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 035 | N 000125008443 | WASHER |
| FROM EXPANSION TANK TO RADIATOR | ||
| 038 | A 0149975782 | HOSE |
| OVERFLOW, EXPANSION TANK | ||
| 041 | A 0005040033 | CLAMP |
| Repalced by: N 916017011000 | ||
| 041 | N 916017011000 | CLAMP |
| Repalced by: N 916017011001 | ||
| 041 | N 000000000665 | CLAMP |
| OVERFLOW, EXPANSION TANK | ||
| 044 | A 0019973230 | SCREW PLUG |
| Repalced by: N 007604014101 | ||
| 044 | N 007604014101 | SCREW PLUG |
| WATER DRAIN | ||
| 047 | N 007603014405 | SEAL RING |
| WATER DRAIN | ||
| 050 | A 6205000049 | TANK |
| Repalced by: A 6205000149 | ||
| 050 | A 6205000149 | TANK |
| (EXPANSION TANK) | ||
| 053 | A 6175000049 | TANK |
| Repalced by: A 6205000349 | ||
| 053 | A 6205000349 | TANK |
| (EXPANSION TANK) | ||
| 056 | A 0005014515 | RADIATOR CAP |
| 059 | A 0005010880 | GASKET |
| O.D., | ||
| 37 MM | ||
| 062 | A 0005010010 | DRAIN PIPE |
| TO 620 500 00 49,617 500 00 49 | ||
| 065 | A 0005010110 | DRAIN PIPE |
| TO 620 500 01 49,620 500 03 49 | ||
| 068 | A 0139978582 | HOSE |
| Repalced by: A 0139978682 | ||
| 068 | A 0139978682 | HOSE |
| TO 620 500 00 49,01 49,617 500 00 49 | ||
| 071 | A 0079972682 | HOSE |
| Repalced by: A 0219977682 | ||
| 071 | A 0219977682 | HOSE |
| TO 620 500 03 49 | ||
| 074 | A 0009881878 | CLIP |
| DE-AERATION LINE TO CAB | ||
| 074 | A 0009881878 | CLIP |
| DE-AERATION LINE TO CAB | ||
| 077 | A 6205000131 | BRACKET |
| EXPANSION TANK,LEFT | ||
| 080 | A 6175000031 | BRACKET |
| EXPANSION TANK,LEFT | ||
| 083 | A 6205000031 | BRACKET |
| EXPANSION TANK,RIGHT | ||
| 086 | A 6175000131 | BRACKET |
| EXPANSION TANK,RIGHT | ||
| 089 | N 007981005306 | SHEET METAL SCREW |
| BRACKET TO CAB | ||
| 092 | N 000125006421 | WASHER |
| BRACKET TO CAB | ||
| 095 | A 6205010420 | STRAP |
| EXPANSION TANK,LEFT | ||
| 098 | A 6175010220 | STRAP |
| EXPANSION TANK,LEFT | ||
| 101 | A 6205010320 | STRAP |
| EXPANSION TANK,RIGHT | ||
| 104 | A 6175010320 | STRAP |
| EXPANSION TANK,RIGHT | ||
| 107 | A 6205010295 | SHIM |
| EXPANSION TANK,LEFT | ||
| 107 | A 6175010095 | SHIM |
| EXPANSION TANK,LEFT | ||
| 110 | A 6205010195 | SHIM |
| EXPANSION TANK,RIGHT | ||
| 113 | A 6175010195 | SHIM |
| EXPANSION TANK,RIGHT | ||
| 116 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 116 | N 000000001146 | SCREW |
| EXPANSION TANK TO BRACKET | ||
| M 6X16 | ||
| 119 | N 912004006102 | LOCK WASHER |
| EXPANSION TANK TO BRACKET | ||
| 122 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 122 | N 009021006208 | WASHER |
| EXPANSION TANK TO BRACKET | ||
| 125 | N 916017011000 | CLAMP |
| Repalced by: N 916017011001 | ||
| 125 | N 000000000665 | CLAMP |
| HOSE TO EXPANSION TANK AND TO BREATHER PIPE | ||
| 125 | N 000000000665 | CLAMP |
| HOSE TO EXPANSION TANK AND TO BREATHER PIPE | ||
| 125 | N 000000000665 | CLAMP |
| HOSE TO EXPANSION TANK AND TO BREATHER PIPE | ||
| 125 | N 000000000665 | CLAMP |
| HOSE TO EXPANSION TANK AND TO BREATHER PIPE | ||
| 125 | N 000000000665 | CLAMP |
| HOSE TO HEATING PIPE | ||
| 125 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 125 | N 000000000667 | CLAMP |
| HOSE TO EXPANSION TANK AND TO BREATHER PIPE | ||
| 125 | N 000000000667 | CLAMP |
| HOSE TO EXPANSION TANK AND TO BREATHER PIPE | ||
| 128 | N 900271008043 | HOSE |
| 128 | N 900271008043 | HOSE |
| (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK | ||
| 128 | N 900271008043 | HOSE |
| (HEATING LINE) FROM EXPANSION TANK TO HEATER | ||
| 131 | A 6205012882 | HOSE |
| (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK | ||
| 131 | A 6205013282 | HOSE |
| Repalced by: A 6205012882 | ||
| 131 | A 6205012882 | HOSE |
| 134 | A 6175010225 | BREATHER PIPE |
| (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK | ||
| 137 | A 6175010325 | BREATHER PIPE |
| Repalced by: A 6205010725 | ||
| 137 | A 6205010725 | BREATHER PIPE |
| (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK | ||
| 140 | A 6175010420 | BRACKET |
| DE-AERATION LINE TO CAB | ||
| 143 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 143 | N 000000001146 | SCREW |
| DE-AERATION LINE TO CAB | ||
| M 6X16 | ||
| 146 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 146 | N 913004006001 | NUT |
| DE-AERATION LINE TO CAB | ||
| 149 | A 3609950201 | CLAMP |
| Repalced by: A 3604300143 | ||
| 149 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 149 | N 916016008200 | CLAMP |
| Repalced by: N 000000000319 | ||
| 149 | N 000000000319 | CLAMP |
| DE-AERATION LINE TO CAB | ||
| 152 | N 007981005306 | SHEET METAL SCREW |
| DE-AERATION LINE TO CAB | ||
| 155 | A 6175050030 | AIR BAFFLE |
| RADIATOR | ||
| 158 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 158 | N 304017006016 | SCREW |
| AIR BAFFLE AND BRACKET TO RADIATOR | ||
| 161 | N 000137006204 | SPRING WASHER |
| AIR BAFFLE AND BRACKET TO RADIATOR | ||
| 164 | A 3859901140 | WASHER |
| AIR BAFFLE AND BRACKET TO RADIATOR | ||
| 167 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 167 | N 304017006018 | SCREW |
| AIR BAFFLE TO RADIATOR | ||
| M 6X12 | ||
| 167 | N 000933006130 | SCREW |
| AIR BAFFLE TO RADIATOR | ||
| M 6X18 | ||
| 170 | N 000137006204 | SPRING WASHER |
| AIR BAFFLE TO RADIATOR | ||
| 173 | A 3635050180 | BOOT |
| FAN SHROUD | ||
| 176 | A 3639950065 | CLAMP |
| FAN SHROUD | ||
| 179 | A 3835040101 | SUPPORT |
| RADIATOR | ||
| 182 | A 3875040012 | RUBBER MOUNTING |
| RADIATOR TO SUPPORT | ||
| 185 | N 000933010128 | SCREW |
| RUBBER MOUNTING TO SUPPORT | ||
| 188 | N 000137010201 | SPRING WASHER |
| RUBBER MOUNTING TO SUPPORT | ||
| 191 | N 000933010105 | SCREW |
| RADIATOR TO RUBBER MOUNTING | ||
| 194 | N 000137010201 | SPRING WASHER |
| RADIATOR TO RUBBER MOUNTING | ||
| 197 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 197 | N 009021010209 | WASHER |
| RADIATOR TO RUBBER MOUNTING | ||
| 200 | N 000961012106 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 203 | N 910113012002 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 206 | A 4210100040 | BRACKET |
| OIL DIPSTICK GUIDE TUBE | ||
| 209 | N 000933008301 | SCREW |
| Repalced by: A 0079900801 | ||
| 209 | A 0079900801 | SCREW |
| OIL DIPSTICK GUIDE TUBE | ||
| 212 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 212 | N 000125008443 | WASHER |
| OIL DIPSTICK GUIDE TUBE | ||
| 215 | A 6175010082 | HOSE |
| FROM RADIATOR TO THERMOSTAT | ||
| 218 | N 916017070000 | CLAMP |
| Repalced by: N 000000000674 | ||
| 218 | N 000000000674 | CLAMP |
| HOSE TO RADIATOR AND TO ENGINE | ||
| 221 | A 6175010182 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 224 | N 916017070000 | CLAMP |
| Repalced by: N 000000000674 | ||
| 224 | N 000000000674 | CLAMP |
| FROM RADIATOR TO WATER PUMP | ||
| 227 | A 6165010023 | CONNECTOR |
| AT WATER PUMP | ||
| 230 | A 6165010223 | CONNECTOR |
| AT WATER PUMP | ||
| 233 | A 4032010480 | GASKET |
| Repalced by: A 4422010480 | ||
| 233 | A 4422010480 | GASKET |
| CONNECTOR TO WATER PUMP | ||
| 236 | N 000933010164 | SCREW |
| CONNECTOR TO WATER PUMP | ||
| 239 | N 000137010201 | SPRING WASHER |
| CONNECTOR TO WATER PUMP | ||
| 242 | A 6175010282 | HOSE |
| FROM WATER PUMP TO EXPANSION TANK | ||
| 245 | A 6175011382 | HOSE |
| Repalced by: A 6175012782 | ||
| 245 | A 6175012782 | HOSE |
| FROM WATER PUMP TO EXPANSION TANK | ||
| 248 | N 916017032000 | CLAMP |
| Repalced by: N 000000000670 | ||
| 248 | N 000000000670 | CLAMP |
| HOSE TO EXPANSION TANK AND TO WATER PUMP | ||
| 248 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 248 | N 000000000667 | CLAMP |
| HOSE TO EXPANSION TANK AND TO WATER PUMP | ||
| 251 | A 6175000079 | FLANGE |
| HEATING AND VENTILATION | ||
| 254 | A 6175000179 | FLANGE |
| DE-AERATION; FROM ENGINE TO EXPANSION TANK | ||
| 257 | N 917003040008 | GASKET |
| FLANGE TO ENGINE | ||
| 260 | N 000933010105 | SCREW |
| FLANGE TO ENGINE | ||
| 263 | N 912004010102 | LOCK WASHER |
| FLANGE TO ENGINE | ||
| 266 | A 3875011420 | BRACKET |
| HEATING PIPE | ||
| 269 | A 3609950601 | CLAMP |
| HEATING PIPE TO ENGINE | ||
| 272 | N 000933006130 | SCREW |
| HEATING PIPE TO ENGINE | ||
| 275 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 275 | N 913004006001 | NUT |
| HEATING PIPE TO ENGINE | ||
| 278 | N 000933006130 | SCREW |
| HEATING PIPE TO RADIATOR | ||
| 281 | N 000137006204 | SPRING WASHER |
| HEATING PIPE TO RADIATOR | ||
| 284 | A 6175060235 | HOSE |
| FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR | ||
| 287 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 287 | N 000000000667 | CLAMP |
| FROM FLANGE TO HEATING PIPE | ||
| 290 | A 6205060161 | FLANGE |
| Repalced by: A 6205060261 | ||
| 290 | A 6205060261 | FLANGE |
| HEATING WATER LINE | ||
| 293 | N 917003022003 | GASKET |
| FLANGE TO ENGINE | ||
| 296 | N 000933008116 | SCREW |
| Repalced by: N 000933008337 | ||
| 296 | N 000933008337 | SCREW |
| Repalced by: A 0099900101 | ||
| 296 | A 0099900101 | SCREW |
| FLANGE TO ENGINE | ||
| 299 | N 000137008107 | SPRING WASHER |
| Repalced by: N 000137008204 | ||
| 299 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 299 | N 000137008212 | SPRING WASHER |
| FLANGE TO ENGINE | ||
| 302 | A 6205003472 | LINE |
| (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR | ||
| 305 | A 6175002172 | LINE |
| (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR | ||
| 308 | N 917003022003 | GASKET |
| HEATING PIPE | ||
| 311 | N 000933008150 | SCREW |
| Repalced by: N 304017008018 | ||
| 311 | N 304017008018 | SCREW |
| HEATING PIPE | ||
| 314 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 314 | N 913004008001 | NUT |
| HEATING PIPE | ||
| A 3818320714 | BRACKET | |
| HEATING PIPE TO FAN SHROUD BRACKET | ||

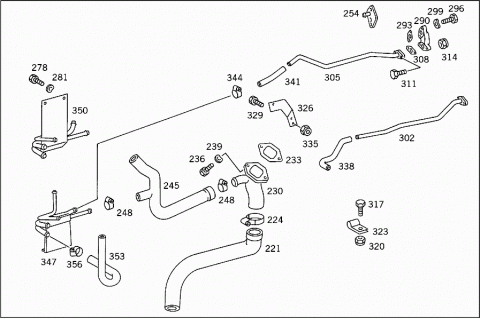

| 317 | N 000933006130 | SCREW |
| HEATING PIPE TO FAN SHROUD BRACKET | ||
| 320 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 320 | N 913004006001 | NUT |
| HEATING PIPE TO FAN SHROUD BRACKET | ||
| 323 | A 3609950601 | CLAMP |
| HEATING PIPE TO FAN SHROUD BRACKET | ||
| 323 | A 3609950601 | CLAMP |
| HEATING PIPE TO BRACKET | ||
| 326 | A 6175061040 | BRACKET |
| BEARING TUBE | ||
| 329 | N 000933006130 | SCREW |
| BEARING TUBE | ||
| 329 | N 000933006130 | SCREW |
| HEATING PIPE TO BRACKET | ||
| 332 | A 6175000072 | LINE |
| HEATING;MOUNTED TOGETHER WITH RADIATOR AT RUBBER BUFFER | ||
| 335 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 335 | N 913004006001 | NUT |
| BEARING TUBE | ||
| 335 | N 913004006001 | NUT |
| HEATING PIPE TO BRACKET | ||
| 338 | A 6175014482 | HOSE |
| FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR | ||
| 341 | A 6175060835 | HOSE |
| FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR | ||
| 344 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 344 | N 000000000667 | CLAMP |
| HEATING PIPE TO RADIATOR | ||
| 347 | A 6175000372 | LINE |
| Repalced by: A 6175001072 | ||
| 347 | A 6175001072 | LINE |
| HEATING;MOUNTED TOGETHER WITH RADIATOR AT RUBBER BUFFER | ||
| 350 | A 6175001372 | LINE |
| HEATING AND BREATHING | ||
| 353 | A 3835060035 | HOSE |
| HEATING; TO CAB | ||
| 356 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 356 | N 000000000667 | CLAMP |
| HEATING; TO CAB | ||
| 359 | A 6165060135 | HOSE |
| FROM HEATING PIPE AT RADIATOR TO CONNECTOR AT ENGINE | ||
| N 916017025000 | CLAMP | |
| Repalced by: N 000000000668 | ||
| N 000000000668 | CLAMP | |
| HEATING; TO CONNECTOR | ||
| 365 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 365 | N 000000000667 | CLAMP |
| HEATING; TO CONNECTOR | ||
| 368 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 368 | N 000000000667 | CLAMP |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 371 | A 6175010382 | HOSE |
| FROM ENGINE TO EXPANSION TANK | ||
| 374 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 374 | N 000000000667 | CLAMP |
| FROM ENGINE TO EXPANSION TANK | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
