Transporto priemonė: 1625 S; VIN numerio dalis: 617131

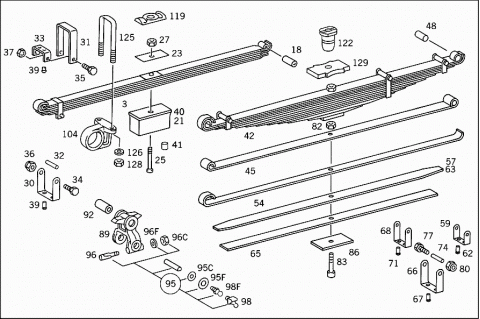

Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 003 | A 6173200202 | FRONT SPRING |
| Repalced by: A 6173200602 | ||
| 003 | A 6173200602 | FRONT SPRING |
| (PARABOLIC SPRING);NUMBER OF LEAVES: | ||
| "3" | ||
| 003 | A 6173200602 | FRONT SPRING |
| (PARABOLIC SPRING);NUMBER OF LEAVES: | ||
| "3" | ||
| 003 | A 6173200902 | FRONT SPRING |
| (PARABOLIC SPRING);NUMBER OF LEAVES: | ||
| "4" | ||
| 018 | A 3523220050 | BUSHING |
| 018 | A 3853220050 | BUSHING |
| 021 | A 6173220184 | SHIM |
| BOTTOM | ||
| 021 | A 6173220384 | SHIM |
| Repalced by: A 6173221584 | ||
| 021 | A 6173220384 | SHIM |
| Repalced by: A 6173221584 | ||
| 021 | A 6173220284 | SHIM |
| Repalced by: A 6173221484 | ||
| 023 | A 3853210284 | SHIM |
| Repalced by: A 3963210084 | ||
| 023 | A 3963210084 | SHIM |
| BETWEEN THE SPRING LEAVES | ||
| 023 | A 3963210084 | SHIM |
| BETWEEN THE SPRING LEAVES | ||
| 023 | A 3963210084 | SHIM |
| BETWEEN THE SPRING LEAVES | ||
| 025 | N 004626012117 | SPRING BOLT |
| M 12X170 | ||
| 025 | N 004626012167 | SPRING BOLT |
| M 12X165 | ||
| 025 | N 004626012172 | SPRING BOLT |
| M 12X95 | ||
| 025 | N 004626012106 | SPRING BOLT |
| M 12X105 | ||
| 027 | N 913004012007 | NUT |
| Repalced by: N 910113012005 | ||
| 027 | N 910113012005 | NUT |
| SPRING BOLT | ||
| 030 | A 0003219433 | SPRING CLAMP |
| Repalced by: A 6173210133 | ||
| A 6173210133 | SPRING CLAMP | |
| Repalced by: A 6173210233 | ||
| A 6173210133 | SPRING CLAMP | |
| Repalced by: A 6173210233 | ||
| 031 | A 6173210433 | SPRING CLAMP |
| Repalced by: A 6173210233 | ||
| 031 | A 6173210233 | SPRING CLAMP |
| Repalced by: A 6753210133 | ||
| 031 | A 6753210133 | SPRING CLAMP |
| Repalced by: A 6763210033 | ||
| 031 | A 6763210033 | SPRING CLAMP |
| 032 | A 0003212553 | SPACER TUBE |
| Repalced by: A 0003212753 | ||
| 032 | A 0003212753 | SPACER TUBE |
| SPRING CLAMP | ||
| 033 | A 6173210135 | CLAMP |
| SPRING CLAMP TO SPRING LEAF NO.3 | ||
| 034 | N 000960012216 | SCREW |
| Repalced by: N 308765012007 | ||
| 034 | N 308765012007 | SCREW |
| SPRING CLAMP | ||
| 035 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 035 | N 304017008027 | SCREW |
| SPRING CLAMP TO CLAMP | ||
| 036 | N 910113012002 | NUT |
| SPRING CLAMP | ||
| 037 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 037 | N 913004008001 | NUT |
| SPRING CLAMP TO SPRING LEAVES NOS.3 & 7 | ||
| 039 | N 910006008023 | RIVET |
| SPRING CLAMP TO SPRING LEAF NO.3 | ||
| 039 | N 910006008024 | RIVET |
| CLAMP TO SPRING LEAF | ||
| 040 | A 6173221584 | SHIM |
| FRONT SPRINGS TO FRONT AXLE | ||
| 040 | A 6173221584 | SHIM |
| FRONT SPRINGS TO FRONT AXLE | ||
| 040 | A 6173221484 | SHIM |
| FRONT SPRINGS TO FRONT AXLE | ||
| 041 | A 3449917260 | DOWEL PIN |
| (CENTERING CONE) | ||
| 042 | A 6193200502 | FRONT SPRING |
| Repalced by: A 6173200802 | ||
| 042 | A 6173200802 | FRONT SPRING |
| 13-LEAF | ||
| 042 | A 3853202202 | FRONT SPRING |
| 10-LEAF | ||
| 045 | A 6173200294 | SPRING LEAF |
| NO.1 | ||
| 045 | A 6173200794 | SPRING LEAF |
| NO.1 | ||
| 045 | A 3833201294 | SPRING LEAF |
| NO. 1 | ||
| 048 | A 3523220050 | BUSHING |
| 048 | A 3853220050 | BUSHING |
| 054 | A 6193210412 | SPRING LEAF |
| NO.2 | ||
| 054 | A 6173210812 | SPRING LEAF |
| NO.2 | ||
| 054 | A 3833212012 | SPRING LEAF |
| NO. 2 | ||
| 057 | A 6173200394 | SPRING LEAF |
| NO.3 | ||
| 059 | A 0033214033 | SPRING CLAMP |
| Repalced by: A 0003219433 | ||
| 059 | A 0003219433 | SPRING CLAMP |
| Repalced by: A 6173210333 | ||
| 059 | A 3223240233 | SPRING CLAMP |
| Repalced by: A 6173210333 | ||
| 059 | A 6173210333 | SPRING CLAMP |
| OUTSIDE;AT SPRING LEAF NO.3 | ||
| 062 | N 910006008024 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 063 | A 6173210813 | SPRING LEAF |
| NO.3 | ||
| 063 | A 3853210813 | SPRING LEAF |
| NO. 3 | ||
| 065 | A 6193210214 | SPRING LEAF |
| NO.4 | ||
| 065 | A 6173200894 | SPRING LEAF |
| NO.4 | ||
| 065 | A 3853210814 | SPRING LEAF |
| Repalced by: A 3853203494 | ||
| 065 | A 3853203494 | SPRING LEAF |
| NO. 4 | ||
| 066 | A 0003219433 | SPRING CLAMP |
| Repalced by: A 6173210333 | ||
| 066 | A 3223240233 | SPRING CLAMP |
| Repalced by: A 6173210333 | ||
| 066 | A 6173210333 | SPRING CLAMP |
| AT SPRING LEAF NO.4 | ||
| 067 | N 910006008013 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 068 | A 3123240633 | SPRING CLAMP |
| AT SPRING LEAF NO.5 | ||
| 068 | A 0003219433 | SPRING CLAMP |
| Repalced by: A 6173210333 | ||
| 068 | A 3223240233 | SPRING CLAMP |
| Repalced by: A 6173210333 | ||
| 068 | A 6173210333 | SPRING CLAMP |
| INSIDE;AT NO.9 SPRING LEAF | ||
| 068 | A 3223240233 | SPRING CLAMP |
| Repalced by: A 6173210333 | ||
| 068 | A 6173210333 | SPRING CLAMP |
| AT SPRING LEAF NO.11 | ||
| 071 | N 910006008024 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 071 | N 910006008013 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 071 | N 910006008013 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 074 | A 0003212753 | SPACER TUBE |
| SPRING CLAMP TO SPRING LEAF | ||
| 077 | N 000960012216 | SCREW |
| Repalced by: N 308765012007 | ||
| 077 | N 308765012007 | SCREW |
| SPRING CLAMP TO SPRING LEAF | ||
| 080 | N 910113012002 | NUT |
| SPRING CLAMP TO SPRING LEAF | ||
| 082 | N 913004012007 | NUT |
| Repalced by: N 910113012005 | ||
| 082 | N 910113012005 | NUT |
| SPRING BOLT | ||
| 083 | N 004626012165 | SPRING BOLT |
| M 12X175 | ||
| 083 | N 004626012120 | SPRING BOLT |
| M 12X145 | ||
| 086 | A 6173220484 | SHIM |
| 086 | A 3553220084 | SHIM |
| 089 | A 6173200163 | SHACKLE |
| FRONT SPRING | ||
| 092 | A 3523220050 | BUSHING |
| 092 | A 3853220050 | BUSHING |
| A 3855860032 | REPAIR KIT | |
| Repalced by: A 3855860332 | ||
| 095 | A 3855860332 | REPAIR KIT |
| Repalced by: A 3853200165 | ||
| 095 | A 3853200165 | SHACKLE PIN |
| PARTS KIT | ||
| 095C | A 3523230376 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 095C | A 3523230476 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 095C | A 3523230576 | WASHER |
| AS REQUIRED | ||
| 4.30 MM | ||
| 095F | A 0029973140 | SEAL RING |
| SPRING SUSPENSION | ||
| 096 | A 3529900337 | BOLT |
| FRONT SPRING TO SPRING SHACKLE & SPRING BRACKETS | ||
| 096C | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 096C | N 910113010000 | NUT |
| FRONT SPRING TO SPRING SHACKLE & SPRING BRACKETS | ||
| 096F | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 096F | N 000125010532 | WASHER |
| FRONT SPRING TO SPRING SHACKLE & SPRING BRACKETS | ||
| 098 | N 071412010300 | GREASE NIPPLE |
| SHACKLE | ||
| 098F | N 071412010100 | GREASE NIPPLE |
| SHACKLE | ||
| 104 | A 6173230163 | BEARING BRACKET |
| FRONT STABILIZER | ||
| 104 | A 3853230263 | BEARING BRACKET |
| FRONT STABILIZER | ||
| 119 | A 3853220031 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 119 | A 3523220131 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 122 | A 3833240008 | HELPER SPRING |
| FRONT SPRINGS TO FRONT AXLE | ||
| 125 | A 3853310025 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 230 MM | ||
| 125 | A 3523510425 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 220 MM | ||
| 125 | A 3283510025 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 250 MM | ||
| 125 | A 3283510025 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 250 MM | ||
| 125 | A 3523310625 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 230 MM | ||
| 125 | A 3523311125 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 260 MM | ||
| 126 | A 3279970026 | WASHER |
| FRONT SPRINGS TO FRONT AXLE | ||
| 128 | A 0029903551 | NUT |
| Repalced by: N 000934018001 | ||
| 128 | N 000934018006 | NUT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 129 | A 6173220584 | SHIM |
| TOP | ||

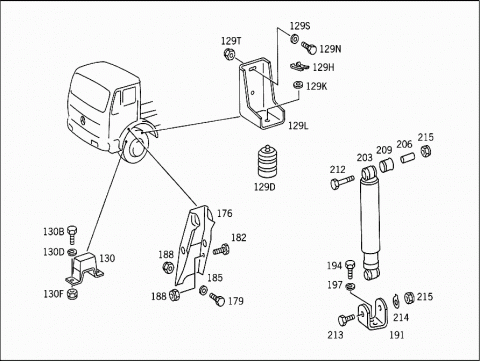

| 129D | A 3853200077 | RUBBER SPRING |
| (HELPER SPRING) | ||
| 129H | N 912002012001 | LOCK |
| RUBBER SPRING TO BRACKET | ||
| 129K | N 000125013008 | WASHER |
| 129L | A 3853250040 | BRACKET |
| RUBBER SPRING | ||
| 129N | N 000961014119 | SCREW |
| Repalced by: A 9429901304 | ||
| 129N | A 9429901304 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 129S | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 129S | N 000125015019 | WASHER |
| BRACKET TO SIDE MEMBER | ||
| 129T | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 129T | N 910113014000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 130 | A 3853300075 | RUBBER MOUNTING |
| AXLE STOP | ||
| 130B | N 000933010105 | SCREW |
| RUBBER MOUNTING TO FRONT AXLE,LEFT | ||
| M 10X25 | ||
| 130B | N 000933010128 | SCREW |
| RUBBER MOUNTING TO FRONT AXLE,RIGHT | ||
| M 10X20 | ||
| 130D | N 912004010102 | LOCK WASHER |
| RUBBER MOUNTING TO FRONT AXLE,RIGHT | ||
| 130F | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 130F | N 910113010000 | NUT |
| RUBBER MOUNTING TO FRONT AXLE,LEFT | ||

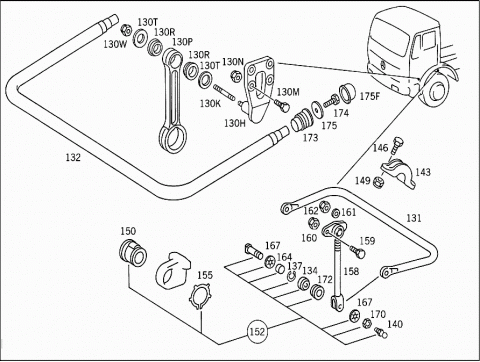

| 130H | A 6163260263 | BEARING BRACKET |
| Repalced by: A 6163260163 | ||
| 130H | A 6163260163 | BEARING BRACKET |
| FRONT AXLE TORSION BAR | ||
| 130K | N 000939016033 | STUD BOLT |
| BEARING BRACKET | ||
| 130M | N 000960014237 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| 130M | N 000960012162 | SCREW |
| Repalced by: N 000961012205 | ||
| 130M | N 000961012205 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| 130M | N 000961012205 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| 130N | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 130N | N 910113014000 | NUT |
| BEARING BRACKET TO SIDE MEMBER | ||
| 130N | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 130N | N 910113012003 | NUT |
| BEARING BRACKET TO SIDE MEMBER | ||
| 130N | N 910113012003 | NUT |
| BEARING BRACKET TO SIDE MEMBER | ||
| 130P | A 6173230016 | LINK |
| STABILIZER MOUNTING | ||
| 130R | A 0003232150 | BUSHING |
| LINK TO BEARING BRACKET | ||
| 130T | A 3873230052 | SPACER WASHER |
| LINK TO BEARING BRACKET | ||
| 130T | A 3853260052 | SPACER WASHER |
| Repalced by: A 3933260152 | ||
| 130T | A 3933260152 | SPACER WASHER |
| LINK TO BEARING BRACKET | ||
| 130W | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 130W | N 910113016002 | NUT |
| LINK TO BEARING BRACKET | ||
| N 000961016081 | SCREW | |
| LINK TO BEARING BRACKET | ||
| 131 | A 6173260065 | TORSION BAR |
| FRONT STABILIZER | ||
| 132 | A 6163230065 | TORSION BAR |
| FRONT STABILIZER | ||
| 134 | A 0009810731 | JOINT BEARING |
| Repalced by: A 0009817231 | ||
| 134 | A 0009810931 | JOINT BEARING |
| Repalced by: A 0009817331 | ||
| 134 | A 0009817331 | JOINT BEARING |
| Repalced by: A 0009817231 | ||
| 134 | A 0009817231 | JOINT BEARING |
| Repalced by: A 0019814631 | ||
| 134 | A 0019814631 | JOINT BEARING |
| TORSION BAR,FRONT | ||
| 134 | A 0019814831 | JOINT BEARING |
| TORSION BAR,FRONT | ||
| 134 | A 0009816131 | JOINT BEARING |
| TORSION BAR,FRONT | ||
| 134 | A 0009817431 | JOINT BEARING |
| TORSION BAR,FRONT | ||
| 137 | N 000472035000 | LOCK RING |
| TORSION BAR,FRONT | ||
| 137 | N 000472055000 | LOCK RING |
| TORSION BAR,FRONT | ||
| 140 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 140 | N 071412008102 | GREASE NIPPLE |
| TORSION BAR,FRONT | ||
| 140 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 140 | N 071412008102 | GREASE NIPPLE |
| TORSION BAR,FRONT | ||
| 143 | A 6173230040 | BRACKET |
| TORSION BAR | ||
| 146 | N 308676012012 | SCREW |
| TORSION BAR TO FRAME FLOOR UNIT | ||
| 149 | N 910113012002 | NUT |
| TORSION BAR TO FRAME FLOOR UNIT | ||
| 150 | A 3873230385 | RUBBER MOUNTING |
| TORSION BAR | ||
| 152 | A 6173200128 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 155 | N 000983068000 | LOCK RING |
| TORSION BAR TO SHACKLE | ||
| 158 | A 6173200189 | ROD |
| Repalced by: A 6173200089 | ||
| 158 | A 6173200089 | ROD |
| (ARTICULATED ROD) | ||
| 159 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 159 | N 308676012026 | SCREW |
| ROD TO FRAME | ||
| 160 | N 910113012002 | NUT |
| ROD TO FRAME | ||
| 161 | N 006796016102 | CONICAL SPRING WASHER |
| ROD TO FRAME | ||
| 162 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 162 | N 910113016002 | NUT |
| ROD TO FRAME | ||
| A 6173230074 | PIN | |
| Repalced by: A 6173200128 | ||
| 164 | A 3603230153 | SPACER TUBE |
| ROD TO LEVER | ||
| 167 | N 006797021201 | TOOTHED WASHER |
| ROD TO LEVER | ||
| 167 | N 006797021101 | TOOTHED WASHER |
| ROD TO LEVER | ||
| 170 | N 000936020010 | NUT |
| ROD TO LEVER | ||
| 172 | A 3603230460 | SEAL RING |
| ROD TO LEVER | ||
| 173 | A 3833230092 | BOOT |
| TORSION BAR TO BEARING BRACKET | ||
| 174 | N 308676012012 | SCREW |
| TORSION BAR TO BEARING BRACKET | ||
| 175 | A 3529900640 | WASHER |
| TORSION BAR TO BEARING BRACKET | ||
| 175F | A 6173230038 | DUST CAP |
| TORSION BAR TO BEARING BRACKET | ||
| 176 | A 3833200278 | CONSOLE |
| Repalced by: A 6173200078 | ||
| 176 | A 6173200078 | CONSOLE |
| LEFT SHOCK ABSORBER | ||
| 176 | A 3833200478 | CONSOLE |
| LEFT SHOCK ABSORBER | ||
| A 3833200378 | CONSOLE | |
| Repalced by: A 6173200178 | ||
| 176 | A 6173200178 | CONSOLE |
| RIGHT SHOCK ABSORBER | ||
| 176 | A 3853200678 | CONSOLE |
| RIGHT SHOCK ABSORBER | ||
| 179 | N 000961012122 | SCREW |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| M12X40 | ||
| 182 | N 308676012012 | SCREW |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| M 12X25 | ||
| 185 | N 007349013003 | WASHER |
| Repalced by: N 007349013005 | ||
| 185 | N 007349013005 | WASHER |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| 188 | N 910113012002 | NUT |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| 191 | A 3833231863 | BEARING BRACKET |
| SHOCK ABSORBER,BOTTOM | ||
| 194 | N 308676012012 | SCREW |
| BOTTOM BEARING BRACKET TO FRONT AXLE | ||
| 197 | N 912004012100 | LOCK WASHER |
| BOTTOM BEARING BRACKET TO FRONT AXLE | ||
| 203 | A 0033236500 | SHOCK ABSORBER |
| Repalced by: A 0043236700 | ||
| 203 | A 0043236700 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 203 | A 0033236600 | SHOCK ABSORBER |
| Repalced by: A 0043233400 | ||
| 203 | A 0043233400 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 203 | A 0033236700 | SHOCK ABSORBER |
| Repalced by: A 0043236800 | ||
| 203 | A 0043236800 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 203 | A 0033236800 | SHOCK ABSORBER |
| Repalced by: A 0043234100 | ||
| 203 | A 0043234100 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 203 | A 0023238600 | SHOCK ABSORBER |
| Repalced by: A 0043236400 | ||
| 203 | A 0043236400 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 203 | A 0023238700 | SHOCK ABSORBER |
| Repalced by: A 0043235200 | ||
| 203 | A 0043235200 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 203 | A 0023237600 | SHOCK ABSORBER |
| Repalced by: A 0043237100 | ||
| 203 | A 0043237100 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 203 | A 0023238400 | SHOCK ABSORBER |
| Repalced by: A 0043233300 | ||
| 203 | A 0043233300 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 206 | A 0003230453 | SPACER TUBE |
| Repalced by: A 0003233150 | ||
| 206 | A 0003232550 | BUSHING |
| Repalced by: A 0003233150 | ||
| 206 | A 0003233150 | BUSHING |
| TO 002 323 86 00,002 323 76 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 004 323 64 00,004 323 71 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 002 323 87 00 | ||
| 206 | A 0003235250 | BUSHING |
| TO 004 323 33 00,004 323 34 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 004 323 41 00,004 323 52 00 | ||
| A 0003232444 | RUBBER BUFFER | |
| Repalced by: A 0003232885 | ||
| 209 | A 0003232885 | RUBBER MOUNTING |
| TO 002 323 86 00,002 323 76 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 004 323 64 00,004 323 71 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 002 323 87 00 | ||
| 209 | A 0003233044 | RUBBER BUFFER |
| Repalced by: A 0003233144 | ||
| 209 | A 0003233144 | RUBBER BUFFER |
| TO 004 323 33 00,004 323 34 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 004 323 41 00,004 323 52 00 | ||
| 212 | N 000960016244 | SCREW |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| M 16X90 | ||
| 213 | N 000960016164 | SCREW |
| Repalced by: N 000960016250 | ||
| 213 | N 000960016250 | SCREW |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| M 16X85 | ||
| 213 | N 000960016105 | SCREW |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| M 16X80 | ||
| 214 | N 000093017002 | LOCK PLATE |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 215 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 215 | N 910113016002 | NUT |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 215 | N 910113016002 | NUT |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 218 | A 6173200708 | REAR SPRING |
| (PARABOLIC SPRING),3-LEAF; WITH 2-LEAF HELPER SPRING | ||
| 218 | A 6173200808 | REAR SPRING |
| (PARABOLIC SPRING),3-LEAF; WITH 3-LEAF HELPER SPRING | ||
| 218 | A 6173200908 | REAR SPRING |
| (PARABOLIC SPRING),2-LEAF; WITH 2-LEAF HELPER SPRING | ||
| 218 | A 6173201008 | REAR SPRING |
| (PARABOLIC SPRING),2-LEAF; WITH 2-LEAF HELPER SPRING | ||
| 221 | A 3273255050 | BUSHING |
| Repalced by: A 3523250150 | ||
| 221 | A 3523250150 | BUSHING |
| 221 | A 3853250050 | BUSHING |
| 225 | A 3523240135 | SPACER |
| 229 | A 3853210384 | SHIM |
| Repalced by: A 3963210084 | ||
| 229 | A 3963210084 | SHIM |
| 229 | A 3963210084 | SHIM |
| 233 | N 004626012113 | SPRING BOLT |
| Repalced by: A 6173241171 | ||
| 233 | A 6173241171 | SPRING BOLT |
| Repalced by: A 6173241271 | ||
| 233 | A 6173241271 | SPRING BOLT |
| M 12X185 | ||
| 233 | A 6173241571 | SPRING BOLT |
| M 12X210 | ||
| 233 | N 004626012111 | SPRING BOLT |
| M 12X155 | ||
| 233 | A 6173240671 | SPRING BOLT |
| M 12X160 | ||
| 233 | A 6173240771 | SPRING BOLT |
| M 12X165 | ||
| 237 | N 913004012007 | NUT |
| Repalced by: N 910113012005 | ||
| 237 | N 910113012005 | NUT |
| 241 | A 0003219433 | SPRING CLAMP |
| Repalced by: A 6173210333 | ||
| 241 | A 3223240233 | SPRING CLAMP |
| Repalced by: A 6173210333 | ||
| 241 | A 6173210333 | SPRING CLAMP |
| 245 | A 3033210153 | SPACER TUBE |
| Repalced by: A 0003212753 | ||
| 245 | A 0003212753 | SPACER TUBE |
| REAR SPRING | ||
| 249 | N 000960012250 | SCREW |
| 253 | N 000934012022 | NUT |
| 257 | N 910006008023 | RIVET |
| 261 | A 3853200208 | REAR SPRING |
| 7-LEAF,WITH 7-LEAF HELPER SPRING | ||
| 265 | A 3853201693 | SPRING LEAF |
| NO.1 | ||
| 269 | A 3273255050 | BUSHING |
| Repalced by: A 3523250150 | ||
| 269 | A 3523250150 | BUSHING |
| 269 | A 3853250050 | BUSHING |
| 281 | A 3853242112 | SPRING LEAF |
| NO.2 | ||
| 285 | A 3853240213 | SPRING LEAF |
| NO.3 | ||
| 289 | A 3853240114 | SPRING LEAF |
| NO.4 | ||
| 293 | A 3853240115 | SPRING LEAF |
| NO.5 | ||
| 297 | A 3853240116 | SPRING LEAF |
| NO.6 | ||
| 301 | A 3853240017 | SPRING LEAF |
| NO.7 | ||
| 305 | A 3853200110 | HELPER SPRING |
| 7-LEAF | ||
| 309 | A 3853240240 | SPRING LEAF |
| NO.1 | ||
| 313 | A 3853240241 | SPRING LEAF |
| NO.2 | ||
| 317 | A 3853240142 | SPRING LEAF |
| NO.3 | ||
| 321 | A 3853240143 | SPRING LEAF |
| NO.4 | ||
| 325 | A 3853240144 | SPRING LEAF |
| NO.5 | ||
| 329 | A 3853240045 | SPRING LEAF |
| NO.6 | ||
| 333 | A 3853240046 | SPRING LEAF |
| NO.7 | ||
| 337 | A 3523240135 | SPACER |
| 341 | N 004626012115 | SPRING BOLT |
| Repalced by: A 6173241971 | ||
| 341 | A 6173241971 | SPRING BOLT |
| M 12X265 | ||
| 341 | A 6173241971 | SPRING BOLT |
| M 12X265 | ||
| 345 | N 913004012007 | NUT |
| Repalced by: N 910113012005 | ||
| 345 | N 910113012005 | NUT |
| 349 | A 3833240008 | HELPER SPRING |
| RUBBER SPRING | ||
| 353 | A 3953210040 | BRACKET |
| HELPER SPRING | ||
| 357 | N 000933010145 | SCREW |
| HELPER SPRING AND BRACKET TO FRAME | ||
| 361 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 361 | N 910113010000 | NUT |
| HELPER SPRING AND BRACKET TO FRAME | ||
| 365 | A 3833250231 | PLATE |
| REAR SPRING TO REAR AXLE | ||
| 365 | A 3833250231 | PLATE |
| REAR SPRING TO REAR AXLE | ||
| 365 | A 6173250331 | PLATE |
| REAR SPRING TO REAR AXLE | ||
| 367 | A 3853511125 | U-BOLT |
| Repalced by: A 3853511225 | ||
| 367 | A 3853511225 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 370 MM | ||
| 367 | A 3853511225 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 370 MM | ||
| 367 | A 6173510425 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 380 MM | ||
| 367 | A 6173510825 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 420 MM | ||
| 369 | A 3853512025 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 450 MM | ||
| 369 | A 6173511425 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 480 MM | ||
| 369 | A 3853512325 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 490 MM | ||
| 369 | A 6173511625 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 500 MM | ||
| A 3853510628 | PAD | |
| Repalced by: A 3853510528 | ||
| A 3853510528 | PAD | |
| Repalced by: A 3853510628 | ||
| 370 | A 3853510628 | PAD |
| REAR SPRING TO REAR AXLE | ||
| 370 | A 3853510628 | PAD |
| REAR SPRING TO REAR AXLE | ||
| A 3853510528 | PAD | |
| Repalced by: A 3853510728 | ||
| 370 | A 3853510728 | PAD |
| REAR SPRING TO REAR AXLE | ||
| A 3853510628 | PAD | |
| Repalced by: A 3853510728 | ||
| A 3853510728 | PAD | |
| Repalced by: A 3853510428 | ||
| 370 | A 3853510428 | PAD |
| REAR SPRING TO REAR AXLE | ||
| A 3853510628 | PAD | |
| Repalced by: A 3853510528 | ||
| 370 | A 3853510528 | PAD |
| 372 | A 6173250084 | SHIM |
| REAR SPRING TO REAR AXLE | ||
| A 6173250184 | SHIM | |
| Repalced by: A 6173250684 | ||
| 372 | A 6173250684 | SHIM |
| Repalced by: A 6173251384 | ||
| 372 | A 6173251384 | SHIM |
| REAR SPRING TO REAR AXLE | ||
| 372 | A 6173250984 | SHIM |
| Repalced by: A 6173251484 | ||
| 372 | A 6173251484 | SHIM |
| REAR SPRING TO REAR AXLE | ||
| 374 | A 3859910164 | SHEAR BUSHING |
| REAR SPRING TO REAR AXLE | ||
| 374 | A 3859910464 | SHEAR BUSHING |
| REAR SPRING TO REAR AXLE | ||
| 374 | A 6179910064 | SHEAR BUSHING |
| REAR SPRING TO REAR AXLE | ||
| 387 | A 3853250031 | PLATE |
| REAR SPRING TO REAR AXLE | ||
| 391 | A 3859970126 | WASHER |
| REAR SPRING TO REAR AXLE | ||
| 395 | N 000934020008 | NUT |
| Repalced by: N 308673020002 | ||
| 395 | N 308673020002 | NUT |
| Repalced by: N 308674020000 | ||
| 395 | N 308674020000 | NUT |
| REAR SPRING TO REAR AXLE | ||
| 399 | A 3523200163 | SHACKLE |
| Repalced by: A 3523250120 | ||
| 399 | A 3523250120 | SHACKLE |
| REAR SPRING | ||
| 400 | A 6173200063 | SHACKLE |
| REAR SPRING | ||
| 403 | A 3273255050 | BUSHING |
| Repalced by: A 3523250150 | ||
| 403 | A 3523250150 | BUSHING |
| 403 | A 3853250050 | BUSHING |
| 405 | A 6173240050 | BUSHING |
| 407 | N 071412008200 | GREASE NIPPLE |
| A 3463255062 | THRUST WASHER | |
| Repalced by: A 6213250062 | ||
| 409 | A 6213250062 | THRUST WASHER |
| SHACKLE TO REAR-SPRING REAR BRACKET | ||
| 409 | A 3463255162 | THRUST WASHER |
| Repalced by: A 6213250162 | ||
| 409 | A 6213250162 | THRUST WASHER |
| SHACKLE TO REAR-SPRING REAR BRACKET | ||
| 411 | A 0029973640 | SEAL RING |
| SHACKLE TO REAR-SPRING REAR BRACKET | ||
| 413 | N 000439024200 | NUT |
| SHACKLE TO REAR-SPRING REAR BRACKET | ||
| A 3855860132 | REPAIR KIT | |
| Repalced by: A 3855860232 | ||
| 429 | A 3855860232 | REPAIR KIT |
| Repalced by: A 3853200065 | ||
| 429 | A 3853200065 | SHACKLE PIN |
| PARTS KIT | ||
| 429 | A 3853200065 | SHACKLE PIN |
| REAR SPRING TO SPRING SHACKLE AND TO SPRING FRONT AND REAR BRACKETS | ||
| 429 | A 3853200065 | SHACKLE PIN |
| REAR SPRING TO REAR SPRING FRONT BRACKET AND TO SHACKLE | ||
| 430 | N 071412010100 | GREASE NIPPLE |
| SHACKLE PIN | ||
| 431 | A 3523230976 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 431 | A 3523231076 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 432 | A 0029973040 | SEAL RING |
| REAR SPRING TO SPRING SHACKLE AND TO SPRING FRONT AND REAR BRACKETS | ||
| 432 | A 0029973040 | SEAL RING |
| REAR SPRING TO REAR SPRING FRONT BRACKET AND TO SHACKLE | ||
| 433 | A 3529900337 | BOLT |
| REAR SPRING TO SPRING SHACKLE AND TO SPRING FRONT AND REAR BRACKETS | ||
| 433 | A 3529900337 | BOLT |
| REAR SPRING TO REAR SPRING FRONT BRACKET AND TO SHACKLE | ||
| 434 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 434 | N 000125010532 | WASHER |
| REAR SPRING TO SPRING SHACKLE AND TO SPRING FRONT AND REAR BRACKETS | ||
| 434 | N 000125010532 | WASHER |
| REAR SPRING TO REAR SPRING FRONT BRACKET AND TO SHACKLE | ||
| 435 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 435 | N 910113010000 | NUT |
| REAR SPRING TO SPRING SHACKLE AND TO SPRING FRONT AND REAR BRACKETS | ||
| 435 | N 910113010000 | NUT |
| REAR SPRING TO REAR SPRING FRONT BRACKET AND TO SHACKLE | ||
| 437 | A 3933200678 | CONSOLE |
| Repalced by: A 3933261163 | ||
| 437 | A 3933261163 | BEARING BRACKET |
| TORSION BAR,REAR | ||
| 439 | N 000939016033 | STUD BOLT |
| 441 | N 000137016202 | SPRING WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 441 | N 000137016202 | SPRING WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 441 | A 3529902440 | WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 445 | N 000961016036 | SCREW |
| Repalced by: N 308676016013 | ||
| 445 | N 308676016013 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 16X40 | ||
| 445 | N 000961016100 | SCREW |
| Repalced by: N 308676016020 | ||
| 445 | N 308676016020 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 16X35 | ||
| 445 | N 308676016020 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 16X35 | ||
| 445 | N 308676016020 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 16X35 | ||
| 445 | N 000961016108 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 16X30 | ||
| 449 | A 3873260947 | SHACKLE |
| TORSION BAR,REAR | ||
| 449 | A 6153260047 | SHACKLE |
| TORSION BAR,REAR | ||
| 449 | A 3873260647 | SHACKLE |
| TORSION BAR,REAR | ||
| 449 | A 3633260147 | SHACKLE |
| TORSION BAR,REAR | ||
| 453 | A 0003260650 | BUSHING |
| SHACKLE TO CONSOLE | ||
| 457 | A 3873230252 | SPACER WASHER |
| SHACKLE TO CONSOLE | ||
| 461 | A 3853260052 | SPACER WASHER |
| Repalced by: A 3933260152 | ||
| 461 | A 3933260152 | SPACER WASHER |
| SHACKLE TO CONSOLE | ||
| 465 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 465 | N 910113016002 | NUT |
| SHACKLE TO CONSOLE | ||
| N 000961016081 | SCREW | |
| SHACKLE TO CONSOLE | ||
| 469 | A 3833260365 | TORSION BAR |
| REAR AXLE | ||
| 473 | A 0009810831 | JOINT BEARING |
| TORSION BAR | ||
| 473 | A 0009811231 | JOINT BEARING |
| TORSION BAR | ||
| 477 | N 000472055000 | LOCK RING |
| TORSION BAR | ||
| 481 | N 071412008200 | GREASE NIPPLE |
| TORSION BAR | ||
| 482 | A 6173260050 | BUSHING |
| TORSION BAR | ||
| 483 | A 3873260281 | RUBBER MOUNTING |
| TORSION BAR | ||
| 485 | A 6173200028 | REPAIR KIT |
| Repalced by: A 6173200228 | ||
| 485 | A 6173200228 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 489 | N 000983085001 | LOCK RING |
| TORSION BAR TO SHACKLE | ||
| A 3833260074 | PIN | |
| Repalced by: A 6173200028 | ||
| 497 | A 3603230560 | SEAL RING |
| Repalced by: A 3603230860 | ||
| 497 | A 3603230860 | SEAL RING |
| TORSION BAR TO BEARING BRACKET | ||
| 501 | A 3523260153 | SPACER TUBE |
| TORSION BAR TO BEARING BRACKET | ||
| 505 | N 070852035000 | NUT |
| TORSION BAR TO BEARING BRACKET | ||
| 509 | N 070952035101 | LOCK PLATE |
| TORSION BAR TO BEARING BRACKET | ||
| 513 | A 3853100040 | CROSS MEMBER |
| Repalced by: A 3853100440 | ||
| 513 | A 3853100440 | CROSS MEMBER |
| SHOCK ABSORBER MOUNTING,REAR | ||
| 513 | A 3853100140 | CROSS MEMBER |
| SHOCK ABSORBER MOUNTING,REAR | ||
| 517 | A 3853120084 | SHIM |
| SHOCK ABSORBER MOUNTING,REAR | ||
| 518 | A 3969900114 | SCREW |
| CROSS MEMBER AND SHIM TO FRAME SIDE MEMBERS | ||
| M 12X25 | ||
| 518 | A 0029908201 | SCREW |
| CROSS MEMBER AND SHIM TO FRAME SIDE MEMBERS | ||
| M 12X30 | ||
| 519 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 519 | N 910113012003 | NUT |
| CROSS MEMBER AND SHIM TO FRAME SIDE MEMBERS | ||
| 521 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 521 | N 308676012026 | SCREW |
| CROSS MEMBER AND SHIM TO FRAME SIDE MEMBERS | ||
| 524 | N 910113012002 | NUT |
| CROSS MEMBER AND SHIM TO FRAME SIDE MEMBERS | ||
| 526 | N 910005012080 | RIVET |
| CROSS MEMBER AND SHIM TO FRAME SIDE MEMBERS | ||
| 12X42 MM | ||
| A 0033261400 | SHOCK ABSORBER | |
| Repalced by: A 6173260000 | ||
| A 0033261500 | SHOCK ABSORBER | |
| Repalced by: A 6173260000 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 532 | ||
| 532 | A 6173260000 | SHOCK ABSORBER |
| (PARTS KIT) | ||
| A 0033264500 | SHOCK ABSORBER | |
| Repalced by: A 3853260100 | ||
| A 0023264600 | SHOCK ABSORBER | |
| Repalced by: A 3853260100 | ||
| A 0023264700 | SHOCK ABSORBER | |
| Repalced by: A 3853260100 | ||
| 532 | A 3853260100 | SHOCK ABSORBER |
| (PARTS KIT) | ||
| 532 | A 3853260200 | SHOCK ABSORBER |
| (PARTS KIT) | ||
| 533 | A 0033262900 | SHOCK ABSORBER |
| REAR AXLE | ||
| 533 | A 0033263000 | SHOCK ABSORBER |
| REAR AXLE | ||
| A 0003234585 | RUBBER MOUNTING | |
| Repalced by: A 0003230785 | ||
| 534 | A 0003230785 | RUBBER MOUNTING |
| 534 | A 0003230785 | RUBBER MOUNTING |
| TO 002 326 46 00,002 326 47 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 003 323 92 00 | ||
| 534 | A 0003233044 | RUBBER BUFFER |
| Repalced by: A 0003233144 | ||
| 534 | A 0003233144 | RUBBER BUFFER |
| TO 003 326 45 00 | ||
| A 0003231653 | SPACER TUBE | |
| Repalced by: A 0003230553 | ||
| 535 | A 0003230553 | SPACER TUBE |
| 536 | A 3173260167 | RETAINER |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 540 | A 3853230253 | SPACER TUBE |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 544 | A 3853260068 | RUBBER BUFFER |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 548 | A 3543260067 | RETAINER |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 552 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 552 | N 910113016002 | NUT |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 554 | N 000960020035 | SCREW |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 556 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 556 | N 913004020003 | NUT |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 564 | A 3833260040 | BRACKET |
| LEFT SHOCK ABSORBER | ||
| 566 | A 3833260140 | BRACKET |
| RIGHT SHOCK ABSORBER | ||
| 568 | A 6173260240 | BRACKET |
| Repalced by: A 6173260340 | ||
| 568 | A 6173260340 | BRACKET |
| SHOCK ABSORBER AND STABILIZER | ||
| 572 | A 3833261240 | BRACKET |
| SHOCK ABSORBER AND STABILIZER,LEFT | ||
| 572 | A 3833261340 | BRACKET |
| SHOCK ABSORBER AND STABILIZER,RIGHT | ||
| 580 | N 000960014073 | SCREW |
| BRACKET TO SPRING SADDLE | ||
| M14X110 | ||
| 584 | N 000960014244 | SCREW |
| BRACKET TO SPRING SADDLE | ||
| M14X65 | ||
| 588 | N 912004014100 | LOCK WASHER |
| BRACKET TO SPRING SADDLE | ||
| 596 | A 3859900101 | SCREW |
| SHOCK ABSORBER TO BRACKET | ||
| 596 | A 3859900101 | SCREW |
| SHOCK ABSORBER TO BRACKET AND TO STABILIZER | ||
| 600 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 600 | N 913004020003 | NUT |
| SHOCK ABSORBER TO BRACKET | ||
| 600 | N 913004020003 | NUT |
| SHOCK ABSORBER TO BRACKET AND TO STABILIZER | ||
| 605 | A 6173300175 | RUBBER MOUNTING |
| AXLE STOP | ||
| 610 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 610 | N 913004008001 | NUT |
| RUBBER MOUNTING TO FRAME | ||
| 615 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 615 | N 304017008027 | SCREW |
| RUBBER MOUNTING TO FRAME | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
