Transporto priemonė: 1625 S; VIN numerio dalis: 617131

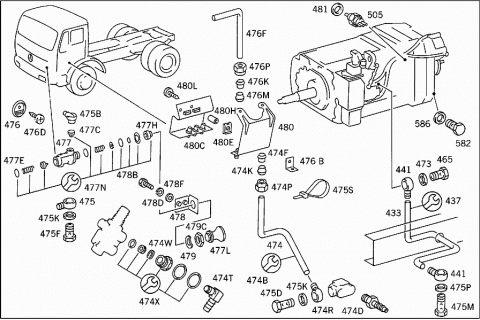

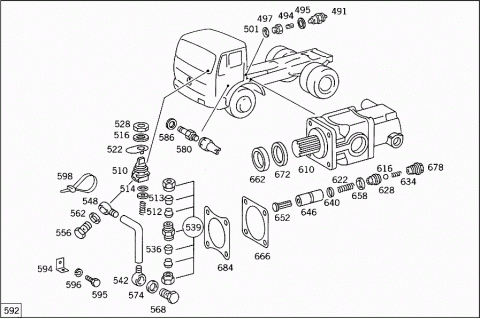

Grupė: 26 TRANSMISSION
| # | Kodas | Pavadinimas |
|---|---|---|
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSMISSION,SEE UNIT STANDARD VERSION,MODEL: | ||
| 719.5 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSMISSION,SEE UNIT STANDARD VERSION,MODEL: | ||
| 719.8 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSMISSION,SEE UNIT STANDARD VERSION,MODEL: | ||
| 714.6 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 009 | A 3852606839 | SHIFT LEVER |
| 009 | A 3852606939 | SHIFT LEVER |
| 017 | A 3359920203 | BUSHING |
| 025 | A 3892680097 | BOOT |
| 025 | A 3892680097 | BOOT |
| 027 | A 6202680097 | BOOT |
| 029 | A 3852681950 | BUSHING |
| 031 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 031 | N 000125010532 | WASHER |
| GEARSHIFT LEVER KNOB TO GEARSHIFT LEVER | ||
| 033 | N 000936010010 | NUT |
| GEARSHIFT LEVER KNOB TO GEARSHIFT LEVER | ||
| 041 | A 3852670001 | SHIFT LEVER |
| Repalced by: A 6202680042 | ||
| 041 | A 6202680042 | KNOB |
| (GEARSHIFT LEVER KNOB) | ||
| 041 | A 6202680042 | KNOB |
| (GEARSHIFT LEVER KNOB) | ||
| 043 | A 6202600040 | HANDLE |
| (SHIFT LEVER HANDLE) | ||
| 045 | A 6202680157 | COVER |
| LESS GEAR INDICATOR | ||
| 045 | A 6202680157 | COVER |
| LESS GEAR INDICATOR | ||
| 045 | A 6202680357 | COVER |
| WITH GEAR INDICATOR | ||
| 045 | A 6202680357 | COVER |
| WITH GEAR INDICATOR | ||
| 047 | A 0002609557 | VALVE |
| Repalced by: A 0012602457 | ||
| 047 | A 0012602557 | VALVE |
| Repalced by: A 0012602457 | ||
| 047 | A 0012602457 | VALVE |
| Repalced by: A 0012605357 | ||
| 047 | A 0012605357 | VALVE |
| Repalced by: A 0012606357 | ||
| 047 | A 0012606357 | VALVE |
| (SHIFT LEVER VALVE) | ||
| HERION | ||
| 047 | A 0012606457 | VALVE |
| (SHIFT LEVER VALVE) | ||
| WABCO | ||
| 049 | A 3855840138 | GUMMED LABEL |
| NINE-SPEED | ||
| 049 | A 3855840138 | GUMMED LABEL |
| NINE-SPEED | ||
| 057 | A 3852680696 | BOOT |
| Repalced by: A 6202680196 | ||
| 057 | A 6202680196 | BOOT |
| SHIFT LEVER BEARING | ||
| 065 | A 3852681474 | PIN |
| SHIFT LEVER BEARING | ||
| 073 | A 0009815531 | JOINT BEARING |
| Repalced by: A 0019813931 | ||
| 073 | A 0019813931 | JOINT BEARING |
| SHIFT LEVER BEARING | ||
| 073 | A 0009814531 | JOINT BEARING |
| SHIFT LEVER BEARING | ||
| 081 | N 000472042001 | LOCK RING |
| SHIFT LEVER BEARING | ||
| 089 | A 3892680440 | BRACKET |
| SHIFT LEVER UPPER PART | ||
| 097 | A 3892605262 | BRACKET |
| SHIFT LEVER LOWER PART | ||
| 105 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 105 | N 913004008001 | NUT |
| BRACKET TO BRACKET | ||
| 113 | N 000931008047 | SCREW |
| Repalced by: N 304017008018 | ||
| 113 | N 304017008018 | SCREW |
| SHIFT LEVER TO CAB FLOOR | ||
| 121 | A 3852681640 | BRACKET |
| SHIFT LEVER TO CAB FLOOR | ||
| 129 | A 3852680492 | RUBBER PAD |
| SHIFT LEVER TO CAB FLOOR | ||
| 137 | A 3892680525 | BUSHING |
| SHIFT LEVER TO CAB FLOOR | ||
| 145 | A 3852680392 | RUBBER PAD |
| SHIFT LEVER TO CAB FLOOR | ||
| 153 | A 3852601962 | BRACKET |
| BOOT | ||
| 161 | N 007981003203 | SHEET METAL SCREW |
| BRACKET TO CAB | ||
| 169 | N 000931010357 | SCREW |
| Repalced by: N 000933010192 | ||
| 169 | A 0019909404 | SCREW |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 177 | A 0009978648 | SEAL RING |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 185 | A 3852680153 | SPACER TUBE |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 193 | N 900055018001 | SPRING WASHER |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 201 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 201 | N 910113010000 | NUT |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 209 | A 3852609333 | SHIFTING ROD |
| (TELESCOPIC SHIFTING ROD) | ||
| 209 | A 3852609433 | SHIFTING ROD |
| (TELESCOPIC SHIFTING ROD) | ||
| 212 | A 3852603882 | SHIFTING TUBE |
| (TELESCOPIC TUBE) | ||
| 217 | A 0009978748 | SEAL RING |
| 30.20 MM | ||
| 225 | A 3852600534 | ROD END |
| HYDRAULIC RELEASE | ||
| 233 | N 000931010357 | SCREW |
| Repalced by: N 000933010192 | ||
| 233 | A 0019909404 | SCREW |
| PAWL TO ROD END | ||
| 241 | A 0009978648 | SEAL RING |
| PAWL TO ROD END | ||
| 249 | A 3852680153 | SPACER TUBE |
| PAWL TO ROD END | ||
| 257 | A 3852600387 | PAWL |
| Repalced by: A 6202600087 | ||
| 257 | A 6202600087 | PAWL |
| SHIFTING ROD | ||
| 265 | A 3359920203 | BUSHING |
| PAWL TO ROD END | ||
| A 6209920003 | BUSHING | |
| PAWL TO ROD END | ||
| A 6202680150 | BUSHING | |
| PAWL TO ROD END | ||
| 273 | A 3859930020 | SPRING |
| PAWL TO ROD END | ||
| 281 | A 3859930120 | SPRING |
| PAWL TO ROD END | ||
| 289 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 289 | N 910113010000 | NUT |
| PAWL TO ROD END | ||
| 305 | A 3852600563 | SHIFTING CYLINDER |
| HYDRAULIC RELEASE | ||
| TECHOMATIK | ||
| 305 | A 3852600063 | SHIFTING CYLINDER |
| HYDRAULIC RELEASE | ||
| WABCO | ||
| 313 | A 0069976748 | SEAL RING |
| PISTON RINGS | ||
| TO 385 260 00 63 | ||
| 321 | A 0069976848 | SEAL RING |
| SCREW FITTING | ||
| TO 385 260 00 63 | ||
| 324 | A 0019970641 | SEAL RING |
| OUTSIDE | ||
| TO 385 260 00 63 | ||
| 329 | N 001443008203 | PIN |
| Repalced by: N 001444008235 | ||
| 329 | N 001444008235 | PIN |
| SHIFTING CYLINDER TO PAWL | ||
| 337 | N 001444008234 | PIN |
| SHIFTING CYLINDER TO YOKE | ||
| 345 | N 900055008002 | SPRING WASHER |
| SHIFTING CYLINDER TO YOKE | ||
| 353 | N 000094002059 | COTTER PIN |
| 361 | A 3852680776 | WASHER |
| BETWEEN FRONT AND REAR SHIFTING TUBES | ||
| 369 | N 006912010021 | SCREW |
| FRONT SHIFTING ROD TO REAR SHIFTING ROD | ||
| 377 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 377 | N 910113010000 | NUT |
| FRONT SHIFTING ROD TO REAR SHIFTING ROD | ||
| 385 | A 3852600182 | SHIFTING TUBE |
| REAR | ||
| 385 | A 3852600182 | SHIFTING TUBE |
| REAR | ||
| 385 | A 6192600033 | SHIFTING ROD |
| REAR | ||
| 385 | A 6192600033 | SHIFTING ROD |
| REAR | ||
| 385 | A 6172600133 | SHIFTING ROD |
| Repalced by: A 6172601033 | ||
| 385 | A 6172601033 | SHIFTING ROD |
| REAR | ||
| 385 | A 6172601033 | SHIFTING ROD |
| REAR | ||
| 390 | A 6192601133 | SHIFTING ROD |
| REAR | ||
| 390 | A 6192601133 | SHIFTING ROD |
| REAR | ||
| 393 | A 3852680188 | CLAMPING PIECE |
| REAR SHIFTING ROD | ||
| 393 | A 6172680028 | CONNECTOR |
| REAR SHIFTING ROD | ||
| 393 | A 6172680028 | CONNECTOR |
| REAR SHIFTING ROD | ||
| 395 | A 6202680028 | CONNECTOR |
| REAR SHIFTING ROD | ||
| 395 | A 6202680028 | CONNECTOR |
| REAR SHIFTING ROD | ||
| 401 | N 000933010202 | SCREW |
| Repalced by: N 304017010047 | ||
| 401 | N 304017010047 | SCREW |
| CLAMPING PIECE TO SHIFTING ROD | ||
| M 10X35 | ||
| 403 | N 000912014041 | SCREW |
| Repalced by: N 000912014008 | ||
| 403 | N 000912014008 | SCREW |
| CONNECTOR TO REAR SHIFTING ROD | ||
| M 14 X 35 | ||
| 403 | N 000912014008 | SCREW |
| CONNECTOR TO REAR SHIFTING ROD | ||
| M 14 X 35 | ||
| 404 | N 000933014014 | SCREW |
| CONNECTOR TO JOINT | ||
| M 14X40 | ||
| 404 | N 000933014014 | SCREW |
| CONNECTOR TO JOINT | ||
| M 14X40 | ||
| 407 | A 3872680089 | JOINT |
| REAR SHIFTING ROD | ||
| 407 | A 3872680089 | JOINT |
| REAR SHIFTING ROD | ||
| 407 | A 0002686489 | JOINT |
| REAR SHIFTING ROD | ||
| 407 | A 0002686489 | JOINT |
| REAR SHIFTING ROD | ||
| 409 | A 3892609233 | SHIFTING ROD |
| WITH FLANGE | ||
| 409 | A 3892609233 | SHIFTING ROD |
| WITH FLANGE | ||
| 417 | N 000933008204 | SCREW |
| Repalced by: N 304017008033 | ||
| 417 | N 304017008033 | SCREW |
| SHIFTING ROD TO TRANSMISSION | ||
| 417 | N 304017008033 | SCREW |
| SHIFTING ROD TO TRANSMISSION | ||
| 421 | A 3219900601 | SCREW |
| JOINT TO TRANSMISSION | ||
| 421 | A 3219900601 | SCREW |
| JOINT TO TRANSMISSION | ||
| 423 | N 912004008102 | LOCK WASHER |
| JOINT TO TRANSMISSION | ||
| 423 | N 912004008102 | LOCK WASHER |
| JOINT TO TRANSMISSION | ||
| 425 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 425 | N 913004008001 | NUT |
| SHIFTING ROD TO TRANSMISSION | ||
| 425 | N 913004008001 | NUT |
| SHIFTING ROD TO TRANSMISSION | ||
| 427 | N 304032008006 | NUT |
| JOINT TO TRANSMISSION | ||
| 427 | N 304032008006 | NUT |
| JOINT TO TRANSMISSION | ||
| 430 | A 6742640034 | LOCK NUT |
| SPEEDOMETER DRIVE COVERING | ||
| 433 | A 0089979082 | HOSE |
| FROM 3/2-WAY VALVE TO 4/2-WAY VALVE | ||
| 6X8 MM | ||
| 433 | A 0089979082 | HOSE |
| FROM 3/2-WAY VALVE TO 4/2-WAY VALVE | ||
| 6X8 MM | ||
| 437 | A 0039978972 | FITTING |
| Repalced by: A 0029905971 | ||
| 437 | A 0029905971 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 437 | A 0029905971 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 441 | N 915052006013 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 6/12 MM | ||
| 441 | N 915052006013 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 6/12 MM | ||
| 465 | N 915047008202 | HOLLOW SCREW |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23" | ||
| 465 | N 915047008202 | HOLLOW SCREW |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24" | ||
| 473 | N 007603012405 | SEAL RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23" | ||
| 473 | N 007603012405 | SEAL RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24" | ||
| 474 | A 0089976082 | HOSE |
| Repalced by: A 0009872627 | ||
| 474 | A 0009872627 | PLASTIC PIPE |
| DISTRIBUTOR,SHIFTING CYLINDER | ||
| 4X6 MM | ||
| 474B | A 0039979172 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 474D | N 915059004001 | FITTING |
| LINE CONNECTIONS | ||
| 474F | N 915062004000 | SLEEVE |
| LINE CONNECTIONS | ||
| 474K | N 003861006008 | GLAND |
| LINE CONNECTIONS | ||
| 474K | N 003861006007 | GLAND |
| Repalced by: A 0019901667 | ||
| 474K | A 0019901667 | SEAL CONE |
| LINE CONNECTIONS | ||
| 474P | N 915017006100 | UNION NUT |
| LINE CONNECTIONS | ||
| 474R | N 915052004015 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/12 MM | ||
| 474T | A 0019907871 | ELBOW FITTING |
| Repalced by: A 0049905271 | ||
| 474T | A 0049905271 | ELBOW FITTING |
| SPLITTER-BOX PILOT-VALVE PLUGCONNECTION | ||
| TO M 16 | ||
| A 0009940047 | SEAL RING | |
| Repalced by: A 0009940747 | ||
| A 0009940747 | LOCK RING | |
| SPLITTER-BOX PILOT-VALVE PLUGCONNECTION | ||
| TO M 16 | ||
| 474W | A 0009941248 | LOCK |
| Repalced by: A 0009945448 | ||
| 474W | A 0009945448 | LOCK |
| SPLITTER-BOX PILOT-VALVE PLUGCONNECTION | ||
| TO M 16 | ||
| 474X | A 6739970045 | REPAIR KIT |
| Repalced by: A 0309971748 | ||
| 474X | A 0309971748 | REPAIR KIT |
| SPLITTER-BOX PILOT-VALVE PLUGCONNECTION | ||
| TO M 16 | ||
| 475 | N 915052004016 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/10 MM | ||
| 475B | A 3933280065 | PIPE SOCKET |
| Repalced by: A 4063580065 | ||
| 475B | A 4063580065 | BREATHER |
| Repalced by: A 3933280065 | ||
| 475B | A 3933280065 | PIPE SOCKET |
| ADDITIONAL GEARBOX VALVE | ||
| 475B | A 3933280065 | PIPE SOCKET |
| ADDITIONAL GEARBOX VALVE | ||
| 475D | N 915047008202 | HOLLOW SCREW |
| CONNECTION TO FEED LINE | ||
| 475F | N 915036008202 | HOLLOW SCREW |
| ADDITIONAL GEARBOX VALVE | ||
| 475K | N 007603012405 | SEAL RING |
| ADDITIONAL GEARBOX VALVE | ||
| 475K | N 007603012405 | SEAL RING |
| ADDITIONAL GEARBOX VALVE | ||
| 475M | N 915036006202 | HOLLOW SCREW |
| GEAR CLUSTER SHIFT VALVE | ||
| 475P | N 007603010103 | SEAL RING |
| Repalced by: N 007603010110 | ||
| 475P | N 007603010110 | SEAL RING |
| GEAR CLUSTER SHIFT VALVE | ||
| 475S | A 0019978390 | LOOM TIE |
| LINE MOUNTING | ||
| 476 | A 3816820086 | BRACKET |
| LINE MOUNTING | ||
| 476B | A 3604280243 | ANGLE |
| LINE MOUNTING | ||
| 476D | N 007981004254 | SHEET METAL SCREW |
| LINE MOUNTING | ||
| 476F | A 0109975482 | PLASTIC TUBE |
| 476K | N 915062002000 | SLEEVE |
| LINE CONNECTIONS | ||
| 476M | N 003861004001 | GLAND |
| LINE CONNECTIONS | ||
| 476P | N 915017004101 | UNION NUT |
| LINE CONNECTIONS | ||
| 477 | A 0004342201 | VALVE |
| ADDITIONAL GEARBOX | ||
| 477C | A 0003280191 | CLEANER |
| 477E | A 0079972548 | SEAL RING |
| 477H | A 0004340586 | CUP |
| 477L | A 0009971977 | HANDLE |
| 477N | A 0025869843 | REPAIR KIT |
| SPLITTER-BOX PILOT VALVE | ||
| 478 | A 6202900133 | BRACKET |
| 3/2-WAY VALVE | ||
| 478B | N 000933006130 | SCREW |
| BRACKET TO CLUTCH PEDAL UNIT | ||
| 478D | N 000125006421 | WASHER |
| BRACKET TO CLUTCH PEDAL UNIT | ||
| Repalced by: N 000125006449 | ||
| 478D | N 000125006449 | WASHER |
| BRACKET TO CLUTCH PEDAL UNIT | ||
| 478F | N 912004006102 | LOCK WASHER |
| BRACKET TO CLUTCH PEDAL UNIT | ||
| 479 | N 000127027201 | LOCK WASHER |
| VALVE TO FLOOR | ||
| 479C | N 074305026202 | NUT |
| VALVE TO FLOOR | ||
| 479C | N 074305026202 | NUT |
| VALVE TO BRACKET | ||
| 480 | A 6172600362 | BRACKET |
| Repalced by: A 6172600062 | ||
| 480 | A 6172600062 | BRACKET |
| LINE CONNECTIONS | ||
| 480C | A 6172600462 | BRACKET |
| Repalced by: A 6172600162 | ||
| 480C | A 6172600162 | BRACKET |
| LINE CONNECTIONS | ||
| 480E | A 0009940445 | LOCK |
| Repalced by: A 1409941045 | ||
| 480E | A 1409941045 | LOCK |
| BRACKET TO CAB | ||
| 480H | A 3479915040 | SPACER TUBE |
| BRACKET TO CAB | ||
| 480L | N 007981004254 | SHEET METAL SCREW |
| BRACKET TO CAB | ||
| 481 | A 0002680759 | SEAL RING |
| IDLE POSITION INDICATOR SWITCH TO TRANSMISSION CASE OVER | ||
| 481 | A 0002680359 | SEAL RING |
| Repalced by: N 007603018100 | ||
| 481 | N 007603018100 | SEAL RING |
| GEAR CLUSTER INDICATOR SWITCH | ||
| 481 | N 007603018100 | SEAL RING |
| GEAR CLUSTER INDICATOR SWITCH | ||
| 491 | A 0005454214 | SWITCH |
| Repalced by: A 0005455209 | ||
| 491 | A 0005455209 | SWITCH |
| Repalced by: A 0005457909 | ||
| 491 | A 0005457909 | SWITCH |
| Repalced by: A 0005459009 | ||
| 491 | A 0005459009 | SWITCH |
| Repalced by: A 0015451109 | ||
| 491 | A 0015451109 | SWITCH |
| Repalced by: A 0015452709 | ||
| 491 | A 0015452709 | SWITCH |
| NEUTRAL POSITION | ||
| 491 | A 0015452709 | SWITCH |
| NEUTRAL POSITION | ||
| 494 | A 0002684674 | PIN |
| IDLE POSITION INDICATOR SWITCH CONTROL | ||
| 494 | A 0002684674 | PIN |
| IDLE POSITION INDICATOR SWITCH CONTROL | ||
| 495 | A 0002682059 | SEAL RING |
| IDLE POSITION SWITCH TO THREADED BUSHING; AS REQUIRED | ||
| 1.60 MM | ||
| 495 | A 0002682059 | SEAL RING |
| IDLE POSITION SWITCH TO THREADED BUSHING; AS REQUIRED | ||
| 1.60 MM | ||
| 495 | A 0002681959 | SEAL RING |
| IDLE POSITION SWITCH TO THREADED BUSHING; AS REQUIRED | ||
| 1.80 MM | ||
| 495 | A 0002681959 | SEAL RING |
| IDLE POSITION SWITCH TO THREADED BUSHING; AS REQUIRED | ||
| 1.80 MM | ||
| 495 | A 0002681559 | SEAL RING |
| IDLE POSITION SWITCH TO THREADED BUSHING; AS REQUIRED | ||
| 2.00 MM | ||
| 495 | A 0002681559 | SEAL RING |
| IDLE POSITION SWITCH TO THREADED BUSHING; AS REQUIRED | ||
| 2.00 MM | ||
| 495 | A 0002681659 | SEAL RING |
| IDLE POSITION SWITCH TO THREADED BUSHING; AS REQUIRED | ||
| 2.20 MM | ||
| 495 | A 0002681659 | SEAL RING |
| IDLE POSITION SWITCH TO THREADED BUSHING; AS REQUIRED | ||
| 2.20 MM | ||
| 495 | A 0002681759 | SEAL RING |
| IDLE POSITION SWITCH TO THREADED BUSHING; AS REQUIRED | ||
| 2.40 MM | ||
| 495 | A 0002681759 | SEAL RING |
| IDLE POSITION SWITCH TO THREADED BUSHING; AS REQUIRED | ||
| 2.40 MM | ||
| 495 | A 0002682159 | SEAL RING |
| IDLE POSITION SWITCH TO THREADED BUSHING; AS REQUIRED | ||
| 2.60 MM | ||
| 495 | A 0002682159 | SEAL RING |
| IDLE POSITION SWITCH TO THREADED BUSHING; AS REQUIRED | ||
| 2.60 MM | ||
| 495 | A 0002682259 | SEAL RING |
| IDLE POSITION SWITCH TO THREADED BUSHING; AS REQUIRED | ||
| 2.80 MM | ||
| 495 | A 0002682259 | SEAL RING |
| IDLE POSITION SWITCH TO THREADED BUSHING; AS REQUIRED | ||
| 2.80 MM | ||
| 495 | A 0002682359 | SEAL RING |
| IDLE POSITION SWITCH TO THREADED BUSHING; AS REQUIRED | ||
| 3.00 MM | ||
| 495 | A 0002682359 | SEAL RING |
| IDLE POSITION SWITCH TO THREADED BUSHING; AS REQUIRED | ||
| 3.00 MM | ||
| 497 | A 0002610131 | THREADED BUSHING |
| IDLE POSITION INDICATOR SWITCH TO TRANSMISSION CASE OVER | ||
| 497 | A 0002610131 | THREADED BUSHING |
| IDLE POSITION INDICATOR SWITCH TO TRANSMISSION CASE OVER | ||
| 501 | A 0002680559 | SEAL RING |
| IDLE-INDICATOR-SWITCH THREADED BUSHING | ||
| 501 | A 0002680559 | SEAL RING |
| IDLE-INDICATOR-SWITCH THREADED BUSHING | ||
| 505 | A 0015453414 | SWITCH |
| Repalced by: A 0025458114 | ||
| 505 | A 0025458114 | SWITCH |
| Repalced by: A 0035451614 | ||
| 505 | A 0035451614 | SWITCH |
| GEAR CLUSTER INDICATION | ||
| 505 | A 0035451614 | SWITCH |
| GEAR CLUSTER INDICATION | ||
| 510 | A 0019976136 | VALVE |
| P.T.O. CONTROL | ||
| WABCO | ||
| 510 | A 0019975036 | VALVE |
| P.T.O. CONTROL | ||
| BOSCH | ||
| 510 | A 0039975936 | VALVE |
| P.T.O. CONTROL | ||
| KNORR | ||
| 510 | A 0039976036 | VALVE |
| P.T.O. CONTROL | ||
| VOSS | ||
| 512 | A 0049937501 | SPRING |
| TO 001 997 61 36 | ||
| 513 | A 0069972648 | SEAL RING |
| TO 001 997 61 36 | ||
| 514 | A 0039979640 | SEAL RING |
| TO 001 997 61 36 | ||
| 516 | A 6239900040 | WASHER |
| VALVE TO CAB | ||
| 522 | A 3855841524 | SYMBOL PLATE |
| P.T.O. CONTROL | ||
| 528 | A 3839900051 | NUT |
| VALVE TO CAB | ||
| 536 | A 0089976082 | HOSE |
| Repalced by: A 0009872627 | ||
| 536 | A 0009872627 | PLASTIC PIPE |
| DISTRIBUTOR,3/2-WAY VALVE,SHIFT CYLINDER | ||
| 4X6 MM | ||
| 539 | A 0039979172 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 542 | A 0009903888 | BANJO UNION |
| Repalced by: N 915052004006 | ||
| 542 | N 915052004015 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/12 MM | ||
| 548 | N 915052004016 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/10 MM | ||
| 556 | N 915036006202 | HOLLOW SCREW |
| 3/2-WAY VALVE;CONNECTIONS: | ||
| "14,24" | ||
| 562 | N 007603010103 | SEAL RING |
| Repalced by: N 007603010110 | ||
| 562 | N 007603010110 | SEAL RING |
| 3/2-WAY VALVE;CONNECTIONS: | ||
| "14,24" | ||
| 568 | N 915036008202 | HOLLOW SCREW |
| LINE CONNECTIONS | ||
| 568 | N 915036008202 | HOLLOW SCREW |
| DISTRIBUTOR,CONNECTION: | ||
| "70" | ||
| 574 | N 007603012405 | SEAL RING |
| LINE CONNECTIONS | ||
| 574 | N 007603012405 | SEAL RING |
| DISTRIBUTOR,CONNECTION: | ||
| "70" | ||
| 580 | A 3839970372 | FITTING |
| Repalced by: N 915039008100 | ||
| 580 | N 915039008202 | HOLLOW SCREW FITTING |
| AT P.T.O.SHIFTING CYLINDER | ||
| 582 | N 915036008202 | HOLLOW SCREW |
| AT P.T.O.SHIFTING CYLINDER | ||
| 586 | N 007603012405 | SEAL RING |
| AT P.T.O.SHIFTING CYLINDER | ||
| 592 | A 0005456009 | SWITCH |
| 594 | A 3604280243 | ANGLE |
| LINE MOUNTING | ||
| 595 | N 000933010198 | SCREW |
| ANGLE TO TRANSMISSION | ||
| 596 | N 912004010102 | LOCK WASHER |
| ANGLE TO TRANSMISSION | ||
| 598 | A 0019978390 | LOOM TIE |
| LINE MOUNTING | ||
| 610 | A 0002366105 | HYDRAULIC PUMP |
| SERVICE WITH DUMPING PLATFORM | ||
| 610 | A 0002366105 | HYDRAULIC PUMP |
| SERVICE WITH DUMPING PLATFORM | ||
| A 0002364005 | HYDRAULIC PUMP | |
| SERVICE WITH DUMPING PLATFORM | ||
| 616 | A 0019814085 | BALL |
| Repalced by: A 0019815085 | ||
| 616 | A 0019815085 | BALL |
| 12.7 MM | ||
| 616 | A 0019815085 | BALL |
| 12.7 MM | ||
| 616 | A 0019815085 | BALL |
| 12.7 MM | ||
| 622 | A 0049936301 | SPRING |
| 622 | A 0049936301 | SPRING |
| 622 | A 0049936301 | SPRING |
| 628 | A 0002360935 | VALVE |
| 628 | A 0002360935 | VALVE |
| 628 | A 0002360935 | VALVE |
| 634 | A 0049936501 | SPRING |
| 634 | A 0049936501 | SPRING |
| 634 | A 0049936501 | SPRING |
| 640 | A 0002361160 | SEAL RING |
| 640 | A 0002361160 | SEAL RING |
| 640 | A 0002361160 | SEAL RING |
| 640 | A 0002361160 | SEAL RING |
| 646 | A 0002360817 | PISTON |
| Repalced by: A 0002361117 | ||
| 646 | A 0002361117 | PISTON |
| 646 | A 0002360817 | PISTON |
| Repalced by: A 0002361217 | ||
| 646 | A 0002361217 | PISTON |
| 652 | A 0002360735 | VALVE |
| 652 | A 0002360735 | VALVE |
| 652 | A 0002360735 | VALVE |
| 658 | A 0002360376 | WASHER |
| 658 | A 0002360376 | WASHER |
| 658 | A 0002360376 | WASHER |
| 662 | A 0059974247 | SEAL RING |
| 662 | A 0059974247 | SEAL RING |
| 666 | A 0002360180 | GASKET |
| 666 | A 0002360180 | GASKET |
| 672 | A 0079977146 | SEAL RING |
| 672 | A 0079977146 | SEAL RING |
| 672 | A 0149971747 | SEAL RING |
| 50X72X7 MM | ||
| 678 | A 0019970630 | SCREW PLUG |
| 678 | A 0019970630 | SCREW PLUG |
| 678 | A 0019970630 | SCREW PLUG |
| 684 | A 0002640479 | GASKET |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
