Transporto priemonė: 1626 AS; VIN numerio dalis: 387112

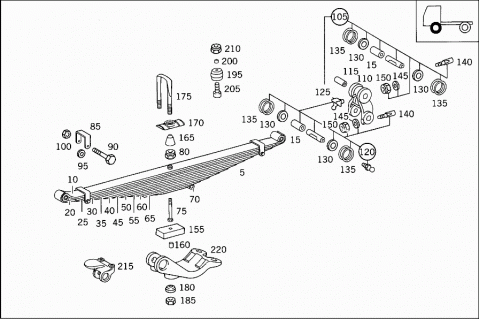

Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3873200102 | FRONT SPRING |
| 12-LEAF | ||
| 005 | A 3873200002 | FRONT SPRING |
| 9-LEAF | ||
| 010 | A 3873200194 | SPRING LEAF |
| NO.1 | ||
| 010 | A 3873200094 | SPRING LEAF |
| Repalced by: A 3873200394 | ||
| 010 | A 3873200394 | SPRING LEAF |
| NO.1 | ||
| 015 | A 3043210150 | BUSHING |
| 015 | A 6203210050 | BUSHING |
| 020 | A 3873210112 | SPRING LEAF |
| NO.2 | ||
| 020 | A 3873210012 | SPRING LEAF |
| Repalced by: A 3873210312 | ||
| 020 | A 3873210312 | SPRING LEAF |
| NO.2 | ||
| 025 | A 3633210013 | SPRING LEAF |
| Repalced by: A 6593210713 | ||
| 025 | A 6593210713 | SPRING LEAF |
| NO.3 | ||
| 025 | A 3873210013 | SPRING LEAF |
| NO.3 | ||
| 030 | A 3633210014 | SPRING LEAF |
| Repalced by: A 6593210714 | ||
| 030 | A 6593210714 | SPRING LEAF |
| NO.4 | ||
| 030 | A 3873210014 | SPRING LEAF |
| NO.4 | ||
| 035 | A 3633210015 | SPRING LEAF |
| Repalced by: A 6593210615 | ||
| 035 | A 6593210615 | SPRING LEAF |
| NO.5 | ||
| 035 | A 3873210015 | SPRING LEAF |
| NO.5 | ||
| 040 | A 3633210016 | SPRING LEAF |
| Repalced by: A 6593210616 | ||
| 040 | A 6593210616 | SPRING LEAF |
| NO.6 | ||
| 040 | A 3873210016 | SPRING LEAF |
| NO.6 | ||
| 045 | A 3633210017 | SPRING LEAF |
| Repalced by: A 6593210617 | ||
| 045 | A 6593210617 | SPRING LEAF |
| NO.7 | ||
| 045 | A 3873210017 | SPRING LEAF |
| NO.7 | ||
| 050 | A 3633210018 | SPRING LEAF |
| Repalced by: A 6593210618 | ||
| 050 | A 6593210618 | SPRING LEAF |
| NO.8 | ||
| 050 | A 3873210018 | SPRING LEAF |
| NO.8 | ||
| 055 | A 3633210019 | SPRING LEAF |
| Repalced by: A 6593210619 | ||
| 055 | A 6593210619 | SPRING LEAF |
| NO.9 | ||
| 055 | A 3873210019 | SPRING LEAF |
| NO.9 | ||
| 060 | A 3633210020 | SPRING LEAF |
| NO.10 | ||
| 065 | A 3633210021 | SPRING LEAF |
| NO.11 | ||
| 070 | A 3633210022 | SPRING LEAF |
| Repalced by: A 3873210122 | ||
| 070 | A 3873210122 | SPRING LEAF |
| Repalced by: A 6593210422 | ||
| 070 | A 6593210422 | SPRING LEAF |
| NO.12 | ||
| 075 | A 3353210071 | SCREW |
| Repalced by: A 3873210071 | ||
| 075 | A 3873210071 | SCREW |
| (SPRING BOLT) | ||
| 075 | A 3323210071 | SCREW |
| (SPRING BOLT) | ||
| 080 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 080 | N 910113014000 | NUT |
| SPRING BOLT | ||
| 085 | A 0003246433 | SPRING CLAMP |
| Repalced by: A 0023219233 | ||
| 085 | A 0023219233 | SPRING CLAMP |
| Repalced by: A 6203240733 | ||
| 085 | A 6203240733 | SPRING CLAMP |
| Repalced by: A 6203240433 | ||
| 085 | A 6203240433 | SPRING CLAMP |
| FRONT SPRING | ||
| 090 | N 000960012216 | SCREW |
| Repalced by: N 308765012007 | ||
| 090 | N 308765012007 | SCREW |
| SPRING CLAMP | ||
| 090 | N 000963012011 | SCREW |
| SPRING CLAMP | ||
| 095 | A 3039902440 | WASHER |
| SPRING CLAMP | ||
| 100 | N 000934012022 | NUT |
| SPRING CLAMP | ||
| 105 | A 3703220130 | SHACKLE PIN |
| Repalced by: A 3955860332 | ||
| 105 | A 3953220430 | SHACKLE PIN |
| Repalced by: A 3955860332 | ||
| 105 | A 3955860132 | REPAIR KIT |
| Repalced by: A 3955860332 | ||
| 105 | A 3955860332 | REPAIR KIT |
| Repalced by: A 3953200165 | ||
| 105 | A 3953200165 | SHACKLE PIN |
| (PARTS KIT),SPRING SHACKLE,TOP | ||
| 110 | A 3703200062 | SHACKLE |
| Repalced by: A 3873200162 | ||
| 110 | A 3873200162 | SHACKLE |
| FRONT SPRING | ||
| 115 | A 3043210150 | BUSHING |
| 115 | A 6203210050 | BUSHING |
| 120 | A 3703220030 | SHACKLE PIN |
| Repalced by: A 3955860232 | ||
| 120 | A 3953220330 | SHACKLE PIN |
| Repalced by: A 3955860232 | ||
| 120 | A 3955860032 | REPAIR KIT |
| Repalced by: A 3955860232 | ||
| 120 | A 3955860232 | REPAIR KIT |
| Repalced by: A 3953200265 | ||
| 120 | A 3953200265 | SHACKLE PIN |
| (PARTS KIT),FRONT & REAR SPRING EYES | ||
| 125 | N 071412010300 | GREASE NIPPLE |
| SHACKLE PIN | ||
| 130 | A 3523230576 | WASHER |
| AS REQUIRED | ||
| 4.30 MM | ||
| 130 | A 3523230476 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 130 | A 3523230376 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 135 | A 0029973140 | SEAL RING |
| SHACKLE PIN | ||
| 140 | A 3529900337 | BOLT |
| SHACKLE PIN | ||
| 145 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 145 | N 000125010532 | WASHER |
| SHACKLE PIN | ||
| 150 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 150 | N 910113010000 | NUT |
| SHACKLE PIN | ||
| 155 | A 3663310028 | SHIM |
| FRONT SPRINGS TO FRONT AXLE | ||
| 155 | A 3663310028 | SHIM |
| FRONT SPRINGS TO FRONT AXLE | ||
| 155 | A 3663310028 | SHIM |
| FRONT SPRINGS TO FRONT AXLE | ||
| 155 | A 3873310728 | SHIM |
| FRONT SPRINGS TO FRONT AXLE | ||
| 155 | A 3863220028 | SHIM |
| FRONT SPRINGS TO FRONT AXLE | ||
| 155 | A 3873310628 | SHIM |
| FRONT SPRINGS TO FRONT AXLE | ||
| 155 | A 3873310428 | SHIM |
| FRONT SPRINGS TO FRONT AXLE | ||
| 155 | A 3873310228 | SHIM |
| FRONT SPRINGS TO FRONT AXLE | ||
| 160 | A 3039920320 | SLEEVE |
| Repalced by: A 3873310074 | ||
| 160 | A 3893230074 | PIN |
| SHIM TO AXLE | ||
| 160 | A 3893230074 | PIN |
| SHIM TO AXLE | ||
| 160 | A 3893310174 | PIN |
| Repalced by: A 3893230074 | ||
| 160 | A 3893230074 | PIN |
| SHIM TO AXLE | ||
| 165 | A 3263310044 | RUBBER BUFFER |
| Repalced by: A 6553310044 | ||
| 165 | A 6553310044 | RUBBER BUFFER |
| FRONT SPRINGS TO FRONT AXLE | ||
| 170 | A 3043310027 | SPACER |
| Repalced by: A 6483310026 | ||
| 170 | A 6483310026 | PLATE |
| Repalced by: A 6553310126 | ||
| 170 | A 6553310126 | PLATE |
| Repalced by: A 6483310026 | ||
| 170 | A 6483310026 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 170 | A 3873310126 | PLATE |
| Repalced by: A 6553310026 | ||
| 170 | A 6203310126 | PLATE |
| Repalced by: A 6553310026 | ||
| 170 | A 6553310026 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 175 | A 3483310025 | U-BOLT |
| Repalced by: A 3873310925 | ||
| 175 | A 3873310925 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 230 MM | ||
| 175 | A 3043311925 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 275 MM | ||
| 175 | A 3893310125 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 370 MM | ||
| 175 | A 3893310125 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 370 MM | ||
| 175 | A 3873310025 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 390 MM | ||
| 175 | A 3873310025 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 390 MM | ||
| 175 | A 3873310025 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 390 MM | ||
| 180 | A 3879970026 | WASHER |
| Repalced by: A 3859970126 | ||
| 180 | A 3859970126 | WASHER |
| FRONT SPRINGS TO FRONT AXLE | ||
| 185 | N 000934020008 | NUT |
| Repalced by: N 308673020002 | ||
| 185 | N 308673020002 | NUT |
| Repalced by: N 308674020000 | ||
| 185 | N 308674020000 | NUT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 195 | A 0019871140 | RUBBER BUFFER |
| SPRING STOP TO FRAME BOTTOM SIDE | ||
| 200 | A 3633220051 | SPACER RING |
| SPRING STOP TO FRAME BOTTOM SIDE | ||
| 205 | N 007985010125 | SCREW |
| SPRING STOP TO FRAME BOTTOM SIDE | ||
| 205 | N 007985010122 | SCREW |
| SPRING STOP TO FRAME BOTTOM SIDE | ||
| 210 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 210 | N 910113010000 | NUT |
| SPRING STOP TO FRAME BOTTOM SIDE | ||

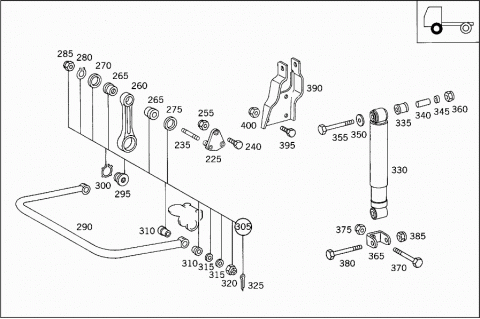

| 215 | A 3703230020 | BEARING |
| TORSION BAR,LEFT | ||
| 215 | A 3703230120 | BEARING |
| TORSION BAR,RIGHT | ||
| 220 | A 3953230020 | BEARING |
| TORSION BAR,LEFT | ||
| 220 | A 3953230120 | BEARING |
| TORSION BAR,RIGHT | ||
| 225 | A 3873230263 | BEARING BRACKET |
| Repalced by: A 3873200178 | ||
| 225 | A 3873200178 | CONSOLE |
| Repalced by: A 3873230563 | ||
| 225 | A 3873230563 | BEARING BRACKET |
| TORSION BAR,FRONT | ||
| 235 | N 000939012102 | STUD BOLT |
| CONSOLE TO SIDE MEMBER | ||
| 240 | N 000961016142 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 240 | N 000961016040 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 255 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 255 | N 910113016002 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 260 | A 3893230016 | LINK |
| Repalced by: A 3893230116 | ||
| 260 | A 3893230016 | LINK |
| Repalced by: A 3893230116 | ||
| 260 | A 3893230116 | SHACKLE |
| TORSION BAR TO FRAME | ||
| 265 | A 0003232150 | BUSHING |
| TORSION BAR TO SHACKLE | ||
| 270 | A 3873230052 | SPACER WASHER |
| TORSION BAR TO SHACKLE | ||
| 275 | N 000125033001 | WASHER |
| TORSION BAR TO SHACKLE | ||
| 275 | A 3873230152 | SPACER WASHER |
| TORSION BAR TO SHACKLE | ||
| 280 | N 000471032000 | LOCK RING |
| TORSION BAR TO SHACKLE | ||
| 285 | N 910113012002 | NUT |
| TORSION BAR TO SHACKLE | ||
| 290 | A 3873230165 | TORSION BAR |
| FRONT AXLE | ||
| 290 | A 3873230165 | TORSION BAR |
| Repalced by: A 3893230065 | ||
| 290 | A 3893230065 | TORSION BAR |
| FRONT AXLE | ||
| 295 | A 0003233785 | RUBBER MOUNTING |
| TORSION BAR | ||
| 295 | A 0003233785 | RUBBER MOUNTING |
| TORSION BAR | ||
| 295 | A 3873230285 | RUBBER MOUNTING |
| TORSION BAR | ||
| 295 | A 0003233985 | RUBBER MOUNTING |
| TORSION BAR | ||
| 295 | A 3873230385 | RUBBER MOUNTING |
| TORSION BAR | ||
| 300 | N 000983068000 | LOCK RING |
| BEARING TO LINK | ||
| 305 | A 3875860032 | REPAIR KIT |
| Repalced by: A 3873200028 | ||
| 305 | A 3873200028 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 305 | A 3873200028 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 305 | A 6205860032 | REPAIR KIT |
| Repalced by: A 6203200228 | ||
| 305 | A 6203200228 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 305 | A 3935860132 | REPAIR KIT |
| Repalced by: A 3933200128 | ||
| 305 | A 3933200128 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 305 | A 3935860432 | REPAIR KIT |
| Repalced by: A 3933200328 | ||
| 305 | A 3933200328 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 310 | A 0003230950 | BUSHING |
| TORSION BAR TO FRONT AXLE | ||
| 315 | A 0009932026 | DISC SPRING |
| TORSION BAR TO FRONT AXLE | ||
| 320 | N 000935020001 | NUT |
| TORSION BAR TO FRONT AXLE | ||
| 325 | N 000094004065 | COTTER PIN |
| TORSION BAR TO FRONT AXLE | ||
| 330 | A 0023235800 | SHOCK ABSORBER |
| Repalced by: A 0043234500 | ||
| 330 | A 0043234500 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 330 | A 0023235900 | SHOCK ABSORBER |
| Repalced by: A 0043230000 | ||
| 330 | A 0043230000 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 330 | A 0023237200 | SHOCK ABSORBER |
| Repalced by: A 0033239700 | ||
| 330 | A 0033239700 | SHOCK ABSORBER |
| Repalced by: A 0063230700 | ||
| 330 | A 0023237300 | SHOCK ABSORBER |
| Repalced by: A 0043234400 | ||
| 330 | A 0043234400 | SHOCK ABSORBER |
| Repalced by: A 0063230700 | ||
| 330 | A 0063230700 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 335 | A 0003232444 | RUBBER BUFFER |
| Repalced by: A 0003232885 | ||
| 335 | A 0003232885 | RUBBER MOUNTING |
| TO 002 323 58 00,002 323 73 00, | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 004 323 44 00,004 323 45 00, | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 002 323 59 00,002 323 72 00 | ||
| 335 | A 0003233044 | RUBBER BUFFER |
| Repalced by: A 0003233144 | ||
| 335 | A 0003233144 | RUBBER BUFFER |
| TO 003 323 97 00,004 323 00 00 | ||
| 340 | A 0003230453 | SPACER TUBE |
| Repalced by: A 0003233150 | ||
| 340 | A 0003232550 | BUSHING |
| Repalced by: A 0003233150 | ||
| 340 | A 0003233150 | SPACER RING |
| TO 002 323 58 00,002 323 73 00, | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 004 323 44 00,004 323 45 00, | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 002 323 59 00,002 323 72 00 | ||
| 340 | A 0003235250 | BUSHING |
| TO 003 323 97 00,004 323 00 00 | ||
| 345 | A 3878911153 | SPACER TUBE |
| SHOCK ABSORBER TO BRACKET | ||
| 350 | A 3939900240 | WASHER |
| SHOCK ABSORBER TO BRACKET | ||
| 355 | N 000960016164 | SCREW |
| SHOCK ABSORBER TO BRACKET | ||
| M 16X85 | ||
| 355 | N 000960016175 | SCREW |
| SHOCK ABSORBER TO BRACKET | ||
| M 16X120 | ||
| 355 | N 000960016065 | SCREW |
| SHOCK ABSORBER TO BRACKET | ||
| M 16X95 | ||
| 360 | N 913004016003 | NUT |
| SHOCK ABSORBER TO BRACKET | ||
| 365 | A 3393230040 | BRACKET |
| Repalced by: A 3953230140 | ||
| 365 | A 3953230140 | BRACKET |
| SHOCK ABSORBER TO BRACKET | ||
| 370 | A 3349900001 | SCREW |
| Repalced by: N 000960020084 | ||
| 370 | N 000960020084 | SCREW |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 370 | N 000960020140 | SCREW |
| Repalced by: N 000960020123 | ||
| 370 | N 000960020123 | SCREW |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 375 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 375 | N 913004020003 | NUT |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 380 | N 000960016164 | SCREW |
| SHOCK ABSORBER TO BRACKET | ||
| 385 | N 913004016003 | NUT |
| SHOCK ABSORBER TO BRACKET | ||
| 390 | A 3873230340 | BRACKET |
| Repalced by: A 3953230640 | ||
| 390 | A 3913230240 | BRACKET |
| Repalced by: A 3953230640 | ||
| 390 | A 3953230640 | BRACKET |
| Repalced by: A 6203230040 | ||
| 390 | A 6203230040 | BRACKET |
| Repalced by: A 6243230340 | ||
| 390 | A 6243230340 | BRACKET |
| SHOCK ABSORBER,TOP | ||
| 395 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 395 | N 308676014020 | SCREW |
| BRACKET TO SIDE MEMBER | ||

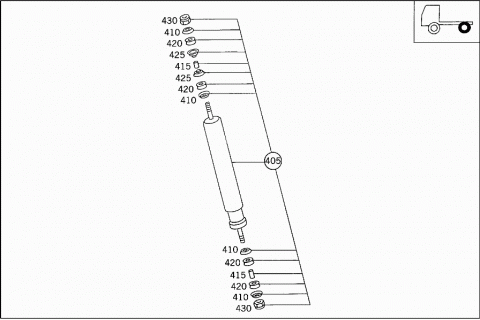

| 405 | A 0023262900 | SHOCK ABSORBER |
| Repalced by: A 3913260100 | ||
| 400 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 400 | N 910113014001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 405 | A 3913260100 | SHOCK ABSORBER |
| (PARTS KIT) | ||
| 405 | A 0023263000 | SHOCK ABSORBER |
| Repalced by: A 3873260300 | ||
| 405 | A 3873260200 | SHOCK ABSORBER |
| Repalced by: A 3873260300 | ||
| 405 | A 0023263600 | SHOCK ABSORBER |
| Repalced by: A 3873260300 | ||
| 405 | A 3873260300 | SHOCK ABSORBER |
| (PARTS KIT) | ||
| 405 | A 0023261100 | SHOCK ABSORBER |
| Repalced by: A 3873260000 | ||
| 405 | A 3873260000 | SHOCK ABSORBER |
| (PARTS KIT) | ||
| 405 | A 0023261200 | SHOCK ABSORBER |
| Repalced by: A 3873260100 | ||
| 405 | A 3873260100 | SHOCK ABSORBER |
| (PARTS KIT) | ||
| 410 | A 3173260167 | RETAINER |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 415 | A 3179911240 | SPACER TUBE |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 420 | A 3543260068 | RUBBER BUFFER |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 425 | A 3543260067 | RETAINER |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 430 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 430 | N 910113014001 | NUT |
| SHOCK ABSORBER TO CROSS MEMBER | ||

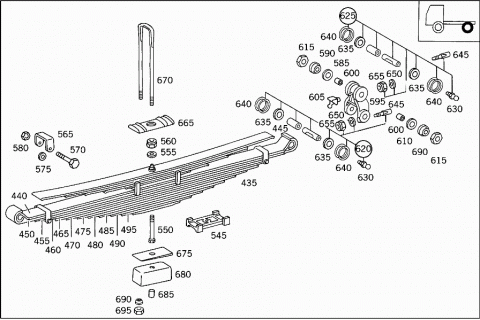

| 435 | A 3873200408 | REAR SPRING |
| 12-LEAF;WITH 5-LEAF HELPER SPRING | ||
| 435 | A 3873200508 | REAR SPRING |
| 9-LEAF;WITH 7-LEAF HELPER SPRING | ||
| 435 | A 3873200308 | REAR SPRING |
| 8-LEAF;WITH 5-LEAF HELPER SPRING | ||
| 440 | A 3873200493 | SPRING LEAF |
| NO.1 | ||
| 440 | A 3873200593 | SPRING LEAF |
| NO.1 | ||
| 440 | A 3873200393 | SPRING LEAF |
| NO.1 | ||
| 445 | A 3353240350 | BUSHING |
| 445 | A 6203240050 | BUSHING |
| 450 | A 3873240412 | SPRING LEAF |
| NO.2 | ||
| 450 | A 3873240512 | SPRING LEAF |
| NO.2 | ||
| 450 | A 3873240312 | SPRING LEAF |
| NO.2 | ||
| 455 | A 3353240813 | SPRING LEAF |
| NO.3 | ||
| 455 | A 3663240013 | SPRING LEAF |
| NO.3 | ||
| 455 | A 3353240713 | SPRING LEAF |
| NO.3 | ||
| 460 | A 3353240814 | SPRING LEAF |
| NO.4 | ||
| 460 | A 3663240014 | SPRING LEAF |
| NO.4 | ||
| 460 | A 3353240714 | SPRING LEAF |
| NO.4 | ||
| 465 | A 3353240815 | SPRING LEAF |
| NO.5 | ||
| 465 | A 3663240015 | SPRING LEAF |
| NO.5 | ||
| 465 | A 3353240715 | SPRING LEAF |
| NO.5 | ||
| 470 | A 3353240816 | SPRING LEAF |
| NO.6 | ||
| 470 | A 3663240016 | SPRING LEAF |
| NO.6 | ||
| 470 | A 3353240716 | SPRING LEAF |
| NO.6 | ||
| 475 | A 3353240817 | SPRING LEAF |
| NO.7 | ||
| 475 | A 3663240017 | SPRING LEAF |
| NO.7 | ||
| 475 | A 3353240717 | SPRING LEAF |
| NO.7 | ||
| 480 | A 3353240818 | SPRING LEAF |
| NO.8 | ||
| 480 | A 3663240018 | SPRING LEAF |
| NO.8 | ||
| 480 | A 3353240718 | SPRING LEAF |
| NO.8 | ||
| 485 | A 3353240819 | SPRING LEAF |
| NO.9 | ||
| 485 | A 3633240219 | SPRING LEAF |
| NO.9 | ||
| 490 | A 3353240820 | SPRING LEAF |
| NO.10 | ||
| 495 | A 3873240121 | SPRING LEAF |
| NO.11 | ||
| A 3873240122 | SPRING LEAF | |
| NO.12 | ||

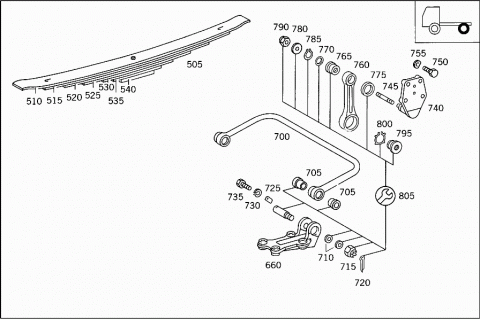

| 505 | A 3873200110 | HELPER SPRING |
| 5-LEAF | ||
| 505 | A 3873200210 | HELPER SPRING |
| 7-LEAF | ||
| 505 | A 3873205010 | HELPER SPRING |
| 5-LEAF | ||
| 510 | A 3353240840 | SPRING LEAF |
| NO.1 | ||
| 510 | A 3663240040 | SPRING LEAF |
| NO.1 | ||
| 510 | A 3353240740 | SPRING LEAF |
| NO.1 | ||
| 515 | A 3353240841 | SPRING LEAF |
| NO.2 | ||
| 515 | A 3663240041 | SPRING LEAF |
| NO.2 | ||
| 515 | A 3353240741 | SPRING LEAF |
| NO.2 | ||
| 520 | A 3353240842 | SPRING LEAF |
| NO.3 | ||
| 520 | A 3663240042 | SPRING LEAF |
| NO.3 | ||
| 520 | A 3353240742 | SPRING LEAF |
| NO.3 | ||
| 525 | A 3873240143 | SPRING LEAF |
| NO.4 | ||
| 525 | A 3663240043 | SPRING LEAF |
| NO.4 | ||
| 525 | A 3353240743 | SPRING LEAF |
| NO.4 | ||
| 530 | A 3873240144 | SPRING LEAF |
| NO.5 | ||
| 530 | A 3663240044 | SPRING LEAF |
| NO.5 | ||
| 530 | A 3353240744 | SPRING LEAF |
| NO.5 | ||
| 535 | A 3633240245 | SPRING LEAF |
| NO.6 | ||
| 540 | A 3633240246 | SPRING LEAF |
| NO.7 | ||
| 545 | A 3873240035 | SPACER |
| FOR REAR SPRING WITH HELPER SPRING | ||
| 550 | A 3473240071 | SPRING BOLT |
| Repalced by: A 3473240271 | ||
| 550 | A 3473240271 | SPRING BOLT |
| 555 | N 007349019002 | WASHER |
| SPRING BOLT | ||
| 560 | N 913004018004 | NUT |
| SPRING BOLT | ||
| 565 | A 0003246333 | SPRING CLAMP |
| Repalced by: A 0023218933 | ||
| 565 | A 0003247633 | SPRING CLAMP |
| Repalced by: A 0023218933 | ||
| 565 | A 0003246533 | SPRING CLAMP |
| Repalced by: A 0023218933 | ||
| 565 | A 0023218933 | SPRING CLAMP |
| Repalced by: A 0023219833 | ||
| 565 | A 0023219833 | SPRING CLAMP |
| Repalced by: A 0003244233 | ||
| 565 | A 0003244233 | SPRING CLAMP |
| 570 | N 000960012222 | SCREW |
| SPRING CLAMP TO SPRING LEAF NO.4 | ||
| 575 | A 3039902440 | WASHER |
| AS REQUIRED | ||
| 580 | N 000934012022 | NUT |
| SPRING CLAMP TO SPRING LEAF NO.4 | ||
| 585 | A 3463255062 | THRUST WASHER |
| Repalced by: A 6213250062 | ||
| 585 | A 6213250062 | THRUST WASHER |
| SHACKLE TO FRAME | ||
| 590 | A 0029973640 | SEAL RING |
| SHACKLE TO FRAME | ||
| 595 | A 3463205063 | SHACKLE |
| REAR SPRING TO REAR SPRING REAR BRACKET | ||
| 595 | A 3873200063 | SHACKLE |
| REAR SPRING TO REAR SPRING REAR BRACKET | ||
| 600 | A 3353240050 | BUSHING |
| SPRING SHACKLE TO SPRING REAR BRACKET | ||
| 600 | A 3873240050 | BUSHING |
| SPRING SHACKLE TO SPRING REAR BRACKET | ||
| 605 | N 071412008200 | GREASE NIPPLE |
| SPRING SEAT | ||
| 610 | A 3463255162 | THRUST WASHER |
| Repalced by: A 6213250162 | ||
| 610 | A 6213250162 | THRUST WASHER |
| SPRING SHACKLE TO SPRING REAR BRACKET | ||
| 615 | N 000439024200 | NUT |
| SPRING SHACKLE TO SPRING REAR BRACKET | ||
| 615 | N 000936024000 | NUT |
| SPRING SHACKLE TO SPRING REAR BRACKET | ||
| 620 | A 3353250030 | SHACKLE PIN |
| Repalced by: A 3895860132 | ||
| 620 | A 3893250230 | SHACKLE PIN |
| Repalced by: A 3895860132 | ||
| 620 | A 3895860032 | REPAIR KIT |
| Repalced by: A 3895860132 | ||
| 620 | A 3895860132 | REPAIR KIT |
| Repalced by: A 3893200065 | ||
| 620 | A 3893200065 | SHACKLE PIN |
| (PARTS KIT),FRONT & REAR SPRING EYES | ||
| 625 | A 3893200265 | SHACKLE PIN |
| (PARTS KIT),SPRING SHACKLE,TOP | ||
| 630 | N 071412010100 | GREASE NIPPLE |
| SHACKLE PIN | ||
| 635 | A 3523231176 | WASHER |
| Repalced by: A 3523211076 | ||
| 635 | A 3523231076 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 635 | A 3523230976 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 640 | A 0029973040 | SEAL RING |
| SHACKLE PIN | ||
| 645 | A 3529900337 | BOLT |
| SHACKLE PIN | ||
| 650 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 650 | N 000125010532 | WASHER |
| SHACKLE PIN | ||
| 655 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 655 | N 910113010000 | NUT |
| SHACKLE PIN | ||
| 660 | A 3893260020 | BEARING |
| Repalced by: A 3873260320 | ||
| 660 | A 3893260020 | BEARING |
| Repalced by: A 3873260420 | ||
| 660 | A 3873260320 | BEARING |
| TORSION BAR,LEFT | ||
| 660 | A 3873260320 | BEARING |
| TORSION BAR,LEFT | ||
| 660 | A 3873260520 | BEARING |
| TORSION BAR,LEFT | ||
| 660 | A 3873260420 | BEARING |
| TORSION BAR,RIGHT | ||
| 660 | A 3873260420 | BEARING |
| TORSION BAR,RIGHT | ||
| 660 | A 3873260620 | BEARING |
| TORSION BAR,RIGHT | ||
| 665 | A 3873510026 | SPRING CLAMPING PLATE |
| REAR SPRING TO REAR AXLE | ||
| 665 | A 6203510026 | SPRING CLAMPING PLATE |
| REAR SPRING TO REAR AXLE | ||
| 670 | A 3353510125 | U-BOLT |
| Repalced by: A 9433510225 | ||
| 670 | A 9433510225 | U-BOLT |
| REAR SPRING | ||
| 475 MM | ||
| 670 | A 9433510225 | U-BOLT |
| REAR SPRING | ||
| 475 MM | ||
| 670 | A 3893510025 | U-BOLT |
| REAR SPRING | ||
| 550 MM | ||
| 670 | A 3633510125 | U-BOLT |
| Repalced by: A 6203510125 | ||
| 670 | A 6203510125 | U-BOLT |
| REAR SPRING | ||
| 500 MM | ||
| 670 | A 6203510125 | U-BOLT |
| REAR SPRING | ||
| 500 MM | ||
| 675 | A 3633510228 | PAD |
| REAR SPRING TO REAR AXLE | ||
| 675 | A 3633510128 | PAD |
| REAR SPRING TO REAR AXLE | ||
| 675 | A 3873510128 | PAD |
| REAR SPRING TO REAR AXLE | ||
| 675 | A 3873510128 | PAD |
| REAR SPRING TO REAR AXLE | ||
| 680 | A 3893510028 | PAD |
| REAR SPRING TO REAR AXLE | ||
| 680 | A 3893510228 | PAD |
| REAR SPRING TO REAR AXLE | ||
| 680 | A 3873510328 | PAD |
| REAR SPRING TO REAR AXLE | ||
| 680 | A 3873510528 | PAD |
| REAR SPRING TO REAR AXLE | ||
| 685 | A 3893250074 | PIN |
| REAR SPRING TO REAR AXLE | ||
| 685 | A 3893250074 | PIN |
| REAR SPRING TO REAR AXLE | ||
| 690 | A 3879975026 | WASHER |
| U-BOLT | ||
| 695 | N 000934024006 | NUT |
| U-BOLT | ||
| 700 | A 3873260065 | TORSION BAR |
| REAR | ||
| 705 | A 0003260250 | BUSHING |
| TORSION BAR TO BEARING BRACKET | ||
| 710 | A 0009931926 | DISC SPRING |
| TORSION BAR TO BEARING BRACKET | ||
| 715 | N 000935027000 | NUT |
| TORSION BAR TO BEARING BRACKET | ||
| 720 | N 000094005045 | COTTER PIN |
| TORSION BAR TO BEARING BRACKET | ||
| 725 | A 3129941309 | LOCK |
| TORSION BAR TO BEARING BRACKET | ||
| 730 | N 912004008102 | LOCK WASHER |
| TORSION BAR TO BEARING BRACKET | ||
| 735 | N 000933008145 | SCREW |
| TORSION BAR TO BEARING BRACKET | ||
| 740 | A 3933260063 | BEARING BRACKET |
| Repalced by: A 3933200678 | ||
| 740 | A 3933200578 | CONSOLE |
| Repalced by: A 3933200678 | ||
| 740 | A 3933200678 | CONSOLE |
| Repalced by: A 3933261163 | ||
| 740 | A 3933261163 | BEARING BRACKET |
| TORSION BAR TO FRAME | ||
| 740 | A 3933260463 | BEARING BRACKET |
| Repalced by: A 3933200478 | ||
| 740 | A 3933200478 | CONSOLE |
| TORSION BAR TO FRAME | ||
| 745 | N 000939016033 | STUD BOLT |
| 750 | N 000961016108 | SCREW |
| REAR SPRING REAR BRACKET TO SIDE MEMBER | ||
| 755 | N 000137016202 | SPRING WASHER |
| REAR SPRING REAR BRACKET TO SIDE MEMBER | ||
| 760 | A 3873260247 | SHACKLE |
| Repalced by: A 3873260647 | ||
| 760 | A 3873260647 | SHACKLE |
| TORSION BAR TO FRAME | ||
| 760 | A 3873260647 | SHACKLE |
| TORSION BAR TO FRAME | ||
| 760 | A 3633260047 | SHACKLE |
| Repalced by: A 3633260147 | ||
| 760 | A 3633260147 | SHACKLE |
| TORSION BAR TO FRAME | ||
| 760 | A 3633260147 | SHACKLE |
| TORSION BAR TO FRAME | ||
| 760 | A 3933260147 | SHACKLE |
| Repalced by: A 3933260547 | ||
| 760 | A 3933260547 | SHACKLE |
| TORSION BAR TO FRAME | ||
| 760 | A 3873260347 | SHACKLE |
| Repalced by: A 3873260747 | ||
| 760 | A 3873260747 | SHACKLE |
| TORSION BAR TO FRAME | ||
| 765 | A 0003260650 | BUSHING |
| SHACKLE TO CONSOLE | ||
| 770 | A 3933260052 | SPACER WASHER |
| Repalced by: A 3873230252 | ||
| 770 | A 3873230252 | SPACER WASHER |
| SHACKLE TO CONSOLE | ||
| 775 | A 3209900240 | WASHER |
| SHACKLE TO CONSOLE | ||
| 780 | A 3933260152 | SPACER WASHER |
| SHACKLE TO CONSOLE | ||
| 785 | N 000471040002 | LOCK RING |
| SHACKLE TO CONSOLE | ||
| 790 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 790 | N 910113016002 | NUT |
| SHACKLE TO CONSOLE | ||
| N 000961016081 | SCREW | |
| SHACKLE TO CONSOLE | ||
| 795 | A 0003261681 | RUBBER MOUNTING |
| TORSION BAR | ||
| 795 | A 3873260281 | RUBBER MOUNTING |
| TORSION BAR | ||
| 800 | N 000983085001 | LOCK RING |
| SHACKLE TO TORSION BAR | ||
| 805 | A 3875860132 | REPAIR KIT |
| Repalced by: A 3873200128 | ||
| 805 | A 3873200128 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| A 3353260074 | PIN | |
| Repalced by: A 3875860132 | ||
| A 3353260074 | PIN | |
| Repalced by: A 3875860532 | ||
| 805 | A 3875860532 | REPAIR KIT |
| Repalced by: A 3873200528 | ||
| 805 | A 3873200528 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
