Transporto priemonė: 1626 AS; VIN numerio dalis: 387112
Grupė: 26 TRANSMISSION
| # | Kodas | Pavadinimas |
|---|---|---|
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSMISSION,SEE UNIT STANDARD VERSION,MODEL: | ||
| 719.0 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSMISSION,SEE UNIT STANDARD VERSION,MODEL: | ||
| 719.5 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSMISSION,SEE UNIT STANDARD VERSION,MODEL: | ||
| 719.2 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSMISSION,SEE UNIT STANDARD VERSION,MODEL: | ||
| 717.1 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSMISSION,SEE UNIT STANDARD VERSION,MODEL: | ||
| 717.1 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSMISSION,SEE UNIT STANDARD VERSION,MODEL: | ||
| 719.4 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSMISSION,SEE UNIT STANDARD VERSION,MODEL: | ||
| 719.4 | ||

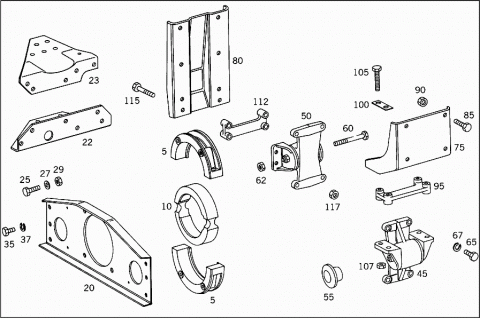

| 005 | A 3952660104 | BEARING CAP |
| TRANSMISSION COVER PLATE | ||
| 010 | A 3872660003 | MOUNTING |
| TRANSMISSION COVER PLATE | ||
| N 000960012199 | SCREW | |
| Repalced by: N 308676012018 | ||
| N 308676012018 | SCREW | |
| BEARING COVER TO TRANSMISSION CASE | ||
| N 910113012002 | NUT | |
| BEARING COVER TO TRANSMISSION CASE | ||
| 020 | A 3872660002 | SUPPORT |
| FRONT | ||
| 020 | A 3872660302 | SUPPORT |
| FRONT | ||
| 022 | A 3872661740 | BRACKET |
| BOTTOM LEFT | ||
| 022 | A 3872661840 | BRACKET |
| BOTTOM RIGHT | ||
| 023 | A 3872661540 | BRACKET |
| TOP LEFT | ||
| 023 | A 3872661640 | BRACKET |
| TOP RIGHT | ||
| 025 | N 000961014100 | SCREW |
| SUPPORT TO BRACKET,TOP AND BOTTOM | ||
| 025 | N 000961014100 | SCREW |
| SUPPORT TO BRACKET,TOP AND BOTTOM | ||
| 025 | N 000960014244 | SCREW |
| SUPPORT TO BRACKET AT FRAME,FRONT | ||
| 025 | N 000960014244 | SCREW |
| SUPPORT TO BRACKET AT FRAME,FRONT | ||
| 025 | N 000960014244 | SCREW |
| SUPPORT TO BRACKET AT FRAME,FRONT | ||
| A 3892660084 | SHIM | |
| SUPPORT TO BRACKET AT FRAME,FRONT | ||
| A 3892660084 | SHIM | |
| SUPPORT TO BRACKET AT FRAME,FRONT | ||
| 027 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 027 | N 000125015019 | WASHER |
| SUPPORT TO BRACKET,TOP AND BOTTOM | ||
| 027 | N 000961014100 | SCREW |
| SUPPORT TO BRACKET,TOP AND BOTTOM | ||
| 029 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 029 | N 910113014001 | NUT |
| SUPPORT TO BRACKET,TOP AND BOTTOM | ||
| 029 | N 910113014001 | NUT |
| SUPPORT TO BRACKET,TOP AND BOTTOM | ||
| 035 | N 000961016075 | SCREW |
| Repalced by: N 308676016020 | ||
| 035 | N 308676016020 | SCREW |
| SUPPORT TO TRANSMISSION | ||
| 037 | N 912004016101 | LOCK WASHER |
| SUPPORT TO TRANSMISSION | ||
| 045 | A 3872600494 | BEARING BRACKET |
| Repalced by: A 3872600594 | ||
| 050 | A 3872600594 | BEARING BRACKET |
| REAR LEFT AND RIGHT | ||
| 055 | A 4932660003 | MOUNTING |
| REAR LEFT AND RIGHT | ||
| 060 | N 000960016078 | SCREW |
| REAR LEFT AND RIGHT | ||
| 062 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 062 | N 910113016002 | NUT |
| REAR LEFT AND RIGHT | ||
| 065 | N 000961016075 | SCREW |
| Repalced by: N 308676016020 | ||
| 065 | N 308676016020 | SCREW |
| BEARING BRACKET TO TRANSMISSION | ||
| 067 | N 912004016101 | LOCK WASHER |
| BEARING BRACKET TO TRANSMISSION | ||
| 075 | A 3872660940 | BRACKET |
| LEFT | ||
| 075 | A 3872662740 | BRACKET |
| LEFT | ||
| 075 | A 3872660840 | BRACKET |
| LEFT | ||
| 075 | A 3872662840 | BRACKET |
| LEFT | ||
| 080 | A 3872662940 | BRACKET |
| RIGHT | ||
| 080 | A 3872661140 | BRACKET |
| RIGHT | ||
| 080 | A 3872661040 | BRACKET |
| RIGHT | ||
| 080 | A 3872663040 | BRACKET |
| RIGHT | ||
| 085 | N 308676016022 | SCREW |
| BRACKET TO FRAME | ||
| M 16X40 | ||
| 085 | N 308676016022 | SCREW |
| BRACKET TO FRAME | ||
| M 16X40 | ||
| 085 | N 000961016075 | SCREW |
| Repalced by: N 308676016020 | ||
| 085 | N 308676016020 | SCREW |
| BRACKET TO FRAME | ||
| M 16X35 | ||
| 090 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 090 | N 910113016002 | NUT |
| BRACKET TO FRAME | ||
| N 000961014063 | SCREW | |
| Repalced by: A 9429901304 | ||
| A 9429901304 | SCREW | |
| SUPPORT AND BRACKET TO FRAME | ||
| M 14X40 | ||
| N 000960014237 | SCREW | |
| SUPPORT AND BRACKET TO FRAME | ||
| M 14X50 | ||
| N 913004014002 | NUT | |
| Repalced by: N 910113014001 | ||
| N 910113014001 | NUT | |
| SUPPORT AND BRACKET TO FRAME | ||
| N 913004014005 | NUT | |
| Repalced by: N 910113014000 | ||
| N 910113014000 | NUT | |
| SUPPORT AND BRACKET TO FRAME | ||
| 095 | A 3872660084 | SHIM |
| BOTTOM | ||
| 100 | A 3872660184 | SHIM |
| Repalced by: A 3093170084 | ||
| 100 | A 3093170084 | SHIM |
| TOP | ||
| 105 | N 000960016244 | SCREW |
| BRACKET TO BEARING BRACKET | ||
| 107 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 107 | N 910113016002 | NUT |
| BRACKET TO BEARING BRACKET | ||
| 112 | A 3872660084 | SHIM |
| RIGHT REAR | ||
| 115 | N 000960016056 | SCREW |
| BRACKET TO BEARING BRACKET | ||
| M 16X80 | ||
| 115 | N 308676016022 | SCREW |
| BRACKET TO BEARING BRACKET | ||
| M 16X40 | ||
| 117 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 117 | N 910113016002 | NUT |
| BRACKET TO BEARING BRACKET | ||

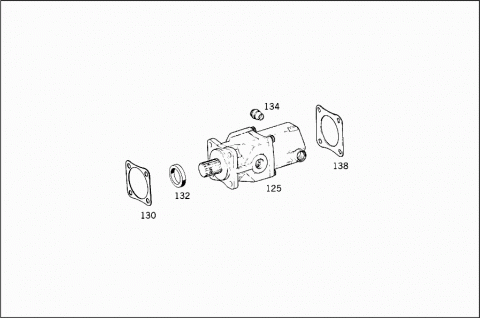

| 125 | A 0002366105 | HYDRAULIC PUMP |
| SERVICE WITH DUMPING PLATFORM | ||
| A 0049936301 | SPRING | |
| DUMPER PUMP | ||
| A 0019814085 | BALL | |
| Repalced by: A 0019815085 | ||
| A 0019815085 | BALL | |
| DUMPER PUMP | ||
| 12.70 MM | ||
| A 0002360935 | VALVE | |
| DUMPER PUMP | ||
| A 0049936501 | SPRING | |
| DUMPER PUMP | ||
| A 0002361160 | SEAL RING | |
| DUMPER PUMP | ||
| A 0002360817 | PISTON | |
| Repalced by: A 0002361117 | ||
| A 0002361117 | PISTON | |
| DUMPER PUMP | ||
| A 0002360735 | VALVE | |
| DUMPER PUMP | ||
| A 0002360376 | WASHER | |
| DUMPER PUMP | ||
| 130 | A 0002360180 | GASKET |
| DUMPER PUMP | ||
| 132 | A 0079977146 | SEAL RING |
| DUMPER PUMP | ||
| 134 | A 0019970630 | SCREW PLUG |
| DUMPER PUMP | ||
| 138 | A 0002640479 | GASKET |
| TRANSMISSION CASE | ||
| 150 | A 3872605539 | SHIFT LEVER |
| Repalced by: A 3892606039 | ||
| 155 | A 3892606039 | SHIFT LEVER |
| 155 | A 3892606039 | SHIFT LEVER |
| 155 | A 3892606139 | SHIFT LEVER |
| 155 | A 3852607039 | SHIFT LEVER |
| 158 | A 3892605639 | SHIFT LEVER |
| 158 | A 3852606839 | SHIFT LEVER |
| 158 | A 3892605739 | SHIFT LEVER |
| 158 | A 3852606939 | SHIFT LEVER |
| 160 | A 3359920203 | BUSHING |
| SHIFT LEVER BEARING | ||
| 165 | A 0009815531 | JOINT BEARING |
| Repalced by: A 0019813931 | ||
| 165 | A 0019813931 | JOINT BEARING |
| SHIFTING ROD TO SHIFT LEVER | ||
| 165 | A 0009814531 | JOINT BEARING |
| SHIFTING ROD TO SHIFT LEVER | ||
| 170 | N 000472042001 | LOCK RING |
| SHIFTING ROD TO SHIFT LEVER | ||
| 175 | A 3852681074 | PIN |
| Repalced by: A 3852681474 | ||
| 175 | A 3852681474 | PIN |
| SHIFTING ROD TO SHIFT LEVER | ||
| 180 | A 3852680696 | BOOT |
| Repalced by: A 6202680196 | ||
| 180 | A 6202680196 | BOOT |
| SHIFTING ROD TO SHIFT LEVER | ||
| 185 | A 3892605162 | BRACKET |
| Repalced by: A 3892605262 | ||
| 185 | A 3892605262 | BRACKET |
| SHIFT LEVER TO CAB FLOOR | ||
| 187 | A 3892685240 | BRACKET |
| Repalced by: A 3892680440 | ||
| 187 | A 3892680240 | BRACKET |
| Repalced by: A 3892680440 | ||
| 187 | A 3892680440 | BRACKET |
| SHIFT LEVER TO CAB FLOOR | ||
| 192 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 192 | N 913004008001 | NUT |
| SHIFT LEVER TO CAB FLOOR | ||
| 195 | A 3852600057 | VALVE |
| (SHIFT LEVER VALVE) | ||
| A 0049974848 | SEAL RING | |
| 197 | A 3859970082 | HOSE |
| Repalced by: A 3019970682 | ||
| 197 | A 3019970682 | HOSE |
| Repalced by: A 3019971182 | ||
| 197 | A 3019971182 | HOSE |
| (PARTS KIT) | ||
| A 0012609957 | REPAIR KIT | |
| SHIFT LEVER VALVE | ||
| 199 | A 3602600040 | HANDLE |
| (GEARSHIFT LEVER KNOB) | ||
| 199 | A 3602600140 | HANDLE |
| Repalced by: A 3432600040 | ||
| 199 | A 3432600040 | HANDLE |
| (GEARSHIFT LEVER KNOB) | ||
| 204 | A 3852600140 | HANDLE |
| (GEARSHIFT LEVER KNOB) | ||
| 205 | A 3852670001 | SHIFT LEVER |
| Repalced by: A 6202680042 | ||
| 205 | A 6202680042 | KNOB |
| (SHIFT LEVER HANDLE) | ||
| 206 | A 0002670114 | CAP |
| Repalced by: A 6202680157 | ||
| 206 | A 6202680157 | COVER |
| 207 | N 000936010010 | NUT |
| GEARSHIFT LEVER KNOB TO GEARSHIFT LEVER | ||
| 208 | A 3852680357 | COVER |
| SHIFT LEVER KNOB | ||
| 210 | A 3855840040 | DECALCOMANIA |
| NINE-SPEED,SHIFT LEVER KNOB | ||
| 210 | A 3855840140 | DECALCOMANIA |
| NINE-SPEED,SHIFT LEVER KNOB | ||
| 212 | A 3855840138 | GUMMED LABEL |
| NINE-SPEED,ASHTRAY | ||
| 212 | A 3855840238 | GUMMED LABEL |
| NINE-SPEED,ASHTRAY | ||
| 215 | A 3852603133 | SHIFTING ROD |
| (TELESCOPIC SHIFTING ROD) | ||
| 215 | A 3892603733 | SHIFTING ROD |
| (TELESCOPIC SHIFTING ROD) | ||
| 215 | A 3852606033 | SHIFTING ROD |
| (TELESCOPIC SHIFTING ROD) | ||
| 218 | A 3852609333 | SHIFTING ROD |
| (TELESCOPIC SHIFTING ROD) | ||
| 218 | A 3852609433 | SHIFTING ROD |
| (TELESCOPIC SHIFTING ROD) | ||
| 219 | A 3852607033 | SHIFTING ROD |
| (TELESCOPIC TUBE) | ||
| 219 | A 3852607033 | SHIFTING ROD |
| (TELESCOPIC TUBE) | ||
| 219 | A 3892600833 | SHIFTING ROD |
| (TELESCOPIC TUBE) | ||
| 219 | A 3852603882 | SHIFTING TUBE |
| (TELESCOPIC TUBE) | ||
| 220 | A 3852600689 | PULL ROD |
| 220 | A 3852600689 | PULL ROD |
| 220 | A 3892600089 | PULL ROD |
| 221 | A 3859930901 | SPRING |
| MECHANICAL RELAESE | ||
| 222 | A 3859930020 | SPRING |
| HYDRAULIC RELEASE | ||
| 223 | A 3859930120 | SPRING |
| HYDRAULIC RELEASE | ||
| 224 | A 0029971745 | SEAL RING |
| Repalced by: A 0009978648 | ||
| 224 | A 0009978648 | SEAL RING |
| HYDRAULIC RELEASE | ||
| 17.20 MM | ||
| A 3852680153 | SPACER TUBE | |
| PAWL TO ROD END | ||
| N 913004010008 | NUT | |
| Repalced by: N 910113010000 | ||
| N 910113010000 | NUT | |
| PAWL TO ROD END | ||
| N 000931010357 | SCREW | |
| Repalced by: N 000933010192 | ||
| A 0019909404 | SCREW | |
| PAWL TO ROD END | ||
| 228 | A 0009978748 | SEAL RING |
| PAWL TO ROD END | ||
| 30.20 MM | ||
| 229 | A 0039970448 | SEAL RING |
| MECHANICAL RELAESE | ||
| 8.30 MM | ||
| A 3852680423 | YOKE | |
| MECHANICAL RELAESE | ||
| 231 | A 3852600534 | ROD END |
| HYDRAULIC RELEASE | ||
| A 3852600187 | PAWL | |
| MECHANICAL RELAESE | ||
| 233 | A 3852600387 | PAWL |
| Repalced by: A 6202600087 | ||
| 233 | A 6202600087 | PAWL |
| HYDRAULIC RELEASE | ||
| A 3359920203 | BUSHING | |
| PAWL TO ROD END | ||
| A 6209920003 | BUSHING | |
| PAWL TO ROD END | ||
| A 6202680150 | BUSHING | |
| PAWL TO ROD END | ||
| 234 | A 3852600063 | SHIFTING CYLINDER |
| HYDRAULIC RELEASE | ||
| WABCO | ||
| 234 | A 3852600563 | SHIFTING CYLINDER |
| HYDRAULIC RELEASE | ||
| TECHNOMATIK | ||
| A 0069976748 | SEAL RING | |
| PISTON RINGS | ||
| WABCO | ||
| A 0069976848 | SEAL RING | |
| SCREW FITTING | ||
| WABCO | ||
| A 0019970641 | SEAL RING | |
| OUTSIDE | ||
| WABCO | ||
| 235 | N 001444008234 | PIN |
| HYDRAULIC RELEASE | ||
| 8X45X39 | ||
| 236 | N 001443008203 | PIN |
| Repalced by: N 001444008235 | ||
| 236 | N 001444008235 | PIN |
| HYDRAULIC RELEASE | ||
| 8X22X16 | ||
| N 000094002059 | COTTER PIN | |
| HYDRAULIC RELEASE | ||
| 237 | N 900055008002 | SPRING WASHER |
| HYDRAULIC RELEASE | ||
| 238 | A 3852680776 | WASHER |
| SHIFT GUIDE TO CASE TOP COVER | ||
| 239 | A 3892608833 | SHIFTING ROD |
| FROM SHIFTING ROD TO CONNECTOR | ||
| 239 | A 3872601533 | SHIFTING ROD |
| FROM SHIFTING ROD TO CONNECTOR | ||
| 239 | A 3892603533 | SHIFTING ROD |
| FROM SHIFTING ROD TO CONNECTOR | ||
| 239 | A 3872607233 | SHIFTING ROD |
| FROM SHIFTING ROD TO CONNECTOR | ||
| 239 | A 3872608233 | SHIFTING ROD |
| FROM SHIFTING ROD TO CONNECTOR | ||
| 239 | A 3872608233 | SHIFTING ROD |
| FROM SHIFTING ROD TO CONNECTOR | ||
| 239 | A 3872601033 | SHIFTING ROD |
| FROM SHIFTING ROD TO CONNECTOR | ||
| 239 | A 3872604833 | SHIFTING ROD |
| FROM SHIFTING ROD TO CONNECTOR | ||
| 239 | A 3892608633 | SHIFTING ROD |
| FROM SHIFTING ROD TO CONNECTOR | ||
| 239 | A 3872601133 | SHIFTING ROD |
| FROM SHIFTING ROD TO CONNECTOR | ||
| 239 | A 3872604933 | SHIFTING ROD |
| FROM SHIFTING ROD TO CONNECTOR | ||
| A 3872607533 | SHIFTING ROD | |
| FROM SHIFTING ROD TO CONNECTOR | ||
| A 3872603033 | SHIFTING ROD | |
| FROM SHIFTING ROD TO CONNECTOR | ||
| A 3892609033 | SHIFTING ROD | |
| FROM SHIFTING ROD TO CONNECTOR | ||
| A 3892601182 | SHIFTING TUBE | |
| FROM SHIFTING ROD TO CONNECTOR | ||
| A 3872600633 | SHIFTING ROD | |
| FROM SHIFTING ROD TO CONNECTOR | ||
| A 3872608333 | SHIFTING ROD | |
| FROM SHIFTING ROD TO CONNECTOR | ||
| A 3872608333 | SHIFTING ROD | |
| FROM SHIFTING ROD TO CONNECTOR | ||
| A 3872601233 | SHIFTING ROD | |
| FROM SHIFTING ROD TO CONNECTOR | ||
| A 3872609333 | SHIFTING ROD | |
| FROM SHIFTING ROD TO CONNECTOR | ||
| A 3892600133 | SHIFTING ROD | |
| FROM SHIFTING ROD TO CONNECTOR | ||
| A 3892603333 | SHIFTING ROD | |
| FROM SHIFTING ROD TO CONNECTOR | ||
| A 3892601582 | SHIFTING TUBE | |
| FROM SHIFTING ROD TO CONNECTOR | ||
| 240 | A 3852680084 | SHIM |
| FRONT SHIFTING ROD TO REAR SHIFTING ROD | ||
| 245 | A 3852680188 | CLAMPING PIECE |
| FRONT SHIFTING ROD TO REAR SHIFTING ROD | ||
| 250 | N 000933010202 | SCREW |
| Repalced by: N 304017010047 | ||
| 250 | N 304017010047 | SCREW |
| CONNECTOR TO SHIFTING ROD AND TO SHAFT | ||
| N 006912010021 | SCREW | |
| SHIFTING TUBE TO TRANSMISSION | ||
| N 006912010021 | SCREW | |
| SHIFTING TUBE TO TRANSMISSION | ||
| 255 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 255 | N 910113010000 | NUT |
| SHIFTING TUBE TO TRANSMISSION | ||
| 255 | N 910113010000 | NUT |
| SHIFTING TUBE TO TRANSMISSION | ||
| 256 | A 3312600138 | SHAFT |
| REAR | ||
| A 3892609233 | SHIFTING ROD | |
| REAR | ||
| A 3892609233 | SHIFTING ROD | |
| REAR | ||
| 257 | N 000933010105 | SCREW |
| SHIFTING TUBE TO TRANSMISSION | ||
| N 000933010129 | SCREW | |
| Repalced by: N 304017010002 | ||
| N 304017010002 | SCREW | |
| SHIFTING TUBE TO TRANSMISSION | ||
| 260 | A 3852680153 | SPACER TUBE |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 262 | A 0029971745 | SEAL RING |
| Repalced by: A 0009978648 | ||
| 262 | A 0009978648 | SEAL RING |
| SHIFTING TUBE TO SHIFT LEVER | ||
| N 900055018001 | SPRING WASHER | |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 265 | N 000931010357 | SCREW |
| Repalced by: N 000933010192 | ||
| 265 | A 0019909404 | SCREW |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 267 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 267 | N 910113010000 | NUT |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 270 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 270 | N 304017008027 | SCREW |
| SHIFTING TUBE TO SHIFT LEVER | ||
| M 8X30 | ||
| 270 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 270 | N 304017008034 | SCREW |
| SHIFTING TUBE TO SHIFT LEVER | ||
| M 8X25 | ||
| 272 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 272 | N 913004008001 | NUT |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 280 | A 3852680292 | RUBBER PAD |
| Repalced by: A 3852680392 | ||
| 280 | A 3852680392 | RUBBER PAD |
| SHIFT LEVER TO CAB FLOOR | ||
| 282 | A 3892687125 | TUBE |
| SHIFT LEVER TO CAB FLOOR | ||
| 282 | A 3892680525 | TUBE |
| SHIFT LEVER TO CAB FLOOR | ||
| 285 | A 3852600562 | BRACKET |
| SHIFT LEVER TO CAB FLOOR | ||
| 287 | A 3852601962 | BRACKET |
| SHIFT LEVER TO CAB FLOOR | ||
| 290 | A 3852600962 | BRACKET |
| SHIFT LEVER TO CAB FLOOR | ||
| 293 | A 3852681640 | BRACKET |
| SHIFT LEVER TO CAB FLOOR | ||
| 295 | A 3852680192 | RUBBER PAD |
| Repalced by: A 3852680492 | ||
| 295 | A 3852680492 | RUBBER PAD |
| SHIFT LEVER TO CAB FLOOR | ||
| 298 | N 000931008047 | SCREW |
| Repalced by: N 304017008018 | ||
| 298 | N 304017008018 | SCREW |
| SHIFT LEVER TO CAB FLOOR | ||
| 300 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 300 | N 913004008001 | NUT |
| SHIFT LEVER TO CAB FLOOR | ||
| 305 | A 3892685086 | RUBBER RING |
| SHIFT LEVER TO CAB FLOOR | ||
| 305 | A 3892685086 | RUBBER RING |
| SHIFT LEVER TO CAB FLOOR | ||
| 307 | A 3852681950 | BUSHING |
| SHIFT LEVER TO CAB FLOOR | ||
| N 007981003203 | SHEET METAL SCREW | |
| SHIFT LEVER TO CAB FLOOR | ||
| 310 | A 3852680497 | BOOT |
| Repalced by: A 3892680097 | ||
| 310 | A 3892685197 | BOOT |
| Repalced by: A 3892680097 | ||
| 310 | A 3892680197 | BOOT |
| Repalced by: A 3892680097 | ||
| 310 | A 3892680297 | BOOT |
| Repalced by: A 3892680097 | ||
| 310 | A 3892680097 | BOOT |
| SHIFT LEVER | ||
| 320 | A 3892600062 | BRACKET |
| PNEUMATIC LINE | ||
| 320 | A 3892600262 | BRACKET |
| PNEUMATIC LINE | ||
| N 006798006103 | SERRATED WASHER | |
| BRACKET TO CAB | ||
| N 000934006007 | NUT | |
| BRACKET TO CAB | ||
| A 6742640034 | LOCK NUT | |
| SPEEDOMETER DRIVE COVERING | ||
| 325 | N 915017004101 | UNION NUT |
| PNEUMATIC LINE | ||
| 327 | N 003861004001 | GLAND |
| PNEUMATIC LINE | ||
| 329 | A 0009920605 | BUSHING |
| Repalced by: N 915062002000 | ||
| 329 | N 915062002000 | SLEEVE |
| PNEUMATIC LINE | ||
| 335 | A 3604280143 | ANGLE |
| PNEUMATIC LINE | ||
| 340 | A 0009951201 | CLAMP |
| Repalced by: N 916016010201 | ||
| 340 | N 916016010201 | CLAMP |
| Repalced by: N 916016010211 | ||
| 340 | N 916016010211 | CLAMP |
| Repalced by: N 000000001045 | ||
| 340 | N 000000001045 | CLAMP |
| PNEUMATIC LINE | ||
| 345 | A 0019900170 | T-FITTING |
| AT EXHAUST BRAKE VALVE AND 3-WAY VALVE | ||
| A 0009903563 | HOLLOW SCREW | |
| Repalced by: N 915047008100 | ||
| N 915047008202 | HOLLOW SCREW | |
| CONNECTION: | ||
| 23 | ||
| A 3839970372 | FITTING | |
| Repalced by: N 915039008100 | ||
| N 915039008202 | HOLLOW SCREW FITTING | |
| P.T.O. | ||
| A 0005456009 | SWITCH | |
| P.T.O. | ||
| 350 | A 0089976082 | HOSE |
| Repalced by: A 0009872627 | ||
| 350 | A 0009872627 | PLASTIC PIPE |
| FROM 4/2-WAY VALVE TO T-FITTING AT TRANSMISSION COVER PLATE | ||
| 4X6 MM | ||
| A 0039979172 | FITTING | |
| (PARTS KIT),LINE RUPTURE | ||
| 350 | A 0089979082 | HOSE |
| 3/2-WAY VALVE,FOUR-CIRCUIT PROTECTIVE VALVE,SOLENOID VALVE | ||
| 6X8 MM | ||
| A 0039978972 | FITTING | |
| Repalced by: A 0029905971 | ||
| A 0029905971 | FITTING | |
| (PARTS KIT),LINE RUPTURE | ||
| 355 | N 040621006203 | INSULATING HOSE |
| RED | ||
| 355 | N 040621006235 | INSULATING HOSE |
| BLUE | ||
| 355 | N 040621006204 | INSULATING HOSE |
| YELLOW | ||
| N 915036006101 | HOLLOW SCREW | |
| PNEUMATIC LINE | ||
| N 007603010103 | SEAL RING | |
| Repalced by: N 007603010110 | ||
| N 007603010110 | SEAL RING | |
| PNEUMATIC LINE | ||
| 360 | N 915017006100 | UNION NUT |
| PNEUMATIC LINE | ||
| 360 | N 003870006108 | UNION NUT |
| PNEUMATIC LINE | ||
| 365 | N 003861006007 | GLAND |
| Repalced by: A 0019901667 | ||
| 365 | A 0019901667 | SEAL CONE |
| PNEUMATIC LINE | ||
| 365 | N 003861006008 | GLAND |
| PNEUMATIC LINE | ||
| 370 | A 0009920205 | BUSHING |
| Repalced by: N 915062004000 | ||
| 370 | A 0009920105 | BUSHING |
| Repalced by: N 915062004000 | ||
| 370 | N 915062004000 | SLEEVE |
| PNEUMATIC LINE | ||
| 375 | A 0009903888 | BANJO UNION |
| Repalced by: N 915052004006 | ||
| 375 | N 915052004015 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/12 MM | ||
| 375 | A 0009906688 | BANJO UNION |
| Repalced by: N 915052006013 | ||
| 375 | N 915052006013 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 6/12 MM | ||
| 375 | N 915052004016 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/10 MM | ||
| 380 | N 915036008202 | HOLLOW SCREW |
| PNEUMATIC LINE | ||
| 380 | N 915036006202 | HOLLOW SCREW |
| PNEUMATIC LINE | ||
| 385 | N 007603012405 | SEAL RING |
| PNEUMATIC LINE | ||
| 385 | N 007603010103 | SEAL RING |
| Repalced by: N 007603010110 | ||
| 385 | N 007603010110 | SEAL RING |
| PNEUMATIC LINE | ||
| A 3874291440 | BRACKET | |
| PNEUMATIC LINE | ||
| A 3604280243 | ANGLE | |
| PNEUMATIC LINE | ||
| A 3045460643 | BRACKET | |
| PNEUMATIC LINE | ||
| N 912004008102 | LOCK WASHER | |
| PNEUMATIC LINE | ||
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| PNEUMATIC LINE | ||
| 390 | A 3609950101 | CLAMP |
| PNEUMATIC LINE | ||
| 395 | A 0019977290 | LOOM TIE |
| Repalced by: A 0019978390 | ||
| 395 | A 0019978390 | LOOM TIE |
| LINE MOUNTING | ||
| 280 MM | ||
| 395 | A 0019978490 | LOOM TIE |
| LINE MOUNTING | ||
| 376 MM | ||
| 400 | A 0019972872 | FITTING |
| Repalced by: A 0039979072 | ||
| 400 | A 0039979072 | FITTING |
| Repalced by: A 0029906071 | ||
| 400 | A 0029906071 | FITTING |
| PNEUMATIC LINE | ||
| 402 | N 007603012405 | SEAL RING |
| PNEUMATIC LINE | ||
| 410 | A 0002602457 | VALVE |
| Repalced by: A 0002608157 | ||
| 410 | A 0002608157 | VALVE |
| (SOLENOID VALVE BATTERY) | ||
| 24 V | ||
| 412 | A 0015869643 | REPAIR KIT |
| (SOLENOID VALVE) | ||
| HERION,94 17232/0711/24V | ||
| 412 | A 0015861626 | REPAIR KIT |
| (SOLENOID VALVE) | ||
| HERION,94 17237/0734/24V | ||
| 415 | A 0002602257 | VALVE |
| Repalced by: A 0002607957 | ||
| 415 | A 0002607957 | VALVE |
| P.T.O. | ||
| 415 | A 0002602357 | VALVE |
| Repalced by: A 0002608057 | ||
| 415 | A 0002608057 | VALVE |
| P.T.O. | ||
| A 0004350490 | VALVE DISC | |
| Repalced by: A 0005862626 | ||
| A 0049973148 | SEAL RING | |
| Repalced by: A 0005862626 | ||
| A 0049973248 | SEAL RING | |
| Repalced by: A 0005862626 | ||
| A 0049935201 | SPRING | |
| Repalced by: A 0005862626 | ||
| A 0005430485 | MAGNET | |
| Repalced by: A 0005862626 | ||
| A 0009973744 | SEAL RING | |
| Repalced by: A 0005862626 | ||
| A 0005862626 | REPAIR KIT | |
| HERION,94 17134/0711/24V, | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 94 17234/0711/24V | ||
| A 0015861526 | REPAIR KIT | |
| Repalced by: A 0012608357 | ||
| A 0012608357 | REPAIR KIT | |
| HERION,94 17139/0734/24V, | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 94 17238/07434/24V | ||
| 420 | N 000908012003 | SCREW PLUG |
| Repalced by: N 000908012009 | ||
| 420 | N 000908012009 | SCREW PLUG |
| SOLENOID VALVE | ||
| 422 | N 007603012405 | SEAL RING |
| SOLENOID VALVE | ||
| 425 | A 3872640041 | BRACKET |
| SOLENOID VALVE | ||
| 425 | A 3872640041 | BRACKET |
| SOLENOID VALVE | ||
| 430 | A 3872640641 | BRACKET |
| SOLENOID VALVE | ||
| 430 | A 3632640241 | BRACKET |
| SOLENOID VALVE | ||
| 430 | A 3872640441 | BRACKET |
| SOLENOID VALVE | ||
| 435 | N 000931006114 | SCREW |
| Repalced by: N 304017006012 | ||
| 435 | N 304017006012 | SCREW |
| SOLENOID VALVE TO RETAINING PLATE | ||
| 437 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 437 | N 913004006001 | NUT |
| SOLENOID VALVE TO RETAINING PLATE | ||
| 445 | A 3384310051 | SPACER RING |
| RETAINING PLATE TO SHIFTER COVER | ||
| 445 | A 3384310051 | SPACER RING |
| RETAINING PLATE TO SHIFTER COVER | ||
| 450 | N 912004010102 | LOCK WASHER |
| RETAINING PLATE TO SHIFTER COVER | ||
| 452 | N 000931010348 | SCREW |
| RETAINING PLATE TO SHIFTER COVER | ||
| M 10X100 | ||
| 452 | N 000931010348 | SCREW |
| RETAINING PLATE TO SHIFTER COVER | ||
| M 10X100 | ||
| N 304017010027 | SCREW | |
| RETAINING PLATE TO SHIFTER COVER | ||
| M 10X16 | ||
| 455 | A 3461410150 | BUSHING |
| RETAINING PLATE TO SHIFTER COVER | ||
| 457 | A 3024270053 | SPACER TUBE |
| RETAINING PLATE TO SHIFTER COVER | ||
| 459 | N 912004010102 | LOCK WASHER |
| RETAINING PLATE TO SHIFTER COVER | ||
| 461 | N 000931010078 | SCREW |
| RETAINING PLATE TO SHIFTER COVER | ||
| 464 | A 0019976136 | VALVE |
| P.T.O., LONGITUDINAL DIFFERENTIAL LOCK | ||
| WABCO | ||
| 464 | A 0019976136 | VALVE |
| P.T.O., LONGITUDINAL DIFFERENTIAL LOCK | ||
| WABCO | ||
| 464 | A 0019976136 | VALVE |
| P.T.O., LONGITUDINAL DIFFERENTIAL LOCK | ||
| WABCO | ||
| 464 | A 0019975036 | VALVE |
| P.T.O., LONGITUDINAL DIFFERENTIAL LOCK | ||
| BOSCH | ||
| 464 | A 0019975036 | VALVE |
| P.T.O., LONGITUDINAL DIFFERENTIAL LOCK | ||
| BOSCH | ||
| 464 | A 0019975036 | VALVE |
| P.T.O., LONGITUDINAL DIFFERENTIAL LOCK | ||
| BOSCH | ||
| 464 | A 0039975936 | VALVE |
| P.T.O., LONGITUDINAL DIFFERENTIAL LOCK | ||
| KNORR | ||
| 464 | A 0039975936 | VALVE |
| P.T.O., LONGITUDINAL DIFFERENTIAL LOCK | ||
| KNORR | ||
| 464 | A 0039975936 | VALVE |
| P.T.O., LONGITUDINAL DIFFERENTIAL LOCK | ||
| KNORR | ||
| 464 | A 0039976036 | VALVE |
| P.T.O., LONGITUDINAL DIFFERENTIAL LOCK | ||
| VOSS | ||
| 464 | A 0039976036 | VALVE |
| P.T.O., LONGITUDINAL DIFFERENTIAL LOCK | ||
| VOSS | ||
| 464 | A 0039976036 | VALVE |
| P.T.O., LONGITUDINAL DIFFERENTIAL LOCK | ||
| VOSS | ||
| A 0049937501 | SPRING | |
| WABCO | ||
| A 0049937501 | SPRING | |
| WABCO | ||
| A 0049937501 | SPRING | |
| WABCO | ||
| A 0069972648 | SEAL RING | |
| WABCO | ||
| A 0069972648 | SEAL RING | |
| WABCO | ||
| A 0069972648 | SEAL RING | |
| WABCO | ||
| A 0039979640 | SEAL RING | |
| WABCO | ||
| A 0039979640 | SEAL RING | |
| WABCO | ||
| A 0039979640 | SEAL RING | |
| WABCO | ||
| A 3859901640 | WASHER | |
| VALVE TO CAB | ||
| A 3859901640 | WASHER | |
| VALVE TO CAB | ||
| A 3859901640 | WASHER | |
| VALVE TO CAB | ||
| 466 | A 3839900051 | NUT |
| VALVE TO CAB | ||
| N 915036006202 | HOLLOW SCREW | |
| PNEUMATIC LINE | ||
| N 007603010103 | SEAL RING | |
| Repalced by: N 007603010110 | ||
| N 007603010110 | SEAL RING | |
| PNEUMATIC LINE | ||
| N 915036008202 | HOLLOW SCREW | |
| PNEUMATIC LINE | ||
| N 007603012405 | SEAL RING | |
| PNEUMATIC LINE | ||
| 472 | A 3855840724 | UNIT IDENTIFICATION PLATE |
| P.T.O.,DUMPER PUMP | ||
| A 3855841524 | SYMBOL PLATE | |
| P.T.O. | ||
| A 3855844324 | UNIT IDENTIFICATION PLATE | |
| LONGITUDINAL LOCK,AXLES I AND II | ||
| 480 | A 0002680759 | SEAL RING |
| IDLE POSITION SWITCH TO TRANSMISSION CASE COVER; AS REQUIRED | ||
| 1.80 MM | ||
| 480 | A 0002680759 | SEAL RING |
| IDLE POSITION INDICATOR SWITCH TO TRANSMISSION CASE OVER | ||
| 1.80 MM | ||
| 480 | A 0002680459 | SEAL RING |
| IDLE POSITION SWITCH TO TRANSMISSION CASE COVER; AS REQUIRED | ||
| 1.60 MM | ||
| 480 | A 0002680359 | SEAL RING |
| Repalced by: N 007603018100 | ||
| 480 | N 007603018100 | SEAL RING |
| IDLE POSITION SWITCH TO TRANSMISSION CASE COVER; AS REQUIRED | ||
| 1.50 MM | ||
| 480 | N 007603018100 | SEAL RING |
| GROUP SHIFT INDICATOR SWITCH TO TRANSMISSION CASE | ||
| 1.50 MM | ||
| 480 | A 0002680259 | SEAL RING |
| IDLE POSITION SWITCH TO TRANSMISSION CASE COVER; AS REQUIRED | ||
| 1.40 MM | ||
| 480 | A 0002680159 | SEAL RING |
| IDLE POSITION SWITCH TO TRANSMISSION CASE COVER; AS REQUIRED | ||
| 1.20 MM | ||
| 480 | A 0002680559 | SEAL RING |
| IDLE POSITION SWITCH TO TRANSMISSION CASE COVER; AS REQUIRED | ||
| 1.00 MM | ||
| 480 | A 0002680559 | SEAL RING |
| IDLE-INDICATOR-SWITCH THREADED BUSHING | ||
| 1.00 MM | ||
| 480 | A 0002680659 | SEAL RING |
| IDLE POSITION SWITCH TO TRANSMISSION CASE COVER; AS REQUIRED | ||
| 0.80 MM | ||
| 486 | N 007603018101 | SEAL RING |
| IDLE POSITION INDICATOR SWITCH TO TRANSMISSION CASE OVER | ||
| 486 | N 007603018101 | SEAL RING |
| DIFFERENTIAL LOCK INDICATOR SWITCH TO TRANSMISSION CASE | ||
| 492 | A 0005454214 | SWITCH |
| Repalced by: A 0015458214 | ||
| 492 | A 0015458214 | SWITCH |
| NEUTRAL POSITION | ||
| 492 | A 0015458214 | SWITCH |
| DIFFERENTIAL LOCK | ||
| 492 | A 0015454714 | SWITCH |
| NEUTRAL POSITION | ||
| 492 | A 0015454714 | SWITCH |
| DIFFERENTIAL LOCK | ||
| 492 | A 0005454214 | SWITCH |
| Repalced by: A 0005455209 | ||
| 498 | A 0005455209 | SWITCH |
| Repalced by: A 0005457909 | ||
| 498 | A 0005457909 | SWITCH |
| Repalced by: A 0005459009 | ||
| 498 | A 0005459009 | SWITCH |
| Repalced by: A 0015451109 | ||
| 498 | A 0015451109 | SWITCH |
| Repalced by: A 0015452709 | ||
| 498 | A 0015452709 | SWITCH |
| NEUTRAL POSITION | ||
| 504 | A 0002684674 | PIN |
| IDLE POSITION INDICATOR SWITCH CONTROL | ||
| 510 | A 0002610131 | THREADED BUSHING |
| IDLE POSITION INDICATOR SWITCH TO TRANSMISSION CASE OVER | ||
| 516 | A 0002681759 | SEAL RING |
| IDLE POSITION SWITCH TO THREADED BUSHING; AS REQUIRED | ||
| 2.40 MM | ||
| 516 | A 0002681659 | SEAL RING |
| IDLE POSITION SWITCH TO THREADED BUSHING; AS REQUIRED | ||
| 2.20 MM | ||
| 516 | A 0002681559 | SEAL RING |
| IDLE POSITION SWITCH TO THREADED BUSHING; AS REQUIRED | ||
| 2.00 MM | ||
| 522 | A 0015453414 | SWITCH |
| Repalced by: A 0025458114 | ||
| 522 | A 0025458114 | SWITCH |
| Repalced by: A 0035451614 | ||
| 522 | A 0035451614 | SWITCH |
| GEAR CLUSTER INDICATION | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
