Transporto priemonė: 1626 LS; VIN numerio dalis: 387212
Grupė: 54 ELECTRICAL EQUIPMENT AND INSTRUMENTS
| # | Kodas | Pavadinimas |
|---|---|---|
| A 0005418001 | BATTERY | |
| Repalced by: A 3875400801 | ||
| 005 | A 3875400801 | BATTERY |
| Repalced by: A 0035410101 | ||
| 005 | A 0035410101 | BATTERY |
| Repalced by: A 0035411801 | ||
| 005 | A 0035411801 | BATTERY |
| Repalced by: A 0025412301 | ||
| 005 | A 0025412301 | BATTERY |
| 12 V/135 AH | ||
| 010 | A 3148900063 | FRAME |
| BATTERY MOUNTING | ||
| 010 | A 3875400123 | MOUNTING FRAME |
| BATTERY MOUNTING | ||
| A 3875410124 | CLAMPING SCREW | |
| Repalced by: A 3875410424 | ||
| 015 | A 3875410424 | CLAMPING SCREW |
| BATTERY MOUNTING | ||
| 190 MM | ||
| 015 | A 3875410524 | CLAMPING SCREW |
| BATTERY MOUNTING | ||
| 230 MM | ||
| 017 | N 000934006007 | NUT |
| BATTERY MOUNTING | ||
| 020 | N 912004006102 | LOCK WASHER |
| BATTERY MOUNTING | ||
| 025 | A 3874302239 | SUPPORT |
| BATTERY | ||
| 034 | N 000961014054 | SCREW |
| APPARATUS SUPPORT TO FRAME SIDE MEMBER | ||
| 14X1.5X45 MM | ||
| 034 | N 000961014054 | SCREW |
| APPARATUS SUPPORT TO FRAME SIDE MEMBER | ||
| 14X1.5X45 MM | ||
| 034 | N 000960014249 | SCREW |
| APPARATUS SUPPORT TO FRAME SIDE MEMBER | ||
| 14X1.5X55 MM | ||
| 034 | N 000960014249 | SCREW |
| APPARATUS SUPPORT TO FRAME SIDE MEMBER | ||
| 14X1.5X55 MM | ||
| 034 | N 000960014061 | SCREW |
| APPARATUS SUPPORT TO FRAME SIDE MEMBER | ||
| 14X1.5X80 MM | ||
| 034 | N 000960014063 | SCREW |
| APPARATUS SUPPORT TO FRAME SIDE MEMBER | ||
| 14X1.5X90 MM | ||
| 034 | N 000960014242 | SCREW |
| APPARATUS SUPPORT TO FRAME SIDE MEMBER | ||
| 14X1.5X100 MM | ||
| 037 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 037 | N 910113014001 | NUT |
| APPARATUS SUPPORT TO FRAME SIDE MEMBER | ||
| A 3614750017 | ANGLE | |
| APPARATUS SUPPORT TO FRAME SIDE MEMBER | ||
| A 3874320426 | PLATE | |
| Repalced by: N 000125015013 | ||
| 040 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 040 | N 000125015019 | WASHER |
| APPARATUS SUPPORT TO FRAME SIDE MEMBER | ||
| 041 | A 3464315084 | SHIM |
| APPARATUS SUPPORT TO FRAME SIDE MEMBER | ||
| 043 | A 3464315184 | SHIM |
| APPARATUS SUPPORT TO FRAME SIDE MEMBER | ||
| 043 | A 3464315184 | SHIM |
| APPARATUS SUPPORT TO FRAME SIDE MEMBER | ||
| 043 | A 3954310084 | SHIM |
| APPARATUS SUPPORT TO FRAME SIDE MEMBER | ||
| A 3875400418 | RAIL | |
| Repalced by: A 3875400818 | ||
| 045 | A 3875400818 | RAIL |
| BATTERY BASE FRAME | ||
| 050 | A 3855410136 | INSULATING PLATE |
| Repalced by: A 3855410236 | ||
| 050 | A 3855410236 | INSULATING PLATE |
| BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT | ||
| 050 | A 3855410236 | INSULATING PLATE |
| BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT | ||
| 052 | A 3859910040 | SPACER TUBE |
| BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT | ||
| 053 | N 000931010282 | SCREW |
| BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT | ||
| 054 | N 007349010003 | WASHER |
| Repalced by: N 007349010007 | ||
| 054 | N 007349010007 | WASHER |
| BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT | ||
| 055 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 055 | N 910113010000 | NUT |
| BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT | ||
| 062 | A 3875410102 | BATTERY CASE |
| 062 | A 3875410202 | BATTERY CASE |
| 065 | A 3854260465 | PROTECTIVE PLATE |
| AT SUPPORT | ||
| A 3125271717 | HOOD FASTENER | |
| Repalced by: A 3854261140 | ||
| 070 | A 3854261140 | BRACKET |
| Repalced by: A 3874260040 | ||
| 070 | A 3874260040 | BRACKET |
| 072 | A 3125271174 | PIN |
| BRACKET TO SUPPORT | ||
| 073 | N 000094001615 | COTTER PIN |
| BRACKET TO SUPPORT | ||
| 080 | A 3635400430 | POS.CABLE |
| Repalced by: N 072551070880 | ||
| 080 | A 3635400930 | POS.CABLE |
| Repalced by: N 072551070880 | ||
| 080 | A 3875400430 | POS.CABLE |
| Repalced by: N 072551070880 | ||
| 080 | A 3635400030 | POS.CABLE |
| Repalced by: N 072551070880 | ||
| N 072551070880 | ELECTRIC CABLE | |
| Repalced by: N 922002070000 | ||
| 080 | N 922002070000 | ELECTRIC CABLE |
| Repalced by: A 6735460013 | ||
| 080 | A 6735460013 | ELECTRIC CABLE |
| FROM BATTERY TO STARTING MOTOR | ||
| 081 | N 072332013100 | SOLDERING TERMINAL |
| POS. POLE | ||
| 082 | N 046234010007 | CABLE SHOE |
| STARTING MOTOR | ||
| 082 | N 046234012006 | CABLE SHOE |
| STARTING MOTOR | ||
| 083 | N 912004010102 | LOCK WASHER |
| BATTERY CABLE TO STARTING MOTOR | ||
| 083 | N 912004012100 | LOCK WASHER |
| BATTERY CABLE TO STARTING MOTOR | ||
| 084 | N 000934010014 | NUT |
| BATTERY CABLE TO STARTING MOTOR | ||
| 084 | N 000934012021 | NUT |
| BATTERY CABLE TO STARTING MOTOR | ||
| 085 | A 3875400030 | POS.CABLE |
| Repalced by: N 072551070880 | ||
| N 072551070880 | ELECTRIC CABLE | |
| Repalced by: N 922002070000 | ||
| 085 | N 922002070000 | ELECTRIC CABLE |
| Repalced by: A 6735460013 | ||
| 085 | A 6735460013 | ELECTRIC CABLE |
| FROM BATTERY I TO BATTERY II | ||
| 086 | N 072332013100 | SOLDERING TERMINAL |
| POS. POLE | ||
| 087 | N 072332013200 | SOLDERING TERMINAL |
| NEG.POLE | ||
| A 3875400031 | NEG. CABLE | |
| Repalced by: N 072551070880 | ||
| A 3145400631 | NEG. CABLE | |
| Repalced by: N 072551070880 | ||
| 090 | A 3635400531 | NEG. CABLE |
| Repalced by: N 072551070880 | ||
| N 072551070880 | ELECTRIC CABLE | |
| Repalced by: N 922002070000 | ||
| 090 | N 922002070000 | ELECTRIC CABLE |
| Repalced by: A 6735460013 | ||
| 090 | A 6735460013 | ELECTRIC CABLE |
| FROM BATTERY TO BATTERY MASTER SWITCH | ||
| 090 | A 6735460013 | ELECTRIC CABLE |
| FROM BATTERY TO GROUND AT SIDE MEMBER | ||
| 091 | N 072332013200 | SOLDERING TERMINAL |
| NEG.POLE | ||
| 092 | N 046234010007 | CABLE SHOE |
| NEG. CABLE | ||
| 095 | A 0005452508 | SWITCH |
| Repalced by: A 0005458408 | ||
| 095 | A 0005458408 | SWITCH |
| BATTERY | ||
| 095H | A 0005450536 | KEY |
| 096 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 096 | N 304017006020 | SCREW |
| AT SUPPORT | ||
| 097 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 097 | N 913004006001 | NUT |
| AT SUPPORT | ||
| 098 | N 912004004102 | LOCK WASHER |
| CABLE TO ALTERNATOR | ||
| 098C | N 000137005203 | SPRING WASHER |
| CABLE TO ALTERNATOR | ||
| 098C | N 000137006204 | SPRING WASHER |
| ALTERNATOR BRANCH-OFF TO ALTERNATOR | ||
| 099 | N 000934004006 | NUT |
| CABLE TO ALTERNATOR | ||
| 099 | N 913002004001 | NUT |
| CABLE TO ALTERNATOR | ||
| 099 | N 304032005002 | NUT |
| Repalced by: N 304032005005 | ||
| 099 | N 304032005005 | NUT |
| CABLE TO ALTERNATOR | ||
| 099 | N 913002005005 | NUT |
| CABLE TO ALTERNATOR | ||
| 099 | N 000934006007 | NUT |
| ALTERNATOR BRANCH-OFF TO ALTERNATOR | ||
| 099F | N 912004006102 | LOCK WASHER |
| CABLE TO STARTING MOTOR,TERMINAL 50 | ||
| 099K | N 000934006007 | NUT |
| CABLE TO STARTING MOTOR,TERMINAL 50 | ||
| 100 | A 3549970081 | GROMMET |
| BATTERY CABLE THRU SIDE MEMBER | ||
| 32/27 MM | ||
| 103 | A 3145400041 | GROUND STRAP |
| Repalced by: A 3525400041 | ||
| 103 | A 3525400041 | GROUND STRAP |
| FROM BATTERY MASTER SWITCH TO FRAME | ||
| 103 | A 3525400041 | GROUND STRAP |
| FROM STARTING MOTOR TO SIDE MEMBER | ||
| 104 | N 912004010102 | LOCK WASHER |
| GROUND STRAP TO STARTING MOTOR | ||
| 105 | N 000934010014 | NUT |
| GROUND STRAP TO STARTING MOTOR | ||
| 106 | N 000933010062 | SCREW |
| GROUND STRAP TO FRAME SIDE MEMBER | ||
| 10X40 MM | ||
| 106 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 106 | N 304017010002 | SCREW |
| GROUND STRAP TO FRAME | ||
| 10X30 MM | ||
| 106 | N 000933010145 | SCREW |
| GROUND STRAP TO FRAME | ||
| 10X35 MM | ||
| 108 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 108 | N 009021010209 | WASHER |
| GROUND STRAP TO FRAME | ||
| 109 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 109 | N 910113010000 | NUT |
| GROUND STRAP TO FRAME | ||
| 109C | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 109C | N 000000001146 | SCREW |
| GROUND CABLE TO CAB WINDOW SILL | ||
| 109F | N 000125006421 | WASHER |
| GROUND CABLE TO CAB WINDOW SILL | ||
| 109W | N 912004006102 | LOCK WASHER |
| GROUND CABLE TO CAB WINDOW SILL | ||
| 110 | A 3835400231 | NEG. CABLE |
| Repalced by: A 6205402339 | ||
| 110 | A 6205402339 | NEG. CABLE |
| FROM FRAME TO CAB | ||
| 110L | A 0009970581 | GROMMET |
| FROM FRAME TO CAB | ||
| 111 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 111 | N 304017008034 | SCREW |
| MAIN CABLE HARNESS GROUND TO CROSS MEMBER | ||
| 112 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 112 | N 304017008016 | SCREW |
| GROUND CABLE TO CAB | ||
| 113 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 113 | N 000125008443 | WASHER |
| GROUND CABLE | ||
| 114 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 114 | N 913004008001 | NUT |
| GROUND CABLE | ||
| 120 | A 3875420439 | PLATE |
| APPARATUS | ||
| 120 | A 3875420739 | PLATE |
| APPARATUS | ||
| 124 | N 007981004244 | SHEET METAL SCREW |
| Repalced by: N 000000000453 | ||
| 124 | N 000000000453 | SHEET METAL SCREW |
| APPARATUS PLATE TO WINDOW SILL | ||
| 126 | A 3015400265 | RESISTOR |
| GEAR CLUSTER INDICATION | ||
| 128 | A 0025451128 | PIN BUSHING HOUSING |
| RESISTOR | ||
| 130 | A 0005458501 | FUSE BOX |
| 12-POLE;TERMINALS 2-8;9-10;11-12 SHUNTED | ||
| 130 | A 0005458401 | FUSE BOX |
| 12-POLE; TERMINALS 1-2,3-8,9-12 SHUNTED | ||
| 133 | A 0005458134 | FUSE |
| Repalced by: N 072581005100 | ||
| 133 | N 072581005100 | FUSE |
| 5 A | ||
| 134 | N 007985006154 | SCREW |
| Repalced by: A 0029903712 | ||
| 134 | A 0029903712 | SCREW |
| Repalced by: N 000000001149 | ||
| 134 | N 000000001149 | SCREW |
| FUSE BOX TO APPARATUS PLATE | ||
| 135 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 135 | N 913004006001 | NUT |
| FUSE BOX TO APPARATUS PLATE | ||
| 135K | A 0045456324 | SWITCH,AUTOMATIC |
| WIPER PULSE SENDER UNIT | ||
| 136 | A 0055450624 | SENDER UNIT |
| Repalced by: A 0225452532 | ||
| 136 | A 0225452532 | CONTROL UNIT |
| WIPER PULSE SENDER UNIT | ||
| 136 | A 0055451424 | SENDER UNIT |
| WIPER PULSE SENDER UNIT | ||
| 136 | A 0055451624 | SENDER UNIT |
| WIPER PULSE SENDER UNIT | ||
| 137 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 137 | N 000000001146 | SCREW |
| SWITCH TO APPARATUS PLATE | ||
| 138 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 138 | N 913004006001 | NUT |
| SWITCH TO APPARATUS PLATE | ||
| 140 | A 0021540506 | REGULATOR AND CUT-OUT |
| TRANSISTOR | ||
| 141 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 141 | N 000000001146 | SCREW |
| SWITCH TO APPARATUS PLATE | ||
| 142 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 142 | N 913004006001 | NUT |
| SWITCH TO APPARATUS PLATE | ||
| A 0025441432 | SENDER UNIT | |
| Repalced by: A 0025446432 | ||
| 145 | A 0025446432 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| 145 | A 0025442832 | SENDER UNIT |
| Repalced by: A 0025445932 | ||
| 145 | A 0025445932 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| 145 | A 0025446732 | SENDER UNIT |
| Repalced by: A 0035440632 | ||
| 145 | A 0035440632 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| 145F | A 0025445532 | SENDER UNIT |
| GEAR DISPLAY | ||
| 146 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 146 | N 000000001146 | SCREW |
| SENDER UNIT TO APPARATUS PLATE | ||
| 147 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 147 | N 913004006001 | NUT |
| SENDER UNIT TO APPARATUS PLATE | ||
| 148 | A 0005455405 | RELAY |
| Repalced by: A 0035459605 | ||
| 148 | A 0035459605 | RELAY |
| GEAR DISPLAY | ||
| 148 | A 0005458405 | RELAY |
| Repalced by: A 0035459605 | ||
| 148 | A 0035459605 | RELAY |
| GEAR DISPLAY | ||
| 148 | A 0035459605 | RELAY |
| GEAR DISPLAY | ||
| 150 | A 0025428420 | HORN |
| Repalced by: A 0045423020 | ||
| 150 | A 0045423020 | HORN |
| HIGH NOTE | ||
| BOSCH | ||
| 150 | A 0025426820 | HORN |
| Repalced by: A 0045424520 | ||
| 150 | A 0045424520 | HORN |
| HIGH NOTE | ||
| HELLA | ||
| 150 | A 0035425420 | HORN |
| Repalced by: A 0025426820 | ||
| 150 | A 0025428320 | HORN |
| Repalced by: A 0045422920 | ||
| 150 | A 0045422920 | HORN |
| Repalced by: A 0045424420 | ||
| 150 | A 0045424420 | HORN |
| LOW NOTE | ||
| BOSCH | ||
| 150 | A 0025426720 | HORN |
| Repalced by: A 0045424420 | ||
| 150 | A 0045424420 | HORN |
| LOW NOTE | ||
| HELLA | ||
| 150 | A 0035425320 | HORN |
| Repalced by: A 0025426720 | ||
| 153 | N 000933010128 | SCREW |
| HORN TO BRACKET | ||
| 154 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 154 | N 910113010000 | NUT |
| HORN TO BRACKET | ||
| 154C | A 3875421240 | BRACKET |
| Repalced by: A 6205420840 | ||
| 154C | A 6205420840 | BRACKET |
| HORN | ||
| 154C | A 3875401973 | BRACKET |
| HORN | ||
| 154F | N 000961014028 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 154F | N 308676012012 | SCREW |
| BRACKET TO BUMBER STRUT | ||
| 154H | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 154H | N 000125015019 | WASHER |
| BRACKET TO BUMBER STRUT | ||
| 154H | N 000125013008 | WASHER |
| 154L | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 154L | N 910113014001 | NUT |
| BRACKET TO BUMBER STRUT | ||
| 154L | N 910113012002 | NUT |
| BRACKET TO BUMBER STRUT | ||
| 155 | A 0019978490 | LOOM TIE |
| BRACKET TO BUMBER STRUT | ||
| 376 MM | ||
| 156 | N 000127004206 | LOCK WASHER |
| ELECTRIC CABLE TO HORN | ||
| 157 | N 007985004155 | SCREW |
| ELECTRIC CABLE TO HORN | ||
| 158 | A 0039973481 | GROMMET |
| FLEXIBLE SHAFT PASSAGE | ||
| A 0045454224 | SWITCH,AUTOMATIC | |
| Repalced by: A 0055451024 | ||
| 160 | A 0055451024 | SWITCH,AUTOMATIC |
| Repalced by: A 0055453824 | ||
| 160 | A 0055453824 | SWITCH,AUTOMATIC |
| Repalced by: A 0055455124 | ||
| 160 | A 0055455124 | SWITCH,AUTOMATIC |
| STEERING COLUMN MOUNTED | ||
| 160 | A 0045455324 | SWITCH,AUTOMATIC |
| Repalced by: A 0055451124 | ||
| 160 | A 0055451124 | SWITCH,AUTOMATIC |
| Repalced by: A 0055453924 | ||
| 160 | A 0055453924 | SWITCH,AUTOMATIC |
| Repalced by: A 0055455224 | ||
| 160 | A 0055455224 | STEERG.COLUMN MTD. SWITCH |
| STEERING COLUMN MOUNTED | ||
| 162 | A 6085450045 | BOOT |
| STEERING COLUMN MOUNTED SWITCH | ||
| A 0005421327 | WARNING INDICATOR | |
| Repalced by: A 0005422527 | ||
| 165 | A 0005422527 | WARNING INDICATOR |
| AIR CLEANER | ||
| 167 | A 3816890056 | RING |
| WARNING INDICATOR | ||
| 170 | A 0005421123 | BUZZER |
| COOLING WATER TEMPERATURE WARNING | ||
| 170 | A 0005423623 | BUZZER |
| COOLING WATER TEMPERATURE WARNING | ||
| 172 | A 0005422523 | BUZZER |
| BLINKER | ||
| 173 | N 007971004223 | SHEET METAL SCREW |
| BUZZER TO CAB | ||
| 175 | A 0005458932 | CONTROL UNIT |
| SHIFTING LOCK | ||
| 177 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 177 | N 000000001146 | SCREW |
| SWITCH TO APPARATUS PLATE | ||
| 178 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 178 | N 913004006001 | NUT |
| SWITCH TO APPARATUS PLATE | ||
| 180 | A 0005458314 | SWITCH |
| Repalced by: A 0015455314 | ||
| 180 | A 0015455314 | SWITCH |
| SHIFTING LOCK | ||
| 182 | N 007603010103 | SEAL RING |
| Repalced by: N 007603010110 | ||
| 182 | N 007603010110 | SEAL RING |
| SWITCH | ||
| 185 | A 0005455414 | SWITCH |
| PARKING BRAKE | ||
| 185 | A 0005455414 | SWITCH |
| BRAKE PRESSURE CONTROL | ||
| 188 | A 0015450411 | SWITCH |
| Repalced by: A 0015450611 | ||
| 188 | A 0015450611 | SWITCH |
| HEATED OUTSIDE REARVIEW MIRROR CONTROL | ||
| 190 | A 0005452883 | CAP |
| HEATED OUTSIDE REARVIEW MIRROR CONTROL | ||
| 192 | A 0015450490 | LENS |
| HEATED OUTSIDE REARVIEW MIRROR CONTROL | ||
| 194 | N 072601024801 | BULB |
| HEATED OUTSIDE REARVIEW MIRROR CONTROL | ||
| 2 W | ||
| A 0005454509 | SWITCH | |
| Repalced by: A 0005456009 | ||
| 205 | A 0005456009 | SWITCH |
| EXHAUST BRAKE | ||
| 205 | A 0005456009 | SWITCH |
| EXHAUST BRAKE | ||
| 205 | A 0005456009 | SWITCH |
| LOAD-DEPENDING BRAKE | ||
| 205 | A 0005456009 | SWITCH |
| LOAD-DEPENDING BRAKE | ||
| 205M | A 0005455509 | SWITCH |
| STOP LIGHT | ||
| A 0005455209 | SWITCH | |
| Repalced by: A 0005457909 | ||
| 206 | A 0005457909 | SWITCH |
| Repalced by: A 0005459009 | ||
| 206 | A 0005459009 | SWITCH |
| Repalced by: A 0015451109 | ||
| 206 | A 0015451109 | SWITCH |
| Repalced by: A 0015452709 | ||
| 206 | A 0015452709 | SWITCH |
| STOP LIGHT | ||
| 206 | A 0005456909 | SWITCH |
| STOP LIGHT | ||
| 207 | A 0019909351 | NUT |
| STOP LIGHT SWITCH | ||
| 207 | A 0009909251 | NUT |
| STOP LIGHT SWITCH | ||
| 207C | N 006797012251 | TOOTHED WASHER |
| STOP LIGHT SWITCH | ||
| 207F | A 3805400062 | INTERMEDIATE PIECE |
| BRANCH-OFF TO AIR RESERVOIR PRESSURE SWITCH | ||
| 207K | A 0009970303 | PLUG |
| PRESSURE SWITCH | ||
| 207P | A 0019978390 | LOOM TIE |
| PRESSURE SWITCH | ||
| 280MM | ||
| 210 | A 0005467941 | CABLE CONNECTOR |
| Repalced by: A 0015463341 | ||
| 210 | A 0015463341 | CABLE CONNECTOR |
| Repalced by: A 0015463841 | ||
| 210 | A 0015461741 | CABLE CONNECTOR |
| Repalced by: A 0015463841 | ||
| 210 | A 0015463841 | CABLE CONNECTOR |
| Repalced by: A 0015465441 | ||
| 210 | A 0015465441 | CABLE CONNECTOR |
| BEHIND REAR AXLE | ||
| 210 | A 0015465441 | CABLE CONNECTOR |
| BEHIND CAB | ||
| A 0005460481 | COVERING | |
| Repalced by: A 0005460581 | ||
| 211 | A 0005460581 | COVERING |
| 212 | A 0005460283 | ANGLE |
| BEHIND REAR AXLE | ||
| 213 | A 0005461237 | GROMMET |
| TO LOCK TRAILER PLUG SOCKET OUTLET | ||
| 214 | A 0009872844 | EXPANSION PLUG |
| TO LOCK TRAILER PLUG SOCKET OUTLET | ||
| 215 | N 007985005180 | SCREW |
| CABLE CONNECTOR TO BRACKET | ||
| 215 | N 007985005181 | SCREW |
| CABLE CONNECTOR TO BRACKET | ||
| 220 | N 913004005001 | NUT |
| CABLE CONNECTOR TO BRACKET | ||
| 234 | A 3465465043 | BRACKET |
| BEHIND REAR AXLE | ||
| 235 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 235 | N 304017008027 | SCREW |
| 235 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 235 | N 304017008021 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 236 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 236 | N 913004008001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 238 | A 3874922741 | BRACKET |
| ELECTRIC CABLE TO FRAME | ||
| 240 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 240 | N 304017008034 | SCREW |
| BRACKET TO FRAME | ||
| 241 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 241 | N 000125008443 | WASHER |
| BRACKET TO FRAME | ||
| 242 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 242 | N 913004008001 | NUT |
| BRACKET TO FRAME | ||
| A 3525405773 | BRACKET | |
| LEFT TAIL LAMP | ||
| A 3525405173 | BRACKET | |
| LEFT TAIL LAMP | ||
| A 3525405873 | BRACKET | |
| RIGHT TAIL LAMP | ||
| A 3525405273 | BRACKET | |
| RIGHT TAIL LAMP | ||

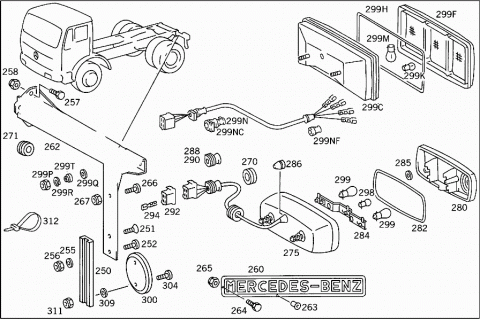

| 250 | A 3525440538 | BRACKET |
| REFLECTOR | ||
| 251 | N 000965006049 | SCREW |
| BRACKET TO TAIL LAMP BRACKET | ||
| 252 | N 000000001147 | SCREW |
| BRACKET TO TAIL LAMP BRACKET | ||
| M 6X20 | ||
| A 3525440084 | SHIM | |
| Repalced by: N 000125006421 | ||
| 255 | N 000125006421 | WASHER |
| BRACKET TO TAIL LAMP BRACKET | ||
| 256 | N 913002006005 | NUT |
| Repalced by: N 913002006009 | ||
| 256 | N 913002006009 | NUT |
| BRACKET TO TAIL LAMP BRACKET | ||
| 257 | N 000933010105 | SCREW |
| TAIL LAMP BRACKET AND LICENSE PLATE TO FRAME | ||
| 257 | N 000933010145 | SCREW |
| TAIL LAMP BRACKET AND LICENSE PLATE TO FRAME | ||
| 258 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 258 | N 910113010000 | NUT |
| TAIL LAMP BRACKET AND LICENSE PLATE TO FRAME | ||
| 260 | A 3605840025 | NAME PLATE |
| A 3605840051 | SUPPORT | |
| Repalced by: A 3875840051 | ||
| A 3875840051 | SUPPORT | |
| 263 | N 000660004018 | RIVET |
| 264 | N 000933008145 | SCREW |
| NAME PLATE TO BRACKET | ||
| 265 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 265 | N 913004008001 | NUT |
| NAME PLATE TO BRACKET | ||
| 266 | N 000084006426 | SCREW |
| LICENSE PLATE TO BRACKET | ||
| 267 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 267 | N 913004006001 | NUT |
| LICENSE PLATE TO BRACKET | ||
| 270 | A 3549970081 | GROMMET |
| ELECTRIC CABLE THRU REAR PART OF FRAME AND REAR CROSS MEMBER | ||
| 32/27 MM | ||
| 271 | A 4069975081 | GROMMET |
| ELECTRIC CABLE THRU FRAME SIDE MEMBER | ||
| 275 | A 0005401470 | TAIL LAMP |
| Repalced by: A 0015444003 | ||
| 275 | A 0015444003 | TAIL LAMP |
| LEFT | ||
| HELLA | ||
| 275 | A 0005401970 | TAIL LAMP |
| Repalced by: A 0015444503 | ||
| 275 | A 0015444503 | TAIL LAMP |
| LEFT | ||
| R & S | ||
| 275 | A 0005403070 | TAIL LAMP |
| Repalced by: A 0015444203 | ||
| 275 | A 0015444203 | TAIL LAMP |
| RIGHT | ||
| HELLA | ||
| 275 | A 0005402270 | TAIL LAMP |
| Repalced by: A 0015444803 | ||
| 275 | A 0005447303 | TAIL LAMP |
| Repalced by: A 0015444803 | ||
| 275 | A 0015444803 | TAIL LAMP |
| RIGHT | ||
| R & S | ||
| 275 | A 0005401570 | TAIL LAMP |
| Repalced by: A 0015444103 | ||
| 275 | A 0015444103 | TAIL LAMP |
| RIGHT | ||
| HELLA | ||
| 275 | A 0005402070 | TAIL LAMP |
| Repalced by: A 0015444603 | ||
| 275 | A 0015444603 | TAIL LAMP |
| RIGHT | ||
| R & S | ||
| 275 | A 0005403170 | TAIL LAMP |
| Repalced by: A 0015445903 | ||
| 275 | A 0015445903 | TAIL LAMP |
| LEFT | ||
| HELLA | ||
| 275 | A 0005402370 | TAIL LAMP |
| Repalced by: A 0005447403 | ||
| 275 | A 0005447403 | TAIL LAMP |
| Repalced by: A 0015446103 | ||
| 275 | A 0015446103 | TAIL LAMP |
| LEFT | ||
| R & S | ||
| 280 | A 0015445590 | LENS |
| HELLA | ||
| 280 | A 0015447290 | LENS |
| Repalced by: A 0015445990 | ||
| 280 | A 0015445990 | LENS |
| R & S | ||
| A 0005448080 | GASKET | |
| Repalced by: A 0005448480 | ||
| 282 | A 0005448480 | GASKET |
| HELLA | ||
| 282 | A 0005447580 | GASKET |
| R & S | ||
| 284 | A 0005445293 | LAMP SOCKET |
| HELLA | ||
| 284 | A 0005445193 | LAMP SOCKET |
| R & S | ||
| A 0005440176 | WASHER | |
| R & S | ||
| A 0005440376 | WASHER | |
| Repalced by: A 0005440476 | ||
| 285 | A 0005440476 | WASHER |
| R & S | ||
| 285 | A 0019901940 | WASHER |
| R & S | ||
| 286 | A 0009978081 | GROMMET |
| HELLA | ||
| 288 | A 4069975081 | GROMMET |
| 290 | A 0005461237 | GROMMET |
| 292 | A 0015458428 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 294 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 294 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2,5MM2 | ||
| 294 | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 294 | A 0075458226 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 298 | N 072601024702 | BULB |
| Repalced by: N 072601024704 | ||
| 298 | N 072601024704 | BULB |
| 24V 10W | ||
| 299 | N 072601024190 | BULB |
| Repalced by: N 072601024192 | ||
| 299 | N 072601024192 | BULB |
| 24V 21W | ||
| A 0005405270 | TAIL LAMP | |
| Repalced by: A 0015446903 | ||
| 299C | A 0015446903 | TAIL LAMP |
| LEFT | ||
| "HELLA" | ||
| 299C | A 0015448003 | TAIL LAMP |
| LEFT | ||
| "R & S" | ||
| A 0005405370 | TAIL LAMP | |
| Repalced by: A 0015446803 | ||
| 299C | A 0015446803 | TAIL LAMP |
| RIGHT | ||
| "HELLA" | ||
| 299C | A 0015448103 | TAIL LAMP |
| RIGHT | ||
| "R & S" | ||
| A 0005405770 | TAIL LAMP | |
| Repalced by: A 0015447003 | ||
| 299C | A 0015447003 | TAIL LAMP |
| Repalced by: A 0025440203 | ||
| 299C | A 0025440203 | TAIL LAMP |
| LEFT | ||
| "HELLA" | ||
| 299C | A 0015448303 | TAIL LAMP |
| LEFT | ||
| "R & S" | ||
| A 0005405670 | TAIL LAMP | |
| Repalced by: A 0015447103 | ||
| 299C | A 0015447103 | TAIL LAMP |
| RIGHT | ||
| "HELLA" | ||
| 299C | A 0015448203 | TAIL LAMP |
| RIGHT | ||
| "R & S" | ||
| 299F | A 0015448390 | LENS |
| "HELLA" | ||
| 299F | A 0015448490 | LENS |
| "R & S" | ||
| 299H | A 0005448580 | GASKET |
| 299H | A 0005448880 | GASKET |
| 299K | N 072601024702 | BULB |
| Repalced by: N 072601024704 | ||
| 299K | N 072601024704 | BULB |
| 24V 10W | ||
| 299M | N 072601024190 | BULB |
| Repalced by: N 072601024192 | ||
| 299M | N 072601024192 | BULB |
| 24V 21W | ||
| A 0005401538 | ELECTRIC CABLE | |
| Repalced by: A 0005401838 | ||
| 299N | A 0005401838 | ELECTRIC CABLE |
| Repalced by: A 6175400307 | ||
| 299N | A 6175400307 | CABLE HARNESS |
| Repalced by: A 6215402207 | ||
| 299N | A 6215402207 | CABLE HARNESS |
| RIGHT TAIL LAMP | ||
| A 0005401638 | ELECTRIC CABLE | |
| Repalced by: A 0005401938 | ||
| 299N | A 0005401938 | ELECTRIC CABLE |
| Repalced by: A 6175400107 | ||
| 299N | A 6175400107 | CABLE HARNESS |
| Repalced by: A 6175400207 | ||
| 299N | A 6175400207 | CABLE HARNESS |
| Repalced by: A 6175401507 | ||
| 299N | A 6175401507 | CABLE HARNESS |
| LEFT TAIL LAMP | ||
| 299NC | A 3875460437 | GROMMET |
| AT CABLE CONNECTOR | ||
| 299NF | A 6019972081 | GROMMET |
| AT TAIL LAMP SHELL | ||
| 299P | N 304032008006 | NUT |
| TAIL LAMP | ||
| 299Q | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 299Q | N 000125008443 | WASHER |
| TAIL LAMP TO BRACKET | ||
| 299R | N 912004008102 | LOCK WASHER |
| TAIL LAMP | ||
| 299T | A 3875440076 | WASHER |
| TAIL LAMP | ||
| A 0005441605 | REFLECTOR | |
| Repalced by: A 0005443305 | ||
| 300 | A 0005443305 | REFLECTOR |
| 304 | N 007985005146 | SCREW |
| REFLECTOR TO BRACKET | ||
| N 000127005204 | LOCK WASHER | |
| N 304032005002 | NUT | |
| Repalced by: N 304032005005 | ||
| N 304032005005 | NUT | |
| 309 | N 000125005317 | WASHER |
| Repalced by: N 000433005304 | ||
| 309 | N 000433005304 | WASHER |
| REFLECTOR TO BRACKET | ||
| 311 | N 913004005001 | NUT |
| REFLECTOR TO BRACKET | ||
| 312 | A 0019978490 | LOOM TIE |
| CABLE HARNESS MOUNTING | ||
| 315 | A 3875407632 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 315 | A 3875401433 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 315 | A 3875402233 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 315 | A 3875400408 | CABLE HARNESS |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 315 | A 3875407732 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 315 | A 3875401533 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 315 | A 3875402333 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 315 | A 3875400308 | CABLE HARNESS |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 315 | A 3875408537 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 315 | A 3875407532 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 315 | A 3875401633 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 315 | A 3875402433 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 315 | A 3875400208 | CABLE HARNESS |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 315 | A 3875408737 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 315 | A 3875408632 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 315 | A 3875401833 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 315 | A 3875402633 | ELECTRIC CABLE |
| Repalced by: A 3875409333 | ||
| 315 | A 3875408937 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 315 | A 3875408732 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 315 | A 3875401933 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 315 | A 3875402733 | ELECTRIC CABLE |
| Repalced by: A 3875409333 | ||
| 315 | A 3875409333 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 315 | A 3875401132 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 315 | A 3875408832 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 315 | A 3875402033 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 315 | A 3875409333 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 315 | A 3875408637 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 315 | A 3875407832 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 315 | A 3875408837 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 315 | A 3875408332 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 315 | A 3875409037 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 315 | A 3875408432 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 315 | A 3875408532 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 315 | A 3875402833 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 315 | A 3875409433 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 315 | A 3875407932 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 315 | A 3875408032 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 320 | A 0015458328 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 322 | A 0015458128 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 324 | A 0015454128 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 325 | A 0025451228 | PLUG HOUSING |
| 4-POLE | ||
| 326 | A 0015458528 | PIN BUSHING HOUSING |
| 3-POLE | ||
| 328 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 330 | A 0075450528 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 331 | A 0025451128 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 335 | A 0005454526 | PIN BUSHING |
| Repalced by: A 0005453726 | ||
| 335 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 335 | A 0075458426 | PIN BUSHING |
| WITH DETENT;LESS CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 335 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 335 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM | ||
| 335 | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 335 | A 0075458226 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 337 | A 0005454026 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4-6 MM | ||
| 337 | A 0005457926 | PIN BUSHING |
| OFFSET | ||
| 1-2,5 MM | ||
| 340 | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 342 | A 0015456028 | PLUG HOUSING |
| 6-POLE | ||
| 343 | A 0015458428 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 344 | A 0025451428 | PLUG |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 345 | A 0005451745 | BOOT |
| PIN BUSHING | ||
| 350 | A 0019978390 | LOOM TIE |
| 280 MM | ||
| 350 | A 0019978490 | LOOM TIE |
| 376 MM | ||
| A 0005400481 | PLUG SOCKET | |
| Repalced by: A 3805400181 | ||
| 355 | A 3805400181 | PLUG SOCKET |
| Repalced by: A 3805402181 | ||
| 355 | A 3805402181 | PLUG SOCKET |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| M 24X1 | ||
| A 0005400581 | PLUG SOCKET | |
| Repalced by: A 3805400281 | ||
| 360 | A 3805400281 | PLUG SOCKET |
| Repalced by: A 3805402281 | ||
| 360 | A 3805402281 | PLUG SOCKET |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| M 27X1 | ||
| 362 | A 0055454628 | PIN BUSHING HOUSING |
| 3-POLE | ||
| 364 | A 0019976572 | FITTING |
| 366 | A 0029970781 | GROMMET |
| 368 | A 3875460030 | INSULATING HOSE |
| Repalced by: A 6205460230 | ||
| 368 | A 6205460230 | INSULATING HOSE |
| 370 | A 0005450155 | GUIDE |
| A 0005462741 | CABLE CONNECTOR | |
| Repalced by: A 0005463641 | ||
| 371 | A 0005463641 | CABLE CONNECTOR |
| 371C | A 0005467741 | CABLE CONNECTOR |
| 1,5 - 6,6 MM2 | ||
| 371C | A 0015466641 | CABLE CONNECTOR |
| 6-10 MM2 | ||
| 372 | A 3149970181 | GROMMET |
| 372K | A 0005461237 | GROMMET |
| 372K | A 3805461937 | GROMMET |
| 372K | A 3805462037 | GROMMET |
| 373C | A 0029970981 | GROMMET |
| 373F | A 0009970381 | GROMMET |
| 373F | A 0009970581 | GROMMET |
| 373L | A 0009970481 | GROMMET |
| 373P | A 0009970681 | GROMMET |
| 374 | A 3875420540 | BRACKET |
| FRAME MOUNTED CABLE HARNESS | ||
| 374 | A 3875420940 | BRACKET |
| FRAME MOUNTED CABLE HARNESS | ||
| 375 | A 3875401873 | BRACKET |
| FRAME MOUNTED CABLE HARNESS | ||
| 375A | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 375A | N 304017008021 | SCREW |
| CABLE HARNESS MOUNTING | ||
| 375C | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 375C | N 913004008001 | NUT |
| CABLE HARNESS MOUNTING | ||
| 375D | N 912004008102 | LOCK WASHER |
| BRACKET TO CROSS MEMBER | ||
| 375E | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 375E | N 304017008034 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 375F | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 375F | N 913004008001 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 376 | A 3049970681 | GROMMET |
| ELECTRIC CABLE THU SIDE MEMBER | ||
| A 0009955301 | CLAMP | |
| Repalced by: N 916016032201 | ||
| 378 | N 916016032201 | CLAMP |
| ELECTRIC CABLE TO BRACKET | ||
| 379 | N 000933006127 | SCREW |
| ELECTRIC CABLE TO BRACKET | ||
| 379 | N 000933006127 | SCREW |
| ELECTRIC CABLE TO CAB | ||
| 380 | N 912004006102 | LOCK WASHER |
| ELECTRIC CABLE TO BRACKET | ||
| 381 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 381 | N 913004006001 | NUT |
| ELECTRIC CABLE TO BRACKET | ||
| 382 | A 0019978390 | LOOM TIE |
| ENGINE CABLE HARNESS | ||
| 280 MM | ||
| 383 | A 0019978490 | LOOM TIE |
| FRAME MOUNTED CABLE HARNESS | ||
| 376 MM | ||
| A 3529950040 | CLAMP | |
| Repalced by: A 3099950140 | ||
| 385 | A 3099950140 | CLAMP |
| HEADLAMP CONNECTION | ||
| 386 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 386 | N 304017008034 | SCREW |
| GROUND CABLE TO SIDE MEMBER | ||
| 387 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 387 | N 913004008001 | NUT |
| GROUND CABLE TO SIDE MEMBER | ||
| A 0009951201 | CLAMP | |
| Repalced by: N 916016010201 | ||
| 390 | N 916016010201 | CLAMP |
| Repalced by: N 916016010211 | ||
| 390 | N 916016010211 | CLAMP |
| Repalced by: N 000000001045 | ||
| 390 | N 000000001045 | CLAMP |
| CABLE TO ALTERNATOR | ||
| 392 | N 913004005001 | NUT |
| CABLE TO ALTERNATOR | ||
| 400 | A 3464295840 | BRACKET |
| Repalced by: A 3812950440 | ||
| 400 | A 3144290240 | BRACKET |
| Repalced by: A 3812950440 | ||
| 400 | A 3812950440 | BRACKET |
| BATTERY CABLE AND CABLE HARNESS TO SIDE MEMBER | ||
| 402 | N 000933008150 | SCREW |
| Repalced by: N 304017008018 | ||
| 402 | N 304017008018 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 403 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 403 | N 913004008001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 404 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 404 | N 009021008213 | WASHER |
| BRACKET TO SIDE MEMBER | ||
| 405 | A 0005469644 | CLAMPING PIECE |
| Repalced by: A 3835460044 | ||
| 405 | A 3835460044 | CLAMPING PIECE |
| CLAMPING PIECE TO BRACKET | ||
| 406 | N 000931006084 | SCREW |
| Repalced by: N 304017006027 | ||
| 406 | N 304017006027 | SCREW |
| CLAMPING PIECE TO BRACKET | ||
| 408 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 408 | N 913004006001 | NUT |
| CLAMPING PIECE TO BRACKET | ||
| 410 | A 3875460143 | BRACKET |
| BRACKET TO COMPRESSED-AIR-LINE BRACKET | ||
| 412 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 412 | N 304017006020 | SCREW |
| BRACKET TO COMPRESSED-AIR-LINE BRACKET | ||
| 413 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 413 | N 913004006001 | NUT |
| BRACKET TO COMPRESSED-AIR-LINE BRACKET | ||
| A 3875461443 | BRACKET | |
| Repalced by: A 3875401773 | ||
| 415 | A 3875463143 | BRACKET |
| Repalced by: A 3875401773 | ||
| 415 | A 3875401773 | BRACKET |
| BATTERY CABLE TO CLUTCH BELL | ||
| 416 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 416 | N 913004006001 | NUT |
| BRACKET TO BELL HOUSING | ||
| TO 3875463143 | ||
| 418 | A 3875462143 | BRACKET |
| Repalced by: A 9415460243 | ||
| 418 | A 9415460243 | BRACKET |
| FRAME MOUNTED CABLE HARNESS | ||
| 420 | A 3635460044 | CLAMPING PIECE |
| FRAME MOUNTED CABLE HARNESS | ||
| 421 | N 000933006147 | SCREW |
| CLAMPING PIECE TO BRACKET | ||
| 423 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 423 | N 000125010532 | WASHER |
| CLAMPING PIECE TO BRACKET | ||
| 424 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 424 | N 913004006001 | NUT |
| CLAMPING PIECE TO BRACKET | ||
| 424C | A 0019978390 | LOOM TIE |
| CABLE HARNESS MOUNTING | ||
| 280 MM | ||
| A 3875400137 | ELECTRIC CABLE | |
| Repalced by: A 3875400232 | ||
| 425 | A 3875400232 | ELECTRIC CABLE |
| ENGINE CABLE HARNESS | ||
| 425 | A 3875400232 | ELECTRIC CABLE |
| ENGINE CABLE HARNESS | ||
| 425 | A 3875400132 | ELECTRIC CABLE |
| ENGINE CABLE HARNESS | ||
| 425 | A 3875409737 | ELECTRIC CABLE |
| ENGINE CABLE HARNESS | ||
| 425 | A 3875408533 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REGULATOR | ||
| A 3875408633 | ELECTRIC CABLE | |
| Repalced by: A 3815401227 | ||
| A 3815401227 | ELECTRIC CABLE | |
| FROM FRONT PLUG CONNECTION TO ALTERNATOR | ||
| 426 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 426B | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 426B | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2,5 MM2 | ||
| 426B | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 426B | A 0075458226 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 427 | A 0015456028 | PLUG HOUSING |
| 6-POLE | ||
| 428 | A 0025451228 | PLUG HOUSING |
| 4-POLE | ||
| 429 | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 429D | A 6015460335 | BOOT |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 24 X 1 | ||
| 429F | A 0009902054 | NUT |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| M 24 X 1 | ||
| 429K | A 0009906840 | WASHER |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 24 X 1 | ||
| 429M | A 3805450026 | PLUG SOCKET |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 24 X 1 | ||
| 429P | A 0015454826 | ROUND PIN BUSHING |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 24 X 1 | ||
| A 0005400581 | PLUG SOCKET | |
| Repalced by: A 3805400281 | ||
| A 3805400281 | PLUG SOCKET | |
| Repalced by: A 3805402281 | ||
| 430 | A 3805402281 | PLUG SOCKET |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| M 27X1 | ||
| 430 | A 3805402281 | PLUG SOCKET |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| M 27X1 | ||
| 430 | A 3805400181 | PLUG SOCKET |
| Repalced by: A 3805402181 | ||
| 430 | A 3805402181 | PLUG SOCKET |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| M 24X1 | ||
| 432 | A 3875400273 | BRACKET |
| ENGINE CABLE HARNESS | ||
| 435 | A 3875450540 | BRACKET |
| ENGINE CABLE HARNESS | ||
| 440 | A 3875400007 | CABLE HARNESS |
| Repalced by: A 3835400607 | ||
| 440 | A 3835400607 | CABLE HARNESS |
| Repalced by: A 3095400481 | ||
| 440 | A 3095400481 | PLUG SOCKET |
| Repalced by: A 3095400581 | ||
| 440 | A 3095400581 | ELECTRIC CABLE |
| WITH TRAILER PLUG SOCKET CABLE | ||
| 441 | A 0015458128 | PIN BUSHING HOUSING |
| 442 | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 442 | A 0075458226 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 443 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 443 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 444 | A 0005451745 | BOOT |
| PIN BUSHING | ||
| 446 | A 0005461237 | GROMMET |
| 450 | A 0015450628 | PLUG SOCKET |
| Repalced by: A 0065450626 | ||
| 450 | A 0065450626 | PLUG SOCKET |
| TRAILER PLUG SOCKET | ||
| A 3635400107 | CABLE HARNESS | |
| Repalced by: A 3835400707 | ||
| 452 | A 3835400707 | CABLE HARNESS |
| Repalced by: A 3835400607 | ||
| 452 | A 3835400607 | CABLE HARNESS |
| Repalced by: A 3095400481 | ||
| 452 | A 3095400481 | PLUG SOCKET |
| Repalced by: A 3095400581 | ||
| 452 | A 3095400581 | ELECTRIC CABLE |
| WITH TRAILER PLUG SOCKET CABLE | ||
| 453 | A 0075450528 | PIN BUSHING HOUSING |
| 454 | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 454 | A 0075458226 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 454 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 454 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2,5 MM2 | ||
| 454C | A 0015450626 | PLUG SOCKET |
| Repalced by: A 0035453126 | ||
| 454C | A 0035453126 | PLUG SOCKET |
| OPERATION WITH TRAILER | ||
| 454F | A 3805462037 | GROMMET |
| 454K | A 0005453545 | BOOT |
| PIN BUSHING | ||
| 454N | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 454N | N 000125008443 | WASHER |
| FOR TRAILER PLUG SOCKET | ||
| 455 | A 3875450240 | BRACKET |
| Repalced by: A 3875450740 | ||
| 455 | A 3875450740 | BRACKET |
| BEHIND CAB | ||
| 457 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 457 | N 304017008034 | SCREW |
| BRACKET TO SUPPORT,AND PLUG SOCKET TO BRACKET | ||
| 458 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 458 | N 913004008001 | NUT |
| BRACKET TO SUPPORT,AND PLUG SOCKET TO BRACKET | ||
| 479 | A 3875400205 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 479 | A 3875400505 | CABLE HARNESS |
| Repalced by: A 3875403405 | ||
| 479 | A 3875401705 | CABLE HARNESS |
| Repalced by: A 3875403405 | ||
| 479 | A 3875403405 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 479 | A 3875404405 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 479 | A 3875404705 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 479 | A 6205400805 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 479 | A 6205401405 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 479 | A 3875400605 | CABLE HARNESS |
| Repalced by: A 3875403505 | ||
| 479 | A 3875401805 | CABLE HARNESS |
| Repalced by: A 3875403505 | ||
| 479 | A 3875403505 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 479 | A 3875404505 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 479 | A 3875404805 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 479 | A 6205400905 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 479 | A 6205401505 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 480 | A 0065455528 | PIN BUSHING HOUSING |
| 10-POLE | ||
| 480A | A 0055459928 | PIN BUSHING HOUSING |
| 7-POLE | ||
| 481 | A 0055458428 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 481B | A 0075457328 | PLUG |
| 4-POLE | ||
| 482 | A 0065450728 | PIN BUSHING HOUSING |
| 5-POLE | ||
| 482A | A 0015458328 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 483 | A 0015458128 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 483 | A 0075450528 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 483A | A 0015458428 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 484 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 484B | A 0025451128 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 484C | A 0025451328 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 484H | A 0005454026 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 486 | A 0005454526 | PIN BUSHING |
| Repalced by: A 0005453726 | ||
| 486 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 486 | A 0075458426 | PIN BUSHING |
| WITH DETENT;LESS CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 486B | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 486B | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 486B | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 486B | A 0075458226 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 487 | A 0005454626 | PIN BUSHING |
| WITH DETENT;LESS CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 488 | A 0025459528 | PLUG |
| 3-POLE | ||
| 488E | A 0015458228 | PLUG HOUSING |
| 8-POLE | ||
| 488H | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| A 0025451428 | PLUG | |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 490 | A 0065459128 | PIN BUSHING HOUSING |
| 492 | A 0005451745 | BOOT |
| PIN BUSHING | ||
| 494 | A 3015400265 | RESISTOR |
| 495 | A 3839970181 | GROMMET |
| Repalced by: A 0089976381 | ||
| 495 | A 0089976381 | GROMMET |
| A 3805400281 | PLUG SOCKET | |
| Repalced by: A 3805402281 | ||
| 495C | A 3805402281 | PLUG SOCKET |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| M 27X1 | ||
| 495D | A 0019978390 | LOOM TIE |
| 280 MM | ||
| 495D | A 0019978490 | LOOM TIE |
| 376 MM | ||
| A 3875400037 | ELECTRIC CABLE | |
| Repalced by: A 3895401737 | ||
| 496 | A 3895401737 | ELECTRIC CABLE |
| CAB ROOF | ||
| 496 | A 3875402737 | ELECTRIC CABLE |
| CAB ROOF | ||
| 496 | A 3855405837 | ELECTRIC CABLE |
| CAB ROOF | ||
| 496D | A 0055456428 | PIN BUSHING HOUSING |
| 3-POLE | ||
| 496E | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 496F | A 0005451745 | BOOT |
| PIN BUSHING | ||
| 496H | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 496H | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 496H | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 496H | A 0075458226 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 496K | A 0015458228 | PLUG HOUSING |
| 8-POLE | ||
| 496M | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| A 6155400136 | ELECTRIC CABLE | |
| Repalced by: A 6155400736 | ||
| A 6155400536 | ELECTRIC CABLE | |
| Repalced by: A 6155400736 | ||
| A 6155400736 | ELECTRIC CABLE | |
| Repalced by: A 6155401336 | ||
| 496N | A 6155401336 | ELECTRIC CABLE |
| FROM TACHOGRAPH TO PULSE TRANSMITTER | ||
| 496NC | A 0015458428 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 496NE | A 0125450928 | PIN BUSHING HOUSING |
| 3-POLE | ||
| 496NH | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 496NH | A 0075458226 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 496NL | A 0005463435 | BOOT |
| PIN BUSHING | ||
| 496NN | A 0029978590 | CLIP |
| 496NP | A 3019901440 | WASHER |
| 496NR | A 0005421572 | NUT |
| 496NT | A 0055429417 | SENDER UNIT |
| ELECTRONIC TACHOGRAPH | ||
| A 0065424617 | SENDER UNIT | |
| ELECTRONIC TACHOGRAPH | ||
| 496P | A 3805402437 | ELECTRIC CABLE |
| Repalced by: A 3805402537 | ||
| 496P | A 3805402537 | ELECTRIC CABLE |
| FROM MAIN CABLE HARNESS TO EXHAUST BRAKE SWITCH | ||
| 496R | A 0025451228 | PLUG HOUSING |
| 4-POLE | ||
| 496T | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 496W | A 3805400281 | PLUG SOCKET |
| Repalced by: A 3805402281 | ||
| 496W | A 3805402281 | PLUG SOCKET |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| M 27X1 | ||
| A 3875405333 | ELECTRIC CABLE | |
| Repalced by: A 3805400281 | ||
| 496WD | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| A 3805400281 | PLUG SOCKET | |
| Repalced by: A 3805402281 | ||
| 496WH | A 3805402281 | PLUG SOCKET |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| M 27X1 | ||
| 496Z | A 3875406933 | ELECTRIC CABLE |
| FROM GEAR CLUSTER INDICATOR TO PLUG CONNECTION AT CAB | ||
| 496ZC | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 496ZC | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2,5 MM2 | ||
| 496ZC | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 496ZC | A 0075458226 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 496ZE | A 0025451328 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 496ZH | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 496ZK | A 0025451128 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 496ZL | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 496ZN | A 0065450728 | PIN BUSHING HOUSING |
| 5-POLE | ||
| 496ZO | A 0019978390 | LOOM TIE |
| 280 MM | ||
| 496ZP | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 496ZQ | A 0025451128 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 496ZR | A 3875404632 | ELECTRIC CABLE |
| GEAR DISPLAY | ||
| 496ZS | A 0065450728 | PIN BUSHING HOUSING |
| 5-POLE | ||
| 496ZT | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 496ZU | A 0015457928 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 496ZW | A 0025451328 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 496ZX | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 496ZX | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5MM2 | ||
| 496ZX | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 496ZX | A 0075458226 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 496ZZ | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| A 0019978390 | LOOM TIE | |
| 280 MM | ||
| A 3875404732 | ELECTRIC CABLE | |
| INDUCTIVE PICKUP | ||
| 497 | A 3955400937 | ELECTRIC CABLE |
| IDLING SWITCH BRANCH-OFF EXTENSION | ||
| 498 | A 3805400181 | PLUG SOCKET |
| Repalced by: A 3805402181 | ||
| 498 | A 3805402181 | PLUG SOCKET |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| M 24X1 | ||
| 499 | A 3805400281 | PLUG SOCKET |
| Repalced by: A 3805402281 | ||
| 499 | A 3805402281 | PLUG SOCKET |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| M 27X1 | ||
| 499A | A 6185400236 | ELECTRIC CABLE |
| FROM DOOR PLUG CONNECTION TO OUTSIDE REARVIEW MIRROR PLUG-CONNECTION | ||
| 499C | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 499E | A 0015457928 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 499H | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 499H | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 499H | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 499H | A 0075458226 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 499L | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 499M | A 1119971481 | GROMMET |
| ELECTRIC CABLE THRU DOOR | ||
| 499N | A 3165402237 | ELECTRIC CABLE |
| Repalced by: A 0018207015 | ||
| 499N | A 0018207015 | ELECTRIC CABLE |
| FROM OUTSIDE REARVIEW MIRROR PLUGCONNECTION TO OUTSIDE REARVIEW MIRROR | ||
| 499Q | A 6209970481 | GROMMET |
| ELECTRIC CABLE TO BRACKET | ||
| 499S | A 0015457928 | PIN BUSHING HOUSING |
| HEATED OUTSIDE REARVIEW MIRROR | ||
| 499U | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 499X | A 0019875046 | SEALING CORD |
| OUTSIDE REARVIEW MIRROR CONNECTION | ||
| A 3529850051 | METAL SECTION | |
| Repalced by: A 0019877625 | ||
| 500 | A 0019877625 | PLASTIC SECTION |
| ELECTRIC CABLE THRU WINDOW SILL | ||
| 501 | A 3874291440 | BRACKET |
| CABLE TO INDUCTIVE SENDER UNIT | ||
| 502 | A 0039976781 | GROMMET |
| MAIN CABLE HARNESS THRU WINDOW SILL | ||
| 502 | A 0059971981 | GROMMET |
| MAIN CABLE HARNESS THRU WINDOW SILL | ||
| 505 | A 0019978490 | LOOM TIE |
| CABLE HARNESS MOUNTING | ||
| 376 MM | ||
| 510 | A 0009881878 | CLIP |
| CABLE HARNESS MOUNTING | ||
| 512 | N 007981004258 | SHEET METAL SCREW |
| GROUND CABLE CONNECTION | ||
| 515 | A 0005453013 | SWITCH |
| (IGNITION AND LIGHT SWITH) | ||
| 517 | A 0005451235 | KEY |
| IGNITION AND LIGHT SWITCH | ||
| 518 | A 0005830296 | RING |
| IGNITION AND LIGHT SWITCH | ||
| 521 | A 0005450376 | WASHER |
| IGNITION SWITCH TO INSTRUMENT PANEL | ||
| 523 | A 0005451072 | NUT |
| IGNITION SWITCH TO INSTRUMENT PANEL | ||
| 530 | A 0045450224 | SWITCH |
| HAZARD WARNING LIGHT | ||
| 532 | A 0005453637 | BUTTON |
| HAZARD WARNING LIGHT SWITCH | ||
| 533 | N 072601024801 | BULB |
| HAZARD WARNING LIGHT SWITCH | ||
| H 24 V 2 W | ||
| 538 | A 0005422425 | POTENTIOMETER |
| INSTRUMENT LIGHTING | ||
| 538 | A 0005422625 | POTENTIOMETER |
| Repalced by: A 0005423025 | ||
| 538 | A 0005423025 | POTENTIOMETER |
| Repalced by: A 6155420225 | ||
| 538 | A 6155420225 | POTENTIOMETER |
| INSTRUMENT LIGHTING | ||
| 540 | A 0005450372 | NUT |
| INSTRUMENT LIGHTING | ||
| 540 | A 0005451472 | NUT |
| Repalced by: A 0029906251 | ||
| 540 | A 0029906251 | NUT |
| INSTRUMENT LIGHTING | ||
| 542 | A 0005421889 | KNOB |
| INSTRUMENT LIGHTING | ||
| 543 | N 006797012153 | TOOTHED WASHER |
| INSTRUMENT LIGHTING | ||
| 550 | A 0005458026 | PLUG SOCKET |
| Repalced by: A 0045454326 | ||
| 550 | A 0045454326 | PLUG SOCKET |
| AT INSTRUMENT PANEL | ||
| 555 | A 0009900946 | WASHER |
| AT INSTRUMENT PANEL | ||
| 555 | A 3805450076 | WASHER |
| AT INSTRUMENT PANEL | ||
| 557 | A 0009904954 | NUT |
| TO PLUG THE FREE HOLES IN INSTRUMENT PANEL | ||
| 560 | A 0009970725 | EXPANSION PLUG |
| Repalced by: A 0009970925 | ||
| 560 | A 0009970925 | EXPANSION PLUG |
| TO PLUG THE FREE HOLES IN INSTRUMENT PANEL | ||
| 565 | A 0015451815 | TELL-TALE LAMP |
| LESS LENS | ||
| 570 | A 0005455390 | LENS |
| Repalced by: A 0035454190 | ||
| 570 | A 0035454190 | LENS |
| Repalced by: A 0035455290 | ||
| 570 | A 0005455490 | LENS |
| Repalced by: A 0035454290 | ||
| 570 | A 0035454290 | LENS |
| Repalced by: A 0035455290 | ||
| 570 | A 0035455290 | LENS |
| BLINKER LIGHT CONTROL | ||
| 572 | A 0005453790 | LENS |
| Repalced by: A 0035453290 | ||
| 572 | A 0035453290 | LENS |
| CHARGE CONTROL | ||
| 573 | A 0005455290 | LENS |
| Repalced by: A 0035453390 | ||
| 573 | A 0035453390 | LENS |
| Repalced by: A 0065451990 | ||
| 573 | A 0065451990 | LENS |
| HIGH BEAM | ||
| 574 | A 0005455190 | LENS |
| Repalced by: A 0035453790 | ||
| 574 | A 0035453790 | LENS |
| PARKING BRAKE | ||
| 576 | A 0005453890 | LENS |
| Repalced by: A 0035453590 | ||
| 576 | A 0035453590 | LENS |
| OIL PRESSURE | ||
| 577 | A 0015456290 | LENS |
| BRAKE CONTROL | ||
| 577A | A 0015459490 | LENS |
| GEAR DISPLAY | ||
| 577C | A 0025453890 | LENS |
| GEAR GROUP INDICATION,"SLOW" | ||
| 577F | A 0025453990 | LENS |
| GEAR GROUP INDICATION,"FAST" | ||
| 578 | N 072601024801 | BULB |
| H 24 V 2 W | ||
| 580 | A 0009974335 | PLUG |
| TO PLUG THE FREE HOLES FOR TELL-TALE LAMP | ||
| 581 | A 0009974435 | PLUG |
| TO PLUG THE FREE HOLES IN INSTRUMENT PANEL | ||
| 582 | A 6209880035 | CAP |
| TO PLUG THE FREE HOLES IN INSTRUMENT PANEL | ||
| 582K | A 3899880135 | CAP |
| TO PLUG THE FREE HOLES IN INSTRUMENT PANEL | ||
| A 0015450214 | SWITCH | |
| Repalced by: A 0015454914 | ||
| 583 | A 0015454914 | SWITCH |
| STARTING IN CAB | ||
| 585 | A 0005451514 | SWITCH |
| Repalced by: A 0015451514 | ||
| 585 | A 0015451514 | SWITCH |
| STARTING AT ENGINE | ||
| 585E | A 0009941710 | LOCK |
| 585L | A 0005451672 | NUT |
| 586 | A 0015454614 | SWITCH |
| Repalced by: A 0035452314 | ||
| 586 | A 0035452314 | SWITCH |
| STARTING AT ENGINE | ||
| 587 | A 0009941910 | LOCK |
| 588 | A 0005451772 | NUT |
| 590 | A 0005452945 | BOOT |
| TO 001 545 46 14 | ||
| 592 | A 0085422710 | TACHOGRAPH |
| Repalced by: A 0085425310 | ||
| 592 | A 0085425310 | TACHOGRAPH |
| ONE-DAY REGISTRATION;READING IN KILOMETERS;MEASURING RANGE,125KM/H | ||
| 592 | A 0105426910 | TACHOGRAPH |
| Repalced by: A 0125422310 | ||
| 592 | A 0125422310 | TACHOGRAPH |
| Repalced by: A 0115423710 | ||
| 592 | A 0115423710 | TACHOGRAPH |
| TACHOGRAPH ADJUSTABLE | ||
| 125 KM/H;24V | ||
| A 0005423394 | DIAGRAM PAPER | |
| SET = 100 PIECES | ||
| TO 008 542 27 10; 010 542 69 10 | ||
| A 0005420390 | BLIND CAP | |
| TACHOGRAPH | ||
| 593 | A 0005420285 | PROTECTIVE PLATE |
| TACHOGRAPH | ||
| 593D | N 007971002206 | SHEET METAL SCREW |
| TACHOGRAPH LEAD SEALING | ||
| 595 | A 3875422109 | ADAPTER |
| A 0005426409 | ADAPTER | |
| Repalced by: A 3875422609 | ||
| 595 | A 3875422609 | ADAPTER |
| RATIO 1: | ||
| 1,129 | ||
| 595 | A 3875422609 | ADAPTER |
| RATIO 1: | ||
| 1,129 | ||
| 595 | A 3875421809 | ADAPTER |
| RATIO 1: | ||
| 0,885 | ||
| 595 | A 3875422209 | ADAPTER |
| RATIO 1: | ||
| 1,0 | ||
| 597 | N 072601024801 | BULB |
| TACHOGRAPH | ||
| 2W | ||
| 597 | A 0015442694 | BULB |
| TACHOGRAPH | ||
| 24 V 1.2 W | ||
| 600 | A 0005420481 | GROMMET |
| TACHOGRAPH | ||
| 610 | A 0015424016 | TACHOMETER |
| A 0045420307 | FLEXIBLE SHAFT | |
| Repalced by: A 0045420407 | ||
| 625 | A 0045420407 | FLEXIBLE SHAFT |
| 3950 MM | ||
| 625 | A 0055421807 | FLEXIBLE SHAFT |
| 3770 MM | ||
| 625 | A 0045420507 | FLEXIBLE SHAFT |
| 4100 MM | ||
| 625 | A 0045429207 | FLEXIBLE SHAFT |
| 4030 MM | ||
| 625 | A 0045423807 | FLEXIBLE SHAFT |
| 4250 MM | ||
| 625 | A 0045421907 | FLEXIBLE SHAFT |
| Repalced by: A 0055421707 | ||
| 625 | A 0055421707 | FLEXIBLE SHAFT |
| 4550 MM | ||
| 630 | A 3875460044 | CLAMPING PIECE |
| FLEXIBLE SHAFT TO CAB FIRE WALL | ||
| 630 | A 3875460344 | CLAMPING PIECE |
| FLEXIBLE SHAFT TO CAB FIRE WALL | ||
| 635 | A 3875460144 | CLAMPING PIECE |
| FLEXIBLE SHAFT TO CAB FIRE WALL | ||
| A 3875460444 | CLAMPING PIECE | |
| Repalced by: A 6175460344 | ||
| 635 | A 6175460344 | CLAMPING PIECE |
| FLEXIBLE SHAFT TO CAB FIRE WALL | ||
| 637 | N 000931006118 | SCREW |
| FLEXIBLE SHAFT TO CAB FIRE WALL | ||
| 639 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 639 | N 913004006001 | NUT |
| FLEXIBLE SHAFT TO CAB FIRE WALL | ||
| 650 | A 0005420881 | GROMMET |
| Repalced by: A 0005420781 | ||
| 650 | A 0005420781 | GROMMET |
| Repalced by: A 0005421081 | ||
| 650 | A 0005421081 | GROMMET |
| ELECTRIC CABLE THRU FIRE WALL | ||
| 655 | A 3875420740 | BRACKET |
| GROMMET TO CAB | ||
| A 6155400140 | ELECTRIC CABLE | |
| GROMMET TO CAB | ||
| 656 | N 007981004400 | SHEET METAL SCREW |
| Repalced by: N 000000000878 | ||
| 656 | N 000000000878 | SCREW |
| GROMMET TO CAB | ||
| 4.8X50 | ||
| 660 | A 0009940545 | LOCK |
| GROMMET TO CAB | ||
| A 3875421040 | BRACKET | |
| N 007981004233 | SHEET METAL SCREW | |
| Repalced by: N 000000000460 | ||
| N 000000000460 | SCREW | |
| FLEXIBLE SHAFT TO CAB FIRE WALL | ||
| 670 | A 3875400973 | BRACKET |
| Repalced by: A 3855400773 | ||
| 670 | A 3855400773 | BRACKET |
| FLEXIBLE SHAFT TO BUMPER SUPPORT | ||
| N 007985006193 | SCREW | |
| Repalced by: N 000000001146 | ||
| N 000000001146 | SCREW | |
| BRACKET TO BUMBER STRUT | ||
| N 913004006002 | NUT | |
| Repalced by: N 913004006001 | ||
| N 913004006001 | NUT | |
| BRACKET TO BUMBER STRUT | ||
| A 3875421140 | BRACKET | |
| FLEXIBLE SHAFT TO BUMPER SUPPORT | ||
| 672 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 672 | N 304017008021 | SCREW |
| FLEXIBLE SHAFT TO BUMPER SUPPORT | ||
| 672 | N 304017008021 | SCREW |
| FLEXIBLE SHAFT TO BUMPER SUPPORT | ||
| 673 | N 912004008102 | LOCK WASHER |
| FLEXIBLE SHAFT TO BUMPER SUPPORT | ||
| 674 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 674 | N 913004008001 | NUT |
| FLEXIBLE SHAFT TO BUMPER SUPPORT | ||
| 675 | A 3875460244 | CLAMPING PIECE |
| FLEXIBLE SHAFT TO BRACKET | ||
| 675 | A 3875460244 | CLAMPING PIECE |
| FLEXIBLE SHAFT TO BRACKET | ||
| 676 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 676 | N 304017006020 | SCREW |
| CLAMPING PIECE TO BRACKET | ||
| 676 | N 304017006020 | SCREW |
| CLAMPING PIECE TO BRACKET | ||
| 677 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 677 | N 913004006001 | NUT |
| CLAMPING PIECE TO BRACKET | ||
| 677 | N 913004006001 | NUT |
| CLAMPING PIECE TO BRACKET | ||
| 678 | A 0019978390 | LOOM TIE |
| FLEXIBLE SHAFT MOUNTING | ||
| 280 MM | ||
| 678 | A 0019978490 | LOOM TIE |
| FLEXIBLE SHAFT MOUNTING | ||
| 376 MM | ||
| 680 | A 0025405847 | INSTRUMENT CLUSTER |
| Repalced by: A 0035405447 | ||
| 680 | A 0035405447 | INSTRUMENT CLUSTER |
| Repalced by: A 0035407847 | ||
| 680 | A 0035407847 | INSTRUMENT CLUSTER |
| Repalced by: A 0035409647 | ||
| 680 | A 0035409647 | INSTRUMENT CLUSTER |
| 681 | A 0035423305 | TEMPERATURE GAUGE |
| TO 002 540 58 47,003 540 54 47 | ||
| 681 | A 0035428805 | TEMPERATURE GAUGE |
| TO 003 540 78 47, | ||
| 682 | A 0015420408 | AIR PRESSURE GAUGE |
| TO 002 540 58 47,003 540 54 47 | ||
| 682 | A 0015423908 | AIR PRESSURE GAUGE |
| TO 003 540 78 47, | ||
| 683 | A 0015429902 | OIL PRESSURE GAUGE |
| TO 002 540 58 47,003 540 54 47 | ||
| 683 | A 0025422702 | OIL PRESSURE GAUGE |
| TO 003 540 78 47 | ||
| 684 | A 0015424503 | FUEL GAUGE DASH UNIT |
| TO 002 540 58 47,003 540 54 47 | ||
| 684 | A 0025429203 | FUEL GAUGE DASH UNIT |
| TO 003 540 78 47 | ||
| 684D | A 0005422178 | CONNECTION PLATE |
| TO 0025405847, 0035405447 | ||
| 684D | A 0005423178 | CONNECTION PLATE |
| TO 0035407847 | ||
| A 0005423578 | CONNECTION PLATE | |
| TO 003 540 96 47 | ||
| 684F | A 0005451219 | SOCKET |
| 684L | N 072601024801 | BULB |
| 2 W | ||
| 685 | A 0005420481 | GROMMET |
| INSTRUMENT CLUSTER | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
