Transporto priemonė: 1626 LS; VIN numerio dalis: 387212

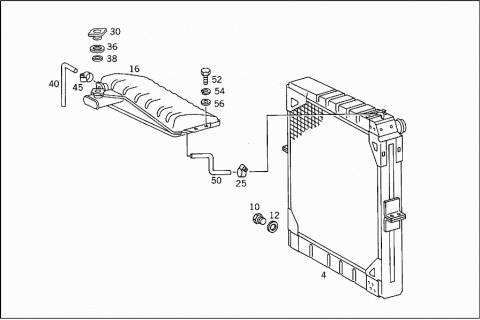

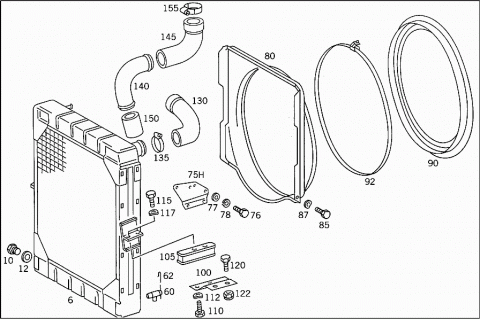

Grupė: 50 RADIATOR
| # | Kodas | Pavadinimas |
|---|---|---|
| A 0005013801 | RADIATOR | |
| Repalced by: A 0005014701 | ||
| A 0005014201 | RADIATOR | |
| Repalced by: A 0005014701 | ||
| A 0005013701 | RADIATOR | |
| Repalced by: A 0005014601 | ||
| A 0005014301 | RADIATOR | |
| Repalced by: A 0005014601 | ||
| 004 | A 0005014701 | RADIATOR |
| LESS EXPANSION TANK | ||
| BEHR | ||
| 004 | A 0005014601 | RADIATOR |
| LESS EXPANSION TANK | ||
| BEHR | ||
| A 3875001603 | RADIATOR | |
| Repalced by: A 3875002903 | ||
| 006 | A 3875002903 | RADIATOR |
| LESS EXPANSION TANK | ||
| BEHR | ||
| A 3875001503 | RADIATOR | |
| Repalced by: A 3855010401 | ||
| 006 | A 3855010401 | RADIATOR |
| Repalced by: A 3875002903 | ||
| 006 | A 3875002903 | RADIATOR |
| LESS EXPANSION TANK | ||
| BEHR | ||
| 010 | A 0019973230 | SCREW PLUG |
| Repalced by: N 007604014101 | ||
| 010 | N 007604014101 | SCREW PLUG |
| 012 | N 007603014405 | SEAL RING |
| 016 | A 0005000249 | TANK |
| ON RADIATOR | ||
| 020 | A 3815000249 | TANK |
| Repalced by: A 3815001649 | ||
| 020 | A 3815001649 | TANK |
| EXPANSION TANK TO CAB REAR PANEL | ||
| A 3815000649 | TANK | |
| Repalced by: A 3815000749 | ||
| 020 | A 3815000749 | TANK |
| BEHIND CAB | ||
| 025 | A 0005040033 | CLAMP |
| Repalced by: N 916017011000 | ||
| 025 | N 916017011000 | CLAMP |
| Repalced by: N 916017011001 | ||
| 025 | N 000000000665 | CLAMP |
| A 0005013115 | RADIATOR CAP | |
| Repalced by: A 0005014215 | ||
| A 0005013215 | RADIATOR CAP | |
| Repalced by: A 0005014215 | ||
| A 0005013715 | RADIATOR CAP | |
| Repalced by: A 0005014215 | ||
| 030 | A 0005014215 | RADIATOR CAP |
| TO 000 501 02 49,381 500 02 49 | ||
| 030 | A 0005014215 | RADIATOR CAP |
| TO 381 500 16 49 | ||
| 032 | A 0005014515 | RADIATOR CAP |
| TO 381 500 06 49,381 500 07 49 | ||
| 034 | A 0005014615 | RADIATOR CAP |
| TO 381 500 06 49,381 500 07 49 | ||
| 034 | A 0005017215 | RADIATOR CAP |
| TO 381 500 06 49,381 500 07 49 | ||
| 036 | A 0005010480 | GASKET |
| O.D., | ||
| 52 MM, TO 000 501 37 15,000 501 42 15 | ||
| 036 | A 0005010480 | GASKET |
| O.D., | ||
| TO 000 501 46 15 | ||
| 038 | A 0005010880 | GASKET |
| O.D., | ||
| 37 MM | ||
| 040 | A 0009977952 | HOSE |
| Repalced by: A 0139978682 | ||
| 040 | A 0139978682 | HOSE |
| OVERFLOW | ||
| 4X6 MM | ||
| 045 | A 0009950468 | CLAMP |
| Repalced by: A 0009881878 | ||
| 045 | A 0009881878 | CLIP |
| 050 | N 900271008043 | HOSE |
| FROM RADIATOR TO EXPANSION TANK ON RADIATOR | ||
| 8X17 MM | ||
| 052 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 052 | N 304017008016 | SCREW |
| FROM RADIATOR TO EXPANSION TANK ON RADIATOR | ||
| 052 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 052 | N 304017008016 | SCREW |
| FROM EXPANSION TANK TO RADIATOR | ||
| 054 | N 912004008102 | LOCK WASHER |
| FROM RADIATOR TO EXPANSION TANK ON RADIATOR | ||
| 054 | N 912004008102 | LOCK WASHER |
| FROM EXPANSION TANK TO RADIATOR | ||
| 056 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 056 | N 000125008443 | WASHER |
| FROM RADIATOR TO EXPANSION TANK ON RADIATOR | ||
| 056 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 056 | N 000125008443 | WASHER |
| FROM EXPANSION TANK TO RADIATOR | ||
| A 0009976436 | VALVE | |
| Repalced by: A 0009970436 | ||
| 060 | A 0009970436 | VALVE |
| DRAIN | ||
| 062 | A 0009930225 | SPRING |
| 064 | A 3815010520 | BRACKET |
| Repalced by: A 6155010020 | ||
| 064 | A 6155010020 | BRACKET |
| EXPANSION TANK | ||
| 064 | A 3815000731 | BRACKET |
| EXPANSION TANK | ||
| 066 | N 000933010128 | SCREW |
| BRACKET TO RIGHT FENDER | ||
| 066 | N 000933010164 | SCREW |
| BRACKET TO RIGHT FENDER | ||
| 066C | N 006902011101 | WASHER |
| 067 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 067 | N 910113010000 | NUT |
| BRACKET TO RIGHT FENDER | ||
| 069 | A 3815000131 | BRACKET |
| Repalced by: A 3815012720 | ||
| 069 | A 3815012720 | BRACKET |
| (STRAP) | ||
| 069 | A 3815012520 | BRACKET |
| A 3815010095 | SHIM | |
| Repalced by: A 3815010295 | ||
| 070 | A 3815010295 | SHIM |
| Repalced by: A 3815010495 | ||
| 070 | A 3815010495 | SHIM |
| EXPANSION TANK TO BRACKET | ||
| 071 | A 3634750220 | PAD |
| EXPANSION TANK TO BRACKET | ||
| 073 | N 000933010105 | SCREW |
| EXPANSION TANK TO BRACKET | ||
| 074 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 074 | N 910113010000 | NUT |
| EXPANSION TANK TO BRACKET | ||
| 075 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 075 | N 000125010532 | WASHER |
| EXPANSION TANK TO BRACKET | ||
| 075H | A 4030100340 | BRACKET |
| OIL DIPSTICK TO RADIATOR | ||
| 075H | A 4220100240 | BRACKET |
| OIL DIPSTICK TO RADIATOR | ||
| 076 | N 000933008145 | SCREW |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 077 | N 007349008003 | WASHER |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 078 | N 912004008102 | LOCK WASHER |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 080 | A 3875000716 | AIR BAFFLE |
| RADIATOR | ||
| 080 | A 3875000516 | AIR BAFFLE |
| RADIATOR | ||
| 080 | A 3875000616 | AIR BAFFLE |
| RADIATOR | ||
| 080 | A 3875051230 | AIR BAFFLE |
| RADIATOR | ||
| 085 | N 000933006102 | SCREW |
| AIR BAFFLE AND BRACKET TO RADIATOR | ||
| 087 | N 000137006201 | SPRING WASHER |
| AIR BAFFLE AND BRACKET TO RADIATOR | ||
| 090 | A 3635050180 | BOOT |
| FAN SHROUD | ||
| 092 | A 3639950065 | CLAMP |
| FAN SHROUD | ||
| 100 | A 3875040501 | SUPPORT |
| RADIATOR | ||
| 105 | A 3875040012 | RUBBER MOUNTING |
| RADIATOR TO SUPPORT | ||
| 110 | N 000933010238 | SCREW |
| Repalced by: N 304017010028 | ||
| 110 | N 304017010028 | SCREW |
| RUBBER MOUNTING TO SUPPORT | ||
| 112 | N 000137010201 | SPRING WASHER |
| RUBBER MOUNTING TO SUPPORT | ||
| 115 | N 000933010164 | SCREW |
| RADIATOR TO BUFFER | ||
| 115 | N 000933010128 | SCREW |
| RADIATOR TO BUFFER | ||
| 117 | N 000137010201 | SPRING WASHER |
| RADIATOR TO BUFFER | ||
| 120 | N 000961012151 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 122 | N 910113012002 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 130 | A 3875011582 | HOSE |
| 130 | A 3875010982 | HOSE |
| FROM RADIATOR TO THERMOSTAT | ||
| 135 | N 916017070000 | CLAMP |
| Repalced by: N 000000000674 | ||
| 135 | N 000000000674 | CLAMP |
| 140 | A 3875010356 | PIPE ELBOW |
| FROM RADIATOR TO WATER PUMP | ||
| A 3875010782 | HOSE | |
| Repalced by: A 3875012982 | ||
| 145 | A 3875012982 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 150 | N 900271065001 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 155 | N 916017070000 | CLAMP |
| Repalced by: N 000000000674 | ||
| 155 | N 000000000674 | CLAMP |
| FROM RADIATOR TO WATER PUMP | ||
| 160 | A 3875010323 | CONNECTOR |
| 160 | A 3875010223 | CONNECTOR |
| Repalced by: A 3875010423 | ||
| 160 | A 3875010423 | CONNECTOR |
| 165 | A 4032010480 | GASKET |
| Repalced by: A 4422010480 | ||
| 165 | A 4422010480 | GASKET |
| CONNECTOR TO WATER PUMP | ||
| 170 | N 000933010105 | SCREW |
| CONNECTOR TO WATER PUMP | ||
| 170 | N 000931010271 | SCREW |
| CONNECTOR TO WATER PUMP | ||
| 174 | N 000137010201 | SPRING WASHER |
| CONNECTOR TO WATER PUMP | ||
| A 3875011382 | HOSE | |
| Repalced by: A 3875012882 | ||
| 180 | A 3875012882 | HOSE |
| FROM WATER PUMP TO EXPANSION TANK | ||
| 180 | A 3875011082 | HOSE |
| FROM WATER PUMP TO EXPANSION TANK | ||
| 190 | N 916017032000 | CLAMP |
| Repalced by: N 000000000670 | ||
| 190 | N 000000000670 | CLAMP |
| FROM WATER PUMP TO EXPANSION TANK | ||
| 192 | A 3875010624 | COOLING WATER PIPE |
| FROM WATER PUMP TO EXPANSION TANK | ||
| 950 MM | ||
| 192 | A 3875010624 | COOLING WATER PIPE |
| FROM WATER PUMP TO EXPANSION TANK | ||
| 950 MM | ||
| 192 | A 3875011624 | COOLING WATER PIPE |
| FROM WATER PUMP TO EXPANSION TANK | ||
| 192 | A 3875012824 | COOLING WATER PIPE |
| FROM WATER PUMP TO EXPANSION TANK | ||
| 192 | A 3875011724 | COOLING WATER PIPE |
| FROM WATER PUMP TO EXPANSION TANK | ||
| 192 | A 3875012924 | COOLING WATER PIPE |
| FROM WATER PUMP TO EXPANSION TANK | ||
| 193 | A 3875011782 | HOSE |
| FROM WATER PUMP TO EXPANSION TANK | ||
| 193 | A 3875011782 | HOSE |
| FROM WATER PUMP TO EXPANSION TANK | ||
| 193 | A 3815012282 | HOSE |
| FROM WATER PUMP TO EXPANSION TANK | ||
| 195 | A 3875000279 | FLANGE |
| AT ENGINE | ||
| 195 | A 3875000079 | FLANGE |
| AT ENGINE | ||
| 197 | N 917003040008 | GASKET |
| FLANGE TO ENGINE | ||
| 205 | N 000933010105 | SCREW |
| FLANGE TO ENGINE | ||
| 207 | N 912004010102 | LOCK WASHER |
| FLANGE TO ENGINE | ||
| A 3609951501 | CLAMP | |
| Repalced by: A 3609950601 | ||
| 210 | A 3609950601 | CLAMP |
| HEATING PIPE TO ENGINE | ||
| 214 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 214 | N 304017008016 | SCREW |
| HEATING PIPE TO ENGINE | ||
| 215 | N 000933006130 | SCREW |
| HEATING PIPE TO ENGINE | ||
| 216 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 216 | N 913004008001 | NUT |
| HEATING PIPE TO ENGINE | ||
| 217 | N 913004006003 | NUT |
| Repalced by: N 910113006001 | ||
| 217 | N 910113006001 | NUT |
| HEATING PIPE TO ENGINE | ||
| 220 | A 3875060135 | HOSE |
| FROM FLANGE TO HEATING PIPE | ||
| 225 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 225 | N 000000000667 | CLAMP |
| FROM FLANGE TO HEATING PIPE | ||
| 230 | A 3835000072 | LINE |
| Repalced by: A 3875000072 | ||
| 230 | A 3875000072 | LINE |
| HEATING PIPES | ||
| 235 | A 3875011220 | BRACKET |
| HEATING PIPE | ||
| 240 | A 3875011420 | BRACKET |
| HEATING PIPE | ||
| A 3635060035 | HOSE | |
| Repalced by: A 3835060035 | ||
| 245 | A 3835060035 | HOSE |
| HEATING; TO CAB | ||
| 248 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 248 | N 000000000667 | CLAMP |
| HEATING; TO CAB | ||
| 250 | A 3875060435 | HOSE |
| Repalced by: A 3635060135 | ||
| 250 | A 3635060135 | HOSE |
| Repalced by: A 3635060235 | ||
| 250 | A 3635060235 | HOSE |
| HEATING, TO CONNECTOR | ||
| 255 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 255 | N 000000000667 | CLAMP |
| HEATING, TO CONNECTOR | ||
| 260 | N 916017025000 | CLAMP |
| Repalced by: N 000000000668 | ||
| 260 | N 000000000668 | CLAMP |
| HEATING, TO CONNECTOR | ||
| 265 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 265 | N 000000000667 | CLAMP |
| ENGINE BREATHING | ||
| 270 | A 3875011682 | HOSE |
| ENGINE BREATHING | ||
| 270 | N 900271015037 | HOSE |
| DE-AERATION; FROM ENGINE TO EXPANSION TANK | ||
| 15X24 MM | ||
| 270 | A 3875011282 | HOSE |
| FROM ENGINE TO EXPANSION TANK | ||
| 275 | A 3875011625 | BREATHER PIPE |
| FROM ENGINE TO EXPANSION TANK | ||
| 870 MM | ||
| 275 | A 3875011625 | BREATHER PIPE |
| FROM ENGINE TO EXPANSION TANK | ||
| 870 MM | ||
| 275 | A 3875016825 | BREATHER PIPE |
| FROM ENGINE TO EXPANSION TANK | ||
| 275 | A 3875016825 | BREATHER PIPE |
| FROM ENGINE TO EXPANSION TANK | ||
| 275 | A 3875014825 | BREATHER PIPE |
| FROM ENGINE TO EXPANSION TANK | ||
| 565 MM | ||
| 275 | A 3875011425 | BREATHER PIPE |
| FROM ENGINE TO EXPANSION TANK | ||
| 275 | A 3875011425 | BREATHER PIPE |
| FROM ENGINE TO EXPANSION TANK | ||
| 275 | A 3875017025 | BREATHER PIPE |
| FROM ENGINE TO EXPANSION TANK | ||
| 275 | A 3875017025 | BREATHER PIPE |
| FROM ENGINE TO EXPANSION TANK | ||
| 275 | A 3875014525 | BREATHER PIPE |
| FROM ENGINE TO EXPANSION TANK | ||
| 990 MM | ||
| 275 | A 3875014725 | BREATHER PIPE |
| FROM ENGINE TO EXPANSION TANK | ||
| 515 MM | ||
| 285 | A 3875010820 | BRACKET |
| Repalced by: A 3834929141 | ||
| 285 | A 3834929141 | BRACKET |
| COOLING WATER LINE TO FRAME | ||
| 290 | A 3604292040 | BRACKET |
| Repalced by: A 3604292940 | ||
| 290 | A 3604292940 | BRACKET |
| COOLING WATER LINE TO BRACKET | ||
| 295 | A 3879950020 | CLAMP |
| COOLING WATER LINE TO BRACKET | ||
| 295 | A 3879950020 | CLAMP |
| RADIATOR BLOCK AND SUSPENSION | ||
| 300 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 300 | N 304017008016 | SCREW |
| COOLING WATER LINE TO FRAME | ||
| 305 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 305 | N 913004008001 | NUT |
| COOLING WATER LINE TO BRACKET | ||
| 310 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 310 | N 304017008021 | SCREW |
| COOLING WATER LINE TO BRACKET | ||
| 312 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 312 | N 913004008001 | NUT |
| COOLING WATER LINE TO BRACKET | ||
| 320 | A 3875011482 | HOSE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 325 | N 900271012018 | HOSE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 12X21 MM | ||
| 335 | A 3875012125 | BREATHER PIPE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 1070 MM | ||
| 335 | A 3875012125 | BREATHER PIPE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 1070 MM | ||
| 335 | A 3875011825 | BREATHER PIPE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 1300 MM | ||
| 335 | A 3875011825 | BREATHER PIPE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 1300 MM | ||
| 335 | A 3875012225 | BREATHER PIPE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 1250 MM | ||
| 335 | A 3875012225 | BREATHER PIPE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 1250 MM | ||
| 335 | A 3875014425 | BREATHER PIPE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 515 MM | ||
| 335 | A 3875014925 | BREATHER PIPE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 1115 MM | ||
| 335 | A 3875014125 | BREATHER PIPE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 1200 MM | ||
| 335 | A 3875014325 | BREATHER PIPE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 450 MM | ||
| 345 | A 0009971390 | LOOM TIE |
| Repalced by: N 916017020000 | ||
| 345 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 345 | N 000000000667 | CLAMP |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 348 | A 3855010220 | BRACKET |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 350 | A 3875015920 | BRACKET |
| Repalced by: A 6454310740 | ||
| 350 | A 6454310740 | BRACKET |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 355 | N 000933010094 | SCREW |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 358 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 358 | N 000125010532 | WASHER |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 358 | N 000125010532 | WASHER |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 361 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 361 | N 910113010000 | NUT |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 361 | N 910113010000 | NUT |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 370 | A 3875011120 | BRACKET |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 370 | A 3875015820 | BRACKET |
| Repalced by: A 3524290740 | ||
| 370 | A 3524290740 | BRACKET |
| 372 | A 3875015620 | BRACKET |
| DE-AERATION LINE TO CAB SUSPENSION CONNECTING RAIL | ||
| 375 | A 3609951401 | CLAMP |
| Repalced by: N 916016011202 | ||
| 375 | N 916016011202 | CLAMP |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 15 MM | ||
| A 3609951301 | CLAMP | |
| Repalced by: A 3609951201 | ||
| 380 | A 3609951201 | CLAMP |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 10 MM | ||
| 383 | A 3875011720 | BRACKET |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 390 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 390 | N 304017008021 | SCREW |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 390 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 390 | N 304017008016 | SCREW |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 395 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 395 | N 913004008001 | NUT |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 400 | A 3609950401 | CLAMP |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 400 | A 3609952001 | CLAMP |
| Repalced by: A 6739950001 | ||
| 400 | A 6739950001 | CLAMP |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 404 | N 000933006102 | SCREW |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 408 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 408 | N 913004006001 | NUT |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
