Transporto priemonė: 1628 LS; VIN numerio dalis: 620512
Grupė: 42 BRAKES
42501

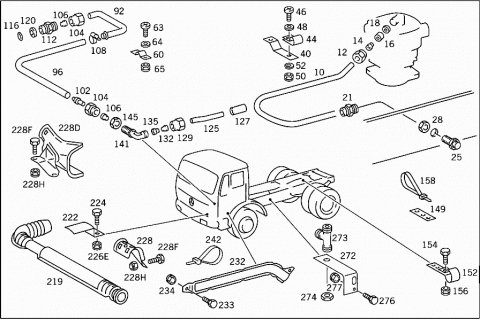

42502
42503

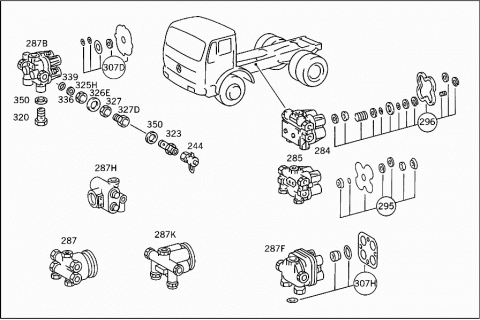

42504
42505
42506
42507
42508

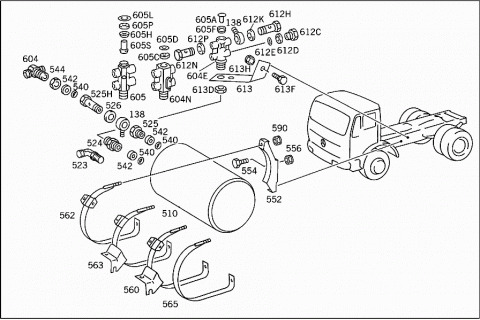

42509
42510

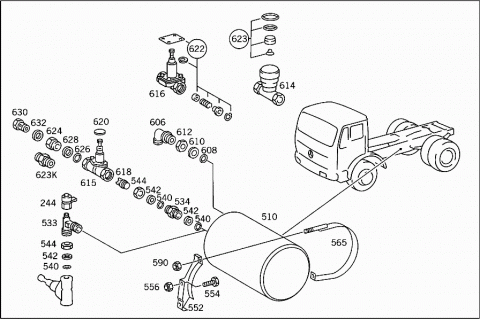

42511

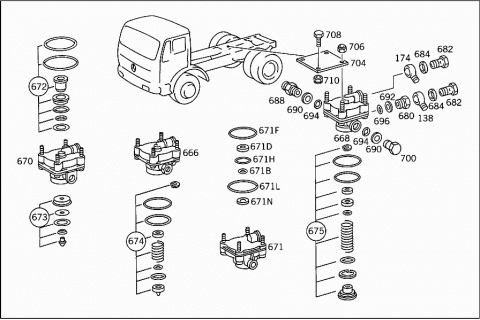

42512
42513

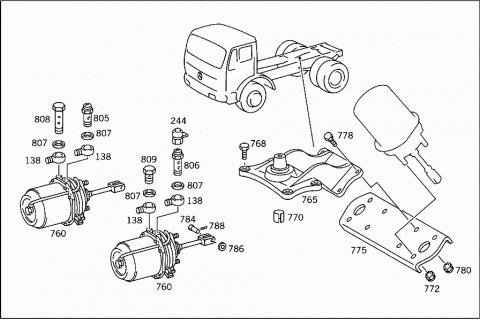

42514

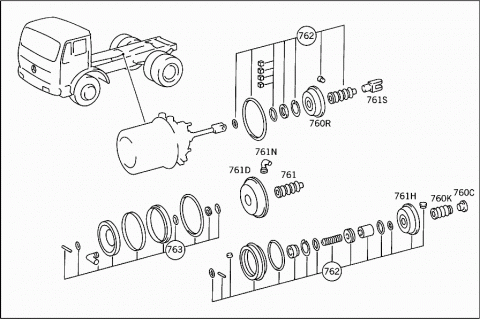

42515

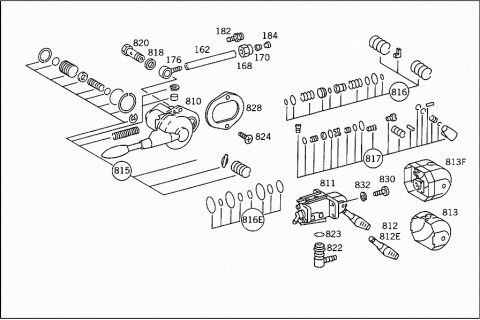

42516
# Kodas Pavadinimas
T YYYYYYYYYYYY PART NAME MISSING
FOR FRONT WHEEL BRAKE,SEE UNIT STANDARD VERSION, MODEL:
739.1
T YYYYYYYYYYYY PART NAME MISSING
FOR BRAKES,SEE UNIT STANDARD VERSION, MODEL:
740.3
T YYYYYYYYYYYY PART NAME MISSING
FOR BRAKES,SEE UNIT STANDARD VERSION, MODEL:
748.4
A 6209970272 FITTING
AIR COMPRESSOR,CONNECTION:
"20"
N 007603026104 SEAL RING
AIR COMPRESSOR,CONNECTION:
"20"
008B A 4031340156 FITTING
AIR-COMPRESSOR AIR INTAKE
008D N 007603026104 SEAL RING
AIR-COMPRESSOR AIR INTAKE
008F N 900271022023 HOSE
AIR COMPRESSOR CONNECTION
008K N 916017025000 CLAMP
Repalced by: N 000000000668
008K N 000000000668 CLAMP
HOSE TO COMPRESSED AIR LINE
008M A 0004291601 LINE
FROM AIR COMPRESSOR TO HOSE
22 MM
008P N 915017022100 UNION NUT
SUCTION LINE TO AIR COMPRESSOR
008Q N 003861022004 GLAND
Repalced by: A 0019901267
008Q A 0019901267 SEAL CONE
SUCTION LINE TO AIR COMPRESSOR
010 A 0004291401 LINE
15 MM
010 A 0004291401 LINE
AIR COMPRESSOR,PRESSURE REGULATOR, FOUR-CIRCUIT PROTECTIVE VALVE
15 MM
010 A 0004291401 LINE
CHECK VALVE
15 MM
010 A 0004291401 LINE
CONDENSATION TANK
15 MM
012 N 915018015000 UNION NUT
N 915017015100 UNION NUT
014 N 003861015004 GLAND
016 N 915065015101 THRUST RING
018 N 915045012100 SEAL RING
Repalced by: N 007603012121
018 N 007603012121 SEAL RING
021 N 074298022203 DOUBLE FITTING
BETWEEN THE LINES
N 003902015002 CONNECTION FITTING
BETWEEN THE LINES
025 N 003940014201 BULKHEAD FITTING
THROUGH SIDE MEMBER
N 003910015002 BULKHEAD FITTING
THROUGH SIDE MEMBER
028 N 074305022202 NUT
FITTING TO FRAME SIDE MEMBER
040 A 6204294740 BRACKET
AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE MOUNTING
044 A 3609952001 CLAMP
Repalced by: A 6739950001
044 A 6739950001 CLAMP
MOUNTING USED FOR COMPRESSED AIR LINES
046 N 000000001147 SCREW
CLAMP TO BRACKET
M 6X20
046 N 007985006193 SCREW
Repalced by: N 000000001146
046 N 000000001146 SCREW
CLAMP TO BRACKET
M 6X16
048 N 000125006421 WASHER
CLAMP TO BRACKET
050 N 913004006002 NUT
Repalced by: N 913004006001
050 N 913004006001 NUT
CLAMP TO BRACKET
052 N 912004006102 LOCK WASHER
CLAMP TO BRACKET
054 A 0004292101 LINE
12 MM
054 A 0004292101 LINE
AIR RESERVOIR,FOUR-CIRCUIT PROTECTIVE VALVE,BRAKE CYLINDER
12 MM
056 N 915017012100 UNION NUT
058 N 003861012007 GLAND
Repalced by: A 0019901967
058 A 0019901967 SEAL CONE
060 A 3159955010 CLAMP
MOUNTING USED FOR COMPRESSED AIR LINES
063 N 007985006145 SCREW
Repalced by: N 007985006581
063 N 007985006581 SCREW
MOUNTING USED FOR COMPRESSED AIR LINES
064 N 000125006421 WASHER
MOUNTING USED FOR COMPRESSED AIR LINES
065 N 913004006002 NUT
Repalced by: N 913004006001
065 N 913004006001 NUT
MOUNTING USED FOR COMPRESSED AIR LINES
092 A 3834290801 LINE
Repalced by: A 6194290801
092 A 6194290801 LINE
Repalced by: A 6254293501
092 A 6254293501 LINE
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
096 N 916027011014 HOSE
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
100 N 074304016201 FITTING
FROM RELAY VALVE TO SPRING-LOAD ACCUMULATOR CYLINDER
102 A 0004290541 FITTING
FROM BRAKE HOSE TO LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
104 N 915017012100 UNION NUT
106 N 003861012007 GLAND
Repalced by: A 0019901967
106 A 0019901967 SEAL CONE
108 N 916017016000 CLAMP
Repalced by: N 000000000666
108 N 000000000666 CLAMP
LINE MOUNTING
112 A 0029971572 FITTING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
116 A 0009971548 SEAL RING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
120 A 0004290927 THRUST RING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
125 A 0109975982 HOSE
Repalced by: A 0009872827
125 A 0009872827 PLASTIC PIPE
9X12 MM
125 A 0009872827 PLASTIC PIPE
AIR RESERVOIR,FOUR-CIRCUIT PROTECTIVE VALVE,BRAKE CYLINDER
9X12 MM
125 A 0009872827 PLASTIC PIPE
CHECK VALVE,RELAY VALVE
9X12 MM
125 A 0009872827 PLASTIC PIPE
BRAKE VALVE,BRAKE POWER REGULATOR
9X12 MM
125 A 0009872827 PLASTIC PIPE
PRESSURE RATIO VALVE
9X12 MM
125 A 0009872827 PLASTIC PIPE
LOAD/NO-LOAD VALVE
9X12 MM
125 A 0009872827 PLASTIC PIPE
HAND BRAKE VALVE
9X12 MM
125 A 0009872827 PLASTIC PIPE
OVERFLOW VALVE
9X12 MM
125 A 0009872827 PLASTIC PIPE
FROM TRISTOP CYLINDER TO TRISTOP CYLINDER
9X12 MM
126 A 0049971772 FITTING
Repalced by: A 0029906171
126 A 0029906171 FITTING
(PARTS KIT),LINE RUPTURE
TO 010 997 59 82
A 0009907378 CONNECTOR
REPAIR SIZE
127 N 040621013200 INSULATING HOSE
11X13 MM
129 N 915017012100 UNION NUT
132 N 003861012007 GLAND
Repalced by: A 0019901967
132 A 0019901967 SEAL CONE
135 A 0009921505 BUSHING
Repalced by: N 915062009000
135 N 915062009000 SLEEVE
138 N 915052009009 BANJO UNION
HOSE WIDTH, / I.D.,
9/16
139 A 0019901088 BANJO UNION
16 MM
139 A 0019901088 BANJO UNION
16 MM
141 N 003911012100 FITTING
Repalced by: A 0009907871
141 A 0009907871 ELBOW FITTING
COMPRESSED AIR LINE THRU FRAME
A 0019908171 ELBOW FITTING
Repalced by: A 0029905871
A 0029905871 ELBOW FITTING
COMPRESSED AIR LINE THRU FRAME
143 A 0004296034 ADAPTER FITTING
Repalced by: A 0004296634
143 A 0004296634 ADAPTER FITTING
Repalced by: A 0004296934
143 A 0004296934 ADAPTER FITTING
COMPRESSED AIR LINE THRU FRAME
143 A 0004296934 ADAPTER FITTING
COMPRESSED AIR LINE THRU FRAME
A 0004296834 ADAPTER FITTING
COMPRESSED AIR LINE THRU FRAME
A 0009970934 SCREW
COMPRESSED AIR LINE THRU FRAME
145 N 080705018002 NUT
COMPRESSED AIR LINE THRU FRAME
N 000439018204 NUT
COMPRESSED AIR LINE THRU FRAME
146 A 0019900788 BANJO UNION
COMPRESSED AIR LINE THRU FRAME
146 A 0019900788 BANJO UNION
COMPRESSED AIR LINE THRU FRAME
147 N 915047012203 HOLLOW SCREW
COMPRESSED AIR LINE THRU FRAME
147 N 915047012203 HOLLOW SCREW
COMPRESSED AIR LINE THRU FRAME
147E N 915036012203 HOLLOW SCREW
COMPRESSED AIR LINE THRU FRAME
147E N 915036012203 HOLLOW SCREW
COMPRESSED AIR LINE THRU FRAME
148 N 007603016401 SEAL RING
COMPRESSED AIR LINE THRU FRAME
A 0009940147 SEAL RING
COMPRESSED-AIR-LINE PLUG-CONNECTION
TO M 22
A 0009941448 LOCK
COMPRESSED-AIR-LINE PLUG-CONNECTION
TO M 22
A 6739970145 REPAIR KIT
COMPRESSED-AIR-LINE PLUG-CONNECTION
TO M 22
148F A 0019901570 T-FITTING
COMPRESSED AIR LINE THRU FRAME
148F A 0019907070 T-FITTING
COMPRESSED AIR LINE THRU FRAME
148P A 6204290473 LOCK
COMPRESSED AIR LINE THRU FRAME
149 A 6224290040 BRACKET
MOUNTING USED FOR COMPRESSED AIR LINES
152 A 3934310140 BRACKET
Repalced by: A 6514310240
152 A 6514310240 BRACKET
MOUNTING USED FOR COMPRESSED AIR LINES
154 N 000933008147 SCREW
Repalced by: N 304017008021
154 N 304017008021 SCREW
BRACKET TO CONTROL ARM
M 8X20
156 N 913004008004 NUT
Repalced by: N 913004008001
156 N 913004008001 NUT
BRACKET TO CONTROL ARM
158 A 0019978390 LOOM TIE
280 MM
158 A 0019978490 LOOM TIE
376 MM
162 A 0089979082 HOSE
BRAKE VALVE,FOUR-CIRCUIT PROTECTIVE VALVE,RELAY VALVE
6X8 MM
162 A 0089979082 HOSE
AXLE BREATHING
6X8 MM
165 A 0039978972 FITTING
Repalced by: A 0029905971
165 A 0029905971 FITTING
(PARTS KIT),LINE RUPTURE
168 N 915017008100 UNION NUT
170 N 003861008005 GLAND
174 N 915052006014 BANJO UNION
HOSE WIDTH, / I.D.,
6/16 MM
176 N 915052006021 BANJO UNION
HOSE WIDTH, / I.D.,
6/14 MM
178 A 0009906688 BANJO UNION
Repalced by: N 915052006013
178 N 915052006013 BANJO UNION
HOSE WIDTH, / I.D.,
6/12 MM
182 A 0019976772 FITTING
Repalced by: N 915059006000
182 N 915059006002 FITTING
184 A 0009905888 BANJO UNION
Repalced by: N 915052006005
184 A 0007630043 SLEEVE
Repalced by: N 915062006000
184 N 915062006000 SLEEVE
192 A 6209970181 GROMMET
LINE THRU FRAME
42/36 MM
192 A 6454290081 GROMMET
Repalced by: A 6554290081
192 A 6554290081 GROMMET
Repalced by: A 3969970281
192 A 3969970281 GROMMET
LINE THRU FRAME
61/54 MM
196 A 3549970081 GROMMET
LINE THRU FRAME
32/27 MM
196 A 3879970481 GROMMET
LINE THRU FRAME
38/30 MM
200 A 0089976082 HOSE
Repalced by: A 0009872627
200 A 0009872627 PLASTIC PIPE
BLACK
4X6 MM
200 A 0009872627 PLASTIC PIPE
AIR RESERVOIR,PRESSURE GAUGE
4X6 MM
202 A 0039979172 FITTING
(PARTS KIT),LINE RUPTURE
206 N 073379006203 HOSE
PRESSURE GAUGE LINE
6X10 MM
212 N 915017006100 UNION NUT
214 N 003861006007 GLAND
Repalced by: A 0019901667
214 A 0019901667 SEAL CONE
216 A 0009920105 BUSHING
Repalced by: N 915062004000
216 N 915062004000 SLEEVE
219 A 0004290086 PROTECTIVE TUBE
Repalced by: A 0004290286
219 A 0004290286 PROTECTIVE TUBE
COMPRESSED AIR LINE
220 A 6204291940 BRACKET
COMPRESSED AIR LINE THRU CAB FLOOR
220 A 6204291940 BRACKET
COMPRESSED AIR LINE THRU CAB FLOOR
220 A 6204292440 BRACKET
COMPRESSED AIR LINE THRU CAB FLOOR
220 A 6204292440 BRACKET
COMPRESSED AIR LINE THRU CAB FLOOR
220D A 6204290084 SEAL RING
TO SEAL CABLE HARNESS OPENING IN CAB
220D A 6204290084 SEAL RING
TO SEAL CABLE HARNESS OPENING IN CAB
220E A 0009946445 LOCK
BRACKET TO CAB FLOOR
220E A 0009946445 LOCK
BRACKET TO CAB FLOOR
220F N 007981004252 SHEET METAL SCREW
BRACKET TO CAB FLOOR
220F N 007981004252 SHEET METAL SCREW
BRACKET TO CAB FLOOR
221 N 009021005202 WASHER
Repalced by: N 009021005205
221 N 009021005205 WASHER
BRACKET TO CAB FLOOR
221 N 009021005205 WASHER
BRACKET TO CAB FLOOR
222 A 3874291140 BRACKET
PLASTIC LINES TO FRAME
223 A 6204202386 BRACKET
LEFT FRONT
223 A 6204202486 BRACKET
RIGHT FRONT
223D A 6204201986 BRACKET
LEFT FRONT
223D A 6204202086 BRACKET
RIGHT FRONT
224 N 000933008147 SCREW
Repalced by: N 304017008021
224 N 304017008021 SCREW
BRACKET TO CONSOLE
224D N 000961014100 SCREW
BRACKET TO CONSOLE
226 N 913004008004 NUT
Repalced by: N 913004008001
226 N 913004008001 NUT
BRACKET TO CONSOLE
226E N 913004014002 NUT
Repalced by: N 910113014001
226E N 910113014001 NUT
BRACKET TO CONSOLE
227 A 6204294340 BRACKET
Repalced by: A 3604293140
227 A 3604293140 BRACKET
BRAKE LINE MOUNTING
227 A 3604293140 BRACKET
BRAKE LINE MOUNTING
227E A 3609902340 WASHER
BRAKE LINE MOUNTING
228 A 3874292540 BRACKET
BUMPER,LEFT
228 A 3874292640 BRACKET
BUMPER,RIGHT
228A A 6154200086 BRACKET
BUMPER,LEFT
228A A 6154200086 BRACKET
BUMPER,LEFT
228A A 6204201486 BRACKET
BUMPER,RIGHT
228A A 6204201486 BRACKET
BUMPER,RIGHT
228D A 6204201186 BRACKET
BUMPER,RIGHT
228D A 6204201186 BRACKET
BUMPER,RIGHT
228D A 6204201586 BRACKET
BUMPER,LEFT
228D A 6204201286 BRACKET
BUMPER,LEFT
228D A 6204201286 BRACKET
BUMPER,LEFT
228D A 6204201686 BRACKET
BUMPER,RIGHT
228F N 000933008147 SCREW
Repalced by: N 304017008021
228F N 304017008021 SCREW
BRACKET TO BUMPER STRUT
M 8X20
228F N 000933008153 SCREW
Repalced by: N 304017008034
228F N 304017008034 SCREW
BRACKET TO CONSOLE
M 8X25
228H N 913004008004 NUT
Repalced by: N 913004008001
228H N 913004008001 NUT
BRACKET TO BUMPER STRUT

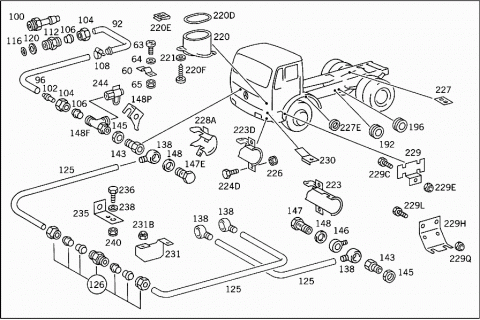

229 A 6204293940 BRACKET
LINE MOUNTING
229 A 6204293940 BRACKET
LINE MOUNTING
229C N 000933008152 SCREW
Repalced by: N 304017008027
229C N 304017008027 SCREW
BRACKET TO SIDE MEMBER
229C N 304017008027 SCREW
BRACKET TO SIDE MEMBER
229E N 913004008004 NUT
Repalced by: N 913004008001
229E N 913004008001 NUT
BRACKET TO SIDE MEMBER
229E N 913004008001 NUT
BRACKET TO SIDE MEMBER
229H A 6204297040 BRACKET
LINE MOUNTING
229L N 000933010129 SCREW
Repalced by: N 304017010002
229L N 304017010002 SCREW
BRACKET TO SIDE MEMBER
229Q N 913004010008 NUT
Repalced by: N 910113010000
229Q N 910113010000 NUT
BRACKET TO SIDE MEMBER
230 A 3874291540 BRACKET
PRESSURE GAUGE LINE TO CAB
230 A 3874292740 BRACKET
PRESSURE GAUGE LINE TO CAB
231 A 6204295240 BRACKET
LINE MOUNTING
231 A 6204295240 BRACKET
LINE MOUNTING
231B N 913004006002 NUT
Repalced by: N 913004006001
231B N 913004006001 NUT
BRACKET TO CAB FLOOR
232 A 6204292340 BRACKET
PLASTIC LINES TO FRAME
233 N 000933008153 SCREW
Repalced by: N 304017008034
233 N 304017008034 SCREW
BRACKET TO SIDE MEMBER
234 N 913004008004 NUT
Repalced by: N 913004008001
234 N 913004008001 NUT
BRACKET TO SIDE MEMBER
235 A 3274925419 BRACKET
Repalced by: A 6205240340
235 A 6205240340 BRACKET
LINE MOUNTING
236 N 000933008153 SCREW
Repalced by: N 304017008034
236 N 304017008034 SCREW
BRACKET TO FRONT CROSS MEMBER
238 N 000125008418 WASHER
Repalced by: N 000125008443
238 N 000125008443 WASHER
BRACKET TO FRONT CROSS MEMBER
240 N 913004008004 NUT
Repalced by: N 913004008001
240 N 913004008001 NUT
BRACKET TO FRONT CROSS MEMBER
242 A 0019978490 LOOM TIE
244 A 0004316131 TEST CONNECTION
COMPRESSED AIR LINE THRU FRAME
WIRA
244 A 0004316131 TEST CONNECTION
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22,22"
244 A 0004316131 TEST CONNECTION
WIRA
244 A 0004316131 TEST CONNECTION
TWO-CIRCUIT BRAKE VALVE
WIRA
244 A 0004316131 TEST CONNECTION
AIR RESERVOIRS I AND II
WIRA
244 A 0004316131 TEST CONNECTION
AIR RESERVOIR,CONNECTION "13"
WIRA
244 A 0004316131 TEST CONNECTION
BRAKE POWER REGULATOR,CONNECTION:
"4"
244 A 0004316131 TEST CONNECTION
TRISTOP CYLINDER
WIRA
A 0009979486 PLUG

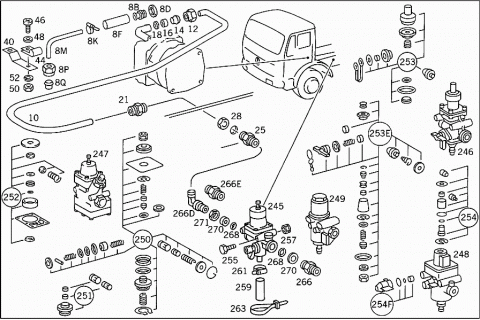

245 A 0014310006 PRESSURE REGULATOR
Repalced by: A 0024314906
246 A 0014313406 PRESSURE REGULATOR
Repalced by: A 0024314306
247 A 0014310606 PRESSURE REGULATOR
Repalced by: A 0024313406
248 A 0024313406 PRESSURE REGULATOR
Repalced by: A 0024314306
248 A 0024314306 PRESSURE REGULATOR
BOSCH
249 A 0014311206 PRESSURE REGULATOR
Repalced by: A 0024314906
249 A 0024314906 PRESSURE REGULATOR
WABCO
249 A 0024318306 PRESSURE REGULATOR
KNORR
250 A 0015864343 REPAIR KIT
Repalced by: A 0004301107
250 A 0004301107 REPAIR KIT
TO 001 431 00 06,WABCO 975 300 110 0
251 A 0024304681 REPAIR KIT
VALVE KIT
TO 001 431 00 06,WABCO 975 300 110 0
A 0014304960 REPAIR KIT
TO 002 431 49 06,WABCO 975 303 460 0
252 A 0015868543 REPAIR KIT
Repalced by: A 0004301407
252 A 0004301407 REPAIR KIT
TO 001 431 06 06,BOSCH 0 481 039 101
253 A 0025866043 REPAIR KIT
TO 001 431 34 06,GRAU 312 017 014
253E A 0025866743 REPAIR KIT
TO 001 431 12 06,KNORR 3200
254 A 0004301768 REPAIR KIT
DIAPHRAGM
TO 002 431 34 06,BOSCH 0 481 039 221
254 A 0004301768 REPAIR KIT
DIAPHRAGM
TO 002 431 43 06,BOSCH 0 481 039 201
254F A 0004307960 REPAIR KIT
TIRE INFLATING CONNECTION
TO 002 431 34 06,BOSCH 0 481 039 221
254F A 0004307960 REPAIR KIT
TIRE INFLATING CONNECTION
TO 002 431 34 06,BOSCH 0 481 039 201
A 0004300407 REPAIR KIT
TO 002 431 83 06,KNORR 90309
255 N 000931008251 SCREW
PRESSURE REGULATOR TO BRACKET
M 8X75
257 N 913004008004 NUT
Repalced by: N 913004008001
257 N 913004008001 NUT
PRESSURE REGULATOR TO BRACKET
259 A 0005461830 INSULATING HOSE
PRESSURE REGULATOR,CONNECTION:
"3"
259 A 0159975082 HOSE
PRESSURE REGULATOR,CONNECTION:
"3"
261 N 916026016001 CLAMP
Repalced by: A 0059970190
261 A 0059970190 LOOM TIE
PRESSURE REGULATOR,CONNECTION:
"3"
261 N 916026020001 CLAMP
Repalced by: N 000000000667
261 N 000000000667 CLAMP
PRESSURE REGULATOR,CONNECTION:
"3"
263 A 0019978390 LOOM TIE
PRESSURE REGULATOR,CONNECTION:
"3"
266 N 074298022203 DOUBLE FITTING
AT PRESSURE REGULATOR
266D N 074301022203 ELBOW FITTING
AT PRESSURE REGULATOR
266D A 0009905871 ELBOW FITTING
PRESSURE REGULATOR,CONNECTION:
"10"
266D A 0009905871 ELBOW FITTING
PRESSURE REGULATOR,CONNECTION:
"10"
N 003911015102 FITTING
PRESSURE REGULATOR,CONNECTION:
"10"
266E A 0019972172 FITTING
PRESSURE REGULATOR,CONNECTION:
"21"
266E A 0019972172 FITTING
PRESSURE REGULATOR,CONNECTION:
"21"
268 A 0009870446 SEALING CORD
AT PRESSURE REGULATOR
270 A 0004290227 THRUST RING
AT PRESSURE REGULATOR
271 N 074305022202 NUT
PRESSURE REGULATOR,CONNECTION:
"10"
271 N 074305022202 NUT
PRESSURE REGULATOR,CONNECTION:
"10"
272 A 3934310840 BRACKET
COMPRESSED AIR LINE TOWARDS PRESSURE REGULATOR
273 A 0029977372 FITTING
COMPRESSED AIR LINE TOWARDS PRESSURE REGULATOR
274 N 080705018002 NUT
FITTING TO BRACKET
276 N 000933008150 SCREW
Repalced by: N 304017008018
276 N 304017008018 SCREW
BRACKET TO SIDE MEMBER
277 N 913004008004 NUT
Repalced by: N 913004008001
277 N 913004008001 NUT
BRACKET TO SIDE MEMBER

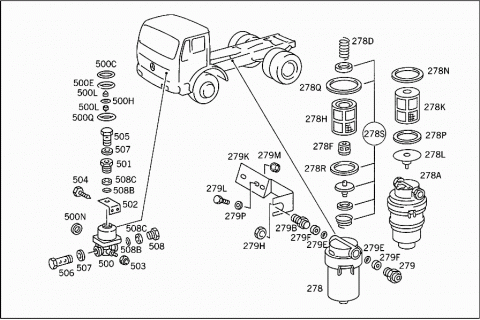

278 A 0004292595 AIR CLEANER
BOSCH
278 A 0004292595 AIR CLEANER
BOSCH
278 A 0004292695 AIR CLEANER
KNORR
278 A 0004292695 AIR CLEANER
KNORR
278 A 0004292795 AIR CLEANER
WABCO
278 A 0004292795 AIR CLEANER
WABCO
278A A 0004292895 AIR CLEANER
GRAU
278A A 0004292895 AIR CLEANER
GRAU
278D A 0059930901 SPRING
TO 000 429 27 95,WABCO
278D A 0059930901 SPRING
TO 000 429 27 95,WABCO
278F A 0004290597 FILTER ELEMENT
TO 000 429 27 95,WABCO
278F A 0004290597 FILTER ELEMENT
TO 000 429 27 95,WABCO
278H A 0004290497 FILTER ELEMENT
TO 000 429 27 95,WABCO
278H A 0004290497 FILTER ELEMENT
TO 000 429 27 95,WABCO
278H A 0004290397 FILTER ELEMENT
TO 000 429 28 95,GRAU
278H A 0004290397 FILTER ELEMENT
TO 000 429 28 95,GRAU
278K A 0004290797 FILTER ELEMENT
TO 000 429 25 95,BOSCH
278K A 0004290797 FILTER ELEMENT
TO 000 429 25 95,BOSCH
278L A 0004290845 DIAPHRAGM
TO 000 429 28 95,GRAU
278L A 0004290845 DIAPHRAGM
TO 000 429 28 95,GRAU
278L A 0004291045 DIAPHRAGM
TO 000 429 25 95,BOSCH
278L A 0004291045 DIAPHRAGM
TO 000 429 25 95,BOSCH
278N A 0089978048 SEAL RING
TO 000 429 28 95,GRAU
278N A 0089978048 SEAL RING
TO 000 429 28 95,GRAU
278N A 0019974048 SEAL RING
TO 000 429 25 95,BOSCH
278N A 0019974048 SEAL RING
TO 000 429 25 95,BOSCH
278P A 0059972748 SEAL RING
TO 000 429 28 95, GRAU
278P A 0059972748 SEAL RING
TO 000 429 28 95, GRAU
278P A 0119974048 SEAL RING
TO 000 429 25 95,BOSCH
278P A 0119974048 SEAL RING
TO 000 429 25 95,BOSCH
278Q A 0089978848 SEAL RING
Repalced by: A 0049972248
278Q A 0049972248 SEAL RING
Repalced by: A 0289972348
278Q A 0289972348 SEAL RING
TO 000 429 27 95,100X3 MM,WABCO
278Q A 0289972348 SEAL RING
TO 000 429 27 95,100X3 MM,WABCO
278R A 0089978948 SEAL RING
Repalced by: A 0009870746
278R A 0009870746 SEALING CORD
TO 000 429 27 95,75X3 MM,WABCO
278R A 0009870746 SEALING CORD
TO 000 429 27 95,75X3 MM,WABCO
278S A 0004204455 REPAIR KIT
TO 000 429 27 95,WABCO
278S A 0004204455 REPAIR KIT
TO 000 429 27 95,WABCO
A 0004300369 REPAIR KIT
TO 000 429 26 95,KNORR
A 0004300369 REPAIR KIT
TO 000 429 26 95,KNORR
279 A 0019972172 FITTING
AIR CLEANER,CONNECTION:
"2"
279 A 0019972172 FITTING
AIR CLEANER,CONNECTION:
"2"
A 0029978972 FITTING
AIR CLEANER,CONNECTION:
"2"
279B A 0019972372 FITTING
AIR CLEANER,CONNECTION:
"1"
279B A 0019972372 FITTING
AIR CLEANER,CONNECTION:
"1"
279E A 0009870446 SEALING CORD
AIR CLEANER,CONNECTION:
"1,2"
279E A 0009870446 SEALING CORD
AIR CLEANER,CONNECTION:
"1,2"
279F A 0004290227 THRUST RING
AIR CLEANER,CONNECTION:
"1,2"
279F A 0004290227 THRUST RING
AIR CLEANER,CONNECTION:
"1,2"
279H N 074305022202 NUT
AIR CLEANER TO BRACKET
279H N 074305022202 NUT
AIR CLEANER TO BRACKET
279K A 6204310740 BRACKET
AIR CLEANER
279K A 6204310740 BRACKET
AIR CLEANER
279L N 000933008147 SCREW
Repalced by: N 304017008021
279L N 304017008021 SCREW
BRACKET TO STRAP
279L N 304017008021 SCREW
BRACKET TO STRAP
279M N 913004008004 NUT
Repalced by: N 913004008001
279M N 913004008001 NUT
BRACKET TO STRAP
279M N 913004008001 NUT
BRACKET TO STRAP
279P N 000125008418 WASHER
Repalced by: N 000125008443
279P N 000125008443 WASHER
BRACKET TO STRAP
279P N 000125008443 WASHER
BRACKET TO STRAP

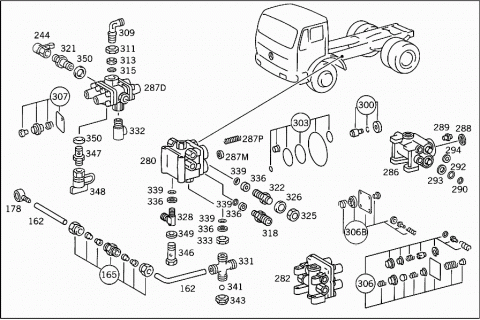

280 A 0014313806 VALVE
Repalced by: A 0024310406
280 A 0024310406 VALVE
(FOUR-CIRCUIT PROTECTIVE VALVE)
BOSCH
282 A 0014314706 VALVE
(FOUR-CIRCUIT PROTECTIVE VALVE)
WABCO
284 A 0014313506 VALVE
Repalced by: A 0014318406
285 A 0014318406 VALVE
(FOUR-CIRCUIT PROTECTIVE VALVE)
KNORR
286 A 0014316806 VALVE
Repalced by: A 0024312906
287 A 0024312906 VALVE
Repalced by: A 0024319306
287 A 0024319306 VALVE
(FOUR-CIRCUIT PROTECTIVE VALVE)
GRAU
287B A 0014318706 VALVE
Repalced by: A 0034315006
287B A 0014318706 VALVE
287D A 0014318906 VALVE
Repalced by: A 0024314006
287D A 0024314006 VALVE
Repalced by: A 0034315006
287D A 0024314006 VALVE
287F A 0014319306 VALVE
Repalced by: A 0034315006
287F A 0014319306 VALVE
287H A 0024310206 VALVE
Repalced by: A 0024312706
287K A 0024312706 VALVE
Repalced by: A 0024319106
287K A 0024319106 VALVE
Repalced by: A 0034315006
287K A 0024319106 VALVE
A 0034315006 VALVE
(FOUR-CIRCUIT PROTECTIVE VALVE)
WABCO
287M A 0014310986 CUP
TO 002 431 04 06,BOSCH
287P A 0009934905 SPRING
Repalced by: A 0009935205
287P A 0009935205 SPRING
TO 002 431 04 06,BOSCH
288 A 0014311860 SEAL RING
34X2.3 MM,TO 001 431 68 06,GRAU
289 A 0024298844 VALVE
TO 001 431 68 06,GRAU 37001
290 A 0099972448 SEAL RING
TO 001 431 68 06,19.3X2.4 MM,GRAU37001
292 A 0059973248 SEAL RING
25.3X2.4 MM,TO 001 431 68 06,GRAU
293 A 0004313188 VALVE SEAT
TO 001 431 68 06,GRAU 37001
294 A 0014311960 SEAL RING
Repalced by: A 0009971548
294 A 0009971548 SEAL RING
TO 001 431 68 06,15X2 MM,GRAU 19001
295 A 0004303160 REPAIR KIT
TO 001 431 84 06,KNORR
296 A 0015863842 REPAIR KIT
TO 001 431 35 06,KNORR
300 A 0025861743 REPAIR KIT
BOOT
TO 001 431 38 06,BOSCH
303 A 0015868443 REPAIR KIT
SEAL RING
TO 001 431 38 06,BOSCH
306 A 0025862843 REPAIR KIT
TO 001 431 47 06,WABCO 2100
306B A 0004300468 REPAIR KIT
TO 001 431 47 06,WABCO 2210
A 0034300881 REPAIR KIT
TO 002 431 93 06 GRAU 74001
307 A 0035860943 REPAIR KIT
TO 001 431 89 06,002 431 40 06,WABCO
307D A 0035861043 REPAIR KIT
TO 001 431 87 06,KNORR
307H A 0004304706 GASKET KIT
TO 001 431 93 06,BOSCH 62401
307H A 0004300260 REPAIR KIT
TO 001 431 93 06,BOSCH 62201
307H A 0004302906 GASKET KIT
BOOT
TO 002 431 04 06,BOSCH
A 0034300981 GASKET KIT
TO 002 431 91 06 GRAU 66001
A 0004305106 REPAIR KIT
FOUR-CIRCUIT PROTECTIVE VALVE
WABCO; TO 003 431 50 06
309 A 0009909671 ELBOW FITTING
Repalced by: A 0029901271
309 A 0029901271 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
A 0029902271 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
311 N 074305022202 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
313 A 0004290227 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
315 A 0009870446 SEALING CORD
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
318 A 0029971572 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"11,12,21"
320 N 915036012203 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
320 N 915036012203 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
320 N 915036012203 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"21"
321 N 915039012205 HOLLOW SCREW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"21"
321 N 915039012205 HOLLOW SCREW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"21"
322 N 074313012304 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
322 N 074313012304 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
323 N 915039012205 HOLLOW SCREW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
323 N 915039012205 HOLLOW SCREW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
325 N 080705018002 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
325 N 080705018002 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
325H N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
325H N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
326 N 000125019009 WASHER
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
326E N 000125017010 WASHER
Repalced by: N 000125017016
326E N 000125017016 WASHER
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
326E N 000125017016 WASHER
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
327 N 000439016206 NUT
Repalced by: N 308675016001
327 N 308675016001 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
327 N 308675016001 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
327D A 0004296434 ADAPTER FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
327D A 0004296434 ADAPTER FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
328 A 0009909270 T-FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"23"
331 A 0019979272 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
332 A 0019905270 T-FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
332 A 0019905270 T-FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
333 N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
22,24
336 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
22,24
339 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
22,24
341 A 0009970386 PLUG
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
343 N 915020018000 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
346 N 915039008202 HOLLOW SCREW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"23"
347 N 915039012205 HOLLOW SCREW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"23"
347 N 915039012205 HOLLOW SCREW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"23"
348 A 0034291044 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"23"
348 A 0034291044 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"23"
348 A 0044293744 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"23"
348 A 0044293744 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"23"
349 N 007603012405 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"23"
350 N 007603016401 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"21,22,23,24"
350 N 007603016401 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"21,22,23,24"

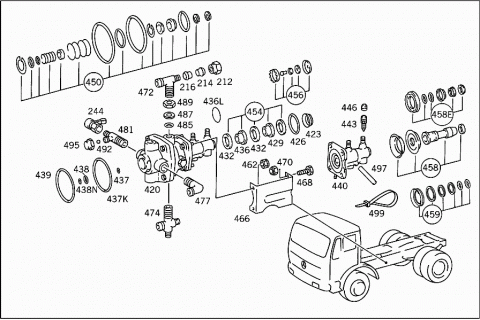

420 A 0014313505 BRAKE VALVE
TWO-CIRCUIT BRAKE VALVE
WABCO-TEVES
420 A 0014314305 BRAKE VALVE
TWO-CIRCUIT BRAKE VALVE
BOSCH-TEVES
420 A 0014319405 BRAKE VALVE
TWO-CIRCUIT BRAKE VALVE
WABCO-SCHAEFER
420 A 0024310505 BRAKE VALVE
TWO-CIRCUIT BRAKE VALVE
BOSCH-SCHAEFER
421 A 0014318305 BRAKE VALVE
TWO-CIRCUIT BRAKE VALVE
WABCO
421 A 0014318305 BRAKE VALVE
TWO-CIRCUIT BRAKE VALVE
WABCO
421 A 0014318905 BRAKE VALVE
TWO-CIRCUIT BRAKE VALVE
BOSCH
421 A 0014318905 BRAKE VALVE
TWO-CIRCUIT BRAKE VALVE
BOSCH
421 A 0014319105 BRAKE VALVE
TWO-CIRCUIT BRAKE VALVE
KNORR
421 A 0014319105 BRAKE VALVE
TWO-CIRCUIT BRAKE VALVE
KNORR
421 A 0014319905 BRAKE VALVE
TWO-CIRCUIT BRAKE VALVE
GRAU
421 A 0014319905 BRAKE VALVE
TWO-CIRCUIT BRAKE VALVE
GRAU
422 A 0014316993 SPRING
TO 001 431 89 05,BOSCH
422 A 0014316993 SPRING
TO 001 431 89 05,BOSCH
423 A 0004310378 RUBBER RING
TO 001 431 43 05,002 431 05 05
426 A 0049970248 SEAL RING
TO 001 431 43 05,BOSCH-TEVES
429 A 0004312181 VALVE DISC
Repalced by: A 0004312781
429 A 0004312781 VALVE DISC
TO 001 431 43 05,BOSCH-TEVES
432 A 0004318986 CUP
TO 001 431 43 05,BOSCH-TEVES
436 A 0004312281 VALVE DISC
TO 001 431 43 05,BOSCH-TEVES
436L A 0109974248 SEAL RING
TO 001 431 43 05,BOSCH-TEVES
436L A 0109974348 SEAL RING
Repalced by: A 0049970248
436L A 0049970248 SEAL RING
TO 002 431 05 05,BOSCH-SCHAEFER
437 A 0059975248 SEAL RING
TO 001 431 43 05,002 431 05 05
437K A 0059975348 SEAL RING
TO 001 431 43 05,002 431 05 05
438 A 0059975448 SEAL RING
TO 001 431 43 05,002 431 05 05
438N A 0049979148 SEAL RING
TO 001 431 43 05,002 431 05 05
439 A 0059975548 SEAL RING
TO 001 431 43 05,002 431 05 05
440 A 0074202118 WHEEL BRAKE CYLINDER
SLAVE CYLINDER
TO 001 431 35 05,001 431 43 05,TEVES
440 A 0064201518 WHEEL BRAKE CYLINDER
SLAVE CYLINDER
TO001 431 94 05,002 431 05 05,SCHAEFER
443 A 0004204155 BLEEDER VALVE
Repalced by: A 0004310265
443 A 0004202155 BLEEDER VALVE
Repalced by: A 0004310265
443 A 0004310265 VALVE
Repalced by: A 3075530107
443 A 3075530107 VALVE
446 A 3164210187 PROTECTIVE CAP
Repalced by: A 0004210887
446 A 0004210887 PROTECTIVE CAP
Repalced by: A 0004217187
446 A 0004217187 PROTECTIVE CAP
447 A 0004312185 FILLER RING
TO 001 431 83 05,WABCO
448 A 0004310273 BREATHER PIPE
TO 001 431 83 05,WABCO

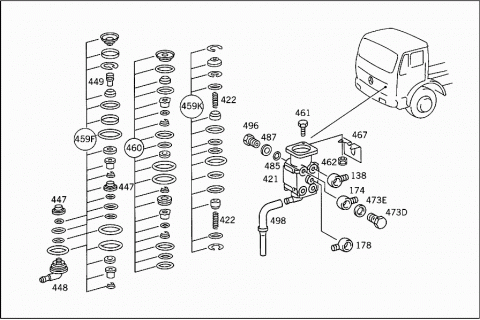

449 A 0004318383 PISTON
TO 001 431 83 05,WABCO
A 0004313623 VALVE
WABCO
A 0004313623 VALVE
WABCO
450 A 0005868643 REPAIR KIT
COMPRESSED AIR CYLINDER
TO 001 431 35 05,001 431 94 05,WABCO
454 A 0025861343 REPAIR KIT
VALVE DISC
TO 001 431 43 05,002 431 05 05,BOSCH
456 A 0025865742 REPAIR KIT
Repalced by: A 0004301109
456 A 0004301109 REPAIR KIT
BLEEDER VALVE
TO 001 431 43 05,002 431 05 05,BOSCH
458 A 0025862442 REPAIR KIT
SLAVE CYLINDER
TO 007 420 21 18,TEVES
458E A 0025860942 REPAIR KIT
SLAVE CYLINDER
TO 006 420 15 18,WABCO
459 A 0025865542 REPAIR KIT
SLAVE CYLINDER
TO 006 420 15 18,WABCO
A 0025868043 REPAIR KIT
Repalced by: A 0004301160
459F A 0004301160 REPAIR KIT
Repalced by: A 0004306260
459F A 0004306260 REPAIR KIT
Repalced by: A 0014300460
459F A 0014300460 REPAIR KIT
TO 001 431 83 05,WABCO
459F A 0014300460 REPAIR KIT
TO 001 431 83 05,WABCO
459K A 0025868743 REPAIR KIT
Repalced by: A 0004303506
459K A 0004303506 REPAIR KIT
TO 001 431 89 05,BOSCH
460 A 0035861243 REPAIR KIT
TO 001 431 91 05,KNORR
461 N 000933008152 SCREW
Repalced by: N 304017008027
461 N 304017008027 SCREW
BRAKE VALVE TO PEDAL UNIT
462 N 913004008004 NUT
Repalced by: N 913004008001
462 N 913004008001 NUT
BRAKE VALVE TO BRACKET
462 N 913004008001 NUT
BRAKE VALVE TO PEDAL UNIT
466 A 3874311340 BRACKET
TRUCK-TRACTOR BRAKE VALVE
467 A 6202920140 BRACKET
TRUCK-TRACTOR BRAKE VALVE
467 A 6202920140 BRACKET
TRUCK-TRACTOR BRAKE VALVE
468 N 000933010128 SCREW
BRACKET TO BATTERY/APPARATUS SUPPORT
470 N 913004010008 NUT
Repalced by: N 910113010000
470 N 910113010000 NUT
BRACKET TO BATTERY/APPARATUS SUPPORT
472 A 0009904770 T-FITTING
TWO-CIRCUIT BRAKE CYLINDER;CONNECTION:
"11,12"
473D N 915036012203 HOLLOW SCREW
TWO-CIRCUIT BRAKE CYLINDER;CONNECTION:
"11,12,21,22
473D N 915036012203 HOLLOW SCREW
TWO-CIRCUIT BRAKE CYLINDER;CONNECTION:
"11,12,21,22
473E N 007603016401 SEAL RING
TWO-CIRCUIT BRAKE CYLINDER;CONNECTION:
"11,12,21,22
473E N 007603016401 SEAL RING
TWO-CIRCUIT BRAKE CYLINDER;CONNECTION:
"11,12,21,22
474 A 0029979072 FITTING
TWO-CIRCUIT BRAKE CYLINDER;CONNECTION:
"21"
477 A 0019903071 ELBOW FITTING
TWO-CIRCUIT BRAKE CYLINDER;CONNECTION:
"22"
481 A 0009906170 T-FITTING
TWO-CIRCUIT BRAKE CYLINDER;CONNECTION:
"22"
T YYYYYYYYYYYY PART NAME MISSING
SEE FIG. NO.:
244
485 A 0009971548 SEAL RING
TWO-CIRCUIT BRAKE CYLINDER;CONNECTION:
"11,12,21,22"
485 A 0009971548 SEAL RING
TWO-CIRCUIT BRAKE CYLINDER;CONNECTION:
"11,12,21,22"
487 A 0004290927 THRUST RING
TWO-CIRCUIT BRAKE CYLINDER;CONNECTION:
"11,12,21,22"
487 A 0004290927 THRUST RING
TWO-CIRCUIT BRAKE CYLINDER;CONNECTION:
"11,12,21,22"
489 N 080705016003 NUT
TWO-CIRCUIT BRAKE CYLINDER;CONNECTION:
"11,12,21,22"
492 A 3879970086 PLUG
TWO-CIRCUIT BRAKE CYLINDER;CONNECTION:
"21,22"
495 N 915020014000 NUT
TWO-CIRCUIT BRAKE CYLINDER;CONNECTION:
"21,22"
496 N 000908016001 SCREW PLUG
TWO-CIRCUIT BRAKE CYLINDER;CONNECTION:
"11,12,21,22"
496 N 000908016001 SCREW PLUG
TWO-CIRCUIT BRAKE CYLINDER;CONNECTION:
"11,12,21,22"
497 A 0089979082 HOSE
TWO-CIRCUIT BRAKE VALVE BLEEDING
498 A 6174310073 BREATHER PIPE
TWO-CIRCUIT BRAKE VALVE BLEEDING
498 A 6174310073 BREATHER PIPE
TWO-CIRCUIT BRAKE VALVE BLEEDING
498 A 6174310173 BREATHER PIPE
TWO-CIRCUIT BRAKE VALVE BLEEDING
498 A 6174310173 BREATHER PIPE
TWO-CIRCUIT BRAKE VALVE BLEEDING
499 A 0019978390 LOOM TIE
TWO-CIRCUIT BRAKE VALVE BLEEDING
500 A 0014306481 VALVE
PRESSURE RATIO VALVE
500 A 0014306481 VALVE
PRESSURE RATIO VALVE
500C A 0019871746 SEALING CORD
TO 001 430 64 81
500C A 0019871746 SEALING CORD
TO 001 430 64 81
500E A 0089970445 SEAL RING
TO 001 430 64 81
500E A 0089970445 SEAL RING
TO 001 430 64 81
500H A 0089978648 SEAL RING
TO 001 430 64 81
500H A 0089978648 SEAL RING
TO 001 430 64 81
500L A 0004313223 VALVE
TO 001 430 64 81
500L A 0004313223 VALVE
TO 001 430 64 81
500N N 007603016401 SEAL RING
TO 001 430 64 81
500N N 007603016401 SEAL RING
TO 001 430 64 81
500Q A 0089978748 SEAL RING
TO 001 430 64 81
500Q A 0089978748 SEAL RING
TO 001 430 64 81
501 A 0004296134 ADAPTER FITTING
Repalced by: A 0069970072
501 A 0069970072 FITTING
PRESSURE RATIO VALVE,CONNECTION:
"1"
501 A 0069970072 FITTING
PRESSURE RATIO VALVE,CONNECTION:
"1"
502 A 6204312440 BRACKET
PRESSURE RATIO VALVE
502 A 6204312440 BRACKET
PRESSURE RATIO VALVE
502 A 6204312540 BRACKET
PRESSURE RATIO VALVE
502 A 6204312540 BRACKET
PRESSURE RATIO VALVE
503 N 913004008004 NUT
Repalced by: N 913004008001
503 N 913004008001 NUT
BRACKET TO CAB FLOOR
503 N 913004008001 NUT
BRACKET TO CAB FLOOR
504 N 007976004212 SHEET METAL SCREW
BRACKET TO CAB FLOOR
504 N 007976004212 SHEET METAL SCREW
BRACKET TO CAB FLOOR
505 N 915036012203 HOLLOW SCREW
PRESSURE RATIO VALVE,CONNECTION:
"1"
505 N 915036012203 HOLLOW SCREW
PRESSURE RATIO VALVE,CONNECTION:
"1"
506 N 915047012203 HOLLOW SCREW
PRESSURE RATIO VALVE,CONNECTION:
"2"
506 N 915047012203 HOLLOW SCREW
PRESSURE RATIO VALVE,CONNECTION:
"2"
507 N 007603016401 SEAL RING
PRESSURE RATIO VALVE,CONNECTIONS:
"1,2"
507 N 007603016401 SEAL RING
PRESSURE RATIO VALVE,CONNECTIONS:
"1,2"
508 N 000908016001 SCREW PLUG
PRESSURE RATIO VALVE,CONNECTION:
"2"
508 N 000908016001 SCREW PLUG
PRESSURE RATIO VALVE,CONNECTION:
"2"
508B A 0009971548 SEAL RING
PRESSURE RATIO VALVE,CONNECTIONS:
"1,2"
508B A 0009971548 SEAL RING
PRESSURE RATIO VALVE,CONNECTIONS:
"1,2"
508C A 0004290927 THRUST RING
PRESSURE RATIO VALVE,CONNECTIONS:
"1,2"
508C A 0004290927 THRUST RING
PRESSURE RATIO VALVE,CONNECTIONS:
"1,2"
A 0029900271 ELBOW FITTING
A 0029900871 ELBOW FITTING
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
FITTING TO CAB FLOOR
N 915036012203 HOLLOW SCREW
AT FITTING
N 915047012203 HOLLOW SCREW
AT FITTING
N 007603016401 SEAL RING
AT FITTING

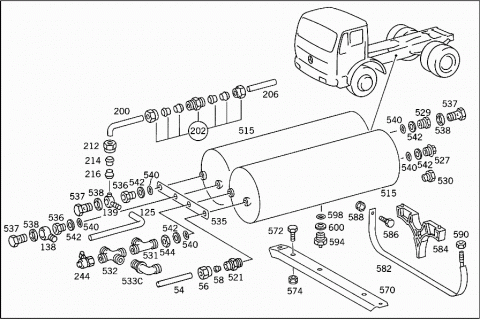

510 A 0004324801 RESERVOIR
Repalced by: A 0014327501
510 A 0014327501 RESERVOIR
Repalced by: A 0034321201
510 A 0034321201 RESERVOIR
AIR RESERVOIRS III AND IV
20 L
515 A 0004322601 RESERVOIR
Repalced by: A 0034321801
515 A 0034321801 RESERVOIR
AIR RESERVOIRS I AND II
30 L
521 A 0029971172 FITTING
AIR RESERVOIR
30 L
523 A 0009907771 ELBOW FITTING
AIR RESERVOIR,CONNECTION:
"14"
A 0019909771 ELBOW FITTING
AIR RESERVOIR,CONNECTION:
"13"
N 915052009009 BANJO UNION
AIR RESERVOIR,CONNECTION:
"13"
524 A 0019972172 FITTING
AIR RESERVOIR,CONNECTION:
"13"
524 A 0019972172 FITTING
AIR RESERVOIR,CONNECTION:
"13"
N 915036012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTION:
"13"
A 0009905168 FITTING
AIR RESERVOIR,CONNECTION:
"13"
N 007603016401 SEAL RING
AIR RESERVOIR,CONNECTION:
"13"
525 A 0009905168 FITTING
AIR RESERVOIR,CONNECTION:
"23"
525 A 0009905168 FITTING
AIR RESERVOIR,CONNECTION:
"23"
525H N 915036012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTION:
"23"
525H N 915036012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTION:
"23"
526 N 007603016401 SEAL RING
AIR RESERVOIR,CONNECTION:
"23"
527 N 000908022001 SCREW PLUG
Repalced by: N 000908022011
527 N 000908022011 SCREW PLUG
AIR RESERVOIR,CONNECTION:
N 007603022403 SEAL RING
AIR RESERVOIR,CONNECTION:
529 A 0009904468 FITTING
AIR RESERVOIR,CONNECTION:
"31"
530 A 0009905168 FITTING
AIR RESERVOIR,CONNECTION:
"14,31"
530 A 0009905168 FITTING
AIR RESERVOIR,CONNECTION:
"10,14,31"
531 A 0009903970 T-FITTING
Repalced by: A 0019901070
531 A 0019901070 T-FITTING
AIR RESERVOIRS II,III
532 A 0009902687 CROSS FITTING
AIR RESERVOIRS II,III
533 A 0019900470 T-FITTING
AIR RESERVOIR,CONNECTION:
"13"
533C A 0019903071 ELBOW FITTING
AIR RESERVOIR,CONNECTION:
"22"
534 A 0019972372 FITTING
AIR RESERVOIR,CONNECTION:
"24"
534 A 0019972372 FITTING
AIR RESERVOIR,CONNECTION:
"24"
535 A 3464320073 LOCK
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22"
535 A 3464320073 LOCK
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22"
536 A 0019907368 FITTING
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22"
536 A 0019907368 FITTING
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22"
537 N 915036012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22,31"
537 N 915036012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTIONS:
"10,11,12,21,22,31"
538 N 007603016401 SEAL RING
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22,31"
538 N 007603016401 SEAL RING
AIR RESERVOIR,CONNECTIONS:
"10,11,12,21,22,31"
540 A 0009870446 SEALING CORD
AIR RESERVOIR,CONNECTIONS:
"11,12,13,14,21,22,23,24,31,32"
542 A 0004290227 THRUST RING
AIR RESERVOIR,CONNECTIONS:
"11,12,13,14,21,22,23,24,31,32"
544 N 074305022202 NUT
AIR RESERVOIR,CONNECTIONS:
"2,13,14,23,24"
T YYYYYYYYYYYY PART NAME MISSING
SEE FIG. NO.:
244
552 A 3874320540 BRACKET
AIR RESERVOIRS III AND IV
554 N 000933008154 SCREW
Repalced by: N 304017008021
554 N 304017008021 SCREW
BRACKET TO APPARATUS SUPPORT
556 N 913004008004 NUT
Repalced by: N 913004008001
556 N 913004008001 NUT
BRACKET TO APPARATUS SUPPORT
T YYYYYYYYYYYY PART NAME MISSING
FOR BATTERY/APPARATUS SUPPORT, SEE GROUP 54
560 A 3874301240 STRAP
AIR RESERVOIR
560 A 6204301240 STRAP
AIR RESERVOIR III
560 A 6204301040 STRAP
AIR RESERVOIR III
562 A 6204300540 STRAP
AIR RESERVOIR III
562 A 6204300740 STRAP
AIR RESERVOIR III
563 A 6204300440 STRAP
AIR RESERVOIR III
563 A 6204300640 STRAP
AIR RESERVOIR III
565 A 6204300240 STRAP
AIR RESERVOIR III
565 A 3874300640 STRAP
AIR RESERVOIR IV
565 A 3874300640 STRAP
AIR RESERVOIR
570 A 3874321917 ANGLE
AIR RESERVOIR TO APPARATUS SUPPORT
572 N 000933010128 SCREW
AIR RESERVOIR TO APPARATUS SUPPORT
574 N 913004010008 NUT
Repalced by: N 910113010000
574 N 910113010000 NUT
AIR RESERVOIR TO APPARATUS SUPPORT
574 N 913004010008 NUT
Repalced by: N 910113010000
574 N 910113010000 NUT
STRAP TO BRACKET
582 A 3874300740 STRAP
AIR RESERVOIR TO FRAME
582 A 6204300040 STRAP
AIR RESERVOIRS I AND II
582 A 6204300040 STRAP
AIR RESERVOIRS I AND II
584 A 3854320218 BASE
AIR RESERVOIR,STRAP
584 A 6204320018 BASE
AIR RESERVOIR,STRAP
584 A 6204320018 BASE
AIR RESERVOIR,STRAP
586 N 000933010105 SCREW
AIR RESERVOIR,STRAP
N 001440010002 WASHER
AIR RESERVOIR,STRAP
588 N 913004010008 NUT
Repalced by: N 910113010000
588 N 910113010000 NUT
AIR RESERVOIR,STRAP
590 N 000934010014 NUT
AIR RESERVOIR,STRAP
594 A 0004321107 VALVE
DRAIN
594 A 0004322107 VALVE
DRAIN
594 A 0004322407 VALVE
DRAIN
594 A 0004322407 VALVE
AIR RESERVOIR
A 0005830296 RING
DRAIN VALVE
598 A 0009870446 SEALING CORD
DRAIN VALVE TO AIR RESERVOIR
600 A 0004290227 THRUST RING
DRAIN VALVE TO AIR RESERVOIR
A 0009904468 FITTING
604 A 0024295844 VALVE
(CHECK VALVE)
604 A 0024295944 VALVE
(CHECK VALVE)
604 A 0024297544 VALVE
(CHECK VALVE)
604E A 0024299644 VALVE
(CHECK VALVE)
VOSS
604E A 0024299644 VALVE
(CHECK VALVE)
VOSS
604N A 0034290444 VALVE
(CHECK VALVE)
WABCO
604N A 0034290444 VALVE
(CHECK VALVE)
WABCO
605 A 0034291244 VALVE
(CHECK VALVE)
SCHAEFER
605 A 0034291244 VALVE
(CHECK VALVE)
SCHAEFER
605A A 0004290383 VALVE TAPPET
TO 002 429 96 44,VOSS
605C A 0002950320 VALVE
TO 003 429 04 44,WABCO
605C A 0002950320 VALVE
TO 003 429 04 44,WABCO
605D A 0089977348 SEAL RING
TO 003 429 04 44,WABCO
605D A 0089977348 SEAL RING
TO 003 429 04 44,WABCO
605F A 0004292584 SEAL RING
TO 002 429 96 44,VOSS
605F A 0004292584 SEAL RING
TO 002 429 96 44,VOSS
605H A 0109970048 SEAL RING
13.6X2 TO 003 429 12 44,SCHAEFER
605H A 0109970048 SEAL RING
13.6X2 TO 003 429 12 44,SCHAEFER
605L A 0109970148 SEAL RING
15.3X2.4 TO 003 429 12 44,SCHAEFER
605L A 0109970148 SEAL RING
15.3X2.4 TO 003 429 12 44,SCHAEFER
605P A 0004290662 THRUST WASHER
TO 003 429 12 44,SCHAEFER
605P A 0004290662 THRUST WASHER
TO 003 429 12 44,SCHAEFER
605S A 0004290728 SEAL CONE
TO 003 429 12 44,SCHAEFER
605S A 0004290728 SEAL CONE
TO 003 429 12 44,SCHAEFER
606 A 0009907771 ELBOW FITTING
AIR RESERVOIR,CONNECTION:
"23"
608 A 0009870446 SEALING CORD
AIR RESERVOIR,CONNECTION:
"23"
610 A 0004290227 THRUST RING
AIR RESERVOIR,CONNECTION:
"23"
612 N 074305022202 NUT
AIR RESERVOIR,CONNECTION:
"23"
612C N 000908016001 SCREW PLUG
CHECK VALVE,CONNECTION:
"22"
612C N 000908016001 SCREW PLUG
CHECK VALVE,CONNECTION:
"22"
612D A 0004290927 THRUST RING
CHECK VALVE,CONNECTION:
"22"
612D A 0004290927 THRUST RING
CHECK VALVE,CONNECTION:
"22"
612E A 0009971548 SEAL RING
CHECK VALVE,CONNECTION:
"22"
612E A 0009971548 SEAL RING
CHECK VALVE,CONNECTION:
"22"
612H N 915036012203 HOLLOW SCREW
CHECK VALVE,CONNECTION:
"21"
612H N 915036012203 HOLLOW SCREW
CHECK VALVE,CONNECTION:
"21"
612K N 007603016401 SEAL RING
CHECK VALVE,CONNECTION:
"21"
612K N 007603016401 SEAL RING
CHECK VALVE,CONNECTION:
"21"
612N N 915036010204 HOLLOW SCREW
Repalced by: N 915036010108
612N N 915036010108 HOLLOW SCREW
CHECK VALVE,CONNECTION:
"23"
612N N 915036010108 HOLLOW SCREW
CHECK VALVE,CONNECTION:
"23"
612P N 007603014405 SEAL RING
CHECK VALVE,CONNECTION:
"23"
612P N 007603014405 SEAL RING
CHECK VALVE,CONNECTION:
"23"
N 915045012100 SEAL RING
Repalced by: N 007603012121
N 007603012121 SEAL RING
CHECK VALVE,CONNECTION:
"10"
613 A 6204292540 BRACKET
Repalced by: A 6164290140
613 A 6164290140 BRACKET
CHECK VALVE
613 A 6164290140 BRACKET
CHECK VALVE
613D N 074305022202 NUT
CHECK VALVE TO BRACKET
613D N 074305022202 NUT
CHECK VALVE TO BRACKET
613F N 000933010260 SCREW
BRACKET TO SIDE MEMBER
613F N 000933010260 SCREW
BRACKET TO SIDE MEMBER
613H N 913004010008 NUT
Repalced by: N 910113010000
613H N 910113010000 NUT
BRACKET TO SIDE MEMBER
613H N 910113010000 NUT
BRACKET TO SIDE MEMBER
614 A 0024290044 VALVE
Repalced by: A 0044293144
614 A 0044293144 VALVE
(OVERFLOW VALVE)
WABCO
615 A 0024297044 VALVE
Repalced by: A 0044293244
615 A 0044293244 VALVE
(OVERFLOW VALVE)
GRAU
616 A 0014296544 VALVE
Repalced by: A 0044293144
616 A 0044293144 VALVE
(OVERFLOW VALVE)
WABCO
618 A 0024298844 VALVE
TO 002 429 70 44,GRAU
620 A 0004290745 DIAPHRAGM
TO 002 429 70 44,GRAU
A 0004290645 DIAPHRAGM
Repalced by: A 0004290745
A 0004290745 DIAPHRAGM
TO 004 429 32 44
622 A 0015862042 REPAIR KIT
TO 001 429 65 44,WABCO
623 A 0015862642 REPAIR KIT
TO 002 429 00 44,BOSCH
623K A 0029971172 FITTING
OVERFLOW VALVE,CONNECTION:
"10"
624 A 0009905168 FITTING
OVERFLOW VALVE,CONNECTION:
"1"
626 A 0009870446 SEALING CORD
OVERFLOW VALVE,CONNECTION:
"1"
628 A 0004290227 THRUST RING
OVERFLOW VALVE,CONNECTION:
"1"
630 N 915036012203 HOLLOW SCREW
OVERFLOW VALVE,CONNECTION:
"1"
632 N 007603016401 SEAL RING
OVERFLOW VALVE,CONNECTION:
"1"
666 A 0034295344 VALVE
RELAY VALVE
KNORR
668 A 0014296844 VALVE
RELAY VALVE
WABCO
670 A 0034291644 VALVE
RELAY VALVE
BOSCH
671 A 0014299144 VALVE
RELAY VALVE
GRAU
671B A 0059972648 SEAL RING
22.3X2.4MM,TO 001 429 91 44,GRAU
671D A 0004312788 VALVE SEAT
TO 001 429 91 44,GRAU
671F A 0059972748 SEAL RING
80X3 MM,TO 000 429 28 95, GRAU
671H A 0014311660 SEAL RING
28X2 MM,TO 001 429 91 44,GRAU
671L A 0014311760 SEAL RING
86X2 MM,TO 001 429 91 44,GRAU
671N A 0004311980 GASKET
TO 001 429 91 44,GRAU
672 A 0025865642 REPAIR KIT
Repalced by: A 0004201071
672 A 0004201071 VALVE
GASKET KIT
TO 003 429 16 44,BOSCH; UP TO 03.82
672 A 0004201271 VALVE
GASKET KIT
TO 003 429 16 44,BOSCH; FROM 04.82
673 A 0025865742 REPAIR KIT
Repalced by: A 0004301109
673 A 0004301109 REPAIR KIT
BLEEDER VALVE
TO 003 429 16 44,BOSCH
674 A 0025863542 REPAIR KIT
TO 003 429 53 44,KNORR
675 A 0005865742 REPAIR KIT
TO 001 429 68 44,WABCO
680 A 0009905168 FITTING
RELAY VALVE,CONNECTION:
"1"
682 N 915036012203 HOLLOW SCREW
RELAY VALVE,CONNECTION:
"1,2,4"
684 N 007603016401 SEAL RING
RELAY VALVE,CONNECTION:
"1,2,4"
688 A 0029971572 FITTING
RELAY VALVE,CONNECTION:
"2"
690 A 0004290927 THRUST RING
RELAY VALVE,CONNECTION:
"2"
692 A 0004290227 THRUST RING
RELAY VALVE,CONNECTION:
"1"
694 A 0009971548 SEAL RING
RELAY VALVE,CONNECTION:
"2"
696 A 0009870446 SEALING CORD
RELAY VALVE,CONNECTION:
"1"
700 N 000908016001 SCREW PLUG
RELAY VALVE,CONNECTION:
"2"
704 A 3914311240 BRACKET
RELAY VALVE
706 N 913004008004 NUT
Repalced by: N 913004008001
706 N 913004008001 NUT
RELAY VALVE TO BRACKET
708 N 000933008153 SCREW
Repalced by: N 304017008034
708 N 304017008034 SCREW
RELAY VALVE TO CROSS MEMBER
710 N 913004008004 NUT
Repalced by: N 913004008001
710 N 913004008001 NUT
BRACKET TO LEFT SIDE MEMBER
715 A 0014315406 VALVE
BRAKE POWER REGULATOR
716 A 0014314412 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
716 A 0014314412 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
718 A 0004317287 PROTECTIVE CAP
720 A 0005869843 REPAIR KIT
TO 001 431 54 06
722 A 0004303660 REPAIR KIT
TO 001 431 44 12
724 A 3875843421 GUIDE SIGN
LOAD-DEPENDING BRAKE
724 A 6205842421 GUIDE SIGN
LOAD-DEPENDING BRAKE
A 3875840055 ADHESIVE FOIL
A 3875840055 ADHESIVE FOIL
725 A 3854317040 BRACKET
BRAKE POWER REGULATOR
725 A 3854317040 BRACKET
BRAKE POWER REGULATOR
726 N 913004008004 NUT
Repalced by: N 913004008001
726 N 913004008001 NUT
BRAKE POWER REGULATOR TO BRACKET
726 N 913004008001 NUT
BRAKE POWER REGULATOR TO BRACKET
728 N 000933008153 SCREW
Repalced by: N 304017008034
728 N 304017008034 SCREW
BRAKE POWER REGULATOR TO CROSS MEMBER
730 N 913004008004 NUT
Repalced by: N 913004008001
730 N 913004008001 NUT
BRAKE POWER REGULATOR TO CROSS MEMBER
732 N 000908016001 SCREW PLUG
BRAKE POWER REGULATOR,CONNECTION:
"2"
732 N 000908016001 SCREW PLUG
BRAKE POWER REGULATOR,CONNECTION:
"2"
734 A 0019974872 FITTING
BRAKE PRESSURE REGULATOR CONNECTION
736 N 915039012205 HOLLOW SCREW FITTING
BRAKE POWER REGULATOR,CONNECTION:
"4"
742 A 0009907771 ELBOW FITTING
BRAKE PRESSURE REGULATOR CONNECTION
744 N 915036012203 HOLLOW SCREW
BRAKE POWER REGULATOR,CONNECTION:
"1,2"
744 N 915036012203 HOLLOW SCREW
BRAKE POWER REGULATOR,CONNECTION:
"1,2"
746 A 0009870446 SEALING CORD
BRAKE PRESSURE REGULATOR CONNECTION
746E N 007603016401 SEAL RING
BRAKE POWER REGULATOR,CONNECTION:
"1,2,4"
746E N 007603016401 SEAL RING
BRAKE POWER REGULATOR,CONNECTION:
"1,2,4"
747 A 0009971548 SEAL RING
BRAKE POWER REGULATOR,CONNECTION:
"2"
747 A 0009971548 SEAL RING
BRAKE POWER REGULATOR,CONNECTION:
"2"
748 A 0004290227 THRUST RING
BRAKE PRESSURE REGULATOR CONNECTION
749 A 0004290927 THRUST RING
BRAKE POWER REGULATOR,CONNECTION:
"2"
749 A 0004290927 THRUST RING
BRAKE POWER REGULATOR,CONNECTION:
"2"
750 N 074305022202 NUT
BRAKE PRESSURE REGULATOR CONNECTION
760 A 0094209518 WHEEL BRAKE CYLINDER
TRISTOP CYLINDER
GRAU
760 A 0074205718 WHEEL BRAKE CYLINDER
TRISTOP CYLINDER
WABCO
760 A 0084208918 WHEEL BRAKE CYLINDER
TRISTOP CYLINDER
BOSCH
760 A 0084205818 WHEEL BRAKE CYLINDER
TRISTOP CYLINDER
KNORR
760C A 0004231060 SEAL RING
TO 008 420 58 18,KNORR
760K A 0004234187 PROTECTIVE CAP
TO 008 420 58 18,KNORR
760R A 0004313028 DIAPHRAGM
TO 008 420 89 18,BOSCH
761 A 0004214886 CUP
Repalced by: A 0004213886
A 0004213886 CUP
TO 007 420 57 18,WABCO
761D A 0004212986 DIAPHRAGM
TO 007 420 57 18,WABCO
761H A 0004312928 DIAPHRAGM
TO 008 420 58 18,KNORR
761N A 0004210111 PLUG
TO 007 420 57 18,WABCO
761S A 0004211263 GUIDE
Repalced by: N 071752014000
761S N 071752014000 YOKE
TO 008 420 89 18,BOSCH
762 A 0004304160 REPAIR KIT
Repalced by: A 0024209824
762 A 0024209824 REPAIR KIT
Repalced by: A 0024209524
A 0024209524 REPAIR KIT
DIAPHRAGM PART
TO 008 420 58 18,KNORR
762 A 0024209424 REPAIR KIT
SPRING LOAD ACCUMULATOR PART
TO 008 420 58 18,KNORR
762 A 0014308660 REPAIR KIT
TRISTOP CYLINDER
TO 008 420 89 18;BOSCH
763 A 0025863742 REPAIR KIT
Repalced by: A 0025865242
763 A 0025865242 REPAIR KIT
Repalced by: A 0024301560
763 A 0024301560 REPAIR KIT
TRISTOP CYLINDER
TO 007 420 57 18,WABCO
765 A 3894201878 BEARING BRACKET
Repalced by: A 6204201278
765 A 6204201278 BEARING BRACKET
TRISTOP CYLINDER
765 A 6204201278 BEARING BRACKET
TRISTOP CYLINDER
768 N 000961016036 SCREW
Repalced by: N 308676016013
768 N 308676016013 SCREW
BEARING BRACKET TO REAR AXLE
768 N 914125020501 SCREW
BEARING BRACKET TO REAR AXLE
M 20X50
768 N 914125020501 SCREW
BEARING BRACKET TO REAR AXLE
M 20X50
768 N 000961016077 SCREW
Repalced by: N 308676016006
768 N 308676016006 SCREW
BEARING BRACKET TO REAR AXLE
M 16X45
768 N 308676016006 SCREW
BEARING BRACKET TO REAR AXLE
M 16X45
768 N 000961016058 SCREW
M 16X70
768 N 000961016058 SCREW
M 16X70
770 N 001481028002 CLAMPING SLEEVE
BEARING BRACKET TO REAR AXLE
772 N 913004016004 NUT
Repalced by: N 910113016002
772 N 910113016002 NUT
TRISTOP CYLINDER TO BEARING BRACKET
775 A 3874230006 BRAKE ANCHOR
TRISTOP CYLINDER
778 N 000961014028 SCREW
SUPPORT TO BEARING BRACKET
780 N 913004014002 NUT
Repalced by: N 910113014001
780 N 910113014001 NUT
SUPPORT TO BEARING BRACKET
784 A 3619910005 PIN
AT TRISTOP CYLINDER
786 N 000433015002 WASHER
Repalced by: N 000433015005
786 N 000433015005 WASHER
AT TRISTOP CYLINDER
788 N 000094004051 COTTER PIN
AT TRISTOP CYLINDER
T YYYYYYYYYYYY PART NAME MISSING
SEE FIG. NO.:
244
805 N 915039012205 HOLLOW SCREW FITTING
CONNECTION TO TRISTOP CYLINDER
805 N 915039012205 HOLLOW SCREW FITTING
CONNECTION TO TRISTOP CYLINDER
806 N 915040012206 HOLLOW SCREW FITTING
CONNECTION TO TRISTOP CYLINDER
806 N 915040012206 HOLLOW SCREW FITTING
CONNECTION TO TRISTOP CYLINDER
807 N 007603016401 SEAL RING
CONNECTION TO TRISTOP CYLINDER
808 N 915047012203 HOLLOW SCREW
CONNECTION TO TRISTOP CYLINDER
809 N 915036012203 HOLLOW SCREW
CONNECTION TO TRISTOP CYLINDER
809 N 915036012203 HOLLOW SCREW
CONNECTION TO TRISTOP CYLINDER
810 A 0004305581 VALVE
HAND BRAKE VALVE
WABCO
810 A 0004306681 VALVE
HAND BRAKE VALVE
KNORR
810 A 0004305681 VALVE
HAND BRAKE VALVE
WABCO
810 A 0004306781 VALVE
HAND BRAKE VALVE
KNORR
811 A 0014303481 VALVE
PARKING BRAKE VALVE
BOSCH
811 A 0014303481 VALVE
PARKING BRAKE VALVE
BOSCH
811 A 0014305681 VALVE
PARKING BRAKE VALVE
WABCO
811 A 0014305681 VALVE
PARKING BRAKE VALVE
WABCO
811 A 0014306681 VALVE
Repalced by: A 0024309881
811 A 0024309881 VALVE
PARKING BRAKE VALVE
KNORR
811 A 0024309881 VALVE
PARKING BRAKE VALVE
KNORR
811 A 0014304381 VALVE
PARKING BRAKE VALVE
BOSCH
811 A 0014304381 VALVE
PARKING BRAKE VALVE
BOSCH
811 A 0014305781 VALVE
PARKING BRAKE VALVE
WABCO
811 A 0014305781 VALVE
PARKING BRAKE VALVE
WABCO
811 A 0014306781 VALVE
Repalced by: A 0024309981
811 A 0024309981 VALVE
PARKING BRAKE VALVE
KNORR
811 A 0024309981 VALVE
PARKING BRAKE VALVE
KNORR
812 A 0009973477 HANDLE
HAND BRAKE LEVER
TO 001 430 34 81,001 430 43 81,BOSCH
812 A 0009973477 HANDLE
HAND BRAKE LEVER
TO 001 430 34 81,001 430 43 81,BOSCH
812E A 0009972477 HANDLE
TO 001 430 56 81, 001 430 57 81,WABCO
812E A 0009972477 HANDLE
TO 001 430 56 81, 001 430 57 81,WABCO
A 0009975577 HANDLE
KNORR
A 0009975577 HANDLE
KNORR
813 A 0014310887 PROTECTIVE CAP
TO 001 430 56 81,57 81,WABCO
A 0014311287 PROTECTIVE CAP
KNORR
A 0014311287 PROTECTIVE CAP
KNORR
813F A 0014311087 PROTECTIVE CAP
TO 001 430 34 81,43 81,BOSCH
N 001481003025 CLAMPING SLEEVE
KNORR
N 001481003025 CLAMPING SLEEVE
KNORR
815 A 0005868043 REPAIR KIT
Repalced by: A 0004305760
815 A 0004305760 REPAIR KIT
TO 000 430 55 81,WABCO
815 A 0005868143 REPAIR KIT
Repalced by: A 0004305860
815 A 0004305860 REPAIR KIT
TO 000 430 56 81,WABCO
815 A 0025866243 REPAIR KIT
Repalced by: A 0034303881
815 A 0034303881 REPAIR KIT
TO 000 430 66 81,000 431 67 81,KNORR
816 A 0025867443 REPAIR KIT
Repalced by: A 0034303181
816 A 0034303181 REPAIR KIT
TO 001 430 56 81, 001 430 57 81,WABCO
816 A 0034303181 REPAIR KIT
TO 001 430 56 81, 001 430 57 81,WABCO
A 0034302081 REPAIR KIT
TO 002 430 98 81,002 430 99 81,KNORR
A 0034302081 REPAIR KIT
TO 002 430 98 81,002 430 99 81,KNORR
816E A 0025866343 REPAIR KIT
GASKET KIT
TO 001 430 34 81, 001 430 43 81,BOSCH
816E A 0025866343 REPAIR KIT
GASKET KIT
TO 001 430 34 81, 001 430 43 81,BOSCH
817 A 0035860543 REPAIR KIT
TO 001 430 66 81, 001 430 67 81,KNORR
817 A 0035860543 REPAIR KIT
TO 001 430 66 81, 001 430 67 81,KNORR
818 N 007603014405 SEAL RING
CONNECTION TO VALVE
820 N 915036010204 HOLLOW SCREW
Repalced by: N 915036010108
820 N 915036010108 HOLLOW SCREW
CONNECTION TO VALVE
822 A 0009976189 COUPLING
PARKING BRAKE VALVE,CONNECTIONS:
"11,21"
822 A 0009976189 COUPLING
PARKING BRAKE VALVE,CONNECTIONS:
"11,21"
823 A 0099973948 SEAL RING
823 A 0099973948 SEAL RING
824 N 000965006003 SCREW
VALVE TO CAB
M 6X25
824 N 000965006040 SCREW
VALVE TO CAB
M 6X30
828 A 3874310684 SHIM
VALVE TO CAB
830 N 007985008119 SCREW
HAND BRAKE VALVE TO INSTRUMENT PANEL
830 N 007985008119 SCREW
HAND BRAKE VALVE TO INSTRUMENT PANEL
832 N 912006008000 LOCK WASHER
HAND BRAKE VALVE TO INSTRUMENT PANEL
832 N 912006008000 LOCK WASHER
HAND BRAKE VALVE TO INSTRUMENT PANEL
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
