Transporto priemonė: 1628 LS; VIN numerio dalis: 620512

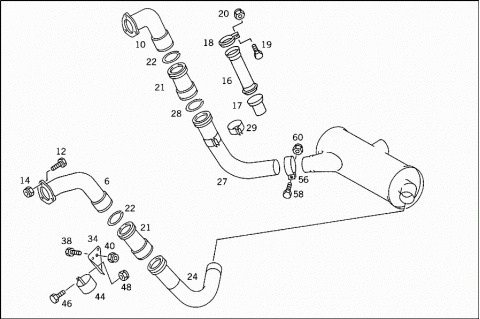

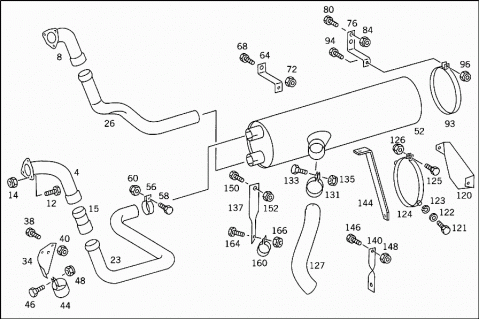

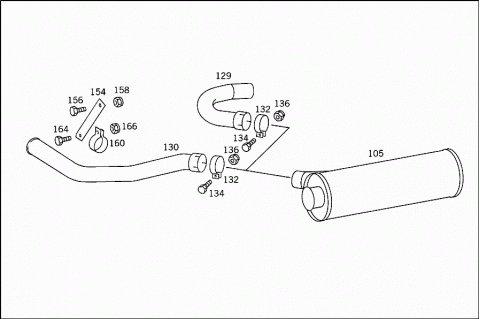

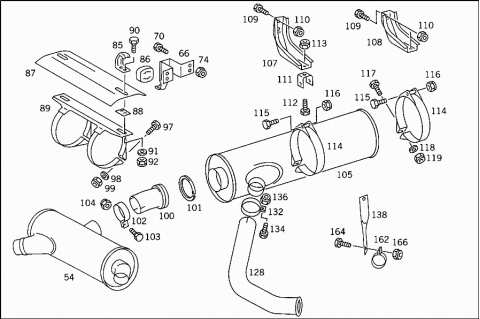

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 004 | A 3874900725 | CONNECTOR |
| Repalced by: A 3874902725 | ||
| 004 | A 3874902725 | CONNECTOR |
| LEFT FRONT | ||
| 006 | A 6204902125 | CONNECTOR |
| LEFT FRONT | ||
| 006 | A 6204902125 | CONNECTOR |
| LEFT FRONT | ||
| 006 | A 6214900925 | CONNECTOR |
| LEFT FRONT | ||
| 006 | A 6204902625 | CONNECTOR |
| LEFT FRONT | ||
| 006 | A 6204900925 | CONNECTOR |
| LEFT FRONT | ||
| 006 | A 6204901925 | CONNECTOR |
| LEFT FRONT | ||
| 006 | A 6204902425 | CONNECTOR |
| LEFT FRONT | ||
| 008 | A 3874900925 | CONNECTOR |
| Repalced by: A 3874902625 | ||
| 008 | A 3874902625 | CONNECTOR |
| RIGHT FRONT | ||
| 010 | A 6204902225 | CONNECTOR |
| RIGHT FRONT | ||
| 010 | A 6204902225 | CONNECTOR |
| RIGHT FRONT | ||
| 010 | A 6204901025 | CONNECTOR |
| RIGHT FRONT | ||
| 010 | A 6214900825 | CONNECTOR |
| RIGHT FRONT | ||
| 010 | A 6204902725 | CONNECTOR |
| RIGHT FRONT | ||
| 010 | A 6204901825 | CONNECTOR |
| RIGHT FRONT | ||
| 010 | A 6204902525 | CONNECTOR |
| RIGHT FRONT | ||
| 012 | N 000931012132 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 12 X 50 | ||
| N 000931012114 | SCREW | |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 12X45 | ||
| 012 | N 000931012254 | SCREW |
| Repalced by: N 000931012186 | ||
| 012 | N 000931012186 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 12 X 70 | ||
| N 000931012179 | SCREW | |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 12X65 | ||
| 014 | N 913004012010 | NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 015 | A 3874921209 | CONNECTOR |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 016 | A 6204900365 | FLEXIBLE METAL TUBE |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 016 | A 6204900365 | FLEXIBLE METAL TUBE |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 016 | A 6204900465 | FLEXIBLE METAL TUBE |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 016 | A 6204900465 | FLEXIBLE METAL TUBE |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 017 | A 6204920008 | COLLAR |
| Repalced by: A 6524920008 | ||
| 017 | A 6524920008 | COLLAR |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 017 | A 6174920008 | COLLAR |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 017 | A 6174920008 | COLLAR |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 017 | A 6204920208 | COLLAR |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 017 | A 6204920208 | COLLAR |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 018 | A 6209970490 | CLAMP |
| EXHAUST LINE FLEXIBLE METAL TUBE | ||
| 018 | A 6209970490 | CLAMP |
| EXHAUST LINE FLEXIBLE METAL TUBE | ||
| 018 | A 6209970590 | CLAMP |
| EXHAUST LINE FLEXIBLE METAL TUBE | ||
| 018 | A 6209970590 | CLAMP |
| EXHAUST LINE FLEXIBLE METAL TUBE | ||
| 019 | N 000933008161 | SCREW |
| Repalced by: N 304017008028 | ||
| 019 | N 304017008028 | SCREW |
| CLAMP TO CONNECTOR | ||
| 019 | N 304017008028 | SCREW |
| CLAMP TO CONNECTOR | ||
| 020 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 020 | N 913004008001 | NUT |
| CLAMP TO CONNECTOR | ||
| 020 | N 913004008001 | NUT |
| CLAMP TO CONNECTOR | ||
| 021 | A 6204901625 | CONNECTOR |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 021 | A 6204900625 | CONNECTOR |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 022 | A 0001423957 | SEAL RING |
| 022 | A 0001424257 | SEAL RING |
| 023 | A 3894902219 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 023 | A 3894901219 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 024 | A 6204901219 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 024 | A 6204900819 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 024 | A 6244900719 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 024 | A 6244900719 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 024 | A 6204900219 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 024 | A 6244901119 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 024 | A 6244901119 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 026 | A 3894902319 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 026 | A 3894901319 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 027 | A 6204901319 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 027 | A 6204900919 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 027 | A 6244900819 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 027 | A 6244900819 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 027 | A 6204900319 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 027 | A 6244901219 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 027 | A 6244901219 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 028 | A 0001423957 | SEAL RING |
| 028 | A 0001424257 | SEAL RING |
| 029 | A 3874920240 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 034 | A 3874925941 | BRACKET |
| LEFT EXHAUST PIPE | ||
| 034 | A 6204923441 | BRACKET |
| LEFT EXHAUST PIPE | ||
| 034 | A 6204923441 | BRACKET |
| LEFT EXHAUST PIPE | ||
| 034 | A 6204920041 | BRACKET |
| LEFT EXHAUST PIPE | ||
| 034 | A 6234920241 | BRACKET |
| LEFT EXHAUST PIPE | ||
| 034 | A 3874926041 | BRACKET |
| RIGHT EXHAUST PIPE | ||
| 034 | A 6204923541 | BRACKET |
| RIGHT EXHAUST PIPE | ||
| 034 | A 6204923541 | BRACKET |
| RIGHT EXHAUST PIPE | ||
| 034 | A 6204920141 | BRACKET |
| RIGHT EXHAUST PIPE | ||
| 034 | A 6234920341 | BRACKET |
| RIGHT EXHAUST PIPE | ||
| 038 | N 000933010145 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 10X35 MM | ||
| 040 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 040 | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 044 | A 3874920240 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 044 | A 6204920840 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 044 | A 6204920840 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 044 | A 6234920140 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 044 | A 6204920940 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 044 | A 6204920940 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 046 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 046 | N 304017008027 | SCREW |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 046 | N 304017008027 | SCREW |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 046 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 046 | N 304017010002 | SCREW |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 046 | N 304017010002 | SCREW |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 048 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 048 | N 913004008001 | NUT |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 048 | N 913004008001 | NUT |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 048 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 048 | N 910113010000 | NUT |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 048 | N 910113010000 | NUT |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 052 | A 3874900501 | EXHAUST MUFFLER |
| 052 | A 3874900601 | EXHAUST MUFFLER |
| 054 | A 6204900701 | EXHAUST MUFFLER |
| FRONT | ||
| 054 | A 6204900701 | EXHAUST MUFFLER |
| FRONT | ||
| 056 | N 071555078502 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 056 | N 071555090501 | CLAMP |
| Repalced by: N 071555090502 | ||
| 056 | N 071555090502 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 056 | N 071555094501 | CLAMP |
| Repalced by: N 071555094502 | ||
| 056 | N 071555094502 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 058 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 058 | N 304017008027 | SCREW |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| M 8 X 30 | ||
| 058 | N 000933008154 | SCREW |
| Repalced by: N 304017008021 | ||
| 058 | N 304017008021 | SCREW |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| M 8X22 | ||
| 058 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 058 | N 304017010002 | SCREW |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| M 10X30 | ||
| 060 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 060 | N 913004008001 | NUT |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 060 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 060 | N 910113010000 | NUT |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 064 | A 3894912441 | BRACKET |
| FRONT EXHAUST MUFFLER | ||
| 064 | A 3874914841 | BRACKET |
| FRONT EXHAUST MUFFLER | ||
| 066 | A 6204900034 | SUPPORT |
| FRONT EXHAUST MUFFLER | ||
| 066 | A 6204900034 | SUPPORT |
| FRONT EXHAUST MUFFLER | ||
| 068 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 068 | N 308676012026 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 070 | N 000961014028 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X1.5X40 | ||
| 070 | N 000961014028 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X1.5X40 | ||
| 070 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 070 | N 308676014020 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X1.5X35 | ||
| 070 | N 308676014020 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X1.5X35 | ||
| 072 | N 910113012002 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 074 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 074 | N 910113014001 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 074 | N 910113014001 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 076 | A 3894912641 | BRACKET |
| REAR EXHAUST MUFFLER | ||
| 076 | A 3874915541 | BRACKET |
| REAR EXHAUST MUFFLER | ||
| 076 | A 3874915141 | BRACKET |
| REAR EXHAUST MUFFLER | ||
| 080 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 080 | N 308676012026 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M12X35 | ||
| 080 | N 308676012026 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M12X35 | ||
| 080 | N 000961012122 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 12X40 MM | ||
| 084 | N 910113012002 | NUT |
| BRACKETS TO CROSS AND SIDE MEMBERS | ||
| 085 | A 6204910141 | BRACKET |
| FRONT EXHAUST MUFFLER | ||
| 085 | A 6204910141 | BRACKET |
| FRONT EXHAUST MUFFLER | ||
| 086 | A 3814920082 | DAMPING PAD |
| EXHAUST MUFFLER TO BRACKET | ||
| 086 | A 3814920082 | DAMPING PAD |
| EXHAUST MUFFLER TO BRACKET | ||
| 087 | A 6204910030 | PROTECTIVE PLATE |
| FRONT EXHAUST MUFFLER | ||
| 087 | A 6204910030 | PROTECTIVE PLATE |
| FRONT EXHAUST MUFFLER | ||
| 088 | A 6204920118 | BASE PLATE |
| SUPPORT AND PROTECTIVE PLATE TO BRACKET | ||
| 089 | A 6204900051 | SUPPORT |
| FRONT EXHAUST MUFFLER | ||
| 089 | A 6204900051 | SUPPORT |
| FRONT EXHAUST MUFFLER | ||
| 090 | N 000933008160 | SCREW |
| Repalced by: N 304017008040 | ||
| 090 | N 304017008040 | SCREW |
| Repalced by: N 910105008010 | ||
| 090 | N 910105008010 | SCREW |
| Repalced by: N 910143008005 | ||
| 090 | N 910143008005 | SCREW |
| SUPPORT AND PROTECTIVE PLATE TO BRACKET | ||
| 090 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 090 | N 304017008021 | SCREW |
| SUPPORT AND PROTECTIVE PLATE TO BRACKET | ||
| 090 | N 304017008021 | SCREW |
| SUPPORT AND PROTECTIVE PLATE TO BRACKET | ||
| 090 | N 304017008021 | SCREW |
| SUPPORT AND PROTECTIVE PLATE TO BRACKET | ||
| 091 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 091 | N 000125008443 | WASHER |
| SUPPORT AND PROTECTIVE PLATE TO BRACKET | ||
| 091 | N 000125008443 | WASHER |
| SUPPORT AND PROTECTIVE PLATE TO BRACKET | ||
| 092 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 092 | N 913004008001 | NUT |
| SUPPORT AND PROTECTIVE PLATE TO BRACKET | ||
| 092 | N 913004008001 | NUT |
| SUPPORT AND PROTECTIVE PLATE TO BRACKET | ||
| 093 | A 3354910040 | CLAMP |
| Repalced by: A 3874900041 | ||
| 093 | A 3874900041 | CLAMP |
| EXHAUST MUFFLER TO BRACKET,FRONT AND REAR | ||
| 094 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 094 | N 304017010002 | SCREW |
| EXHAUST MUFFLER TO BRACKET,FRONT AND REAR | ||
| 096 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 096 | N 910113010000 | NUT |
| EXHAUST MUFFLER TO BRACKET,FRONT AND REAR | ||
| 097 | N 000933008119 | SCREW |
| Repalced by: N 304017008042 | ||
| 097 | N 304017008042 | SCREW |
| EXHAUST MUFFLER TO SUPPORT | ||
| 097 | N 304017008042 | SCREW |
| EXHAUST MUFFLER TO SUPPORT | ||
| 098 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 098 | N 000125008443 | WASHER |
| EXHAUST MUFFLER TO SUPPORT | ||
| 098 | N 000125008443 | WASHER |
| EXHAUST MUFFLER TO SUPPORT | ||
| 099 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 099 | N 913004008001 | NUT |
| EXHAUST MUFFLER TO SUPPORT | ||
| 099 | N 913004008001 | NUT |
| EXHAUST MUFFLER TO SUPPORT | ||
| 100 | A 6204900021 | EXHAUST PIPE |
| FROM FRONT MUFFLER TO REAR MUFFLER | ||
| 100 | A 6204900021 | EXHAUST PIPE |
| FROM FRONT MUFFLER TO REAR MUFFLER | ||
| 100 | A 6204901621 | EXHAUST PIPE |
| FROM FRONT MUFFLER TO REAR MUFFLER | ||
| 101 | A 0001424457 | SEAL RING |
| 101 | A 0001424457 | SEAL RING |
| 102 | N 071555110501 | CLAMP |
| EXHAUST PIPE TO FRONT EXHAUST MUFFLER | ||
| 102 | N 071555110501 | CLAMP |
| EXHAUST PIPE TO FRONT EXHAUST MUFFLER | ||
| 103 | N 000933010105 | SCREW |
| TO CLAMP PIPE CLAMPS | ||
| 103 | N 000933010105 | SCREW |
| TO CLAMP PIPE CLAMPS | ||
| 104 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 104 | N 910113010000 | NUT |
| TO CLAMP PIPE CLAMPS | ||
| 104 | N 910113010000 | NUT |
| TO CLAMP PIPE CLAMPS | ||
| 105 | A 6204900601 | EXHAUST MUFFLER |
| REAR | ||
| 105 | A 6204900601 | EXHAUST MUFFLER |
| REAR | ||
| 105 | A 6204900501 | EXHAUST MUFFLER |
| REAR | ||
| A 6234900001 | EXHAUST MUFFLER | |
| Repalced by: A 6234900101 | ||
| A 6234900101 | EXHAUST MUFFLER | |
| REAR | ||
| 107 | A 6204910215 | CONSOLE |
| REAR EXHAUST MUFFLER,FRONT | ||
| 107 | A 6204910215 | CONSOLE |
| REAR EXHAUST MUFFLER,FRONT | ||
| 107 | A 6214910215 | CONSOLE |
| REAR EXHAUST MUFFLER,FRONT | ||
| 108 | A 6204910615 | CONSOLE |
| REAR EXHAUST MUFFLER,REAR | ||
| 108 | A 6204910615 | CONSOLE |
| REAR EXHAUST MUFFLER,REAR | ||
| 108 | A 6204910615 | CONSOLE |
| REAR EXHAUST MUFFLER,REAR | ||
| 109 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 109 | N 308676012026 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 109 | N 308676012026 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 109 | N 308676012026 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 110 | N 910113012002 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 110 | N 910113012002 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 110 | N 910113012002 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 111 | A 6204910341 | BRACKET |
| REAR EXHAUST MUFFLER,REAR | ||
| 111 | A 6204910341 | BRACKET |
| REAR EXHAUST MUFFLER,REAR | ||
| 111 | A 6204910541 | BRACKET |
| REAR EXHAUST MUFFLER,FRONT | ||
| 111 | A 6204910541 | BRACKET |
| REAR EXHAUST MUFFLER,FRONT | ||
| 111 | A 6204910541 | BRACKET |
| REAR EXHAUST MUFFLER,FRONT | ||
| A 6554911541 | BRACKET | |
| REAR EXHAUST MUFFLER,FRONT | ||
| 112 | N 000933010128 | SCREW |
| BRACKET TO CONSOLE | ||
| 112 | N 000933010128 | SCREW |
| BRACKET TO CONSOLE | ||
| 112 | N 000933010128 | SCREW |
| BRACKET TO CONSOLE | ||
| N 000933010105 | SCREW | |
| BRACKET TO CONSOLE | ||
| 113 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 113 | N 910113010000 | NUT |
| BRACKET TO CONSOLE | ||
| 113 | N 910113010000 | NUT |
| BRACKET TO CONSOLE | ||
| 114 | A 6204900441 | STRAP |
| REAR EXHAUST MUFFLER | ||
| 114 | A 6204900441 | STRAP |
| REAR EXHAUST MUFFLER | ||
| 115 | N 000931010271 | SCREW |
| STRAP TO BRACKET | ||
| 115 | N 000931010271 | SCREW |
| STRAP TO BRACKET | ||
| 116 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 116 | N 910113010000 | NUT |
| STRAP TO BRACKET | ||
| 116 | N 910113010000 | NUT |
| STRAP TO BRACKET | ||
| 117 | N 000933008151 | SCREW |
| EXHAUST MUFFLER TO STRAP | ||
| 117 | N 000933008151 | SCREW |
| EXHAUST MUFFLER TO STRAP | ||
| 118 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 118 | N 000125008443 | WASHER |
| EXHAUST MUFFLER TO STRAP | ||
| 118 | N 000125008443 | WASHER |
| EXHAUST MUFFLER TO STRAP | ||
| 119 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 119 | N 913004008001 | NUT |
| EXHAUST MUFFLER TO STRAP | ||
| 119 | N 913004008001 | NUT |
| EXHAUST MUFFLER TO STRAP | ||
| 120 | A 6204921230 | PROTECTIVE PLATE |
| AT MUFFLER,REAR | ||
| 121 | N 000933008130 | SCREW |
| Repalced by: N 304017008039 | ||
| 121 | N 304017008039 | SCREW |
| PROTECTIVE PLATE | ||
| 122 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 122 | N 000125008443 | WASHER |
| PROTECTIVE PLATE | ||
| 123 | N 912004008102 | LOCK WASHER |
| PROTECTIVE PLATE | ||
| 124 | A 6204900841 | CLAMP |
| PROTECTIVE PLATE TO EXHAUST MUFFLER | ||
| 125 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 125 | N 304017010002 | SCREW |
| CLAMP TO EXHAUST MUFFLER | ||
| 126 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 126 | N 910113010000 | NUT |
| CLAMP TO EXHAUST MUFFLER | ||
| 127 | A 6204920604 | REAR EXHAUST PIPE |
| 127 | A 6204927504 | REAR EXHAUST PIPE |
| 127 | A 3874924004 | REAR EXHAUST PIPE |
| 127 | A 6204920504 | REAR EXHAUST PIPE |
| 127 | A 3874921704 | REAR EXHAUST PIPE |
| 128 | A 6204921304 | REAR EXHAUST PIPE |
| 128 | A 6204921304 | REAR EXHAUST PIPE |
| 128 | A 6204921204 | REAR EXHAUST PIPE |
| A 6204925104 | REAR EXHAUST PIPE | |
| 129 | A 6244921504 | REAR EXHAUST PIPE |
| 130 | A 6244920504 | REAR EXHAUST PIPE |
| 130 | A 6244920504 | REAR EXHAUST PIPE |
| 130 | A 6244920604 | REAR EXHAUST PIPE |
| 131 | N 071555090501 | CLAMP |
| Repalced by: N 071555090502 | ||
| 131 | N 071555090502 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 132 | N 071555100500 | CLAMP |
| Repalced by: N 071555100501 | ||
| 132 | N 071555100501 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 132 | N 071555100501 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 132 | N 071555104501 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 133 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 133 | N 304017008027 | SCREW |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 134 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 134 | N 304017010002 | SCREW |
| REAR EXHAUST PIPE TO MUFFLER | ||
| M 10X30 | ||
| 134 | N 304017010002 | SCREW |
| REAR EXHAUST PIPE TO MUFFLER | ||
| M 10X30 | ||
| 135 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 135 | N 913004008001 | NUT |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 136 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 136 | N 910113010000 | NUT |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 136 | N 910113010000 | NUT |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 137 | A 6204921041 | BRACKET |
| Repalced by: A 3894921441 | ||
| 137 | A 3894921441 | BRACKET |
| REAR EXHAUST PIPE | ||
| 138 | A 6204921241 | BRACKET |
| REAR EXHAUST PIPE | ||
| 138 | A 6204921241 | BRACKET |
| REAR EXHAUST PIPE | ||
| 140 | A 6204925341 | BRACKET |
| REAR EXHAUST PIPE | ||
| 140 | A 3894922241 | BRACKET |
| REAR EXHAUST PIPE | ||
| 144 | A 3894920941 | BRACKET |
| REAR EXHAUST PIPE | ||
| 146 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 146 | N 308676014020 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 148 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 148 | N 910113014001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 150 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 150 | N 308676012026 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 152 | N 910113012002 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 154 | A 6214921741 | BRACKET |
| REAR EXHAUST PIPE | ||
| 154 | A 6214921741 | BRACKET |
| REAR EXHAUST PIPE | ||
| 154 | A 6244920841 | BRACKET |
| REAR EXHAUST PIPE | ||
| 156 | N 000933010105 | SCREW |
| BRACKET TO HYDRAULIC PUMP BRACKET | ||
| M 10 X 25 | ||
| 156 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 156 | N 304017010002 | SCREW |
| BRACKET TO AIR CLEANER SUPPORT | ||
| M 10X30 | ||
| 158 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 158 | N 910113010000 | NUT |
| BRACKET TO BRACKET | ||
| 160 | N 071555090501 | CLAMP |
| Repalced by: N 071555090502 | ||
| 160 | N 071555090502 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 160 | N 071555090502 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 162 | N 071555100500 | CLAMP |
| Repalced by: N 071555100501 | ||
| 162 | N 071555100501 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 162 | N 071555100501 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 164 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 164 | N 304017008027 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| 166 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 166 | N 913004008001 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
