Transporto priemonė: 1628 LS; VIN numerio dalis: 620512

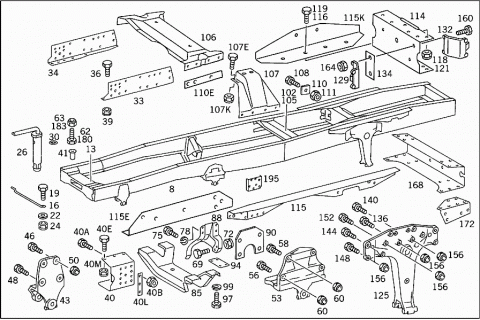

Grupė: 31 FRAME
| # | Kodas | Pavadinimas |
|---|---|---|
| 008 | A 6203100301 | FRAME |
| 008 | A 6203107401 | FRAME |
| 008 | A 6463100701 | FRAME |
| 008 | A 6203100501 | FRAME |
| 008 | A 6203107501 | FRAME |
| 008 | A 6453100101 | FRAME |
| 008 | A 6203100601 | FRAME |
| 008 | A 6203107601 | FRAME |
| 008 | A 6203107601 | FRAME |
| 008 | A 6453100201 | FRAME |
| 008 | A 6203102501 | FRAME |
| 008 | A 6463100001 | FRAME |
| 008 | A 6203102601 | FRAME |
| 008 | A 6453100301 | FRAME |

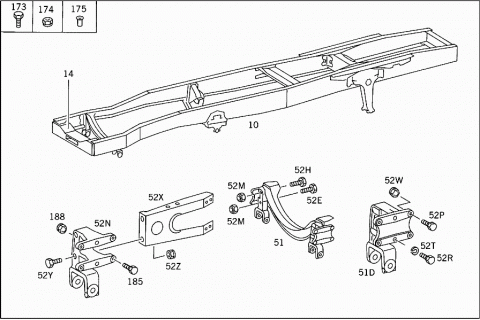

| 010 | A 6203105801 | FRAME |
| Repalced by: A 6203101802 | ||
| 010 | A 6203101802 | FRAME |
| 013 | A 6203100122 | CROSS MEMBER |
| FRONT | ||
| 013 | A 3873100422 | CROSS MEMBER |
| FRONT | ||
| 014 | A 6203100022 | CROSS MEMBER |
| FRONT | ||
| 014 | A 6203100222 | CROSS MEMBER |
| FRONT | ||
| 016 | A 3353150031 | LOCKING SPRING |
| COUPLING PIN | ||
| 019 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 019 | N 304017008034 | SCREW |
| SPRING TO CROSS MEMBER | ||
| 022 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 022 | N 000125008443 | WASHER |
| SPRING TO CROSS MEMBER | ||
| 024 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 024 | N 913004008001 | NUT |
| SPRING TO CROSS MEMBER | ||
| 026 | A 3873150106 | COUPLING PIN |
| FOR COUPLING MOUTH | ||
| 026 | A 6203150006 | COUPLING PIN |
| FOR COUPLING MOUTH | ||
| 030 | A 0009874346 | SEALING CORD |
| FOR COUPLING MOUTH | ||
| 033 | A 3873122087 | GUSSET PLATE |
| FRONT LEFT | ||
| 034 | A 3873122187 | GUSSET PLATE |
| Repalced by: A 6203120987 | ||
| 034 | A 6203120987 | GUSSET PLATE |
| FRONT RIGHT | ||
| 036 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 036 | N 308676012026 | SCREW |
| CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS | ||
| M 12X35 | ||
| N 000125013008 | WASHER | |
| 039 | N 910113012002 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 040 | A 3878900032 | BOW |
| FRONT LEFT | ||
| 040 | A 3878900132 | BOW |
| FRONT RIGHT | ||
| 040A | N 000961014028 | SCREW |
| CLAMP TO SIDE MEMBER | ||
| 040B | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 040B | N 910113014001 | NUT |
| CLAMP TO SIDE MEMBER | ||
| 040E | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 040E | N 308676012026 | SCREW |
| CLAMP WITH CROSS MEMBER TO SIDE MEMBER | ||
| M 12X35 | ||
| 040E | N 000961012069 | SCREW |
| Repalced by: N 308676012015 | ||
| 040E | N 308676012015 | SCREW |
| CLAMP WITH CROSS MEMBER TO SIDE MEMBER | ||
| M 12X45 | ||
| 040L | A 3878910696 | BASE |
| FRONT CROSS MEMBER TO SIDE MEMBERS | ||
| 040L | A 3878910796 | BASE |
| FRONT CROSS MEMBER TO SIDE MEMBERS | ||
| 040L | A 3878910896 | BASE |
| FRONT CROSS MEMBER TO SIDE MEMBERS | ||
| 040M | N 910113012002 | NUT |
| CLAMP WITH CROSS MEMBER TO SIDE MEMBER | ||
| 041 | N 910005012080 | RIVET |
| FRONT CROSS MEMBER TO SIDE MEMBERS | ||
| 043 | A 3873220301 | FRONT SPRING BRACKET |
| FRONT | ||
| 043 | A 6203220201 | FRONT SPRING BRACKET |
| Repalced by: A 6203220501 | ||
| 043 | A 6203220501 | FRONT SPRING BRACKET |
| Repalced by: A 6203220901 | ||
| 043 | A 6203220901 | FRONT SPRING BRACKET |
| FRONT | ||
| 043 | A 6203220901 | FRONT SPRING BRACKET |
| FRONT | ||
| 046 | A 3879900114 | SCREW |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| M16X45 | ||
| 048 | A 3879900214 | SCREW |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| M 16X55 | ||
| 050 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 050 | N 910113016001 | NUT |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| 051 | A 6213100036 | CROSS MEMBER |
| NO.2 | ||
| 051D | A 6213220001 | FRONT SPRING BRACKET |
| FRONT LEFT | ||
| 051D | A 6213220101 | FRONT SPRING BRACKET |
| FRONT RIGHT | ||
| 052E | N 000960016065 | SCREW |
| FRONT SPRING FRONT BRACKET TO CROSS MEMBER | ||
| M 16X95 | ||
| 052H | N 000960016244 | SCREW |
| FRONT SPRING FRONT BRACKET TO CROSS MEMBER | ||
| M 16X90 | ||
| 052M | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 052M | N 910113016002 | NUT |
| FRONT SPRING FRONT BRACKET TO CROSS MEMBER | ||
| 052N | A 6203220301 | FRONT SPRING BRACKET |
| Repalced by: A 6203220601 | ||
| 052N | A 6203220601 | FRONT SPRING BRACKET |
| FRONT | ||
| 052P | N 000960016112 | SCREW |
| Repalced by: N 308676016015 | ||
| 052P | N 308676016015 | SCREW |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| M 16X55 | ||
| 052P | N 000961016096 | SCREW |
| Repalced by: N 308676016007 | ||
| 052P | N 308676016007 | SCREW |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| M 16X50 | ||
| 052R | N 000961016075 | SCREW |
| Repalced by: N 308676016020 | ||
| 052R | N 308676016020 | SCREW |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| M 16X35 | ||
| 052R | N 000961016108 | SCREW |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| M 16X30 | ||
| 052T | N 912004016101 | LOCK WASHER |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| 052W | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 052W | N 910113016001 | NUT |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| 052X | A 6203121261 | STRUT |
| FRONT LEFT | ||
| 052X | A 6203100653 | STRUT |
| Repalced by: A 6553100453 | ||
| 052X | A 6553100453 | STRUT |
| FRONT LEFT | ||
| 052X | A 6203121361 | STRUT |
| FRONT RIGHT | ||
| 052X | A 6203100753 | STRUT |
| FRONT RIGHT | ||
| 052Y | N 000960016061 | SCREW |
| STRUT TO SPRING BRACKET | ||
| M 16X85 | ||
| 052Z | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 052Z | N 910113016001 | NUT |
| STRUT TO SPRING BRACKET | ||
| 053 | A 6203220003 | FRONT SPRING BRACKET |
| Repalced by: A 6203220103 | ||
| 053 | A 6203220103 | FRONT SPRING BRACKET |
| REAR | ||
| 056 | N 000960014229 | SCREW |
| FRONT SPRING REAR BRACKET TO SIDE MEMBER | ||
| M14X55 | ||
| 056 | N 000960014229 | SCREW |
| FRONT SPRING REAR BRACKET TO SIDE MEMBER | ||
| M14X55 | ||
| 056 | N 000961014101 | SCREW |
| Repalced by: N 308676014012 | ||
| 056 | N 308676014012 | SCREW |
| FRONT SPRING REAR BRACKET TO SIDE MEMBER | ||
| M 14X45 | ||
| 056 | N 308676014012 | SCREW |
| FRONT SPRING REAR BRACKET TO SIDE MEMBER | ||
| M 14X45 | ||
| 058 | N 000960014237 | SCREW |
| FRONT SPRING REAR BRACKET TO SIDE MEMBER | ||
| M 14X50 | ||
| 058 | N 000961014063 | SCREW |
| Repalced by: A 9429901304 | ||
| 058 | A 9429901304 | SCREW |
| FRONT SPRING REAR BRACKET TO SIDE MEMBER | ||
| M 14X40 | ||
| 060 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 060 | N 910113014000 | NUT |
| FRONT SPRING REAR BRACKET TO SIDE MEMBER | ||
| 062 | N 000961014028 | SCREW |
| ADDITIONAL WORK ON FRAME | ||
| 063 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 063 | N 910113014001 | NUT |
| ADDITIONAL WORK ON FRAME | ||
| 069 | N 000961014113 | SCREW |
| ANGLE TO CROSS AND SIDE MEMBERS | ||
| 069 | N 000961014113 | SCREW |
| ANGLE TO CROSS AND SIDE MEMBERS | ||
| 072 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 072 | N 910113014001 | NUT |
| ANGLE TO CROSS AND SIDE MEMBERS | ||
| 075 | N 000961014028 | SCREW |
| ANGLE TO CROSS AND SIDE MEMBERS | ||
| 078 | N 912004014100 | LOCK WASHER |
| ANGLE TO CROSS AND SIDE MEMBERS | ||
| 085 | A 3873120810 | CROSS MEMBER |
| FRONT SPRING REAR BRACKET | ||
| NO.2 | ||
| 085 | A 3873120810 | CROSS MEMBER |
| FRONT SPRING REAR BRACKET | ||
| NO.3 | ||
| 085 | A 3873120810 | CROSS MEMBER |
| FRONT SPRING REAR BRACKET | ||
| NO.2 | ||
| A 3873122561 | STRUT | |
| Repalced by: A 3873100353 | ||
| 088 | A 3873100353 | STRUT |
| Repalced by: A 6203121561 | ||
| 088 | A 6203121561 | STRUT |
| FRONT SPRING REAR BRACKET | ||
| 090 | A 6203120384 | SHIM |
| FRONT SPRING REAR BRACKET | ||
| 094 | A 3873120084 | SHIM |
| Repalced by: A 6203121984 | ||
| 094 | A 6203121984 | SHIM |
| CROSS MEMBER TO FRONT SPRING REAR BRACKET | ||
| 097 | N 000961014113 | SCREW |
| CROSS MEMBER TO FRONT SPRING REAR BRACKET | ||
| 099 | N 912004014100 | LOCK WASHER |
| CROSS MEMBER TO FRONT SPRING REAR BRACKET | ||
| 102 | A 6203100137 | CROSS MEMBER |
| NO.3 | ||
| 102 | A 3913100136 | CROSS MEMBER |
| NO.3 | ||
| 105 | A 3873101037 | CROSS MEMBER |
| NO.3 | ||
| 105 | A 3873101037 | CROSS MEMBER |
| NO.3 | ||
| 105 | A 3873101037 | CROSS MEMBER |
| NO.4 | ||
| 105 | A 3873101037 | CROSS MEMBER |
| NO.3 | ||
| 105 | A 3873100136 | CROSS MEMBER |
| NO.3 | ||
| 106 | A 3893120125 | CROSS MEMBER |
| 106 | A 3893120125 | CROSS MEMBER |
| 106 | A 3873120025 | CROSS MEMBER |
| 107 | A 3873121961 | STRUT |
| AT CROSS MEMBER | ||
| 107E | A 0039900901 | SCREW |
| Repalced by: A 0029908201 | ||
| 107E | A 0029908201 | SCREW |
| STRUT TO CROSS MEMBER | ||
| M 12X28 | ||
| 107K | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 107K | N 910113012003 | NUT |
| STRUT TO CROSS MEMBER | ||
| A 6203121584 | SHIM | |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 108 | N 000961014028 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| M 14X40 | ||
| 108 | N 000961014028 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| M 14X40 | ||
| 108 | N 000961014100 | SCREW |
| STRUT TO SIDE MEMBER | ||
| M 14X30 | ||
| 110 | A 3874310884 | SHIM |
| AT CROSS MEMBER | ||
| 110E | A 6453120084 | SHIM |
| AT CROSS MEMBER | ||
| 111 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 111 | N 910113014001 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 114 | A 6203120024 | CROSS MEMBER |
| CENTRAL BEARING | ||
| NO.4 | ||
| 114 | A 6203120024 | CROSS MEMBER |
| CENTRAL BEARING | ||
| NO.4 | ||
| 114 | A 6203120024 | CROSS MEMBER |
| CENTRAL BEARING | ||
| NO.5 | ||
| 114 | A 6203120024 | CROSS MEMBER |
| CENTRAL BEARING | ||
| NO.4 | ||
| 114 | A 6453120024 | CROSS MEMBER |
| CENTRAL BEARING | ||
| NO.4 | ||
| 115 | A 6203160052 | ANGLE |
| CROSS MEMBER,LEFT | ||
| 115 | A 6203160152 | ANGLE |
| CROSS MEMBER,RIGHT | ||
| 115E | A 6453120087 | GUSSET PLATE |
| LEFT TOP | ||
| 115E | A 6453120187 | GUSSET PLATE |
| RIGHT TOP | ||
| 115K | A 6453120287 | GUSSET PLATE |
| LEFT BOTTOM | ||
| 115K | A 6453120387 | GUSSET PLATE |
| RIGHT BOTTOM | ||
| 116 | A 0049900301 | SCREW |
| CROSS MEMBER TO FRAME TRUSSING | ||
| M 16X35 | ||
| 118 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 118 | N 910113016001 | NUT |
| CROSS MEMBER TO FRAME TRUSSING | ||
| 119 | A 0049900301 | SCREW |
| CROSS MEMBER TO FRAME TRUSSING | ||
| M 16X35 | ||
| 121 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 121 | N 910113016001 | NUT |
| CROSS MEMBER TO FRAME TRUSSING | ||
| 125 | A 3933252109 | BEARING BRACKET |
| Repalced by: A 6203250009 | ||
| 125 | A 6203250009 | BEARING BRACKET |
| Repalced by: A 6553250009 | ||
| 125 | A 6553250009 | BEARING BRACKET |
| Repalced by: A 6553250109 | ||
| 125 | A 6553250109 | BEARING BRACKET |
| REAR SPRING REAR PIN TO SHACKLE | ||
| 129 | A 3933250809 | BEARING BRACKET |
| Repalced by: A 6553120240 | ||
| A 3933250809 | BEARING BRACKET | |
| Repalced by: A 6553120240 | ||
| 129 | A 3933253509 | BEARING BRACKET |
| Repalced by: A 3933250809 | ||
| 129 | A 6553120240 | BRACKET |
| CONTROL ARM,FRONT | ||
| 132 | A 3933250609 | BEARING BRACKET |
| CONTROL ARM,REAR | ||
| 132 | A 3933253409 | BEARING BRACKET |
| CONTROL ARM,REAR | ||
| A 6583250053 | SPACER TUBE | |
| Repalced by: A 6583250253 | ||
| A 6583250253 | SPACER TUBE | |
| BEARING BRACKET TO SIDE AND CROSS MEMBERS | ||
| 134 | A 6453120184 | SHIM |
| BEARING BRACKET TO SIDE MEMBER | ||
| 136 | N 000960018120 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| M 18X145 | ||
| 136 | N 000960018120 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| M 18X145 | ||
| 136 | N 000960018062 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| M 18X130 | ||
| 140 | N 000960018163 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| M 18X100 | ||
| 140 | N 000960018163 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| M 18X100 | ||
| 140 | N 000960018145 | SCREW |
| Repalced by: A 0039909304 | ||
| 140 | A 0039909304 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| M 18X80 | ||
| 140 | N 000961018043 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| M 18X055 | ||
| 140 | N 000961018043 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| M 18X055 | ||
| N 000960018142 | SCREW | |
| BEARING BRACKET TO SIDE AND CROSS MEMBERS | ||
| M18X65 | ||
| 144 | N 000960018145 | SCREW |
| Repalced by: A 0039909304 | ||
| 144 | A 0039909304 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| M 18X80 | ||
| 144 | N 000960018119 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| M 18X85 | ||
| 148 | N 000960018133 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| M 18X75 | ||
| 152 | N 000960018109 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| M 18X60 | ||
| N 007349019002 | WASHER | |
| BEARING BRACKET TO SIDE AND CROSS MEMBERS | ||
| 156 | N 913004018004 | NUT |
| BEARING BRACKET TO SIDE MEMBER | ||
| 160 | N 000960018025 | SCREW |
| BEARING BRACKET TO CROSS MEMBER | ||
| M 18X85 | ||
| 160 | N 000960018013 | SCREW |
| Repalced by: N 000960018109 | ||
| 160 | N 000960018109 | SCREW |
| BEARING BRACKET TO CROSS MEMBER | ||
| M 18X60 | ||
| 164 | N 913004018003 | NUT |
| Repalced by: N 910113018004 | ||
| 164 | N 910113018004 | NUT |
| BEARING BRACKET TO CROSS MEMBER | ||
| 168 | A 6213120635 | CROSS MEMBER |
| Repalced by: A 6213120335 | ||
| 168 | A 6213120335 | CROSS MEMBER |
| Repalced by: A 6553120435 | ||
| 168 | A 6553120435 | CROSS MEMBER |
| REAR | ||
| 172 | A 6213120487 | GUSSET PLATE |
| Repalced by: A 6213120287 | ||
| 172 | A 6213120287 | GUSSET PLATE |
| LEFT | ||
| 172 | A 6213120587 | GUSSET PLATE |
| Repalced by: A 6213120387 | ||
| 172 | A 6213120387 | GUSSET PLATE |
| RIGHT | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| MOUNTING USED FOR FRAME CONNECTION PARTS | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| DIMENSIONS ARE INDICATED IN THE FOLLOWING ORDER: | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| THREAD X SHANK DIA. X SHANK LENGTH X TOTAL LENGTH | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 173 | N 000609010004 | FITTED SCREW |
| M 10X11X14X28 | ||
| 173 | N 000610010003 | FITTED SCREW |
| M 10X11X25X38 | ||
| 173 | N 000609010014 | FITTED SCREW |
| M 10X11X24X40 | ||
| 173 | A 3859900514 | SCREW |
| M 10X11X26.5X46 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 173 | A 3859900714 | SCREW |
| M 12X12X10X25 | ||
| 173 | A 3859901414 | SCREW |
| M 12X12X11X26 | ||
| 173 | A 0039900901 | SCREW |
| Repalced by: A 0029908201 | ||
| 173 | A 0029908201 | SCREW |
| M 12X12X12X28 | ||
| 173 | A 3859901514 | SCREW |
| M 12X12X13X28 | ||
| 173 | A 0029908201 | SCREW |
| M 12X12X14X30 | ||
| 173 | A 3859902114 | SCREW |
| M 12X12X15X30 | ||
| 173 | A 0029908301 | SCREW |
| Repalced by: N 308676012013 | ||
| 173 | N 308676012013 | SCREW |
| M 12X12X16X32 | ||
| 173 | A 3859902214 | SCREW |
| M 12X12X17X32 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 173 | A 6209900114 | SCREW |
| M 12X13X12X29 | ||
| 173 | A 3969900314 | SCREW |
| M 12X13X13X30 | ||
| 173 | A 3589901914 | SCREW |
| M 12X13X15X32 | ||
| 173 | A 3559900014 | SCREW |
| M 12X13X18X35 | ||
| 173 | A 3589900614 | SCREW |
| M 12X13X21X38 | ||
| 173 | A 6179900114 | SCREW |
| M 12X13X23X40 | ||
| 173 | A 6249900014 | SCREW |
| M 12X13X25X42 | ||
| 173 | A 3859900214 | SCREW |
| M 12X13X35X52 | ||
| 173 | A 6689900114 | SCREW |
| M 12X13X58X80 | ||
| 173 | A 6689900014 | SCREW |
| M 12X13X63X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 173 | A 3859900814 | SCREW |
| Repalced by: A 3229903101 | ||
| 173 | A 3229903101 | SCREW |
| M 14X14X18X32 | ||
| 173 | A 3859902014 | SCREW |
| M 14X14X18X34 | ||
| 173 | A 3559900114 | SCREW |
| M 12X14X13X35 | ||
| 173 | A 3219901601 | SCREW |
| M 14X14X17X35 | ||
| 173 | A 3219901901 | SCREW |
| M 14X14X22X40 | ||
| 173 | A 3559900501 | SCREW |
| M 14X14X24X42 | ||
| 173 | A 3409900201 | SCREW |
| M 14X14X27X45 | ||
| 173 | A 3609902001 | SCREW |
| M 14X14X32X50 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 173 | A 3589900114 | SCREW |
| M 14X15X15X32 | ||
| 173 | A 3589900814 | SCREW |
| M 14X15X17X34 | ||
| 173 | A 6459900014 | SCREW |
| M 14X15X18X35 | ||
| 173 | A 3589901014 | SCREW |
| M 14X15X19X36 | ||
| 173 | A 3589900214 | SCREW |
| M 14X15X21X38 | ||
| 173 | A 3589900414 | SCREW |
| M 14X15X25X42 | ||
| 173 | A 3589900714 | SCREW |
| M 14X15X27X44 | ||
| 173 | A 3589900914 | SCREW |
| M 14X15X29X46 | ||
| 173 | A 3859900414 | SCREW |
| M 14X15X31X48 | ||
| 173 | A 3859900314 | SCREW |
| M 14X15X35X52 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 173 | A 3859900914 | SCREW |
| Repalced by: N 308676016020 | ||
| 173 | N 308676016020 | SCREW |
| M 16X16X18X36 | ||
| 173 | A 3859901714 | SCREW |
| M 16X16X20X38 | ||
| 173 | A 3859901014 | SCREW |
| M 16X16X22X40 | ||
| 173 | A 3859901114 | SCREW |
| M 16X16X24X42 | ||
| 173 | A 0029909901 | SCREW |
| Repalced by: A 3959900501 | ||
| 173 | A 3959900501 | SCREW |
| M 16X16X20X45 | ||
| 173 | A 3859901814 | SCREW |
| M 16X16X30X48 | ||
| 173 | A 3859901914 | SCREW |
| M 16X16X32X50 | ||
| 173 | A 6259900301 | SCREW |
| M 16X16X38X90 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 173 | A 3589900514 | SCREW |
| M 16X17X22X42 | ||
| 173 | A 6459900714 | SCREW |
| M 16X17X24X44 | ||
| 173 | A 3609900114 | SCREW |
| M 16X17X28X48 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 173 | A 3469900014 | SCREW |
| M 16X18X18X40 | ||
| 173 | A 3859902314 | SCREW |
| M 18X18X23X45 | ||
| 173 | A 6209900014 | SCREW |
| M 16X18X26X48 | ||
| 173 | A 3469900114 | SCREW |
| M 16X18X31X50 | ||
| 173 | A 3859902414 | SCREW |
| M 18X18X33X55 | ||
| 173 | A 6229900014 | SCREW |
| M 16X18X38X60 | ||
| 173 | A 3919900014 | SCREW |
| M 16X18X63X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 173 | N 000610018004 | FITTED SCREW |
| M 18X19X25X45 | ||
| 173 | N 000610018009 | FITTED SCREW |
| M 18X19X33X55 | ||
| 173 | N 000610018006 | FITTED SCREW |
| M 18X19X38X60 | ||
| 173 | N 000609018000 | FITTED SCREW |
| M 18X19X57X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 174 | N 913004010011 | NUT |
| 174 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 174 | N 910113012003 | NUT |
| 174 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 174 | N 910113014000 | NUT |
| 174 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 174 | N 910113016001 | NUT |
| 174 | N 913004018004 | NUT |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 175 | N 910005012033 | RIVET |
| 12X22 MM | ||
| 175 | N 910005012080 | RIVET |
| 12X42 MM | ||
| 175 | N 910005014056 | RIVET |
| 14X45 MM | ||
| 175 | N 910005016000 | RIVET |
| 16X38 MM | ||
| 180 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 180 | N 308676014020 | SCREW |
| CROSS MEMBER NO.1 TO SIDE MEMBERS | ||
| 183 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 183 | N 910113014001 | NUT |
| CROSS MEMBER NO.1 TO SIDE MEMBERS | ||
| 185 | N 000960016112 | SCREW |
| Repalced by: N 308676016015 | ||
| 185 | N 308676016015 | SCREW |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| M 16X55 | ||
| 185 | N 000961016039 | SCREW |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| M 16X50 | ||
| 188 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 188 | N 910113016002 | NUT |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| 195 | A 6203110160 | REINFORCEMENT |
| Repalced by: A 3873110060 | ||
| 195 | A 3873110060 | REINFORCEMENT |
| LEFT STABILIZER | ||
| 195 | A 6203110260 | REINFORCEMENT |
| Repalced by: A 3873110160 | ||
| 195 | A 3873110160 | REINFORCEMENT |
| RIGHT STABILIZER | ||

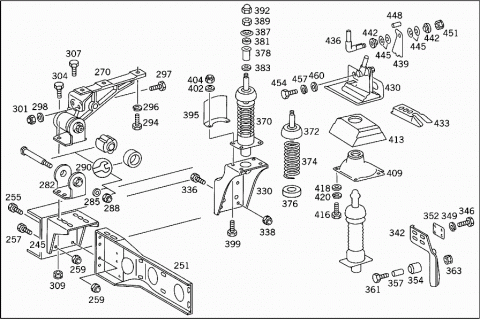

| 245 | A 3878912631 | CONSOLE |
| CAB MOUNTING,FRONT | ||
| 251 | A 3873170423 | STRUT |
| BUMPER AT TORSION BAR | ||
| 251 | A 6203170223 | STRUT |
| BUMPER,LEFT | ||
| 251 | A 6203170423 | STRUT |
| BUMPER,RIGHT | ||
| 255 | N 000961014101 | SCREW |
| Repalced by: N 308676014012 | ||
| 255 | N 308676014012 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| M 14X45 | ||
| 257 | N 000961014063 | SCREW |
| Repalced by: A 9429901304 | ||
| 257 | A 9429901304 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| M 14X40 | ||
| 259 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 259 | N 910113014000 | NUT |
| CONSOLE AND STRUT TO FRAME | ||
| 270 | A 3813106509 | BRACKET |
| CAB,LEFT | ||
| 270 | A 6208902103 | MOUNTING |
| CAB,LEFT | ||
| 270 | A 3813106609 | BRACKET |
| CAB, RIGHT | ||
| 270 | A 6208902203 | MOUNTING |
| CAB, RIGHT | ||
| A 3813171512 | RUBBER BUFFER | |
| A 3813171412 | RUBBER BUFFER | |
| 282 | A 3878902903 | MOUNTING |
| 282 | A 6208902003 | MOUNTING |
| 285 | N 007349017002 | WASHER |
| 288 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 288 | N 910113016002 | NUT |
| 290 | A 3815860031 | REPAIR KIT |
| CAB SUSPENSION,FRONT | ||
| 294 | N 000961014028 | SCREW |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||
| 296 | N 912004014100 | LOCK WASHER |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||
| 297 | N 000961014064 | SCREW |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||
| 298 | A 3209901840 | WASHER |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||
| 301 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 301 | N 910113014001 | NUT |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||
| 304 | N 000961014063 | SCREW |
| Repalced by: A 9429901304 | ||
| 304 | A 9429901304 | SCREW |
| CAB TO FRAME | ||
| M 14X40 | ||
| 307 | N 000961014101 | SCREW |
| Repalced by: N 308676014012 | ||
| 307 | N 308676014012 | SCREW |
| CAB TO FRAME | ||
| M 14X45 | ||
| 309 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 309 | N 910113014000 | NUT |
| CAB TO FRAME | ||
| 330 | A 3873170001 | CONSOLE |
| Repalced by: A 6553170001 | ||
| 330 | A 6553170001 | CONSOLE |
| Repalced by: A 3873170001 | ||
| 330 | A 3873170001 | CONSOLE |
| CAB MOUNTING,REAR | ||
| 336 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 336 | N 308676012026 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 338 | N 910113012002 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 342 | A 3873170626 | GUIDE |
| LEFT | ||
| 342 | A 3873170726 | GUIDE |
| RIGHT | ||
| 346 | N 000960012301 | SCREW |
| GUIDE TO CAB | ||
| 349 | N 912004012100 | LOCK WASHER |
| GUIDE TO CAB | ||
| 352 | A 3873170084 | SHIM |
| GUIDE TO CAB | ||
| 354 | A 3813170750 | BUSHING |
| GUIDE TO CAB | ||
| 357 | A 3813170553 | SPACER TUBE |
| GUIDE TO CAB | ||
| 361 | N 000960012230 | SCREW |
| GUIDE TO CAB | ||
| 363 | N 910113012002 | NUT |
| GUIDE TO CAB | ||
| 370 | A 3878901619 | SHOCK ABSORBER |
| Repalced by: A 3878901319 | ||
| 370 | A 3878901319 | SHOCK ABSORBER |
| (VIBRATION ABSORBER),CAB REAR SUSPENSION | ||
| 370 | A 3878901319 | SHOCK ABSORBER |
| (VIBRATION ABSORBER),CAB REAR SUSPENSION | ||
| 370 | A 6208900019 | SHOCK ABSORBER |
| Repalced by: A 6208900119 | ||
| 370 | A 6208900119 | SHOCK ABSORBER |
| (VIBRATION ABSORBER),CAB REAR SUSPENSION | ||
| 370 | A 6208900119 | SHOCK ABSORBER |
| (VIBRATION ABSORBER),CAB REAR SUSPENSION | ||
| 372 | A 0008910201 | RUBBER MOUNTING |
| TO 387 890 16 19,620 890 00 19 | ||
| 372 | A 0008900148 | JOINT |
| Repalced by: A 0008910301 | ||
| 372 | A 0008910301 | RUBBER MOUNTING |
| TO 620 890 01 19,387 890 13 19 | ||
| 374 | A 0008910751 | SPRING |
| Repalced by: A 0008910451 | ||
| 374 | A 0008910451 | SPRING |
| 374 | A 0008911051 | SPRING |
| TO 620 890 00 19 | ||
| 374 | A 0008911151 | SPRING |
| TO 620 890 01 19 | ||
| 376 | A 0008910123 | BUFFER |
| TO 620 890 00 19 | ||
| 378 | A 3813170753 | SPACER TUBE |
| CAB SUSPENSION,REAR | ||
| 381 | A 3275045082 | RUBBER RING |
| CAB SUSPENSION,REAR | ||
| 383 | N 000433015002 | WASHER |
| Repalced by: N 000433015005 | ||
| 383 | N 000433015005 | WASHER |
| CAB SUSPENSION,REAR | ||
| 387 | A 3878912010 | WASHER |
| CAB SUSPENSION,REAR | ||
| 389 | N 000934012022 | NUT |
| CAB SUSPENSION,REAR | ||
| 392 | N 001587012008 | CAP NUT |
| Repalced by: N 001587012010 | ||
| 392 | N 001587012010 | CAP NUT |
| CAB SUSPENSION,REAR | ||
| 395 | A 3813170031 | COVER PLATE |
| CAB SUSPENSION,REAR | ||
| 399 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 399 | N 304017008034 | SCREW |
| VIBRATION ABSORBER TO CONSOLE | ||
| 402 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 402 | N 009021008213 | WASHER |
| VIBRATION ABSORBER TO CONSOLE | ||
| 404 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 404 | N 913004008001 | NUT |
| VIBRATION ABSORBER TO CONSOLE | ||
| 409 | A 3813177840 | BRACKET |
| VIBRATION ABSORBER TO CAB,LEFT | ||
| 409 | A 3813177940 | BRACKET |
| VIBRATION ABSORBER TO CAB,RIGHT | ||
| 413 | A 3813170097 | BOOT |
| CAB SUSPENSION,REAR | ||
| 416 | N 000933010105 | SCREW |
| BRACKET AND BOOT TO SIDE MEMBER | ||
| 418 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 418 | N 000125010532 | WASHER |
| BRACKET AND BOOT TO SIDE MEMBER | ||
| 420 | N 912004010102 | LOCK WASHER |
| BRACKET AND BOOT TO SIDE MEMBER | ||
| 430 | A 3813102075 | LOCKING MECHANISM |
| CAB,LEFT | ||
| 430 | A 3813101975 | LOCKING MECHANISM |
| CAB, RIGHT | ||
| 433 | A 3813170119 | LATCH |
| 436 | A 3813172374 | PIN |
| 439 | A 3813170924 | LEVER |
| 442 | A 3813170676 | WASHER |
| 445 | A 0009935426 | DISC SPRING |
| 448 | N 001481006041 | CLAMPING SLEEVE |
| 451 | N 910113012002 | NUT |
| 454 | N 000933010105 | SCREW |
| LOCKING MECHANISM TO CAB | ||
| 457 | N 912004010102 | LOCK WASHER |
| LOCKING MECHANISM TO CAB | ||
| 460 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 460 | N 000125010532 | WASHER |
| LOCKING MECHANISM TO CAB | ||

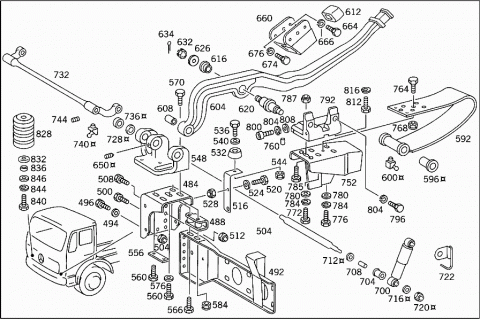

| 484 | A 3878912631 | CONSOLE |
| CAB SUSPENSION,FRONT | ||
| 484 | A 3878912831 | CONSOLE |
| CAB SUSPENSION,FRONT | ||
| 488 | A 6208900232 | BOW |
| CAB SUSPENSION,FRONT | ||
| 492 | A 6203100253 | STRUT |
| BUMPER,LEFT | ||
| 492 | A 6203100053 | STRUT |
| BUMPER,LEFT | ||
| 492 | A 6203100353 | STRUT |
| BUMPER,RIGHT | ||
| 492 | A 6203100153 | STRUT |
| BUMPER,RIGHT | ||
| 494 | A 3939900240 | WASHER |
| CONSOLE AND STRUT TO FRAME | ||
| 496 | N 000961014088 | SCREW |
| Repalced by: N 308676014008 | ||
| 496 | N 308676014008 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| M 14X35 | ||
| 496 | N 000961014063 | SCREW |
| Repalced by: A 9429901304 | ||
| 496 | A 9429901304 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| M 14X40 | ||
| 500 | N 000961014101 | SCREW |
| Repalced by: N 308676014012 | ||
| 500 | N 308676014012 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| M 14X45 | ||
| 504 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 504 | N 910113014000 | NUT |
| CONSOLE AND STRUT TO FRAME | ||
| 508 | A 3469900014 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| 508 | A 6209900014 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| 508 | N 000961018018 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| 512 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 512 | N 910113016001 | NUT |
| CONSOLE AND STRUT TO FRAME | ||
| 512 | N 913004018004 | NUT |
| CONSOLE AND STRUT TO FRAME | ||
| 516 | A 3878910914 | BRACKET |
| BUFFER | ||
| 516 | A 3878900314 | BRACKET |
| LEFT BUFFER | ||
| 516 | A 3878900414 | BRACKET |
| RIGHT BUFFER | ||
| 520 | N 000961012151 | SCREW |
| BRACKET TO CONSOLE | ||
| M 12X30 | ||
| 520 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 520 | N 308676012026 | SCREW |
| BRACKET TO CONSOLE | ||
| M 12X35 | ||
| 520 | N 000961014028 | SCREW |
| BRACKET TO CONSOLE | ||
| 524 | N 007349015003 | WASHER |
| BRACKET TO CONSOLE | ||
| 528 | N 910113012002 | NUT |
| BRACKET TO CONSOLE | ||
| 528 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 528 | N 910113014001 | NUT |
| BRACKET TO CONSOLE | ||
| 532 | A 3348910072 | MOUNTING |
| BUFFER | ||
| 536 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 536 | N 304017008034 | SCREW |
| BUFFER TO BRACKET | ||
| 540 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 540 | N 009021008213 | WASHER |
| BUFFER TO BRACKET | ||
| 544 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 544 | N 913004008001 | NUT |
| BUFFER TO BRACKET | ||
| 548 | A 3878913720 | MOUNTING |
| CAB SUSPENSION,FRONT LEFT | ||
| 548 | A 3878913720 | MOUNTING |
| CAB SUSPENSION,FRONT RIGHT | ||
| 548 | A 6208910420 | MOUNTING |
| CAB SUSPENSION,FRONT LEFT | ||
| 548 | A 3878913820 | MOUNTING |
| CAB SUSPENSION,FRONT RIGHT | ||
| 548 | A 3878913820 | MOUNTING |
| CAB SUSPENSION,FRONT LEFT | ||
| 548 | A 6208910520 | MOUNTING |
| CAB SUSPENSION,FRONT RIGHT | ||
| 556 | A 3878910498 | SHIM |
| CAB ON CONSOLE AT FRAME | ||
| 560 | N 000961014008 | SCREW |
| Repalced by: N 308676014003 | ||
| 560 | N 308676014003 | SCREW |
| CAB ON CONSOLE AT FRAME | ||
| M 14X30 | ||
| 566 | N 000961014088 | SCREW |
| Repalced by: N 308676014008 | ||
| 566 | N 308676014008 | SCREW |
| CAB ON CONSOLE AT FRAME | ||
| M 14X35 | ||
| 566 | N 000960014251 | SCREW |
| CAB ON CONSOLE AT FRAME | ||
| M 14X85 | ||
| 570 | N 000961014103 | SCREW |
| CAB ON CONSOLE AT FRAME | ||
| M 14X55 | ||
| 570 | N 000960014248 | SCREW |
| Repalced by: N 308765014008 | ||
| 570 | N 308765014008 | SCREW |
| CAB ON CONSOLE AT FRAME | ||
| M 14X100 | ||
| 576 | N 007349015003 | WASHER |
| CAB ON CONSOLE AT FRAME | ||
| 584 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 584 | N 910113014000 | NUT |
| CAB ON CONSOLE AT FRAME | ||
| 592 | A 3878910551 | SPRING |
| (LEAF SPRING),CAB SUSPENSION | ||
| 592 | A 6208910151 | SPRING |
| (LEAF SPRING),CAB SUSPENSION | ||
| 596 | A 3638910617 | BUSHING |
| LEAF SPRING | ||

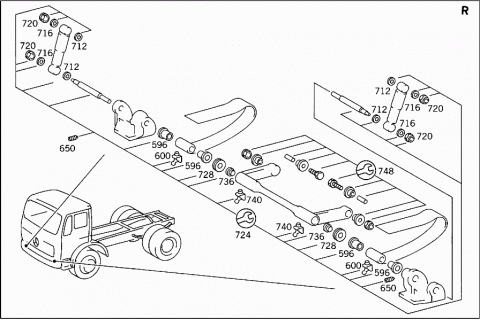

| 600 | N 071412008200 | GREASE NIPPLE |
| LEAF SPRING | ||
| 604 | A 3878912556 | LEVER |
| (TILTING LEVER),CAB | ||
| 604 | A 3878912656 | LEVER |
| Repalced by: A 3878912856 | ||
| 604 | A 3878912856 | LEVER |
| (TILTING LEVER),CAB | ||
| 604 | A 3878912856 | LEVER |
| (TILTING LEVER),CAB | ||
| 608 | A 3879920003 | BUSHING |
| LEVER | ||
| 608 | A 3879920203 | BUSHING |
| LEVER | ||
| 612 | A 3638910023 | BUFFER |
| LEVER TO BEARING | ||
| 616 | A 6208910017 | BUSHING |
| LEVER | ||
| A 3875860431 | REPAIR KIT | |
| Repalced by: A 3879920003 | ||
| A 3879920003 | BUSHING | |
| CAB MOUNTING | ||
| 620 | A 6208910257 | PIN |
| LEVER | ||
| 626 | A 3875530376 | WASHER |
| LEVER | ||
| 632 | N 000979016005 | NUT |
| Repalced by: N 000979016008 | ||
| 632 | N 000979016008 | NUT |
| LEVER | ||
| 634 | N 000094004065 | COTTER PIN |
| LEVER | ||
| 650 | N 000417008004 | HEADLESS SETSCREW |
| SHAFT ADJUSTMENT | ||
| 660 | A 6208901603 | MOUNTING |
| TILTING LEVER TO CAB SIDE MEMBER | ||
| 664 | N 000933010105 | SCREW |
| MOUNTING TO CAB | ||
| 666 | N 912004010102 | LOCK WASHER |
| MOUNTING TO CAB | ||
| 674 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 674 | N 308676012012 | SCREW |
| MOUNTING TO CAB | ||
| 674 | N 308676012012 | SCREW |
| MOUNTING TO CAB | ||
| 676 | N 912004012100 | LOCK WASHER |
| MOUNTING TO CAB | ||
| 700 | A 0008911805 | SHOCK ABSORBER |
| CAB SUSPENSION,REAR | ||
| 700 | A 0008911805 | SHOCK ABSORBER |
| Repalced by: A 0008912205 | ||
| 700 | A 0008912205 | SHOCK ABSORBER |
| CAB SUSPENSION,REAR | ||
| 704 | A 0008910501 | RUBBER MOUNTING |
| 708 | A 0008910617 | BUSHING |
| 712 | A 3873170176 | WASHER |
| Repalced by: A 6203170176 | ||
| 712 | A 6203170176 | WASHER |
| SHOCK ABSORBER TO CONSOLE AND TO CAB | ||
| 716 | A 3873170276 | WASHER |
| Repalced by: N 000125013008 | ||
| 716 | N 000125013008 | WASHER |
| 716 | N 000125013008 | WASHER |
| 720 | N 910113012002 | NUT |
| SHOCK ABSORBER TO CONSOLE AND TO CAB | ||
| 722 | A 6208900332 | BOW |
| SHOCK ABSORBER TO CONSOLE AND TO CAB | ||
| 724 | A 3875860131 | REPAIR KIT |
| Repalced by: A 3873100077 | ||
| 724 | A 3873100077 | REPAIR KIT |
| CAB SUSPENSION,FRONT | ||
| 728 | A 3878911910 | WASHER |
| CAB SUSPENSION,FRONT | ||
| 732 | A 6218900304 | STABILIZER |
| Repalced by: A 6528900104 | ||
| 732 | A 6528900104 | STABILIZER |
| CAB SUSPENSION,FRONT | ||
| 732 | A 6218900504 | STABILIZER |
| Repalced by: A 6558900004 | ||
| 732 | A 6558900004 | STABILIZER |
| CAB SUSPENSION,FRONT | ||
| 736 | A 0009817331 | JOINT BEARING |
| Repalced by: A 0009817231 | ||
| 736 | A 0009817231 | JOINT BEARING |
| Repalced by: A 0019814631 | ||
| 736 | A 0019814631 | JOINT BEARING |
| 736 | A 0019814831 | JOINT BEARING |
| 740 | N 071412008200 | GREASE NIPPLE |
| 744 | N 000906010000 | SCREW PLUG |
| STABILIZER | ||
| 748 | A 6203100077 | REPAIR KIT |
| CAB FRONT SUSPENSION STABILIZER | ||
| 748 | A 6203100177 | REPAIR KIT |
| CAB FRONT SUSPENSION STABILIZER | ||
| 752 | A 6218900203 | MOUNTING |
| Repalced by: A 6218900403 | ||
| 752 | A 6218900403 | MOUNTING |
| STABILIZER TO CAB,LEFT | ||
| 752 | A 6218900303 | MOUNTING |
| Repalced by: A 6218900503 | ||
| 752 | A 6218900503 | MOUNTING |
| STABILIZER TO CAB,RIGHT | ||
| 760 | A 6218910157 | PIN |
| 764 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 764 | N 304017008034 | SCREW |
| BEARING BRACKET TO CAB | ||
| 768 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 768 | N 913004008001 | NUT |
| BEARING BRACKET TO CAB | ||
| 772 | N 000961014028 | SCREW |
| BEARING BRACKET TO CAB | ||
| M 14X40 | ||
| 776 | N 000960014061 | SCREW |
| BEARING BRACKET TO CAB | ||
| M 14X80 | ||
| 780 | N 007349015003 | WASHER |
| BEARING BRACKET TO CAB | ||
| 784 | N 912004014100 | LOCK WASHER |
| BEARING BRACKET TO CAB | ||
| 785 | N 000960014245 | SCREW |
| STABILIZER TO BEARING BRACKET | ||
| 787 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 787 | N 910113014001 | NUT |
| STABILIZER TO BEARING BRACKET | ||
| 792 | A 3878910831 | CONSOLE |
| Repalced by: A 6208910631 | ||
| 792 | A 6208910631 | CONSOLE |
| CAB SUSPENSION,FRONT LEFT | ||
| 792 | A 3878910931 | CONSOLE |
| Repalced by: A 6208910731 | ||
| 792 | A 6208910731 | CONSOLE |
| CAB SUSPENSION,FRONT RIGHT | ||
| 796 | N 000961012069 | SCREW |
| Repalced by: N 308676012015 | ||
| 796 | N 308676012015 | SCREW |
| LEFT AND RIGHT CONSOLES TO CAB | ||
| M 12X45 | ||
| 800 | N 006912012013 | SCREW |
| LEFT AND RIGHT CONSOLES TO CAB | ||
| M 12X30 | ||
| 804 | N 912004012100 | LOCK WASHER |
| LEFT AND RIGHT CONSOLES TO CAB | ||
| 808 | A 3609900940 | WASHER |
| LEFT AND RIGHT CONSOLES TO CAB | ||
| 812 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 812 | N 308676014020 | SCREW |
| LEFT AND RIGHT CONSOLES TO CAB | ||
| 816 | N 912004014100 | LOCK WASHER |
| LEFT AND RIGHT CONSOLES TO CAB | ||
| 828 | A 3638910223 | BUFFER |
| (HOLLOW RUBBER SPRING),CAB | ||
| 832 | A 3638910047 | FLANGE |
| HOLLOW RUBBER SPRING | ||
| 836 | A 3638910517 | BUSHING |
| HOLLOW RUBBER SPRING | ||
| 840 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 840 | N 304017010002 | SCREW |
| HOLLOW RUBBER SPRING TO CAB | ||
| M 10X30 | ||
| 840 | N 000933010094 | SCREW |
| HOLLOW RUBBER SPRING TO CAB | ||
| M 10X40 | ||
| 844 | N 912004010102 | LOCK WASHER |
| HOLLOW RUBBER SPRING TO CAB | ||
| 846 | A 3878912210 | WASHER |
| Repalced by: A 4432610076 | ||
| 846 | A 4432610076 | WASHER |
| HOLLOW RUBBER SPRING TO CAB | ||
| 848 | A 3878911731 | CONSOLE |
| REAR LEFT | ||
| 848 | A 6208910031 | CONSOLE |
| REAR LEFT | ||
| 850 | A 6208910096 | BASE |
| CONSOLE TO SIDE MEMBER | ||
| 852 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 852 | N 308676014020 | SCREW |
| SHIM | ||
| 866 | A 6208910231 | CONSOLE |
| AIR INTAKE | ||
| 866 | A 6208910231 | CONSOLE |
| AIR INTAKE | ||
| 866 | A 6208911231 | CONSOLE |
| AIR INTAKE | ||
| 866 | A 6208910831 | CONSOLE |
| AIR INTAKE | ||
| 866 | A 6208910831 | CONSOLE |
| AIR INTAKE | ||
| 866 | A 6208911031 | CONSOLE |
| AIR INTAKE | ||
| 868 | N 000961014028 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 14X40 | ||
| 868 | N 000961014028 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 14X40 | ||
| 870 | N 000961014054 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 14X45 | ||
| 870 | N 000961014054 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 14X45 | ||
| 870 | N 000961014054 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 14X45 | ||
| 870 | N 000961016040 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 872 | N 912004014100 | LOCK WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 872 | N 912004014100 | LOCK WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 872 | N 912004014100 | LOCK WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 872 | N 912004016101 | LOCK WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 873 | N 007349015003 | WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 874 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 874 | N 910113014001 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 876 | A 6208900031 | CONSOLE |
| REAR RIGHT,TOP | ||
| 876 | A 6208910131 | CONSOLE |
| REAR RIGHT,TOP | ||
| 878 | N 000961012151 | SCREW |
| CONSOLE TO CONSOLE | ||
| 880 | N 912004012100 | LOCK WASHER |
| CONSOLE TO CONSOLE | ||
| 882 | A 3609900940 | WASHER |
| CONSOLE TO CONSOLE | ||
| 884 | A 3878910024 | STRUT |
| Repalced by: A 6558910224 | ||
| 884 | A 6558910224 | STRUT |
| CAB MOUNTING,REAR | ||
| 886 | A 3878910198 | SHIM |
| STRUT TO CONSOLE | ||
| 888 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 888 | N 308676012012 | SCREW |
| STRUT TO CONSOLE | ||
| M 12X25 | ||
| 888 | N 000961012151 | SCREW |
| STRUT TO CONSOLE | ||
| M 12X30 | ||
| 890 | N 912004012100 | LOCK WASHER |
| STRUT TO CONSOLE | ||
| 892 | N 000125013008 | WASHER |
| 894 | A 3878911051 | SPRING |
| CAB SUSPENSION,REAR | ||
| 894 | A 6208910051 | SPRING |
| CAB SUSPENSION,REAR | ||
| 896 | N 000960012153 | SCREW |
| SPRING TO STRUT | ||
| 896 | N 000960012332 | SCREW |
| SPRING TO STRUT | ||
| 898 | A 3638910010 | WASHER |
| SPRING TO STRUT | ||
| 900 | N 009021013200 | WASHER |
| SPRING TO STRUT | ||
| 902 | A 3638910218 | TUBE |
| SPRING TO STRUT | ||
| 904 | A 3638910717 | BUSHING |
| SPRING TO STRUT | ||
| 906 | N 910113012002 | NUT |
| SPRING TO STRUT | ||
| 908 | A 3878900522 | RAIL |
| Repalced by: A 6558900122 | ||
| 908 | A 6558900122 | RAIL |
| CAB SUSPENSION,REAR | ||
| 909 | N 000007012201 | CYLINDRICAL PIN |
| 910 | A 3878910323 | BUFFER |
| CAB SUSPENSION,REAR | ||
| 912 | A 6208910072 | MOUNTING |
| Repalced by: A 3878910072 | ||
| 912 | A 3878910072 | MOUNTING |
| CAB SUSPENSION,REAR LEFT | ||
| 912 | A 6208910172 | MOUNTING |
| CAB SUSPENSION,REAR RIGHT | ||
| 912 | A 6208910272 | MOUNTING |
| CAB SUSPENSION,REAR | ||
| 914 | N 000084008119 | SCREW |
| BUFFER AND MOUNTING TO RAIL | ||
| 916 | N 912004008102 | LOCK WASHER |
| BUFFER AND MOUNTING TO RAIL | ||
| 918 | N 000933008154 | SCREW |
| Repalced by: N 304017008021 | ||
| 918 | N 304017008021 | SCREW |
| MOUNTING TO RAIL | ||
| 920 | N 912004008102 | LOCK WASHER |
| MOUNTING TO RAIL | ||
| 922 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 922 | N 000125008443 | WASHER |
| MOUNTING TO RAIL | ||
| 924 | A 6208910020 | MOUNTING |
| CAB MOUNTING,REAR | ||
| 926 | N 000960016242 | SCREW |
| Repalced by: N 000960016251 | ||
| 926 | N 000960016251 | SCREW |
| MOUNTING TO CAB | ||
| 928 | A 3878911753 | SPACER TUBE |
| MOUNTING TO CAB | ||
| 930 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 930 | N 910113016002 | NUT |
| MOUNTING TO CAB | ||
| 932 | A 3878910811 | PLATE |
| CAB SUSPENSION,REAR | ||
| 933 | A 6208910296 | BASE |
| RAIL AND PLATE TO SPRING | ||
| 934 | N 000931010258 | SCREW |
| RAIL AND PLATE TO SPRING | ||
| 936 | N 912004010102 | LOCK WASHER |
| RAIL AND PLATE TO SPRING | ||
| 938 | A 0008911805 | SHOCK ABSORBER |
| CAB SUSPENSION,FRONT | ||
| 938 | A 0008911805 | SHOCK ABSORBER |
| Repalced by: A 0008912205 | ||
| 938 | A 0008912205 | SHOCK ABSORBER |
| CAB SUSPENSION,FRONT | ||
| 940 | A 0008910501 | RUBBER MOUNTING |
| 942 | A 0008910617 | BUSHING |
| 944 | N 000960018125 | SCREW |
| Repalced by: N 000960018072 | ||
| 944 | N 000960018072 | SCREW |
| SHOCK ABSORBER TO CONSOLE | ||
| 946 | A 3878910453 | SPACER TUBE |
| SHOCK ABSORBER TO CONSOLE | ||
| 948 | N 913004018003 | NUT |
| Repalced by: N 910113018004 | ||
| 948 | N 910113018004 | NUT |
| SHOCK ABSORBER TO CONSOLE | ||
| 950 | N 000960018040 | SCREW |
| Repalced by: N 000960018142 | ||
| 950 | N 000960018142 | SCREW |
| SHOCK ABSORBER TO RAIL | ||
| 952 | N 913004018003 | NUT |
| Repalced by: N 910113018004 | ||
| 952 | N 910113018004 | NUT |
| SHOCK ABSORBER TO RAIL | ||
| 954 | A 0008900089 | FASTENER |
| Repalced by: A 0008902389 | ||
| 954 | A 0008901389 | FASTENER |
| Repalced by: A 0008902389 | ||
| 954 | A 0008902389 | FASTENER |
| (CENTRAL LOCK) | ||
| 955 | A 3878911131 | CONSOLE |
| CENTRAL LOCK | ||
| 956 | N 000933010128 | SCREW |
| FASTENER TO CAB | ||
| M 10X20 | ||
| 956 | N 000933010198 | SCREW |
| FASTENER TO CAB | ||
| M 10X16 | ||
| 956 | N 000933010198 | SCREW |
| FASTENER TO CAB | ||
| M 10X16 | ||
| 958 | N 000933010105 | SCREW |
| FASTENER TO CAB | ||
| M 10X25 | ||
| 960 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 960 | N 000125010532 | WASHER |
| FASTENER TO CAB | ||
| 962 | N 912004010102 | LOCK WASHER |
| FASTENER TO CAB | ||
| 964 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 964 | N 910113010000 | NUT |
| FASTENER TO CAB | ||
| 966 | A 6208910070 | ROD |
| Repalced by: A 6208910270 | ||
| 966 | A 6208910270 | ROD |
| CAB LOCKING MECHANISM | ||
| 968 | N 001444008202 | PIN |
| PULL TO FASTENER | ||
| A 1269911907 | PIN | |
| PULL TO FASTENER | ||
| 970 | N 000433008406 | WASHER |
| PULL TO FASTENER | ||
| 972 | N 000094002059 | COTTER PIN |
| PULL TO FASTENER | ||
| N 912002008001 | LOCK | |
| Repalced by: N 912002008003 | ||
| N 912002008003 | LOCK | |
| PULL TO FASTENER | ||
| 974 | A 3878910814 | BRACKET |
| CAB LOCKING MECHANISM | ||
| 976 | A 3878910085 | SEAL |
| CAB LOCKING MECHANISM | ||
| 978 | N 007346005003 | CLAMPING SLEEVE |
| ROD TO BRACKET | ||
| 980 | A 3878911456 | LEVER |
| CAB LOCKING MECHANISM | ||
| 980 | A 6208910256 | LEVER |
| CAB LOCKING MECHANISM | ||
| 980 | A 6208910256 | LEVER |
| CAB LOCKING MECHANISM | ||
| 980 | A 6208910556 | LEVER |
| CAB LOCKING MECHANISM | ||
| 982 | A 3638910317 | BUSHING |
| CAB LOCKING MECHANISM | ||
| 984 | A 6208910073 | HANDLE |
| CAB LOCKING MECHANISM | ||
| 986 | N 007985008142 | SCREW |
| BUSHING AND HANDLE TO CAB | ||
| 988 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 988 | N 913004008001 | NUT |
| BUSHING AND HANDLE TO CAB | ||
| A 2019900292 | RIVET | |
| 990 | N 007346005004 | CLAMPING SLEEVE |
| Repalced by: N 001481005039 | ||
| 990 | N 001481005039 | CLAMPING SLEEVE |
| HANDLE TO LEVER | ||
| 990 | N 001481005039 | CLAMPING SLEEVE |
| LEVER MOUNTING | ||
| 992 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 992 | N 000125015019 | WASHER |
| LEVER MOUNTING | ||
| 994 | N 900055014401 | LOCK RING |
| LEVER MOUNTING | ||
| 996 | N 001444008233 | PIN |
| ROD TO LEVER | ||
| 998 | N 000433008406 | WASHER |
| ROD TO LEVER | ||
| 999 | N 000094002059 | COTTER PIN |
| ROD TO LEVER | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
