Transporto priemonė: 1628 LS; VIN numerio dalis: 620512
Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|

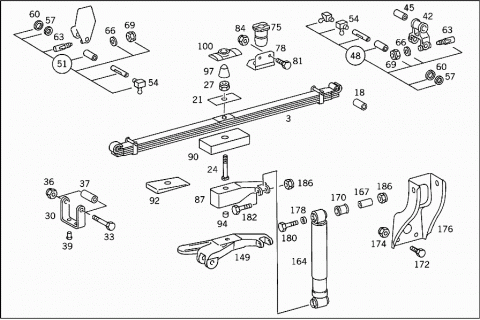

| 003 | A 3933200002 | FRONT SPRING |
| (PARABOLIC SPRING);NUMBER OF LEAVES: | ||
| 3 | ||
| 003 | A 6203200302 | FRONT SPRING |
| (PARABOLIC SPRING);NUMBER OF LEAVES: | ||
| 3 | ||
| 003 | A 6203200002 | FRONT SPRING |
| (PARABOLIC SPRING);NUMBER OF LEAVES: | ||
| 4 | ||
| 003 | A 6203200002 | FRONT SPRING |
| (PARABOLIC SPRING);NUMBER OF LEAVES: | ||
| 4 | ||
| 018 | A 3043210150 | BUSHING |
| 018 | A 6203210050 | BUSHING |
| 021 | A 3933210284 | SHIM |
| BETWEEN THE SPRING LEAVES | ||
| 021 | A 3933210284 | SHIM |
| BETWEEN THE SPRING LEAVES | ||
| 021 | A 3933210284 | SHIM |
| BETWEEN THE SPRING LEAVES | ||
| 024 | A 3913210071 | SCREW |
| (SPRING BOLT) | ||
| 024 | A 3913210171 | SCREW |
| (SPRING BOLT) | ||
| 024 | A 3913210171 | SCREW |
| (SPRING BOLT) | ||
| 027 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 027 | N 910113014000 | NUT |
| SPRING BOLT | ||
| 030 | A 0003249433 | SPRING CLAMP |
| Repalced by: A 6203240633 | ||
| 030 | A 6203240633 | SPRING CLAMP |
| FRONT SPRING | ||
| 030 | A 0003244233 | SPRING CLAMP |
| Repalced by: A 6203240433 | ||
| 030 | A 6203240433 | SPRING CLAMP |
| FRONT SPRING | ||
| 030 | A 0003244233 | SPRING CLAMP |
| Repalced by: A 6203240533 | ||
| 030 | A 0003244233 | SPRING CLAMP |
| Repalced by: A 6203240533 | ||
| 030 | A 6203240533 | SPRING CLAMP |
| 033 | N 000960012222 | SCREW |
| SPRING CLAMP | ||
| 033 | N 000963012011 | SCREW |
| SPRING CLAMP | ||
| 036 | N 910113012002 | NUT |
| SPRING CLAMP | ||
| 037 | A 3933210053 | SPACER TUBE |
| Repalced by: A 0003212753 | ||
| 037 | A 0003212753 | SPACER TUBE |
| SPRING CLAMP | ||
| 039 | N 910006008024 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 042 | A 3873200162 | SHACKLE |
| FRONT SPRING | ||
| 045 | A 3043210150 | BUSHING |
| 045 | A 6203210050 | BUSHING |
| 048 | A 3955860232 | REPAIR KIT |
| Repalced by: A 3953200265 | ||
| 048 | A 3953200265 | SHACKLE PIN |
| (PARTS KIT), SPRING SHACKLE | ||
| 051 | A 3955860332 | REPAIR KIT |
| Repalced by: A 3953200165 | ||
| 051 | A 3953200165 | SHACKLE PIN |
| (PARTS KIT) FRONT SPRING TO FRONT SPRING BRACKET | ||
| 054 | N 071412010300 | GREASE NIPPLE |
| SPRING SUSPENSION | ||
| 057 | A 3523230376 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 057 | A 3523230476 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 057 | A 3523230576 | WASHER |
| AS REQUIRED | ||
| 4.30 MM | ||
| 060 | A 0029973140 | SEAL RING |
| SPRING SUSPENSION | ||
| 063 | A 3529900337 | BOLT |
| SHACKLE PIN TO SHACKLE | ||
| 066 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 066 | N 000125010532 | WASHER |
| SHACKLE PIN TO SHACKLE | ||
| 069 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 069 | N 910113010000 | NUT |
| SHACKLE PIN TO SHACKLE | ||
| 075 | A 3833240008 | HELPER SPRING |
| SPRING STOP TO FRAME BOTTOM SIDE | ||
| 078 | A 3953210040 | BRACKET |
| HELPER SPRING | ||
| 081 | N 000933010145 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 084 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 084 | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 087 | A 3933310828 | SHIM |
| LEFT FRONT SPRING | ||
| 087 | A 6203310128 | SHIM |
| LEFT FRONT SPRING | ||
| 087 | A 6203310128 | SHIM |
| LEFT FRONT SPRING | ||
| 087 | A 6213310628 | SHIM |
| LEFT FRONT SPRING | ||
| 087 | A 3933310728 | SHIM |
| RIGHT FRONT SPRING | ||
| 087 | A 6203310028 | SHIM |
| RIGHT FRONT SPRING | ||
| 087 | A 6203310028 | SHIM |
| RIGHT FRONT SPRING | ||
| 087 | A 6213310528 | SHIM |
| RIGHT FRONT SPRING | ||
| 090 | A 6203310228 | SHIM |
| LEFT AND RIGHT FRONT SPRINGS | ||
| 092 | A 3953310028 | SHIM |
| BETWEEN SPRING AND SHIM,RIGHT | ||
| 094 | A 3893230074 | PIN |
| FRONT SPRINGS TO FRONT AXLE | ||
| 097 | A 3263310044 | RUBBER BUFFER |
| Repalced by: A 6553310044 | ||
| 097 | A 6553310044 | RUBBER BUFFER |
| FRONT SPRINGS TO FRONT AXLE | ||
| 100 | A 3043310027 | SPACER |
| Repalced by: A 6483310026 | ||
| 100 | A 6483310026 | PLATE |
| Repalced by: A 6553310126 | ||
| 100 | A 6553310126 | PLATE |
| Repalced by: A 6483310026 | ||
| 100 | A 6483310026 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 103 | A 3043311925 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 275 MM | ||
| 108 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 108 | N 913004020003 | NUT |
| FRONT SPRINGS TO FRONT AXLE | ||

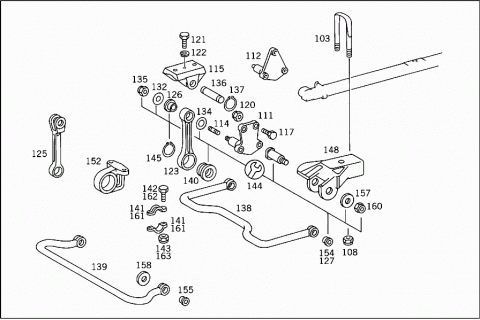

| 111 | A 3873200378 | CONSOLE |
| TORSION BAR,FRONT | ||
| 112 | A 6203200178 | CONSOLE |
| Repalced by: A 6203230463 | ||
| 112 | A 6203230463 | BEARING BRACKET |
| TORSION BAR,FRONT | ||
| 114 | N 000939016033 | STUD BOLT |
| 114 | N 000939014036 | STUD BOLT |
| 115 | A 6203230163 | BEARING BRACKET |
| TORSION BAR,FRONT | ||
| 117 | N 000961016039 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 16X50 | ||
| 117 | N 000961016039 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 16X50 | ||
| 117 | N 000961016075 | SCREW |
| Repalced by: N 308676016020 | ||
| 117 | N 308676016020 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 16X35 | ||
| 120 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 120 | N 910113016002 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 120 | N 910113016002 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 121 | N 000933008150 | SCREW |
| Repalced by: N 304017008018 | ||
| 121 | N 304017008018 | SCREW |
| BEARING BRACKET TO ENGINE MOUNTING CONSOLE | ||
| 122 | N 912004008102 | LOCK WASHER |
| BEARING BRACKET TO ENGINE MOUNTING CONSOLE | ||
| 123 | A 3873260847 | SHACKLE |
| TORSION BAR,FRONT | ||
| 123 | A 3873260847 | SHACKLE |
| TORSION BAR,FRONT | ||
| 123 | A 6203260047 | SHACKLE |
| TORSION BAR,FRONT | ||
| 125 | A 6203230516 | LINK |
| TORSION BAR,FRONT | ||
| 126 | A 0003260650 | BUSHING |
| SHACKLE TO CONSOLE | ||
| 127 | A 6203230150 | BUSHING |
| LINK TO CONSOLE | ||
| 132 | A 3873230252 | SPACER WASHER |
| SHACKLE TO CONSOLE | ||
| 132 | A 3933260152 | SPACER WASHER |
| SHACKLE TO CONSOLE | ||
| 134 | A 6203230052 | SPACER WASHER |
| LINK TO CONSOLE | ||
| 135 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 135 | N 910113016002 | NUT |
| SHACKLE TO CONSOLE | ||
| 135 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 135 | N 910113014001 | NUT |
| LINK TO CONSOLE | ||
| N 000961014127 | SCREW | |
| LINK TO CONSOLE | ||
| 136 | A 6203230274 | PIN |
| SHACKLE TO BEARING BRACKET | ||
| 137 | N 000471040002 | LOCK RING |
| SHACKLE TO BEARING BRACKET | ||
| 138 | A 6223230065 | TORSION BAR |
| FRONT AXLE | ||
| 139 | A 6213230165 | TORSION BAR |
| FRONT AXLE | ||
| 140 | A 3873260181 | RUBBER MOUNTING |
| TORSION BAR | ||
| 140 | A 3873260281 | RUBBER MOUNTING |
| TORSION BAR | ||
| 141 | A 6213230540 | BRACKET |
| TORSION BAR | ||
| 142 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 142 | N 308676012012 | SCREW |
| BRACKET TO TORSION BAR | ||
| 143 | N 910113012002 | NUT |
| BRACKET TO TORSION BAR | ||
| 144 | A 6203200128 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 144 | A 6213200428 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 145 | N 000983085001 | LOCK RING |
| LINK TO TORSION BAR | ||
| 148 | A 6203230420 | BEARING |
| TORSION BAR,LEFT | ||
| 148 | A 6203230520 | BEARING |
| TORSION BAR,RIGHT | ||
| 149 | A 6203232020 | BEARING |
| TORSION BAR,SHOCK ABSORBER,LEFT | ||
| 149 | A 6203232120 | BEARING |
| TORSION BAR,SHOCK ABSORBER,RIGHT | ||
| 152 | A 6203230563 | BEARING BRACKET |
| TORSION BAR,FRONT | ||
| A 3893260074 | PIN | |
| Repalced by: A 6203200128 | ||
| 154 | A 3873260050 | BUSHING |
| TORSION BAR TO BEARING BRACKET | ||
| 155 | A 6203230350 | BUSHING |
| LINK TO TORSION BAR | ||
| 157 | N 007349019002 | WASHER |
| TORSION BAR TO BEARING BRACKET | ||
| 158 | A 6203230052 | SPACER WASHER |
| LINK TO TORSION BAR | ||
| 160 | N 913004018003 | NUT |
| Repalced by: N 910113018004 | ||
| 160 | N 910113018004 | NUT |
| LINK TO TORSION BAR | ||
| 160 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 160 | N 910113014001 | NUT |
| TORSION BAR TO BEARING BRACKET | ||
| 161 | A 3933251540 | BRACKET |
| TORSION BAR | ||
| 161 | A 3933251540 | BRACKET |
| TORSION BAR | ||
| 162 | N 000961010038 | SCREW |
| BRACKET TO TORSION BAR | ||
| 162 | N 000961010038 | SCREW |
| BRACKET TO TORSION BAR | ||
| 163 | N 913004010010 | NUT |
| Repalced by: N 910113010002 | ||
| 163 | N 910113010002 | NUT |
| BRACKET TO TORSION BAR | ||
| 163 | N 910113010002 | NUT |
| BRACKET TO TORSION BAR | ||
| 164 | A 0033233200 | SHOCK ABSORBER |
| Repalced by: A 0063230900 | ||
| 164 | A 0033233300 | SHOCK ABSORBER |
| Repalced by: A 0043239200 | ||
| 164 | A 0043239200 | SHOCK ABSORBER |
| Repalced by: A 0063230900 | ||
| 164 | A 0063230900 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 164 | A 0033237100 | SHOCK ABSORBER |
| Repalced by: A 0043234600 | ||
| 164 | A 0043234600 | SHOCK ABSORBER |
| Repalced by: A 0063230800 | ||
| 164 | A 0043234600 | SHOCK ABSORBER |
| A 0033237200 | SHOCK ABSORBER | |
| Repalced by: A 0043230100 | ||
| 164 | A 0043230100 | SHOCK ABSORBER |
| Repalced by: A 0063230800 | ||
| 164 | A 0063230800 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 164 | A 0063230800 | SHOCK ABSORBER |
| FRONT AXLE | ||
| A 0003232550 | BUSHING | |
| Repalced by: A 0003233150 | ||
| 167 | A 0003233150 | BUSHING |
| TO 003 323 32 00,33 00,71 00,72 00 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| TO 004 323 46 00 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 006 323 08 00,09 00 | ||
| 167 | A 0003235250 | BUSHING |
| TO 004 323 01 00,004 323 92 00 | ||
| 170 | A 0003231944 | RUBBER BUFFER |
| Repalced by: A 0003232885 | ||
| A 0003232444 | RUBBER BUFFER | |
| Repalced by: A 0003232885 | ||
| 170 | A 0003232885 | RUBBER MOUNTING |
| TO 003 323 32 00,33 00,71 00,72 00 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 004 323 46 00 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 006 323 08 00,09 00 | ||
| 170 | A 0003233044 | RUBBER BUFFER |
| Repalced by: A 0003233144 | ||
| 170 | A 0003233144 | RUBBER BUFFER |
| TO 004 323 01 00,004 323 92 00 | ||
| 172 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 172 | N 308676014020 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 174 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 174 | N 910113014001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 176 | A 6203230040 | BRACKET |
| Repalced by: A 6243230340 | ||
| 176 | A 6243230340 | BRACKET |
| SHOCK ABSORBER,TOP | ||
| 178 | A 3939900240 | WASHER |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 180 | N 000960016164 | SCREW |
| SHOCK ABSORBER TO BRACKET | ||
| M 16X85 | ||
| 180 | N 000960016065 | SCREW |
| SHOCK ABSORBER TO TOP BRACKET | ||
| M 16X95 | ||
| 182 | N 000960016244 | SCREW |
| SHOCK ABSORBER TO FRONT SPRING | ||
| M 16X90 | ||
| 186 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 186 | N 910113016002 | NUT |
| SHOCK ABSORBER TO BRACKET | ||
| 186 | N 910113016002 | NUT |
| SHOCK ABSORBER TO FRONT SPRING | ||

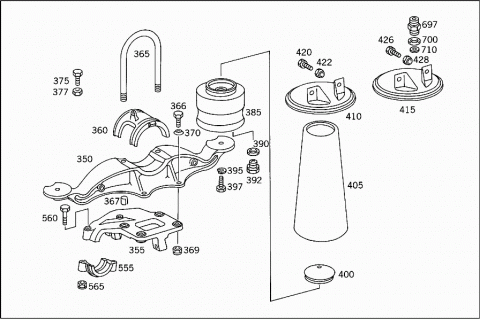

| 350 | A 3933280241 | SUPPORT |
| AIR SPRING BELLOWS | ||
| 350 | A 6203280141 | SUPPORT |
| Repalced by: A 6203280041 | ||
| 350 | A 6203280041 | SUPPORT |
| Repalced by: A 6553280341 | ||
| 350 | A 6553280341 | SUPPORT |
| Repalced by: A 6553281041 | ||
| 350 | A 6553281041 | SUPPORT |
| AIR SPRING BELLOWS,LEFT | ||
| 350 | A 6203280041 | SUPPORT |
| Repalced by: A 6553280441 | ||
| 350 | A 6553280441 | SUPPORT |
| Repalced by: A 6553281141 | ||
| 350 | A 6553281141 | SUPPORT |
| AIR SPRING BELLOWS,RIGHT | ||
| 355 | A 3933251140 | BRACKET |
| RIGHT STABILIZER | ||
| 355 | A 3933251240 | BRACKET |
| LEFT STABILIZER | ||
| 360 | A 3933280284 | SHIM |
| AIR-SPRING-BELLOWS SUPPORT TO REAR AXLE | ||
| 365 | A 3873510625 | U-BOLT |
| AIR-SPRING-BELLOWS SUPPORT TO REAR AXLE | ||
| 290 MM | ||
| 366 | N 000960024058 | SCREW |
| AIR-SPRING-BELLOWS SUPPORT TO REAR AXLE | ||
| M 24X285 | ||
| 367 | N 007346030004 | CLAMPING SLEEVE |
| AIR-SPRING-BELLOWS SUPPORT TO REAR AXLE | ||
| 369 | N 913004024004 | NUT |
| AIR-SPRING-BELLOWS SUPPORT TO REAR AXLE | ||
| 370 | A 6203250070 | SPHERICAL WASHER |
| AIR-SPRING-BELLOWS SUPPORT TO REAR AXLE | ||
| 375 | N 000961016039 | SCREW |
| AIR-SPRING-BELLOWS SUPPORT BRACING | ||
| 377 | N 000439016206 | NUT |
| Repalced by: N 308675016001 | ||
| 377 | N 308675016001 | NUT |
| AIR-SPRING-BELLOWS SUPPORT BRACING | ||
| 385 | A 3933201018 | PISTON |
| AIR SPRING BELLOWS | ||
| 390 | N 007603012405 | SEAL RING |
| 392 | A 0004290456 | SCREW PLUG |
| 395 | N 912004016101 | LOCK WASHER |
| PISTON TO AIR-SPRING-BELLOWS SUPPORT | ||
| 397 | N 000961016113 | SCREW |
| PISTON TO AIR-SPRING-BELLOWS SUPPORT | ||
| 397 | N 000961016081 | SCREW |
| PISTON TO AIR-SPRING-BELLOWS SUPPORT | ||
| 400 | A 3603280039 | RUBBER BUFFER |
| (RUBBER STOP),EMERGENCY RUNNING | ||
| 405 | A 3833270001 | AIR SPRING BELLOWS |
| 405 | A 6213280001 | AIR SPRING BELLOWS |
| 410 | A 3873200635 | PLATE |
| CENTRAL BEARING | ||
| 415 | A 3873200535 | PLATE |
| FRAME | ||
| A 6583250053 | SPACER TUBE | |
| Repalced by: A 6583250253 | ||
| A 6583250253 | SPACER TUBE | |
| PLATE TO CENTRAL BEARING | ||
| 420 | N 000960018133 | SCREW |
| PLATE TO CENTRAL BEARING | ||
| 422 | N 913004018004 | NUT |
| PLATE TO CENTRAL BEARING | ||
| 426 | N 000961012106 | SCREW |
| FRONT PLATE TO SIDE MEMBER | ||
| 428 | N 910113012002 | NUT |
| FRONT PLATE TO SIDE MEMBER | ||

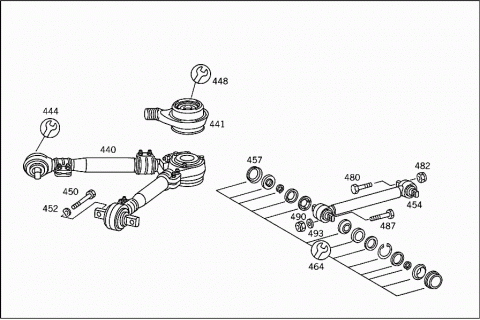

| 440 | A 3933505405 | CONTROL ARM |
| Repalced by: A 6553500305 | ||
| 440 | A 6553500305 | CONTROL ARM |
| 440 | A 3933505505 | CONTROL ARM |
| Repalced by: A 6583500005 | ||
| 440 | A 6583500005 | CONTROL ARM |
| 441 | A 0003500313 | JOINT |
| (CENTRAL JOINT) | ||
| TO 393 350 55 05; EHRENREICH | ||
| 441 | A 0003500713 | JOINT |
| (CENTRAL JOINT) | ||
| TO 393 350 54 05; LEMFOERDER | ||
| 441 | A 0003500813 | JOINT |
| (CENTRAL JOINT) | ||
| TO 658 350 00 05; EHRENREICH | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 444 | ||
| 444 | A 0003500505 | CONTROL ARM |
| Repalced by: A 0003500305 | ||
| 444 | A 0003500305 | REPAIR KIT |
| Repalced by: A 0003500213 | ||
| 444 | A 0003500213 | REPAIR KIT |
| WITH BALL PIVOT | ||
| TO 393 350 54 05; LEMFOERDER | ||
| 444 | A 0003500213 | JOINT |
| WITH BALL PIVOT | ||
| TO 655 350 03 05; LEMFOERDER | ||
| 444 | A 0005861533 | REPAIR KIT |
| LESS BALL PIVOT | ||
| TO 393 350 55 05; 658 350 00 05; | ||
| 444 | A 0005861433 | REPAIR KIT |
| WITH BALL PIVOT | ||
| TO 393 350 55 05; 658 350 00 05; | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| EHRENREICH | ||
| 448 | A 0005860135 | REPAIR KIT |
| CENTRAL JOINT;WITH BALL PIVOT | ||
| TO 393 350 54 05; LEMFOERDER | ||
| 448 | A 0003500405 | REPAIR KIT |
| CENTRAL JOINT;WITH BALL PIVOT | ||
| TO 658 350 00 05; EHRENREICH | ||
| 448 | A 0005861933 | REPAIR KIT |
| Repalced by: A 0005861833 | ||
| 448 | A 0005861833 | REPAIR KIT |
| Repalced by: A 0003500405 | ||
| 448 | A 0003500405 | REPAIR KIT |
| CENTRAL JOINT;WITH BALL PIVOT | ||
| TO 393 350 55 05; EHRENREICH | ||
| 450 | N 000961020016 | SCREW |
| Repalced by: N 308676020021 | ||
| 450 | N 308676020021 | SCREW |
| CONTROL ARM TO SUPPORT | ||
| 452 | N 000137020202 | SPRING WASHER |
| Repalced by: N 000137020205 | ||
| 452 | N 000137020205 | SPRING WASHER |
| CONTROL ARM TO SUPPORT | ||
| 454 | A 3933200632 | LINK |
| Repalced by: A 6203500006 | ||
| 454 | A 6203500006 | CONTROL ARM |
| Repalced by: A 6203500106 | ||
| 454 | A 6203500106 | CONTROL ARM |
| Repalced by: A 6553500306 | ||
| 454 | A 6553500306 | CONTROL ARM |
| BOTTOM | ||
| 457 | A 0003381797 | BOOT |
| A 0003380558 | SEAL HOLDER | |
| 464 | A 0005861533 | REPAIR KIT |
| LESS BALL PIVOT | ||
| 464 | A 0005861433 | REPAIR KIT |
| WITH BALL PIVOT | ||
| 480 | N 000960020138 | SCREW |
| Repalced by: N 000960020078 | ||
| 480 | N 000960020078 | SCREW |
| LINK TO AXLE | ||
| 480 | N 000960020032 | SCREW |
| Repalced by: N 308765020012 | ||
| 480 | N 308765020012 | SCREW |
| LINK TO AXLE | ||
| 482 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 482 | N 913004020003 | NUT |
| LINK TO AXLE | ||
| 487 | N 000960020086 | SCREW |
| LINK TO CENTRAL BEARING | ||
| 490 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 490 | N 913004020003 | NUT |
| LINK TO CENTRAL BEARING | ||
| 493 | A 3933280152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.50 MM | ||
| 493 | A 3933280252 | SPACER WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| 493 | A 3933280352 | SPACER WASHER |
| AS REQUIRED | ||
| 2.00 MM | ||
| 493 | A 3933280452 | SPACER WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 493 | N 000125021006 | WASHER |
| AS REQUIRED | ||
| 3.00 MM | ||

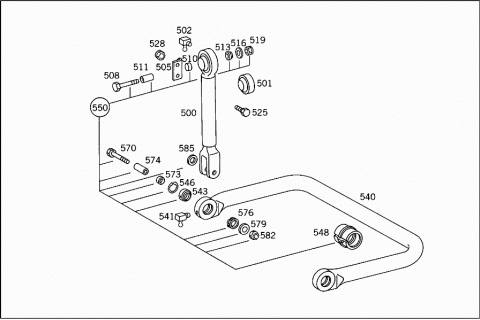

| 500 | A 3933200789 | ROD |
| TORSION BAR | ||
| 501 | A 0009816131 | JOINT BEARING |
| 502 | N 071412008302 | GREASE NIPPLE |
| 505 | A 3833260940 | BRACKET |
| LINK | ||
| A 6483120184 | SHIM | |
| LINK | ||
| 508 | N 000960016285 | SCREW |
| ROD TO BRACKET | ||
| 510 | A 3853230353 | SPACER TUBE |
| ROD TO BRACKET | ||
| 511 | A 3853230453 | SPACER TUBE |
| ROD TO BRACKET | ||
| 513 | A 3933230160 | SEAL RING |
| Repalced by: A 3803230260 | ||
| 513 | A 3803230260 | SEAL RING |
| ROD TO BRACKET | ||
| 516 | N 007349017002 | WASHER |
| ROD TO BRACKET | ||
| 519 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 519 | N 910113016001 | NUT |
| ROD TO BRACKET | ||
| 525 | N 000961018020 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| N 000125019009 | WASHER | |
| BRACKET TO SIDE MEMBER | ||
| 528 | N 913004018004 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 540 | A 3933260865 | TORSION BAR |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 541 | N 071412008302 | GREASE NIPPLE |
| TORSION BAR | ||
| 543 | A 0009816131 | JOINT BEARING |
| TORSION BAR | ||
| 543 | A 0009817431 | JOINT BEARING |
| TORSION BAR | ||
| 546 | N 000472055000 | LOCK RING |
| TORSION BAR | ||
| 548 | A 3933260281 | RUBBER MOUNTING |
| TORSION BAR | ||
| A 6553260581 | RUBBER MOUNTING | |
| TORSION BAR | ||
| 550 | A 3875860332 | REPAIR KIT |
| Repalced by: A 3873200328 | ||
| 550 | A 3873200328 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 550 | A 6203200111 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 555 | A 3933250319 | SPRING SEAT |
| TORSION BAR TO REAR AXLE,RIGHT | ||
| 555 | A 3933250419 | SPRING SEAT |
| TORSION BAR TO REAR AXLE,LEFT | ||
| A 6553260064 | STEP BEARING | |
| TORSION BAR TO REAR AXLE | ||
| 560 | N 000960016285 | SCREW |
| TORSION BAR TO REAR AXLE | ||
| M 16X115 | ||
| 560 | N 000960016248 | SCREW |
| TORSION BAR TO REAR AXLE | ||
| M 16X160 | ||
| 560 | N 000960016277 | SCREW |
| Repalced by: N 308765016011 | ||
| 560 | N 308765016011 | SCREW |
| TORSION BAR TO REAR AXLE | ||
| M 16X110 | ||
| 565 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 565 | N 910113016001 | NUT |
| TORSION BAR TO REAR AXLE | ||
| 570 | N 000960016285 | SCREW |
| ROD TO TORSION BAR | ||
| 573 | A 3853230353 | SPACER TUBE |
| ROD TO TORSION BAR | ||
| 574 | A 3853230453 | SPACER TUBE |
| ROD TO TORSION BAR | ||
| 576 | A 3933230160 | SEAL RING |
| Repalced by: A 3803230160 | ||
| 576 | A 3803230160 | SEAL RING |
| ROD TO TORSION BAR | ||
| 579 | N 007349017002 | WASHER |
| ROD TO TORSION BAR | ||
| 582 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 582 | N 910113016001 | NUT |
| ROD TO TORSION BAR | ||
| 585 | A 3939900140 | WASHER |
| ROD TO TORSION BAR | ||

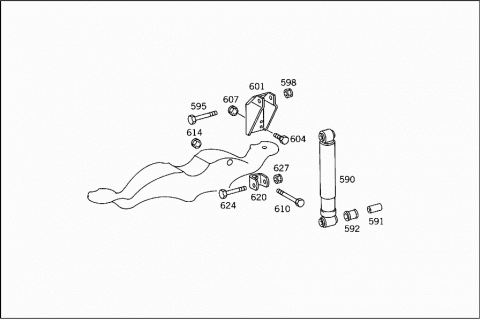

| 590 | A 0023266200 | SHOCK ABSORBER |
| Repalced by: A 0053262000 | ||
| 590 | A 0023266300 | SHOCK ABSORBER |
| Repalced by: A 0033268500 | ||
| 590 | A 0033268500 | SHOCK ABSORBER |
| Repalced by: A 0053262000 | ||
| 590 | A 0053262000 | SHOCK ABSORBER |
| REAR AXLE | ||
| 591 | A 0003233150 | BUSHING |
| TO 002 326 62 00, 005 326 20 00 | ||
| 591 | A 0003235250 | BUSHING |
| TO 003 326 85 00 | ||
| 592 | A 0003232885 | RUBBER MOUNTING |
| TO 002 326 62 00, 005 326 20 00 | ||
| 592 | A 0003233044 | RUBBER BUFFER |
| Repalced by: A 0003233144 | ||
| 592 | A 0003233144 | RUBBER BUFFER |
| TO 003 326 85 00 | ||
| 595 | N 000960016105 | SCREW |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 598 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 598 | N 910113016002 | NUT |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 601 | A 3873200243 | BRACKET |
| SHOCK ABSORBER,TOP | ||
| A 6483120084 | SHIM | |
| SHOCK ABSORBER,TOP | ||
| 604 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 604 | N 308676012026 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 607 | N 910113012002 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 610 | N 000960016164 | SCREW |
| SHOCK ABSORBER TO AIR-SPRING-BELLOWS SUPPORT | ||
| 614 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 614 | N 910113016002 | NUT |
| SHOCK ABSORBER TO AIR-SPRING-BELLOWS SUPPORT | ||
| 620 | A 3953230140 | BRACKET |
| SHOCK ABSORBER TO AIR-SPRING-BELLOWS SUPPORT | ||
| 624 | N 000960020140 | SCREW |
| Repalced by: N 000960020123 | ||
| 624 | N 000960020123 | SCREW |
| SHOCK ABSORBER TO AIR-SPRING-BELLOWS SUPPORT | ||
| 624 | N 000960020040 | SCREW |
| SHOCK ABSORBER TO AIR-SPRING-BELLOWS SUPPORT | ||
| 627 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 627 | N 913004020003 | NUT |
| SHOCK ABSORBER TO AIR-SPRING-BELLOWS SUPPORT | ||

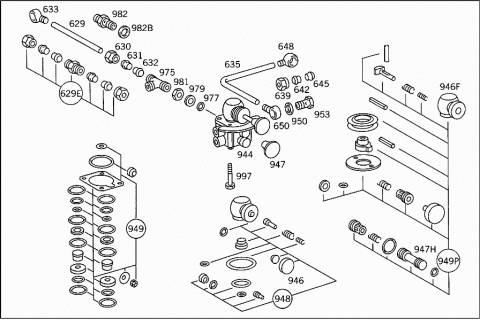

| 629 | A 0109975982 | HOSE |
| Repalced by: A 0009872827 | ||
| 629 | A 0009872827 | PLASTIC PIPE |
| FROM AIR RESERVOIR TO OPERATING VALVE | ||
| 9X12 MM | ||
| 629E | A 0049971772 | FITTING |
| Repalced by: A 0029906171 | ||
| 629E | A 0029906171 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||

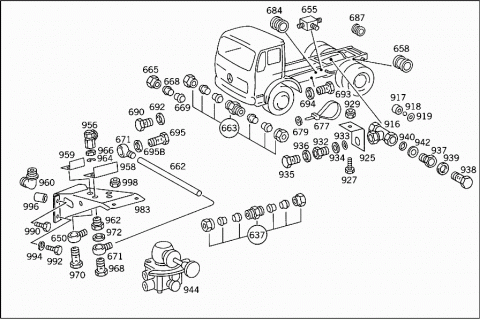

| 630 | N 915017012100 | UNION NUT |
| LINE CONNECTIONS | ||
| 631 | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 631 | A 0019901967 | SEAL CONE |
| LINE CONNECTIONS | ||
| 632 | A 0009921505 | BUSHING |
| Repalced by: N 915062009000 | ||
| 632 | N 915062009000 | SLEEVE |
| LINE CONNECTIONS | ||
| 633 | N 915052009009 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 9/16 MM | ||
| 635 | A 0089979082 | HOSE |
| SHIFT VALVE,CHECK VALVE,THREE-WAY VALVE | ||
| 6X8 MM | ||
| 635 | A 0089979082 | HOSE |
| BRAKE PRESSURE REGULATOR,AIR SPRING VALVE,AIR SPRING BELLOWS | ||
| 6X8 MM | ||
| 637 | A 0039978972 | FITTING |
| Repalced by: A 0029905971 | ||
| 637 | A 0029905971 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 639 | N 915017008100 | UNION NUT |
| LINE CONNECTIONS | ||
| 642 | N 003861008005 | GLAND |
| LINE CONNECTIONS | ||
| 645 | A 0007630043 | SLEEVE |
| Repalced by: N 915062006000 | ||
| 645 | N 915062006000 | SLEEVE |
| LINE CONNECTIONS | ||
| 648 | N 915052006014 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 6/16 MM | ||
| 650 | N 915052006013 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 6/12 MM | ||
| 652 | A 0009909488 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 6/6/16 MM | ||
| 655 | A 0009907990 | T-FITTING |
| LINE CONNECTIONS | ||
| 658 | A 0039977581 | GROMMET |
| COMPRESSED AIR HOSE | ||
| 662 | A 0089976082 | HOSE |
| Repalced by: A 0009872627 | ||
| 662 | A 0009872627 | PLASTIC PIPE |
| AIR RESERVOIR,SHIFT VALVE,CHECK VALVE, 3/2-WAY VALVE | ||
| 6X4 MM | ||
| 662 | A 0009872627 | PLASTIC PIPE |
| FROM BRAKE POWER REGULATOR TO TEST CONNECTION | ||
| 6X4 MM | ||
| 663 | A 0039979172 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 665 | N 915017006100 | UNION NUT |
| LINE CONNECTIONS | ||
| 668 | N 003861006007 | GLAND |
| Repalced by: A 0019901667 | ||
| 668 | A 0019901667 | SEAL CONE |
| LINE CONNECTIONS | ||
| 669 | A 0007630043 | SLEEVE |
| Repalced by: N 915062006000 | ||
| 669 | N 915062006000 | SLEEVE |
| LINE CONNECTIONS | ||
| 671 | N 915052004015 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/12 MM | ||
| 677 | A 0019978390 | LOOM TIE |
| LINE MOUNTING | ||
| 280 MM | ||
| 677 | A 0019978490 | LOOM TIE |
| LINE MOUNTING | ||
| 376 MM | ||
| 679 | N 000433008406 | WASHER |
| HOSDE TO FRAME | ||
| 684 | A 0039977481 | GROMMET |
| LINE THRU FRAME | ||
| 687 | A 3229971581 | GROMMET |
| LINE THRU FRAME | ||
| 690 | N 915036008202 | HOLLOW SCREW |
| AIR RESERVOIR,CONNECTION: | ||
| "31" | ||
| 690 | N 915036008202 | HOLLOW SCREW |
| AIR BRAKE PNEUMATIC CONTROL, CONNECTION: | ||
| "4" | ||
| 692 | N 007603012405 | SEAL RING |
| AIR RESERVOIR,CONNECTION: | ||
| "31" | ||
| 692 | N 007603012405 | SEAL RING |
| AIR BRAKE PNEUMATIC CONTROL, CONNECTION: | ||
| "4" | ||
| 693 | N 915036012203 | HOLLOW SCREW |
| AIR RESERVOIR,CONNECTION: | ||
| "24" | ||
| 694 | N 007603016401 | SEAL RING |
| AIR RESERVOIR,CONNECTION: | ||
| "24" | ||
| 695 | N 915047008202 | HOLLOW SCREW |
| BRAKE POWER REGULATOR,CONNECTION: | ||
| "41,42" | ||
| 695B | N 007603012405 | SEAL RING |
| BRAKE POWER REGULATOR,CONNECTION: | ||
| "41,42" | ||
| 697 | A 0009972072 | FITTING |
| Repalced by: A 0039979972 | ||
| 697 | A 0039979972 | FITTING |
| AIR SPRING BELLOWS TO CONNECTION "1" | ||
| 700 | A 0079974245 | SEAL RING |
| AIR SPRING BELLOWS TO CONNECTION "1" | ||
| 710 | A 0004290627 | THRUST RING |
| AIR SPRING BELLOWS TO CONNECTION "1" | ||

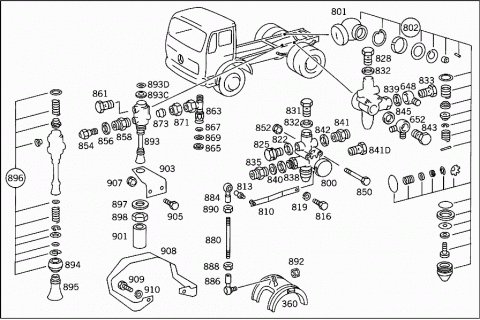

| 800 | A 0003283230 | VALVE |
| SELF-LEVELLING DEVICE | ||
| A 0003280192 | BOOT | |
| Repalced by: A 0003280292 | ||
| 801 | A 0003280292 | BOOT |
| 802 | A 0005861332 | REPAIR KIT |
| Repalced by: A 0003201067 | ||
| 802 | A 0003201067 | REPAIR KIT |
| AIR SPRING VALVE | ||
| KNORR SV 1280-I/80093 | ||
| 810 | A 3603200927 | LEVER |
| SELF-LEVELLING DEVICE | ||
| 813 | N 071803013208 | BALL PIVOT |
| 816 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 816 | N 304017008016 | SCREW |
| LEVER TO VALVE | ||
| 819 | N 912004008102 | LOCK WASHER |
| LEVER TO VALVE | ||
| 822 | N 007603012405 | SEAL RING |
| PNEUMATIC SUSPENSION VALVE,CONNECTIONS "21,22" " | ||
| 825 | N 000908012003 | SCREW PLUG |
| Repalced by: N 000908012009 | ||
| 825 | N 000908012009 | SCREW PLUG |
| PNEUMATIC SUSPENSION VALVE,CONNECTIONS "21,22" " | ||
| 828 | N 915036008202 | HOLLOW SCREW |
| PNEUMATIC SUSPENSION VALVE,CONNECTION "11" | ||
| 831 | N 915047008202 | HOLLOW SCREW |
| PNEUMATIC SUSPENSION VALVE,CONNECTION "11" | ||
| 832 | N 007603012405 | SEAL RING |
| PNEUMATIC SUSPENSION VALVE,CONNECTION "11" | ||
| 833 | N 915036012203 | HOLLOW SCREW |
| PNEUMATIC SUSPENSION VALVE,CONNECTION "12" | ||
| 835 | N 074313008104 | FITTING |
| Repalced by: A 0029979572 | ||
| 835 | A 0029979572 | FITTING |
| PNEUMATIC SUSPENSION VALVE,CONNECTION "12" | ||
| 838 | N 007603016401 | SEAL RING |
| PNEUMATIC SUSPENSION VALVE,CONNECTION "12" | ||
| 839 | A 0009971548 | SEAL RING |
| PNEUMATIC SUSPENSION VALVE,CONNECTION "12" | ||
| 840 | A 0004290927 | THRUST RING |
| PNEUMATIC SUSPENSION VALVE,CONNECTION "12" | ||
| 841 | A 0009971572 | FITTING |
| Repalced by: A 0019972572 | ||
| 841 | A 0019972572 | FITTING |
| PNEUMATIC SUSPENSION VALVE,CONNECTIONS "21,22" " | ||
| 841D | N 915036008202 | HOLLOW SCREW |
| PNEUMATIC SUSPENSION VALVE,CONNECTIONS "21,22" " | ||
| 842 | N 007603012405 | SEAL RING |
| PNEUMATIC SUSPENSION VALVE,CONNECTIONS "21,22" " | ||
| 843 | N 915036012203 | HOLLOW SCREW |
| PNEUMATIC SUSPENSION VALVE,CONNECTION "23" | ||
| 845 | N 007603016401 | SEAL RING |
| PNEUMATIC SUSPENSION VALVE,CONNECTION "23" | ||
| 850 | N 000931008228 | SCREW |
| Repalced by: N 000933008134 | ||
| 850 | N 000933008134 | SCREW |
| VALVE TO SIDE MEMBER | ||
| 850 | N 000933008134 | SCREW |
| VALVE TO SIDE MEMBER | ||
| 850 | N 000931008309 | SCREW |
| VALVE TO SIDE MEMBER | ||
| 852 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 852 | N 913004008001 | NUT |
| VALVE TO SIDE MEMBER | ||
| 854 | A 0024293344 | VALVE |
| (CHECK VALVE) | ||
| 856 | N 007603012405 | SEAL RING |
| CHECK VALVE,CONNECTION: | ||
| "1,2,3" | ||
| 858 | A 0009971572 | FITTING |
| Repalced by: A 0019972572 | ||
| 858 | A 0019972572 | FITTING |
| CHECK VALVE,CONNECTION "2" | ||
| 861 | N 915036008202 | HOLLOW SCREW |
| CHECK VALVE,CONNECTION: | ||
| "3" | ||
| 863 | A 0024292444 | VALVE |
| (TEST VALVE) | ||
| 865 | A 0039974348 | SEAL RING |
| 8X2 MM | ||
| 867 | A 0039974448 | SEAL RING |
| 4X1.5 MM | ||
| 869 | A 0039974548 | SEAL RING |
| 5X2 MM | ||
| 871 | N 915017008100 | UNION NUT |
| 873 | N 003861008005 | GLAND |
| A 3873200389 | ROD | |
| 880 | N 900331008427 | PULL ROD |
| PNEUMATIC SUSPENSION CONTROL | ||
| 884 | A 0004310767 | YOKE |
| L.H. THREAD | ||
| 886 | A 0004310667 | YOKE |
| R.H. THREAD | ||
| 888 | N 000439008211 | NUT |
| Repalced by: N 304035008001 | ||
| 888 | N 304035008001 | NUT |
| R.H. THREAD | ||
| 890 | N 000439008203 | NUT |
| Repalced by: N 304035008002 | ||
| 890 | N 304035008002 | NUT |
| L.H. THREAD | ||
| 892 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 892 | N 913004008001 | NUT |
| PULL ROD TO AXLE | ||
| 893 | A 0004342501 | VALVE |
| (CHANGE-OVER VALVE) AUTOMATIC LOAD-DEPENDING BRAKE | ||
| 893C | A 0079972548 | SEAL RING |
| 893D | A 0079972448 | SEAL RING |
| 894 | A 0004340586 | CUP |
| 895 | A 0009972177 | HANDLE |
| 896 | A 0025869843 | REPAIR KIT |
| AUTOMATIC LOAD-DEPENDING BRAKE CHANGEOVER VALVE | ||
| 897 | N 000093028001 | LOCK PLATE |
| VALVE TO BRACKET | ||
| 898 | N 080705026000 | NUT |
| Repalced by: N 080705026003 | ||
| 898 | N 080705026003 | NUT |
| VALVE TO BRACKET | ||
| 901 | A 3633280039 | RUBBER BUFFER |
| AUTOMATIC LOAD-DEPENDING BRAKE CHANGEOVER VALVE | ||
| 903 | A 3934282440 | BRACKET |
| AUTOMATIC LOAD-DEPENDING BRAKE CHANGEOVER VALVE | ||
| 905 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 905 | N 304017008027 | SCREW |
| BRACKET TO FRAME | ||
| 907 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 907 | N 913004008001 | NUT |
| BRACKET TO FRAME | ||
| 908 | A 3934280543 | ANGLE |
| AUTOMATIC LOAD-DEPENDING BRAKE CHANGEOVER VALVE | ||
| 909 | N 000965008006 | SCREW |
| Repalced by: N 000963008036 | ||
| 909 | N 000963008036 | SCREW |
| BRACKET TO SHIM | ||
| 910 | N 912004008102 | LOCK WASHER |
| BRACKET TO SHIM | ||
| 916 | A 0014292444 | VALVE |
| (SHUTTLE VALVE) AUTOMATIC LOAD-DEPENDING BRAKE | ||
| WESTINGHOUSE | ||
| 916 | A 0034291144 | VALVE |
| (SHUTTLE VALVE) AUTOMATIC LOAD-DEPENDING BRAKE | ||
| VOSS | ||
| A 0004290682 | VALVE | |
| Repalced by: A 0004290782 | ||
| 917 | A 0004290782 | VALVE |
| Repalced by: A 0004291182 | ||
| 917 | A 0004291182 | VALVE BODY |
| PISTONS | ||
| TO 001 429 24 44 | ||
| 918 | A 0029810485 | BALL |
| TO 003 429 11 44 | ||
| 919 | A 0004290180 | GASKET |
| TO 003 429 11 44 | ||
| 925 | A 3603282140 | BRACKET |
| Repalced by: A 3183281840 | ||
| 925 | A 3183281840 | BRACKET |
| Repalced by: A 3094921819 | ||
| 925 | A 3094921819 | BRACKET |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 927 | N 000933008145 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 929 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 929 | N 913004008001 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 932 | A 0009904468 | FITTING |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 933 | A 0009870446 | SEALING CORD |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 934 | A 0004290227 | THRUST RING |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 935 | N 915036008202 | HOLLOW SCREW |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 936 | N 007603012405 | SEAL RING |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 937 | A 0009904468 | FITTING |
| TWO-WAY VALVE,CONNECTIONS 11,12 | ||
| 938 | N 915047008202 | HOLLOW SCREW |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 939 | N 007603012405 | SEAL RING |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 940 | A 0009870446 | SEALING CORD |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 942 | A 0004290227 | THRUST RING |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 944 | A 0003290725 | VALVE |
| (SHIFT VALVE) | ||
| GRAU | ||
| 944 | A 0003290425 | VALVE |
| Repalced by: A 0003290825 | ||
| 944 | A 0003290825 | VALVE |
| (SHIFT VALVE) | ||
| KNORR | ||
| 946 | A 0003290193 | PROTECTIVE CAP |
| TO 000 329 04 25,000 329 08 25 | ||
| A 0003290293 | PROTECTIVE CAP | |
| Repalced by: A 0003290092 | ||
| 946F | A 0003290092 | BOOT |
| TO 000 329 04 25,000 329 08 25 | ||
| 947 | A 0009973177 | HANDLE |
| TO 000 329 04 25,000 329 08 25 | ||
| 947H | A 0003200058 | VALVE |
| TO 000 329 04 25,000 329 08 25 | ||
| 948 | A 0005861132 | REPAIR KIT |
| CONTROL VALVE | ||
| KNORR SV 3111-I/73100 | ||
| 949 | A 0003200567 | REPAIR KIT |
| CONTROL VALVE | ||
| GRAU | ||
| 949P | A 0003200767 | REPAIR KIT |
| CONTROL VALVE | ||
| KNORR 3111-I/83153 | ||
| 950 | N 007603016401 | SEAL RING |
| SCHALTVENTIL ANSCHLUSS:"12,13,22,23" | ||
| 953 | N 915036012203 | HOLLOW SCREW |
| SCHALTVENTIL ANSCHLUSS:"12,13,22,23" | ||
| 956 | A 0004312031 | TEST CONNECTION |
| 956 | A 0004312031 | TEST CONNECTION |
| 956 | A 0004312031 | TEST CONNECTION |
| 956 | A 0004314531 | TEST CONNECTION |
| 956 | A 0004314531 | TEST CONNECTION |
| 956 | A 0004314531 | TEST CONNECTION |
| 956 | A 0004314831 | TEST CONNECTION |
| 956 | A 0004314831 | TEST CONNECTION |
| 956 | A 0004314831 | TEST CONNECTION |
| 956 | A 0004316131 | TEST CONNECTION |
| 956 | A 0004316131 | TEST CONNECTION |
| 956 | A 0004316131 | TEST CONNECTION |
| 958 | A 3935840721 | GUIDE SIGN |
| AIR SPRING BELLOWS,LEFT AND RIGHT | ||
| 959 | A 3185840621 | GUIDE SIGN |
| SUPPLY | ||
| 959 | A 3185840621 | GUIDE SIGN |
| SUPPLY | ||
| A 3875840055 | ADHESIVE FOIL | |
| 960 | N 003911006100 | FITTING |
| Repalced by: A 0019904071 | ||
| 960 | A 0019904071 | ELBOW FITTING |
| TEST CONNECTION | ||
| 962 | A 0019908168 | FITTING |
| TEST CONNECTION | ||
| 962 | A 0019908168 | FITTING |
| TEST CONNECTION | ||
| 964 | N 912004012100 | LOCK WASHER |
| TEST CONNECTION | ||
| 966 | N 080705012003 | NUT |
| TEST CONNECTION TO BRACKET | ||
| 968 | N 915036008202 | HOLLOW SCREW |
| COMPRESSED AIR LINE TO TEST CONNECTION | ||
| 970 | N 915047008202 | HOLLOW SCREW |
| COMPRESSED AIR LINE TO TEST CONNECTION | ||
| 972 | N 007603012405 | SEAL RING |
| COMPRESSED AIR LINE TO TEST CONNECTION | ||
| 975 | A 0009907470 | T-FITTING |
| SHIFT VALVE,CONNECTION: | ||
| "11" | ||
| 977 | A 0009971548 | SEAL RING |
| SHIFT VALVE,CONNECTION: | ||
| "11" | ||
| 979 | A 0004290927 | THRUST RING |
| SHIFT VALVE,CONNECTION: | ||
| "11" | ||
| 981 | N 080705016003 | NUT |
| SHIFT VALVE,CONNECTION: | ||
| "11" | ||
| 982 | N 915039012206 | HOLLOW SCREW FITTING |
| SHIFT VALVE,CONNECTION: | ||
| "11" | ||
| 982B | N 007603016401 | SEAL RING |
| SHIFT VALVE,CONNECTION: | ||
| "11" | ||
| 983 | A 3873200443 | BRACKET |
| CONTROL VALVE | ||
| 990 | N 000960012230 | SCREW |
| BRACKET TO FRAME | ||
| M 12X70 | ||
| 992 | N 000961012165 | SCREW |
| Repalced by: N 000961012051 | ||
| 992 | N 000961012051 | SCREW |
| BRACKET TO FRAME | ||
| M 12X22 | ||
| 994 | N 912004012100 | LOCK WASHER |
| BRACKET TO FRAME | ||
| 996 | A 3939910040 | SPACER TUBE |
| BRACKET TO FRAME | ||
| 997 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 997 | N 304017008034 | SCREW |
| SHIFT VALVE TO BRACKET | ||
| 998 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 998 | N 913004008001 | NUT |
| SHIFT VALVE TO BRACKET | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
