Transporto priemonė: 1628 S; VIN numerio dalis: 620110
Grupė: 42 BRAKES

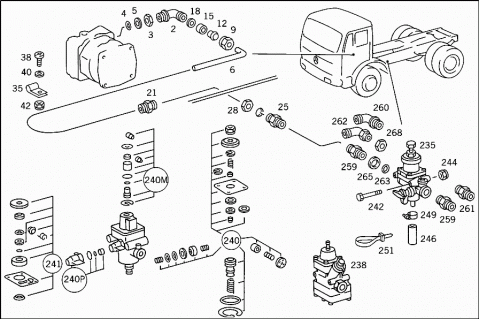

42393

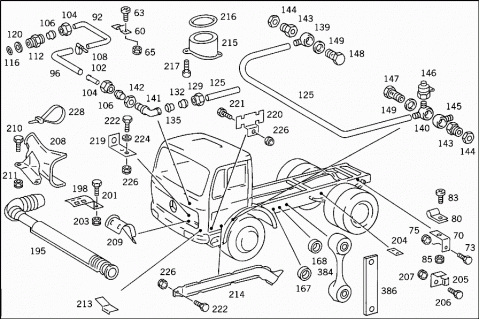

42394

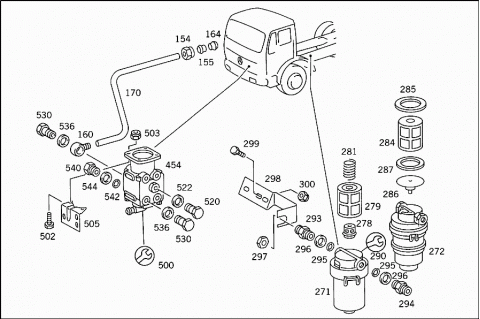

42395

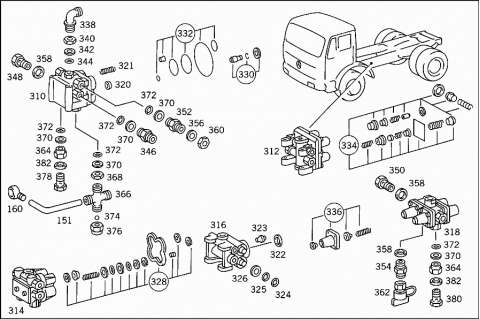

42396

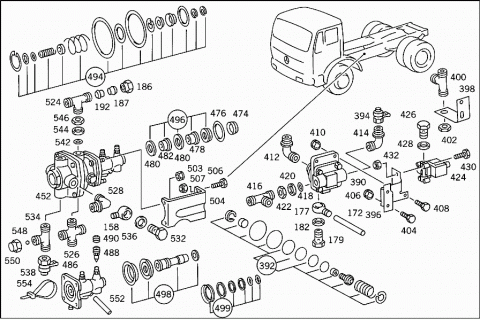

42397

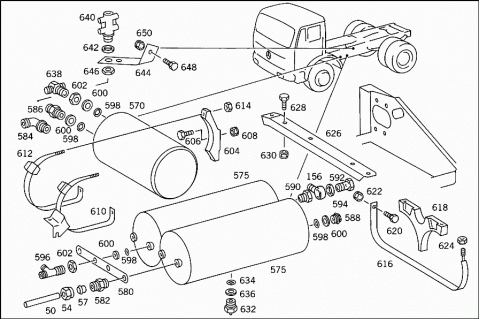

42398

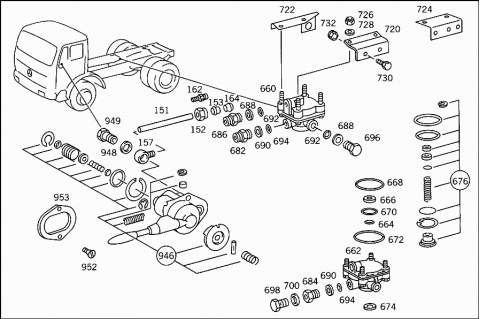

42399

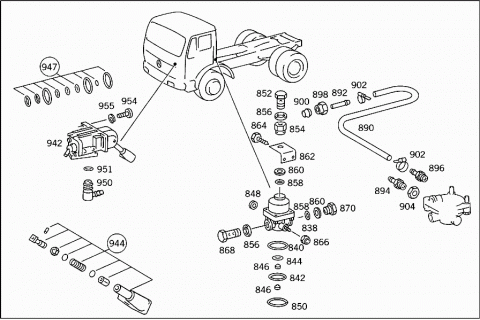

42400

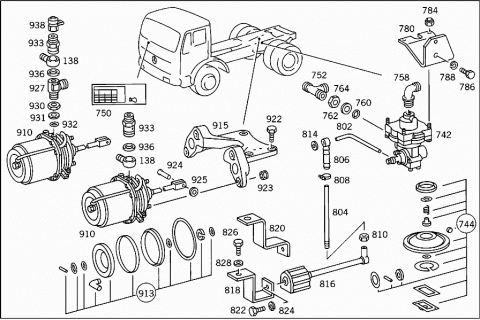

42401

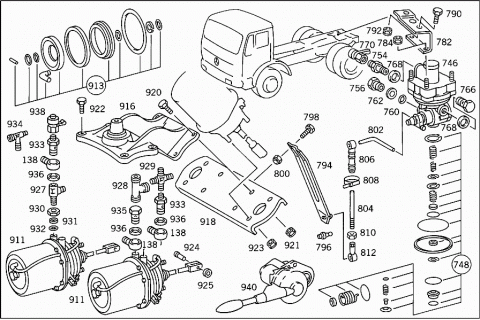

42402
# Kodas Pavadinimas
T YYYYYYYYYYYY PART NAME MISSING
FOR FRONT WHEEL BRAKE,SEE UNIT STANDARD VERSION, MODEL:
739.1
T YYYYYYYYYYYY PART NAME MISSING
FOR BRAKES,SEE UNIT STANDARD VERSION, MODEL:
740.3
A 6209970272 FITTING
AIR COMPRESSOR,CONNECTION:
"20"
N 007603026104 SEAL RING
AIR COMPRESSOR,CONNECTION:
"20"
002 A 0004294338 ELBOW FITTING
FROM AIR COMPRESSOR TO FITTING
003 N 074305026202 NUT
FROM AIR COMPRESSOR TO FITTING
004 A 0039973848 SEAL RING
FROM AIR COMPRESSOR TO FITTING
005 A 0004290527 THRUST RING
FROM AIR COMPRESSOR TO FITTING
006 A 0004291401 LINE
15X1.5 MM
006 A 0004291401 LINE
AIR COMPRESSOR,PRESSURE REGULATOR, FILTER,FOUR-CIRCUIT PROTECTIVE VALVE
15X1.5 MM
006 A 0004291401 LINE
FROM AIR RESERVOIR TO CHECK VALVE
15X1.5 MM
009 N 915018015000 UNION NUT
N 915017015100 UNION NUT
012 N 003861015004 GLAND
015 N 915065015101 THRUST RING
018 N 915045012100 SEAL RING
Repalced by: N 007603012121
018 N 007603012121 SEAL RING
021 N 074298022203 DOUBLE FITTING
BETWEEN THE LINES
N 003902015002 CONNECTION FITTING
BETWEEN THE LINES
025 N 003940014201 BULKHEAD FITTING
THROUGH SIDE MEMBER
N 003910015002 BULKHEAD FITTING
THROUGH SIDE MEMBER
028 N 074305022202 NUT
FITTING TO FRAME SIDE MEMBER
035 A 3609952001 CLAMP
Repalced by: A 6739950001
035 A 6739950001 CLAMP
MOUNTING USED FOR COMPRESSED AIR LINES
038 N 000000001147 SCREW
CLAMP TO BRACKET
M 6X20
040 N 000125006421 WASHER
CLAMP TO BRACKET
042 N 913004006002 NUT
Repalced by: N 913004006001
042 N 913004006001 NUT
CLAMP TO BRACKET
050 A 0004292101 LINE
12 MM
050 A 0004292101 LINE
AIR RESERVOIR,FOUR-CIRCUIT PROTECTIVE VALVE,BRAKE CYLINDER
12 MM
050 A 0004292101 LINE
LOAD/NO-LOAD VALVE
12 MM
054 N 915017012100 UNION NUT
057 N 003861012007 GLAND
Repalced by: A 0019901967
057 A 0019901967 SEAL CONE
060 A 3159955010 CLAMP
MOUNTING USED FOR COMPRESSED AIR LINES
N 000125006421 WASHER
MOUNTING USED FOR COMPRESSED AIR LINES
063 N 007985006145 SCREW
Repalced by: N 007985006581
063 N 007985006581 SCREW
MOUNTING USED FOR COMPRESSED AIR LINES
065 N 913004006002 NUT
Repalced by: N 913004006001
065 N 913004006001 NUT
MOUNTING USED FOR COMPRESSED AIR LINES
070 A 3874292940 BRACKET
Repalced by: A 3852670040
070 A 3852670040 BRACKET
MOUNTING USED FOR COMPRESSED AIR LINES
073 N 000961012097 SCREW
Repalced by: N 308676012026
073 N 308676012026 SCREW
BRACKET TO SIDE MEMBER
075 N 910113012002 NUT
BRACKET TO SIDE MEMBER
080 A 3609950401 CLAMP
COMPRESSED AIR LINE TO BRACKET
083 N 000000001147 SCREW
COMPRESSED AIR LINE TO BRACKET
M 6X20
N 007985006193 SCREW
Repalced by: N 000000001146
N 000000001146 SCREW
CLAMP TO BRACKET
M 6X16
085 N 913004006002 NUT
Repalced by: N 913004006001
085 N 913004006001 NUT
COMPRESSED AIR LINE TO BRACKET
092 A 3874299502 LINE
Repalced by: A 3834290801
092 A 3834290801 LINE
Repalced by: A 6194290801
092 A 6194290801 LINE
Repalced by: A 6254293501
092 A 6254293501 LINE
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
096 N 916027011014 HOSE
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
102 A 0004290541 FITTING
BRAKE HOSE
104 N 915017012100 UNION NUT
106 N 003861012007 GLAND
Repalced by: A 0019901967
106 A 0019901967 SEAL CONE
108 N 916017016000 CLAMP
Repalced by: N 000000000666
108 N 000000000666 CLAMP
LINE MOUNTING
112 A 0029971572 FITTING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
116 A 0009971548 SEAL RING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
120 A 0004290927 THRUST RING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
125 A 0109975982 HOSE
Repalced by: A 0009872827
125 A 0009872827 PLASTIC PIPE
9X12 MM
125 A 0009872827 PLASTIC PIPE
AIR RESERVOIR,FOUR-CIRCUIT PROTECTIVE VALVE,BRAKE CYLINDER
9X12 MM
125 A 0009872827 PLASTIC PIPE
RELAY VALVE,BRAKE POWER REGULATOR, TRISTOP CYLINDER,CONTROL VALVE
9X12 MM
125 A 0009872827 PLASTIC PIPE
BRAKE VALVE,BRAKE POWER REGULATOR
9X12 MM
125 A 0009872827 PLASTIC PIPE
CHECK VALVE
9X12 MM
125 A 0009872827 PLASTIC PIPE
LOAD/NO-LOAD VALVE
9X12 MM
125 A 0009872827 PLASTIC PIPE
HAND BRAKE VALVE BLEEDING
9X12 MM
A 0049971772 FITTING
Repalced by: A 0029906171
A 0029906171 FITTING
(PARTS KIT),LINE RUPTURE
TO 010 997 59 82
A 0009907378 CONNECTOR
REPAIR SIZE
129 N 915017012100 UNION NUT
132 N 003861012007 GLAND
Repalced by: A 0019901967
132 A 0019901967 SEAL CONE
135 A 0009921505 BUSHING
Repalced by: N 915062009000
135 N 915062009000 SLEEVE
138 N 915052009009 BANJO UNION
HOSE WIDTH, / I.D.,
9/16 MM
139 N 915052006014 BANJO UNION
HOSE WIDTH, / I.D.,
6/16 MM
140 A 0019901088 BANJO UNION
FROM 4-CIRCUIT PROTECTIVE VALVE,CONNECTION "22" TO INSIDE AIR RESERVOIR
140 A 0019901088 BANJO UNION
FROM 4-CIRCUIT PROTECTIVE VALVE,CONNECTION "22" TO INSIDE AIR RESERVOIR
141 N 003911012100 FITTING
Repalced by: A 0009907871
141 A 0009907871 ELBOW FITTING
COMPRESSED AIR LINE THRU FRAME
A 0019908171 ELBOW FITTING
Repalced by: A 0029905871
A 0029905871 ELBOW FITTING
COMPRESSED AIR LINE THRU FRAME
142 N 080705018002 NUT
COMPRESSED AIR LINE THRU FRAME
143 A 0004296034 ADAPTER FITTING
Repalced by: A 0004296634
143 A 0004296634 ADAPTER FITTING
Repalced by: A 0004296934
143 A 0004296934 ADAPTER FITTING
COMPRESSED AIR LINE THRU FRAME
143 A 0004296934 ADAPTER FITTING
COMPRESSED AIR LINE THRU FRAME
A 0004296834 ADAPTER FITTING
COMPRESSED AIR LINE THRU FRAME
144 N 080705018002 NUT
COMPRESSED AIR LINE THRU FRAME
144 N 080705018002 NUT
COMPRESSED AIR LINE THRU FRAME
N 000439018204 NUT
COMPRESSED AIR LINE THRU FRAME
A 0009970934 SCREW
COMPRESSED AIR LINE THRU FRAME
145 A 0019900788 BANJO UNION
COMPRESSED AIR LINE THRU FRAME
145 A 0019900788 BANJO UNION
COMPRESSED AIR LINE THRU FRAME
146 A 0004312031 TEST CONNECTION
AT FITTING
VOSS
146 A 0004312031 TEST CONNECTION
AT FITTING
VOSS
146 A 0004314531 TEST CONNECTION
AT FITTING
SCHAEFER
146 A 0004314531 TEST CONNECTION
AT FITTING
SCHAEFER
146 A 0004314831 TEST CONNECTION
AT FITTING
WABCO
146 A 0004314831 TEST CONNECTION
AT FITTING
WABCO
146 A 0004316131 TEST CONNECTION
AT FITTING
WIRA
146 A 0004316131 TEST CONNECTION
AT FITTING
WIRA
A 0009979486 PLUG
147 N 915047012203 HOLLOW SCREW
COMPRESSED AIR LINE, BRAKE
147 N 915047012203 HOLLOW SCREW
COMPRESSED AIR LINE, BRAKE
148 N 915036012203 HOLLOW SCREW
COMPRESSED AIR LINE, BRAKE
148 N 915036012203 HOLLOW SCREW
COMPRESSED AIR LINE, BRAKE
148 N 915036012203 HOLLOW SCREW
COMPRESSED AIR LINE, BRAKE
149 N 007603016401 SEAL RING
COMPRESSED AIR LINE, BRAKE
A 0009940147 SEAL RING
COMPRESSED-AIR-LINE PLUG-CONNECTION
TO M 22
A 0009941448 LOCK
COMPRESSED-AIR-LINE PLUG-CONNECTION
TO M 22
A 6739970145 REPAIR KIT
COMPRESSED-AIR-LINE PLUG-CONNECTION
TO M 22
A 0019901570 T-FITTING
COMPRESSED AIR LINE, BRAKE
A 0019907070 T-FITTING
COMPRESSED AIR LINE, BRAKE
A 6204290473 LOCK
COMPRESSED AIR LINE, BRAKE
151 A 0089979082 HOSE
BRAKE VALVE,FOUR-CIRCUIT PROTECTIVE VALVE,RELAY VALVE
6X8 MM
151 A 0089979082 HOSE
3/2-WAY VALVE,BRAKE POWER REGULATOR
6X8 MM
151 A 0089979082 HOSE
PRESSURE GAUGE
6X8 MM
151 A 0089979082 HOSE
PARKING BRAKE VALVE
6X8 MM
151 A 0089979082 HOSE
AXLE BREATHING
6X8 MM
A 0039978972 FITTING
Repalced by: A 0029905971
A 0029905971 FITTING
(PARTS KIT),LINE RUPTURE
152 N 915017008100 UNION NUT
153 N 003861008005 GLAND
154 N 915017006100 UNION NUT
FROM BRAKE VALVE TO PRESSURE GAUGE
155 N 003861006007 GLAND
Repalced by: A 0019901667
155 A 0019901667 SEAL CONE
FROM BRAKE VALVE TO PRESSURE GAUGE
156 N 915052009009 BANJO UNION
HOSE WIDTH, / I.D.,
6/16 MM
157 N 915052006021 BANJO UNION
HOSE WIDTH, / I.D.,
6/14 MM
158 N 915052006014 BANJO UNION
HOSE WIDTH, / I.D.,
6/16 MM
160 A 0009906688 BANJO UNION
Repalced by: N 915052006000
160 N 915052006013 BANJO UNION
HOSE WIDTH, / I.D.,
6/12 MM
162 A 0019976772 FITTING
Repalced by: N 915059006000
162 N 915059006002 FITTING
164 A 0007630043 SLEEVE
Repalced by: N 915062006000
164 N 915062006000 SLEEVE
164 N 915062006000 SLEEVE
SEE FIG. NO.:
950
164 N 915062006000 SLEEVE
SEE FIG. NO.:
951
167 A 6209970182 HOSE
LINE THRU FRAME
168 A 3549970081 GROMMET
LINE THRU FRAME
32/27 MM
168 A 3549970081 GROMMET
LINE THRU FRAME
32/27 MM
168 A 3879970481 GROMMET
LINE THRU FRAME
38/30 MM
168 A 3879970481 GROMMET
LINE THRU FRAME
38/30 MM
A 6209970181 GROMMET
LINE THRU FRAME
42/36 MM
A 6209970181 GROMMET
LINE THRU FRAME
42/36 MM
A 6209970181 GROMMET
LINE THRU FRAME
42/36 MM
168 A 6454290081 GROMMET
Repalced by: A 6554290081
168 A 6554290081 GROMMET
Repalced by: A 3969970281
168 A 3969970281 GROMMET
LINE THRU FRAME
61/54 MM
168 A 3969970281 GROMMET
LINE THRU FRAME
61/54 MM
170 N 073379006203 HOSE
PRESSURE GAUGE LINE
6X10 MM
172 A 0089976082 HOSE
Repalced by: A 0009872627
172 A 0009872627 PLASTIC PIPE
4X6 MM
172 A 0009872627 PLASTIC PIPE
3/2-WAY VALVE,PRESSURE GAUGE,EXHAUST BRAKE CYLINDER
4X6 MM
172 A 0009872627 PLASTIC PIPE
LOAD/NO-LOAD VALVE,TRUCK-TRACTOR BRAKE VALVE
4X6 MM
A 0039979172 FITTING
(PARTS KIT),LINE RUPTURE
177 A 0009903888 BANJO UNION
Repalced by: N 915052004006
177 N 915052004015 BANJO UNION
NO-LOAD/LOAD VALVE
179 N 915039008202 HOLLOW SCREW FITTING
NO-LOAD/LOAD VALVE
182 N 007603012405 SEAL RING
NO-LOAD/LOAD VALVE
186 N 915017006100 UNION NUT
187 N 003861006007 GLAND
Repalced by: A 0019901667
187 A 0019901667 SEAL CONE
192 N 915062004000 SLEEVE
192 A 0009920105 BUSHING
Repalced by: N 915062004000
192 N 915062004000 SLEEVE
FROM TWO-CIRCUIT BRAKE VALVE TO DOUBLE PRESSURE GAUGE
195 A 0004290086 PROTECTIVE TUBE
Repalced by: A 0004290286
195 A 0004290286 PROTECTIVE TUBE
COMPRESSED AIR LINE
A 6204202386 BRACKET
BRAKE LINE MOUNTING
198 A 3874291140 BRACKET
PLASTIC LINES TO FRAME
198 A 6154200086 BRACKET
LINE MOUNTING
198 A 6204201486 BRACKET
LINE MOUNTING
198 A 6204201486 BRACKET
LINE MOUNTING
201 N 000933008147 SCREW
Repalced by: N 304017008021
201 N 304017008021 SCREW
BRACKET TO CONSOLE
201 N 000933008153 SCREW
Repalced by: N 304017008034
201 N 304017008034 SCREW
BRACKET TO CONSOLE
203 N 913004008004 NUT
Repalced by: N 913004008001
203 N 913004008001 NUT
BRACKET TO CONSOLE
204 A 6204294340 BRACKET
Repalced by: A 3604293140
204 A 3604293140 BRACKET
BRAKE LINE MOUNTING
204 A 3604293140 BRACKET
BRAKE LINE MOUNTING
205 A 6204293540 BRACKET
BRAKE LINE TO SUPPORT
206 N 000961014100 SCREW
BRACKET TO LEFT SIDE MEMBER
206 N 000961014100 SCREW
BRACKET TO LEFT SIDE MEMBER
207 N 913004014002 NUT
Repalced by: N 910113014001
207 N 910113014001 NUT
BRACKET TO LEFT SIDE MEMBER
207 N 910113014001 NUT
BRACKET TO LEFT SIDE MEMBER
208 A 6204201586 BRACKET
BRAKE LINE MOUNTING
208 A 6204201686 BRACKET
BRAKE LINE MOUNTING
A 6204202486 BRACKET
BRAKE LINE MOUNTING
208 A 6204201186 BRACKET
BUMPER,RIGHT
208 A 6204201286 BRACKET
BUMPER,RIGHT
208 A 6204201286 BRACKET
BUMPER,RIGHT
209 A 3874292540 BRACKET
BUMPER,LEFT
209 A 3874292640 BRACKET
BUMPER,RIGHT
210 N 000933008147 SCREW
Repalced by: N 304017008021
210 N 304017008021 SCREW
BRACKET TO BUMPER STRUT
211 N 913004008004 NUT
Repalced by: N 913004008001
211 N 913004008001 NUT
BRACKET TO BUMPER STRUT
213 A 3874291540 BRACKET
PRESSURE GAUGE LINE TO CAB
213 A 3874292740 BRACKET
PRESSURE GAUGE LINE TO CAB
214 A 6204292340 BRACKET
PLASTIC LINES TO FRAME
215 A 6204291940 BRACKET
BRAKE LINE THRU CAB FLOOR
215 A 6204291940 BRACKET
BRAKE LINE THRU CAB FLOOR
215 A 6204292440 BRACKET
BRAKE LINE THRU CAB FLOOR
215 A 6204292440 BRACKET
BRAKE LINE THRU CAB FLOOR
216 A 6204290084 SEAL RING
CAB FLOOR
216 A 6204290084 SEAL RING
CAB FLOOR
217 N 007981004252 SHEET METAL SCREW
BRACKET TO CAB FLOOR
N 009021005202 WASHER
Repalced by: N 009021005205
N 009021005205 WASHER
BRACKET TO CAB FLOOR
A 0009946445 LOCK
BRACKET TO CAB FLOOR
219 A 3274925419 BRACKET
Repalced by: A 6205240340
219 A 6205240340 BRACKET
LINE MOUNTING
220 A 6204293940 BRACKET
BRAKE LINE MOUNTING
220 A 6204293940 BRACKET
BRAKE LINE MOUNTING
A 6204295240 BRACKET
BRAKE LINE MOUNTING
A 6204295240 BRACKET
BRAKE LINE MOUNTING
N 913004006002 NUT
Repalced by: N 913004006001
N 913004006001 NUT
AT CAB FLOOR
A 3609902340 WASHER
BRAKE LINE MOUNTING
A 3609902340 WASHER
BRAKE LINE MOUNTING
221 N 000933008152 SCREW
Repalced by: N 304017008027
221 N 304017008027 SCREW
BRACKET TO SIDE MEMBER
221 N 304017008027 SCREW
BRACKET TO SIDE MEMBER
222 N 000933008153 SCREW
Repalced by: N 304017008034
222 N 304017008034 SCREW
BRACKET TO FRONT CROSS MEMBER
224 N 000125008418 WASHER
Repalced by: N 000125008443
224 N 000125008443 WASHER
BRACKET TO FRONT CROSS MEMBER
226 N 913004008004 NUT
Repalced by: N 913004008001
226 N 913004008001 NUT
BRACKET TO FRONT CROSS MEMBER
226 N 913004008001 NUT
BRACKET TO SIDE MEMBER
226 N 913004008001 NUT
BRACKET TO SIDE MEMBER
228 A 0019978490 LOOM TIE
235 A 0014310006 PRESSURE REGULATOR
Repalced by: A 0024314906
235 A 0014313406 PRESSURE REGULATOR
Repalced by: A 0024314306
235 A 0014311206 PRESSURE REGULATOR
Repalced by: A 0024314906
235 A 0024314906 PRESSURE REGULATOR
WABCO
238 A 0014310606 PRESSURE REGULATOR
Repalced by: A 0024313406
238 A 0024313406 PRESSURE REGULATOR
Repalced by: A 0024314306
238 A 0024314306 PRESSURE REGULATOR
BOSCH
A 0024318306 PRESSURE REGULATOR
KNORR
240 A 0015864343 REPAIR KIT
Repalced by: A 0004301107
240 A 0004301107 REPAIR KIT
TO 001 431 00 06,WABCO 975 300 110 0
A 0024304681 REPAIR KIT
VALVE KIT
TO 001 431 00 06,WABCO 975 300 110 0
A 0014304960 REPAIR KIT
TO 002 431 49 06,WABCO 975 303 460 0
A 0025866043 REPAIR KIT
TO 001 431 34 06,GRAU 312 017 014
240M A 0004301768 REPAIR KIT
DIAPHRAGM
TO 002 431 34 06,BOSCH 0 481 039 221
240M A 0004301768 REPAIR KIT
DIAPHRAGM
TO 002 431 43 06,BOSCH. 0 481 039 201
240P A 0004307960 REPAIR KIT
TIRE INFLATING CONNECTION
TO 002 431 34 06,BOSCH 0 481 039 221
240P A 0004307960 REPAIR KIT
TIRE INFLATING CONNECTION
TO 002 431 43 06,BOSCH. 0 481 039 201
241 A 0015868543 REPAIR KIT
Repalced by: A 0004301407
241 A 0004301407 REPAIR KIT
TO 001 431 06 06,BOSCH 0 481 039 101
A 0025866743 REPAIR KIT
TO 001 431 12 06,KNORR
A 0004300407 REPAIR KIT
TO 002 431 83 06,KNORR 90309
242 N 000931008251 SCREW
PRESSURE REGULATOR TO BRACKET
M 8X75
244 N 913004008004 NUT
Repalced by: N 913004008001
244 N 913004008001 NUT
PRESSURE REGULATOR TO BRACKET
246 A 0005461830 INSULATING HOSE
PRESSURE REGULATOR,CONNECTION:
"3"
246 A 0159975082 HOSE
PRESSURE REGULATOR,CONNECTION:
"3"
249 N 916026016001 CLAMP
Repalced by: A 0059970190
249 A 0059970190 LOOM TIE
PRESSURE REGULATOR,CONNECTION:
"3"
249 N 916026020001 CLAMP
Repalced by: N 000000000667
249 N 000000000667 CLAMP
PRESSURE REGULATOR,CONNECTION:
"3"
251 A 0019978390 LOOM TIE
PRESSURE REGULATOR,CONNECTION:
"3"
259 N 074298022203 DOUBLE FITTING
AT PRESSURE REGULATOR
260 A 0009905871 ELBOW FITTING
PRESSURE REGULATOR,CONNECTION:
"1"
260 A 0009905871 ELBOW FITTING
PRESSURE REGULATOR,CONNECTION:
"1"
N 003911015102 FITTING
PRESSURE REGULATOR,CONNECTION:
"10"
261 A 0019972172 FITTING
PRESSURE REGULATOR,CONNECTION:
"21"
261 A 0019972172 FITTING
PRESSURE REGULATOR,CONNECTION:
"21"
262 N 074301022203 ELBOW FITTING
AT PRESSURE REGULATOR
263 A 0009870446 SEALING CORD
AT PRESSURE REGULATOR
265 A 0004290227 THRUST RING
AT PRESSURE REGULATOR
268 N 074305022202 NUT
AT PRESSURE REGULATOR
271 A 0004292595 AIR CLEANER
BOSCH
271 A 0004292595 AIR CLEANER
BOSCH
271 A 0004292695 AIR CLEANER
KNORR
271 A 0004292695 AIR CLEANER
KNORR
271 A 0004292795 AIR CLEANER
WABCO
271 A 0004292795 AIR CLEANER
WABCO
272 A 0004292895 AIR CLEANER
GRAU
272 A 0004292895 AIR CLEANER
GRAU
278 A 0004290597 FILTER ELEMENT
TO 000 429 27 95,WABCO
278 A 0004290597 FILTER ELEMENT
TO 000 429 27 95,WABCO
279 A 0004290497 FILTER ELEMENT
TO 000 429 27 95,WABCO
279 A 0004290497 FILTER ELEMENT
TO 000 429 27 95,WABCO
281 A 0059930901 SPRING
TO 000 429 27 95,WABCO
281 A 0059930901 SPRING
TO 000 429 27 95,WABCO
284 A 0004290397 FILTER ELEMENT
TO 000 429 28 95,GRAU
284 A 0004290397 FILTER ELEMENT
TO 000 429 28 95,GRAU
A 0004290797 FILTER ELEMENT
TO 000 429 25 95,BOSCH
A 0004290797 FILTER ELEMENT
TO 000 429 25 95,BOSCH
285 A 0089978048 SEAL RING
TO 000 429 28 95,GRAU
285 A 0089978048 SEAL RING
TO 000 429 28 95,GRAU
A 0019974048 SEAL RING
TO 000 429 25 95,BOSCH
A 0019974048 SEAL RING
TO 000 429 25 95,BOSCH
286 A 0004290845 DIAPHRAGM
TO 000 429 28 95,GRAU
286 A 0004290845 DIAPHRAGM
TO 000 429 28 95,GRAU
A 0004291045 DIAPHRAGM
TO 000 429 25 95,BOSCH
A 0004291045 DIAPHRAGM
TO 000 429 25 95,BOSCH
287 A 0059972748 SEAL RING
TO 000 429 28 95, GRAU
287 A 0059972748 SEAL RING
TO 000 429 28 95, GRAU
A 0119974048 SEAL RING
TO 000 429 25 95,BOSCH
A 0119974048 SEAL RING
TO 000 429 25 95,BOSCH
A 0089978848 SEAL RING
Repalced by: A 0049972248
A 0049972248 SEAL RING
Repalced by: A 0289972348
A 0289972348 SEAL RING
TO 000 429 27 95,100X3 MM,WABCO
A 0289972348 SEAL RING
TO 000 429 27 95,100X3 MM,WABCO
A 0089978948 SEAL RING
Repalced by: A 0009870746
A 0009870746 SEALING CORD
TO 000 429 27 95,75X3 MM,WABCO
A 0009870746 SEALING CORD
TO 000 429 27 95,75X3 MM,WABCO
290 A 0004204455 REPAIR KIT
TO 000 429 27 95,WABCO
290 A 0004204455 REPAIR KIT
TO 000 429 27 95,WABCO
A 0004300369 REPAIR KIT
TO 000 429 26 95,KNORR
A 0004300369 REPAIR KIT
TO 000 429 26 95,KNORR
293 A 0019972372 FITTING
AIR CLEANER,CONNECTION:
"1"
293 A 0019972372 FITTING
AIR CLEANER,CONNECTION:
"1"
294 A 0019972172 FITTING
AIR CLEANER,CONNECTION:
"2"
294 A 0019972172 FITTING
AIR CLEANER,CONNECTION:
"2"
A 0029978972 FITTING
AIR CLEANER,CONNECTION:
"20"
295 A 0009870446 SEALING CORD
AIR CLEANER,CONNECTION:
"1,2"
295 A 0009870446 SEALING CORD
AIR CLEANER,CONNECTION:
"1,2"
296 A 0004290227 THRUST RING
AIR CLEANER,CONNECTION:
"1,2"
296 A 0004290227 THRUST RING
AIR CLEANER,CONNECTION:
"1,2"
297 N 074305022202 NUT
AIR CLEANER TO BRACKET
297 N 074305022202 NUT
AIR CLEANER TO BRACKET
298 A 6204310740 BRACKET
AIR CLEANER
298 A 6204310740 BRACKET
AIR CLEANER
299 N 000933008147 SCREW
Repalced by: N 304017008021
299 N 304017008021 SCREW
BRACKET TO STRAP
299 N 304017008021 SCREW
BRACKET TO STRAP
N 000125008418 WASHER
Repalced by: N 000125008443
N 000125008443 WASHER
BRACKET TO STRAP
N 000125008443 WASHER
BRACKET TO STRAP
300 N 913004008004 NUT
Repalced by: N 913004008001
300 N 913004008001 NUT
BRACKET TO STRAP
300 N 913004008001 NUT
BRACKET TO STRAP
A 0014313806 VALVE
Repalced by: A 0024310406
310 A 0024310406 VALVE
(FOUR-CIRCUIT PROTECTIVE VALVE)
BOSCH
312 A 0014314706 VALVE
(FOUR-CIRCUIT PROTECTIVE VALVE)
WABCO
314 A 0014313506 VALVE
Repalced by: A 0014318406
314 A 0014318406 VALVE
(FOUR-CIRCUIT PROTECTIVE VALVE)
KNORR
316 A 0014316806 VALVE
Repalced by: A 0024312906
316 A 0024312906 VALVE
Repalced by: A 0024319306
316 A 0024319306 VALVE
(FOUR-CIRCUIT PROTECTIVE VALVE)
GRAU
318 A 0014318706 VALVE
Repalced by: A 0034315006
318 A 0014318706 VALVE
318 A 0014318906 VALVE
Repalced by: A 0024314006
318 A 0024314006 VALVE
Repalced by: A 0034315006
318 A 0024314006 VALVE
318 A 0014319306 VALVE
Repalced by: A 0034315006
318 A 0014319306 VALVE
318 A 0024310206 VALVE
Repalced by: A 0024312706
318 A 0024312706 VALVE
Repalced by: A 0024319106
318 A 0024319106 VALVE
Repalced by: A 0034315006
318 A 0024319106 VALVE
318 A 0034315006 VALVE
(FOUR-CIRCUIT PROTECTIVE VALVE)
WABCO
320 A 0014310986 CUP
TO 002 431 04 06,BOSCH
321 A 0009934905 SPRING
Repalced by: A 0009935205
321 A 0009935205 SPRING
TO 002 431 04 06,BOSCH
322 A 0014311860 SEAL RING
TO 001 431 68 06,34X2.3 MM,GRAU
323 A 0024298844 VALVE
TO 001 431 68 06,GRAU 37001
324 A 0099972448 SEAL RING
TO 001 431 68 06,19.3X2.4MM GRAU 37001
325 A 0059973248 SEAL RING
25.3X2.4 MM
T YYYYYYYYYYYY PART NAME MISSING
TO 001 431 68 06,002 431 04 06
326 A 0004313188 VALVE SEAT
TO 001 431 68 06 GRAU 37001
A 0014311960 SEAL RING
Repalced by: A 0009971548
A 0009971548 SEAL RING
TO 001 431 68 06,15X2 MM,GRAU 19001
328 A 0015863842 REPAIR KIT
TO 001 431 35 06,KNORR
A 0004303160 REPAIR KIT
TO 001 431 84 06,KNORR
330 A 0025861743 REPAIR KIT
BOOT
TO 001 431 38 06,BOSCH
332 A 0015868443 REPAIR KIT
SEAL RING
TO 001 431 38 06,BOSCH
334 A 0025862843 REPAIR KIT
TO 001 431 47 06,WABCO 2100
334 A 0004300468 REPAIR KIT
TO 001 431 47 06,WABCO 2210
A 0034300881 REPAIR KIT
TO 002 431 93 06,GRAU 74001
336 A 0035861043 REPAIR KIT
TO 001 431 87 06,KNORR
336 A 0035860943 REPAIR KIT
TO 001 431 89 06,002 431 40 06,WABCO
336 A 0004304706 GASKET KIT
TO 001 431 93 06,BOSCH 62401
336 A 0004300260 REPAIR KIT
TO 001 431 93 06,BOSCH 62201
336 A 0004302906 GASKET KIT
TO 002 431 04 06;BOSCH
A 0034300981 GASKET KIT
TO 002 431 91 06,GRAU 66001
336 A 0004305106 REPAIR KIT
FOUR-CIRCUIT PROTECTIVE VALVE
WABCO; TO 003 431 50 06
338 A 0009909671 ELBOW FITTING
Repalced by: A 0029901271
338 A 0029901271 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
A 0029902271 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
340 N 074305022202 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
342 A 0004290227 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
344 A 0009870446 SEALING CORD
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
346 A 0029971572 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"11,12,21"
348 N 915047012100 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"11,12"
350 N 915036012203 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"21"
350 N 915039012205 HOLLOW SCREW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"21,22"
350 N 915039012205 HOLLOW SCREW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"21,22"
N 000439016206 NUT
Repalced by: N 308675016001
N 308675016001 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
N 308675016001 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
350 N 915036012101 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"21"
A 0004296434 ADAPTER FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
A 0004296434 ADAPTER FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
A 0004312031 TEST CONNECTION
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"21,22"
A 0004312031 TEST CONNECTION
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"21,22"
A 0004314531 TEST CONNECTION
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"21,22"
A 0004314531 TEST CONNECTION
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"21,22"
A 0004314831 TEST CONNECTION
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"21,22"
A 0004314831 TEST CONNECTION
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"21,22"
A 0004316131 TEST CONNECTION
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"21,22" WIRA
A 0004316131 TEST CONNECTION
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"21,22" WIRA
A 0009979486 PLUG
352 N 074313012304 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
352 N 074313012304 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
354 N 915039012205 HOLLOW SCREW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"23"
354 N 915039012205 HOLLOW SCREW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"23"
356 N 000125019009 WASHER
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
356 N 000125019009 WASHER
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
N 000125017010 WASHER
Repalced by: N 000125017016
N 000125017016 WASHER
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
22
358 N 007603016401 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"11,12,21,22,23"
360 N 080705018002 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
360 N 080705018002 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
360 N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
360 N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
362 A 0034291044 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"23"
362 A 0034291044 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"23"
362 A 0044293744 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"23"
362 A 0044293744 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"23"
364 A 0019905268 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"21,24"
366 A 0019979272 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
368 N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
370 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"11,12,21,22,23,24"
372 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"11,12,21,22,23,24"
374 A 0009970386 PLUG
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
376 N 915020018000 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
378 N 915039008202 HOLLOW SCREW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"23"
380 N 915047008202 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
380 N 915047008202 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
382 N 007603012405 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"23,24"
384 A 3874310984 SHIM
Repalced by: A 6994311284
384 A 6994311284 SHIM
FRAME TRUSS TO SIDE MEMBER
386 A 3464315184 SHIM
FRAME TRUSS TO SIDE MEMBER
390 A 0004313213 VALVE
LOAD/NO-LOAD
392 A 0005867143 REPAIR KIT
TO 000 431 32 13
394 A 0004312031 TEST CONNECTION
AT BRAKE VALVE
VOSS
394 A 0004314531 TEST CONNECTION
AT BRAKE VALVE
SCHAEFER
394 A 0004314831 TEST CONNECTION
AT BRAKE VALVE
WABCO
394 A 0004316131 TEST CONNECTION
AT BRAKE VALVE
WIRA
A 0009979486 PLUG
396 A 3874293240 BRACKET
LOAD/NO-LOAD VALVE
398 A 3934310840 BRACKET
FRONT AXLE
400 A 0029977372 FITTING
FRONT AXLE
402 N 080705018002 NUT
T-FITTING TO BRACKET
404 N 000933008152 SCREW
Repalced by: N 304017008027
404 N 304017008027 SCREW
BRACKET TO SIDE MEMBER
404 N 000933008160 SCREW
Repalced by: N 304017008040
404 N 304017008040 SCREW
Repalced by: N 910105008010
404 N 910105008010 SCREW
Repalced by: N 910143008005
404 N 910143008005 SCREW
BRACKET TO SIDE MEMBER
406 N 913004008004 NUT
Repalced by: N 913004008001
406 N 913004008001 NUT
BRACKET TO SIDE MEMBER
406 N 913004008001 NUT
BRACKET TO SIDE MEMBER
408 N 000933008153 SCREW
Repalced by: N 304017008034
408 N 304017008034 SCREW
BRACKET TO LOAD/NO-LOAD VALVE
410 N 913004008004 NUT
Repalced by: N 913004008001
410 N 913004008001 NUT
BRACKET TO LOAD/NO-LOAD VALVE
412 A 0019903071 ELBOW FITTING
BRAKE VALVE,CONNECTION:
"22"
414 A 3529900071 ELBOW FITTING
LOAD/NO-LOAD VALVE,CONNECTION:
"1"
416 A 0009904570 T-FITTING
LOAD/NO-LOAD VALVE,CONNECTION:
"4"
418 A 0009971548 SEAL RING
LOAD/NO-LOAD VALVE,CONNECTION:
"2"
420 A 0004290927 THRUST RING
LOAD/NO-LOAD VALVE
422 N 080705016003 NUT
LOAD/NO-LOAD VALVE
424 A 0004202755 BLEEDER VALVE
426 N 000908012003 SCREW PLUG
Repalced by: N 000908012009
426 N 000908012009 SCREW PLUG
TO PLUG THE FREE CONNECTIONS
428 N 007603012405 SEAL RING
TO PLUG THE FREE CONNECTIONS
430 N 000933006124 SCREW
VALVE TO BRACKET
432 N 913004006002 NUT
Repalced by: N 913004006001
432 N 913004006001 NUT
VALVE TO BRACKET
452 A 0014313505 BRAKE VALVE
TWO-CIRCUIT BRAKE VALVE
TEVES-WABCO
452 A 0014314305 BRAKE VALVE
TWO-CIRCUIT BRAKE VALVE
BOSCH-TEVES
452 A 0014319405 BRAKE VALVE
TWO-CIRCUIT BRAKE VALVE
SCHAEFER-WABCO
452 A 0024310505 BRAKE VALVE
TWO-CIRCUIT BRAKE VALVE
BOSCH-SCHAEFER
454 A 0024310605 BRAKE VALVE
TWO-CIRCUIT BRAKE VALVE
WABCO
454 A 0024310605 BRAKE VALVE
TWO-CIRCUIT BRAKE VALVE
WABCO
454 A 0024311005 BRAKE VALVE
TWO-CIRCUIT BRAKE VALVE
BOSCH
454 A 0024311005 BRAKE VALVE
TWO-CIRCUIT BRAKE VALVE
BOSCH
454 A 0024312005 BRAKE VALVE
TWO-CIRCUIT BRAKE VALVE
KNORR
454 A 0024312005 BRAKE VALVE
TWO-CIRCUIT BRAKE VALVE
KNORR
454 A 0014318305 BRAKE VALVE
TWO-CIRCUIT BRAKE VALVE
WABCO
454 A 0014318305 BRAKE VALVE
TWO-CIRCUIT BRAKE VALVE
WABCO
454 A 0014318905 BRAKE VALVE
TWO-CIRCUIT BRAKE VALVE
BOSCH
454 A 0014318905 BRAKE VALVE
TWO-CIRCUIT BRAKE VALVE
BOSCH
454 A 0014319105 BRAKE VALVE
TWO-CIRCUIT BRAKE VALVE
KNORR
454 A 0014319105 BRAKE VALVE
TWO-CIRCUIT BRAKE VALVE
KNORR
454 A 0014319905 BRAKE VALVE
TWO-CIRCUIT BRAKE VALVE
GRAU
454 A 0014319905 BRAKE VALVE
TWO-CIRCUIT BRAKE VALVE
GRAU
A 0004312185 FILLER RING
TO 001 431 83 05,WABCO
A 0004310273 BREATHER PIPE
TO 001 431 83 05,WABCO
A 0004318383 PISTON
TO 001 431 83 05,WABCO
A 0014316993 SPRING
TO 001 431 89 05,BOSCH
474 A 0004310378 RUBBER RING
TO 001 431 43 05,002 431 05 05,WABCO
476 A 0049970248 SEAL RING
TO 001 431 43 05,BOSCH-TEVES
478 A 0004312181 VALVE DISC
Repalced by: A 0004312781
478 A 0004312781 VALVE DISC
TO 001 431 43 05,BOSCH-TEVES
480 A 0004318986 CUP
TO 001 431 43 05,BOSCH-TEVES
482 A 0004312281 VALVE DISC
TO 001 431 43 05,BOSCH-TEVES
A 0109974248 SEAL RING
TO 001 431 43 05,BOSCH-TEVES
A 0109974348 SEAL RING
Repalced by: A 0049970248
A 0049970248 SEAL RING
TO 002 431 05 05,BOSCH-SCHAEFER
A 0059975248 SEAL RING
TO 001 431 43 05,002 431 05 05,WABCO
A 0059975348 SEAL RING
TO 001 431 43 05,002 431 05 05,WABCO
A 0059975448 SEAL RING
TO 001 431 43 05,002 431 05 05,WABCO
A 0049979148 SEAL RING
TO 001 431 43 05,002 431 05 05,WABCO
A 0059975548 SEAL RING
TO 001 431 43 05,002 431 05 05,WABCO
486 A 0074202118 WHEEL BRAKE CYLINDER
SLAVE CYLINDER
TO 001 431 35 05,001 431 43 05,TEVES
486 A 0064201518 WHEEL BRAKE CYLINDER
SLAVE CYLINDER
TO001 431 94 05,002 431 05 05,SCHAEFER
A 0004204155 BLEEDER VALVE
Repalced by: A 0004310265
A 0004202155 BLEEDER VALVE
Repalced by: A 0004310265
488 A 0004310265 VALVE
Repalced by: A 3075530107
488 A 3075530107 VALVE
490 A 0004210887 PROTECTIVE CAP
Repalced by: A 0004217187
490 A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
490 A 0004210887 PROTECTIVE CAP
490 A 3164210187 PROTECTIVE CAP
Repalced by: A 0004210887
490 A 0004210887 PROTECTIVE CAP
Repalced by: A 0004217187
490 A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
490 A 0004210887 PROTECTIVE CAP
A 0004313623 VALVE
WABCO
A 0004313623 VALVE
WABCO
494 A 0005868643 REPAIR KIT
COMPRESSED AIR CYLINDER
TO 001 431 35 05,001 431 94 05,WABCO
496 A 0025861343 REPAIR KIT
VALVE DISC
TO 001 431 43 05,002 431 05 05,BOSCH
A 0025865742 REPAIR KIT
Repalced by: A 0004301109
A 0004301109 REPAIR KIT
BLEEDER VALVE
T 001 431 43 05,002 431 05 05,WABCO
498 A 0025862442 REPAIR KIT
SLAVE CYLINDER
TO 007 420 21 18,TEVES
A 0025860942 REPAIR KIT
SLAVE CYLINDER
TO 006 420 15 18,WABCO
499 A 0025865542 REPAIR KIT
SLAVE CYLINDER
TO 006 420 15 18,WABCO
500 A 0035861143 REPAIR KIT
Repalced by: A 0004306360
A 0004306360 REPAIR KIT
TO 002 431 06 05,WABCO
A 0004306360 REPAIR KIT
TO 002 431 06 05,WABCO
500 A 0004300060 REPAIR KIT
Repalced by: A 0014308460
500 A 0014308460 GASKET KIT
TO 002 431 10 05,BOSCH
500 A 0035861243 REPAIR KIT
TO 001 431 91 05,KNORR
500 A 0025868043 REPAIR KIT
Repalced by: A 0004301160
500 A 0004301160 REPAIR KIT
Repalced by: A 0004306260
A 0004306260 REPAIR KIT
Repalced by: A 0014300460
A 0014300460 REPAIR KIT
TO 001 431 83 05,WABCO
A 0014300460 REPAIR KIT
TO 001 431 83 05,WABCO
500 A 0025868743 REPAIR KIT
Repalced by: A 0004303506
500 A 0004303506 REPAIR KIT
TO 001 431 89 05,BOSCH
502 N 000933008152 SCREW
Repalced by: N 304017008027
502 N 304017008027 SCREW
BRAKE VALVE TO BRACKET
503 N 913004008004 NUT
Repalced by: N 913004008001
503 N 913004008001 NUT
BRAKE VALVE TO BRACKET
504 A 3874311340 BRACKET
TRUCK-TRACTOR BRAKE VALVE
505 A 6202920140 BRACKET
BRAKE VALVE
505 A 6202920140 BRACKET
BRAKE VALVE
506 N 000933010128 SCREW
BRACKET TO BATTERY/APPARATUS SUPPORT
507 N 913004010008 NUT
Repalced by: N 910113010000
507 N 910113010000 NUT
BRACKET TO BATTERY/APPARATUS SUPPORT
A 6204290035 BRAKE HOSE
Repalced by: A 6174310073
A 6204290041 FITTING
Repalced by: A 6174310073
A 0004300270 MUFFLER
Repalced by: A 6174310073
A 6174310073 BREATHER PIPE
AT BRAKE VALVE
A 6174310173 BREATHER PIPE
AT BRAKE VALVE
520 N 915036008202 HOLLOW SCREW
TWO-CIRCUIT BRAKE VALVE,CONNECTION:
"4"
520 N 915036008202 HOLLOW SCREW
TWO-CIRCUIT BRAKE VALVE,CONNECTION:
"4"
522 N 007603012405 SEAL RING
TWO-CIRCUIT BRAKE VALVE,CONNECTION:
"4"
522 N 007603012405 SEAL RING
TWO-CIRCUIT BRAKE VALVE,CONNECTION:
"4"
524 A 0009904770 T-FITTING
TWO-CIRCUIT BRAKE VALVE,CONNECTION:
"11,12"
526 A 0029979072 FITTING
TWO-CIRCUIT BRAKE VALVE,CONNECTION:
"21"
528 A 0019903071 ELBOW FITTING
TWO-CIRCUIT BRAKE VALVE,CONNECTION:
"22"
530 N 915036012203 HOLLOW SCREW
"11,12,21,22"
530 N 915036012203 HOLLOW SCREW
"11,12,21,22"
532 N 915036012101 HOLLOW SCREW
TWO-CIRCUIT BRAKE VALVE,CONNECTION:
"22"
534 A 0009906170 T-FITTING
TWO-CIRCUIT BRAKE VALVE,CONNECTION:
"22"
536 N 007603016401 SEAL RING
TWO-CIRCUIT BRAKE VALVE,CONNECTION:
"11,12,21,22"
538 A 0004312031 TEST CONNECTION
TWO-CIRCUIT BRAKE VALVE,CONNECTION:
"21,22"; VOSS
538 A 0004314531 TEST CONNECTION
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
"21,22",SCHAEFER
538 A 0004314831 TEST CONNECTION
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
"21,22";WABCO
538 A 0004316131 TEST CONNECTION
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
"21,22"; WIRA
A 0009979486 PLUG
540 N 000908016001 SCREW PLUG
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
"11,12,21,22"
540 N 000908016001 SCREW PLUG
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
"11,12,21,22"
542 A 0009971548 SEAL RING
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
"11,12,21,22"
544 A 0004290927 THRUST RING
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
"11,12,21,22"
546 N 080705016003 NUT
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
"11,12,21,22"
548 A 3879970086 PLUG
TWO-CIRCUIT BRAKE CYLINDER;CONNECTION:
"21,22"
550 N 915020014000 NUT
TWO-CIRCUIT BRAKE CYLINDER;CONNECTION:
"21,22"
552 A 0089979082 HOSE
TWO-CIRCUIT BRAKE VALVE BLEEDING
554 A 0019978490 LOOM TIE
TWO-CIRCUIT BRAKE VALVE BLEEDING
570 A 0004324801 RESERVOIR
Repalced by: A 0014327501
570 A 0014327501 RESERVOIR
Repalced by: A 0034321201
570 A 0034321201 RESERVOIR
AIR RESERVOIR I
20 L
575 A 0004322601 RESERVOIR
Repalced by: A 0034321801
575 A 0034321801 RESERVOIR
AIR RESERVOIRS II,III
30 L
580 A 3464320073 LOCK
580 A 3464320073 LOCK
582 A 0029971172 FITTING
AIR RESERVOIRS II,III
584 A 0009907771 ELBOW FITTING
AIR RESERVOIR I
586 A 0019972172 FITTING
AIR RESERVOIR I,CONNECTION:
"13"
586 A 0019972172 FITTING
AIR RESERVOIR I,CONNECTION:
"13"
N 915036012203 HOLLOW SCREW
AIR RESERVOIR I,CONNECTION:
"13"
A 0009905168 FITTING
AIR RESERVOIR I,CONNECTION:
"12"
N 007603016401 SEAL RING
AIR RESERVOIR I,CONNECTION:
"13"
A 0019909771 ELBOW FITTING
AIR RESERVOIR,CONNECTION:
"13"
N 915052009009 BANJO UNION
AIR RESERVOIR,CONNECTION:
"13"
588 N 000908022001 SCREW PLUG
Repalced by: N 000908022011
588 N 000908022011 SCREW PLUG
AIR RESERVOIR,CONNECTIONS:
588 N 000908022011 SCREW PLUG
AIR RESERVOIR,CONNECTIONS:
"32"
N 007603022403 SEAL RING
AIR RESERVOIR
590 A 0009905168 FITTING
AIR RESERVOIR,CONNECTION:
"23,31,32"
590 A 0009905168 FITTING
AIR RESERVOIR,CONNECTION:
"23,31,32"
590 A 0019907368 FITTING
AIR RESERVOIR,CONNECTION:
"11,12,21,22"
590 A 0019907368 FITTING
AIR RESERVOIR,CONNECTION:
"11,12,21,22"
592 N 915036012101 HOLLOW SCREW
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22,23,31"
592 N 915036012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22,31,32"
592 N 915036012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22,31,32"
594 N 007603016401 SEAL RING
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22,23,31,32"
596 A 0009903970 T-FITTING
Repalced by: A 0019901070
596 A 0019901070 T-FITTING
AIR RESERVOIRS II,III
A 0009902687 CROSS FITTING
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
A 0004312031 TEST CONNECTION
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
VOSS
A 0004314531 TEST CONNECTION
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
SCHAEFER
A 0004314831 TEST CONNECTION
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
WABCO
A 0004316131 TEST CONNECTION
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
WIRA
A 0009979486 PLUG
598 A 0009870446 SEALING CORD
AIR RESERVOIR,CONNECTIONS:
"11,12,13,14,21,22,23,24,31,32"
600 A 0004290227 THRUST RING
AIR RESERVOIR,CONNECTIONS:
"11,12,13,14,21,22,23,24,31,32"
602 N 074305022202 NUT
AIR RESERVOIR,CONNECTIONS:
"14,24"
602 N 074305022202 NUT
COMPRESSED AIR LINE TO AIR RESERVOIR
"14,24"
604 A 3874320540 BRACKET
AIR RESERVOIR
606 N 000933008215 SCREW
Repalced by: A 0069909301
606 A 0069909301 SCREW
BRACKET TO SIDE PART,FRONT
608 N 913004008004 NUT
Repalced by: N 913004008001
608 N 913004008001 NUT
BRACKET TO SIDE PART,FRONT
T YYYYYYYYYYYY PART NAME MISSING
FOR BATTERY/APPARATUS SUPPORT, SEE GROUP 54
610 A 3874301240 STRAP
AIR RESERVOIR
610 A 6204300640 STRAP
AIR RESERVOIR
610 A 6204300640 STRAP
AIR RESERVOIR
610 A 6204300440 STRAP
610 A 6204300440 STRAP
610 A 6204300240 STRAP
612 A 3874300640 STRAP
AIR RESERVOIR
612 A 6204300740 STRAP
AIR RESERVOIR
612 A 6204300740 STRAP
AIR RESERVOIR
612 A 6204301040 STRAP
AIR RESERVOIR
612 A 6204301240 STRAP
AIR RESERVOIR
614 N 000934010014 NUT
STRAP TO BRACKET
614 N 913002010001 NUT
STRAP TO BRACKET
614 N 913004010008 NUT
Repalced by: N 910113010000
614 N 910113010000 NUT
STRAP TO BRACKET
616 A 3874300740 STRAP
AIR RESERVOIR TO FRAME
616 A 6204300040 STRAP
AIR RESERVOIR TO FRAME
616 A 6204300040 STRAP
AIR RESERVOIR TO FRAME
618 A 3854320218 BASE
AIR RESERVOIR,STRAP
618 A 6204320018 BASE
AIR RESERVOIR,STRAP
618 A 6204320018 BASE
AIR RESERVOIR,STRAP
620 N 000933010105 SCREW
AIR RESERVOIR,STRAP
N 001440010002 WASHER
AIR RESERVOIR,STRAP
622 N 913004010008 NUT
Repalced by: N 910113010000
622 N 910113010000 NUT
AIR RESERVOIR,STRAP
624 N 000934010014 NUT
AIR RESERVOIR,STRAP
626 A 3874321917 ANGLE
AIR RESERVOIR TO CONSOLE
628 N 000933010128 SCREW
AIR RESERVOIR TO CONSOLE
630 N 913004010008 NUT
Repalced by: N 910113010000
630 N 910113010000 NUT
AIR RESERVOIR TO CONSOLE
632 A 0004321107 VALVE
DRAIN
632 A 0004322107 VALVE
DRAIN
632 A 0004322407 VALVE
DRAIN
634 A 0009870446 SEALING CORD
DRAIN VALVE TO AIR RESERVOIR
636 A 0004290227 THRUST RING
DRAIN VALVE TO AIR RESERVOIR
638 A 0024295844 VALVE
(CHECK VALVE)
638 A 0024295944 VALVE
(CHECK VALVE)
638 A 0024297544 VALVE
(CHECK VALVE)
640 A 0024299644 VALVE
(CHECK VALVE)
VOSS
640 A 0024299644 VALVE
(CHECK VALVE)
VOSS
640 A 0034291244 VALVE
(CHECK VALVE)
SCHAEFER
640 A 0034291244 VALVE
(CHECK VALVE)
SCHAEFER
640 A 0034290444 VALVE
(CHECK VALVE)
WABCO
640 A 0034290444 VALVE
(CHECK VALVE)
WABCO
A 0004290383 VALVE TAPPET
TO 002 429 96 44, VOSS
A 0004290383 VALVE TAPPET
TO 002 429 96 44, VOSS
A 0004290728 SEAL CONE
SCHAEFER
A 0004290728 SEAL CONE
SCHAEFER
A 0004292584 SEAL RING
TO 002 429 96 44, VOSS
A 0004292584 SEAL RING
TO 002 429 96 44, VOSS
A 0109970048 SEAL RING
13.6X8X2 MM, SCHAEFER
A 0109970048 SEAL RING
13.6X8X2 MM, SCHAEFER
A 0109970148 SEAL RING
15.3X2.4 MM, SCHAEFER
A 0109970148 SEAL RING
15.3X2.4 MM, SCHAEFER
642 A 0089977348 SEAL RING
TO 003 429 04 44, WABCO
642 A 0089977348 SEAL RING
TO 003 429 04 44, WABCO
A 0004290662 THRUST WASHER
SCHAEFER
A 0004290662 THRUST WASHER
SCHAEFER
A 0002950320 VALVE
TO 003 429 04 44, WABCO
A 0002950320 VALVE
TO 003 429 04 44, WABCO
644 A 6204294540 BRACKET
CHECK VALVE
644 A 6204292540 BRACKET
Repalced by: A 6164290140
A 6204292540 BRACKET
Repalced by: A 6164290140
A 6164290140 BRACKET
CHECK VALVE
A 6164290140 BRACKET
CHECK VALVE
646 N 074305022202 NUT
CHECK VALVE TO BRACKET
646 N 074305022202 NUT
CHECK VALVE TO BRACKET
648 N 000933010260 SCREW
BRACKET TO FRAME SIDE MEMBER
648 N 000933010260 SCREW
BRACKET TO FRAME SIDE MEMBER
A 3529900640 WASHER
BRACKET TO FRAME SIDE MEMBER
N 000961014028 SCREW
BRACKET TO FRAME SIDE MEMBER
650 N 913004010008 NUT
Repalced by: N 910113010000
650 N 910113010000 NUT
BRACKET TO FRAME SIDE MEMBER
650 N 910113010000 NUT
BRACKET TO FRAME SIDE MEMBER
N 913004014002 NUT
Repalced by: N 910113014001
N 910113014001 NUT
BRACKET TO FRAME SIDE MEMBER
A 6204310062 COVERING
CHECK VALVE
N 000933008130 SCREW
Repalced by: N 304017008039
N 304017008039 SCREW
BRACKET TO COVER PLATE
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
BRACKET TO COVER PLATE
N 915045012100 SEAL RING
Repalced by: N 007603012121
N 007603012121 SEAL RING
CHECK VALVE,CONNECTION:
"10"
N 915036012203 HOLLOW SCREW
CHECK VALVE,CONNECTION:
21
N 915036012203 HOLLOW SCREW
CHECK VALVE,CONNECTION:
21
N 007603016401 SEAL RING
CHECK VALVE,CONNECTION:
21
N 007603016401 SEAL RING
CHECK VALVE,CONNECTION:
21
N 915036010204 HOLLOW SCREW
Repalced by: N 915036010108
N 915036010108 HOLLOW SCREW
CHECK VALVE,CONNECTION:
23
N 915036010108 HOLLOW SCREW
CHECK VALVE,CONNECTION:
23
N 007603014405 SEAL RING
CHECK VALVE,CONNECTION:
23
N 007603014405 SEAL RING
CHECK VALVE,CONNECTION:
23
N 000908016001 SCREW PLUG
CHECK VALVE,CONNECTION:
22
N 000908016001 SCREW PLUG
CHECK VALVE,CONNECTION:
22
A 0009971548 SEAL RING
CHECK VALVE,CONNECTION:
22
A 0004290927 THRUST RING
CHECK VALVE,CONNECTION:
22
A 0014292044 VALVE
Repalced by: A 0034291644
660 A 0034291644 VALVE
RELAY VALVE
BOSCH
660 A 0024290744 VALVE
Repalced by: A 0034295344
660 A 0034295344 VALVE
RELAY VALVE
KNORR
660 A 0014296844 VALVE
RELAY VALVE
WABCO
662 A 0014299144 VALVE
RELAY VALVE
GRAU
664 A 0059972648 SEAL RING
TO 001 429 91 44,22.3X2.4 MM,GRAU
666 A 0004312788 VALVE SEAT
TO 001 429 91 44,GRAU
668 A 0059972748 SEAL RING
TO 001 429 91 44,80X3 MM,GRAU
670 A 0014311660 SEAL RING
TO 001 429 91 44,28X2 MM,GRAU
672 A 0014311760 SEAL RING
TO 001 429 91 44,86X2 MM,GRAU
674 A 0004311980 GASKET
TO 001 429 91 44,34X2X6 MM,GRAU
A 0015862742 REPAIR KIT
TO 001 429 20 44,BOSCH
676 A 0005865742 REPAIR KIT
TO 001 429 68 44,WABCO
A 0025863542 REPAIR KIT
TO 002 429 07 44,003 429 53 44,KNORR
A 0025865642 REPAIR KIT
Repalced by: A 0004201071
A 0004201071 VALVE
GASKET KIT
TO 003 429 16 44,BOSCH; UP TO 03.82
A 0004201271 VALVE
GASKET KIT
TO 003 429 16 44,BOSCH; FROM 04.82
A 0025865742 REPAIR KIT
Repalced by: A 0004301109
A 0004301109 REPAIR KIT
BLEEDER VALVE
TO 003 429 16 44,BOSCH
682 A 0029971172 FITTING
RELAY VALVE,CONNECTION:
"1"
684 A 0009905168 FITTING
RELAY VALVE,CONNECTION:
"1"
684 A 0009905168 FITTING
RELAY VALVE,CONNECTION:
"1"
686 A 0039972072 FITTING
RELAY VALVE,CONNECTION:
"4"
688 A 0004290927 THRUST RING
RELAY VALVE;CONNECTIONS:
"2,4"
690 A 0004290227 THRUST RING
RELAY VALVE,CONNECTION:
"1"
692 A 0009971548 SEAL RING
RELAY VALVE;CONNECTIONS:
"2,4"
694 A 0009870446 SEALING CORD
RELAY VALVE,CONNECTION:
"1"
696 N 000908016001 SCREW PLUG
RELAY VALVE,CONNECTION:
"2"
698 N 915036012203 HOLLOW SCREW
RELAY VALVE,CONNECTION:
"1,4"
698 N 915036012203 HOLLOW SCREW
RELAY VALVE,CONNECTION:
"1,4"
700 N 007603016401 SEAL RING
RELAY VALVE,CONNECTION:
"1,4"
700 N 007603016401 SEAL RING
RELAY VALVE,CONNECTION:
"1,4"
720 A 3634311740 BRACKET
RELAY VALVE
722 A 6204292040 BRACKET
RELAY VALVE
724 A 6204310340 BRACKET
RELAY VALVE
726 N 913004008004 NUT
Repalced by: N 913004008001
726 N 913004008001 NUT
BRACKET TO RELAY VALVE
728 N 000125008418 WASHER
Repalced by: N 000125008443
728 N 000125008443 WASHER
BRACKET TO RELAY VALVE
730 N 000933010105 SCREW
BRACKET TO LEFT SIDE MEMBER
730 N 000961012107 SCREW
Repalced by: N 308676012011
730 N 308676012011 SCREW
732 N 913004010008 NUT
Repalced by: N 910113010000
732 N 910113010000 NUT
BRACKET TO LEFT SIDE MEMBER
732 N 910113012002 NUT
BRACKET TO SIDE MEMBER
742 A 0014311412 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
744 A 0025867343 REPAIR KIT
TO 001 431 14 12
746 A 0014313212 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
WABCO
746 A 0014313212 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
WABCO
746 A 0014313612 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
BOSCH
746 A 0014313612 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
BOSCH
746 A 0024310412 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
KNORR
746 A 0024310412 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
KNORR
746 A 0014313312 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
WABCO
746 A 0014313312 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
WABCO
746 A 0014313512 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
BOSCH
746 A 0014313512 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
BOSCH
746 A 0024310512 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
KNORR
746 A 0024310512 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
KNORR
748 A 0035860243 REPAIR KIT
Repalced by: A 0004307560
748 A 0004307560 REPAIR KIT
TO 001 431 32 12,001 431 33 12,WABCO
748 A 0004307560 REPAIR KIT
TO 001 431 32 12,001 431 33 12,WABCO
A 0004301868 REPAIR KIT
GASKETS
TO 001 431 35 12,36 12,BOSCH
A 0004301868 REPAIR KIT
GASKETS
TO 001 431 35 12,36 12,BOSCH
A 0014311486 REPAIR KIT
COVERING
TO 001 431 35 12,BOSCH
A 0014311586 REPAIR KIT
COVERING
TO 001 431 36 12,BOSCH
A 0014311586 REPAIR KIT
COVERING
TO 001 431 36 12,BOSCH
A 0004301883 REPAIR KIT
VALVE
TO 001 431 35 12,36 12,BOSCH
A 0004301883 REPAIR KIT
VALVE
TO 001 431 35 12,36 12,BOSCH
A 0004300207 REPAIR KIT
BRAKE POWER REGULATOR
TO 002 431 04 12,KNORR
A 0004300207 REPAIR KIT
BRAKE POWER REGULATOR
TO 002 431 04 12,KNORR
A 0004300307 REPAIR KIT
Repalced by: A 0004300207
A 0004300207 REPAIR KIT
BRAKE POWER REGULATOR
TO 002 431 05 12,KNORR
750 A 6205840221 GUIDE SIGN
LOAD-DEPENDING BRAKE
750 A 6205840321 GUIDE SIGN
LOAD-DEPENDING BRAKE
750 A 6205841221 GUIDE SIGN
LOAD-DEPENDING BRAKE
750 A 6205841221 GUIDE SIGN
LOAD-DEPENDING BRAKE
750 A 6455841521 GUIDE SIGN
LOAD-DEPENDING BRAKE
750 A 6205841021 GUIDE SIGN
LOAD-DEPENDING BRAKE
750 A 6205841021 GUIDE SIGN
LOAD-DEPENDING BRAKE
750 A 6205843521 GUIDE SIGN
LOAD-DEPENDING BRAKE
A 3875840055 ADHESIVE FOIL
752 N 074317012200 FITTING
Repalced by: A 0009907470
752 A 0009907470 T-FITTING
BRAKE POWER REGULATOR,CONNECTION:
"2"
754 N 915039012205 HOLLOW SCREW FITTING
BRAKE POWER REGULATOR,CONNECTION:
"4"
754 N 915039012205 HOLLOW SCREW FITTING
BRAKE POWER REGULATOR,CONNECTION:
"4"
756 N 000908016001 SCREW PLUG
BRAKE POWER REGULATOR,CONNECTION:
"2"
758 N 074315012100 FITTING
Repalced by: A 0019903371
758 A 0019903371 ELBOW FITTING
BRAKE POWER REGULATOR,CONNECTION:
"1"
760 A 0009971548 SEAL RING
BRAKE POWER REGULATOR,CONNECTION:
"1,2"
760 A 0009971548 SEAL RING
BRAKE POWER REGULATOR,CONNECTION:
"1,2"
762 A 0004290927 THRUST RING
BRAKE POWER REGULATOR,CONNECTION:
"1,2"
762 A 0004290927 THRUST RING
BRAKE POWER REGULATOR,CONNECTION:
"1,2"
764 N 080705016003 NUT
BRAKE POWER REGULATOR,CONNECTION:
"1,2"
766 N 915036012203 HOLLOW SCREW
BRAKE POWER REGULATOR,CONNECTION:
"1,2"
766 N 915036012203 HOLLOW SCREW
BRAKE POWER REGULATOR,CONNECTION:
"1,2"
768 N 007603016401 SEAL RING
BRAKE POWER REGULATOR,CONNECTION:
"1,2,4"
770 A 0004312031 TEST CONNECTION
BRAKE POWER REGULATOR,CONNECTION:
"4" VOSS
770 A 0004314531 TEST CONNECTION
BRAKE POWER REGULATOR,CONNECTION:
"4" SCHAEFER
770 A 0004314831 TEST CONNECTION
BRAKE POWER REGULATOR,CONNECTION:
"4",WABCO
770 A 0004316131 TEST CONNECTION
BRAKE POWER REGULATOR,CONNECTION:
"4",WIRA
A 0009979486 PLUG
780 A 3874311540 BRACKET
BRAKE POWER REGULATOR
782 A 6204311740 BRACKET
BRAKE POWER REGULATOR
A 6204313940 BRACKET
BRAKE POWER REGULATOR
A 6204313940 BRACKET
BRAKE POWER REGULATOR
A 6454310440 BRACKET
BRAKE POWER REGULATOR
784 N 913004008004 NUT
Repalced by: N 913004008001
784 N 913004008001 NUT
BRACKET TO BRAKE POWER REGULATOR
N 000125008418 WASHER
Repalced by: N 000125008443
N 000125008443 WASHER
BRACKET TO BRAKE POWER REGULATOR
786 N 000933010129 SCREW
Repalced by: N 304017010002
786 N 304017010002 SCREW
BRACKET TO SIDE MEMBER
788 N 912004010102 LOCK WASHER
BRACKET TO SIDE MEMBER
790 N 000961012097 SCREW
Repalced by: N 308676012026
790 N 308676012026 SCREW
BRACKET TO CROSS MEMBER
M 12X35
790 N 000961012151 SCREW
BRACKET TO CROSS MEMBER
M 12X30
790 N 000961012151 SCREW
BRACKET TO CROSS MEMBER
M 12X30
790 N 000961012151 SCREW
BRACKET TO CROSS MEMBER
M 12X30
N 000961016108 SCREW
BRACKET TO SIDE MEMBER
M 16X30
N 000961016075 SCREW
Repalced by: N 308676016020
N 308676016020 SCREW
BRACKET TO SIDE MEMBER
M 16X35
N 000933010105 SCREW
BRACKET TO SIDE MEMBER
M 10X25
N 000933010157 SCREW
BRACKET TO SIDE MEMBER
M 10X28
792 N 910113012002 NUT
BRACKET TO CROSS MEMBER
792 N 910113012002 NUT
BRACKET TO CROSS MEMBER
N 913004010008 NUT
Repalced by: N 910113010000
N 910113010000 NUT
BRACKET TO SIDE MEMBER
794 A 3874300510 BRACKET
PULL ROD TO BRACKET AND TO BRAKEPRESSURE-REGULATOR LEVER
796 N 071803013208 BALL PIVOT
798 N 000933008152 SCREW
Repalced by: N 304017008027
798 N 304017008027 SCREW
BRACKET TO SUPPORT
800 N 913004008004 NUT
Repalced by: N 913004008001
800 N 913004008001 NUT
BRACKET TO SUPPORT
802 A 3854310239 LEVER
Repalced by: A 6204310839
802 A 6204310839 LEVER
Repalced by: A 6744310039
802 A 6744310039 LEVER
BRAKE POWER REGULATOR CONTROL
804 N 900331008419 PULL ROD
BRAKE POWER REGULATOR CONTROL
804 N 900331008419 PULL ROD
BRAKE POWER REGULATOR CONTROL
804 N 900331008420 PULL ROD
BRAKE POWER REGULATOR CONTROL
804 N 900331008420 PULL ROD
BRAKE POWER REGULATOR CONTROL
806 A 0004310735 CONNECTOR
BRAKE POWER REGULATOR CONTROL
A 6249950065 CLAMP
BRAKE POWER REGULATOR CONTROL
808 N 916026010000 CLAMP
Repalced by: N 000000000665
808 N 000000000665 CLAMP
CONNECTOR TO ROD
810 N 000934008010 NUT
Repalced by: N 304032008006
810 N 304032008006 NUT
CONNECTOR TO ROD
812 A 0009911822 BALL SOCKET
CONNECTOR TO ROD
814 N 000125008418 WASHER
Repalced by: N 000125008443
814 N 000125008443 WASHER
CONNECTOR TO ROD
N 000094002077 COTTER PIN
CONNECTOR TO ROD
816 A 0004311418 METAL SPRING BELLOWS
Repalced by: A 0004311718
816 A 0004311418 METAL SPRING BELLOWS
Repalced by: A 0004311718
816 A 0004311718 METAL SPRING BELLOWS
BRAKE POWER REGULATOR CONTROL
816 A 0004311718 METAL SPRING BELLOWS
BRAKE POWER REGULATOR CONTROL
816 A 0004311218 METAL SPRING BELLOWS
BRAKE POWER REGULATOR CONTROL
816 A 0004311018 METAL SPRING BELLOWS
BRAKE POWER REGULATOR CONTROL
816 A 0004311018 METAL SPRING BELLOWS
BRAKE POWER REGULATOR CONTROL
818 A 3874311240 BRACKET
METAL SPRING BELLOWS
820 A 6204311040 BRACKET
METAL SPRING BELLOWS
820 A 6204311040 BRACKET
METAL SPRING BELLOWS
820 A 6204310840 BRACKET
Repalced by: A 6204313740
820 A 6204313740 BRACKET
REAR AXLE II
820 A 6204313740 BRACKET
REAR AXLE II
822 N 000933012039 SCREW
METAL SPRING BELLOWS TO BRACKET
M 12X18
822 N 000933012039 SCREW
METAL SPRING BELLOWS TO BRACKET
M 12X18
822 N 000933012039 SCREW
METAL SPRING BELLOWS TO BRACKET
M 12X18
N 000961012047 SCREW
METAL SPRING BELLOWS TO BRACKET
M 12X1.5X18
N 000961012047 SCREW
METAL SPRING BELLOWS TO BRACKET
M 12X1.5X18
N 000961012047 SCREW
METAL SPRING BELLOWS TO BRACKET
M 12X1.5X18
824 N 912004012100 LOCK WASHER
METAL SPRING BELLOWS TO BRACKET
826 N 000961016096 SCREW
Repalced by: N 308676016007
826 N 308676016007 SCREW
BRACKET AND BEARING BRACKET TO REAR AXLE
M 16X1.5X50
828 A 6209900640 WASHER
BRACKET AND BEARING BRACKET TO REAR AXLE
838 A 0014306481 VALVE
FRONT AXLE BRAKE PRESSURE
838 A 0014306481 VALVE
FRONT AXLE BRAKE PRESSURE
840 A 0019871746 SEALING CORD
840 A 0019871746 SEALING CORD
842 A 0089970445 SEAL RING
842 A 0089970445 SEAL RING
844 A 0089978648 SEAL RING
844 A 0089978648 SEAL RING
846 A 0004313223 VALVE
846 A 0004313223 VALVE
848 N 007603016401 SEAL RING
848 N 007603016401 SEAL RING
850 A 0089978748 SEAL RING
850 A 0089978748 SEAL RING
852 N 915036012203 HOLLOW SCREW
REGULATING VALVE,CONNECTION:
"1"
852 N 915036012203 HOLLOW SCREW
REGULATING VALVE,CONNECTION:
"1"
854 A 0004296134 ADAPTER FITTING
Repalced by: A 0069970072
854 A 0069970072 FITTING
REGULATING VALVE,CONNECTION:
"1"
854 A 0069970072 FITTING
REGULATING VALVE,CONNECTION:
"1"
856 N 007603016401 SEAL RING
REGULATING VALVE,CONNECTION:
"1,2"
856 N 007603016401 SEAL RING
REGULATING VALVE,CONNECTION:
"1,2"
858 A 0009971548 SEAL RING
REGULATING VALVE,CONNECTION:
"1,2"
858 A 0009971548 SEAL RING
REGULATING VALVE,CONNECTION:
"1,2"
860 A 0004290927 THRUST RING
REGULATING VALVE,CONNECTION:
"1,2"
860 A 0004290927 THRUST RING
REGULATING VALVE,CONNECTION:
"1,2"
862 A 6204312440 BRACKET
REGULATING VALVE
"1"
862 A 6204312440 BRACKET
REGULATING VALVE
"1"
862 A 6204312540 BRACKET
REGULATING VALVE
"1"
862 A 6204312540 BRACKET
REGULATING VALVE
"1"
864 N 007976005204 SHEET METAL SCREW
BRACKET TO CAB FLOOR
864 N 007976005204 SHEET METAL SCREW
BRACKET TO CAB FLOOR
866 N 913004008004 NUT
Repalced by: N 913004008001
866 N 913004008001 NUT
BRACKET TO CAB FLOOR
866 N 913004008001 NUT
BRACKET TO CAB FLOOR
868 N 915047012203 HOLLOW SCREW
REGULATING VALVE,CONNECTION:
"2"
868 N 915047012203 HOLLOW SCREW
REGULATING VALVE,CONNECTION:
"2"
870 N 000908016001 SCREW PLUG
REGULATING VALVE,CONNECTION:
"2"
870 N 000908016001 SCREW PLUG
REGULATING VALVE,CONNECTION:
"2"
A 0029900271 ELBOW FITTING
A 0029900872 DISTRIBUTOR
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
FITTING TO CAB FLOOR
N 915036012203 HOLLOW SCREW
AT FITTING
N 915047012203 HOLLOW SCREW
AT FITTING
N 007603016401 SEAL RING
AT FITTING
890 N 916027011014 HOSE
FROM COMPRESSED AIR LINE TO TRISTOP CYLINDER
892 A 0004290541 FITTING
BRAKE HOSE
894 A 0004290641 FITTING
FROM COMPRESSED AIR LINE TO TRISTOP CYLINDER
896 N 074304016201 FITTING
FROM COMPRESSED AIR LINE TO TRISTOP CYLINDER
898 N 915017012100 UNION NUT
900 N 003861012007 GLAND
Repalced by: A 0019901967
900 A 0019901967 SEAL CONE
902 N 916017016000 CLAMP
Repalced by: N 000000000666
902 N 000000000666 CLAMP
LINE MOUNTING
A 0039975745 SEAL RING
FOR HOSE
A 6209950065 CLAMP
FOR HOSE
A 1159950465 CLAMP
FOR HOSE
904 N 080705018002 NUT
BRAKE HOSE TO BRACKET
910 A 0074206318 WHEEL BRAKE CYLINDER
TRISTOP CYLINDER
WABCO
910 A 0084209318 WHEEL BRAKE CYLINDER
TRISTOP CYLINDER
BOSCH
910 A 0084205718 WHEEL BRAKE CYLINDER
TRISTOP CYLINDER
KNORR
910 A 0094209418 WHEEL BRAKE CYLINDER
TRISTOP CYLINDER
GRAU
911 A 0074205718 WHEEL BRAKE CYLINDER
TRISTOP CYLINDER
WABCO
911 A 0084208918 WHEEL BRAKE CYLINDER
TRISTOP CYLINDER
BOSCH
911 A 0084205818 WHEEL BRAKE CYLINDER
TRISTOP CYLINDER
KNORR
A 0004214886 CUP
Repalced by: A 0004213886
A 0004213886 CUP
TO 007 420 57 18,WABCO
A 0004312928 DIAPHRAGM
TO 008 420 57 18,008 420 58 18,KNORR
A 0004313028 DIAPHRAGM
TO 008 420 89 18,008 420 93 18,BOSCH
A 0004231060 SEAL RING
TO 008 420 57 18,KNORR
A 0004233886 CUP
TO 008 420 93 18,BOSCH
A 0004234187 PROTECTIVE CAP
TO 008 420 57 18,008 420 58 18,KNORR
A 0004211263 GUIDE
Repalced by: N 071752014000
N 071752014000 YOKE
TO 008 420 89 18,008 420 93 18,BOSCH
913 A 0025863742 REPAIR KIT
Repalced by: A 0025865242
913 A 0025865242 REPAIR KIT
Repalced by: A 0024301560
913 A 0024301560 REPAIR KIT
TO 007 420 63 18,007 420 57 18,WABCO
A 0004304060 REPAIR KIT
Repalced by: A 0024209524
A 0024209524 REPAIR KIT
DIAPHRAGM PART
TO 008 420 57 18,KNORR
A 0024209424 REPAIR KIT
SPRING LOAD ACCUMULATOR PART
TO 008 420 57 18,KNORR
A 0004304160 REPAIR KIT
Repalced by: A 0024209824
A 0024209824 REPAIR KIT
Repalced by: A 0024209524
A 0024209524 REPAIR KIT
DIAPHRAGM PART
TO 008 420 58 18,KNORR
A 0024209424 REPAIR KIT
SPRING LOAD ACCUMULATOR PART
TO 008 420 58 18,KNORR
A 0014308660 REPAIR KIT
TRISTOP CYLINDER
TO 008 420 89 18,008 420 93 18,BOSCH
915 A 3894230133 BEARING BRACKET
Repalced by: A 3634230033
915 A 3634230033 BEARING BRACKET
TRISTOP CYLINDER
916 A 6214230033 BEARING BRACKET
TRISTOP CYLINDER
918 A 3874230006 BRAKE ANCHOR
TRISTOP CYLINDER
920 N 000961014054 SCREW
SUPPORT TO BEARING BRACKET
M 14X1.5X45
920 N 000961014054 SCREW
SUPPORT TO BEARING BRACKET
M 14X1.5X45
920 N 000961014028 SCREW
SUPPORT TO BEARING BRACKET
M 14X1.5X40
920 N 000961014028 SCREW
SUPPORT TO BEARING BRACKET
M 14X1.5X40
921 N 913004014002 NUT
Repalced by: N 910113014001
921 N 910113014001 NUT
SUPPORT TO BEARING BRACKET
922 N 000961016036 SCREW
Repalced by: N 308676016013
922 N 308676016013 SCREW
BEARING BRACKET TO REAR AXLE
M 16X1,5X40
923 N 913004016004 NUT
Repalced by: N 910113016002
923 N 910113016002 NUT
TRISTOP CYLINDER TO BEARING BRACKET
924 A 3619910005 PIN
TRISTOP CYLINDER TO SLACK ADJUSTER
925 N 000433015002 WASHER
Repalced by: N 000433015005
925 N 000433015005 WASHER
TRISTOP CYLINDER TO SLACK ADJUSTER
N 000094004051 COTTER PIN
TRISTOP CYLINDER TO SLACK ADJUSTER
927 A 0019905370 T-FITTING
CONNECTION TO TRISTOP CYLINDER
"11,12"
928 A 0009904570 T-FITTING
TRISTOP CYLINDER;CONNECTION:
"11"
929 A 0029973472 FITTING
TRISTOP CYLINDER;CONNECTION:
"12"
930 N 080705016003 NUT
CONNECTION TO TRISTOP CYLINDER
"11,12"
931 A 0004290927 THRUST RING
CONNECTION TO TRISTOP CYLINDER
"11,12"
932 A 0009971548 SEAL RING
CONNECTION TO TRISTOP CYLINDER
"11,12"
933 N 915039012205 HOLLOW SCREW FITTING
CONNECTION TO TRISTOP CYLINDER
"11,12"
933 N 915039012205 HOLLOW SCREW FITTING
CONNECTION TO TRISTOP CYLINDER
"11,12"
934 A 0009904770 T-FITTING
CONNECTION TO TRISTOP CYLINDER
935 N 915036012203 HOLLOW SCREW
CONNECTION TO TRISTOP CYLINDER
"11"
935 N 915036012203 HOLLOW SCREW
CONNECTION TO TRISTOP CYLINDER
"11"
936 N 007603016401 SEAL RING
CONNECTION TO TRISTOP CYLINDER
"11,12"
938 A 0004312031 TEST CONNECTION
SPRING LOAD ACCUMULATOR CYLINDER
VOSS
938 A 0004314531 TEST CONNECTION
SPRING LOAD ACCUMULATOR CYLINDER
SCHAEFER
938 A 0004314831 TEST CONNECTION
SPRING LOAD ACCUMULATOR CYLINDER
WABCO
938 A 0004316131 TEST CONNECTION
SPRING LOAD ACCUMULATOR CYLINDER
WIRA
A 0009979486 PLUG
940 A 0004305581 VALVE
HAND BRAKE VALVE
WABCO
940 A 0004306681 VALVE
HAND BRAKE VALVE
KNORR
940 A 0004305681 VALVE
HAND BRAKE VALVE
WABCO
940 A 0004306781 VALVE
HAND BRAKE VALVE
KNORR
942 A 0014303481 VALVE
PARKING BRAKE VALVE
BOSCH
942 A 0014303481 VALVE
PARKING BRAKE VALVE
BOSCH
942 A 0014305681 VALVE
PARKING BRAKE VALVE
WABCO
942 A 0014305681 VALVE
PARKING BRAKE VALVE
WABCO
942 A 0014306681 VALVE
Repalced by: A 0024309881
942 A 0024309881 VALVE
PARKING BRAKE VALVE
KNORR
942 A 0024309881 VALVE
PARKING BRAKE VALVE
KNORR
942 A 0014304381 VALVE
PARKING BRAKE VALVE
BOSCH
942 A 0014304381 VALVE
PARKING BRAKE VALVE
BOSCH
942 A 0014305781 VALVE
PARKING BRAKE VALVE
WABCO
942 A 0014305781 VALVE
PARKING BRAKE VALVE
WABCO
942 A 0014306781 VALVE
Repalced by: A 0024309981
942 A 0024309981 VALVE
PARKING BRAKE VALVE
KNORR
942 A 0024309981 VALVE
PARKING BRAKE VALVE
KNORR
A 0014310887 PROTECTIVE CAP
TO 001 430 56 81,WABCO
A 0014311087 PROTECTIVE CAP
TO 001 431 34 81,43 81,BOSCH
A 0014311287 PROTECTIVE CAP
KNORR
A 0014311287 PROTECTIVE CAP
KNORR
A 0009972477 HANDLE
TO 001 430 56 81,001 430 57 81,WABCO
A 0009972477 HANDLE
TO 001 430 56 81,001 430 57 81,WABCO
A 0009973477 HANDLE
TO 001 430 34 81,001 430 43 81,BOSCH
A 0009973477 HANDLE
TO 001 430 34 81,001 430 43 81,BOSCH
N 001481003025 CLAMPING SLEEVE
KNORR
N 001481003025 CLAMPING SLEEVE
KNORR
A 0009975577 HANDLE
KNORR
A 0009975577 HANDLE
KNORR
944 A 0004300027 HANDLE
PARTS KIT
TO 001 430 34 81,001 430 43 81,BOSCH
A 0005868043 REPAIR KIT
Repalced by: A 0004305760
A 0004305760 REPAIR KIT
TO 000 430 55 81,WABCO
A 0025867443 REPAIR KIT
Repalced by: A 0034303181
A 0034303181 REPAIR KIT
TO 001 430 56 81,57 81,WABCO
A 0034303181 REPAIR KIT
TO 001 430 56 81,57 81,WABCO
946 A 0005868143 REPAIR KIT
Repalced by: A 0004305860
946 A 0004305860 REPAIR KIT
TO 000 430 56 81,WABCO
946 A 0025866243 REPAIR KIT
Repalced by: A 0034303881
946 A 0034303881 REPAIR KIT
TO 000 430 66 81,000 431 67 81,KNORR
A 0034302081 REPAIR KIT
TO 002 430 98 81,002 430 99 81,KNORR
947 A 0025866343 REPAIR KIT
GASKET KIT
TO 001 430 34 81,001 430 43 81,BOSCH
947 A 0025866343 REPAIR KIT
GASKET KIT
TO 001 430 34 81,001 430 43 81,BOSCH
947 A 0035860543 REPAIR KIT
GASKET KIT
TO 001 430 66 81,001 430 67 81,KNORR
947 A 0035860543 REPAIR KIT
GASKET KIT
TO 001 430 66 81,001 430 67 81,KNORR
948 N 007603014405 SEAL RING
CONNECTION TO VALVE
949 N 915036010204 HOLLOW SCREW
Repalced by: N 915036010108
949 N 915036010108 HOLLOW SCREW
CONNECTION TO VALVE
950 A 0009976189 COUPLING
PARKING BRAKE VALVE
950 A 0009976189 COUPLING
PARKING BRAKE VALVE
951 A 0099973948 SEAL RING
951 A 0099973948 SEAL RING
952 N 000965006003 SCREW
VALVE TO CAB
M 6X25
952 N 000965006040 SCREW
VALVE TO CAB
M 6X30
953 A 3874310684 SHIM
VALVE TO CAB
954 N 007985008119 SCREW
PARKING BRAKE VALVE TO INSTRUMENT PANEL
954 N 007985008119 SCREW
PARKING BRAKE VALVE TO INSTRUMENT PANEL
955 N 912006008000 LOCK WASHER
PARKING BRAKE VALVE TO INSTRUMENT PANEL
955 N 912006008000 LOCK WASHER
PARKING BRAKE VALVE TO INSTRUMENT PANEL
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
